FAMILIARISATION

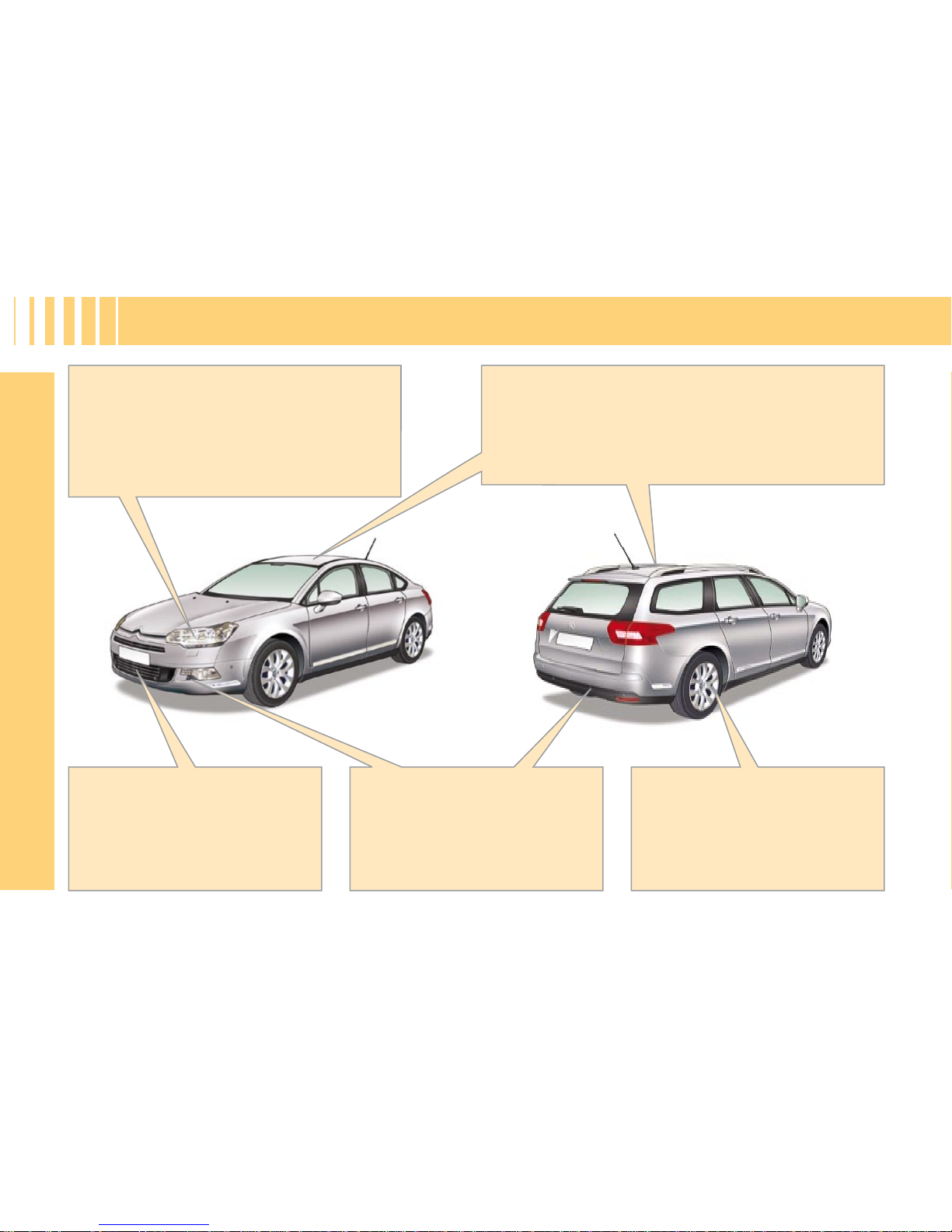

EXTERIOR
The Xenon dual-function directional
headlamps
This function automatically provides you with
extra visibility on bends. This lighting is linked
with the angular lighting which maximises the
area lit at intersections and when parking.
Lane departure warning system
This driving assistance device
warns you when you unwittingly
cross a lane marking.
Parking assistance
(visual + sound)
This function warns you if an
obstacle is detected in front of or
behind the vehicle.
Tyre defl ation detection
This function checks the pressure
of the tyres automatically while
driving.
Glass panoramic roof (Tourer)
This provides you with perfect brightness in the
passenger compartment.
Glass sun roof (Saloon)
This also provides you with improved ventilation in the
passenger compartment.
88 79-80
142 145 111

5
FAMILIARISATION

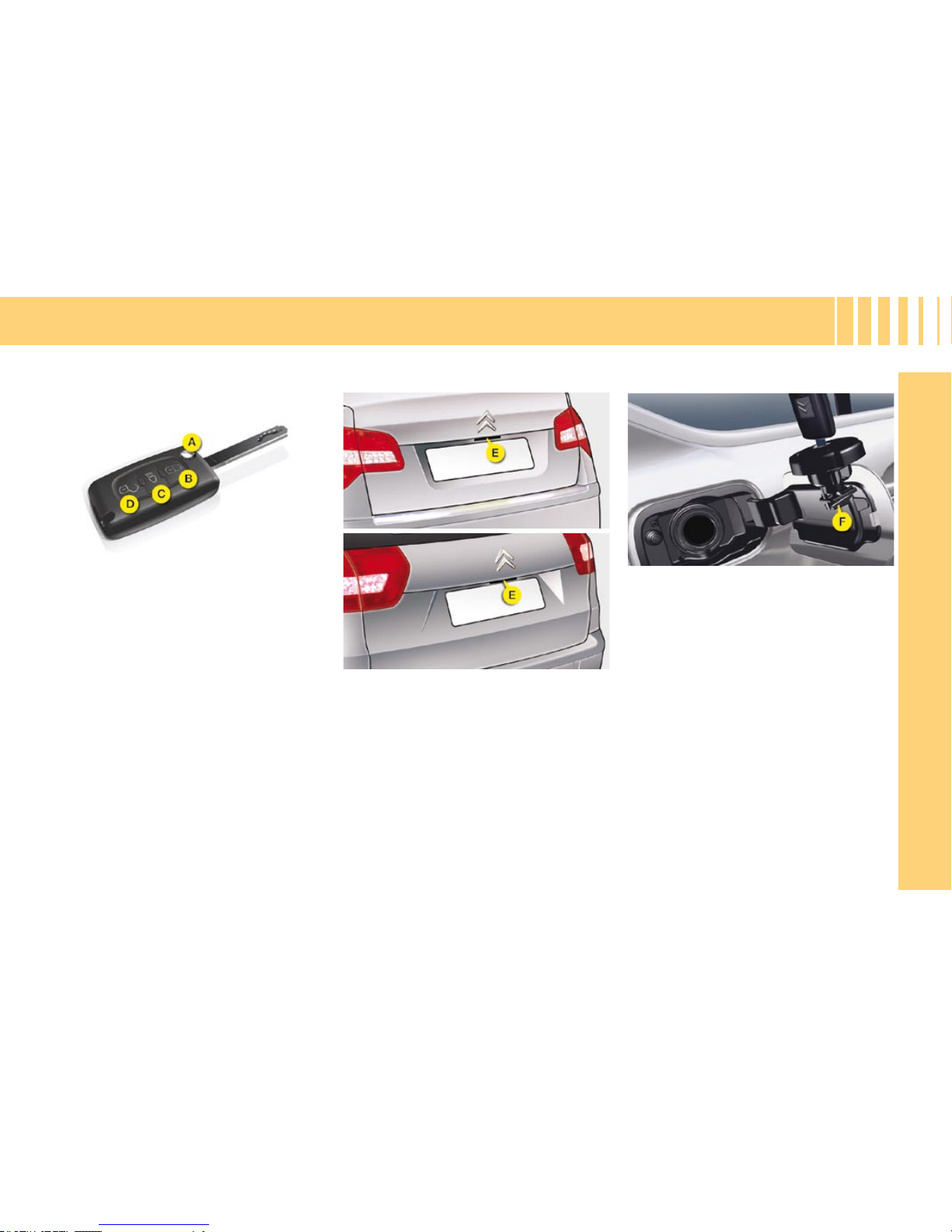

A. Key release/storage.
B. Normal locking of the vehicle (a single
press) or deadlocking of the vehicle
(two presses in succession).
C. Guide-me-home lighting.
D. Unlocking of the vehicle.
To open the fuel fl ap, press on the top
left part of it, then pull from the edge.
Press upwards on the lever E.
Opening the boot
76-77
81
OPENING
Remote control key Fuel tank
64
Locking filler cap
Turn the key a quarter turn to lock
and unlock the fi ller cap.
When refuelling, place the cap on hook F.
Tank capacity: approximately 71 litres.
The boot automatically locks when the
vehicle is moving at a speed of over
6 mph (10 km/h), even if automatic cen-
tral locking is deactivated. It is unlocked
when a door is opened or when the cen-
tral locking button is pressed (speed
lower than 6 mph (10 km/h).

6
FAMILIARISATION
This operation should only be per-
formed while the vehicle is stationary.
Open the driver's door.
Pull release lever Ato unlock.
Bonnet release
OPENING
Lift up lever B , then raise the bonnet.
Saloon
Tourer
Spare wheel
The tools are to be found in a protective
holder inside the spare wheel.
165
Access to the spare wheel
To access the spare wheel:
 Lift up the boot fl oor using the strap
(Saloon) or the retractable hook
(Tourer).
Fold back the boot carpet (Saloon).
Attach the hook to the upper section
of the boot.
 To remove the spare wheel, detach
the strap then push the wheel for-
wards, before lifting it out.
Puncture kit
The puncture repair kit is a complete
system including a compressor and a
setting product.
161
150

7
FAMILIARISATION
123
INTERIOR
Electronic parking brake
The electronic parking brake combines automatic engagement when
the engine is switched off, and automatic release when the vehicle is
set in motion (automatic function activated by default).
Manual locking/unlocking is possible.
Parking space sensor
The "Parking space sensor" func-
tion assists you in fi nding a parking
space.
Dual-zone automatic air conditioning
This air conditioning system enables you to
adjust the comfort levels of the driver and the
front passenger independently.
Audio and communication systems
This equipment benefi ts from the latest tech-
nology: MP3 compatible radio, Bluetooth®
hands-free kit, NaviDrive 3D, MyWay.
48 207
143

8
FAMILIARISATION

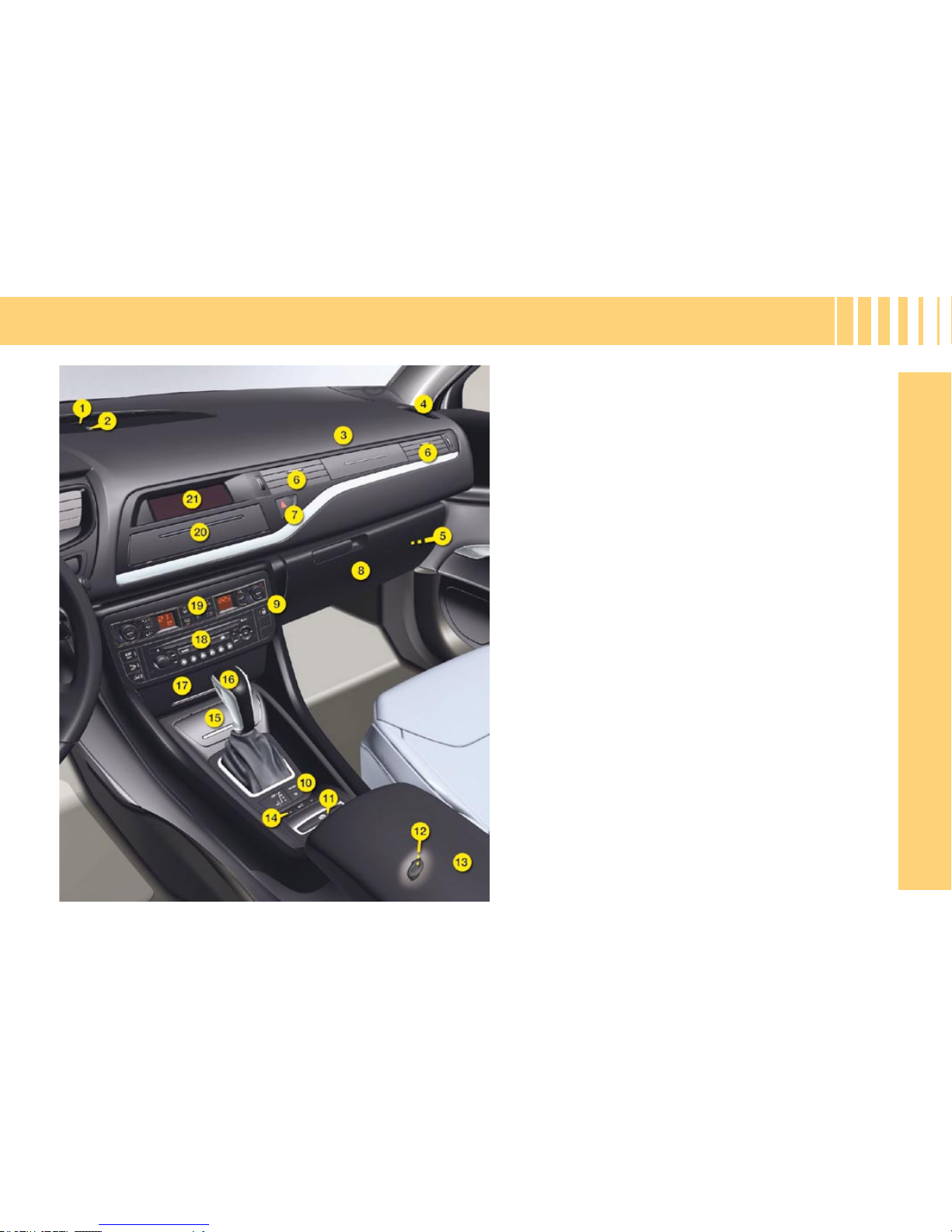

DASHBOARD
1. Electric windows/rear view mirrors/Child safety
controls.
2. Memorisation of driver’s seat and rear view mirrors
settings.
3. Bonnet release.

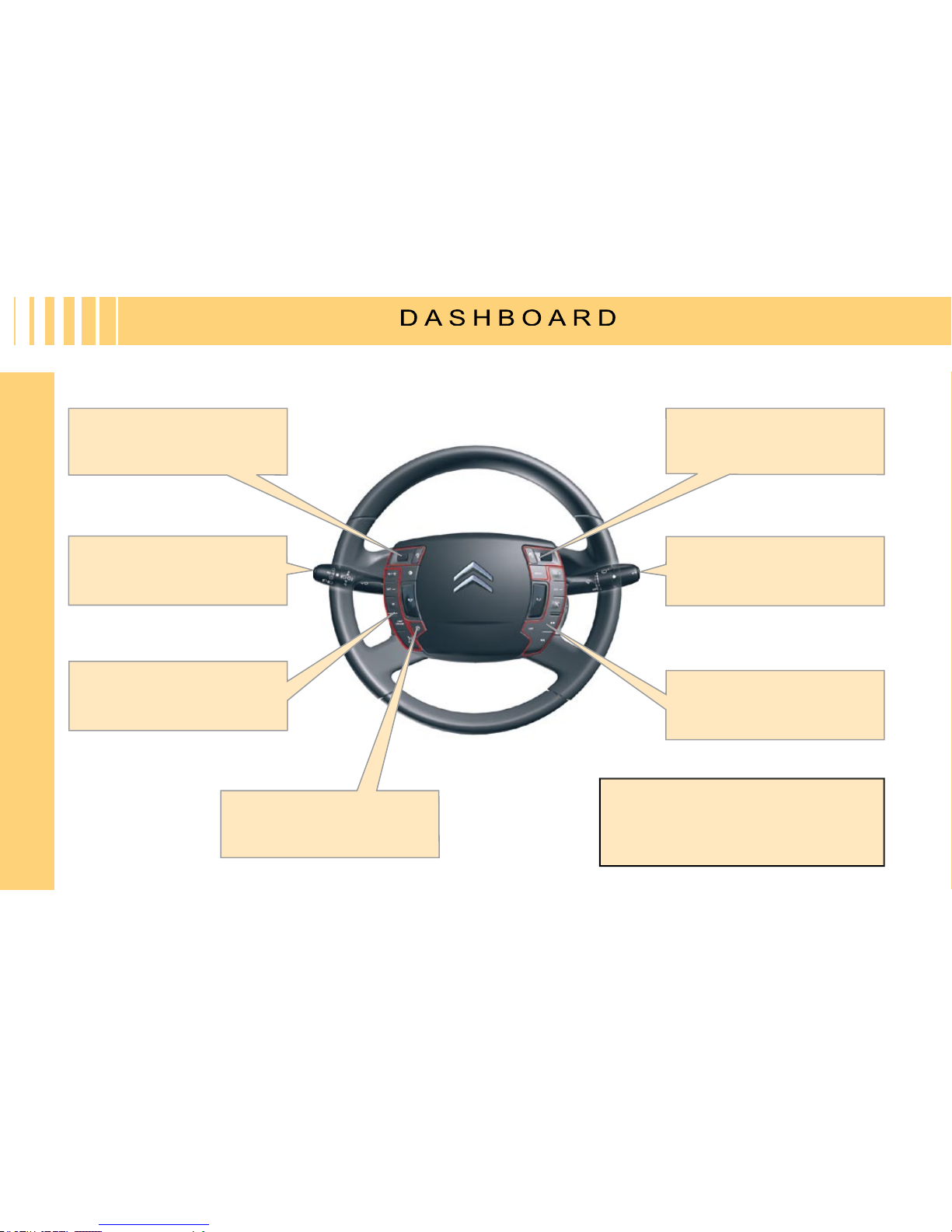

4. Controls at the steering wheel:
- Speed limiter
- Cruise control
5. Horn.
6. Audio/telematic controls under steering wheel.
7. Driver's airbag.
8. Navigation controls for the audio/telematics and
trip computer systems.
9. Driver's air vent.
10. Instrument panel.
11. Driver's air vent.
12. Windscreen wiper/screen wash controls.
13. Ignition switch.
14. ESP/parking assistance/lane departure warning
system controls.
15. Steering column adjustment.
16. Knees airbag.
17. Oddments tray or programmable heater controls.
Fusebox access fl ap.
18. Checks/Anti-intrusion alarm/Parking space sensor
controls.
19. Lighting/Direction indicators/Foglamp/Voice
recognition controls.
20. Manual headlamp height adjustment.

9
FAMILIARISATION
DASHBOARD
1. Sunlight sensor.
2. Soft diffusion air conditioning adjustment knob.
3. Passenger's airbag.
4. Side window demister.
5. Ignition key in the glovebox:
- Passenger’s airbag activation/deactivation
6. Passenger's air vents.
7. Hazard lamps button.
8. Glovebox:
- Vehicle document storage
- Audio-video sockets
9. Doors and boot locking/unlocking control.
Programmable heating indicator.
10. Automatic gearbox SPORT/SNOW mode controls.
11. Electronic parking brake.
12. USB reader socket.
13. Armrest with cup-holder.
14. Suspension controls:
- Ground clearance adjustment
- Sport mode
15. Ashtray with lighter.
16. Gear lever.
17. Storage.
18. Audio and telematics system.
19. Air conditioning controls.
20. Storage.
21. Multifunction screen.

10
FAMILIARISATION
DASHBOARD
Audio.
Instrument panel menu. Multifunction screen menu.
Telephone.

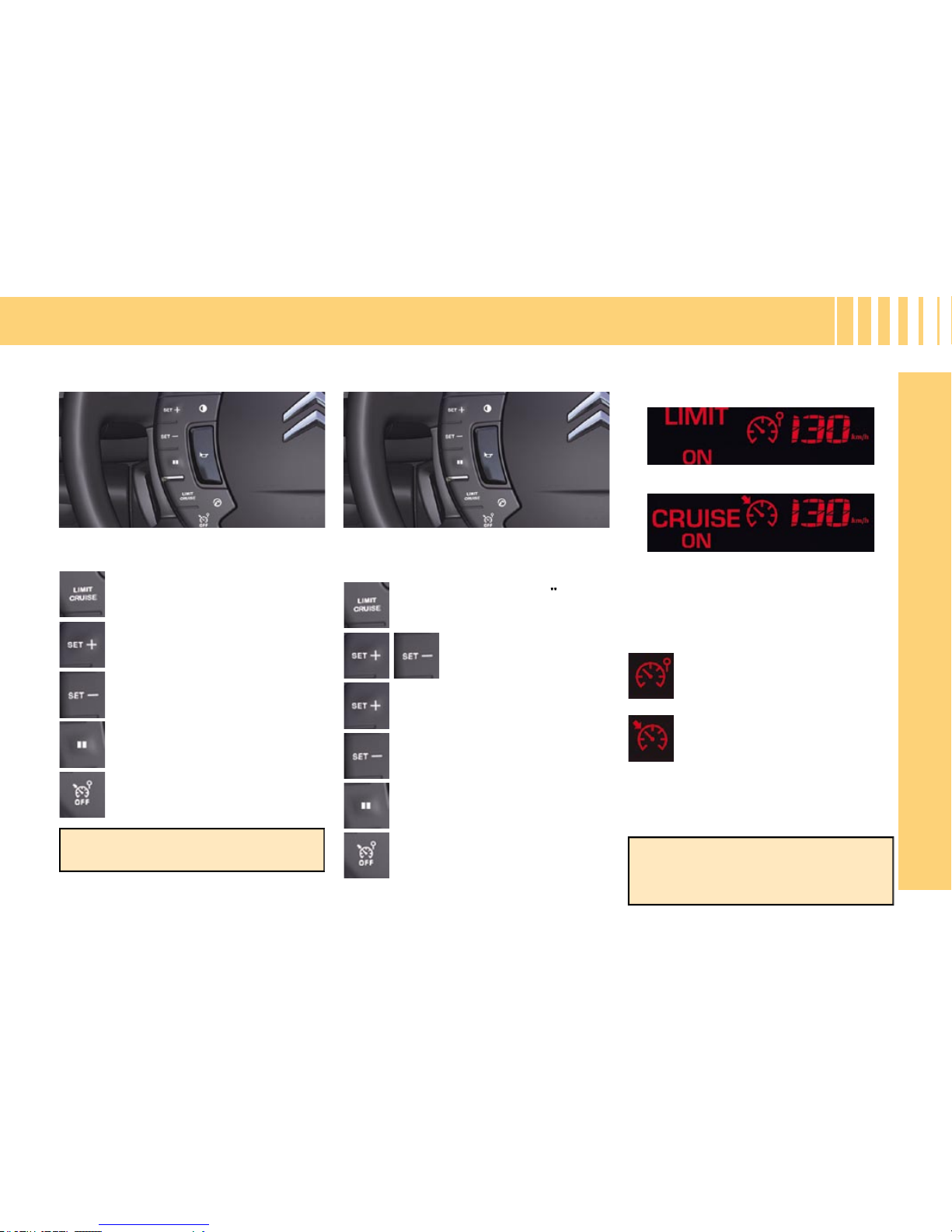

Cruise control and
speed limiter.
The "SET +, PAUSE, VOL+, MUTE"
buttons have touch-sensitive identifi ca-
tion to make them easier to use.
Activation of voice
recognition or reminder of
navigation guidance.
MODE: selection of the type
of information displayed on
multifunction screen.
136

11
FAMILIARISATION
GETTING STARTED
1. Seat cushion height, angle and slide
adjustments.
2. Adjustment of the backrest angle.
3. Adjustment of top of backrest.
4. Adjustment of 1 axis lumbar support.
5. Massage function.
6. Heated seat control.
A. Adjustment of the backrest angle.
B. Adjustment of the seat height.
C. Heated seat control.
D. Longitudinal adjustment of seat.
E. Adjustment of the backrest lumbar
support.
Memorisation
The Memorisation function allows you to
programme the driver’s seat, rear view
mirrors and air conditioning settings.
The correct position of the upper seat
belt anchorage places the belt across
the middle of the shoulder.
 To adjust the seat belt for height,
compress the control and slide it in
the desired direction.
Seat belt height adjustmentFront seats
Electrical adjustmentsManual adjustments
56
57
116
59

12
FAMILIARISATION
GETTING STARTED
Electrochrome interior rear
view mirror
Unlock the steering wheel by pushing
control Aforwards.
Adjust the height and the reach of
the steering wheel, then lock the po-
sition by pulling the lever upwards.
Steering column adjustmentElectric exterior rear view
mirrors
1. Selection of rear view mirror:
A. Left hand side.
B. Right hand side.
C. Foldback/Deployment.
2. Directional control for mirror se-
lected.
61
Operation
Switch on the ignition and press
button 4.
- Warning lamp 3on: automatic mode.
- Warning lamp 3off: automatic
mode stopped. The mirror remains
in its lightest defi nition.
62
63
As a safety precaution, these opera-
tions must not be carried out while
moving.

13
FAMILIARISATION
VISIBILITY
Front wipers
Control positions
2Rapid wipe.
1Normal wipe.
IIntermittent wipe.
0Off.
Lighting
Sidelamps.
Dipped beams/main beams.
Lamps off.
Pull the control stalk towards you
to change between dipped beam
and main beam.
Front foglamps and rear
foglamps on.
Front foglamps on.
Automatic lighting of headlamps.
Rear wipers (Tourer)
Rotate control Cto the desired posi-
tion.
Off
Intermittent wipe
Screen wash
Ring A
Ring B
83
Screen wash
Pull the screen wipe control stalk
towards you.
89-90
89
One press downwards:
- AUTO: Automatic wipe activated.
- Single wipe.
If the ignition has been switched off
for around 1 minute, it is necessary to
reactivate automatic wiping.

14
FAMILIARISATION
VENTILATION

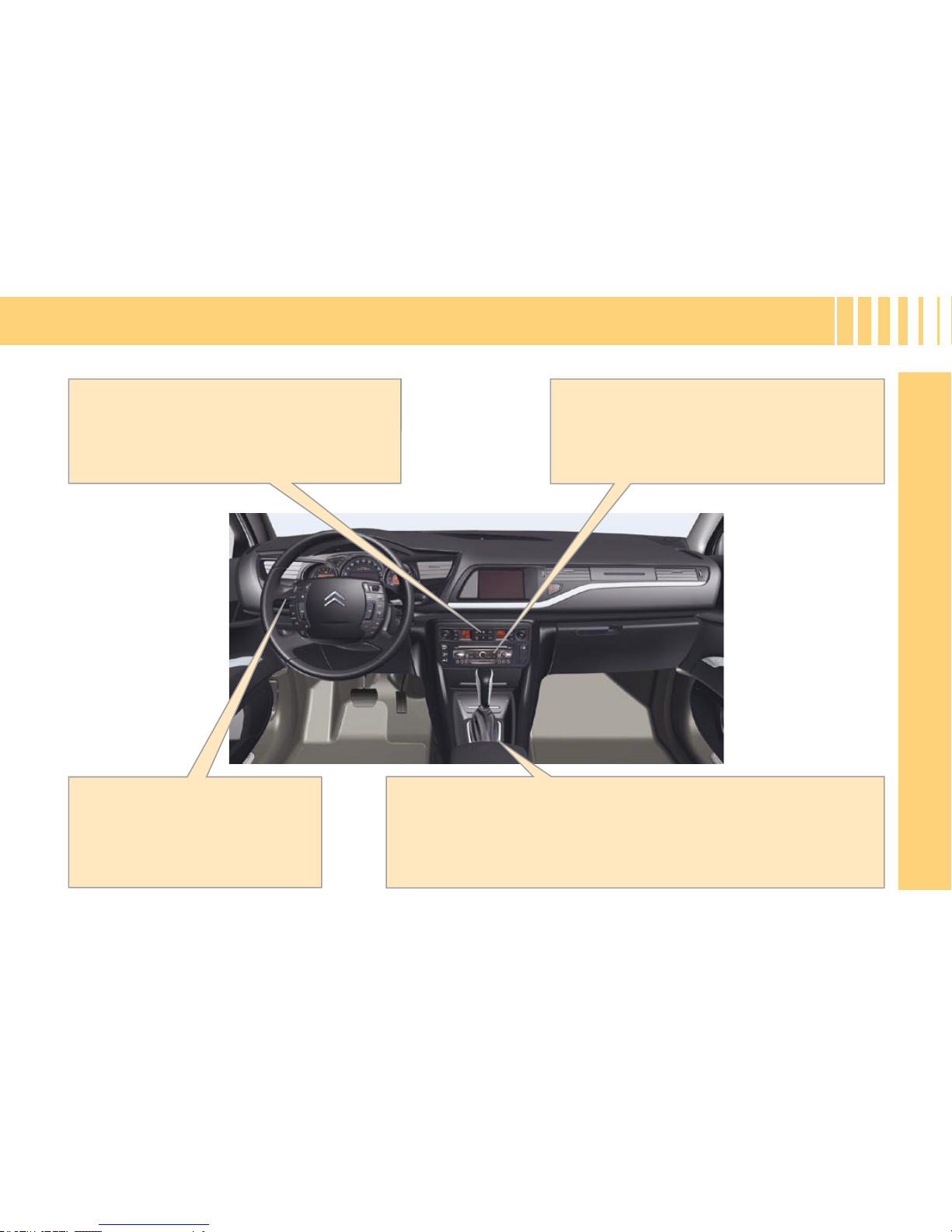

Dual zone automatic air conditioning
Adjustment of air
distribution on driver's side.
Passenger's side
automatic operation.
Adjustment of temperature
on driver's side.
Adjustment of air distribution
on passenger's side.
Rear and external rear view
mirrors demisting - deicing. Air recirculation - entry of
air from outside.
Front demisting - deicing.
Driver's side automatic
operation.
It is recommended to use automatic mode by pressing on the "AUTO" button.
Adjustment of temperature
on passenger's side.
Activation/deactivation of
air conditioning.
Adjusting the air fl ow.
48

15
FAMILIARISATION
MONITORING
Instrument panel
The hazard lamps can also
be used with the ignition
switched off.

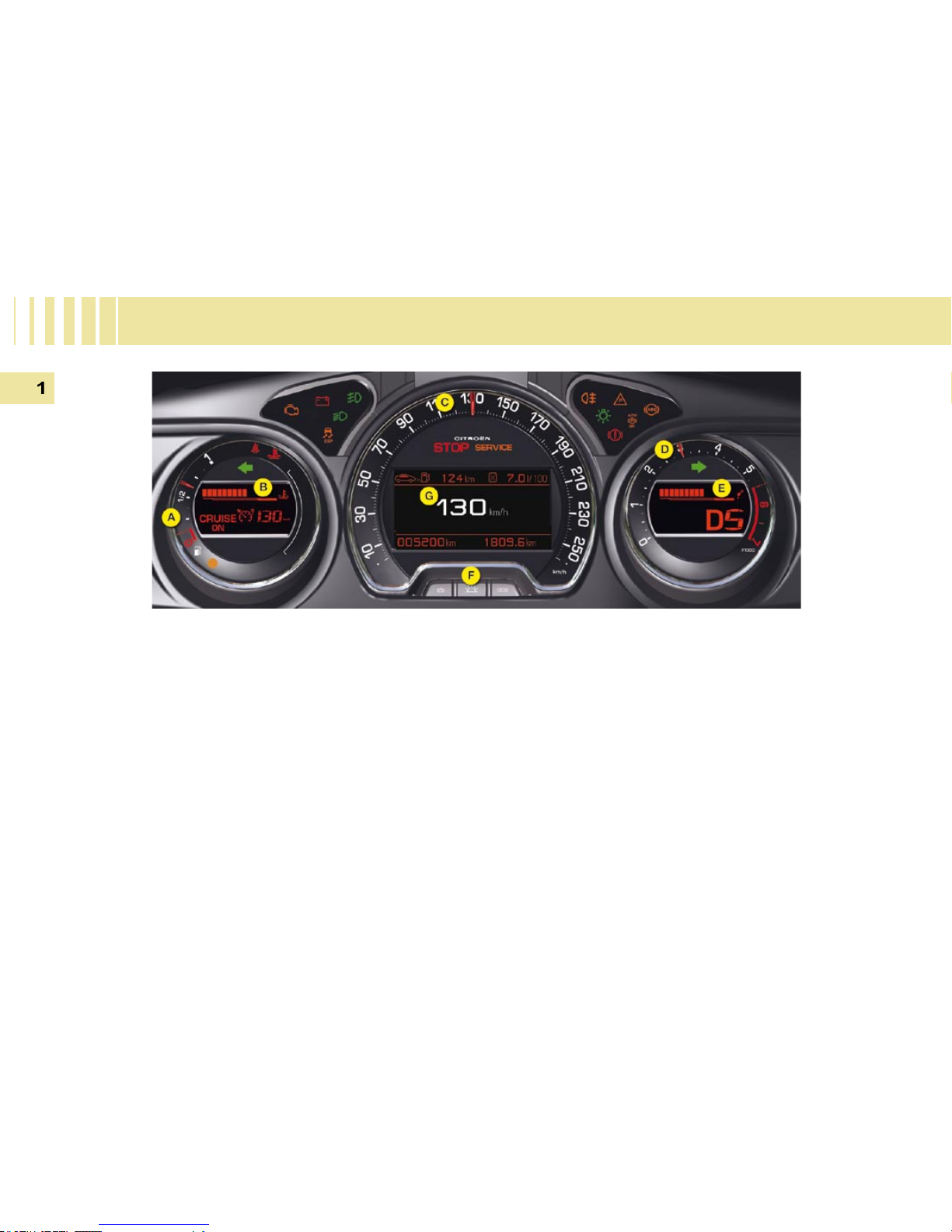

A. Fuel gauge and low fuel warning lamp.
B. Cruise control/speed limiter information.
C. Coolant temperature.
D. Speed indicator.
E. Instrument panel.
F. Mileage recorder.
G. Trip mileage recorder reset button.
H. Rev counter.
I. Engine oil temperature.
J. Display of automatic gearbox information.
- When the ignition is switched on, the orange and
red warning lamps light up.
- When the engine is running, these warning lamps
should go out.
- If any warning lamps remain lit, refer to the
"Instruments and controls" section.
Hazard warning lamps
22
110

16
FAMILIARISATION
MONITORING

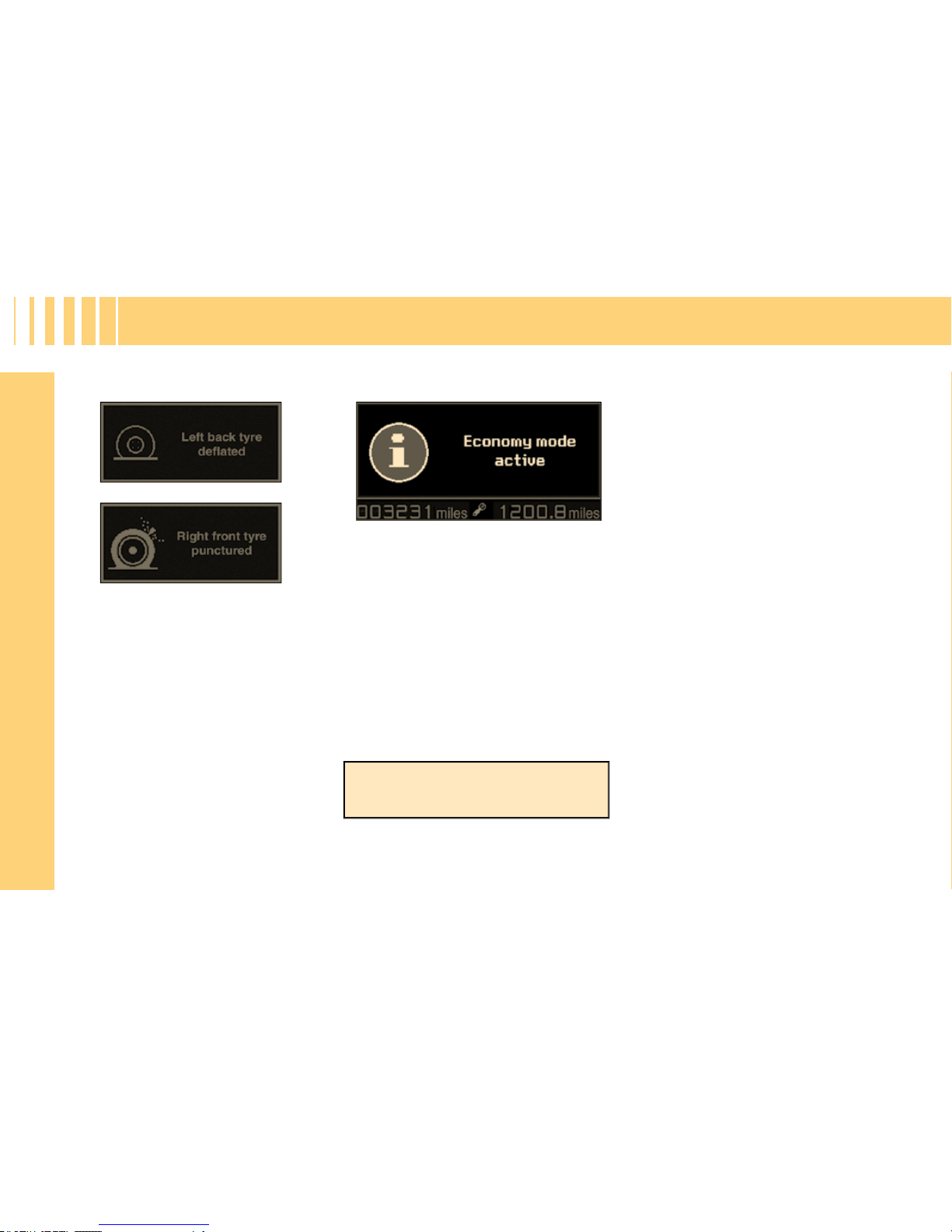

Tyre deflation detection
The tyre defl ation detection system is
a driving aid which informs you of the
condition of your tyres.
It does not replace either vigilance or
responsibility on the part of the driver.
Economy mode
After switching off the engine, some
systems (radio, wipers, electric
windows, opening roof, electric seats,
telephone, video, interior lighting,
motorised tailgate, etc.) are supplied
electrically for a maximum of no more
than around one hour, so as to avoid
discharging the battery.
This period may be reduced
considerably if the battery's state of
charge is low.
Once this period is over, a message is
displayed on the instrument panel screen
and the active functions are placed on
standby.
These functions will be automatically rea-
ctivated when the vehicle is restarted.
111
185

17
FAMILIARISATION
PASSENGER SAFETY
Front passenger's airbag
deactivation Child safetySeat belts and front passenger's airbag
The seat belt fastened/unfastened
status for each seat category is indicated
by the lighting or fl ashing of the warning
lamps linked to each position:
A. Non-fastened/unfastened front and/
or rear seat belts warning lamp.
B. Front left-hand seat belt warning
lamp.
C. Front right-hand seat belt warning
lamp.
D. Rear right-hand seat belt warning
lamp.
E. Central rear seat belt warning
lamp.
F. Rear left-hand seat belt warning
lamp.
G. Front passenger's airbag
deactivation warning lamp.
H. Front passenger's airbag activation
warning lamp.
31
In order to be able to use a rearwards-
facing child seat in the front passenger's
seat position, it is imperative to deactivate
the passenger's airbag.
For that:
 With the ignition switched off, insert
the key into the switch I.
Turn the key to the "OFF" position, the
passenger's airbag is deactivated.
The front passenger's airbag deactiva-
tion warning lamp Glights up when the
ignition is switched on.
119
This deactivates the controls in the rear
of the vehicle, both for the rear windows
and for opening the rear doors from the
inside. The electric child safety device
is activated by pressing on button J.
The activation of the function is indicated
by a message on the instrument panel
screen and the light on button J.
109

18
FAMILIARISATION
Electric parking brake
Never leave a child alone in-
side the vehicle with the igni-
tion on, as they could release
the parking brake.
Hill start assist
Manual operation
The MANUAL application/release of the
parking brake is possible permanently
by pulling/pushing control B.
Before leaving the ve-
hicle, check that warn-
ing lamp A (!) (red) on
the instrument panel
is permanently lit and that warning
lamp P(red) on control Bis lit.
With the engine running, if
you leave the vehicle, manu-
ally apply the parking brake.
Do not leave the vehicle while
it is being held in the tempo-
rary immobilisation hill start
assist phase.
To aid starting on a gradient, your vehicle
is equipped with a system which keeps
it immobilised for a short time (about 1
second), the approximate time it takes
to move your foot from the brake pedal
to the accelerator pedal.
This function is only active when:
- The vehicle is completely stationary,
with your foot on the brake pedal.
- In particular conditions on a slope.
- With the driver's door closed.
Before leaving the ve-
hicle, check that warn-
ing lamp A (!) (red) on
the instrument panel
is permanently lit and that warning
lamp P(red) on control Bis lit.
Automatic operation
The electronic parking brake releases
automatically and progressively when
you press the accelerator. With the
vehicle stationary, the parking brake
is automatically applied when the
engine is switched off.
DRIVING
123 130

19
FAMILIARISATION
This system allows you to maintain a
constant vehicle speed programmed by
the driver.
Cruise control
Speed limiter
This system allows you to choose a maxi-
mum speed that you do not wish to exceed.
The chosen speed must be higher
than 20 mph (30 km/h). Cruise control is active on the higher
gears of the gearbox. The chosen
speed must be higher than 25 mph
(40 km/h).
Instrument panel display
The speed limiter or cruise control
mode is displayed on the instrument
panel when selected.
Cruise control
Speed limiter
Selection of "LIMIT":
Activation of speed limiter
mode.
"SET +": Increase of the
maximum speed.
"SET -": Reduction of the
maximum speed.
Suspension or resumption of
mode.
Deactivation.
The chosen speed is
memorised.
"SET": Memorisation
of the speed (system
paused).
Selection of "CRUISE
"
:
Activation of cruise control
mode.
"SET +": Increase of the
memorised speed (system ON).
"SET -": Reduction of the
memorised speed (system ON).
Suspension or resumption of
mode.
Deactivation.
DRIVING
138 140

20
FAMILIARISATION

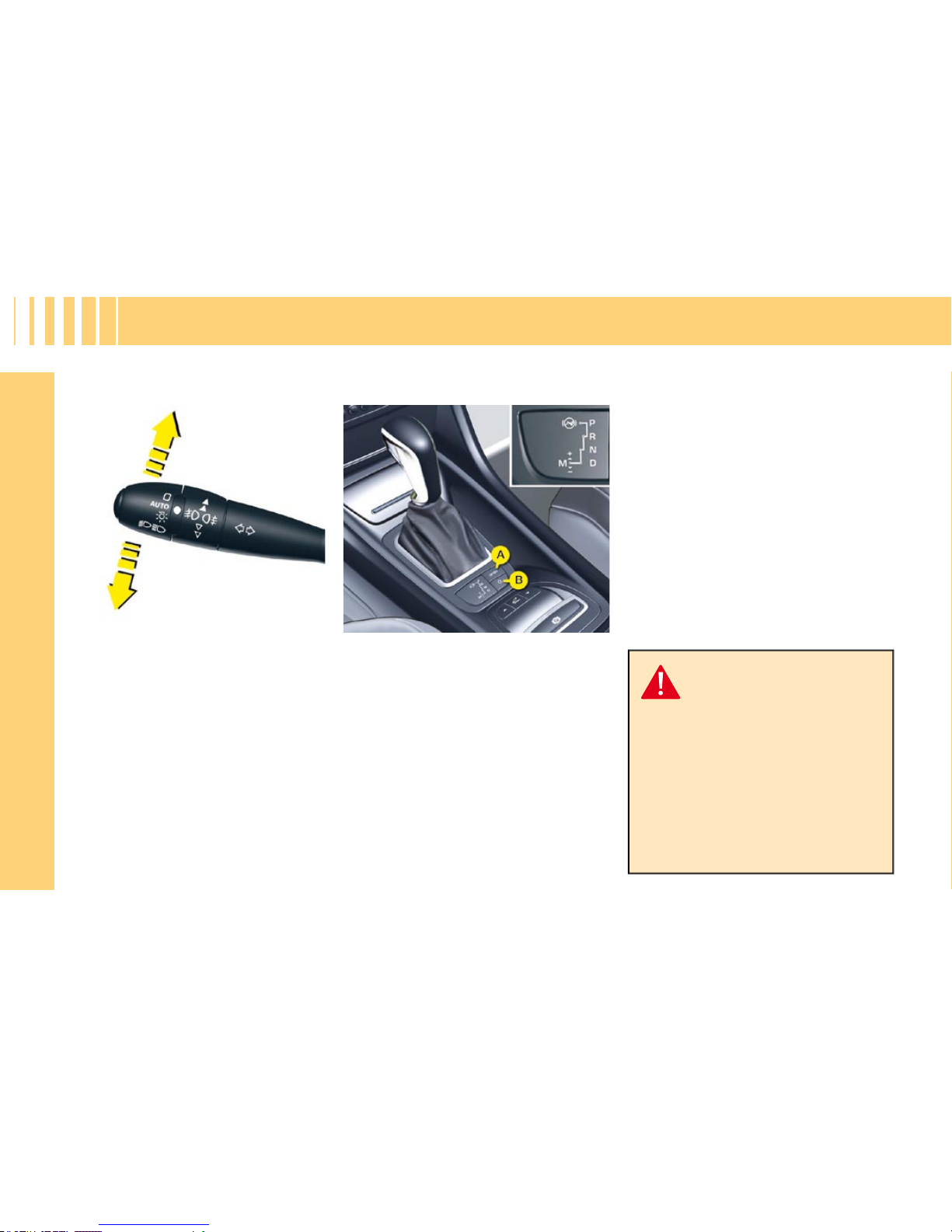

 Move the stalk briefl y upwards or
downwards, without going beyond
the resistance point; the direction
indicators will fl ash 3 times.
Positions
P: Parking.
R: Reverse gear.
N: Neutral.
D: Automatic mode.
M: Sequential mode.
The automatic gearbox offers you:
- Operation in auto-active mode ,
with automatic adaptation to your
style of driving as well as to the road
profi le ( Position D).
- Operation in sequential mode , with
manual gear changing (Position M).
- Operation in automatic SPORT
mode (Position D) and press but-
ton A.
- Operation in automatic SNOW
mode (Position D) and press but-
ton B.
For safety:
The gear lever can only be
disengaged from position P
if you are pressing the
brake pedal.
When a door is opened, an audible
signal sounds if the gear selector is
not in position P.
Before leaving the vehicle, make
absolutely certain that position Pis
selected.
Direction indicators -
"Motorway" function Automatic gearbox
DRIVING
110
131

21
FAMILIARISATION
You can activate/deactivate the parking
assistance by pressing button B. When
the parking assistance is inactive, the
warning lamp on button Bis lit up.
Parking assistance
(visual and sound)
Parking space sensor
You can select the "Parking space
sensor" by pressing button A , direction
indicator activated on the side of the
space to be measured, with a speed
lower than 6 mph (10 km/h) and at a
distance of less than 1.5 m from the
space.
The fi xed lighting of the warning lamp
indicates that this function is selected.
DRIVING
143
145
This device is recommended on
motorways and dual carriageways, and
operates only at speeds above 50 mph
(80 km/h).
A press on button Cactivates the
function, the warning lamp on the button
lights up.
Lane departure warning system
The system does not alert you if one
of your direction indicators is operating
and for approx. 20 seconds after the
direction indicator has stopped.
142

22
1
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the dials and vehicle operation indicator and warning lights.
A. Fuel gauge
B. Indicator:
● Coolant temperature
● Cruise control/Speed limiter
information
C. Speed indicator
D. Rev counter
E. Indicator:
● Engine oil temperature
● Gear selector position and gear
engaged (Automatic gearbox)
F. Controls:
● Lighting rheostat
● Resetting to zero of trip mileage
computer and maintenance
indicator
G. Instrument panel screen indicating:
● Depending on the page selected
with the left-hand control knob
on the steering wheel:
- Digital speed
- Trip computer
- Navigation (guidance)
information
- Display of message alerts
- Engine oil level check
- Maintenance indicator
● Permanently:
- Trip mileage recorder
- Total mileage recorder
