CITROEN C5 2008 User manual

I
4
IN BRIEF
E X T E R I O R

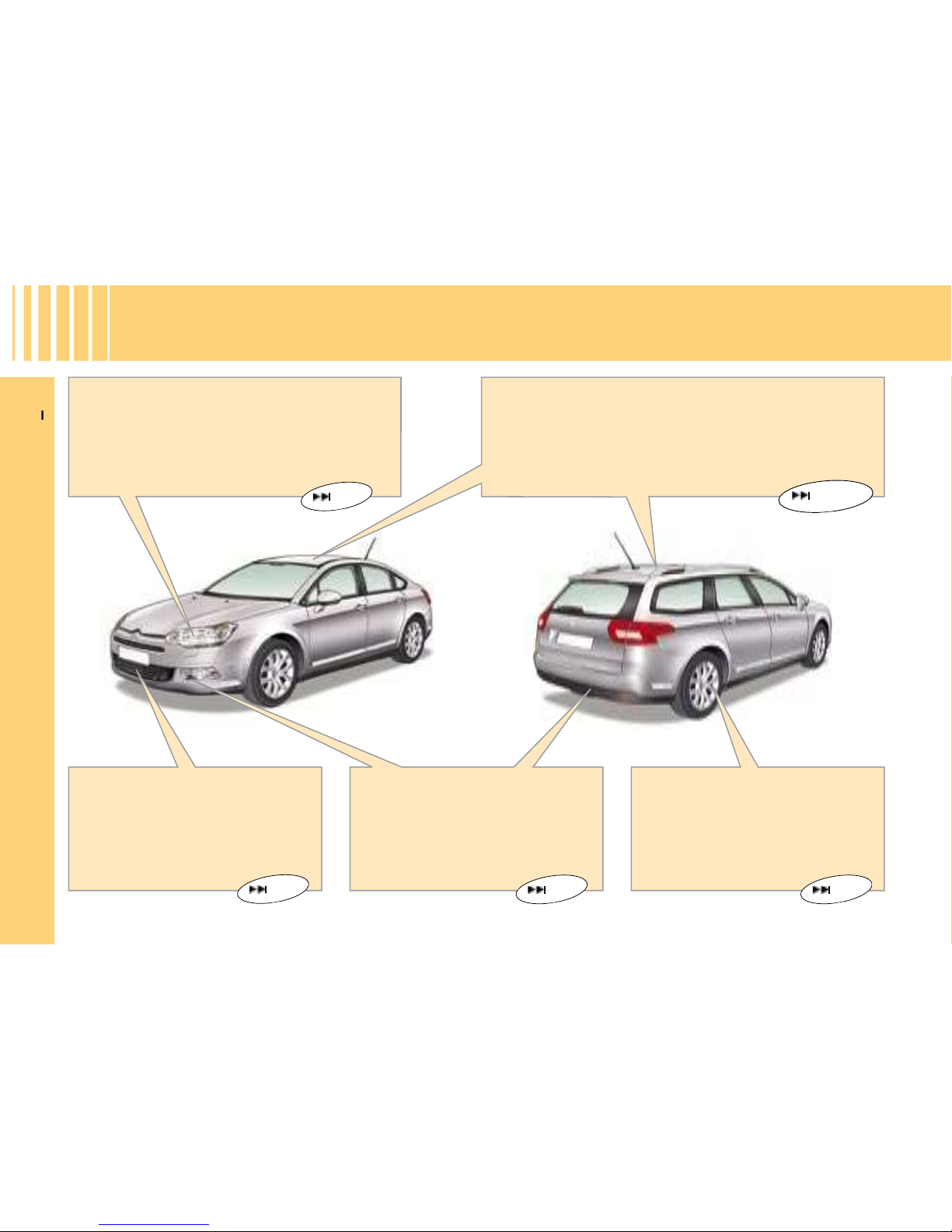

The Xenon dual-function directional
headlamps
This function automatically provides you
with extra visibility on bends. This lighting is
linked with the angular lighting which max-
imises the area lit at intersections and when
parking.
48
Lane Departure Warning
System
This driving assistance device
warns you when you unwittingly
cross a lane marking.
87
Parking assistance
(visual + sound)
This function warns you, whilst
manoeuvring, by detecting
obstacles located in front of and
behind the vehicle.
Tyre defl ation detection
This function monitors the pres-
sure of each tyre and warns you
of tyres that are punctured or
defl ated.
88
72
Glass panoramic roof (Tourer)
This provides you with improved brightness in the
passenger compartment.
Glass sun roof (saloon)
This also provides you with improved ventilation in the
passenger compartment.
124-125

I
I
5
5
F
B
A
D
C
E
E
IN BRIEF
A
.Key release / storage.
B
.Locking of the vehicle.
C
.Unlocking of the vehicle.
D
.Guide-me-home lighting.
To open the fuel fl ap, press on the
top left part of it, then pull from the
edge.
Locking fi ller cap
Turn the key a quarter turn to lock
and unlock the fi ller cap.
When refuelling, place the cap on
hook
F
.
Remote control key
Opening the boot
Fuel tank
22
161
Tank capacity:
approximately 71 litres
93
O P E N I N G
Press upwards on the lever
E
.
The boot automatically locks when
the vehicle is moving at a speed
of over 10 km/h (6 mph), even if
automatic central locking is deacti-
vated. It is unlocked when a door is
opened or when the central locking
button is pressed (speed lower than
10 km/h (6mph)).

I
6
A
B
IN BRIEF
Access to the spare wheel
To access the spare wheel:
1.
Lift up the boot fl oor using the
strap (saloon) or the retractable
hook (Tourer).
2.
Fold back the boot carpet
(saloon).
3.
Attach the hook to the upper
section of the boot.
4.
To remove the spare wheel,
detach the strap then push the
wheel forwards, before lifting it
out.
Spare wheel
Note:
The tools are to be found
in a protective holder inside the
spare wheel.
173
144
O P E N I N G
Bonnet release
This operation should only be
performed while the vehicle is
stationary.
Open the door.
To unlock, pull release lever
A
.
Lift up lever
B
, then raise the bon-
net.
174
Puncture kit
The puncture repair kit is a com-
plete system including a compres-
sor and a setting product.
Saloon
Tourer

I
I
7
7
IN BRIEF
INTERIOR
Electric parking brake
The electric parking brake combines automatic engagement when
the engine is switched off, and automatic release when the vehicle is
set in motion (automatic function activated by default).
Note:
Manual locking/unlocking is possible.
Parking space sensor
The “Parking Space Sensor” func-
tion assists you in fi nding a parking
space.
126
75
Dual-zone automatic air
conditioning
This function enables you to adjust the com-
fort levels of the driver and the front passen-
ger independently. It is also automatically
regulated depending on the external climatic
conditions.
100
Audio and communication
systems
This equipment benefi ts from the lat-
est technology: MP3 compatible RD4
radio, Bluetooth
®
technology: MP3
technology: MP3
hands-free kit,
®
NaviDrive (See NaviDrive instruc-
tions).
90

I
8
8
9
17
10
1
2
11
5
18
4
7
3
6
16
12
14
15
13
19
20
IN BRIEF
1

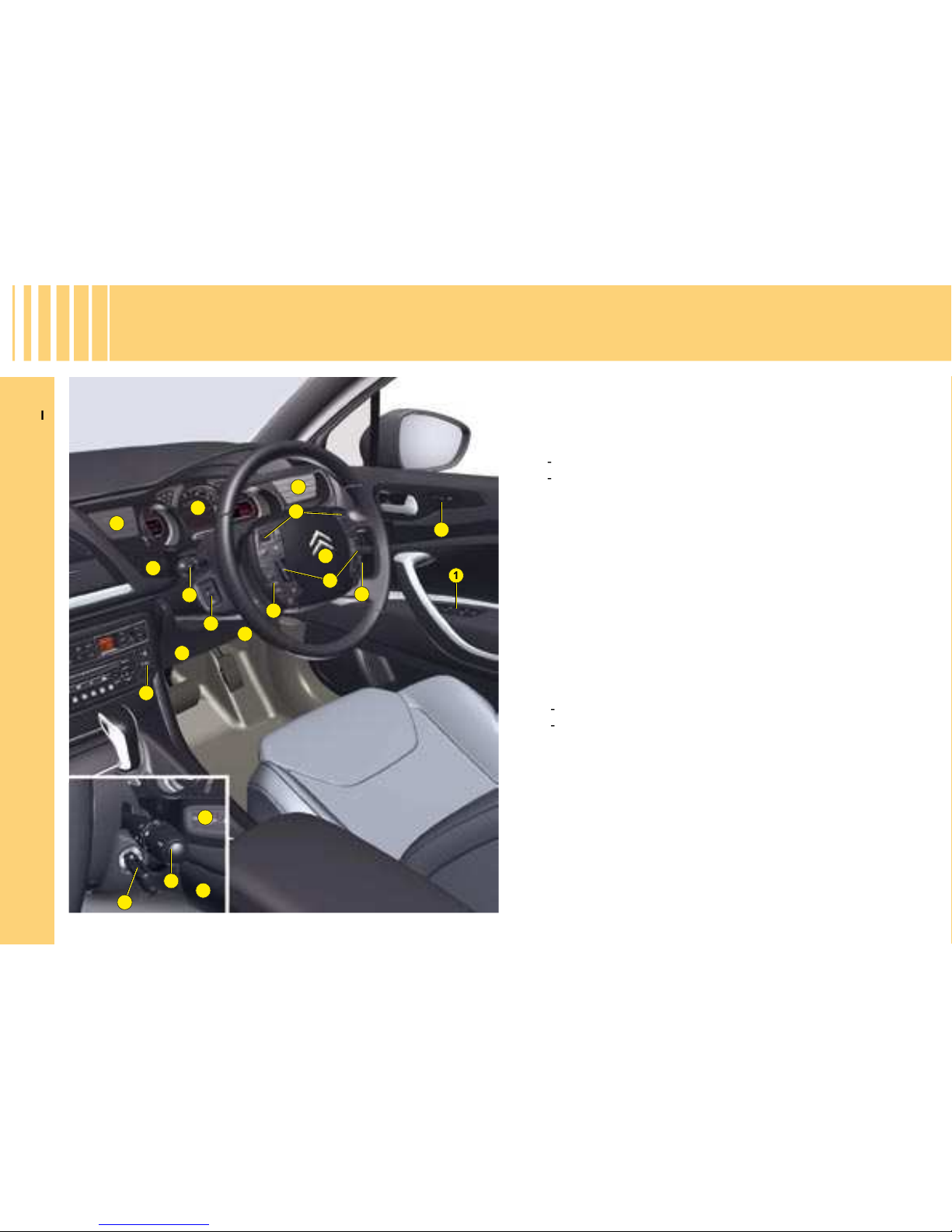

Electric windows / rear view mirrors / Child
safety controls
2
Memorisation of driver’s seat, rear view mirrors
and air conditioning settings
3

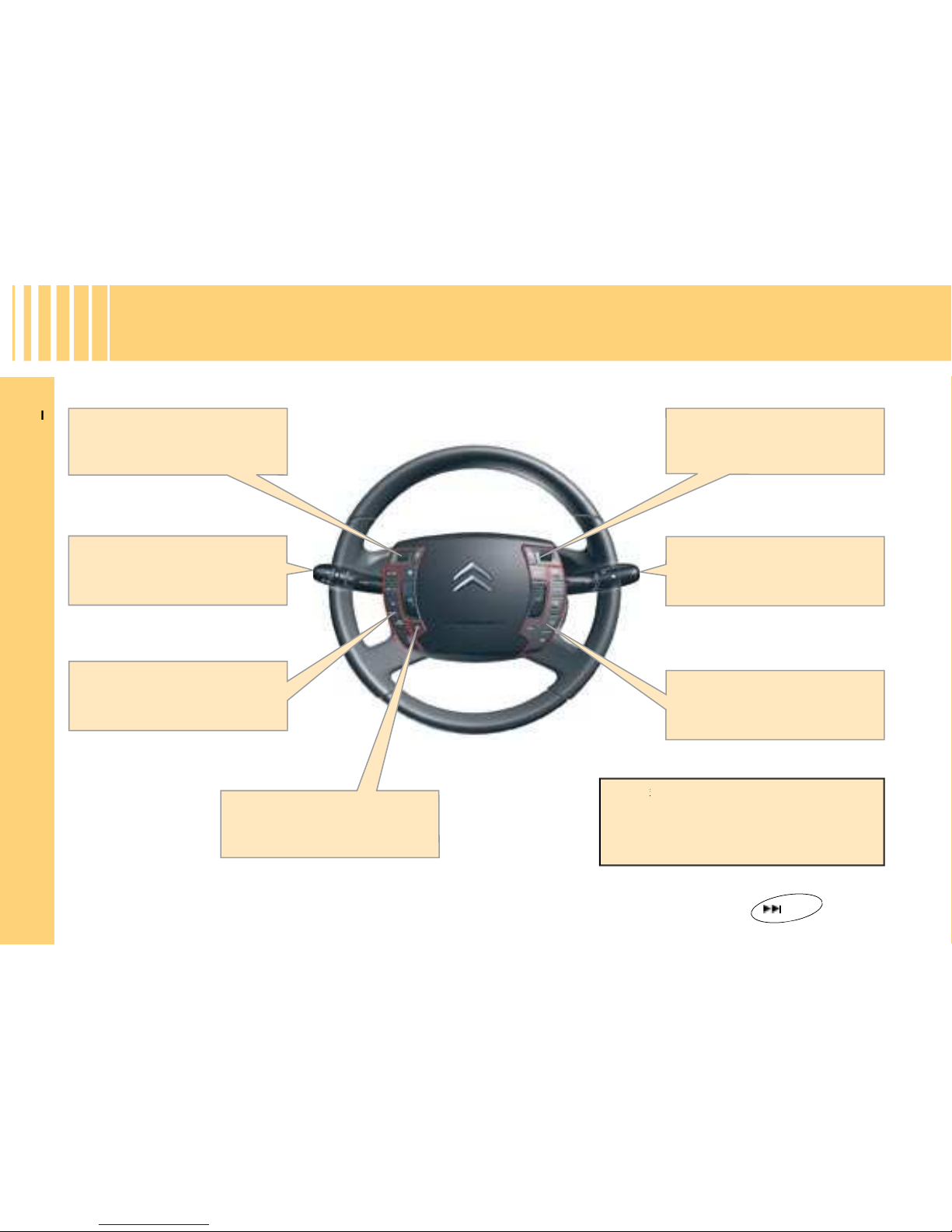

Controls at the steering wheel:
Speed limiter
Cruise control
4
Horn
5
Audio/telematic controls under steering wheel
6
Driver's airbag
7
Navigation controls
8
Driver's air vent
9
Instrument panel
10
Driver's air vent
11
Lighting control
12
Windscreen wiper / Screen wash controls
13
Ignition switch
14
Controls:
Locking/unlocking of doors and boot
Lane Departure Warning System
15
Steering column adjustment
16
Knees airbag
17
Oddments tray
18
Checks / Anti-intrusion alarm / Parking space
sensor controls
19
Lighting / Direction indicators / Foglamp / Voice
recognition controls
20
Manual headlamp height adjustment
-
-
-
-
D A S H B O A R D

I
I
9
9
23
33
38
39
37
36
35
21
24
30
28
22
25
29
31
32
34
41
40
26
27
IN BRIEF
D A S H B O A R D

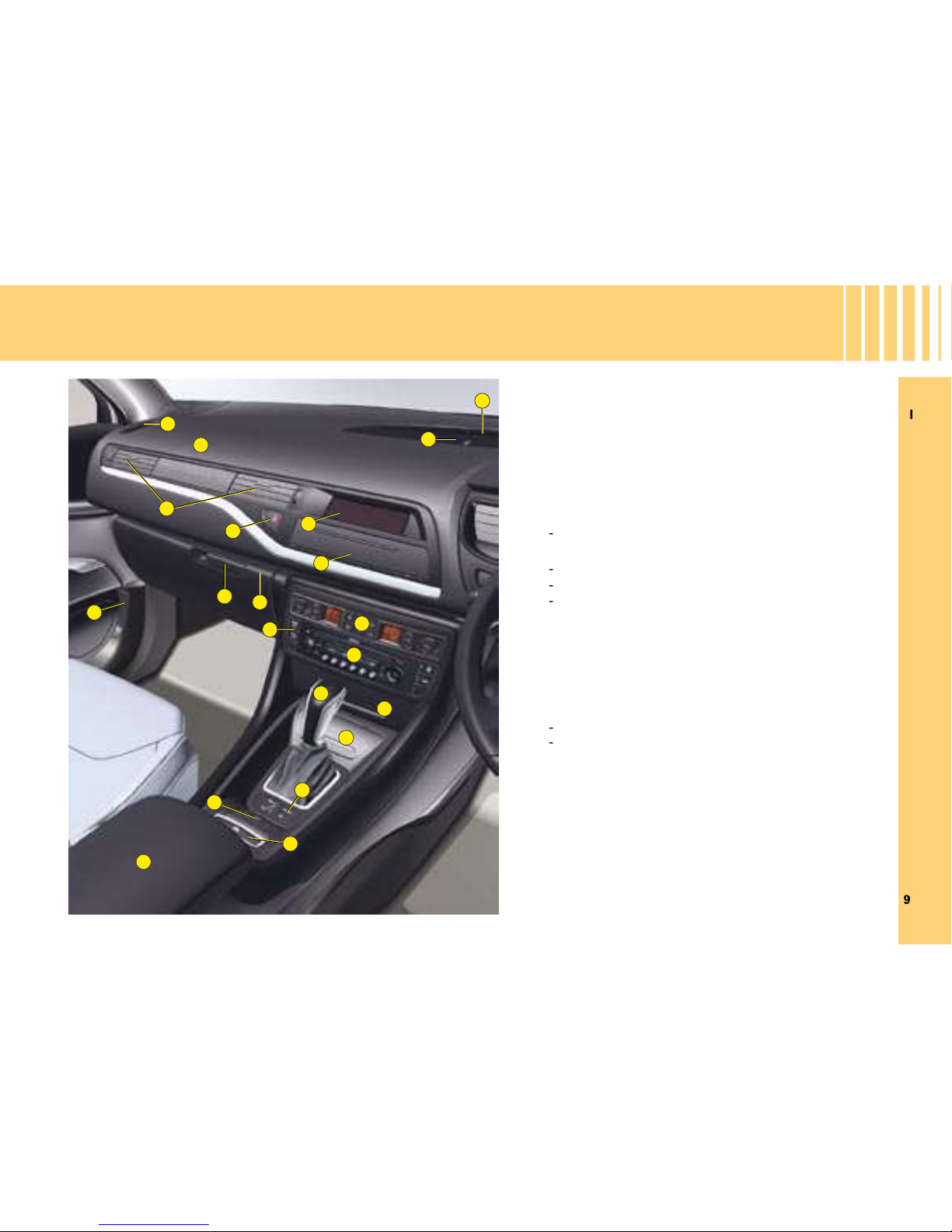

21
Sunlight sensor
22
Soft diffusion air conditioning adjustment knob
23
Passenger's airbag
24
Side window demister
26
Bonnet release
25
Passenger's air vents
27
Hazard lamps button
28
Key switch:
Passenger’s airbag activation/deactivation
29
Glovebox:
Vehicle document storage
Audio-video sockets
Fusebox access fl ap
30
ESP
/
Parking assistance controls
/
31

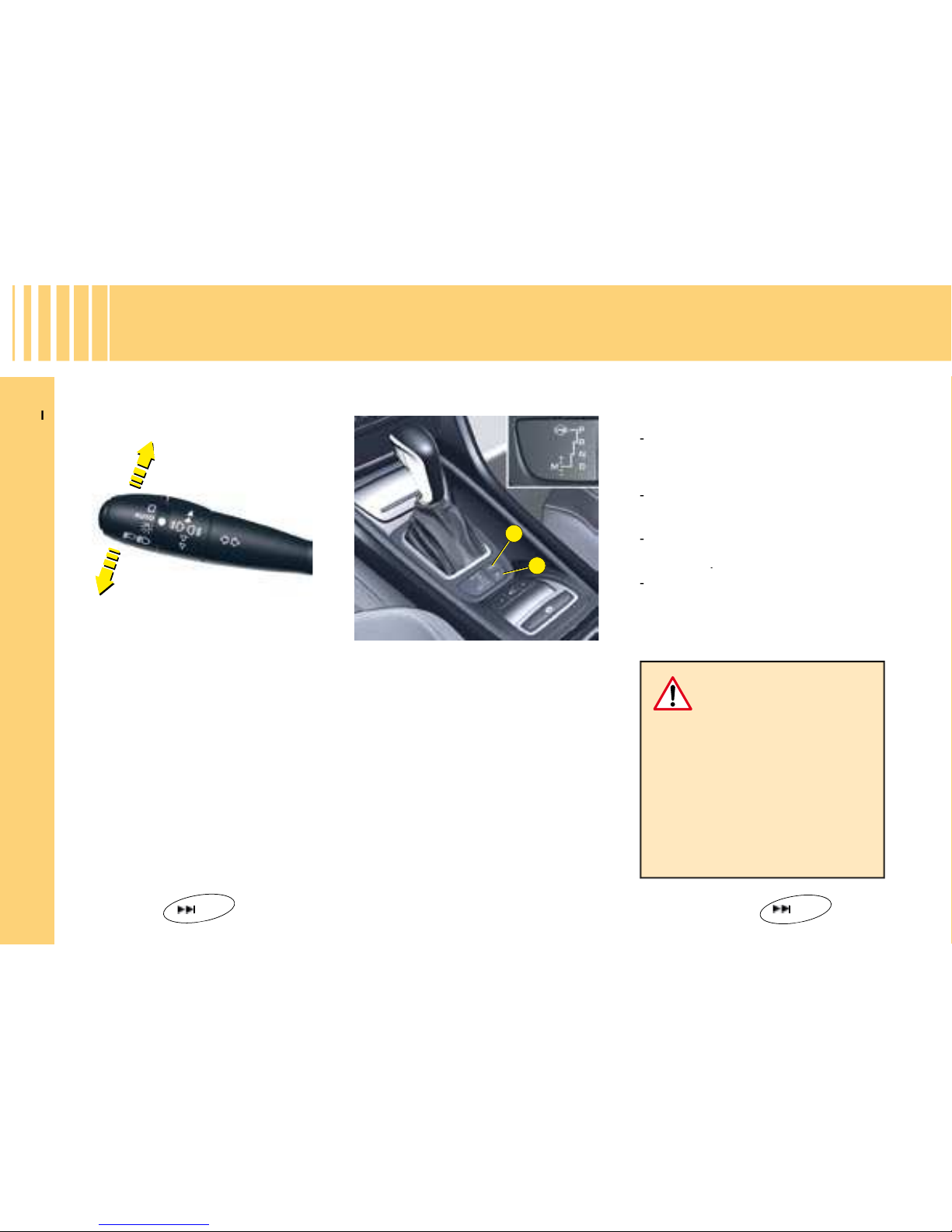

Automatic gearbox SPORT/SNOW mode
controls
32
Electric parking brake
33
Armrest with cup-holder
34
Suspension controls:
Ground clearance adjustment
Sport mode
35
Ashtray with lighter
36
Gear lever
37
Storage
38
Radio mono CD or NaviDrive
39
Air conditioning controls
40
Storage
41
Multifunction display
-
-
-
-
-
-

I
10
IN BRIEF
D A S H B O A R D
Audio
Instrument panel menu
Multifunction
display menu
Telephone

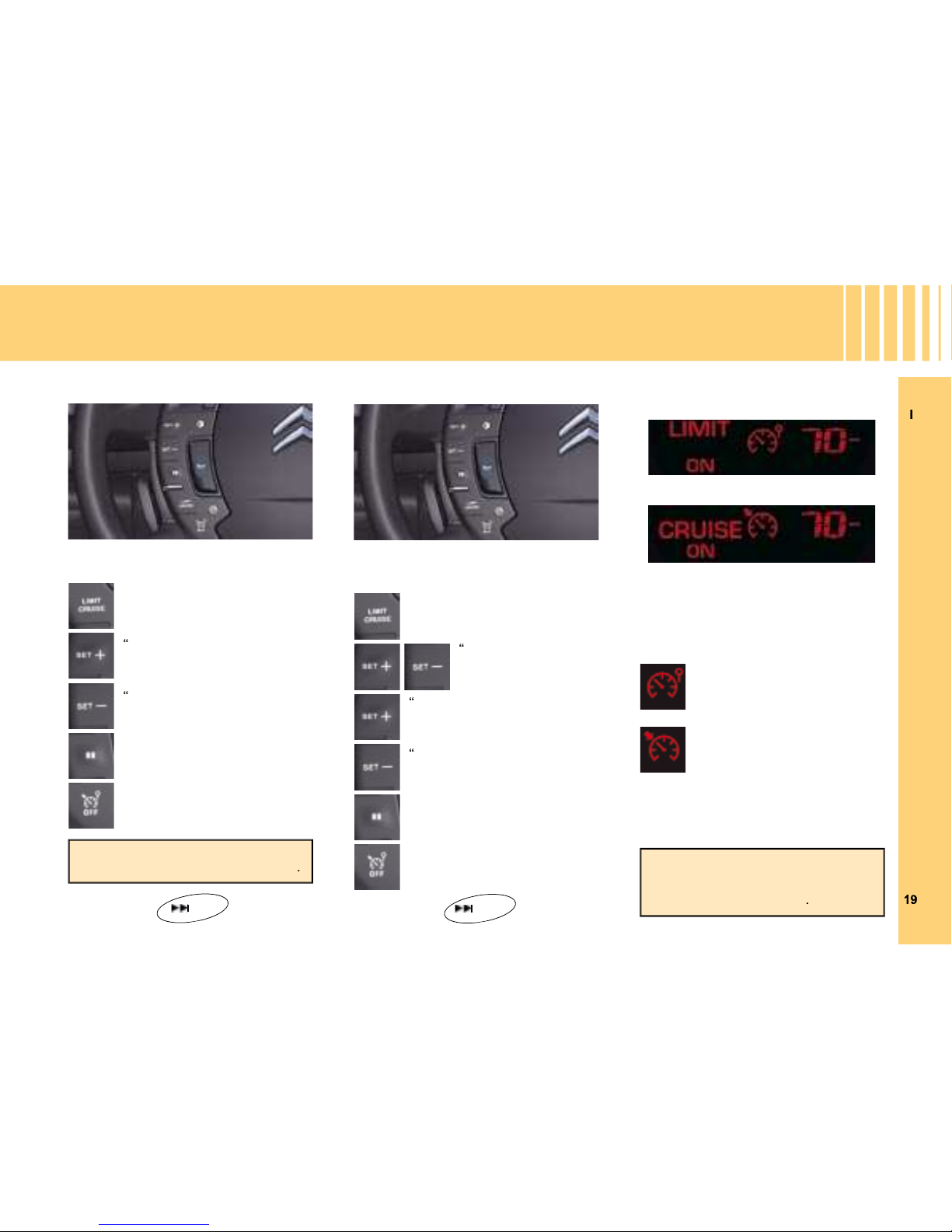

Cruise control
and Speed limiter
42
The “
SET +, PAUSE, VOL+, MUTE
The “
The “
”
buttons are located so that you can
use them without needing to take
your eyes off the road.
Activation of voice
recognition or reminder of
navigation guidance
MODE: selection of the type
of information displayed on
multifunction screen.

I
I
11
11
A
F
G
H
I
C
B
D
J
J
E
K
IN BRIEF

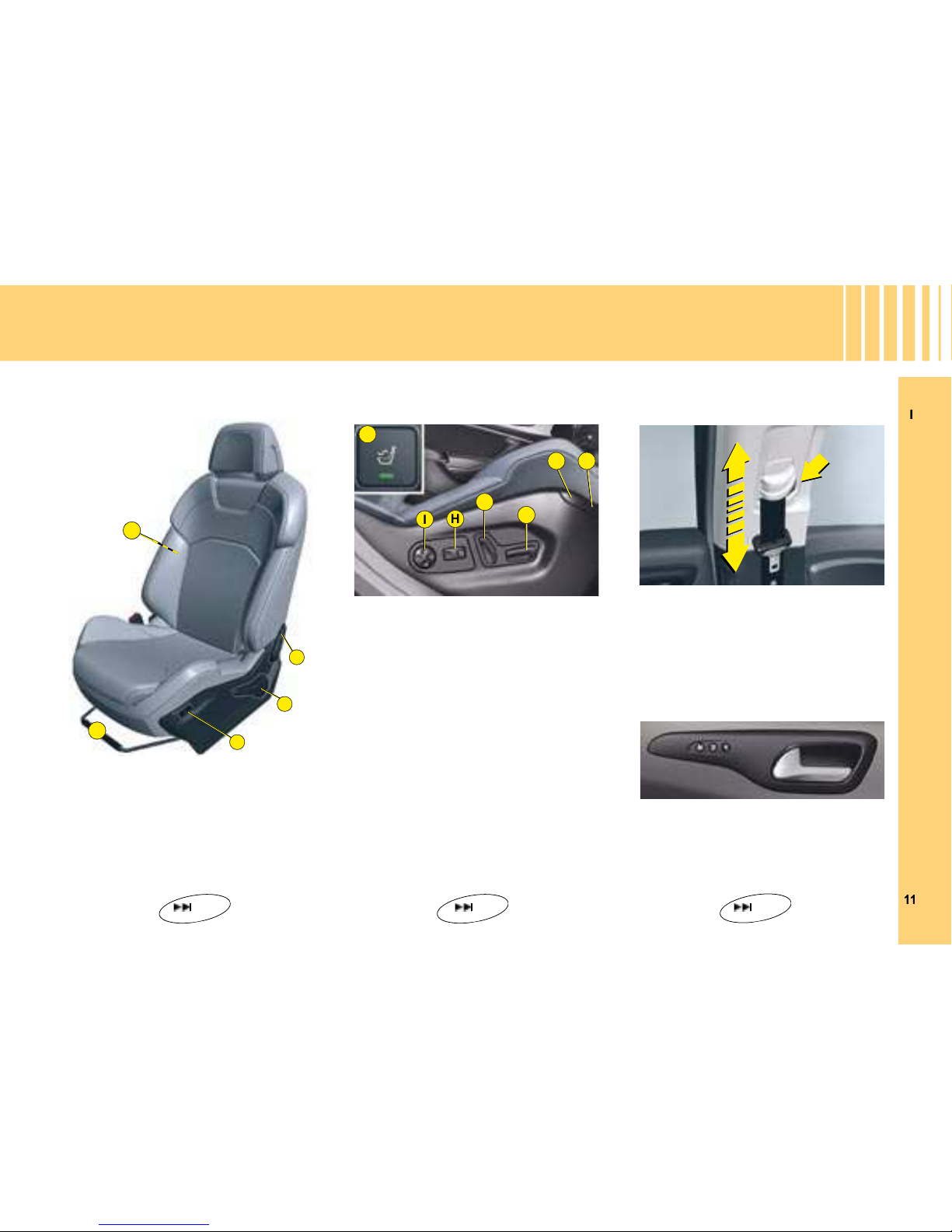

F.
Seat height and slide adjust-
ments.
G.
Adjustment of the backrest
angle.
H.
Adjustment of top of backrest.
I.
Adjustment of 2 axis lumbar
support.
J.
Massage function.
K.
Heated seat control.
A.
Adjustment of the backrest
angle.
B.
Adjustment of the seat height
and angle.
C.
Heated seat control.
D.
Longitudinal adjustment of seat.
E.
Adjustment of the backrest lum-
bar support.
53
54
G E T T I N G S TA RT E D
56
Memorisation
The Memorisation function allows
you to programme the driver’s
seat, rear view mirrors and air
conditioning settings.
The
correct positioning
of the belt
strap is
through the middle of the
shoulder
. See “Seat belts”.
To adjust the seat belt for height,
compress the control and
slide
it
in the desired direction.
Seat belt height adjustment
Front seats
Electrical adjustments
Manual adjustments

I
12
A
4
3
2
b
a
c
1
IN BRIEF
G E T T I N G S TA RT E D
Automatic electrochrome
rear view mirror
58
58
52
This automatically and progres-
sively adapts to day-time or night-
time use.
Operation
Switch on the ignition and press
button
4
.
Warning lamp
3
on: automatic
mode.
Warning lamp
3
off: automatic
mode stopped. The mirror
remains in its lightest defi nition.
•
•
With the vehicle at rest
, unlock
the steering wheel by pushing con-
trol
A
forwards.
Adjust the height and the reach
of the steering wheel, then lock
the position by pulling the lever
upwards.
Steering column adjustment
57
Electric exterior rear view
mirrors
1. Selection of rear view
mirror:
a
- Left hand side.
b
- Right hand side.
c
- Foldback / Deployment.
2. Directional control for
mirror selected

I
I
13
13
A
B
C
IN BRIEF
Front wipers
V I S I B I L I T Y
50
45-46
Control positions
2.
Rapid wipe.
1.
Normal wipe.
I
.
Intermittent wipe.
0.
Off.
One press downwards:
AUTO
:
Automatic wipe acti-
vated.
Single wipe.
Screen wash
Pull the screen wipe control stalk
towards you.
•
•
Note:
If the ignition has been
switched off for around 1 minute,
it is necessary to re-activate
automatic wiping.
Lighting
Ring A
Sidelamps.
Dipped beams/main
beams.
Lamps off.
Pull the control stalk
towards you
to change between dipped beam
and main beam.
Front foglamps and
rear foglamps on.
Front foglamps on.
Ring B
Automatic lighting of head-
lamps.
Rear wipers (Tourer)
Rotate control
C
to the desired
position.
Off
Intermittent wipe
Screen wash
49

I
14
IN BRIEF
Automatic air conditioning
Adjustment of air distribution
on driver's side
Passenger's side
automatic operation
Adjustment
of temperature on
driver's side
Adjustment of air
distribution on
passenger's side
Rear and external rear view
mirrors demisting - deicing
Air recirculation -
Entry of air from outside
Front demisting -
deicing
Driver's side automatic
operation
Note:
It is recommended to use automatic mode by pressing on the “
AUTO
It is recommended to use automatic mode by pressing on the “
It is recommended to use automatic mode by pressing on the “
” button.
V E N T I L AT I O N
Adjustment of
temperature on
passenger's side
Activation/deactivation
of air conditioning
Adjusting the air fl ow
97

I
I
15
15
E
D
F
A
J
C
I
B
H
G
IN BRIEF
Instrument panel
The hazard lamps can
also be used with the igni-
tion switched off.
M O N I TO R I N G
A.
Fuel gauge and low fuel warning lamp.
B.
Cruise control/speed limiter information.
C.
Coolant temperature.
D.
Speed indicator.
E.
Instrument panel.
F.
Mileage recorder.
G.
Trip mileage recorder reset button.
H.
Rev counter.
I.
Engine oil temperature.
J.
Display of automatic gearbox information.
Note:
When the ignition is switched on, the orange
and red warning lamps light up.
When the engine is running, these warning
lamps should go out.
If any warning lamps remain lit, refer to the
relevant page.
•
•
•
Hazard warning lamps
29
44

I
16
A
IN BRIEF
M O N I TO R I N G

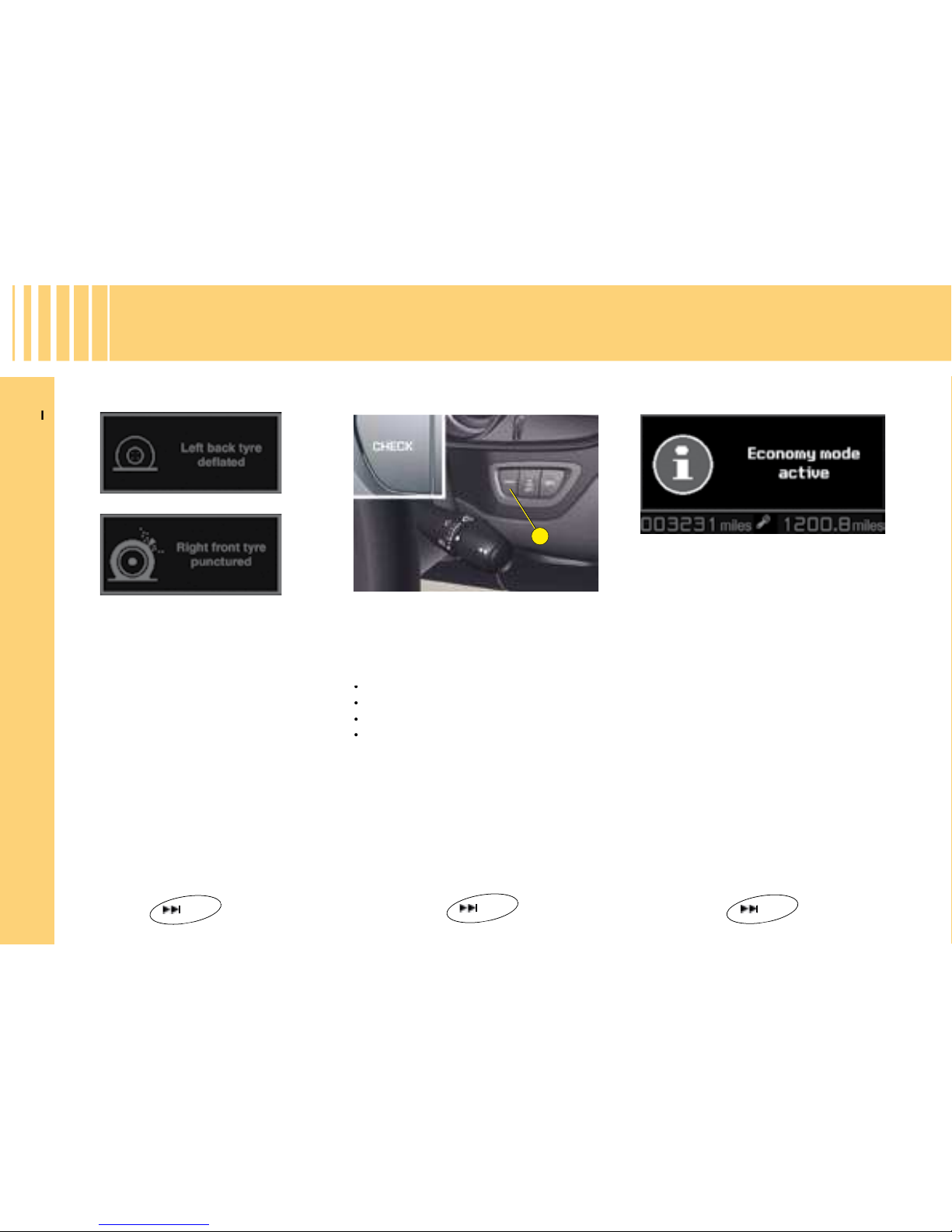

Tyre defl ation detection
This function allows you to display
the log of alerts.
Press on button
A
. The following
messages appear consecutively
on the instrument panel screen:
Tyre pressure check.
Maintenance indicator reminder.
Display of message alerts.
Oil level check.
•
•
•
•
Log of alerts
The tyre defl ation detection system
is a driving aid which informs you
of the condition of your tyres.
It does not replace either vigilance
or responsibility on the part of the
driver.
72
36
Economy mode
When the engine is stopped, some
functions (audio system, screen
wipe, electric windows, sunroof,
electric seats, telephone, video,
interior lighting etc.) are only elec-
trically supplied for a maximum
period of 30 minutes, to avoid dis-
charging the battery.
Once this period is over, a mes-
sage is displayed on the instru-
ment panel screen and the active
functions are placed on standby.
These functions will be automat-
cially reactivated when the vehicle
is restarted.
27

I
I
17
17
J
I
A
B
F
G
H
C
D
E
IN BRIEF
Front passenger's airbag
deactivation
Child safety
In order to be able to use a rear-
facing child seat in the front pas-
senger's seat position, it is impera-
tive to deactivate the passenger's
airbag.
For that:
With the ignition switched off,
insert the key into the switch
I
.
Turn the key to the “
OFF
” posi-
tion, the passenger's airbag is
deactivated.
The front passenger's airbag deac-
tivation warning lamp
G
lights up
when the ignition is switched on.
•
•
This deactivates the controls in the
rear of the vehicle, both for the rear
windows and for opening the rear
doors from the inside. The electric
child safety device is activated by
pressing on button
J
.
The activation of the function is
indicated by a message on the
instrument panel screen and the
light on button
J
.
51
108
PA S S E N G E R S A F E T Y
32
The seat belt fastened/unfastened
status for each seat category is
indicated by the lighting or fl ash-
status for each seat category is
tegory
ing of the warning lamps linked to
indicated by the lighting or fl ash-
indicated by the lighting or fl ash-
each position:
A.
Non-fastened / unfastened
front and/or rear seat belts
warning lamp.
B.
Front left-hand seat belt warn-
ing lamp.
C.
Front right-hand seat belt
warning lamp.
D.
Rear right-hand seat belt
warning lamp.
E.
Central rear seat belt warning
lamp.
F.
Rear left-hand seat belt warn-
ing lamp.
G.
Front passenger's airbag
deactivation warning lamp.
H.
Front passenger's airbag acti-
vation warning lamp.
Seat belts and front
passenger's airbag

I
18
B
A
IN BRIEF
D R I V I N G

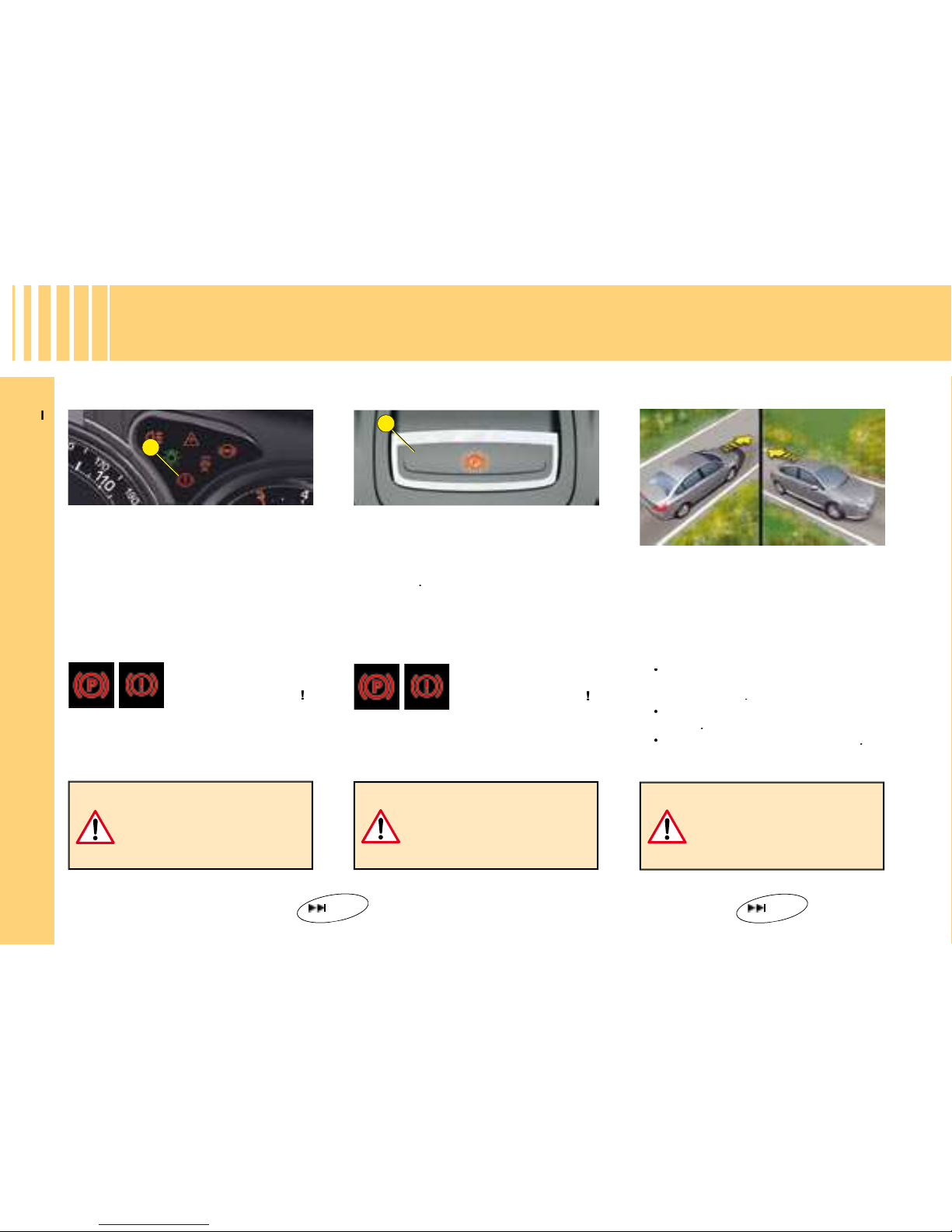

Electric parking brake
75
Never leave a child alone
inside the vehicle with
the ignition on, as they
could release the parking
brake.
Hill start assist
Manual operation
The MANUAL application/release
of the parking brake is possible
permanently by pulling/pushing
control
B
.
Before leaving the
vehicle, check that
warning lamp
A
(
!
)
(red) on the instru-
ment panel is permanently lit and
that warning lamp
P
(red) on con-
trol
B
is lit.
With the engine running,
if you leave the vehicle,
manually apply the park-
ing brake.
Do not leave the vehicle
while it is being held in the
temporary immobilisation
hill start assist phase.
To aid starting on a gradient, your
vehicle is equipped with a system
which keeps it immobilised for a
short time (about 2 seconds), the
approximate time it takes to move
your foot from the brake pedal to
the accelerator pedal.
This function is only active when:
The vehicle is completely sta-
tionary, with your foot on the
brake pedal
.
In particular conditions on a
slope
.
With the driver's door closed
.
•
•
•
82
Before leaving the
vehicle, check that
warning lamp
A
(
!
)
(red) on the instru-
ment panel is permanently lit and
that warning lamp
P
(red) on con-
trol
B
is lit.
Automatic operation
The electronic parking brake
releases automatically and pro-
gressively when you press the
accelerator.
With the vehicle sta-
tionary, the parking brake is auto-
matically applied when the engine
is switched off.

I
I
19
19
IN BRIEF
D R I V I N G
This system allows you to main-
tain a constant vehicle speed pro-
grammed by the driver.
Cruise control
Speed limiter
This system allows you to choose
a maximum speed that you do not
wish to exceed.
68
70
Note:
The chosen speed must be
higher than 30 km/h (20 mph)
.
Cruise control is active on the
higher gears
of the gearbox. The
chosen speed must be
higher
than 40 km/h (25 mph)
.
Instrument panel display
The speed limiter or cruise control
mode is displayed on the instru-
ment panel when selected.
Cruise control
Speed limiter
Selection of “
LIMIT
”: Acti-
vation of speed limiter
mode.
“
SET +
”: Increase of the
maximum speed.
“
SET -
”: Reduction of the
maximum speed.
Suspension or resumption
of mode.
Deactivation.
The chosen speed is mem-
orised.
Selection of “
CRUISE
”:
Activation of cruise control
mode.
“
SET
”: Memorisation
of the speed (system
paused).
“
SET +
”: Increase of the
memorised speed (system
ON).
“
SET -
”: Reduction of the
memorised speed (system
ON).
Suspension or resumption of
mode.
Deactivation.

I
20
B
A
IN BRIEF
D R I V I N G
Move the stalk briefl y upwards or
downwards, without going beyond
the resistance point; the direction
indicators will fl ash 3 times.
Positions
P:
Parking.
R:
Reverse gear.
N:
Neutral.
D:
Automatic mode.
M:
Sequential mode.
The automatic gearbox offers you:
Operation in auto-active mode
,
with automatic adaptation to your
style of driving as well as to the
road profi le (
Position D
).
Operation in sequential mode
,
with manual gear changing (
Posi-
tion M
).
Operation in automatic SPORT
mode
(
Position D
) and press
button
A
.
Operation in automatic SNOW
mode
(
Position D
) and press
button B.
-
-
-
-
For safety:
The gear lever can
only be disengaged
from position P if
you are pressing the
brake pedal.
When a door is opened, an
audible signal sounds if the
gear selector is not in posi-
tion P.
Before leaving the vehicle,
make absolutely certain that
position P is selected.
Direction indicators -
“Motorway” function
Automatic gearbox
64
44

I
I
21
21
A
B
C
IN BRIEF
You can activate/deactivate the
parking assistance by pressing
button
B
. When the parking assist-
ance is inactive, the warning lamp
on button
B
is lit up.
Parking assistance (visual
and sound)
Lane Departure Warning
System
This device is designed for use on
motorways and dual carriageways,
and operates only at speeds above
80 km/h (50 mph).
A press on button
C
activates the
function, the warning lamp on the
button lights up.
Parking space sensor
You can select the “Parking Space
Sensor” by pressing button
A
,
which fl ashes when next to the
space to be measured, with a speed
lower than 20 km/h (12 mph) and
at a distance of less than 1.5 m
from the space.
The fi xed lighting of the warning
lamp indicates that this function is
selected.
87
88
90
Note:
The system does not
alert you if one of your direc-
tion indicators is operating and
for approx. 20 seconds after the
direction indicator has stopped.
D R I V I N G

22
II
A CB D
E
R E M O T E C O N T R O L
Note:
The simultaneous use of other
high frequency equipment
(mobile telephones, domestic
alarms, etc.) may momentar-
ily hinder the operation of the
remote control.
If there is a permanent fault, the
remote control has to be reini-
tialised. See “Changing remote
control batteries”.
•
•
Central unlocking
A press on button
A
unlocks your
vehicle.
This is confi rmed by rapid fl ashing
of the direction indicators and light-
ing of the interior lamp (provided
this function is active). This also
deploys the exterior rear view mir-
rors.
Central locking / Closing
of windows and sunroof /
Deadlocking
A
short press
on button
C
locks your vehicle.
A
long press
on button
C
locks
your vehicle and closes the win-
dows and the sun roof.
2 successive presses
on but-
ton
C
will deadlock the vehicle.
It is then impossible to open the
doors, either from the inside or
from the outside.
•
•
•
If closing the windows and sun roof using the remote control,
the user must make sure that no person is preventing the
windows and/or sun roof from closing properly.
It is dangerous to operate the deadlocking when a person is
inside the vehicle as unlocking is impossible from the inside
without the remote control.
Guide-me-home lighting
A press on button
B
acti-
vates the guide-me-home
lighting (lighting of the
sidelamps, dipped beams,
registration plate lights for
around 1 minute).
A second press prior to the end of
this timing cancels the guide-me-
home lighting.
This operation is confi rmed by the
direction indicators illuminating for
approx. 2 seconds and by the inte-
rior lamp switching off. This also
folds the exterior rear view mir-
rors.
If any of the doors, or the boot, is
open or not properly closed, the
central locking does not operate.
With the vehicle stationary and the
engine switched off, locking is sig-
nalled by the fl ashing of the interior
locking control warning lamp.

23
II
R E M O T E C O N T R O L
Folding and ejecting the key
Button
D
is for folding and eject-
ing the key from its housing in the
remote control.
If you do not press on button
D
,
you could damage the key mecha-
nism.
Except when reinitialising, the remote control cannot function while the key is in the ignition, even
when switched off.
Warning: by inadvertently actioning the remote control, when for example it is in your pocket, you
can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will
automatically relock.
Warning: there is a risk of damage if the replacement battery is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.
Locating of the vehicle
To locate the vehicle in a carpark,
press button
C
. Locating of the
vehicle is confi rmed by:
The fl ashing of the direction
indicators for a few seconds.
The interior lighting coming on.
The vehicle remains locked.
•
•
Electric boot opening
Pressing button
E
opens
the boot.
Re-initialisation of the
remote control
After a change of battery, it is nec-
essary to re-initialise the remote
control. To do that, switch on the
ignition and immediately press but-
ton
C
of your remote control until
you achieve the desired result.
This may take some ten seconds.
Note:
Make a careful note of the
numbers for the keys and for the
remotecontrolontheASSISTANCE
card. Keep this in a safe place.
Do not throw away used batter-
ies
.
Return them to a CITROËN
Do not throw away used batter-
batter-
dealer
or take them to an author-
dealer
ised recycling facility (camera
shops, etc).
Changing the remote
control battery
Unclip the cover to gain access to
the battery.
Battery:
CR 0523 de 3 V.
