Claas QUADRANT 3400 Operating instructions

QUADRANT 3400
Repair manual

81212
Please read andfollowthesafety instructions!
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 3
81212
Contents
Introduction
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General repair instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Torque settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CCN explanations
CCN (CLAAS Component Number) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Safety
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
03 Chassis
03 10 Bogie axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
03 20 Trailing bogie axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
04 Brakes
04 10 Service brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
04 15 Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
07 Hitch
07 25 Drawbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
09 Hydraulic system
09 00 Hydraulic system General points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
09 05 Hydraulic oil tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
09 10 Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
09 15 Hydraulic lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
09 20 Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
09 20 Special tool, valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
21 Feeder unit
21 25 Rotor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
21 30 Feeding system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
45 Baling system
45 05 Bale chamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
45 10 Baling ram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
46 Tying system
46 05 Twine box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
46 20 Knotters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
60 Crop output
60 40 Bale chute and bale discharge system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
75 Central lubrication system
75 15 Control valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

4 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General Information
81213
Introduction
General Information 116370
Using the manual
The present Repair Manual is to assist in maintaining
permanent machine availability. This ensures the high
value of your machine by thorough care and service.
Experience gathered by both our service engineers
and factory staff has been compiled in this Repair
Manual.
The sequence of pictures shows the procedure of a
repair. The text provides the necessary information
about the adjustments to be made, the use of special
tools etc.
The illustrations included in support to the explana-
tions show the sequence of major repairs so that minor
repairs can easily be followed.
which allows to insert supplementary pages as issued
following technical developments and to always have
an updated manual at hand for reference.
To be sure, always compare settings and filling capac-
ities with specifications stated in the current Operator’s
Manual which applies to the combine harvester.
Texts and figures
Pictures and graphics are neutral. Differences are
pointed out by notes beneath the figure.
Texts are short and not machine-specific as far as pos-
sible. Differences are pointed out by intermediate
headings.
Different types of texts can easily be distinguished
from one another by their formats. The following for-
mats are distinguished:
Formatting Meaning Description
Description Text Further information on the subject.
– Instructions Operation Operations which must be carried out one after the
other.
Result Result Consequence of operations carried out.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 5
Introduction
General Information
81213
References can easily be distinguished by suitable
symbols. The following symbols are distinguished:
Document structure based on subassemblies
As far as the contents permit, the chapters of this man-
ual are structured according to subassemblies. The
structure of these subassemblies is the same in all
chapters.
Different product groups have different document
structures based on subassemblies. CLAAS always
takes care to keep these document structures based
on subassemblies identical in any documents.
Search and find
The wanted subject can easily be found with the recur-
ring subassembly structure, using the table of contents
or the header line of this manual.
In addition, the index of this manual is a useful tool for
locating a specific subject. The index can be found on
the last pages of this manual.
Directions
Text elements such as front, rear, right and left always
apply to the direction of travel. In figures, the direction
of travel may be indicated by a direction arrow.
Your CLAAS Service Department
116732
Validity of manual
This manual is valid for the following machines:
Symbol Meaning Description
See index The symbol indicates that further information on
this subject is available in other sections of this
manual.
See the index of the
Operator's Manual in
question
The symbol indicates that further information on
this subject is available in the Operator's Manual of
the machine or of the implement in question.
See index of Technical
Systems documentation The symbol indicates that further information on this subject is available in the Technical Systems
documentation of this machine or this implement.
Description Type Machine number
from to
QUADRANT 3400 740 74000016 ―
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

6 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General repair instructions
81213
General repair instructions 2475
Specifications
Technical data, dimensions and weights are given as
an indication only. CLAAS reserves the right to make
changes subsequently as technical developments con-
tinue. Responsibility for errors or omissions not
accepted.
14015
Reason of damage
Identify reason of damage, limit the case of damage
and safeguard the machine.
115321
Spare parts
Use CLAAS original parts and the corresponding spe-
cial tools.
For any spare parts orders or technical requests, indi-
cate the machine serial number and, if applicable, the
equipment serial number. This measure is necessary
to prevent incorrect spare parts deliveries.
Use only CLAAS original spare parts, accessories and
tools that have been inspected and approved by
CLAAS. Only these measures can ensure that the
properties defined in the design of CLAAS harvesting
machines, as well as their operating capacity, are
maintained. CLAAS original parts also maintain active
and / or passive driving safety, as well as machinery
working safety.
CLAAS disclaims all liability in the event of damage
resulting from the use of parts, accessories and equip-
ment that are not CLAAS original products.
14021
Gearboxes
When dismounting the gearboxes, always drain the
transmission oil first and then remove the gearbox.
Separate parts sticking firmly together with a soft
metal-tip or plastic-tip hammer.
14045
Welding Work
115323
Tensioning the steel roller chains
The steel roller chains are correctly tensed when you
can push down the slack section with your thumb by
around 2% of its length (gear interaxial distance), while
the tense strand is under low stress. Verify the tension
on new chains more often.
Note!
All information regarding this subject-matter
can be found in the current Operator's manual
of the machine.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 7
Introduction
General repair instructions
81213
Example: interaxial distance 500 mm = thrust stroke
on the slack strand, around 10 mm.
116379
Taper ring fasteners
Conical ring assemblies represent a safe connection,
even if high forces are transferred from the drive com-
ponent to the shaft and vice-versa, as long as the
prestressing is correct.
During installation, it is important that the shaft, hub,
sunk keys and tapered rings be carefully cleaned
and then greased with gearbox fluid grease, NLGI-
class 00,suchas:CLAAS AGRIGREASE LC 00 / 000,
and then assembled in the correct order and tightened
to the recommended torque.
Dismantling:
After unlocking the axial stop, release the tapered ring
assembly with a driver tube, applying a firm and clean
strike.
85677
Gib head key joints
Prior to installation, the shaft, the hub and the keyway
must be cleaned so they are free of grease, paint and
rust.
When delivered as a spare part, the gib head key is in
its raw condition, it is therefore too high and would
stick out too far after arresting it. Consequently the gib
head key must be matched to the component in ques-
tion by milling or grinding of the bottom face so that it
will not stick out more than necessary after arresting,
but can still be dismounted perfectly using the CLAAS
special tools (straight or cranked key extractor). The
conical top face must not be machined. Treatment
with a file is not recommended.
Caution!
Sticking on tapered ring assemblies.
–Never mount parts using thick lubricating
grease.
Warning!
Damage to the taper ring fastener.
– The inside diameter of the block-ended
tube must be large enough to extend over
the tapered ring.
Caution!
Damage to the gib head key joint.
– Arrest the gib head key with a suitable
hammer that is not too heavy and with the
right touch.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

8 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General repair instructions
81213
Never use force for arresting the gib head key in order
to avoid damage to the components (especially the
brake discs) and to enable loosening with the CLAAS
special tool.
14029
Self-locking bolts with micro-encapsulated
adhesive
Replace all self-locking bolts, e.g. Verbus-Plus and
Imbus-Plus, every time when removing them. In
exceptional cases, such bolts can be reused up to
three times.
Always tighten self-locking bolts with micro-encapsu-
lated glue quickly to the specified tightening torque.
Always observe the specified tightening torque.
When unscrewing self-locking bolts, unscrew them
quickly. Self-locking bolt must not get in contact with
sealing compound.
Self-locking bolts with micro-encapsulated glue can be
used only in locations where the operating tempera-
ture will not exceed +90°C.
The full load capacity of these bolts is achieved after
24 hours at +20°C. Full hardening can be accelerated
by heating-up, e.g. to 15 minutes at +70°C.
In specific cases, bolts with liquid locking compound
can be used instead of self-locking bolts only where
such threaded joints can be heated up to around
200 °C for slackening off. The specified bolt quality
grade, e.g. 8.8 or 10.9, must be observed here as well.
14031
Liquid locking compound
Use liquid locking compound only where this is speci-
fied by the manufacturer.
Proper application:
Metal joints intended for liquid locking compound use
must be absolutely free from grease. Clean such joints
with the "Activator" enclosed in the workshop package.
Before applying the liquid locking compound, the acti-
vator (cleaning agent) must have dried on the metal
surfaces. No more activator residues may be present,
especially in blind holes.
Apply the liquid locking compound of threaded joints
only to the inside thread of the nut drop by drop if pos-
sible. In blind holes, wet only around 1 d (d = rated Ø
of threaded pin) at the thread bottom. Proceed in the
same way with all excess-length screw threads. When
applying the liquid locking compound on the threaded
bolt or at the beginning of the screw thread, it will
spread over the entire thread length while screwing it
in and the breakaway torque is too high when slacken-
ing the bolt off later – danger of bolt tearing.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 9
Introduction
General repair instructions
81213
Threaded joints secured with liquid locking compound
can be slackened off easily after heating them up to
around 200 °C.
14033
Lock collar bearing
Lock collar bearings are arrested on the shaft by twist-
ing the eccentric ring over the inside bearing race.
Before inserting, it is useful to apply some semi-fluid
lubricant of NLGI class 00, e.g.
CLAAS AGRIGREASE LC 00 / 000 to the inner race
and the shaft to enable easier dismounting of bearings
at a later date.
Always arrest the eccentric ring moderately indirection
of rotation of the shaft and lock it with a set screw. To
loosen the bearing, drive off the eccentric ring against
the sense of rotation of the shaft.
14035
Adapter sleeve bearing
Adapter sleeve bearings do not require a specially
machined bearing seat. They may be mounted on any
drawn or scalped shaft. This is an advantage because
it allows the shaft to be axially moved as required to
obtain correct alignment.
Always install adapter sleeve bearings according to
the conical inside ring. Clean the taper lock adapter
sleeve and the shaft and check that the sleeve nut
runs easily so the taper lock adapter sleeve will not
turn on the shaft when tightening.
Tightening:
First tighten the sleeve nut to the point where the taper
lock adapter sleeve has no more play and is under
slight preload. Now tighten the nut by approx. 90° and
continue turning until the next nearest slot fits the tab.
Secure sleeve nut with the tab.
Slackening off:
Slacken off the released sleeve nut for some turns only
for the time being. The thread must still be fully load-
bearing. Loosen the taper lock adapter sleeve with
a sharp blow, using a block-ended tube.
14037
Ferrule fittings on hydraulic lines
When pre-assembling the unit and for pre-assembled
factory-delivered ferrule fittings, the following applies:
installation is in the associated, well-oiled threaded
joint with half a turn of the union nut beyond the point
where resistance is felt.
Pre-assembly:
– Cut the tube at a right angle.
Do not use a tube cutter! This would cut the tube
wall at an angle and would cause a significant
amount of burr lines on both the interior and
exterior.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

10 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General repair instructions
81213
– Lightly deburr the interior and exterior tube ends.
Do not chamfer!
– Clean the tube ends.
If the tube is angled, the straight edge of the tube lead-
ing up to the beginning of the curve's radius must be at
least twice as high as the box nut.
– Push the box nut and the cutting ring onto the
tube.
– Press the tube against the stop on the connection
sleeve and tighten the box nutuntil the cutting ring
surrounds the tube.
The tube must not turn during this process. This
may easily happen due to a significant increase in
force.
– Tighten the box nut a 1/2 turn beyond the resist-
ance point.
– Check the notch on the cutting edge.
A visible raised shoulder must fill the space in
front of the front surface of the cutting ring. The
cutting ring can turn, but may not shift axially.
Final assembly
– Fit the pre-assembled tube in the well-greased
threaded connector.
– Tighten the box nut until the resistance point is
felt.
– Tighten another 1/2 turn beyond this point.
Repetitive assembly
– After each time the cutting ring bolt connector is
loosened, the box nut must be re-tightened using
only the minimum amount of force necessary.
Unsealed cutting ring bolt connector
– If the connector is not sealed, it is necessary to
first loosen the box nut until a small amount of oil
flows out.
– Then re-tighten as directed. 14039
Progressive ring fittings on hydraulic lines
When pre-assembling the unit and for pre-assembled
factory-delivered profiled ring fittings, the following
applies: installation is in the associated, well-oiled
threaded joint with half a turn of the union nut beyond
the point where resistance is clearly felt.
Pre-assembly
– Cut the tube at a right angle.
Do not use a tube cutter! This would cut the tube
wall at an angle and would cause a significant
amount of burr lines on both the interior and
exterior.
– Lightly deburr the interior and exterior tube ends.
Do not chamfer!
– Clean the tube ends.
Find manuals at http://best-manuals.com/search?&s=CLA-2945140

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 11
Introduction
General repair instructions
81213
If the tube is angled, the straight edge of the tube lead-
ing up to the beginning of the curve's radius must be at
least twice as high as the box nut.
– Push the box nut and the profile ring onto the
tube.
– Press the tube against the stop on the connection
sleeve and tighten the box nut until the profile ring
surrounds the tube.
The tube must not turn during this process.
This may easily happen due to a significant
increase in force.
– Tighten the box nut a 1/2 turn beyond the resist-
ance point.
– Check the notch on the cutting edge:
A visible raised shoulder must fill the space in
front of the front surface of the profile ring. The
profile ring can turn, but may not shift axially.
Final assembly
– Fit the pre-assembled tube in the well-greased
threaded connector.
– Tighten the box nut until the resistance point is
felt, then do a further 1/2 turn.
Important: hold the threaded connector using a
spanner!
Repetitive assembly
– After each time the profile ring bolt connector is
loosened, the box nut must be re-tightened until
the resistance point is felt, before receiving a fur-
ther 1/2 turn.
Important: hold the threaded connector using a
spanner!
Unsealed profile ring connector
If the connector is not sealed, it is necessary to first
loosen the box nut until a small amount of oil flows out,
then re-tighten as directed.
The discrepancies in tightening values reduce the
resulting nominal pressure and the lifespan of the bolt
connector. This leads to leaks and tube slippage.
14041
Taper fittings on hydraulic lines
Installation:
– Apply some oil to the O-ring on the sealing cone.
Tighten the union nut a third of a turn beyond the
point where resistance is felt.
Important: Back up the threaded joint with a
wrench!
Any deviating tightening torques reduce the rated
pressure resistance and the service life of the screw
fitting. This results in leaks and the tube slipping out.

12 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General repair instructions
81213
115324
Hydraulic hoses
Hydraulic bolt connectors:
Follow the final assembly guidelines:
– Cutting ring bolt connectors on the hydraulic
ducts, see above. Progressive ring bolt connec-
tors on the hydraulic ducts, see above. Biconal
ring bolt connectors on the hydraulic ducts, see
above.
Hose routing:
Follow the relevant specifications concerning the five
following illustrations.
– Avoid twisting the hoses during installation.
A = incorrect installation
B = correct installation
– Install hoses so that neither tractive force loads
nor upsetting loads occur with short lengths in any
operating status.

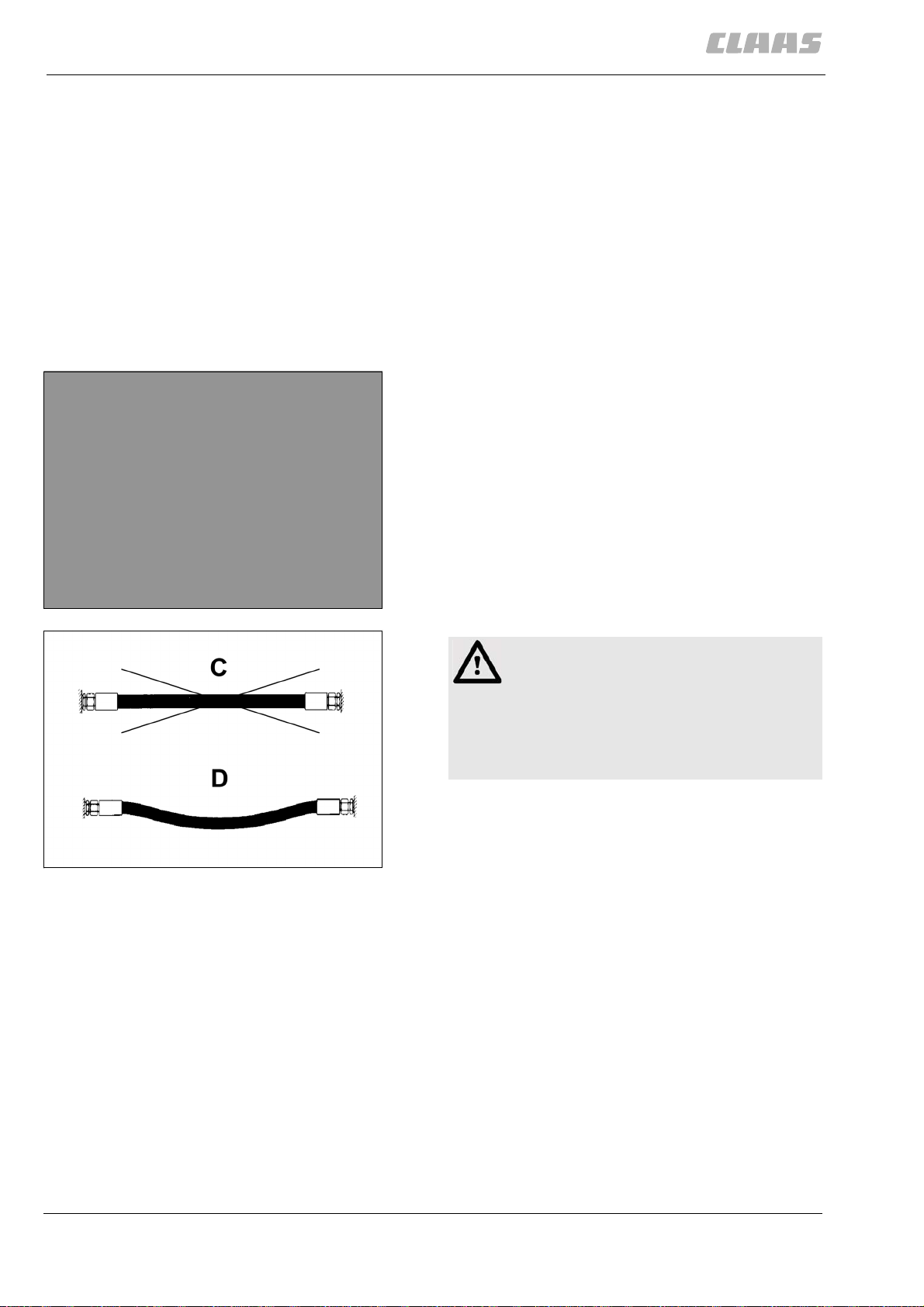

C = Wrong installation
D = Correct installation
– Rule of thumb: When jiggling on the hose in the
middle between two brackets/connectors (e.g.
clamps), the entire play of the hose should be at
least 1 cm.
1
5728
2
5727
Warning!
Hoses laid in a straight line become shorter
due to the internal hydraulic pressure.
Fittings may be torn out.
– Always install hoses with a slight sag.
Even in static positions.

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 13
Introduction
General repair instructions
81213
Avoiding external damage:
– Avoid external mechanical effects on hoses
at (G).
– Avoid chafing of hoses against one another or
against components by ensuring useful arrange-
ment and fixing.
– Keep a sufficient clearance from components (H).
– Cover up sharp-edged components permanently.
E = incorrect installation
F=correct installation
Avoiding torsional loads:
– When connecting a hose to moving parts, avoid
twisting the hose, especially when the movement
and the bending occur in the same plane.
K = incorrect installation
L=correct installation
Protection against external heat sources:
– In case of large external heat source:
- Hoses must be kept at a sufficient distance
from heat-emitting parts.
- By default, hoses must be protected from the
heat source by a deflector (N).
14047
Some advice for speedy and correct repair
work
– Mark machine parts prior to disassembly to
ensure their correct left-to-right positions and bal-
ance when reassembled.
– Fit expansion pins with the slot facing the side
under load. When fitted with a quarter turn from
this position, they will get loose, fall out or shear
off.
– Replace split pins, locking wires, locking plates,
tab washers and lock washers when carrying out
repairs.
– Install greasable ball and sliding bearings with the
grease specified for them.
3
5726
4
5729
5
5730

14 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
General repair instructions
81213
– Align sprockets and V-belt pulleys toward each
other.
– Care for strict cleanliness when working on
hydraulic systems.
– Never mix different oil types.
– Run the machine or operate machine assemblies
at low speed after any repair.

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 15
Introduction
Torque settings
81213
Torque settings 14049
Tightening torques for metric standard
threads
The tightening torques specified below apply only
when:
– A friction coefficient of µ tot = 0.14 is achieved in
connection with thread lubricant.
To achieve this, a surface protection agent such
as A3C+L, Dacromet or Termosil is
recommended.
– No other tightening torque is specified in the
descriptive text.
– No additional screw retention is used, such as
MK-type bolts or liquid locking compound.
Tightening torque in Nm at a friction coefficient
µ tot = 0.14
Bolts and nuts
Property class 8.8 10.9 12.9
Dimensions
Hex. bolts
ISO 4014 to ISO 4018
Cheese-head screws
ISO 4762
Hex. nuts
ISO 4032
M 4 2.9 4.3 5
M5 5.8 8.5 10
M 6 10 14.5 17
M 8 24.5 36 42
M 10 48.5 71 83.5
M 12 83.5 123 144
M 14 133 196 229
M 16 207 304 355
M 18 296 422 494
M 20 417 594 695
M 22 570 813 951
M 24 718 1022 1196
M 27 1058 1506 1763
M 30 1437 2046 2395
M 33 1944 2770 3240
M 36 2500 3561 4167
M 39 3237 4610 5394

16 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
Torque settings
81213
14051
Tightening torques for metric fine threads
The tightening torques specified below apply only
when:
– A friction coefficient of µ tot = 0.14 is achieved in
connection with thread lubricant.
To achieve this, a surface protection agent such
as A3C+L, Dacromet or Termosil is
recommended.
– No other tightening torque is specified in the
descriptive text.
– No additional screw retention is used, such as
MK-type bolts or liquid locking compound.
Tightening torque in Nm at a friction coefficient
µ tot = 0.14
Bolts and nuts
Property class 8.8 10.9 12.9
Dimensions
Hex. bolts
ISO 8765, ISO 8876
Hex. nuts
ISO 4032
M8x1 2638.545
M 10 x 1 54 79 92.5
M 10 x 1.25 51 74.5 88
M 12 x 1.25 90.5 134 156
M 12 x 1.5 87 128 150
M 14 x 1.5 143 210 246
M 16 x 1.5 219 323 378
M 18 x 1.5 331 470 551
M 18 x 2 313 446 522
M 20 x 1.5 459 655 766
M 22 x 1.5 622 886 1037
M 24 x 1.5 809 1152 1348
M 24 x 2 778 1108 1297
M 27 x 1.5 1173 1672 1956
M 27 x 2 1135 1617 1892
M 30 x 2 1580 2251 2634
M 33 x 2 2116 3015 3528
M 36 x 2 2773 3951 4623
M 39 x 2 3557 5067 5930

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 17
Introduction
Torque settings
81213
14053
Tightening torques for hydraulic screw fittings with ferrule according to DIN 3861
Outside tube diameter
in mm
Tightening torque
(light series)
in Nm
Tightening torque
(heavy series)
in Nm
61525
82535
10 35 50
12 50 80
15 80 -
16 - 110
18 110 -
20 - 160
22 160 -
25 - 210
28 210 -
30 - 320
35 320 -
38 - 400
42 400 -

18 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
Torque settings
81213
14055
Tightening torques for hydraulic screw fittings and air conditioner fittings with a sealing cone
and O-ring DIN 3865
Outside tube diameter
in mm
Tightening torque
(light series)
in Nm
Tightening torque
(heavy series)
in Nm
61015
81525
10 25 35
12 35 50
15 50 -
16 - 80
18 80 -
20 - 110
22 110 -
25 - 160
28 160 -
30 - 210
35 210 -
38 - 320
42 320 -

00 0294 514 0 - RHB QUADRANT 3400 - 03/10 19
Introduction
Torque settings
81213
52260
Tightening torques for hydraulic male connector DIN 3901
Shape B with sealing edge
(cutting edge)
Shape E with flexible sealing lining
Shape F with O-ring
Dimensions Tightening torque
(light series)
In Nm
Tightening torque
(heavy series)
In Nm
Tightening torque
(light series)
In Nm
Tightening torque
(heavy series)
In Nm
M8x1--9-
M10 x 1 18 - 11 -
M12x1.530351515
M14x1.545552525
M16x1.560703535
M18 x 1.5 70 110 50 50
M20 x 1.5 - 140 - 55
M22 x 1.5 140 170 80 80
M26 x 1.5 180 220 110 110
M27 x 2 190 250 110 160
M33 x 2 300 300 160 210
M42 x 2 500 550 210 320
M48 x 2 550 600 320 420
G1/8A 20 25 - -
G1/4A 35 40 - -
G3/8A 70 90 - -
G 1/2 A 100 150 - -
G 3/4 A 180 270 - -
G 1 A 250 350 - -
G 1 1/4 A 450 500 - -
G 1 1/2 A 550 600 - -
7/16 - 20 (11.1 mm) - - 15 20
1/2-20(UNF) - - 20 25
9/16 - 18 (14.3 mm) - - 30 30
3/4 - 16 (19.1 mm) - - 35 60
7/8 - 14 (22.2 mm) - - 70 90
11/16-12(27mm) - - 85 100

20 00 0294 514 0 - RHB QUADRANT 3400 - 03/10
Introduction
Torque settings
81213
15/16-12
(33.3 mm) - - 150 170
15/8-12(UNF) - - 250 300
17/8-12(UNF) - - 300 350
2 - 12 (UNF) - - 350 400
Shape B with sealing edge
(cutting edge)
Shape E with flexible sealing lining
Shape F with O-ring
Dimensions Tightening torque
(light series)
In Nm
Tightening torque
(heavy series)
In Nm
Tightening torque
(light series)
In Nm
Tightening torque
(heavy series)
In Nm
