Claas QUANTUM 3500 Guide

QUANTUM 3500 - 6800
Technical Systems
QUANTUM 6800 P

Technical Systems QUANTUM TIC
10/04

TIC QUANTUM Technical Systems
10/04
Chapters 1 Technical Data
3 Operation
10 Brakes
11 Hydraulic System
12 Electric System / Diagnosis

Technical Systems QUANTUM TIC
10/04

TIC QUANTUM Technical Data
10/04 1-1
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3500 P, 3800 K, 3800 P..............................................................2
1.1 QUANTUM 3500 K, 3500 P, 3500 S, 3800 K, 3800 P, 2500 K, 2500 P..............................................2
1.2 QUANTUM 5500 S-18, 5500 S-16, 5500 S, 4500 S, 6800 S ..............................................................5
1.3 QUANTUM 6800 P, 6500 P, 5500 P-18, 5500 GT, 5500 P, 4500 P ...................................................8

Technical Data QUANTUM TIC
1-2 10/04
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3500 P, 3800 K, 3800 P
1.1 QUANTUM 3500 K, 3500 P, 3500 S, 3800 K, 3800 P, 2500 K, 2500 P
QUANTUM
3500 K
QUANTUM
3500 P
QUANTUM
3500 S
Length (L) mm 8,100 8,100 8,200
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly folded
up
mm 3,410 3,600 3,600
Height (S) – dry forage assembly folded
down
mm 2,600 3,050 3,050
Track width mm 1,850 1,850 1,850
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,180 1,180 1,180
Loading capacity (acc. to DIN 11741) m326.6 28 25.6
Kerb weight kg 5,160 5,200 5,860
Permissible total weight (Rückmatic /
compressed air)
8,000/11,000 8,000/11,000 8,000/11,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min-1 1,000 1,000 1,000
Tyres - Rückmatic up to 40 km/h
or
- compressed air up to 40 km/h
- compressed air up to 60 km/h
19.0/45-17
500/50-17 10 PR
555/45-17 10 PR
500/50-17 10 PR
19.0/45-17
500/50-17 10 PR
500/50-17 10 PR
500/50-17 10 PR
19.0/45-17
500/50-17 10 PR
555/45-17 10 PR
555/45-17 10 PR
Tyre pressure - with tyres 500/50-17
555/45-17
19.0/45-17
bar
bar
bar
3.5
3.0
3.0
3.5
3.0
3.0
3.5
3.0
3.0
Tightening torque of wheel nuts - wagon
wheels
Nm 300 300 300
Sound pressure level dB(A) 70 70 70

TIC QUANTUM Technical Data
10/04 1-3
QUANTUM
2500 K
QUANTUM
2500 P
Length (L) mm 8,100 8,100
Width (B) mm 2,550 2,550
Height (H) – dry forage assembly folded up mm 3,410 3,600
Height (S) – dry forage assembly folded down mm 2,600 3,050
Track width mm 1,850 1,850
Pick-up width mm 1,800 1,800
Platform height mm 1,180 1,180
Loading capacity (acc. to DIN 11741) m326.6 28
Kerb weight kg 4,500 4,750
Permissible total weight
(Rückmatic / compressed air)
8,000/11,000 8,000/11,000
Number of cutting knives 33 33
Shortest theoretical length of cut mm 40 40
Number of pick-up tines per tine bar 26
Tine spacing mm 61 61
PTO speed min-1 540 540
Tyres - Rückmatic up to 40 km/h
or
- compressed air up to 40 km/h
- compressed air up to 60 km/h
15.0/55-17
19.0/45-17
500/50-17 10 PR
500/50-17 10 PR
555/45-17 10 PR
15.0/55-17
19.0/45-17
500/50-17 10 PR
500/50-17 10 PR
555/45-17 10 PR
Tyre pressure - with tyres 500/50-17
555/45-17
9.0/45-17
15.0/55-17
bar
bar
bar
bar
3.5
3.0
3.0
3.5
3.5
3.0
3.0
3.5
Tightening torque of wheel nuts - wagon
wheels M18x1.5
M20x1.5
Nm
Nm
270
380
270
380
Sound pressure level dB(A) 70 70

Technical Data QUANTUM TIC
1-4 10/04
QUANTUM
3800 K
QUANTUM
3800 P
Length (L) mm 9,250 9,250
Width (B) mm 2,550 2,550
Height (H) – dry forage assembly folded up mm 3,410 3,600
Height (S) – dry forage assembly folded down mm 2,600 3,050
Track width mm 1,850 1,850
Pick-up width mm 1,800 1,800
Platform height mm 1,180 1,180
Loading capacity (acc. to DIN 11741) m331.8 33.2
Kerb weight kg 5,550 5,650
Permissible total weight (compressed air) 11,000 11,000
Number of cutting knives 33 33
Shortest theoretical length of cut mm 45 45
Number of pick-up tines per tine bar 26 26
Tine spacing mm 61 61
PTO speed min-1 1.000 1.000
Tyres
- compressed air up to 40 km/h
- compressed air up to 60 km/h
500/50-17 10 PR
555/45-17 10 PR
500/50-17 10 PR
555/45-17 10 PR
Tyre pressure - with tyres 500/50-17
555/45-17
19.0/45-17
bar
bar
bar
3.5
3.0
3.0
3.5
3.0
3.0
Tightening torque of wheel nuts - wagon
wheels M18x1.5
M20x1.5
Nm
270
300
270
300
Sound pressure level dB(A) 70 70

TIC QUANTUM Technical Data
10/04 1-5
1.2 QUANTUM 5500 S-18, 5500 S-16, 5500 S, 4500 S, 6800 S
QUANTUM
5500 S-18
QUANTUM
5500 S-16
QUANTUM
6800 S
Length (L) mm 9,250 9,250 10,500
Width (B)
- Standard
- with tyres 700/45-22.5
- with tyres 600/55-R26.5
- with tyres 700/50-R26.5
- with tyres 800/40-R26.5
mm
2,550
2,720
-
-
-
2,550
-
-
-
-
2,550
2,720
2,550
2,750
2,930
Height (H) - dry forage assembly folded
up
- with tyres 800/40-R26.5
mm
mm
3,990
-
3,930
-
3,990
4,000
Height (S) - dry forage assembly folded
up
- with tyres 800/40-R26.5
mm
mm
3,290
-
3,230
-
3,290
3,300
Track width - with tyres 22.5
- with tyres 26.5
mm
mm
1,950
-
1,950
-
1,950
2,000
Pick-up width mm 1,800 1,800 1,800
Platform area mm 2,160 x 5,700 2,160 x 5,700 2,160 x 5,700
Loading capacity (acc. to DIN 11741) m331 31 38
Kerb weight
with tyres 800/40-R26.5
incl. forced steering
kg
kg
8,340
-
7,600
-
8,810
9,350
Permissible total weight 18,000 16,000 20,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min-1 1,000 1,000 1,000

Technical Data QUANTUM TIC
1-6 10/04
QUANTUM
5500 S-18
QUANTUM
5500 S-16
QUANTUM
6800 S
Tyres:
- up to 40 km/h without AGS
- up to 50 km/h without AGS
- up to 60 km/h without AGS
- up to 60 km/h air suspension
- Pick-up wheels
700/45-22.5 12PR
-
-
600/55-22.5 12PR
650/50-R22.5 12PR
-
-
16x6.5-8 4PR
555/45-17 154F
-
-
550/45-R22.5
555/45-17 154F
-
500/55-20 12PR
16x6.5-8 4PR
700/45-22.5 12PR
700/50-R26.5
800/40-R26.5
-
650/50-R22.5 12PR
600/55-R26.5
-
16x6.5-8 4PR
Tyre pressure
- with tyres: 555/45-17
500/55-20
600/55-22.5
550/45-R22.5
650/50-R22.5
700/45-22.5
600/55-R26.5
700/50-R26.5
800/40-R26.5
Pick-up wheels
bar
-
-
3.0
-
3.0
1.5
-
-
-
2.5
3.0
4.5
-
3.0
-
-
-
-
-
2.5
-
-
3.0
-
3.0
1.5
3.0
1.5
1.5
2.5
Tightening torque of wheel nuts
M18 x x1.5
M20 x 1.5
M22 x x1.5
Nm
-
380
510
270
-
-
-
-
510
Sound pressure level dB(A) 70 70 70

TIC QUANTUM Technical Data
10/04 1-7
QUANTUM
5500 S
QUANTUM
4500 S
Length (L) mm 9,250 8,160
Width (B) mm 2,550 2,550
Height (H)
– dry forage assembly folded up
– dry forage assembly folded down
mm
mm
3,840
3,040
3,840
3,040
Track width mm 1,850 1,850
Pick-up width mm 1,800 1,800
Platform height mm 1,240 1,240
Platform area mm 2,160 x 5,700 2,160 x 4,700
Loading capacity (acc. to DIN 11741) m331 26,3
Kerb weight kg 6,920 6,500
Permissible total weight 13,000 11,000
Number of cutting knives 33 33
Shortest theoretical length of cut mm 45 45
Number of pick-up tines per tine bar 26 26
Tine spacing mm 61 61
PTO speed min-1 1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 60 km/h without AGS
- up to 80 km/h with AGS
- up to 60 km/h air suspension
- Pick-up wheels
555/45-17 146F
555/45-17 146F
555/45-17 146F
555/45-17 146F
16x6.5-8 4PR
500/50-17 10PR
555/45-17 146F
555/45-17 146F
-
16x6.5-8 4PR
Tyre pressure - with tyres 500/50-17
555/45-17
500/55-20
16x6.5-8
bar
bar
bar
-
3.0
-
2.5
3.5
3.0
-
2.5
Tightening torque of wheel nuts – wagon
wheels
Nm 300 300
Sound pressure level dB(A) 70 70

Technical Data QUANTUM TIC
1-8 10/04
1.3 QUANTUM 6800 P, 6500 P, 5500 P-18, 5500 GT, 5500 P, 4500 P
QUANTUM
6800 P
QUANTUM
6500 P
QUANTUM
5500 P-18
Length (L) mm 10,180 10,019 9,250
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly
folded up
mm 3,990 3,950 3,990
Height (S) – dry forage assembly
folded down
mm 3,290 3,190 3,290
Track width mm 1,950 1,950 1,950
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,240 1,240 1,490
Platform area mm 2,160 x 7,600 2,160 x 7,550 2,160 x 6,550
Loading capacity (acc. to DIN 11741) m340 45.7 34
Kerb weight kg 8,030 7,440 7,240
Permissible total weight kg 20,000 16,000 18,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min-1 1,000 1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 50 km/h without AGS
- up to 60 km/h without AGS
- up to 80 km/h with AGS
- up to 60 km/h air suspension
- Pick-up wheels
700/45-22.5 12PR
700/50-R26.5
-
650/50-22.5 12PR
-
-
16x6.5-8 4PR
2x 500/50-17 14PR
4x 8.25 R70 14PR
-
-
-
-
16x6.5-8 4PR
-
-
600/55-22.5 12PR
650/55-22.5 12PR
-
-
16x6.5-8 4PR
Tyre pressure - with tyres
555/45-17
500/55-20
600/55-22.5
650/50-R22.5
700/45-22.5
600/55-R26.5
700/50-R26.5
800/40-R26.5
Pick-up wheels
bar -
-
3.0
3.0
1.5
3.0
1.5
1.5
2.5
4.5
4.5
-
-
-
-
2.5
-
-
3.0
3.0
1.5
-
-
-
2.5
Tightening torque of wheel nuts Nm 300 300 300
Sound pressure level dB(A) 70 70 70

TIC QUANTUM Technical Data
10/04 1-9
QUANTUM
5500 GT
QUANTUM
5500 P
QUANTUM
4500 P
Length (L) mm 8,860 8,860 7,770
Width (B) mm 2,550 2,550 2,550
Height (H) – dry forage assembly folded up mm 3,800 3,800 3,800
Height (S) – dry forage assembly folded
down
mm 3,040 3,040 3,040
Track width mm 1,900 1,850 1,850
Pick-up width mm 1,800 1,800 1,800
Platform height mm 1,240 1,240 1,240
Platform area mm 2,160 x 6,500 2,160 x 6,550 2,160 x 5,400
Loading capacity (acc. to DIN 11741) m334 34 29.3
Kerb weight kg 6,550 6,200 5,740
Permissible total weight kg 16,000 13,000 11,000
Number of cutting knives 33 33 33
Shortest theoretical length of cut mm 45 45 45
Number of pick-up tines per tine bar 26 26 26
Tine spacing mm 61 61 61
PTO speed min-1 1,000 1,000 1,000
Tyres - up to 40 km/h without AGS
- up to 50 km/h without AGS
- up to 60 km/h without AGS
- up to 60 km/h air suspension
- Pick-up wheels
555/45-17 154F
550/45-R22.5
555/45-17 145F
500/55-20 12PR
16x6.5-8 4PR
555/45-17 146F
-
555/45-17 146F
16x6.5-8 4PR
500/50-17 10PR
-
555/45-17 146F
-
16x6.5-8 4PR
Tyre pressure
- with tyres 500/50-17
550/45-R22.5
555/45-17
500/55-20
550/45-17 154F
Pick-up wheels
bar -
-
4.5
3.5
3.0
2.5
-
-
3.0
3.0
-
2.5
3.5
3.0
3.0
-
-
2.5
Tightening torque of wheel nuts
M18 x 1.5
M20 x 1.5
Nm
270
380
270
380
270
380
Sound pressure level dB(A) 70 70 70

Technical Data QUANTUM TIC
1-10 10/04

TIC QUANTUM Operation
10/04 3-1
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3800 K, 3800 P, 3500 S ..........................................................2
1.1 Control box short instructions .....................................................................................................3
1.2 Operation ....................................................................................................................................4
2.0 QUANTUM 4500 S / 5500 S / S-16 / S-18 / 6800 S ............................................................................8
2.1 Control box short instructions .....................................................................................................9
2.2 Operation ..................................................................................................................................11
3.0 QUANTUM 4500 P / 5500 P / 5500 P-16 / 5500 P-18 / 5500 GT / 6800 P.......................................18
3.1 Control box short instructions ...................................................................................................19
3.2 Operation ..................................................................................................................................21

Operation QUANTUM TIC
3-2 10/04
1.0 QUANTUM 2500 K, 2500 P, 3500 K, 3800 K, 3800 P, 3500 S
Caution! When draining oil over a more extended period than usual (tractor –
forage wagon – floor conveyor), the pump system of the tractor must be
known (see “Prior to operation – Hydraulic system”).
The buttons on the control box are only used to pre-select the different
functions of the forage wagon. Operating the single-acting control valve
on the tractor will activate the desired function.
Between the different operations, the single-acting control valve of the
tractor must be switched back to the neutral position.
Only then a new function can be pre-selected on the control box.
The floor conveyor is controlled using the double-acting control valve on
the tractor.
On the S-wagon, the floor conveyor speed can be varied using the rotary
knob. This knob has no function on the K and P wagons!

TIC QUANTUM Operation
10/04 3-3

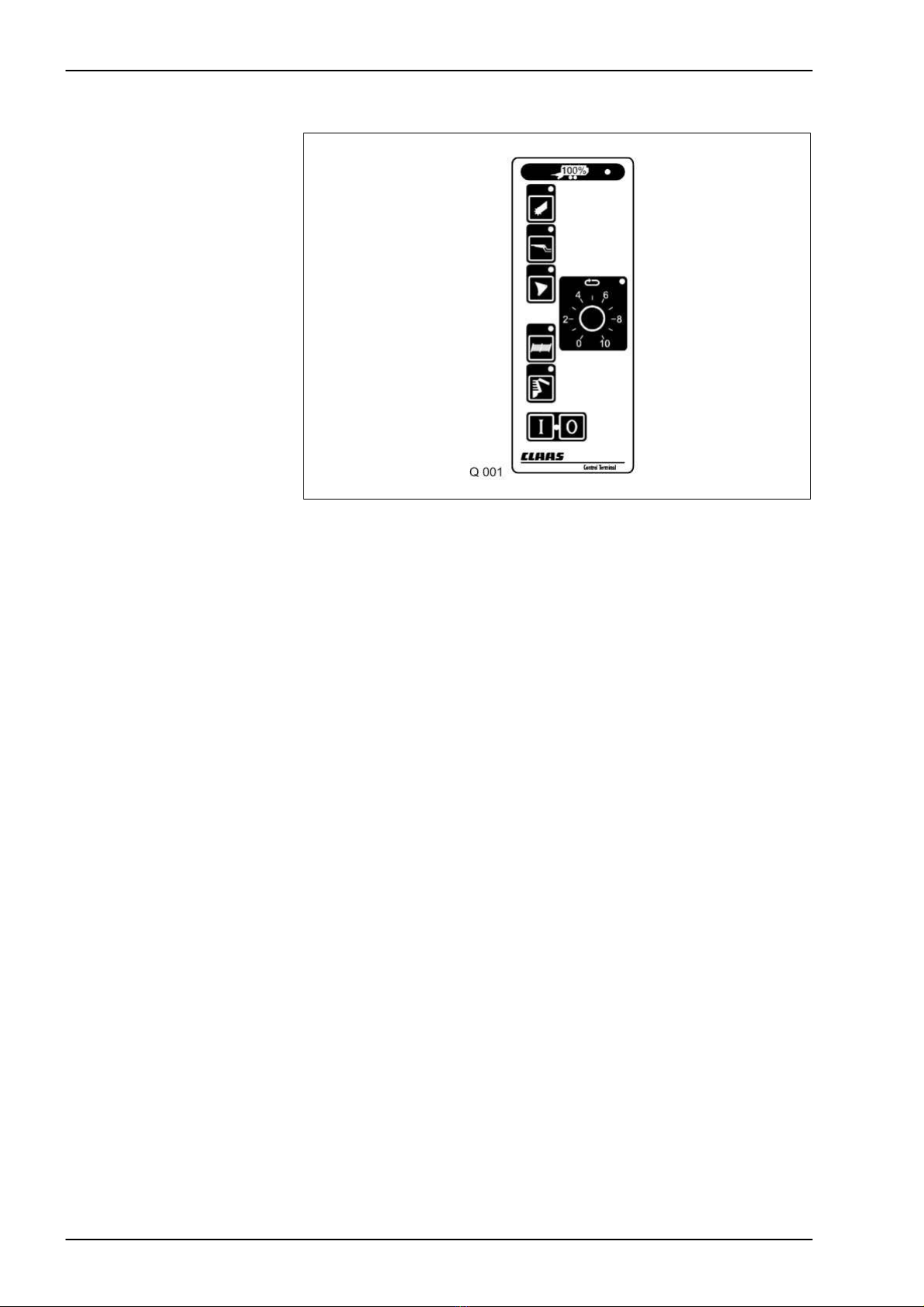

1.1 Control box short instructions
Control system ON
Control system OFF
Loading operation
Pick-up up/down
Dry crop top up/down
(Quantum 3500 K only)
Wagon full indicator
Knife frame
Opens / closes the cutting trough
Opens the cutting trough totally
Unloading operation
Opens / closes the tailgate
Articulated drawbar
Drawbar up/down

Operation QUANTUM TIC
3-4 10/04
1.2 Operation
Loading operation
Use this key of the control box to switch on the control unit. The red
indicator light lights up.
Pick-up
lowered/raised
Use this key to pre-select the pick-up mode. The pick-up can now be
raised and lowered using the single-acting control valve. Switch
on the pto for loading.
Attention The pick-up will only remain in floating position if the pick-up mode is pre-
selected on the control box and the single-acting control valve is set to
floating position.
Quantum 3500 K / 3800 K /
3500 P / 3800 P
To switch off the rotor and the pick-up the pto must be disengaged.
Quantum 3500 S Raising the pick-up will automatically disengage the rotor and the pick-up.
Dry crop top
(QUANTUM 2500 K,
3500 K only)
Use this key to pre-select the dry crop top mode. To erect the dry
crop top, pressurize the single-acting control valve. To lower it, set
the system to the float position.

TIC QUANTUM Operation
10/04 3-5
Floor conveyor The floor conveyor is controlled using the double-acting control valve on
the tractor. To set the floor conveyor to forwards or reverse, set the
double-acting control valve to the raise or lower position.
Floor conveyor speed QUANTUM 3500 S:
The floor conveyor speed can be varied using the rotary knob provided
the pick-up or the tailgate has been pre-selected.
QUANTUM 3500 K / P, 2500 K / P, 3800 K / P:
If the tractor is fitted with a flow rate controller, this can be used to vary
the floor conveyor speed.
The knob on the control unit has no function on the K and P
wagons.
Opening the knife frame If a blockage occurs in the conveyor channel (cut-out clutch of the
universal drive shaft is activated), switch off the pto.
Use this key to select the cutting mechanism mode. Set the lever
on the single-acting control valve to the float position in order to
open the knife frame.
Engage the pto to clear the blockage. Once the channel is free, close the
knife frame again by moving the lever on the single-acting control valve
to the pressure setting.
If the knife frame has to be totally lowered (e.g. for repair work or for
the replacement of knives), first set the single-acting valve to the
float position and then press these two buttons simultaneously.
To close the knife frame, set the control unit to the pressure setting.
Attention If the knife frame is totally open, it must be closed very carefully and
slowly. When folding up the frame, ensure that the cutting knives will not
collide with the rotor tines.
“Wagon full” indicator The load space is filled when the “wagon full” indicator of the display
flashes (see figure). Switch off the floor conveyor, raise the pick-up and
switch off the universal drive shaft.
QUANTUM 3500 S QUANTUM 3500 P / K
2500 P / K
3800 P / K

Operation QUANTUM TIC
3-6 10/04
Unloading operation
Use this key of the control box to switch on the control unit. The
indicator light lights up.
Silo operation
For silo operation raise the wagon at the front with the articulated
drawbar. Use this key for pre-selecting the articulated drawbar and
set the single-acting control valve to the pressure setting. When
unloading is complete, lower the wagon again. Set the control unit
to the float position.
Discharging the load
QUANTUM 3500 S
Attention If the swash plates are folded down, opening the tailgate is not allowed.
Open the tailgate before unloading. Use this key for pre-selecting
the tailgate and set the single-acting control valve to the pressure
setting.
Open the tailgate to enable activation of the shredder drums via the pto.
Then initiate the floor conveyor using the double-acting control valve. The
floor conveyor speed can be varied using the rotary knob. To close the
tailgate, the set the single-acting control valve to the float position until
the tailgate has closed completely.
Discharging the load
QUANTUM
2500 K / P
3500 K / P
3800 K / P
Open the tailgate before unloading. Use this key for pre-selecting
the tailgate and set the single-acting control valve to the pressure
setting.
Initiate the floor conveyor using the double-acting control valve. To
close the tailgate, the set the single-acting control valve to the float
position until the lock has engaged.
To reverse the floor conveyor, move the lever of the double-acting
control valve to the opposite direction. If the tractor is fitted with a flow
rate controller, this can be used to vary the floor conveyor speed.
