Clare Controls HDBaseT CM-BT20-COMPACT-70-TX User manual

HDBaseT Compact Extender
Set 70m with ARC User Guide
Model HDBaseT CM-BT20-COMPACT-70-TX
and HDBaseT CM-BT20-COMPACT-70-RX
Last Modified: 11/14/2016
Doc ID - 1354 • Rev 01

Copyright
© 14NOV16 Clare Controls, LLC. All rights reserved.
This document may not be copied in whole or in part or
otherwise reproduced without prior written consent from Clare
Controls, LLC., except where specifically permitted under US
and international copyright law.
Trademarks and patents
HDBaseT Compact Extender Set 70m with ARC, Model
HDBaseT CM-BT20-COMPACT-70-TX and HDBaseT CM-
BT20-COMPACT-70-RX name is a trademark of Clare
Controls, LLC.
Other trade names used in this document may be trademarks
or registered trademarks of the manufacturers or vendors of
the respective products.
Manufacturer
Clare Controls, LLC.
7519 Pennsylvania Ave., Suite 104, Sarasota, FL 34243, USA
Contact information
For contact information, see www.clarecontrols.com.
FCC compliance
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
FCC compliance
Class A: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his or her
own expense.

FCC compliance
Class B: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
There is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
EU compliance
Complete additional sections according to the governing laws
and standards for the intended marketplace.
EU directives
1999/5/EC (R&TTE directive): Hereby, Clare Controls, LLC
. declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
2002/96/EC (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product to
your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For
more information, see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as unsorted municipal waste
in the European Union. See the product documentation for
specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd),
lead (Pb), or mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated collection point. For
more information, see: www.recyclethis.info.

HDBaseT Compact Extender Set 70m with ARC User Guide i
Content
Safety precautions and operation...ii
Limitation of liability...Error! Bookmark not defined.
Introduction...1
Features...1
Package contents...1
Product appearance...2
System connection...4
Usage precautions...4

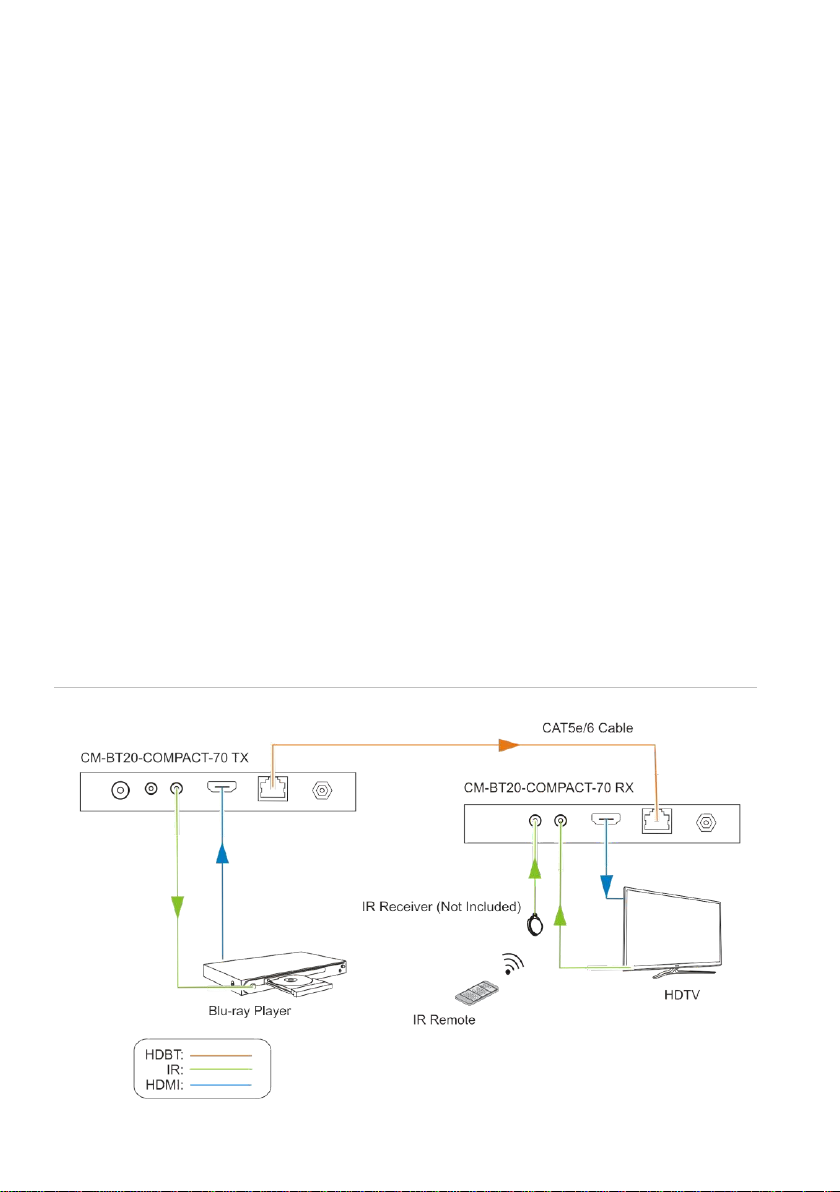

Application examples...4
Connection procedure...5
PoH...5
ARC...6
Application...8
Twisted pair cable connection...8
IR IN pinout...9
Specifications...10
Supported resolution...11

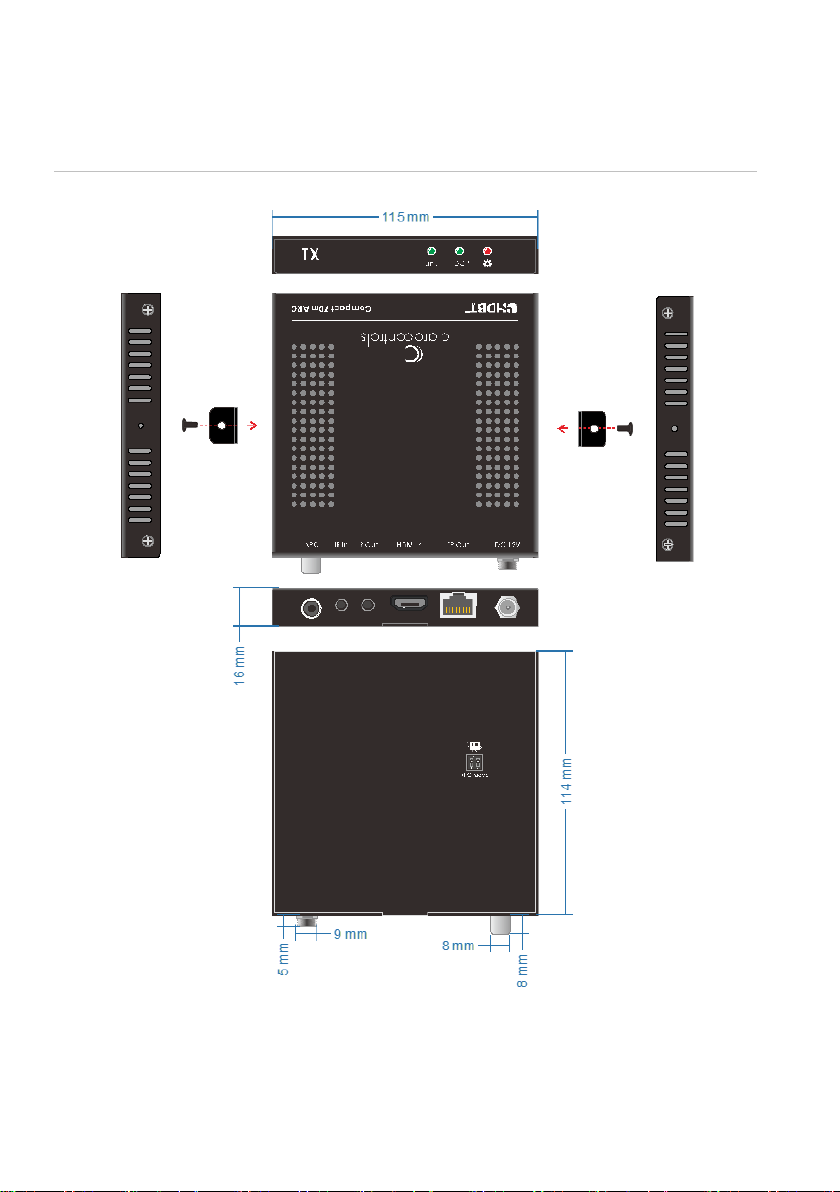

Panel drawings...12
Troubleshooting and maintenance...14
After-sales service...15
Warranty information...15

ii HDBaseT Compact Extender Set 70m with ARC User Guide
Safety precautions and operation
Read all instructions carefully before using the device. Save this manual for
future reference. To guarantee equipment reliability and personal safety,
please follow the procedures listed below.
 Unpack the equipment carefully. Save the original box and packing
material for future shipping.
 Follow basic safety precautions to reduce the risk of fire, electrical
shock, and injury to persons.
 Only qualified professionals should service this product. Do not open or
modify the device; it may result in electrical shock or burn. Do not
attempt any repairs. There are no user-serviceable parts inside. Any
attempt to open the equipment will result in a complete void of any
warranty and may result in serious injury or death.
 Only use parts that meet the device’s specifications. If you use parts
that do not match, it may cause damage to the device.
 Do not expose this device to rain, moisture, chemicals (including
aerosol cleaners), or any form of liquid to avoid fire or shock damage. If
exposure occurs, unplug the device immediately.
 Do not disrupt the device’s cables or power source.
 Do not twist or use force to pull the optical cable, this can cause
damage or malfunction in the device.
 Do not leave this device plugged in and unused for long periods.
 Do not burn or mix this device with general household waste. Treat the
device as electrical waste.
 Do not place the device in a place that is abnormally hot/cold or does
not have proper temperature control and ventilation.
 The HDBaseT CM-BT20-COMPACT-70-TX and RX generate heat
when operating. The environment should be well ventilated to prevent
damage caused by overheating.
 Before cleaning or making/removing connections to the device, ensure
that the power supply has been disconnected.
Caution: The HDBaseT CM-BT20-COMPACT-70-TX RX must be used as
a pair. Do not use the RX separately or in combination with HDBaseT
switches, as using it may cause damage to the unit.

HDBaseT Compact Extender Set 70m with ARC User Guide iii
Limitation of liability
To the maximum extent permitted by applicable law, in no event will Clare
Controls, LLC. be liable for any lost profits or business opportunities, loss of
use, business interruption, loss of data, or any other indirect, special, incidental,
or consequential damages under any theory of liability, whether based in
contract, tort, negligence, product liability, or otherwise. Because some
jurisdictions do not allow the exclusion or limitation of liability for consequential
or incidental damages the preceding limitation may not apply to you. In any
event the total liability of Clare Controls, LLC. shall not exceed the purchase
price of the product. The foregoing limitation will apply to the maximum extent
permitted by applicable law, regardless of whether Clare Controls, LLC. has
been advised of the possibility of such damages and regardless of whether any
remedy fails of its essential purpose.
Installation in accordance with this manual, applicable codes, and the
instructions of the authority having jurisdiction is mandatory.
While every precaution has been taken during the preparation of this manual to
ensure the accuracy of its contents, Clare Controls, LLC. assumes no
responsibility for errors or omissions.

iv HDBaseT Compact Extender Set 70m with ARC User Guide

HDBaseT Compact Extender Set 70m with ARC User Guide 1
Introduction
The extender set (p/n CM-BT20-COMPACT-70) consists of a transmitter and receiver
pair. HDMI signals are input into the transmitter and HDBaseT technology is used to
transmit the signals to the receiver up to 230 ft. (70 m) via a Cat5e/Cat6 cable. The
receiver then outputs the HDMI signal.
Bi-directional IR is also transmitted across the Cat5e/Cat6 cable. The extender set
supports ARC (audio return channel), IR control, and PoH (Power Over HDBaseT),
which can be used to power the receiver via the Cat5e/Cat6 cable. This eliminates the
need for power at the receiver end.
Features
 Supports full HD: Delivers high-resolution images (1080p at 60Hz, 3D,
4Kx2K at 30Hz)
 Maximum transmission distance is 230 ft. (70m) for 1080p or 131 ft. (40m) for
4Kx2K over a CAT5e/CAT6 cable
Note: When using ARC, the maximum transmission distance is 131 ft (40m).
 High bandwidth: 10.2 Gbps
 HDTV compatible: Uses HDMI 1.4 and is HDCP-2.2 compliant
 Supports PoH, bi-directional IR, and ARC
 Uses HDBaseT technology for extended capability and reliability
 LED indicators show working status to aid in troubleshooting
 Wall or table mount steel enclosure
Package contents
 1 x CM-BT20-COMPACT-70-TX
 1 x CM-BT20-COMPACT-70-RX
 4 x detachable mounting brackets
 8 x rubber feet
 4 x screws
 1 x power supply (12 VDC)
 4 x power plug adapters
 1 x quick start guide
 1 x IR emitter
 1 x IR adapter cable
Notes: Ensure all the accessories are included. If not, contact your dealer.

2 HDBaseT Compact Extender Set 70m with ARC User Guide
Product appearance
Figure 1: The HDBaseT CM-BT20-COMPACT-70-TX (front and rear panels)
Figure 2: The HDBaseT CM-BT20-COMPACT-70-TX (bottom panel)
(1) LINK:
The HDBT Link status indicator. It illuminates when the CM-BT20-
COMPACT-70-TX and RX are linked and communicating.
(2) HDCP:
The HDCP compliant indicator.
 Illuminates when the input signal is HDCP
 Blinks when the input signal is not HDCP
 Extinguishes when there is no input
(3) Power LED:
Illuminates when the device is receiving power.
(4) ARC:
ARC Output port.
(5) IR IN:
Connects to a 12v IR receiver. The IR signal received from this port will
be transmitted via HDBaseT to the transmitter unit for use at the source
location.
(6) IR OUT:
IR signals received by receiver and sent via HDBaseT to the transmitter
are available for emitter use from this port.

HDBaseT Compact Extender Set 70m with ARC User Guide 3
(7) HDMI IN:
Connect to the HDMI source device.
(8) HDBT OUT:
Connects via a single Cat5e/Cat6 cable to the HDBaseT port on the
receiver and supports bi-directional PoH.
(9) 12 VDC:
Connects to the power supply.
(10) ARC Switcher:
Set the switch for ARC mode.
Figure 3: The HDBaseT- CM-BT20-COMPACT-70-TX (front and rear panels)
(1) LINK:
The HDBT Link status indicator. It illuminates when the CM-BT20-
COMPACT-70-TX and RX are linked and communicating.
(2) HDCP
The HDCP compliant indicator.
 Illuminates when the output signal is HDCP
 Blinks when the output signal is not HDCP
 Extinguishes when there is no output
(3) Power LED:
Illuminates when the device is receiving power.
(4) IR IN:
Connects to a 12v IR receiver, or the provided adapter cable. The IR
signal received from this port is transmitted via HDBaseT to the
HDBaseT CM-BT20-COMPACT-70-TX unit for use at the source
location.
(5) IR OUT:
IR signals received by the HDBaseT CM-BT20-COMPACT-70-TX and
sent via HDBaseT to the HDBaseT CM-BT20-COMPACT-70-RX are
available for emitter use from this port.
(6) HDMI OUT:
Connect to the HDMI display device.
(7) HDBT IN
Connects via single Cat5e/Cat6 cable to the HDBaseT port on the
transmitter and supports bi-directional PoH.
(8) 12 VDC
Connects to the power supply.

4 HDBaseT Compact Extender Set 70m with ARC User Guide
System connection
Usage precautions
 The system should be installed in a clean environment and have proper
temperature and humidity controls.
 All of the power switches, plugs, sockets, and power cords should be insulated for
safety.
 All devices should be connected before powering on.
 The Cat5e/Cat6 terminations for HDBaseT devices must be a straight-thru TIA/EIA
T568B standard.
Application examples
The HDBaseT CM-BT20-COMPACT-70-RX receiver works in conjunction with the
HDBaseT CM-BT20-COMPACT-70-TX transmitter. By transmitting signals across
reliable Cat5e/Cat6 cables, the video signal can be used at far greater distances from
the source device than would be capable with traditional HDMI cables. Additionally,
control signals can be sent bi-directionally across the same Cat5e/Cat6 cable. The
following figures show you some application examples for the HDBaseT CM-BT20-
COMPACT-70-TX and RX.
Note: When using a control system, such as Clare Controls, Crestron, or URC, the
3.5mm male mono to 3.5mm male stereo adapter cable (included) must be used. The
male mono end connects to the control system; the male stereo end connects to
CM-BT20-COMPACT-70-TX.
Figure 4: System connection

HDBaseT Compact Extender Set 70m with ARC User Guide 5
Connection procedure
To connect the HDBaseT Compact Extender Set 70m:
1. Connect HDMI from the source (such as Blu-ray) to the HDMI IN port of the
transmitter using an HDMI cable.
2. Connect the HDBT OUT port of the HDBaseT CM-BT20-COMPACT-70-TX to the
HDBT IN port of the receiver with a single CAT5e/CAT6 cable using TIA/EIA
T568B terminations at each end.
3. Connect the HDMI OUT port of the HDBaseT CM-BT20-COMPACT-70-RX to an
HDMI in port on the display using an HDMI cable.
4. When using the bi-directional IR control, do the following.
a. Connect the IR emitter at either end to the IR TX port on the HDBaseT
CM-BT20-COMPACT-70-TX or RX.
b. When using a powered IR receiver, connect via a 3.5mm stereo plug to the
IR RX on either the HDBaseT CM-BT20-COMPACT-70-TX or RX.
5. Connect the 12 VDC power adapter to the power port on the
HDBaseT CM-BT20-COMPACT-70-TX transmitter. The HDBaseT
CM-BT20-COMPACT-70-RX receiver is powered through PoH.
PoH
The CM-BT20-COMPACT-70 supports PoH. Connect the DC adapter to either
CM-BT20-COMPACT-70-TX or RX for power.
Figure 5: PoH connection

6 HDBaseT Compact Extender Set 70m with ARC User Guide
ARC
The coax audio and HDMI ports have an ARC (Audio Return Channel) function. When
enabled, audio is returned from the connected device in the RX to the HDMI or digital
coax out on the TX.
The CM-BT20-COMPACT-70-TX provides an ARC switcher on the bottom panel to
set/change ARC mode selection. For ARC options, see the Table 1.
Table 1: ARC modes
ARC Mode
Description
00
This mode sends ARC through HDMI.
Notes
 This mode limits the transmitting distance.
 The display device must support ARC.
 Both the display device and AVR must have ARC
enabled.
01
Mode 01 is reserved for future use.
10
This mode removes ARC from the HDMI and sends the audio
through digital coax.
11
Mode 11 is reserved for future use.

HDBaseT Compact Extender Set 70m with ARC User Guide 7
The following graphics show the system connection in varying ARC modes.
Note: When using ARC, ensure that the switcher is in the correct ARC mode.
Figure 6: System connection ARC mode 00
Figure 7: System connection ARC mode 10

8 HDBaseT Compact Extender Set 70m with ARC User Guide
Application
The HDBaseT extender pair is useful in any scenario when an HDMI signal (along with
control signals) must be transmitted reliably across greater distances than is practical
using traditional HDMI cables. They may be used in both residential and commercial
applications when centrally locating the source equipment and displaying HD video in
remote locations.
Twisted pair cable connection
The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru
TIA/EIA T568B standard. TIA/EIA T568A standard is NOT recommended.
Table 2: T568B cable standards
TIA/EIA T568B
Pin
Cable color
1
orange white
2
orange
3
green white
4
blue
5
blue white
6
green
7
brown white
8
brown
1st Ground
4-5
2nd Ground
1-2
3rd Group
3-6
4th Group
7-8
Note: RJ45 EZ connectors should not be used at any time.

HDBaseT Compact Extender Set 70m with ARC User Guide 9
IR IN pinout
The following figure displays the IR IN pinout for the CM-BT20-COMPACT-70-RX and
TX.
Figure 8: CM-BT20-COMPACT-70-RX and TX IR IN pinout

10 HDBaseT Compact Extender Set 70m with ARC User Guide
Specifications
HDBaseT CM-BT20-COMPACT-70-
TX transmitter
HDBaseT CM-BT20-COMPACT-
70-RX receiver
Input
Signal
1 HDMI and 1 IR
1 RJ45 and 1 IR
Connector
HDMI female and 3.5mm mini jack
3.5mm mini jack and RJ-45
Output
Output
1 ARC, 1 IR, and I HDBaseT
1 HDMI and 1 IR
Connector
SPDIF, 3.5mm mini jack, and RJ45
HDMI female and 3.5mm mini
jack
General
Resolution range
800 x 600 at 60Hz to 4Kx2K at 30Hz
Transmission mode
HDBaseT
Transmission
distance
1080p ≤ 70m (without ARC)
1080p ≤ 40m (with ARC)
4Kx2K ≤ 40m
Bandwidth
10.2 Gbps
HDMI standard
Support HDMI 1.4 and HDCP 2.2
Temperature
32 to 122ºF
(0 to to 50ºC)
Humidity
10 to 90%
Power supply
12 VDC 2A
Power consumption
14 W
Case dimension
(W×H×D)
4.53 × 0.63 × 4.49 in.
(115 × 16 × 114mm)
4.53 × 0.63 × 4.49 in.
(115 × 16 × 114mm)
Net weight
.44 lb. (0.2kg)
.44 lb. (0.2kg)
Note: All nominal levels are at ±10%.

HDBaseT Compact Extender Set 70m with ARC User Guide 11
Supported resolution
Display Ration
Resolution
Refresh Rate
4Kx2K
4096 × 2160
24/25/30Hz
3840 × 2160
24/25/30Hz
16:9
1920 × 1080
60Hz
1600 × 900
60Hz
1366 × 768
60Hz
1280 × 720
60Hz
1024 × 576
60Hz
16:10
1920 × 1200
60Hz
1680 × 1050
60Hz
1440 × 900
60Hz
1360 × 768
60Hz
1280 × 800
60Hz
4:3
1600 × 1200
60/65/70/75/85Hz
1400 × 1050
60Hz
1280 × 1024
60/75/85/96Hz
1024 × 768
60/70/75/85Hz
800 × 600
56/60/72/75/85Hz
640 × 480
60/72/75Hz
Note: The HDBaseT CM-BT20-COMPACT-70-TX and RX supports 4K HDMI signal.
Use HDMI cables compliant with HDMI1.4.

12 HDBaseT Compact Extender Set 70m with ARC User Guide
Panel drawings
Figure 9: HDBaseT CM-BT20-COMPACT-70-TX
