Thank you for purchasing this Clarion product.
∗Please read this owner’s manual in its entirety before operating this unit.
∗After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗This manual includes the operating procedures of the CD changer and TV tuner connected via the
CeNET cable. The CD changer and TV tuner have their own manuals, but no explanations for
operating them are described.
1. FEATURES
•4.2-Inch Full Color TFT Display
• Optimedia Technology for Superior Graphics and Touch-Screen Control
• MP3 and WMA Playback With ID3-TAG and WMA-TAG Display Capability
•High-Powered Internal MOSFET Amplifier (53 Watts x 4 Channels)
•Music Catcher for One-Touch CD Recording (Up to 80 Songs)
• Shock-Proof Memory for Skip-Free CD Playback
•Superb Music Reproduction With 24-Bit D/A Conversion and 4-Volt/6-Channel RCA Outputs
• Auxiliary Input for External Device Connection
•AC Processor IV: Dolby Pro Logic II / Time Alignment / Virtual Space Enhancer / 3-Band Parametric
EQ / ADF Compressed Audio Enhancer
•High Quality Stainless Steel Faceplate
Contents
1. FEATURES ..................................................................................................................................... 2
2. PRECAUTIONS ............................................................................................................................. 3
Sloping Console .............................................................................................................................. 4
Handling Compact Discs ................................................................................................................ 4
3. CONTROLS .................................................................................................................................... 5
4. NOMENCLATURE ......................................................................................................................... 6
Names of the Buttons and their Functions ..................................................................................... 6
Operations when External Equipment is Connected to this Unit ..................................................... 7
Touch Panel Buttons ....................................................................................................................... 8
Touch Panel Operations .................................................................................................................. 9
5. DCP .............................................................................................................................................. 10
6. REMOTE CONTROL ..................................................................................................................... 11
Inserting the Battery ....................................................................................................................... 11
Functions of Remote Control Unit Buttons ................................................................................... 12
7. OPERATIONS ............................................................................................................................... 13
Basic Operations .......................................................................................................................... 13
Radio Operations ........................................................................................................................... 17
CD/MP3/WMA Operations ............................................................................................................ 20
MUSIC CATCHER Operations ...................................................................................................... 25
Sound Adjustment ......................................................................................................................... 27
Common Operations ..................................................................................................................... 38
8. OPERATIONS OF ACCESSORIES ............................................................................................. 46
CD Changer Operations ............................................................................................................... 46
TV Operations .............................................................................................................................. 49
9. IN CASE OF DIFFICULTY ........................................................................................................... 52
10. ERROR DISPLAYS ....................................................................................................................... 54
11. SPECIFICATIONS ......................................................................................................................... 55
2DXZ956MC
English
+DXZ956MC00-Cover-ECK.p65 05.2.17, 2:16 PMPage 2 AdobePageMaker6.5J/PPC

280-8213-00
DXZ956MC 3
English
1. When the inside of the car is very cold and
the player is used soon after switching on the
heater, moisture may form on the disc or the
optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft cloth.
If moisture forms on the optical parts of the
player, do not use the player for about 1 hour.
The condensation will disappear naturally
allowing normal operation.
2. PRECAUTIONS
2. Driving on extremely bumpy roads may
cause severe vibration and cause the sound
to skip.
3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
WARNING
For your safety, do not watch or operate the touch panel while driving.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER AND MINI DISC
PLAYER SHOULD NOT BE ADJUSTED OR
REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY.
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:57 PM3

4DXZ956MC
280-8213-00
English
This unit uses a SLOPING CONSOLE to make
large screen displays possible.
When you use the SLOPING CONSOLE, be
sure to close it.
CAUTION
BE CAREFUL NOT TO GET YOUR FINGERS
CAUGHT WHEN OPENING AND CLOSING
THE SLOPING CONSOLE.
1. For safety’s sake, always close the SLOPING
CONSOLE before leaving this unit unused for
a prolonged period or switching OFF the
ignition key.
If you switch OFF the ignition key with the
SLOPING CONSOLE tilted, the SLOPING
CONSOLE does not close.
Sloping Console
2. Before the SLOPING CONSOLE closes,
there may be a braking sound from the safety
mechanism. This is normal.
3. If you move the SLOPING CONSOLE by
hand, this may start play. To correct this play,
with the power for the unit ON, press the [QQ
QQ
Q]
button to close the SLOPING CONSOLE.
4. After a disc is ejected, the SLOPING
CONSOLE automatically returns to the tilted
or closed state. If there is any obstruction
when the SLOPING CONSOLE tries to close,
the safety mechanism is triggered and the
SLOPING CONSOLE returns to the open
state. If this happens, remove the
obstruction, then press the [QQ
QQ
Q] button.
5. To avoid scratching the compact disc, keep
the 12 or 8 cm CD level when loading or
removing it.
Use only compact discs bearing the or
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded in the CD-R/CD-RW mode
may not be usable.
Handling
•Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some CD-R and
CD-RW discs may not be playable. Therefore,
do not leave them for a long time in the car.

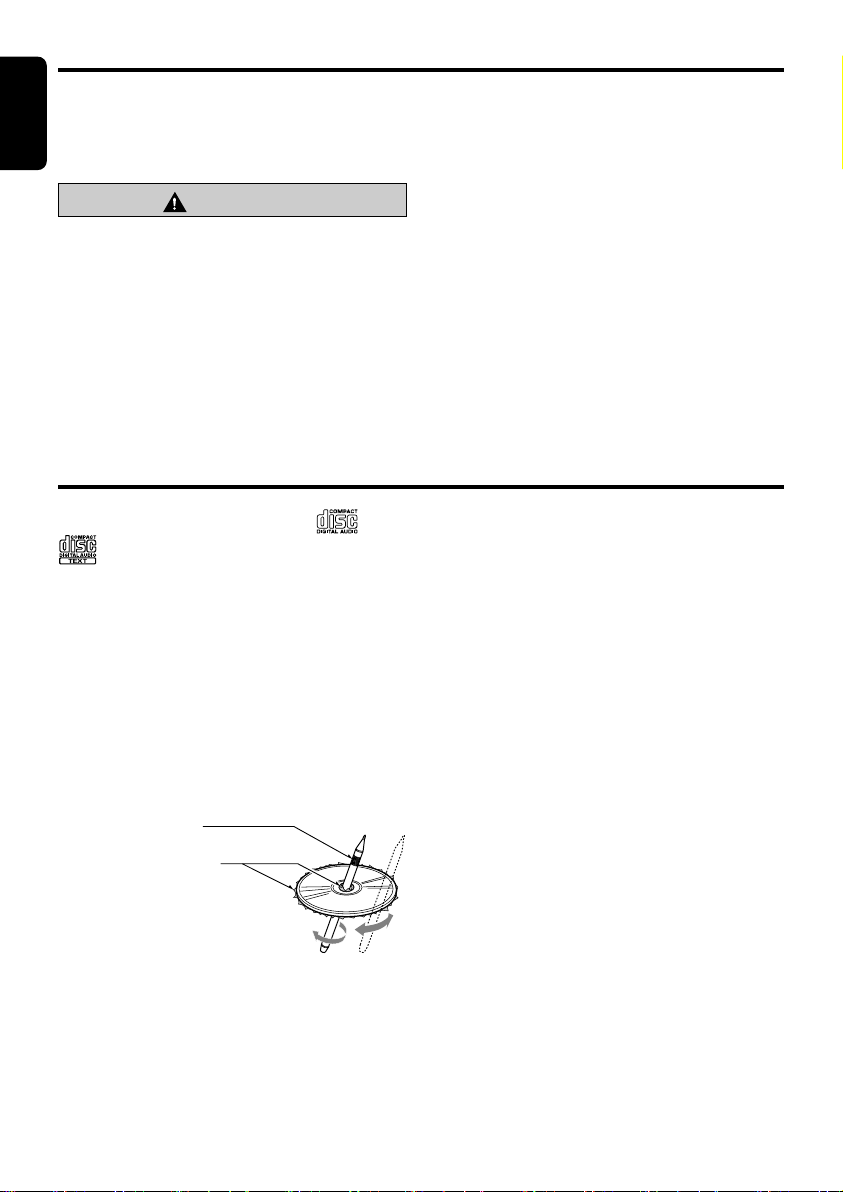

•New discs may
have some
roughness
around the
edges. If such discs
are used, the player
may not work or the sound
may skip. Use a ball-point pen
or the like to remove any
roughness from the edge of the disc.
•Never stick labels on the surface of the
compact disc or mark the surface with a pencil
or pen.
•Never play a compact disc with any cellophane
tape or other glue on it or with peeling off
marks. If you try to play such a compact disc,
you may not be able to remove it from the CD
player or it may damage the CD player.
Handling Compact Discs
•Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or
damage.
•To remove a compact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by the
edges.
•Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
break the internal mechanism.
Storage
•Do not expose compact discs to direct sunlight
or any heat source.
•Do not expose compact discs to excess
humidity or dust.
•Do not expose compact discs to direct heat
from heaters.
Cleaning
•To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the compact disc to the circumference.
•Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
•After using special compact disc cleaner, let
the compact disc dry off well before playing it.
Ball-point pen
Roughness
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:57 PM4

280-8213-00
English
DXZ956MC 5
3. CONTROLS
[ISR][SRC]Display
[MODE]
[ ] (SOUND)
[ADJ]
IR-Receiver
[ROTARY]
[Q] (OPEN/EJECT)
Photo Sensor
DCP Detaching Slider
[CD SLOT]
Source unit
With the SLOPING CONSOLE opened
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:57 PM5

6DXZ956MC
280-8213-00
English
4. NOMENCLATURE
Names of the Buttons and their Functions
IR-Receiver

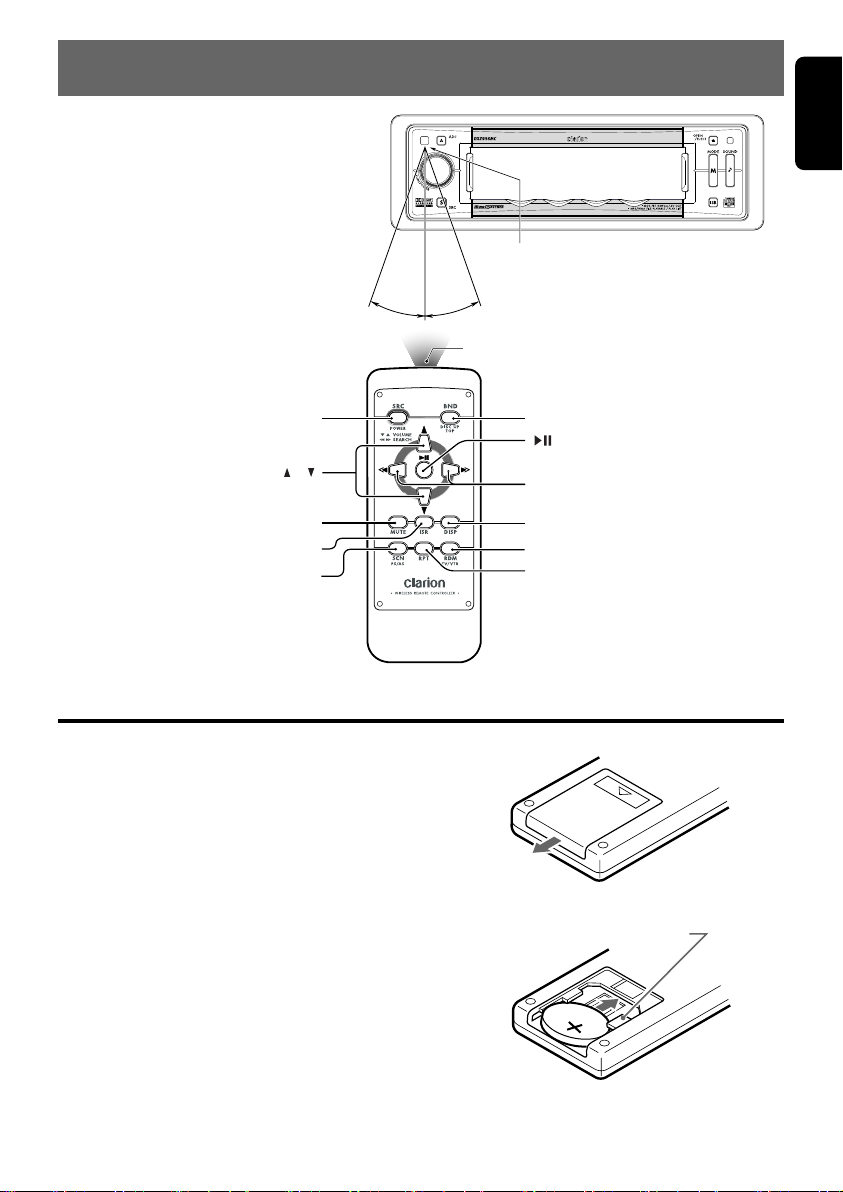

•Receiver for remote control unit. (Operating
range: 30°in all directions)
[ADJ] button
•Use this button to set or adjust the various
settings in the adjust mode.
[Q] (OPEN/EJECT) button
•Open/closes the control panel.
To eject a disc, open the control panel first, and
then press this button once again.
Photo Sensor
•This sensor detects the brightness inside your
car. When the auto-dimmer function is set to
“AUTO”, the brightness of the display is
dimmed according to the brightness detected
by this sensor.
[MODE] button
•Use this button to play in scan, repeat, or
random mode.
•Press and hold this button for 2 seconds or
longer to switch between standard and simple
operation displays.
[ ] (SOUND) button
•Use this button for setting or adjusting various
settings such as ADF.
[ISR] (Instant Station Recall) button
•Immediately calls up a favorite radio station
regardless of the current mode. (This is the
ISR function.) You can store radio stations to
the [ISR] button by holding this button down for
2 seconds or longer in the radio mode.
[SRC] button
•Switches among sound sources as shown
below.
Radio ➜CD/MP3 ➜M. CATCHER ➜
(CD changer) ➜(DVD changer) ➜(TV) ➜
AUX ➜Radio...
Note:
External equipment not connected with CeNET is
not displayed.
[ROTARY] knob
•Press the knob to turn the power ON.
•Press the knob to turn the power OFF.
•Turn the knob to adjust the volume.
[CD SLOT]
•CD insertion slot.
DCP Detaching Slider
•Removes the DCP.
Display
•Displays the various information that indicates
the operating state of this unit such as tuning/
play state and indicators.
•You can operate the display by touching or
touching the surface. (cf. page 9)
+DXZ956MC_01-02-Eng.p65 05.1.31, 1:42 PM6

280-8213-00
DXZ956MC 7
English
Operations when External Equipment is Connected to this Unit
●When the CD/DVD changer is
connected
∗For details, see the section “CD changer
operations” (cf. page 46). For the DVD
changer, refer to the Owner’s Manual
provided with the DVD changer.
●When the TV is connected
∗For details, see the section “TV
operations” (cf. page 49).
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:57 PM7

8DXZ956MC
280-8213-00
English

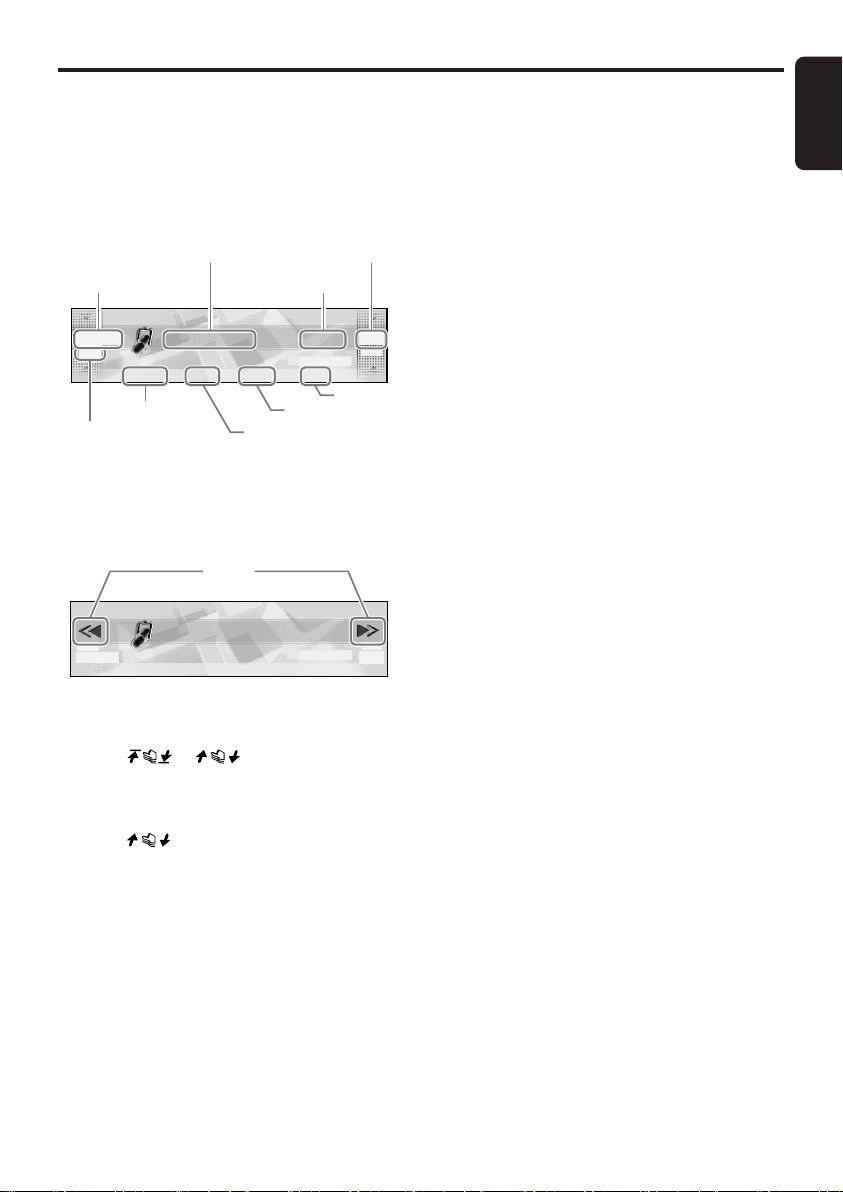

Touch Panel Buttons
●Standard operation display
98.10
FM1
SEEK
PRESET BAND DISPPS / AS
P3
P.CH
2:45 pm
Left slide button
•Touch this button for seek up/down or track up/
down operations.
•Touch and hold this button for fast-forward/fast-
rewind operations.
Right slide button
•Touch this button for preset channel up/down,
folder up/down, and disc up/down operations.
Sub buttons
•Shows functions available in a certain context.
●Simple operation display
(To switch to the simple operation display, press
and hold the [MODE] button for 2 seconds or
longer.)
98.10
FM1
2:45
SEEK
PRESET BAND DISPPS / AS
P3
P.CH
pm
Left button
•Touch this button for seek down or track down
operations.
•Touch and hold this button for fast-rewind
operation.
Right button
•Touch this button for seek up or track up
operations.
•Touch and hold this button for fast-forward
operation.
Sub buttons
•Shows functions available in a certain context.
Left slide
button
Right slide
button
Sub buttons
Left button Right button
Sub buttons
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:57 PM8

280-8213-00
DXZ956MC 9
English
A touch panel display is used as the display on
this unit. You can operate this display just by
touching it with your fingertip. There are four
main display operations as follows:
Touch
Touch the display with your fingertip and take it
away within 1 second. This is the most basic
operation when operating the display.
Touch and hold
Touch the display with your fingertip and hold it
on the display for 1 or 2 seconds or longer. Do
not move your finger while you are touching the
display.
Touch
Touch the display with your fingertip, and move
your finger to the up ( ) or down ( ) with your
fingertip still touching the display, and take your
fingertip away within 1 second. This operation is
used, for example, selecting tracks or discs.
98.10
MANU
Touch Panel Operations
Touch
Touch the display with your fingertip, and move
your finger to the up ( ) or down ( ) with your
fingertip still touching the display, and keep your
fingertip on the display. The current operation
continues for the time your fingertip is held on
the display. This operation is used, for example,
for fast-forwarding/fast-rewinding tracks.
FM1
DISP
P3
P.CH
2:45 pm
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:58 PM9

10 DXZ956MC
280-8213-00
English
5. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.

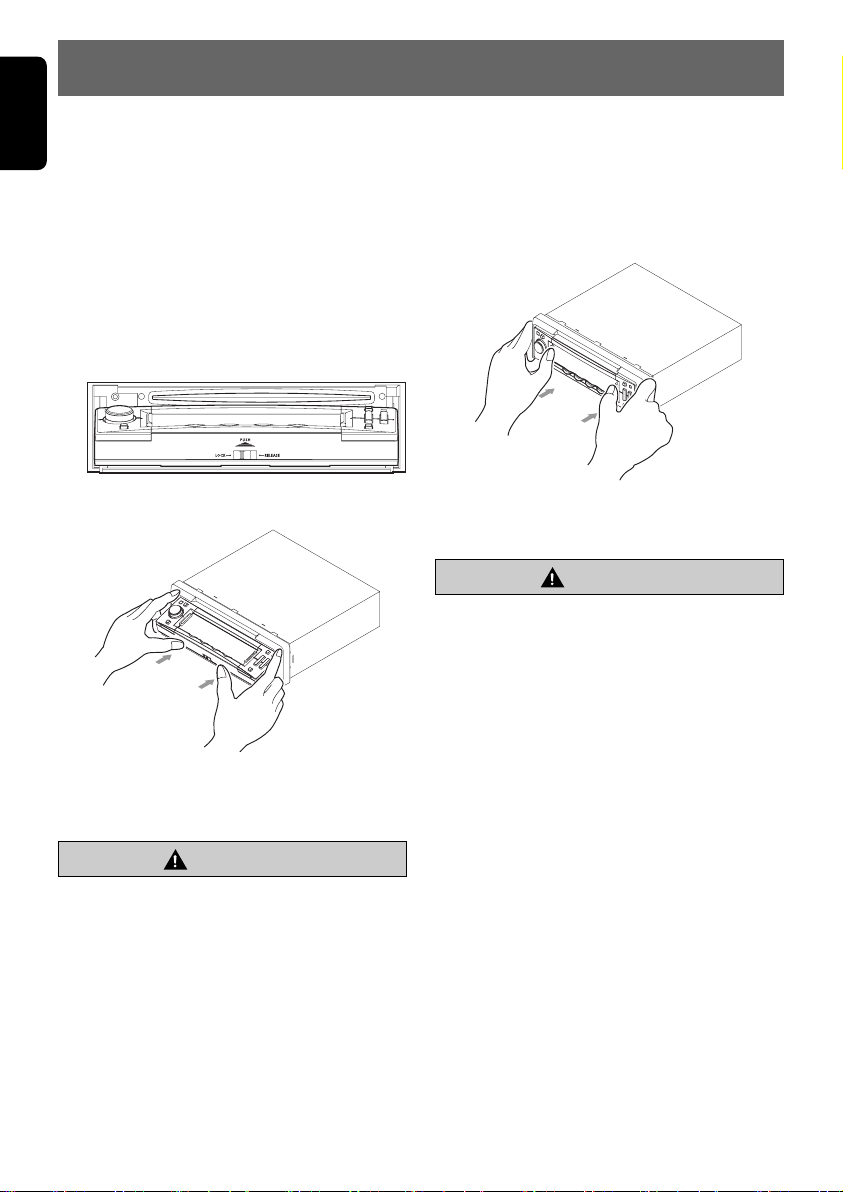

Removing the DCP
1. Press the [Q] button to open the DCP.
2. Move the DCP detaching slider to the
“RELEASE” side.
3. Push and slide the DCP upward to remove.
∗The SLOPING CONSOLE without DCP
closes automatically in a few seconds.
CAUTION
•Do not try to remove or attach while
driving.
•The DCP can easily be damaged by shocks.
After removing it, be careful not to drop it
or subject it to strong shocks.
•If you purchased a replacement DCP, an
electrical adjustment is necessary.
This adjustment requires technical
knowledge.
Please consult Clarion service or a Clarion
service station.
Attaching the DCP
1. Place the DCP to the SLOPING CONSOLE,
adjusting the metal connecters on DCP and
the SLOPING CONSOLE.
2. Press the DCP until it clicks into the
SLOPING CONSOLE.
*The DCP display lights and is ready to use.
CAUTION
•If the slider is on the [RELEASE] side and
the DCP is not locked into place, it may fall
out from vibration of the car. This can break
the DCP, so after removing it, either firmly
reattach it on the unit or put it in its DCP
case.
• The connector connecting the unit and the
DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
•If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
\
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:58 PM10

280-8213-00
English
DXZ956MC 11
6. REMOTE CONTROL
[BND]
[]
[a], [d]
[DISP]
[RDM]
[RPT]
[SRC]
[MUTE]
[ISR]
[SCN]
[], [ ]
Remote control unit
Receiver for remote control unit
Operating range : 30°in all directions
Signal transmitter
1. Turn over the remote control unit and slide the
cover in the direction indicated by the arrow in the
illustration.
2. Insert the battery (CR2025) into the insertion
guides, with the printed side (+) facing upwards.
3. Press the battery in the direction indicated by the
arrow so that it slides into the compartment.
4. Replace the cover and slide in until it clicks into
place.
Notes:
Misuse may result in rupture of the battery, producing
leakage of fluid and resulting in personal injury or damage
to surrounding materials. Always follow these safety
precautions:
•Use only the designated battery .
• When replacing the battery, insert properly, with +/-
polarities oriented correctly.
• Do not subject battery to heat, or dispose of in fire or
water. Do not attempt to disassemble the battery.
• Dispose of used batteries properly.
Inserting the Battery
1
Insertion guide
C
R
2
0
2
5
23
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:58 PM11

280-8213-00
English
12 DXZ956MC
[SRC]
[BND]
[ ] , [ ]
[ ] , [ ]
[ ]
[MUTE]
[ISR]
[DISP]
[SCN]
[RPT]
[RDM]
Functions of the Remote Control Unit Buttons
Mode
Button
Radio CD/MP3/WMA/
M.CATCHER
CD changer
DVD changer TV
Switches among radio, CD/MP3/WMA, MC, CD changer, DVD changer, TV and AUX.
Switches reception
band.
Returns to the first
track.
Moves the next disc
in increasing order.
Switches reception
band.
Increases and decreases volume (in all modes).
Moves preset
channels up and
down.
No function.
Moves tracks up and down.
When pressed and held for 1 second or longer:
Fast-forward/fast-rewind.
Switches between playback and pause.
Moves preset
channels up and
down.
No function.
Tu r ns mute on and off.
Recalls ISR radio station in memory.
When pressed and held for 2 seconds or longer: Stores current station into ISR memory (radio
mode only).
Switches between the title display and the spectrum analyzer display.
Preset scan.
When pressed and
held for 2 seconds or
longer:
Auto store.
No function.
No function.
Scan play.
When pressed and
held for 1 second or
longer:
Folder scan play
(MP3/WMA disc, MC
mode).
Repeat play.
When pressed and
held for 1 second or
longer:
Folder repeat play
(MP3/WMA disc, MC
mode).
Random play.
When pressed and
held for 1 second or
longer:
Folder random play
(MP3/WMA disc, MC
mode).
Scan play.
When pressed and
held for 1 second or
longer:
Disc scan play.
Repeat play.
When pressed and
held for 1 second or
longer:
Disc repeat play.
Random play.
When pressed and
held for 1 second or
longer:
Disc random play.
Preset scan.
When pressed and
held for 2 seconds or
longer:
Auto store.
No function.
Switches between TV
and VTR.
∗Some of the corresponding buttons on the source unit and remote control unit have different functions.
+DXZ956MC_01-02-Eng.p65 1/27/05, 5:58 PM12

English
280-8213-00
DXZ956MC 13
CAUTION
Be sure to lower the volume before
switching the unit off or the ignition key. The
unit remembers its last volume setting. If you
switch the power OFF with the volume up,
when you switch the power back ON, the
sudden loud volume may hurt your hearing
and damage the unit.
7. OPERATIONS
Basic Operations
Speaker System Speaker Configuration
3 WAY High 2ch Mid 2ch Subwoofer 2ch
2 WAY High 2ch Mid 2ch Rear 2ch
Dolby PL II 5.1ch Front 2ch Surround 2ch Center + Subwoofer
NORMAL Front 2ch Rear 2ch Subwoofer 2ch
●NORMAL speaker system
Front 2ch, Rear 2ch, and Sub-woofer 2ch
●2WAY speaker system
High 2ch, Mid 2ch, and Rear 2ch
Sub-woofer
Rear
speaker
(left)
Rear
speaker
(right)
Rear
speaker
(left)
Rear
speaker
(right)
Tweeter
(left)
Tweeter
(right)
Front
speaker
(left)
Front
speaker
(right)
Front
speaker
(left)
Front
speaker
(right)
Speaker system
To make the best use of Dolby Pro Logic II on
this product, we recommend to install a 5.1
channel speaker system.
Even if it is unavailable, a 4 channel speaker
and sub-woofer system is also designed to
reproduce a sound field close to that of the 5.1
system.
●Dolby PL II (5.1ch) speaker system
Front 2ch, Surround 2ch, Center, and Sub-woofer
●3WAY speaker system
High 2ch, Mid 2ch, and Sub-woofer 2ch
Surround
speaker
(left)
Surround
speaker
(right)
Center
speaker
Sub-woofer
Sub-woofer
Tweeter
(left)
Tweeter
(right)
Front
speaker
(left)
Front
speaker
(right)
Front
speaker
(left)
Front
speaker
(right)
+DXZ956MC_01-13-Eng.p65 1/27/05, 5:52 PM13

English
280-8213-00
14 DXZ956MC
Turning off
1. Press the [ROTARY] knob.
∗The clock will stay displayed after the
power is turned OFF.
■ To turn off the clock display
Touch the clock to turn off the clock display
while the power is off.
CODEMATIC function
When “CODEMATIC” is set to “ON”, and the
power is turned ON with the DCP attached, the
Touch Code display appears. Touch the display
in the order that was set in the adjust mode.
ADJ SETTING
RTN
CODEMATIC OFF
For details on the CODEMATIC function, see
“Using the security function” (cf. page 45).
Selecting a mode
1. Press the [SRC] button to change the
operation mode.
2. Each time you press the [SRC] button, the
operation mode changes in the following
order:
Radio ➜CD/MP3 ➜M. CATCHER ➜
(CD changer) ➜(DVD changer) ➜(TV)
➜AUX ➜Radio...
∗External equipment not connected with
CeNET is not displayed.
Adjusting the volume
1. Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
∗The volume level is from 0 (minimum) to
33 (maximum).
Selecting a speaker system
When this product is turned on for the first time,
it allows you to select a speaker system.
Choose your system in “SPEAKER SELECT”
screen by following the procedure below.
1. Touch the speaker system best suited to
your car.
SPEAKER SELECT
3 WAY 2 WAY NORMAL
Dolby
PL
2. Touch [OK] to confirm your selection.
3 WAY ?
OK
CANCEL
∗The screen displays a clock with power off.
SYSTEM CHECK function
If you change your speaker system while the
power of this unit is on, perform the SYSTEM
CHECK function to display the SPEAKER
SELECT screen and select the appropriate
speaker system again. For details, see page 44.
CAUTION
Select the speaker system suited to your
speaker configuration. Failing to do so can
damage your speakers.
Turning ON/OFF the power
Turning on
Note:
•Be careful when using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [ROTARY] knob.
The mode that was previously active is
displayed.
Basic Operations
+DXZ956MC_01-13-Eng.p65 05.1.31, 1:43 PM14

English
280-8213-00
DXZ956MC 15
Basic Operations
Switching the operation
display mode
There are 2 basic operation displays: standard
operation display and simple operation display.
1. Press and hold the [MODE] button for 2
seconds or longer to switch the operation
display.
98.10
FM1
2:45
SEEK
PRESET BAND DISPPS / AS
P3
P.CH
pm
In the simple operation display, the operations of
touching in the radio or CD mode display
screen are not required.
Descriptions given in this manual are mainly for
the standard operation display. For descriptions
for operations in the simple operation display,
refer to the descriptions for the screen displays
in the radio mode or the CD mode.

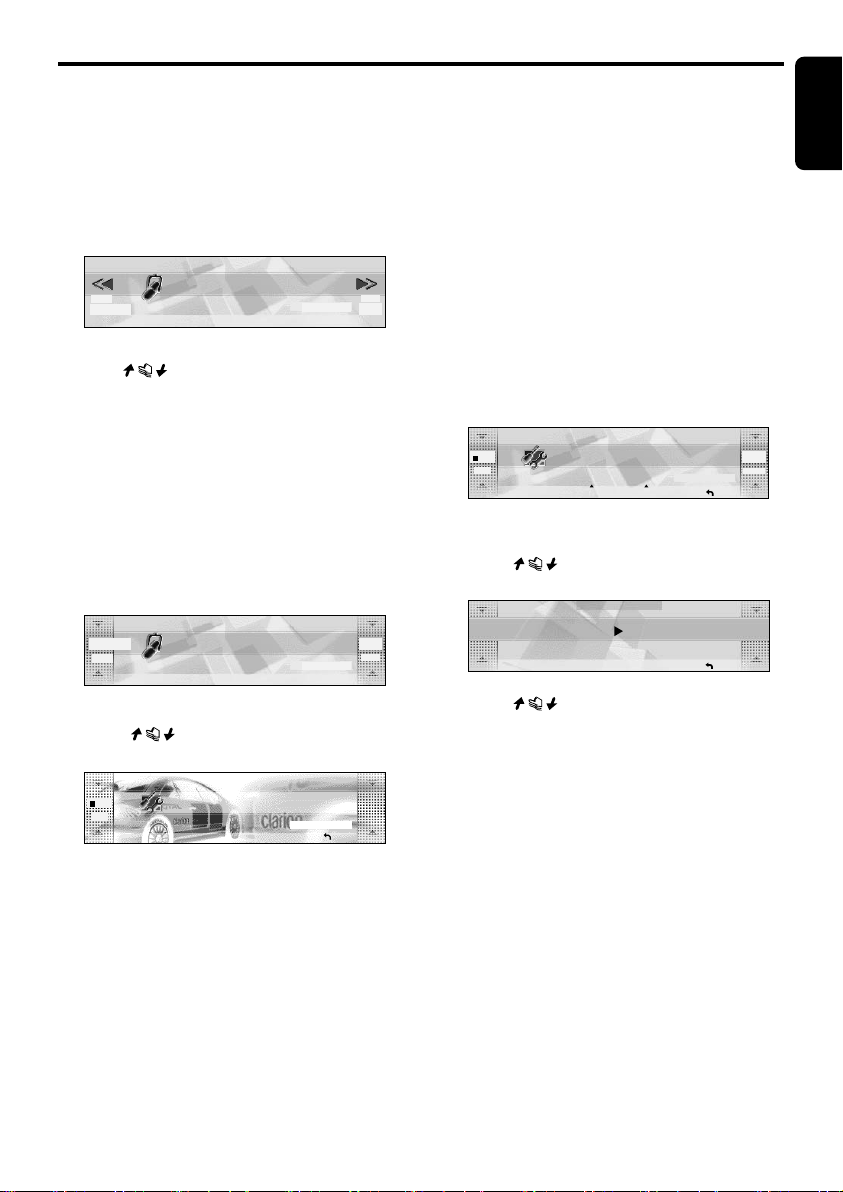

Switching the background
1. Touch [DISP].
98.10
FM1
SEEK
PRESET BAND DISPPS / AS
P3
P.CH
2:45
pm
∗DISPLAY EDIT screen displays.
2. Touch on the left of the display to
choose the background.
BGV
SP / ANA
DISPLAY EDIT
RTN
P
02
∗The background includes 12 wallpaper
images and 2 motion pictures.
∗Choose [SCAN] to automatically display all
the wallpaper.
●Background
M01:WRC
M02:Landscape
P01:Car and Checker Flag
P02:307WRC from Two View Points
P03:Rally Driver
P04:Driving Scene
P05:Cube
P06: Bubble
P07:Speaker
P08:Digital Image1 (Disc media)
P09:Digital Image2 (Broadcast media such
as satellite)
P10:Mixer
P11:Record Player
P12:Meter
3. Touch [RTN].
■ To change wallpaper color
You can change the colors of the wallpaper
(from P05 to P12).
•It can be set to both “DAY” mode and “NIGHT”
mode.
1. Touch [DISP].
2. Touch [COLOR].
05
DISPLAY EDIT
D - BLUE AUTO
BGV
<<
TITLE
SP/ANA COLOR
SCROLL
P
RTN
∗The [COLOR] is displayed only when you
choose wallpaper from P05 to P12.
3. Touch on the left of the display to
select [DAY] or [NIGHT].
COLOR SELECT
NIGHT DARK BLUE
RTN
4. Touch on the right of the display to
select the color to set.
●COLOR
•DARK BLUE
•IVORY
•WINE RED
•LIGHT BLUE
•GREEN
+DXZ956MC_01-13-Eng.p65 1/27/05, 5:53 PM15

English
280-8213-00
16 DXZ956MC
2. Touch [TITLE].
DISPLAY EDIT
RTNTITLE COLOR SENS
05
BGV
D-BLUE
P
1
LOW
SPE/ANA
∗Title edit mode appears.
3. Touch on the right of the display to
choose the kind of title to show.
05
DISPLAY EDIT
D - BLUE
BGV
<<
TITLE
SP/ANA COLOR
P
RTN
AUTO
SCROLL
TRACK
∗The title you have chosen is displayed. If it
is too long to fit into the display, it
automatically scrolls.
4. Touch [SCROLL].
•Select [AUTO] to scroll the title repeatedly.
•Select [ONCE] to scroll the title only once.
Notes:
•You cannot set the scroll options in User title and
MUSIC CATCHER mode.
5. Touch [RTN].
●CD mode (MP3/WMA)
Folder title (when using a folder) ➜Play
list (when using a play list) ➜Track title
➜Album TAG ➜Artist TAG ➜Title TAG ➜
Folder title (when using a folder)...
●MUSIC CATHCHER mode
Folder title ➜Track title ➜Folder title...
Notes:
•MP3 supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.
•Tag displays give priority to V2.3 / 2.2.
•In the case of album Tags for WMA, the
information written into the extension header is
displayed.
•Only ASCII characters can be displayed in Tags.
Basic Operations

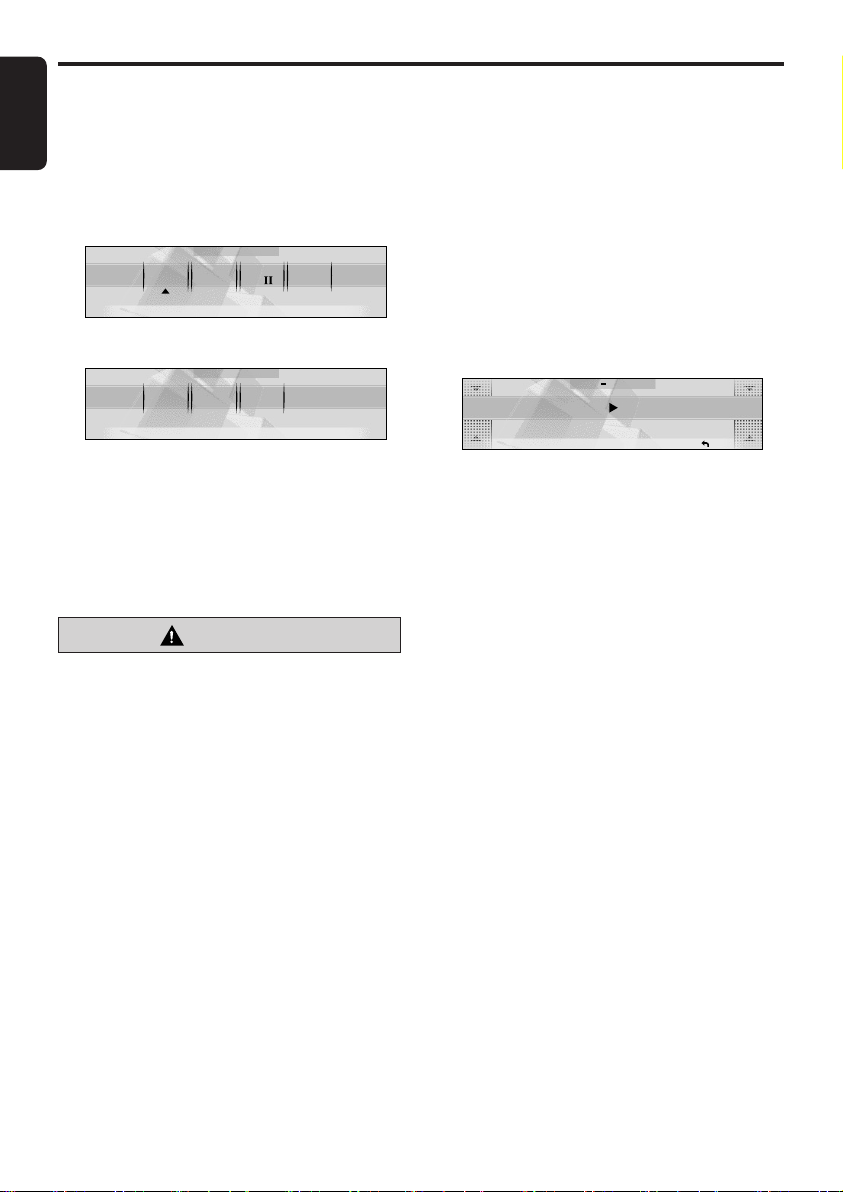

Adjusting the spectrum
analyzer
1. Touch [DISP].
01
Don t Stop Be
,
HQ
TRACK
DISPTOPREC
2:45 01:01
pm
∗Display edit mode appears.
2. Touch [SP/ANA].
05
DISPLAY EDIT
D - BLUE
BGV
<<
TITLE
SP/ANA COLOR
INPUT
P
RTN
∗The display shows the spectrum analyzer
mode.
3. Touch on the right of the display to
select the spectrum analyzer to set.
DISPLAY EDIT
RTNTITLE COLOR SENS
05
BGV
D-BLUE
P
1
MID
SPE/ANA
•You can choose from four types.
•When [SCAN] is selected, each of them is
displayed for about 10 seconds.
4. Touch [SENS] to select the sensitivity.
DISPLAY EDIT
RTNTITLE COLOR SENS
05
BGV
D-BLUE
P
1
LOW
SPE/ANA
•You can choose from [HIGH], [MID], or [LOW].
5. Touch [RTN].
Switching the title display
You can display stored information such as disc
titles or track titles when playing back music in
CD, CD changer, or MUSIC CATCHER mode.
1. Touch [DISP] while a title is shown.
DISP REC TOP
01
TRACK
HQ
02:53
2:45
pm
∗Display edit mode appears.
+DXZ956MC_01-13-Eng.p65 1/27/05, 5:53 PM16

English
280-8213-00
DXZ956MC 17
Radio Operations
Screen displays in the radio
mode
●Standard operation display
The standard operation display appears by
pressing the [SRC] button and selecting the
radio mode.
98.10
FM1
SEEK
PRESET BAND DISPPS / AS
P3
P.CH
2:45
pm
●Simple operation display
Pressing and holding the [MODE] button for 2
seconds or longer switches the simple operation
display.
98.10
FM1
2:45
SEEK
PRESET BAND DISPPS / AS
P3
P. C H
pm
Frequency display
The frequency currently being received is
displayed.
Touching or on the left slide
button in the standard operation display allows
you to perform seek tuning or manual tuning.
Preset No. display
Touching on the right slide button in the
standard operation display selects a preset
memory.
Title display
Displays the name of the broadcast channel
currently being received.
Reception band display
AM:AM band name
FM1:FM band name
PRESET
Touching this displays a preset memory No. list.
BAND
Touching this switches the reception band.
Touching and holding this for 1 second or longer
switches between the manual tuning mode and
the seek tuning mode.
PS/AS
Touching this starts a preset scan.
Touching and holding this for 2 seconds or
longer starts an auto store.
Touching this during the preset scan/auto scan
ends the operation.
DISP
The display contents can be changed.
a/d(only in the simple operation display)
Touching these enables seek tuning or step
tuning (in the manual tuning mode).
Touching and holding these enables quick
tuning (in the manual tuning mode).
Listening to the radio
1. Press the [SRC] button to select the radio
mode.
Each press of the [SRC] button switches the
mode as follows:
Radio ➜CD/MP3 ➜M.CATCHER ➜
(CD Changer) ➜(DVD Changer) ➜(TV) ➜
AUX ➜Radio...
∗The mode of equipment that is not
connected is not displayed.
2. Touch [BAND] to switch the reception band.
Each touch of [BAND] switches the
reception band as follows:
FM1 ➜FM2 ➜FM3 ➜AM ➜FM1...
Tuning
There are 3 types of tuning mode available,
seek tuning, manual tuning and preset tuning.
Preset No.
display
Title display
Frequency
display
Reception
band display
SEEK/MANU
display
PRESET
BAND
PS/AS
DISP
a/d
+DXZ956MC_01-13-Eng.p65 05.1.31, 1:43 PM17

English
280-8213-00
18 DXZ956MC
Seek tuning
Seek tuning is a function for automatically tuning
stations with good reception.
1. Touch and hold [BAND] for 1 second or
longer if “MANU” is displayed.
Automatic tuning is possible when “SEEK” is
displayed.
2. Touch on the frequency display.
“SEEK UP”/“SEEK DOWN” is displayed, and
tuning starts.
Tuning automatically stops at stations with
good reception.
■To cancel tuning
1. Touch on the frequency display
again.
Manual tuning
There are 2 ways available: quick tuning and
step tuning.
In the step tuning mode, the frequency changes
1 step at a time. In the quick tuning mode, you
can quickly tune the desired frequency.
1. Touch and hold [BAND] for 1 second or
longer if “SEEK” is displayed.
Manual tuning is possible when “MANU” is
displayed.
2. Operate the frequency display to tune to a
frequency on which there is a broadcast.
●Step tuning
Touch on the frequency display.
●Quick tuning
Touch on the frequency display. Tuning
stops when you take your finger away from the
panel.
Recalling a preset station
Recalling a preset station is a function for tuning
pre-stored stations.
1. Touch [PRESET].
The preset memory No. list is displayed.
2. Touch the preset memory No.
∗In the standard operation display, preset
No. can also be tuned by touching .
■To cancel tuning
1. Touch [RTN].
Radio Operations
Preset memory
A total of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exists to store individual radio
stations in memory.
1. Touch [BAND] to switch the reception band.
2. Operate the frequency display to tune to a
frequency to store.
3. Touch [PRESET].
The preset memory No. list is displayed.
4. Touch and hold the preset No. to store the
station to for 2 seconds or longer.
You will hear a long beep, and the station is
stored in memory.
Auto store
Auto store is a function for storing up to 6
stations that are automatically tuned in
sequentially.
1. Touch and hold [PS/AS] for 2 seconds or
longer.
“A-STORE” is displayed.
∗Stations with good reception are
automatically searched, and are stored to
preset memory (No.1 to No.6) in order
from the station having the lowest
frequency.
Notes:
•When auto store is performed, stations stored to
memory so far are cleared.
•When there are fewer than 6 stations with good
reception, low frequencies are automatically
returned to, and auto store is performed again. If
there are fewer than 6 stations even after auto
store is performed twice, stations stored so far
remain in memory.
Preset scan
Preset scan is a function for receiving stations in
the order that they are currently stored to preset
No. so that broadcasts can be checked.
1. Touch [PS/AS].
“P-SCAN” is displayed.
∗The currently stored stations are received
in order for 7 seconds or longer each.
Stations with poor reception are skipped,
and the next station is received.
+DXZ956MC_01-13-Eng.p65 1/27/05, 5:53 PM18

English
280-8213-00
DXZ956MC 19
■To cancel preset scan
1. Touch [PS/AS].
“P-SCAN” display disappears and the
stations that were being received when [PS/
AS] was touched are received next.
Instant station recall (ISR)
Instant station recall is a special radio preset
that instantly accesses a favorite radio station at
a touch of a button. The ISR function even
operates with the unit in other modes.
•The factory default setting is “FM87.9MHz”.
1. Press the [ISR] button.
“ISR” appears on the display.
■To return to the previous mode
Press the [ISR] button again or press the [SRC]
button.
■To store the station to “ISR”
In the radio mode, tune the station to store, and
press and hold the [ISR] button for 2 seconds or
longer.
You will hear a long beep, and the station
currently being received is stored to ISR.
Radio Operations
+DXZ956MC_01-13-Eng.p65 1/27/05, 5:53 PM19

English
280-8213-00
20 DXZ956MC
CD/MP3/WMA Operations
Screen displays in the CD/
MP3 mode
●Standard operation display
The standard operation display appears by
pressing the [SRC] button to select the CD/MP3
mode.
01 01
Don t Stop Be
,
MP3
TRACK FOLDER
DISPTOPREC
2:45 01:01
pm
●Simple operation display
Pressing and holding the [MODE] button for 2
seconds or longer switches the simple operation
display.
01
Don t Stop Be
,
TRACK
DISPTOPREC
2:45 01:26
pm
Playing time display
Î00: 01: The playing time is displayed.
Track No. display
If or is touched, you can select the
track to play, or fast-forward or fast-rewind
tracks.
Title display
The selected title is displayed.
Folder No. display (in the case of MP3/WMA)
Touching selects folders.
REC (in the case of CD-DA)
Touching this records the track being played.
Touching and holding this for 2 seconds or
longer records all tracks in the disc.
Touching this during recording cancels the
recording process.
TOP
Touching this starts play from the track at the
top of the disc or folder being played.
Touching this pauses or resumes play.
DISP
The display contents can be changed.
a/d(only in the simple operation display)
Touching these buttons selects the track to play.
Touching and holding these buttons fast-
forwards or fast-rewinds tracks.
/ (Appears only in MP3/WMAdiscs/
MUSIC CATCHER mode and the simple
operation display)
Touching these buttons selects the folder to
play.
MP3/WMA
What is MP3?
MP3 is an audio compression method and
classified into audio layer 3 of MPEG standards.
This audio compression method has penetrated
into PC users and become a standard format.
This MP3 features the original audio data
compression to about 10 percent of its initial
size with a high sound quality. This means about
10 music CDs can be recorded on a CD-R disc
or CD-RW disc to allow a long listening time
without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media
Audio, an audio file format developed by
Microsoft Corporation.
Notes:
•If you play a file with DRM (Digital Rights
Management) for WMA remaining ON, no audio is
output. (The DRM indicator blinks.)
•Windows Media™, and the Windows® logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
●To disable DRM (Digital Rights
Management):
1. When using Windows Media Player 8, click
on TOOLS ➜OPTIONS ➜COPY MUSIC
tab, then under COPY SETTINGS, unclick
the check box for PROTECT CONTENT.
Then, reconstruct files.
Tra c k No.
display
MP3 (WMA)
Folder No.
display
Title display
Playing time
display
REC DISP
TOP
a/d
+DXZ956MC_01-20-Eng.p65 05.2.9, 15:2120
