Clarion VRX835 Instruction manual

VRX835 47
English
Installation and Wire
connection manual
VRX835
Installation andWire connection manual
■Contents
1. BEFORE STARTING ............................................................... 47
2. PACKAGE CONTENTS ........................................................... 47
3. GENERAL CAUTIONS ............................................................ 48
4. CAUTIONS ON INSTALLATION .............................................. 48
5. INSTALLING THE MAIN UNIT ................................................. 49
6. REMOVING THE MAIN UNIT .................................................. 51
7. CAUTIONS ON WIRING .......................................................... 51
8. WIRE CONNECTION .............................................................. 52
9. SAMPLE SYSTEMS ................................................................ 55
1. BEFORE STARTING
2. PACKAGE CONTENTS
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.

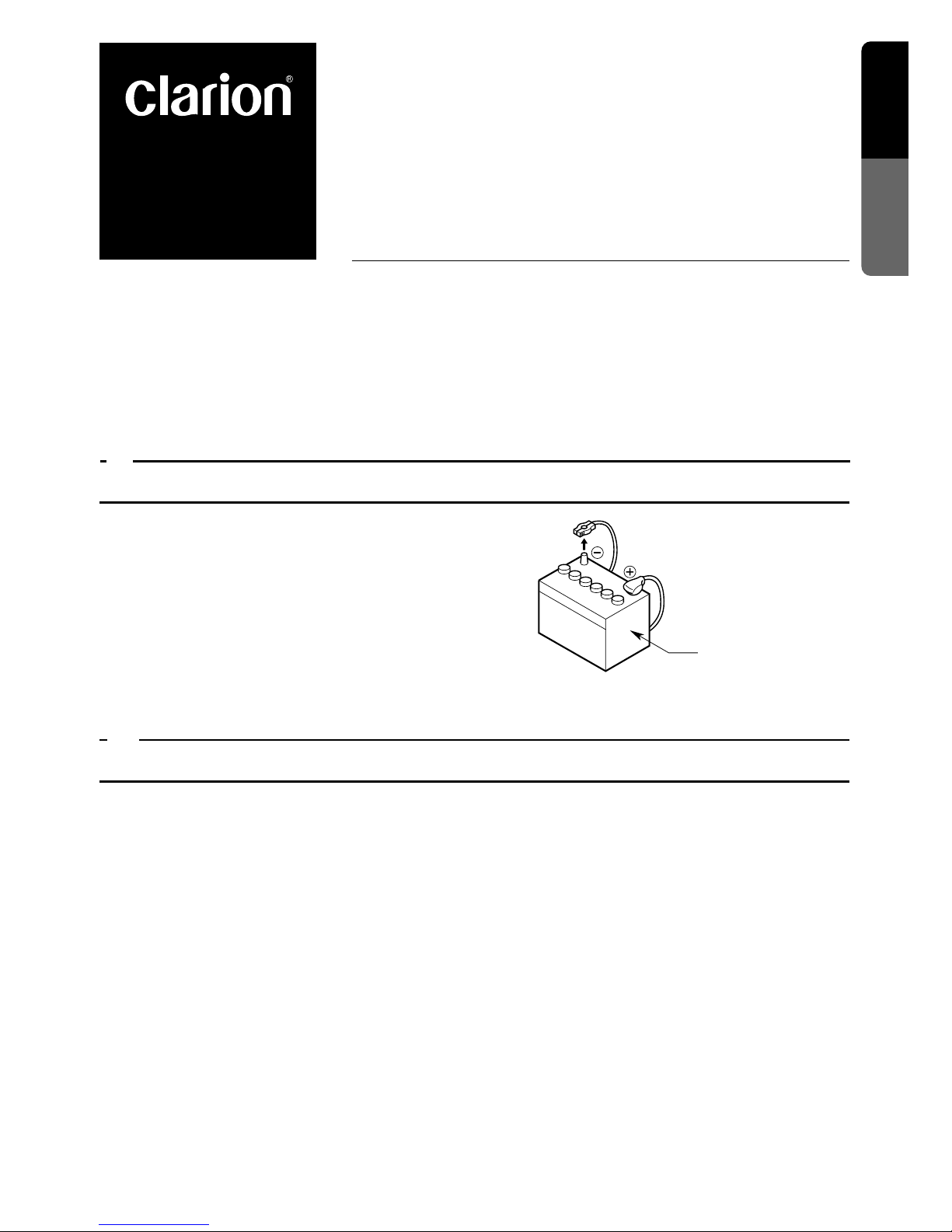

3. Be sure to disconnect the battery “v” termi-
nal before starting.This is to prevent short
circuits during installation. (Figure 1)
Car battery
Figure 1
1Main unit
2Tuner Amp unit
3Manuals
Owner’s manual & Installation manual
Warranty card
4Power supply lead (For the tuner amp unit)
5Connection cord (Main unit ↔Tuner amp
unit)
6Antenna extension cord
7Bag for accessories of the main unit (No. 1)
Flat head screw (M5 ×8) ............................ 4
Sems hexagonal bolt (M5×8) ..................... 5
Electro tap
Machine screw (M4×3)............................... 4
8Bag for accessories of the main unit (No. 2)
Hook plate................................................... 2
Cord clamp
Spacer
Special screw
9Bag for accessories of tuner amp unit
Maunting bracket......................................... 2
Canoe clip ................................................... 4
Machine screw (M4 ×8).............................. 4
0Universal mounting bracket
!Remote control unit
@Battery
(for remote control unit)
#Outer Escutcheon
$DCP Case

48 VRX835
English
Installation and Wire
connection manual
3. GENERAL CAUTIONS
4. CAUTIONS ON INSTALLATION
1. Do not open the case.There are no user ser-
viceable parts inside. If you drop anything
into the unit during installation, consult your
dealer or an authorized CLARION service
centre.
2. Use a soft, dry cloth to clean the case. Never
use a rough cloth, thinner, benzine, or alco-
hol, etc. For tough dirt, apply a little cold or
warm water to a soft cloth and wipe off the
dirt gently.
1. Prepare all articles necessary for installing
the main unit before starting.
2. This model is used with the LCD panel slid
forwards (shell loading system). On some
types of cars, the LCD panel may touch the
dashboard or shift lever, in which case it can-
not be installed. Check that the set will not
hamper operation of the shift lever before
choosing the place of installation.(Figure 2)
5. Use the enclosed screws for installation.Us-
ing other screws can cause damage. (Figure
4)
3. Install the unit within 30°of the horizontal
plane.(Figure 3)
4. If you have to do any work on the car body,
such as drilling holes, consult your car dealer
beforehand.
6. The source unit has mounting screw holes
for NISSAN (N marks) andTOYOTA (T
marks) vehicles.
Dashboard
Shift lever
Shift lever
(check that it does not
touch the LCD.)
Figure 2
Max. 30˚
Figure 3
Chassis Chassis
Damage
Max. 8 mm
Figure 4
Figure 5
T
NNT
NT

VRX835 49
English
Installation and Wire
connection manual

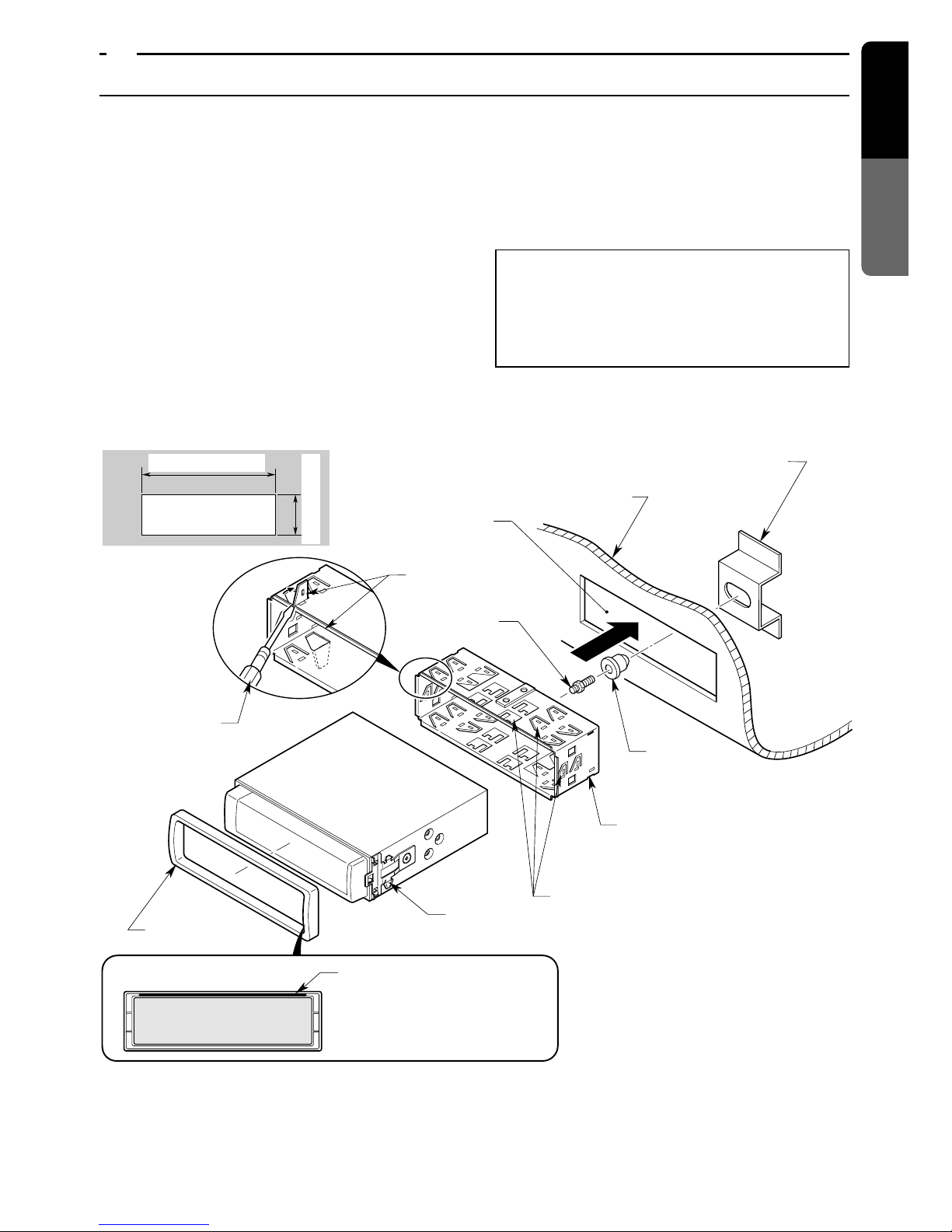

5. INSTALLINGTHE MAIN UNIT
■Universal Mount
1. Place the universal mounting bracket into the
instrument panel, use a screwdriver to bend
each stopper of the universal mounting
bracket inward, then secure the stopper as
shown in Figure 6.
2. Wire as shown in Section 8.
3. Insert the main unit into the universal mount-
ing bracket until it locks.
4. Mount the outer escutcheon so that all the
hooks are locked.
Notes:
1) Some car models require special mounting kits
for proper installation.Consult your Clarion
dealer for details.
2) Fasten the front stopper securely to prevent the
main unit from coming loose.
Figure 6
• Console opening dimensions
Hole
Main unit
7-3/16" (182 mm)
2-1/16" (53 mm)
Screwdriver
Stoppers
Hole
Rear fastening hole (of vehicle)
Instrument panel
Rubber cap
Universal mounting bracket
Stoppers
2-Spring
Outer escutcheon
Note: Set the outer escutch-
eon so that its metallic
part on the back side
fits the upper edge of
the main unit.

50 VRX835
English
Installation and Wire
connection manual
This unit is designed for fixed installation in the
dashboard.
If the vehicle is equipped with a factory-installed
radio, install the main unit with the parts and
screws marked (∗). (Figure 8)
If the vehicle is not equipped with a factory-in-
stalled radio, obtain an installation kit to install
the main unit in the following procedure.

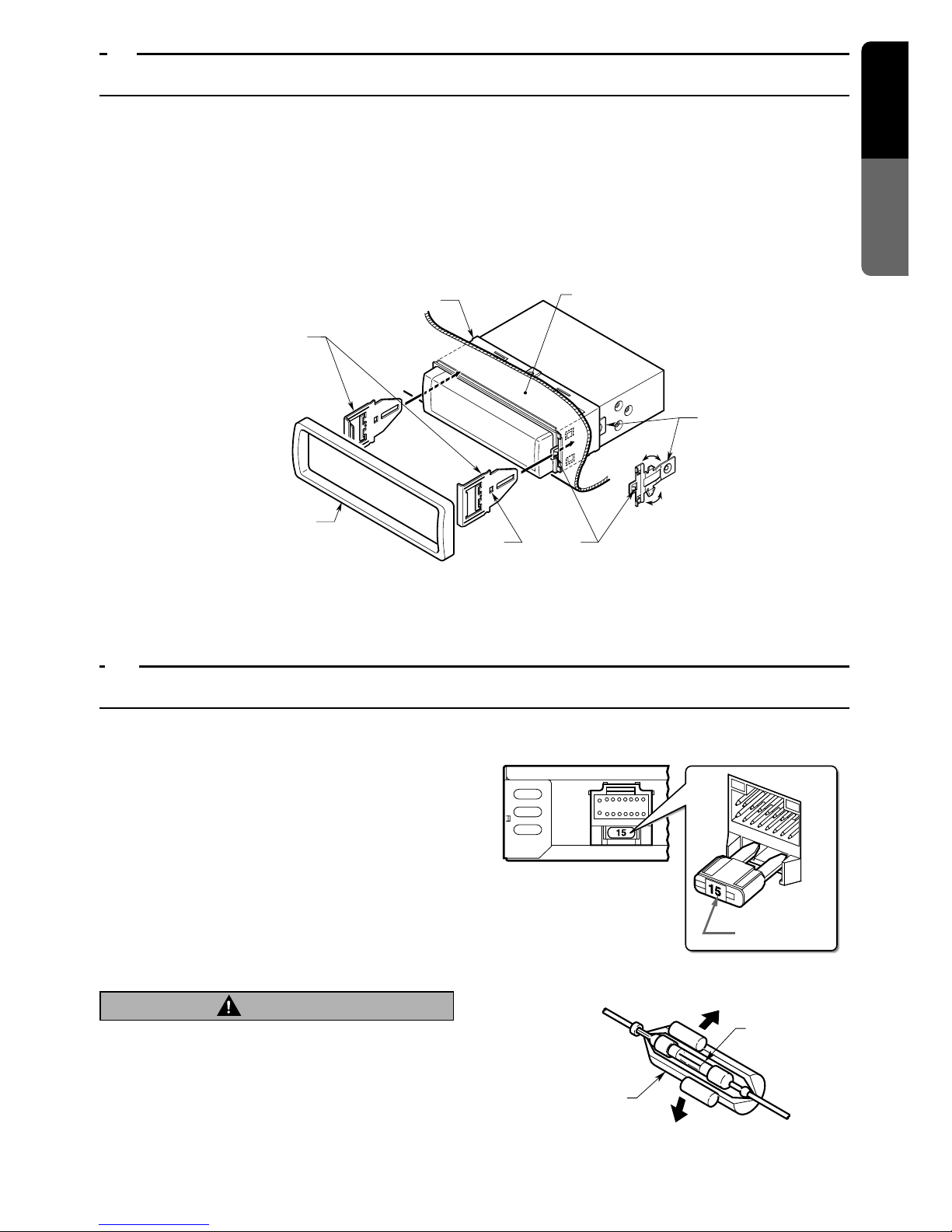

1. Remove the screws from both side of the
main unit.Then, at either side, lift the leaf
spring until the engaging claws are released
from the holes, and slide the spring to the di-
■Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)
rection of arrow to remove it.Repeat the
same for the other side to remove the
springs from the both sides. (Figure 7)
2. Secure the mounting brackets to the chassis
as shown in Figure 8. Holes are pre-tapped for
TOYOTA and NISSAN vehicles; modification,
such as drilling new holes, of the mounting
brackets may be required for other models .
3. Wire as shown in Section 8.
4. Secure the unit in the dashboard, and then
reassemble the dashboard and the centre
panel.
Note 1: In some cases, the centre panel may re-
quire some modification (trimming, filling,
etc.).
Note 2: If a hook on the installation bracket inter-
feres with the unit, bend and flatten it with
a nipper or a similar tool.
2-Screw
2-Spring
4-Hexagonal screw ∗(M5 ×8)
Main Unit
Figure 7
Main Unit
Screwdriver
Engagin claw
Mounting bracket ★
(1 pair for the left and right sides)
Pocket
Centre Panel (Note 1) Note 2
Figure 8
∗: The screws with this mark
are enclosed in this set.
★:The parts and screws with this mark
are used to install radio or included in
the installation kit.

VRX835 51
English
Installation and Wire
connection manual
7. CAUTIONS ON WIRING
1. Be sure to turn the power off before wiring.
2. Be particularly careful where you route the
wires.
Keep them well away from the engine, and ex-
haust pipe, etc.Heat may damage the wires.
3. If the fuse should blow, check to see if the
wiring is correct.
If it is, replace the fuse with a new one with
the same amperage rating as the original.
4. When any fuse is to be replaced, pull out the
fuse (15A) at the rear of the tuner amp unit
and put in a new one (Fig.10).
After the connection, fix the lead by a clamp or
insulation tape for protection.
CAUTION
Rear view of the tuner amp unit
Fuse (15A)
Figure 10
1. When the rear of the main unit has been se-
cured with the method shown in Figure 6 un-
fasten the special screw.
2. Remove the outer escutcheon.
3. Insert the hook plate between the spring and
the universal mounting bracket, fit tab Bof
the spring into hole Aof the hook plate, then
6. REMOVINGTHE MAIN UNIT
pull the main unit out by the hook plate. (In-
sert both the right and left edges of the hook
plate.) (Figure 9)
Note: Keep the hook plate.You cannot remove the
main unit without disengaging the hook plate.
Universal mounting bracket
2-Hook plate
Outer escutcheon
Instrument panel
Spring
Main
Unit
AB
Figure 9
Fuse
Fuse holder
Figure 11
5. To replace the fuse, release the catch on the
main unit side, remove the old fuse and in-
sert the new one. (Figure 11)
Note: There are various types of fuse holder. Do not
let the battery side touch other metal parts.

52 VRX835
English
Installation and Wire
connection manual
&
¥
∗2$% ∗6
3A
Securely connect to the
metal part of the car with a
screw, etc.
CeNET cable (Sold separately)
Reset switch
DSP select switch (∗3)
Tuner amp unit
Subwoofer output terminal
L+R (RCA)
Front audio output (input)
terminal L+R (RCA) ∗4
Rear audio output (input)
terminal L+R (RCA) ∗4
∗1Top view of the
tuner amp unit
VIDEO output (RCA) ∗5
VISUAL 1 audio input terminal L+R (RCA)
DVD input (RCA) (DECK or changer) ∗7
VISUAL 1 input (RCA)/TV TUNER input (RCA)
Power supply lead
CeNET cable (provided with
this unit)
Choke coil Main power supply cord
Earth (ground) cord
Black
Yellow
Fuse

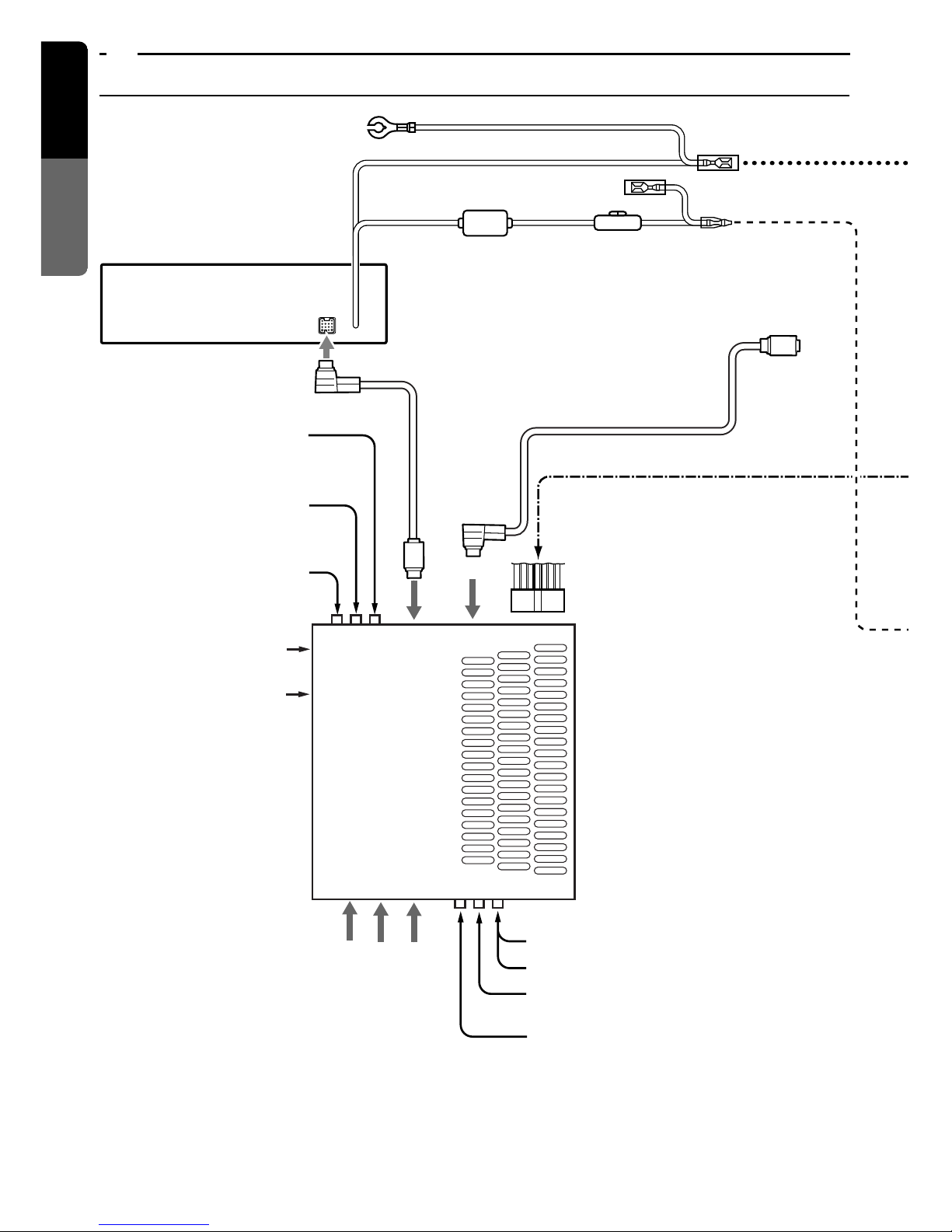

8. WIRE CONNECTION

VRX835 53
English
Installation and Wire
connection manual
∗1: Connecting the PHONE MUTE Terminal
The lead included with the unit must be connected to the specified position of the vehicle’s con-
nector in order to use the “triggered audio mute for cellular telephones”function.
∗2: Use the attached extension lead when necessary. (Provided with this unit)
Note : Before making any installation, disconnect the car battery - (negative) cable.
∗3: When a DSP (sold separately) is connected and the internal amp of the Tuner Amp Unit is used,
set the normal DSP select switch to “D”.Then, the AUDIO OUT (IN) terminal of the Tuner Amp
Unit is only available for audio input, not outputting the audio.
∗4: Connect to a separately sold amp, DSP, etc. with a separately sold RCA cord (L,R).
∗5: Connect to a separately sold Rear view monitor.
∗6: Connect to separately sold VTR equipment.
∗7: DVD DECK and DVD changer can not be connected at the same time.
ND
No. Description
1REAR RIGHTB
2REAR RIGHTv
3FRONT RIGHTB
4FRONT RIGHTv
5FRONT LEFTB
6FRONT LEFTv
7REAR LEFTB
8REAR LEFTv
9+12 V MAIN POWER
0AUTO ANTENNA
!ILLUMINATION
@+12 V ACCESSORY
#GROUND
$CCD/M.LOCK terminal
%VISUAL 2 terminal
¥Radio antenna jack (∗2)
&CeNET terminal
*Spare terminal (Black)
(Phone mute (Brown) (∗1)
)Spare terminal (Yellow)
¡Parking brake (Grass-Green)
2
1
8
0
7
(∗1
3
¡
4
!
6
@
5
9
#
)
*
Black
White
Yellow
Red
White/Black
Orange/White
Glay/Black
Grass-green
Glay
Brawn
Green
Blue/White
Green/Black
Purple/Black
Purple

54 VRX835
English
Installation and Wire
connection manual
■Connecting the Accessories
•Connection to the external amplifier
The external amplifier cannot be connected unless the DSP is connected. For detailed information,
refer to the instruction manual of the DSP.

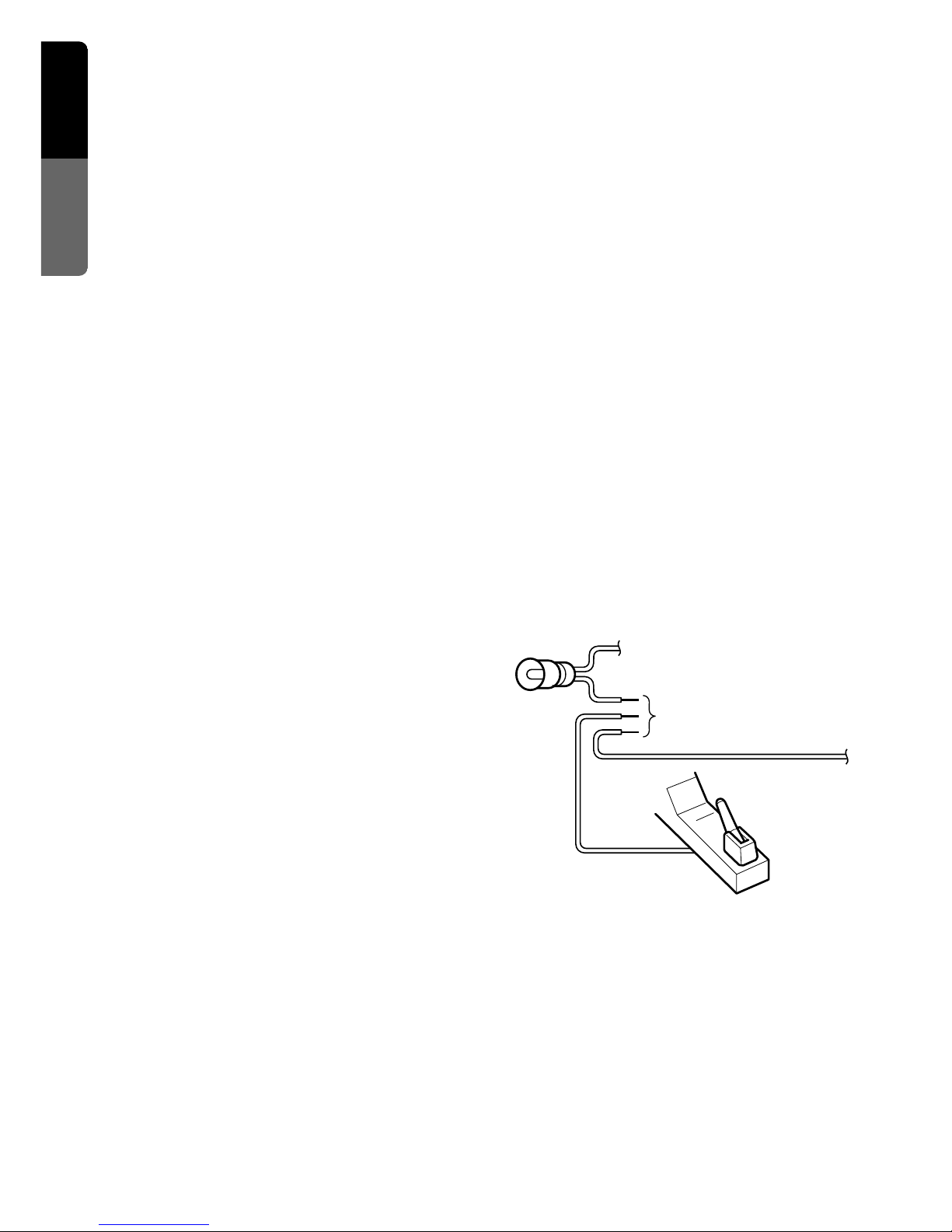

•Connection to the CCD camera for vehicle
The CCD camera for vehicle can be connected to the CCD terminal on the main unit. For detailed
information, refer to the instruction sheet or manual for the CCD camera.
Notes:
• A power supply box (sold separately) is required for connection of the main unit and the CCD camera.
• While the CCD camera is used, the navigation cannot be turned on.
• The power supply box for camera CAA147 cannot be used.Please use the CAA188 instead.
•If the specified lead of the cellular phone is connected to the phone mute
lead of the source unit, the audio mute is available when the cellular tele-
phone is used.
•TVTunner
When the TV TUNER is to be connected, connect the CeNET connector and RCA PIN (yellow). For
detailed information, refer to the instruction manual of the TV TUNER.
■Connectingthe parking brake lead
Connect the lead to parking brake lamp earth
in the meter panel.
Notes:
• Connecting the parking brake lead to lamp earth
allows you to watch TV/VTR/DVD video/DVD
changer when the parking brake is engaged.
• When the parking brake lead is not connected,
the monitor will stay off.
Parking brake
Parking brake lamp +lead to battery
Connect these three leads.
-cord
parking
brake signal
lead Parking brake lead
(bright green)

VRX835 55
English
Installation and Wire
connection manual
9. SAMPLE SYSTEMS
(TTX7501z)
(VCZ625)
(DCZ625)
CeNET STAND
ALONE
VRX835
TV tuner
CeNET cable
(included the
TV tuner)
RCA video cable
(included the TV tuner)
RearView
Monitor
RCA video cable (sold separately)
DVD Changer
CD Changer
CeNET Y-adapter
(CCA-519-500,
sold separately)
Ferrite clamp
(Included the DVD changer)
RCA video cable (included the VCZ625)
CeNET Cable
(included the Changer)
Front
Speakers
Rear
Speakers
Set the [CENET/STAND ALONE]
switch to the [CeNET] position.
Tuner Amp Unit
TV Tuner input
DVD input
■Sample System 1

56 VRX835
English
Installation and Wire
connection manual
■Sample System 2
CeNET STAND
ALONE
(VCZ625)
VRX835
(DPH910)
VTR
(TTX7501z)
CeNET
TV Tuner
Tuner Amp Unit
CeNET
cable
(included
the TV
tuner)
RCA video cable
(included the TV tuner)
CeNET DVD Changer
CeNET cable
(included the VCZ625)
Digital Sound
Processor
CeNET cable
(included the
DPH910)
Front
Speakers
4-Channel
Amplifier
Rear
Speakers
Sub-woofer
RCA cable
(sold separately)
RCA cable
(sold separately)
Set the [CENET/STAND ALONE]
switch to the [CeNET] position.
RCA video cable (included the VCZ625)
AV Adapter cable
(CCA-389,
sold separately)
RearView
Monitor
RCA video cable
(sold separately)
2-Channel
Amplifier
TV Tuner input
DVD input
Ferrite clamp
(Included the DVD changer)
