Clarion NX700 Repair manual

2-DIN MEMORY NAVIGATION & DVD MULTIMEDIA STATION
WITH 7-inchTOUCH PANEL CONTROL
Owner’s manual & Installation manual
NX700

CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of a Clarion mobile electronic product. We are
confident that you’ll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration
form is short and easy to complete. Once you’re registered, we can keep you informed of
important product information.
Register at www.clarion.com - it’s easy to keep your Clarion product up to date.
INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION
Pour les Étas Unis et le Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous sommes
confiants que vous apprécierez votre expérience Clarion.
Il y a beaucoup d’avantage à enregistrer votre produits. Nous vous invitons à visiter notre site
Web www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilité la tache d’enregistrement de produit simple et facile grâce à notre site Web.
Le formulaire d’enregistrement est court et facile à compléter. Lorsque vous êtes enregistrer,
nous pouvons vous tenir informé des informations important de produits.
Enregistrer à www.clarion.com - c’est facile de mettre à jour votre produit Clarion.
INFORMACIÓN DEL REGISTRO DE PRODUCTO DE CLARION
Para USA y Canada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros que
usted gozará de su experiencia con el producto de Clarion.
Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en internet
www.clarion.com para registrar su producto de Clarion.
Hemos hecho el registro de producto fácil en nuestro sitio. La forma de registro es corta y fácil
de completar. Una vez que lo registre, podremos proporcionarle la información de su producto.
Registrese en www.clarion.com - es fácil mantener su producto de Clarion actualizado.

1
NX700
English Owner’s manual
Thank you for purchasing the Clarion NX700.
• Please read this owner’s manual thoroughly before operating this equipment.
• After reading this manual, be sure to keep it handy for future reference.
• Check the contents of the enclosed warranty card and keep it carefully with this manual.
• The provided disc (CD-ROM manual) cannot be played back on this unit.
Contents
1. FEATURES.................................................................................................................... 2
Expanding Systems........................................................................................................ 2
Playable Discs................................................................................................................ 3
DVD Video Features ...................................................................................................... 3
2. PRECAUTIONS ............................................................................................................. 4
Operation Panel/Generalities ......................................................................................... 5
Cleaning ......................................................................................................................... 5
About the Registered Marks, etc.................................................................................... 6
3. CONTROLS ................................................................................................................... 6

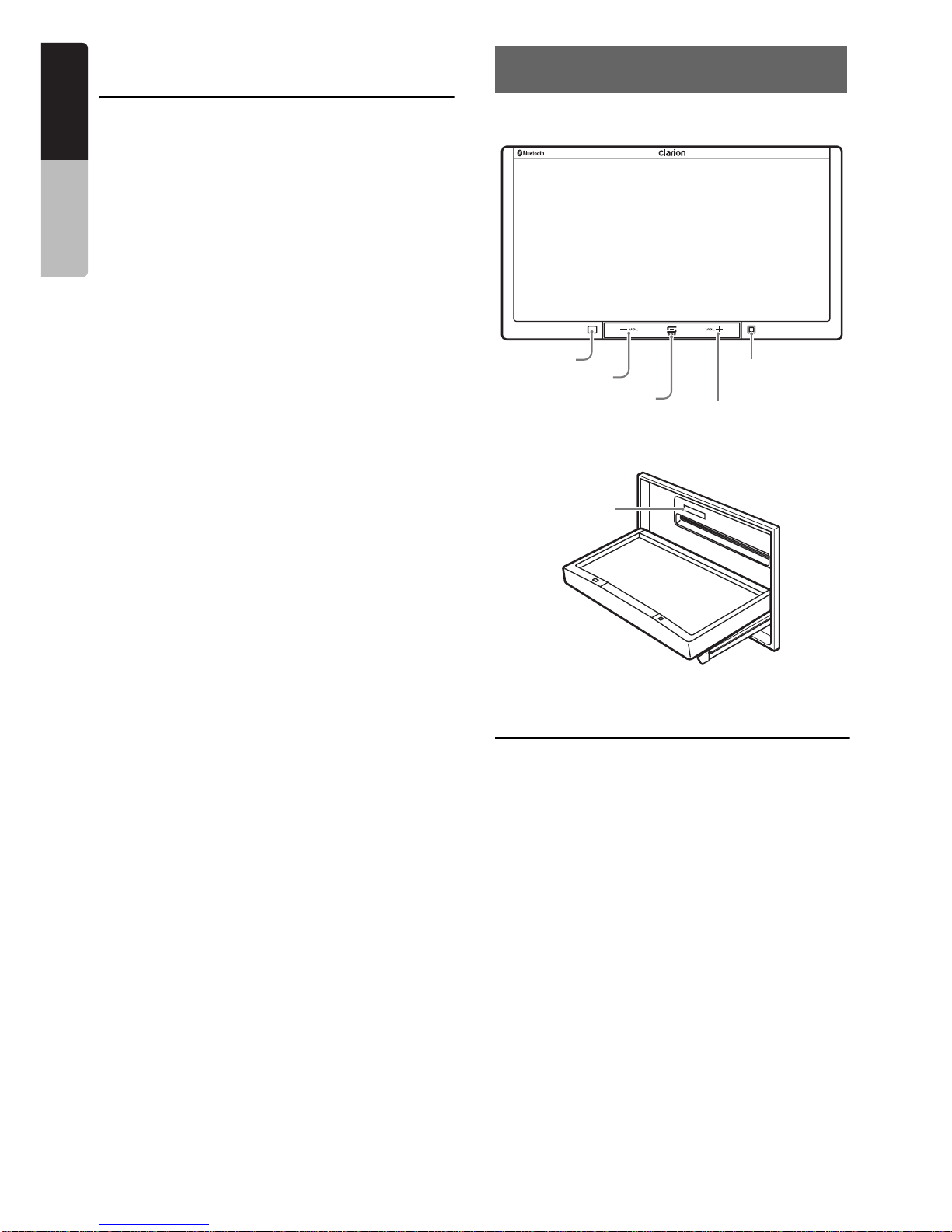

Functions of Buttons....................................................................................................... 6
Outline of Button and Touchkey Operation .................................................................... 8

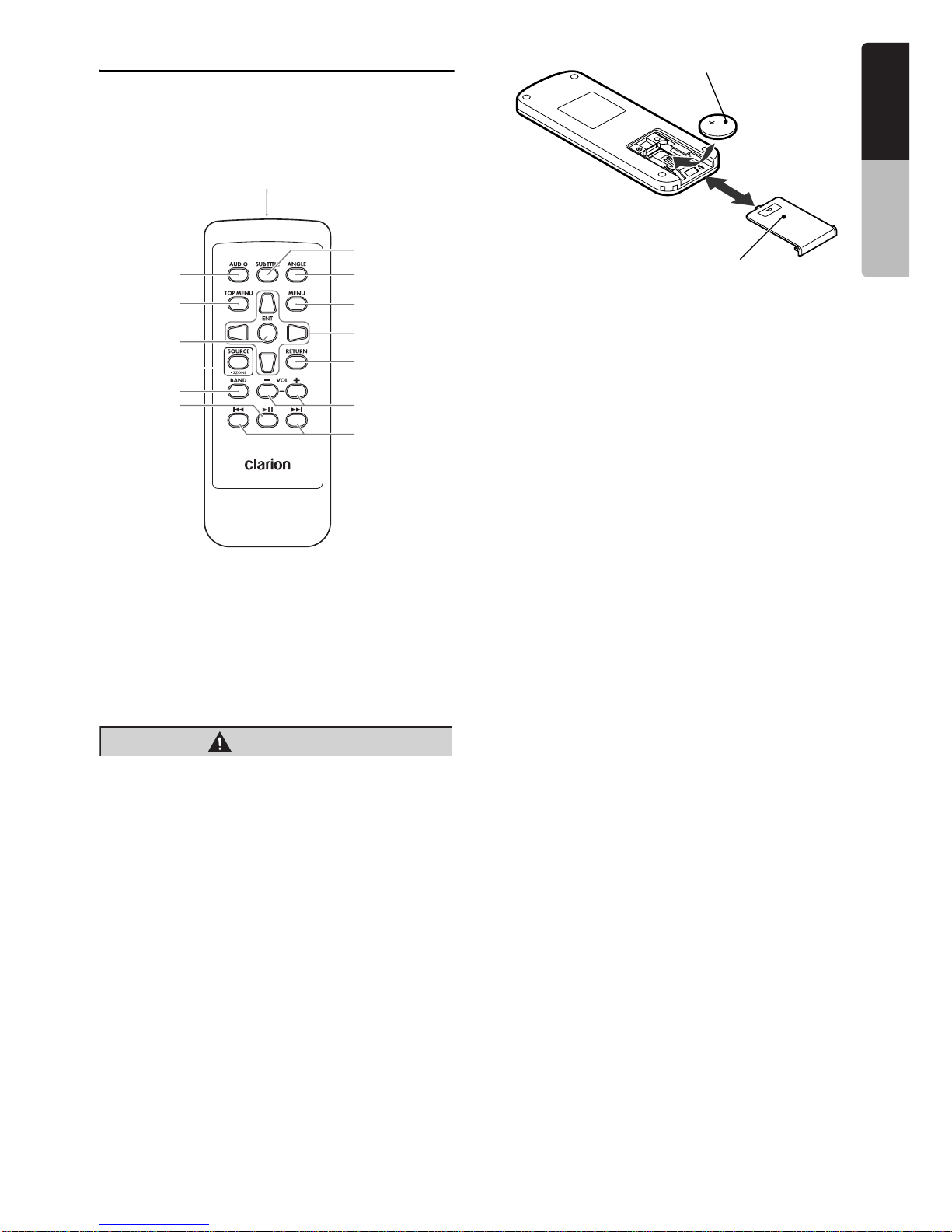

Remote Control Unit..................................................................................................... 13
4. BASIC OPERATIONS.................................................................................................. 14

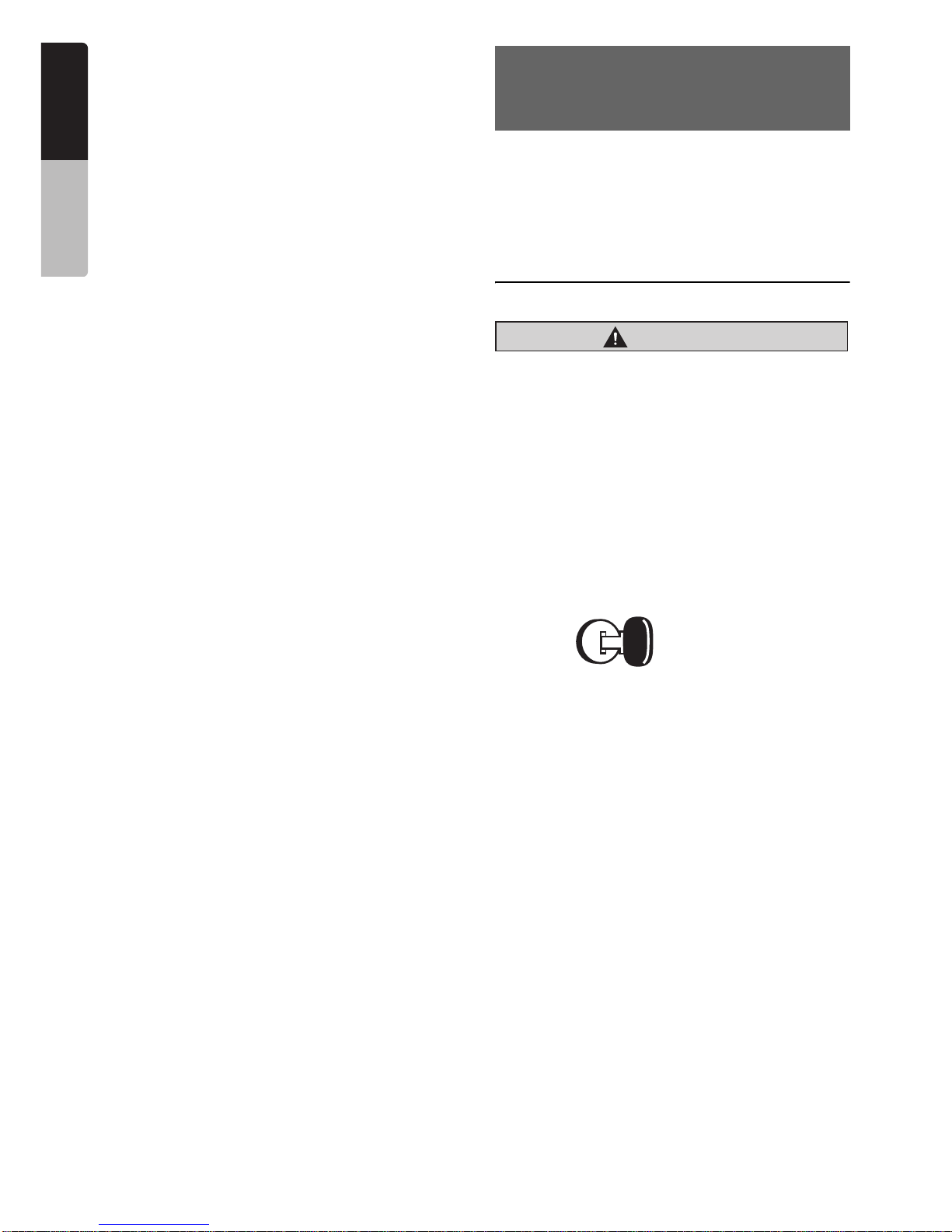

Turning On and Off the Power ..................................................................................... 14
Adjusting the Volume ................................................................................................... 15

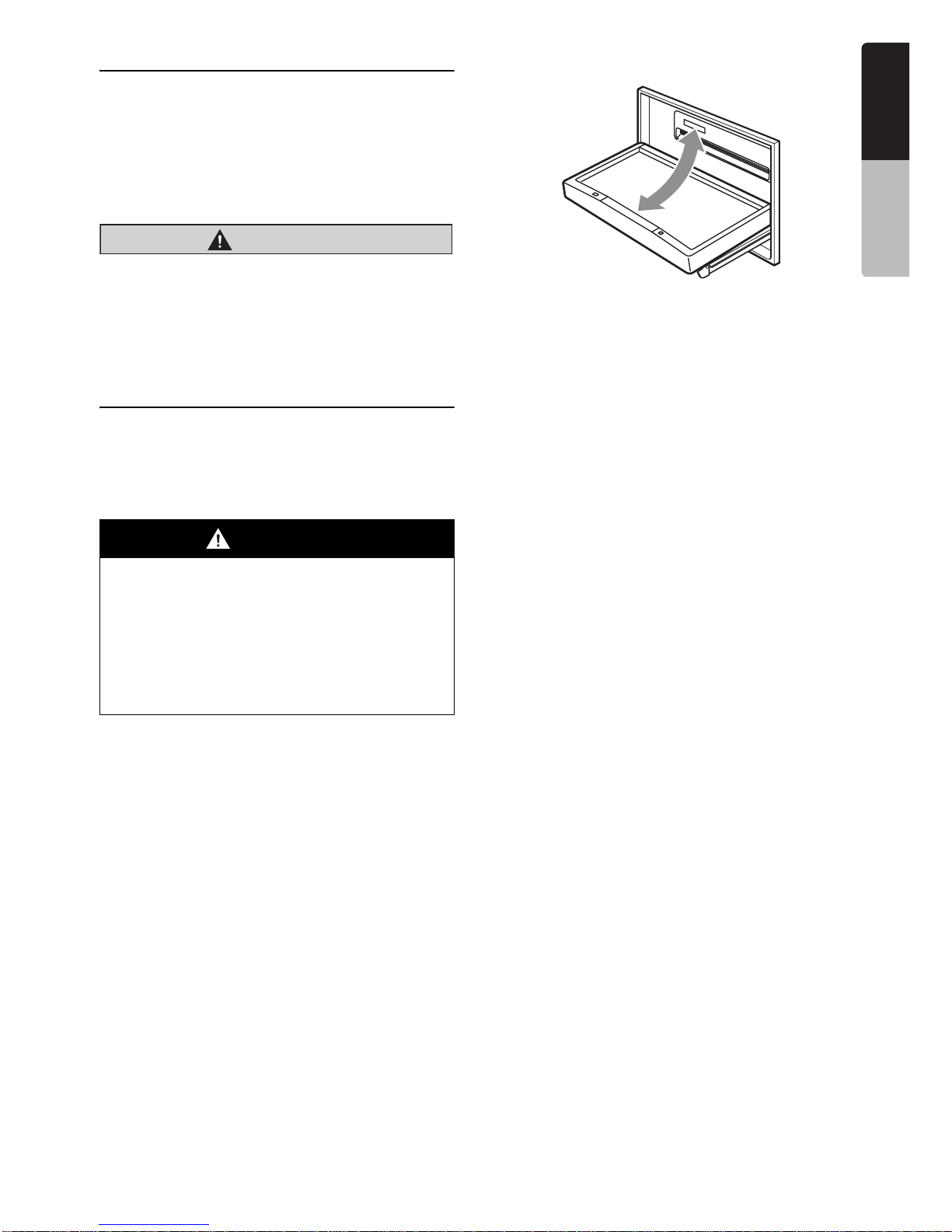

Opening the Operation Panel and Adjusting the Angle................................................ 15
Turning the Audio OFF................................................................................................. 16
Turning the Monitor OFF.............................................................................................. 17
Displaying the Clock Screen......................................................................................... 17
Setting/Ejecting a Disc ................................................................................................. 17
Connecting/Disconnecting an USB Media Device........................................................ 18

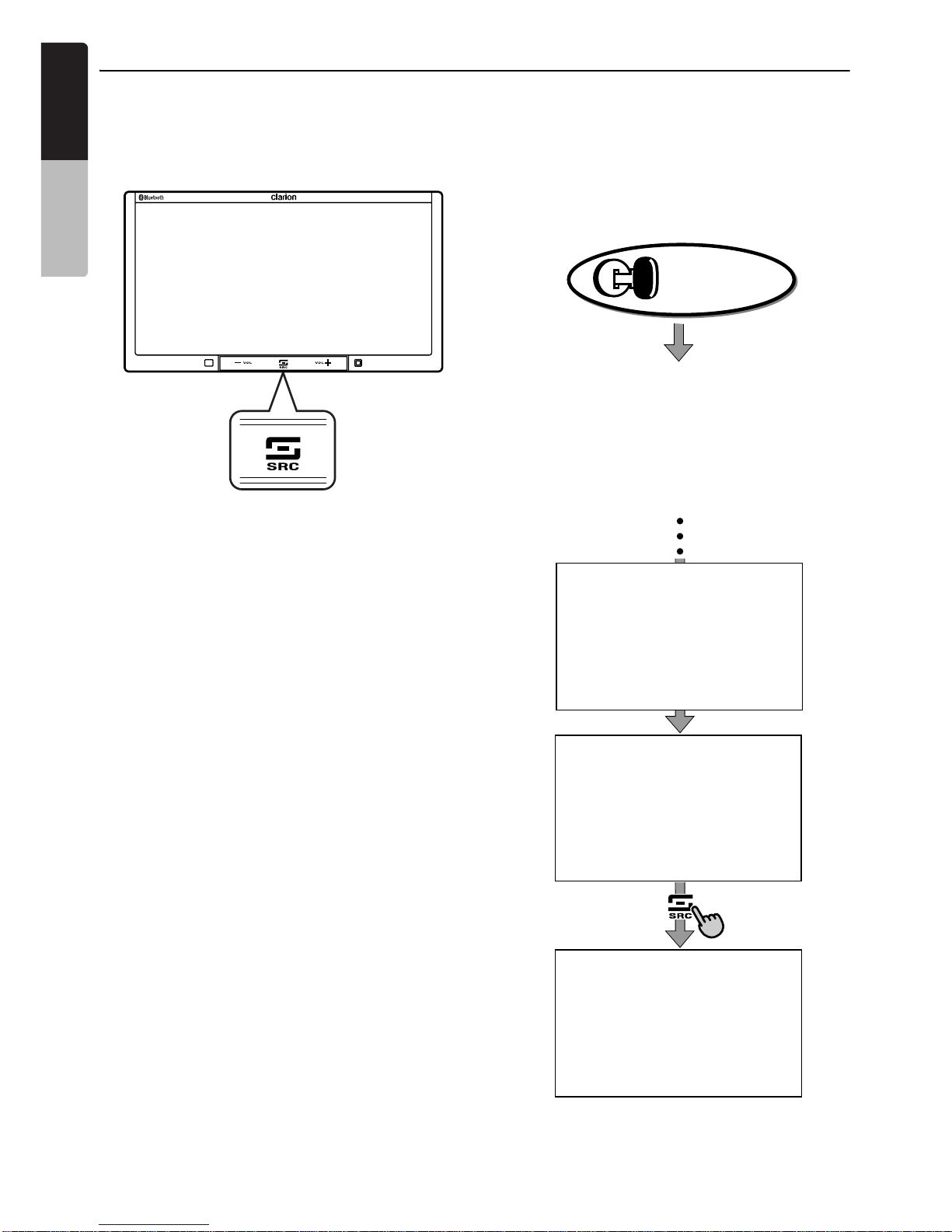

Selecting a Media Source ............................................................................................ 20
2-Zone Function ........................................................................................................... 20
5. SOURCE OPERATIONS ............................................................................................. 21
Radio Operations ......................................................................................................... 21
DVD Video Operations................................................................................................. 23
Audio CD Operations ................................................................................................... 29
MP3/WMA/AAC Operations ......................................................................................... 30
DivX Operations ........................................................................................................... 33
6. SOURCE OPERATIONS (ACCESSORIES)................................................................ 36
Satellite Radio Operations............................................................................................ 36
iPod Operations............................................................................................................ 39
USB Memory Operations.............................................................................................. 42
Navigation System Operations..................................................................................... 43
Bluetooth Telephone Operations (Tel mode) ............................................................... 44
AUX Operations ........................................................................................................... 44
7. SYSTEM SETTINGS.................................................................................................... 45
Audio Settings .............................................................................................................. 45
General Settings........................................................................................................... 48
Adjusting the Monitor.................................................................................................... 51
8. TROUBLESHOOTING................................................................................................. 52
9. ERROR DISPLAYS...................................................................................................... 54
10.SPECIFICATIONS ....................................................................................................... 56
INSTALLATION AND WIRE CONNECTION MANUAL.................................................... 57

2NX700
English Owner’s manual
■Built in Bluetooth®hands-free calling
■Compatible with iPod®and iPhone™ via USB
■Sirf III GPS module with 20-channel receiver
Expanding Systems
1. FEATURES
NX700
Expanding audio features
4-Channel Amplifier
Rear Vision
Camera
(CC2011/
CAA185) Rear Monitor
iPod/iPhone
USB Memory
VTR etc.
Note:
The items listed outside of the frames are the
commercial products generally sold.
Expanding visual features
Sirius Tuner
XM Mini-Tuner
(via Translator Adapter
sold separately)
Bluetooth
Telephone

3
NX700
English Owner’s manual
Playable Discs
This DVD player can play the following discs:
In addition, the DVD player can play CD-R/RW,
DVD-R/RW, and DVD+R/RW discs on which the
following media files have been recorded:
Fordetailedinformation,seethesections entitled
“MP3/WMA/AAC Operations” (page 30) and
“DivX Operations” (page 33).
About CD Extra discs
A CD Extra disc is a disc in which a total of two
sessionshavebeenrecorded.Thefirstsessionis
Audio session and the second session is Data
session.
Your personally-created CDs with more than
seconddatasessionsrecorded cannotbeplayed
on this DVD player.
Note:
•When you play a CD Extra disc, only the first
session will be recognized.
About playing a CD-R/RW disc
This player can play CD-R/RW discs previously
recorded in Audio CD format or format with MP3/
WMA/AAC/DivX files.
About playing a DVD-R/RW or
DVD+R/RW disc
ThisplayercanplayDVD-R/RWandDVD+R/RW
discs previously recorded in DVD video format or
format with MP3/WMA/AAC/DivX files.
Discs that cannot be played back
This player cannot play DVD Audio, DVD-RAM,
Video CDs, Photo CDs, etc.
Note:
•It may not be possible to play back discs recorded
on some CD/DVD drive units. (Cause: disc
characteristics, cracks, dust/dirt, dust/dirt on
player’s lens, etc.)
•If a CD-R/RW, DVD-R/RW, or DVD+R/RW disc
that has not been finalized is played, it will take a
long time to start playing. Also, it may not be
possible to play depending on its recording
conditions.
•Youcannot playSuper AudioCDs. Playbackofthe
CD player is not supported even if it is a hybrid
disc.
Note on region numbers of DVD
video discs
The DVD video system assigns a region number
to DVD players and DVD discs by sales area.
The DVD video region number playable in this
system is marked on the disc jacket as shown
below.
DVD Video Features
This unit provides the following functions in
addition to the high image quality and sound
quality of DVD video.
Note:
•The functions described in this section differ
depending on the DVD video disc. Refer to the
instructions provided with the DVD video.
•Some disc functions may operate differently from
described in this manual.

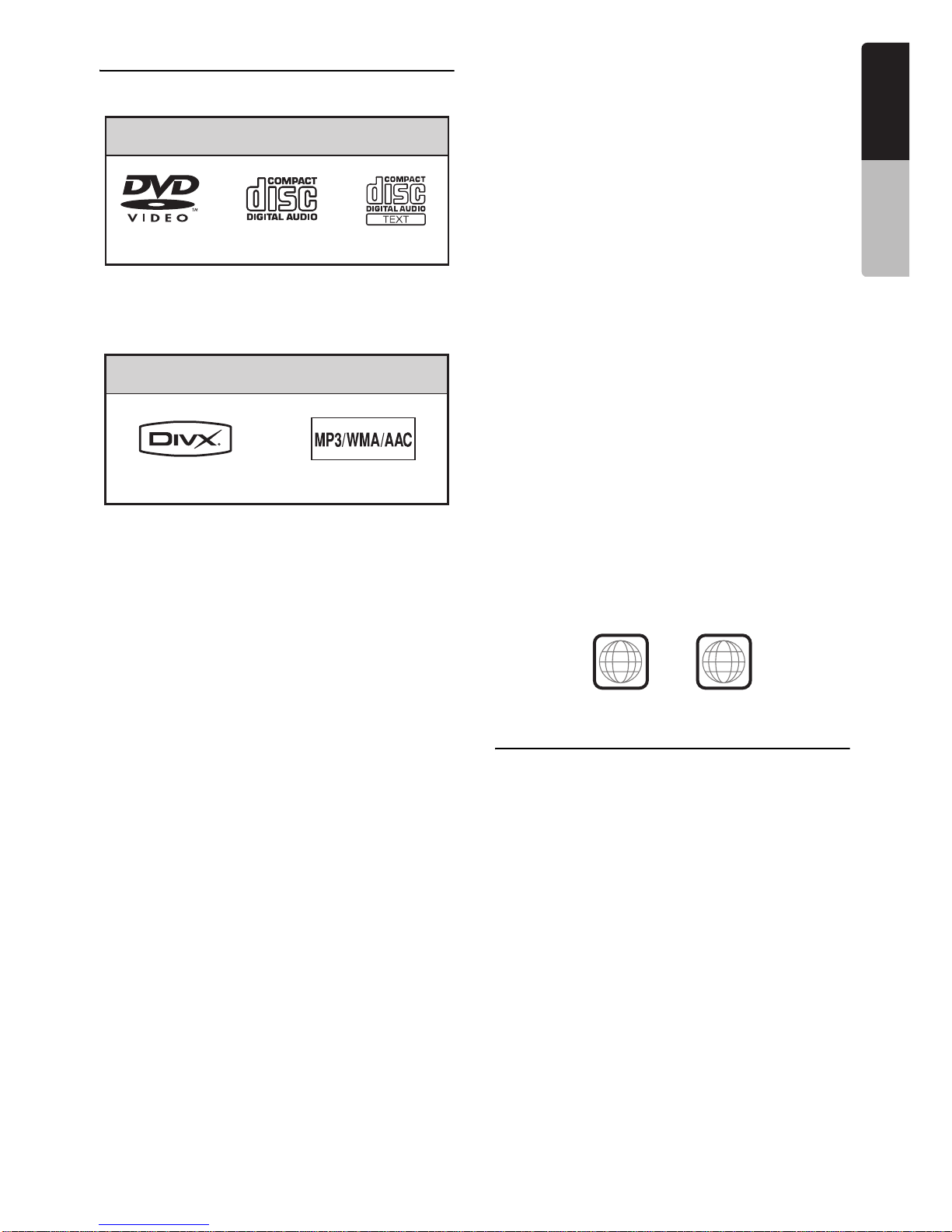

Playable discs
DVD video discs Audio CDs CD TEXT
MP3/WMA/AAC
DivX
Playable media files
ALL
1

4NX700
English Owner’s manual
Multi-sound function
DVD video can store up to 8 languages for one
film; select the language of your preference.

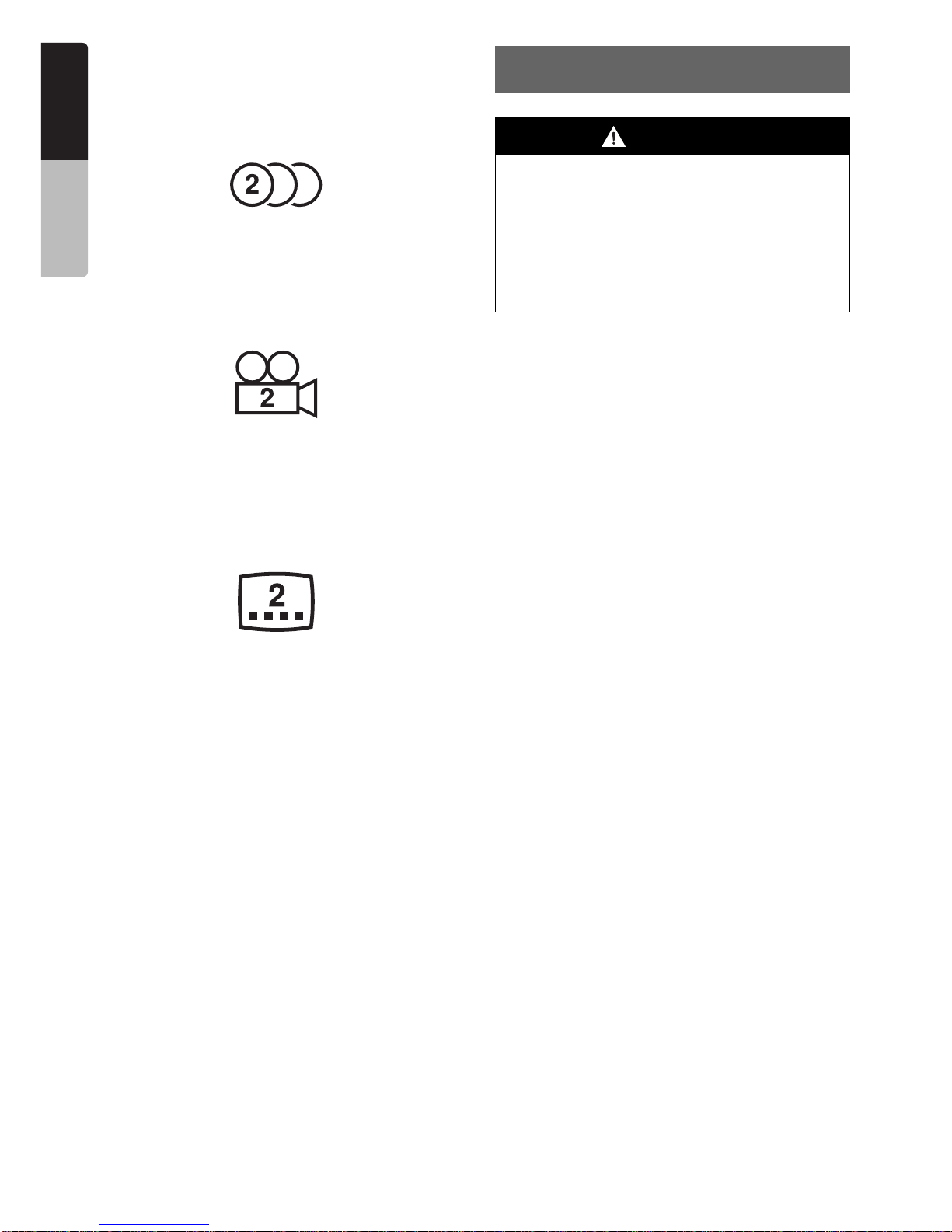

• The languages stored on the disc are indicated
by the icon shown below.
Multi-angle function
A DVD video that is filmed from multiple angles
allows you to select the angle of choice.
• The number of recorded angles is indicated by
the icon shown below.
Subpicture (subtitles) function
A DVD video can record subtitles for up to 32
languages and you can select the language of
the subtitles you wish to see.
• The number of recorded subtitle languages is
indicated by the icon shown below.
Multi-story function
When a DVD video contains more than one story
for a film, you can select the story you wish to
enjoy. The operation procedures vary with the
disc;observetheinstructions forselectingastory
provided during playback.
DVD menu
DVD Menus can be called up during DVD video
playback to perform menu setting.
• Example showing DVD menu
1. Whenthe inside of the caris very cold and the
player is used soon after switching on the
heater, moisture may form on the disc (DVD/
CD) or the optical parts of the player and
proper playback may not be possible. If
moisture forms on the disc (DVD/CD), wipe it
off with a soft cloth. If moisture forms on the
optical parts of the player, do not use the
player for about one hour. The condensation
will disappear naturally allowing normal
operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
4. This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
televisionreception, whichcan bedetermined
by turning the equipment off and on, the user
is encouraged to consult the dealer or an
experienced radio/TV technician for help.
2. PRECAUTIONS
WARNING
For your safety, the drivershould not watch
the DVD video/movie data or operate the
controls while driving. Please note that
watching and operating the DVD video/
movie data while driving are prohibited by
law in some countries. Also, while driving,
keep the volume to a level at which external
sounds can be heard.

5
NX700
English Owner’s manual

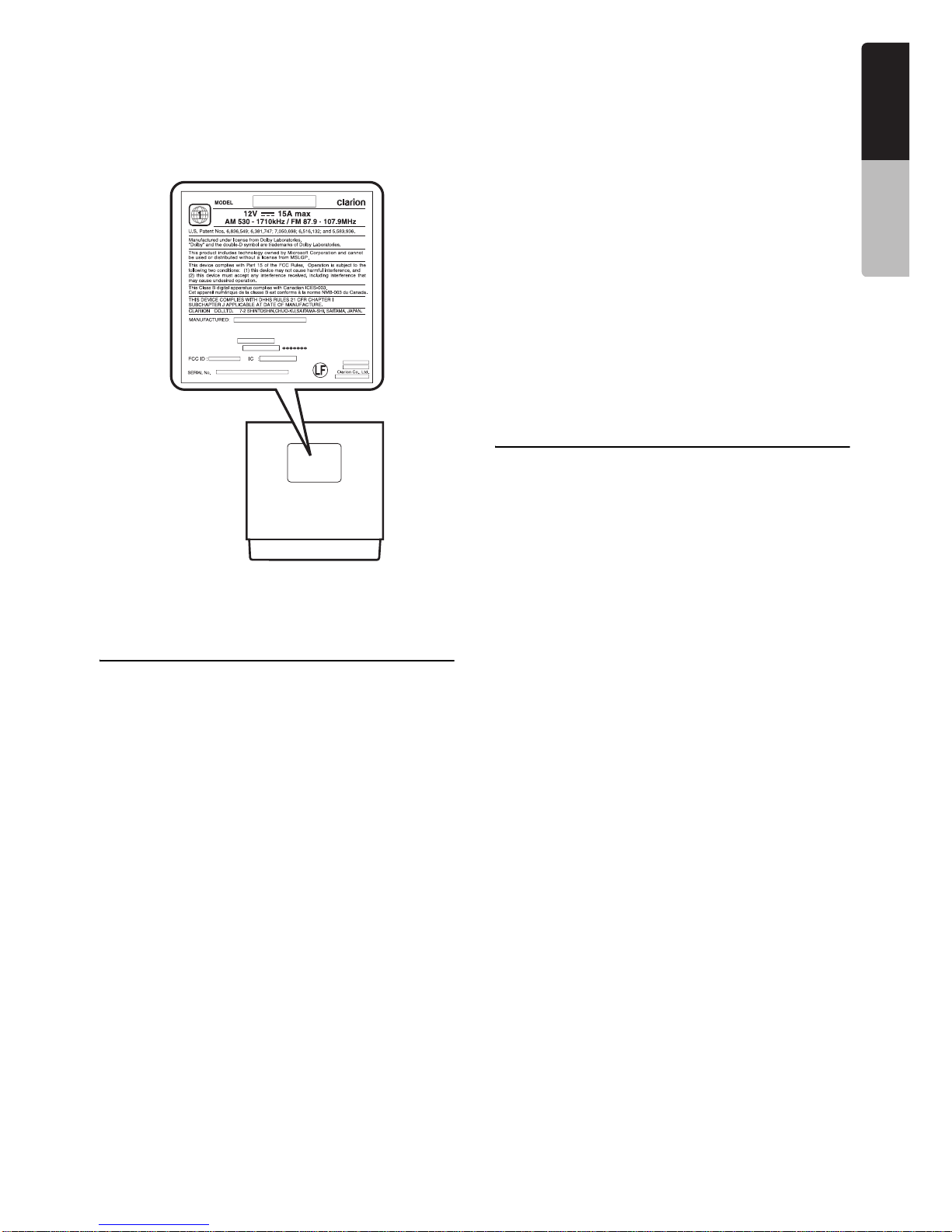

INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
Operation Panel/
Generalities
For a longer service life, be sure to read the
following cautions.
• The operation panel will operate properly in a
temperature range of 0 to 60°C.
• Do not allow any liquids on the set from drinks,
umbrellas, etc. Doing so may damage the
internal circuitry.
• Do not disassemble or modify the set in any
way. Doing so may result in damage.
• Do not draw the operation panel out and use it
as a tray. Also, subjecting the operation panel
to shocks may result in breakage, deformation,
or other damage.
• Do not let cigarettes burn the display. Doing so
may damage or deform the cabinet.
• If a problem should occur, have the set
inspected at your store of purchase.
• Do not insert objects or poke in the space
between the operation panel and the main unit
when the panel is tilted.
• Do not place anything on the display when the
panel is tilted.
• The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
• In extremely cold weather, the display
movementmay slowdownand thedisplaymay
darken, but this is not a malfunction. The
display will work normally when the
temperature increases.
• Small black and shiny spots inside the
operation panel are normal for LCD products.
• The operation panel may stop temporarily
whenitopensorcloses, whenthe enginestops
or when it is cold.
• The touchkeys on the display operate when
slightly touched. Do not press the touchkey
screen with much force.
• Donotpushthecasesurroundingthetouchkey
panel with much force. This may cause
malfunctioning of the touchkeys.
Cleaning
•Cleaning the cabinet
Use a soft and dry cloth and gently wipe off the
dirt. For tough dirt, apply some neutral
detergent diluted in water to a soft cloth, wipe
off the dirt gently, then wipe again with a dry
cloth.
Do not use benzene, thinner, car cleaner, etc.,
as these substances may damage the cabinet
or cause the paint to peel. Also, leaving rubber
or plastic products in contact with the cabinet
for long periods of time may cause stains.
•Cleaning the operation panel
The operation panel tends to collect dust, so
wipe it off occasionally with a soft cloth. The
surface is easily scratched, so do not rubit with
hard objects.

6NX700
English Owner’s manual
About the Registered
Marks, etc.
• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
• Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
• “DivX”, “DivX Certified”, and associated logos
are trademarks of DivX, Inc., and are used
under license.
• ©2009SIRIUSXMRadioInc.,SIRIUS,XMand
all related marks and logos are trademarks of
SIRIUS XM Radio Inc. and its subsidiaries.
All other marks, channel names and logos are
the property of their respective owners.
• The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by Clarion Co., Ltd. is under license.
Other trademarks and trade names are those
of their respective owners.
• “Made for iPod” means that an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple performance
standards.
“Works with iPhone” means that an electronic
accessory has been designed to connect
specifically to iPhone and has been certified by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
iPhone is a trademark of Apple Inc.
• BBE MP (Minimized Polynomial Non-Linear
Saturation) Process improves digitally
compressed sound, such as MP3, by restoring
and enhancing the harmonics lost through
compression. BBE MP works by regenerating
harmonics from the source material, effectively
recovering warmth, details and nuance.
• Manufactured under license from BBE Sound,
Inc.
• Licensed by BBE Sound, Inc. under one or
more of the following US patents: 5510752,
5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.
●Operation Panel
●With the operation panel open
Functions of Buttons
Note:
•Be sure to read this section while referring to the
front diagram.
Sensor
• Receiver for the remote control unit (operating
range: 30° in all directions).
[VOL –], [VOL +] buttons
• Use these buttons to increase/decrease the
volume.
3. CONTROLS
NX700
[VOL –]
[VOL +]
[SRC]
Sensor Blink LED/
Reset button
SD memory
card slot

7
NX700
English Owner’s manual
[SRC] button
• Press this button to display/hide the Source
screen to switch the source mode.
Blink LED
• Whenthe BlinkLED functionis setto “On”from
the System tab menu on the General screen,
blinks when the ACC power is turned off.
SD memory card slot
• SD memory card function is available in the
Navi mode. For more information about the SD
memory card function, see your User Manual
(for the Navi mode).
Note:
•Whenyouinsertthe SDmemorycardstored music
files, they cannot be read in this unit.

8NX700
English Owner’s manual
Outline of Button and Touchkey Operation
Turning the power on
NX700
System check
The CeNET format utilized on this unit is provided
with a system check function. When the system
check function is performed under the following
conditions, the power is automatically turned off.
Once turn off the engine switch, then restart the
engine again.
• When power is first turned on after initial
installation.
• When an external device is connected or
disconnected.
• When Reset button is pressed.
*In addition to the above conditions, the system
check function can be performed from the System
tab menu on the General screen.
Note:
*1These images indicate the buttons to press or
keys to touch.
You can change the media sources.
Engine ON
position
*1

9
NX700
English Owner’s manual
Tuner mode operation
(Source screen)
Switches the radio band.
Preset ch.
Manual tuning
Selects Home/Travel modes.
• Select desired station after
selecting radio band.
Seek tuning

10 NX700
English Owner’s manual

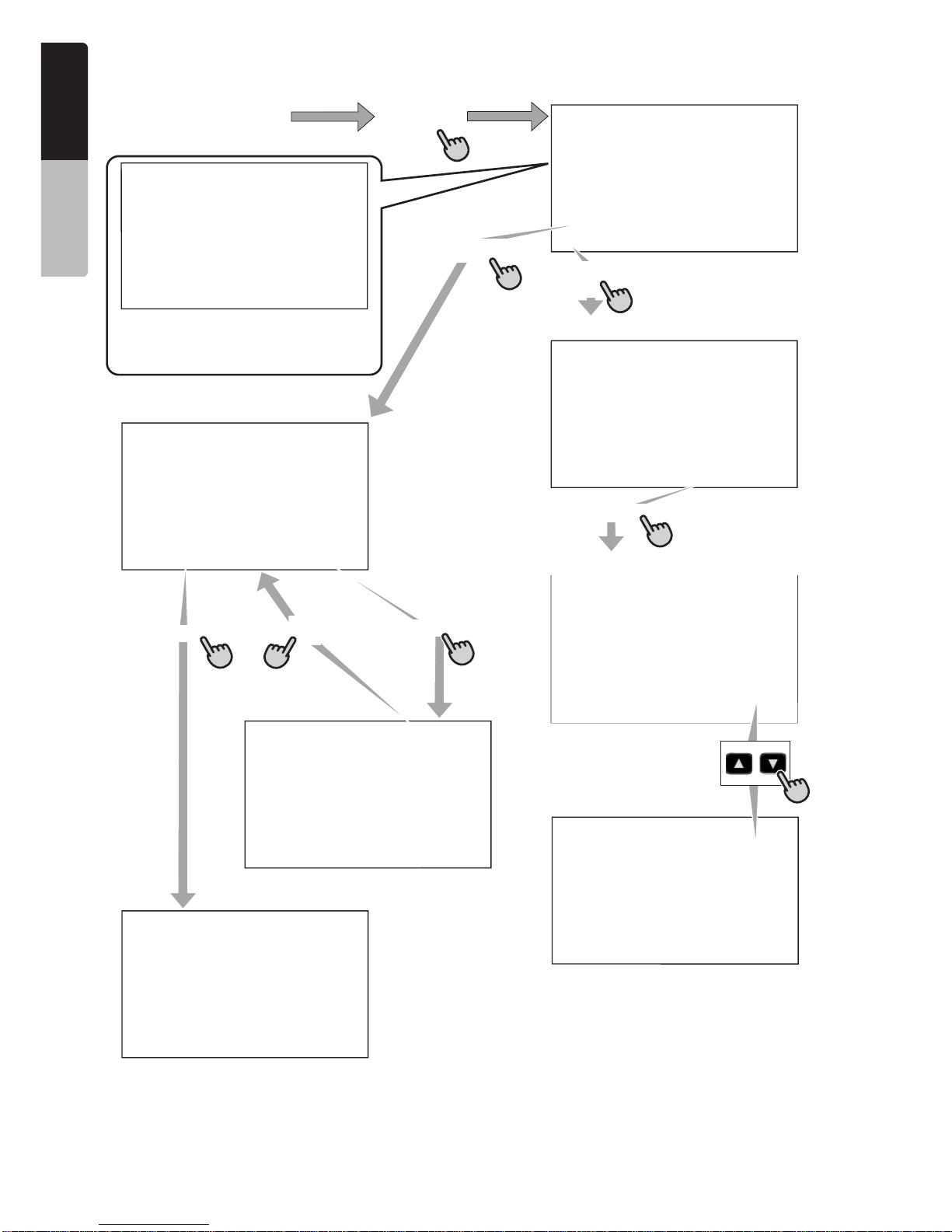

DVD Video mode operation
(Source screen) (DVD Video mode screen) *2
(Options screen)
(Setup screen)
*Screen during DVD Video mode
when automobile moving.
Note:
*2Ifyou do not touch the screen forabout7 seconds,all the keyson the screen
will disappear. Touch the screen surface to redisplay them.
(DVD top menu) *2

11
NX700
English Owner’s manual
Adjusting the General settings
(Settings screen)
(General screen)
(System tab screen)(Display tab screen)
(Source or Mode screen)

12 NX700
English Owner’s manual
Adjusting the Audio settings
(Settings screen)
(Audio screen)
(Others tab screen)
(Beat EQ tab screen)
(BAL/FAD tab screen)
(Source or Mode screen)

13
NX700
English Owner’s manual
Remote Control Unit
❏Names of buttons
❏Inserting the Battery
1. Slide the rear cover in the direction of the
arrow, and remove it.
2. Insert the CR2025 battery bundled with the
remote control unit in the directions shown in
the figure, then close the rear cover.
CAUTION
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent
type.
Note:
Using battery improperly can cause it to explode.
Take note of the following points:
•Do not short-circuit, disassemble or heat battery.
•Do not dispose of battery into fire or flames.
•Dispose of spent battery properly.
❏Functions of Remote Control
Unit Buttons
You can use the remotecontrol unit to controlthe
NX700. When the 2-Zone function is ON, the
controls work upon the Sub zone only.
Note:
•Thesteeringwheelremote controloperationswork
upon the Main zone even when the 2-Zone
function is ON.
[AUDIO] button
• PresstosettheAudiolanguage.(inDVDVideo
and DivX modes)
[SUBTITLE] button
• Press to display subtitles. (in DVD Video and
DivX modes)
[ANGLE] button
• Press to switch among the angles when DVD
video discs recorded in multiple angles are
played back.
[TOP MENU] button
• Press to display the DVD top menu stored on
the DVD video disc. Some discs are not
displayed the DVD top menu. (in DVD Video
mode)
[MENU] button
• Press to display the DVD menu stored on the
DVD video disc. (in DVD Video mode)
[ENT] button
• Pressto fix theselected menu item onthe DVD
menu. (in DVD Video mode)
[E], [e], [T], [t] buttons
• Presstoselectdesired menuitemdisplayed on
the DVD menu. (in DVD Video mode)
Signal transmitter
Operating range: 30° in all directions
[AUDIO]
[TOP MENU]
[ENT]
[SOURCE]
[BAND]
[6]
[SUBTITLE]
[ANGLE]
[MENU]
[E], [e], [T], [t]
[–], [+]
[RETURN]
[R], [F]
CR2025 battery
Rear side
Rear cover

14 NX700
English Owner’s manual
[SOURCE] button
• Press to switch the source modes such as
Tuner mode, DVD mode, etc. (in any mode)
*OnlyDVD,USB,andAUXmodesareselectable
when 2-Zone ON.
• Keep pressing more than 1 second to turn the
2-Zone function ON/OFF. (in any mode)
[RETURN] button
• Press to returnto the previous screen whilethe
DVDmenuis being displayed. However, it may
occur that this button operation dose not work
on some discs. (in DVD Video mode)
[BAND] button
• Switches reception bands. (in Tuner, Sirius,
and XM modes; disabled when 2-Zone ON)
• Keep pressing more than 1 second to switch
the Home/Travel modes. (in Tuner mode;
disabled when 2-Zone ON)
• Press to select the next higher folder. (in MP3/
WMA/AAC/DivX and USB memory modes)
[VOL –], [VOL +] buttons
• Decreases or increases the volume. (in any
mode; disabled when 2-Zone ON)
[6] button
• Press to play or pause video and audio media.
(in DVD and USB modes; disabled in USB
mode when 2-Zone ON)
• Keep pressing more than 1 second to stop
video playback. (in DVD Video mode)
[R], [F] buttons
• Press to select the next lower or higher preset
station. (in Tuner, Sirius, and XM modes;
disabled when 2-Zone ON)
• Pressto select the next lower or higherchapter
number. (in DVD Video mode)
• Press to select the next lower or higher track.
(in CDDA, MP3/WMA/AAC/DivX, and USB
modes)
• Keep pressing to perform fast backward orfast
forward playback. (in DVD and USB modes)
Note:
•Besureto read thischapterreferringtothe chapter
“3. CONTROLS” (page 6).
Turning On and Off the
Power
CAUTION
CAUTION
When the unit is turned on, starting and
stopping the engine with its volume raised to
the maximum level may harm your hearings.
Be careful about adjusting the volume.
Note:
•Start the engine before using this unit.
•Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Start the engine. The power is supplied to this
unit.
The unit automatically memorizes its last
operation mode and will automatically switch
to display that mode.
2. To turn off the power, turn off the engine
switch.
●About the CT (Clock Time) display
• The displayed clock data is based on the CT
(clock time) data in the Navigation system.
• When the CT data cannot be received, “--:--”
appears in the display.
4. BASIC
OPERATIONS
Engine ON
position

15
NX700
English Owner’s manual
Adjusting the Volume
1. Press the [VOL –]/[VOL +] buttons to adjust
the volume.
[VOL –]: Decreases the volume.
[VOL +]: Increases the volume.
• The volume level indicated in the display is
in a range from 0 (min.) to 33 (max.).
CAUTION
CAUTION
While driving, keep the volume level at which
external sounds can be heard.
Opening the Operation
Panel and Adjusting the
Angle
The operation panel can be opened/closed to
insert/eject a disc. The angle of the operation
panel can be adjusted depending on the
mounting angle of the unit orlight coming into the
car.
Opening/closing the operation panel
1. Touch the [o(Eject)] key to display the
following Eject screen:
2. Touch the [Open/Close] key.
The operation panel will be opened.
3. Touch the [Open/Close] key when the
operation panel is open.
The operation panel will be closed.
• The operation panel willclose automatically
when leaving it open for a while.
4. Touch the[Back] key to return tothe previous
screen.
WARNING
•To prevent the battery from going dead,
operate this unit with the engine running
if possible.
•Whenthe operation panel is operating, be
careful not to get your hand or finger
caught between the panel and main unit
or the instrument panel of the car.
•Do not move the operation panel by hand.

16 NX700
English Owner’s manual
Adjusting the angle of the operation
panel
The angle of the operation panel can be adjusted
in the range of 0°to 30°
1. Touch the [o(Eject)] key to display the Eject
screen.
2. Repeat touching the [Tilt] key to adjust the
angle of the operation panel. Every touching
the [Tilt] key tilts the operation panel forward
or backward.
The adjusted angle is stored in memory.
Once you adjust the angle of the operation
panel, the operation panel will return to the
adjusted angle even after it is opened/closed.
3. When the adjustment is finished, touch the
[Back] key to return to the previous screen.
Returning the operation panel to the
original angle
1. Touch and hold the [Tilt] key.
The operation panel will move andstop at 30°.
2. Touch and hold the [Tilt] key again.
The operation panel will move and stop at 0°.
Turning the Audio OFF
You can turn off all of the AV features.
1. Press the [SRC] button to display the Source
screen.
2. Touch the [Audio Off] key.
The AV features are turned off.
Note:
•The Audio OFF function does not work in the Tel
mode.
Turning the AV features on
1. Press the [SRC] button to display the Source
screen.
2. Touch the desired Source key.
The AV features are turned on, and the
system enters into the specified mode.

17
NX700
English Owner’s manual
Turning the Monitor OFF
You can turn off the monitor screen, and change
it to a black screen.
1. Touch the [SET] key to display the Settings
screen.
2. Touch the [Monitor Off] key.
The monitor screen is turned off.
Turning the monitor on
1. Touch the monitor screen.
Themonitorscreenisturnedon, andresumes
the last screen.
• You can also turn on the monitor by
pressing the [SRC] button.
Displaying the Clock
Screen
You can change the screen to display only the
digital clock on a black screen.
1. Touch the clock display on most screens.
The Clock screen is displayed.
2. To return to the current mode screen, touch
the monitor screen.
• Pressing the [SRC] button displays the
Source screen.
Note:
•The Clock screen cannot be displayed while in the
Tel mode.
Setting/Ejecting a Disc
❏Notes on handling discs
Handling

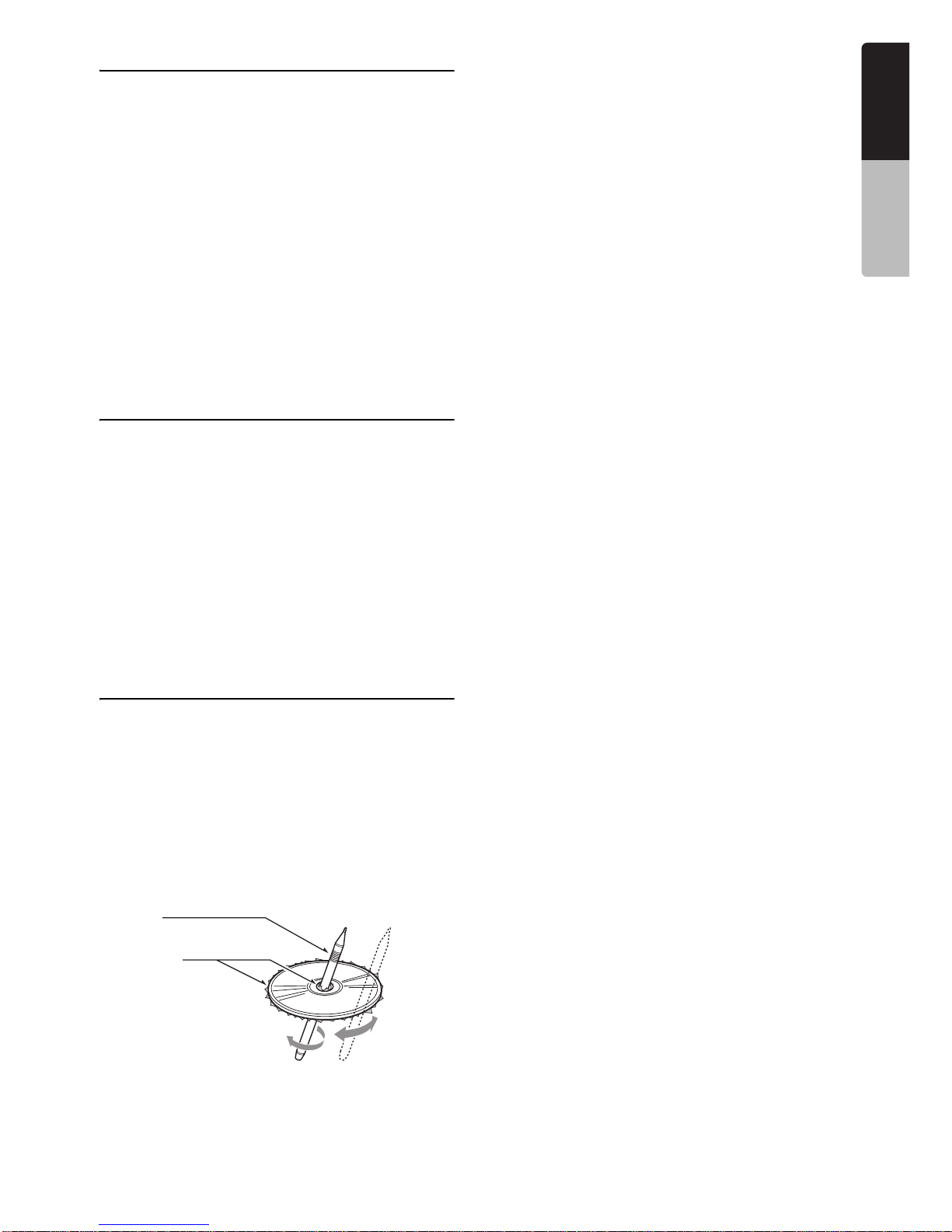

• New discs may have some roughness around
the edges. If such discs are used, the player
may not work or the sound may skip. Use a
ball-point pen or the like to remove any
roughness from the edge of the disc.
• Never stick labels on the surface of the disc or
mark the surface with a pencil or pen.
• Never play a disc with any cellophane tape or
other glue on it or with peeling off marks. If you
try to play such a disc, you may not be able to
get it back out of the DVD player or it may
damage the DVD player.
• Do not use discs that have large scratches, are
misshapen, cracked, etc. Use of such discs
may cause misoperation or damage.
• To remove a disc from its storage case, press
down on the center of the case and lift the disc
out, holding it carefully by the edges.
• Do not use commercially available disc
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
cause breakdown of the internal mechanism.
Storage
• Do not expose discs to direct sunlight or any
heat source.
• Do not expose discs to excess humidity or
dust.
• Do not expose discs to direct heat from
heaters.
Cleaning
• To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the disc to the circumference.
• Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean discs.
• After using special disc cleaner, let the disc dry
off well before playing it.
On Discs
• Exercise a good precaution when loading a
disc with the panel open.
• Never turn off the power and remove the unit
from the car with a disc loaded.
• Do not use lens cleaning discs. These may
damage the lens of this unit.
• When there seems to be something wrong with
reading discs, please consult your dealer or an
authorized Clarion service center.
Ball-point pen
Roughness

18 NX700
English Owner’s manual
❏Setting a disc
1. Touch the [o(Eject)] key to display the Eject
screen.
2. Touch the [Open/Close] key.
The operation panel will be opened.
3. Insert a disc into the center of the insertion
slot with the label side facing up.
The disc will automatically be drawn into the
DVD player.
After setting a disc
The system will automatically be switched to the
relevant source media mode according to the
disc, and start playing back the disc.
When a DVD video disc is set:
The system is switched to the DVD Video mode.
See “DVD Video Operations” (page 23).
When an Audio CD is set:
The system is switched to the CDDA mode. See
“Audio CD Operations” (page 29).
When a CD/DVD with MP3/WMA/AAC/DivX
files is set:
The system is switched to the MP3/WMA/AAC
mode or DivX mode according to the Playform
setting. See “MP3/WMA/AAC Operations”
(page 30) or “DivX Operations” (page 33).
Note:
•Never insert foreign objects into the disc insertion
slot.
•If the disc is not inserted easily, there may be
another disc in the mechanism or the unit may
require service.
•8 cm (single play) discs cannot be used.
CAUTION
For your safety, the driver should not insert
or eject a disc while driving.
❏Ejecting a disc
1. Touch the [o(Eject)] key to display the Eject
screen.
2. Touch the [Eject] key to eject the disc.
The operation panel will be opened and the
disc will be ejected.
• If a disc is left in the ejected position for 15
seconds, the disc is automatically reloaded
(Auto reload).
3. Remove the disc carefully.
4. Touch the [Open/Close] key to close the
operation panel.
• The operationpanel will close automatically
when leaving it open for a while.
5. Touch the [Back] key.
Note:
•If you force a disc into the insertion slot before auto
reloading, this can damage the disc.
Connecting/Disconnecting
an USB Media Device
This unit has one USB (Universal Serial Bus)
connector which is compatible with USB 1.1 and
USB 2.0.
❏Playable USB media devices
This system can control the following USB media
devices connected to the USB connector.
• Apple iPod
• USB memory
About the Apple iPod
iPods can be connected by using the connection
cable supplied with the iPod you use, but in this
case, you can enjoy its audio sound only. To
enjoy video movies stored in the iPod with video
displaying them on this unit, it is required to use
the special connection cable separately sold.
Note:
•iPhones can also be connected to this system and
“iPod” appearing in this manual should be referred
to as “iPod/iPhone”.
•This system will not operate or may operate
improperly with unsupported versions.
•For detailed information on the playable iPod
models, see our home page: www.clarion.com
•For the other limitations, see “iPod Operations”
(page 39).
About the USB memory
This system can play audio files (MP3/WMA/
AAC) stored in an USB memory which is
recognized as “USB Mass Storage Class
device”. You can use your USB memory as an
audio device by simply copying desired audio
files into it.
Note:
•This system will not operate or may operate
improperly with some USB memory.
•Files protected with any DRM can not be played.
•For the other limitations, see “USB Memory
Operations” (page 42).
