Clarion pro audio vrx 630 Instruction manual

VRX630 43
English
Installation and Wire
connection manual
1. BEFORE STARTING................................................................43
2. PACKAGE CONTENTS............................................................43
3. GENERAL CAUTIONS.............................................................44
4. CAUTIONS ON INSTALLATION ..............................................44
5. INSTALLING THE MAIN UNIT .................................................45
6. REMOVING THE MAIN UNIT ..................................................47
7. CAUTIONS ON WIRING ..........................................................47
8. WIRE CONNECTION...............................................................48
9. SAMPLE SYSTEMS ................................................................50
■ Contents
VRX630
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “ ”termi-
nal before starting. This is to prevent short
circuits during installation. (Figure 1)
1Main unit
2Manuals
Owner’s manual & Installation manual
Warranty card
3Power supply lead
4
Bag for accessories of the main unit (No. 1)
Flat head screw (M5 ×8)............................4
Sems hexagonal bolt (M5 ×8)....................5
5
Bag for accessories of the main unit (No. 2)
Hook plate..................................................2
Cord clamp
Spacer
Special screw
6Universal mounting bracket
7Remote control unit
8Battery
(for remote control unit)
9Outer Escutcheon
0DCP Case
1. BEFORE STARTING
2. PACKAGE CONTENTS
Installation and Wire connection manual

44 VRX630
English
Installation and Wire
connection manual
1. Do not open the case.There are no user ser-
viceableparts inside.If you dropanythinginto
the unit during installation, consult your
dealer or an authorized CLARION service
centre.
2. Use a soft, dry cloth to clean the case.Never
use a rough cloth, thinner, benzine, or alco-
hol, etc. For tough dirt, apply a little cold or
warm water to a soft cloth and wipe off the
dirt gently.

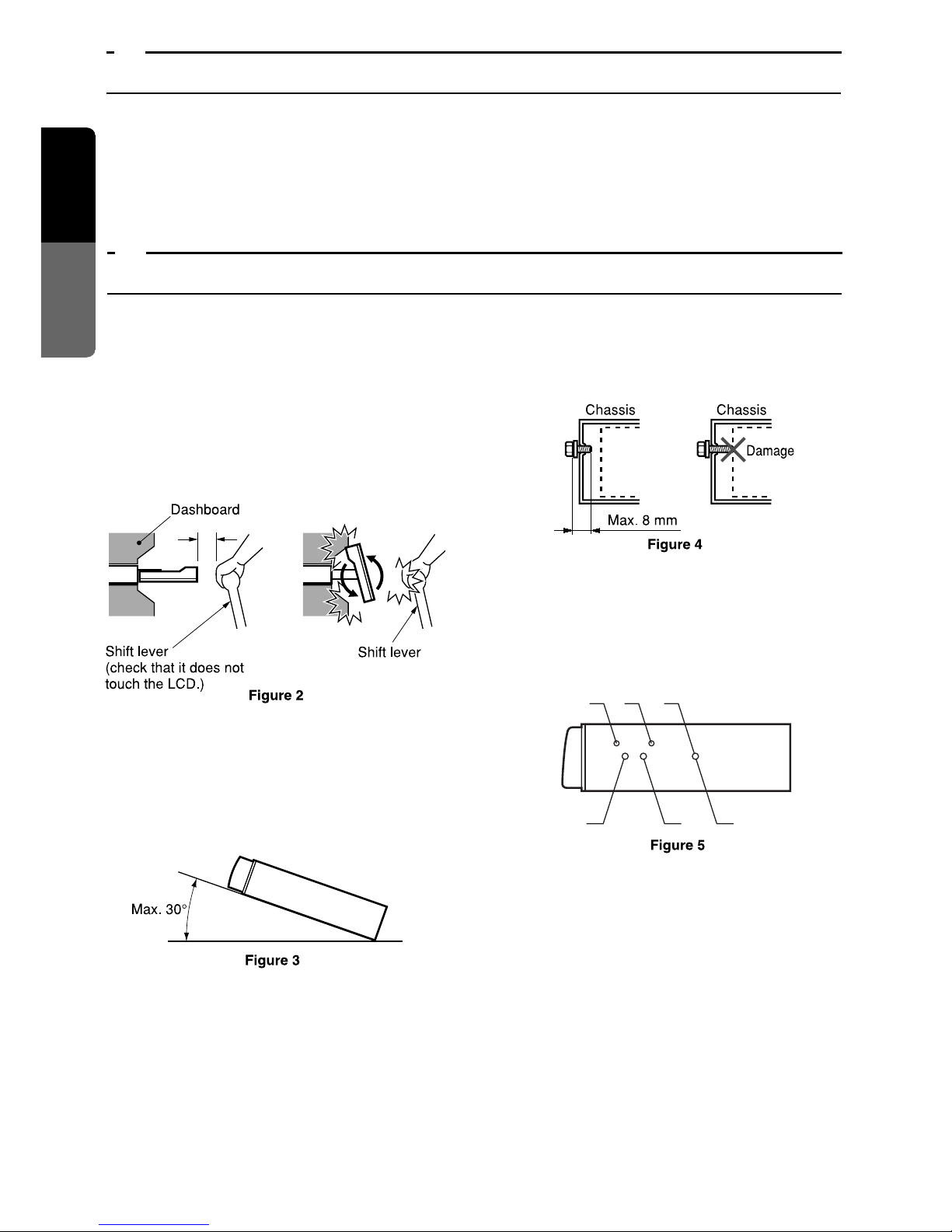

1. Prepare all articles necessary for installing
the main unit before starting.
2. This model is used with the LCD panel slid
forwards (shell loading system). On some
types of cars, the LCD panel may touch the
dashboard or shift lever, in which case it can-
not be installed. Check that the set will not
hamper operation of the shift lever before
choosing the place of installation.(Figure 2)
3. Install the unit within 30°of the horizontal
plane. (Figure 3)
4. If you have to do any work on the car body,
such as drilling holes, consult your car dealer
beforehand.
5. Use the enclosed screws for installation.Us-
ing other screws can cause damage.
(Figure 4)
3. GENERAL CAUTIONS
4. CAUTIONS ON INSTALLATION
T
NNT
NT
6. The source unit has mounting screw holes
for NISSAN(N marks)andTOYOTA(T marks)
vehicles.

VRX630 45
English
Installation and Wire
connection manual
■Universal Mount
1. Place the universal mounting bracket into the
instrument panel, use a screwdriver to bend
each stopper of the universal mounting
bracket inward, then secure the stopper as
shown in Figure 6.
2. Wire as shown in Section 8.
3. Insert the main unit into the universal mount-
ing bracket until it locks.
4. Mount the outer escutcheon so that all the
hooks are locked.
Notes:
1) Some car models require special mounting kits
for proper installation. Consult your Clarion
dealer for details.
2) Fasten the front stopper securely to prevent
the main unit from coming loose.
5. INSTALLINGTHE MAIN UNIT
• Console opening dimensions
Hole
Main unit
7-3/16" (182 mm)
2-1/16" (53 mm)
Screwdriver
Stoppers
Hole
Rear fastening hole (of vehicle)
Instrument panel
Rubber cap
Universal mounting bracket
Stoppers
2-Spring
Outer escutcheon
Note: Set the outer escutch-
eon so that its metallic
part on the back side
fits the upper edge of
the main unit.
Special Screw

46 VRX630
English
Installation and Wire
connection manual
This unit is designed for fixed installation in the
dashboard.
If the vehicle is equipped with a factory-installed
radio, install the main unit with the parts and
screws marked (∗). (Figure 8)
If the vehicle is not equipped with a factory-in-
stalled radio, obtain an installation kit to install
the main unit in the following procedure.
1. Remove the screws from both side of the
main unit. Then, at either side, lift the leaf
spring until the engaging claws are released
from the holes, and slide the spring to the
direction of arrow to remove it. Repeat the
■Fixed Mount (TOYOTA, NISSAN and other ISO/DIN equipped vehicles)
same for the other side to remove the springs
from the both sides. (Figure 7)
2. Secure the mounting brackets to the chassis
as shown in Figure 8. Holes are pre-tapped
for TOYOTA and NISSAN vehicles;modifica-
tion, such as drilling new holes, of the mount-
ing brackets may be required for other mod-
els.
3. Wire as shown in Section 8.
4. Secure the unit in the dashboard, and then
reassemble the dashboard and the centre
panel.
Note 1: In some cases, the centre panel may re-
quire some modification (trimming, filling,
etc.).
Note 2: If a hook on the installation bracket inter-
feres with the unit, bend and flatten it with a
nipper or a similar tool.
The parts and screws with this mark
are used to install radio or included in
the installation kit.
The screws with this mark are enclosed in
this set.

VRX630 47
English
Installation and Wire
connection manual

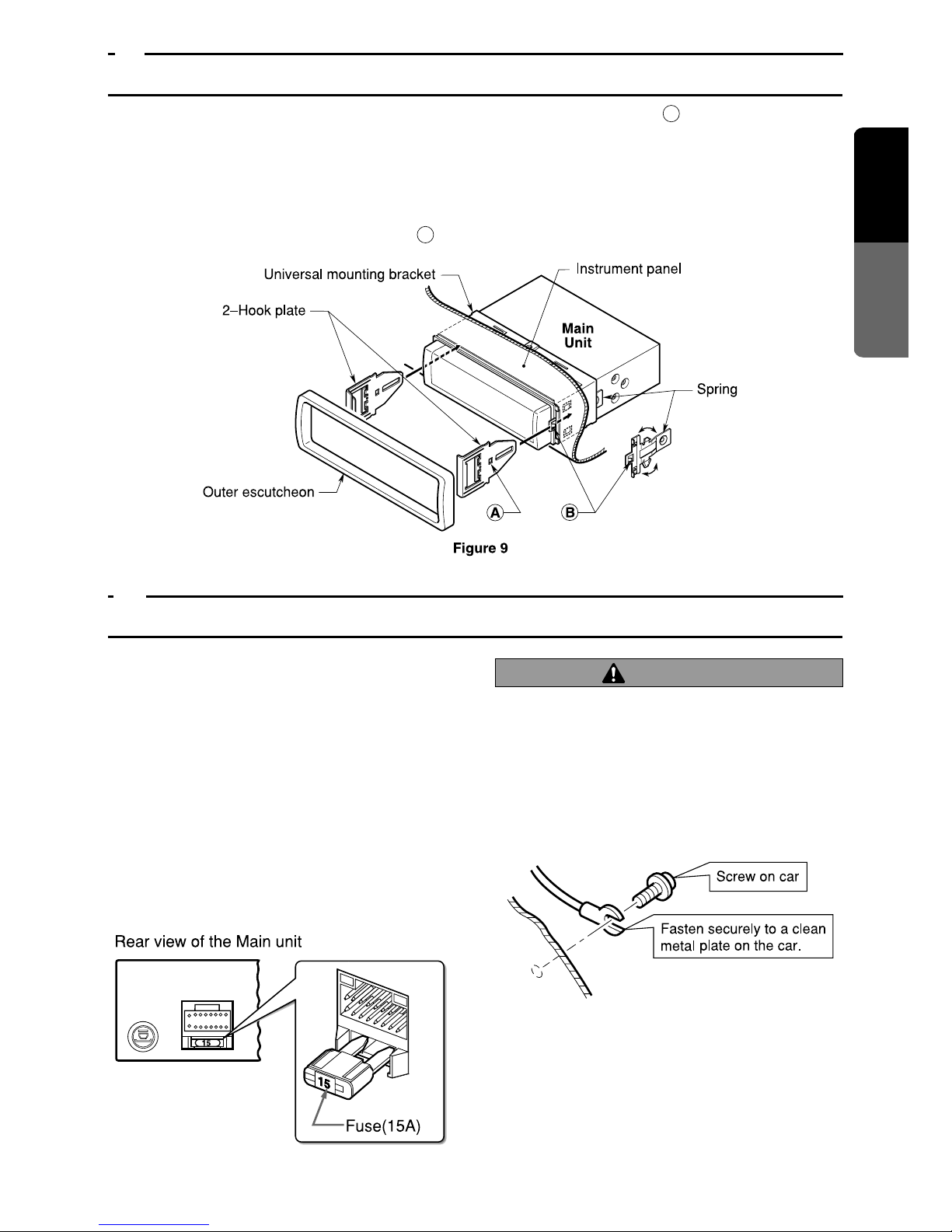

1. When the rear of the main unit has been se-
cured with the method shown in Figure 6
unfasten the special screw.
2. Remove the outer escutcheon.
3. Insert the hook plate between the spring and
the universal mounting bracket, fit tab
B
of
the spring into hole
A
of the hook plate, then
pull the main unit out by the hook plate. (In-
sert both the right and left edges of the hook
plate.) (Figure 9)
Note: Keep the hook plate.You cannot remove the
main unit without disengaging the hook plate.
6. REMOVINGTHE MAIN UNIT
1. Be sure to turn the power off before wiring.
2. Be particularly careful where you route the
wires.
Keep them well away from the engine, and
exhaust pipe, etc. Heat may damage the
wires.
3. If the fuse should blow, check to see if the
wiring is correct.
If it is, replace the fuse with a new one with
the same amperage rating as the original.
4. When any fuse is to be replaced, pull out the
fuse (15A) at the rear of the main unit and
put in a new one (Fig.10).
7. CAUTIONS ON WIRING
5. When connecting the ground lead, fasten the
ground lead (black) securely to a clean metal
plate on the car. (Figure 11)
If the set is insufficiently grounded, it may not
operate or there may be noise.
After the connection, fix the lead by a clamp
or insulation tape for protection.
CAUTION
Figure 11
Figure 10

48 VRX630
English
Installation and Wire
connection manual

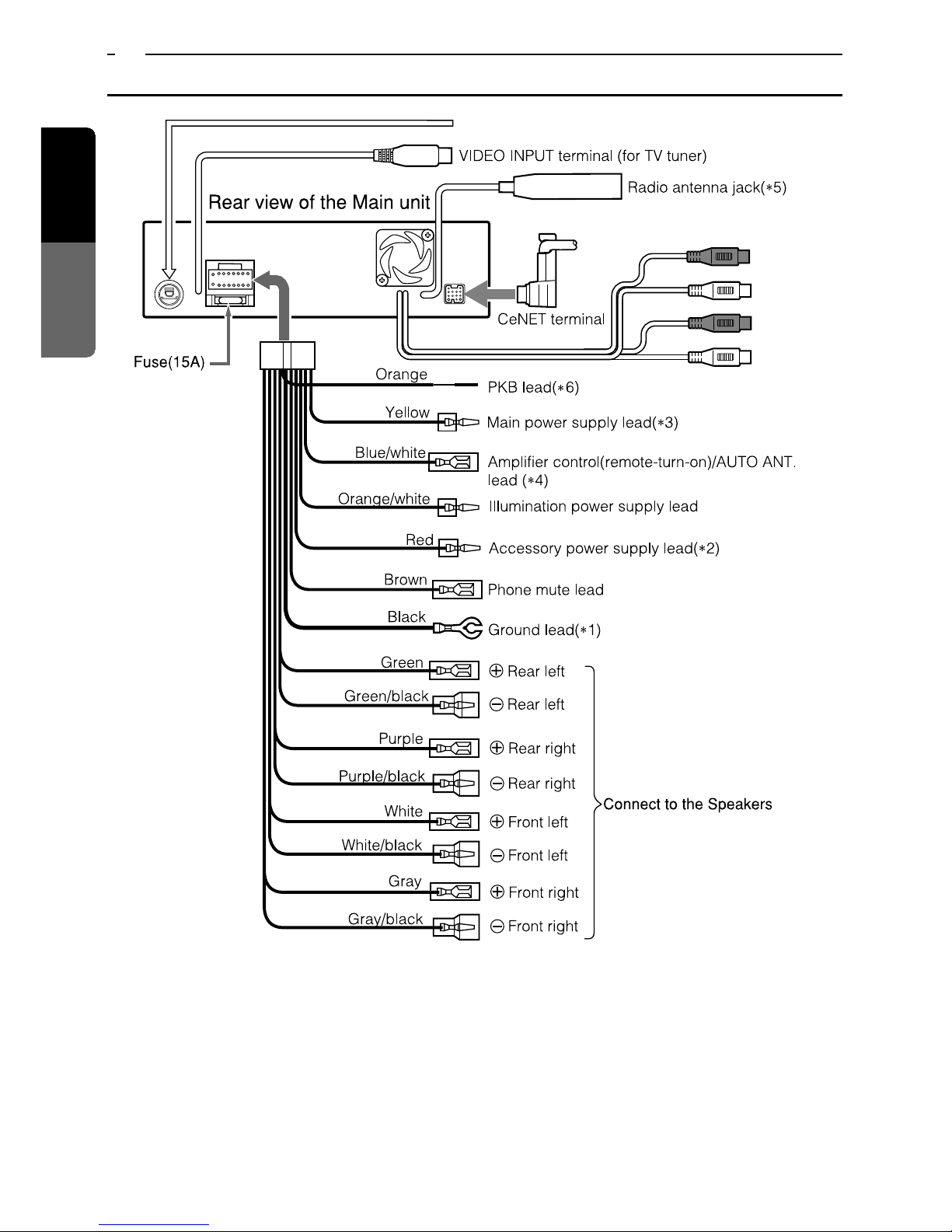

∗1:Connect securely to the metal part of the vehicle with a screw, etc.
∗2:Connect to the power supply terminal which can be turned on and off by the ignition switch.
∗3:Connect to the power supply terminal where the power is always supplied regardless of whether the
ignition switch is turned on or off.
∗4:Connect to the remote turn-on lead of amplifiers.
∗5:Use the attached extension lead when necessary.
∗6:Connect the terminal to the lead wire on the lamp side of the parking brake lamp switch. After
connection, apply the parking brake, then check that the TV displays an image.
•If the PKB lead is not connected to the side brake, some units may not operate.
AUDIO 4CH. OUTPUT
terminal
Front right
Front left
Rear right
Rear left
Red
Red
White
White
Gray
Brack
Gray
Brack
VISUAL/CCD/DVD changer terminal
8. WIRE CONNECTION

VRX630 49
English
Installation and Wire
connection manual
■Connecting the Accessories
•Connection to the external amplifier
The external amplifier can be connected to the AUDIO 4CH. OUTPUT terminal (RCA pin jack) on
the main unit. In other words, it can be connected provided the DSP is connected.
•Connection to the CCD camera for vehicle
The CCD CAMERA for vehicle can be connected to the system expansion terminal on the main
unit. For detailed information, refer to the instruction sheet or manual for the CCD CAMERA.
Notes:
• A power supply box (sold separately) is required for connection of the main unit and the CCD CAMERA.
• While the CCD CAMERA is used, the navigation cannot be turned on.
• The power supply box for camera CCA-147 can not be used. Please use The CCA-188 instead.
•If the specified lead of the cellular phone is connected to the phone mute
lead of the source unit, the audio mute is available when the cellular tele-
phone is used.
For audio mute setting in cellular telephone use, see page 32.
•TVTunner
When theTVTUNER is to be connected, connect the Ce NET connector and RCA PIN (yellow).For
detailed information, refer to the instruction manual of the TV TUNER.
■Connectingthe parking brake lead
Connect the lead to parking brake lamp earth
in the meter panel.
Notes:
• Connecting the parking brake lead to lamp earth
allows you to watch TV/VTR/DVD changer when
the parking brake is engaged.
• When the parking brake lead is not connected,
the monitor will stay off.
Parking brake
Parking brake lamp +lead to battery
Connect these three leads.
-cord
parking
brake signal
lead Parking brake lead
(bright green)

50 VRX630
English
Installation and Wire
connection manual
9. SAMPLE SYSTEMS
(VRX630)
(TTX7501z)
(VCZ625)
(CDC655z/655Tz/1255z/
DCZ625)
CeNET STAND
ALONE
TVTuner
CeNET cable
(included the TV tuner)
RCA video cable
(included the TV tuner)
DVD Changer
CD Changer
CeNET Y-adapter
(CCA-519-601,
sold separately)
Ferrite clamp
(Included the DVD changer)
CeNET Cable
(included the Changer)
Set the [CeNET/STAND ALONE]
switch to the [CeNET] position.
∗To enable the correct input, it is
necessary to configure the VRX630
as described on page 30.
∗When two CD changers or
MD changers are connected,
CCA-519-601 is required.
Main Unit
VIDEO INPUT terminal
VISUAL/CCD/DVD changer terminal
AV Adapter cable
(CCA-389, sold separately)
■Sample System 1

VRX630 51
English
Installation and Wire
connection manual

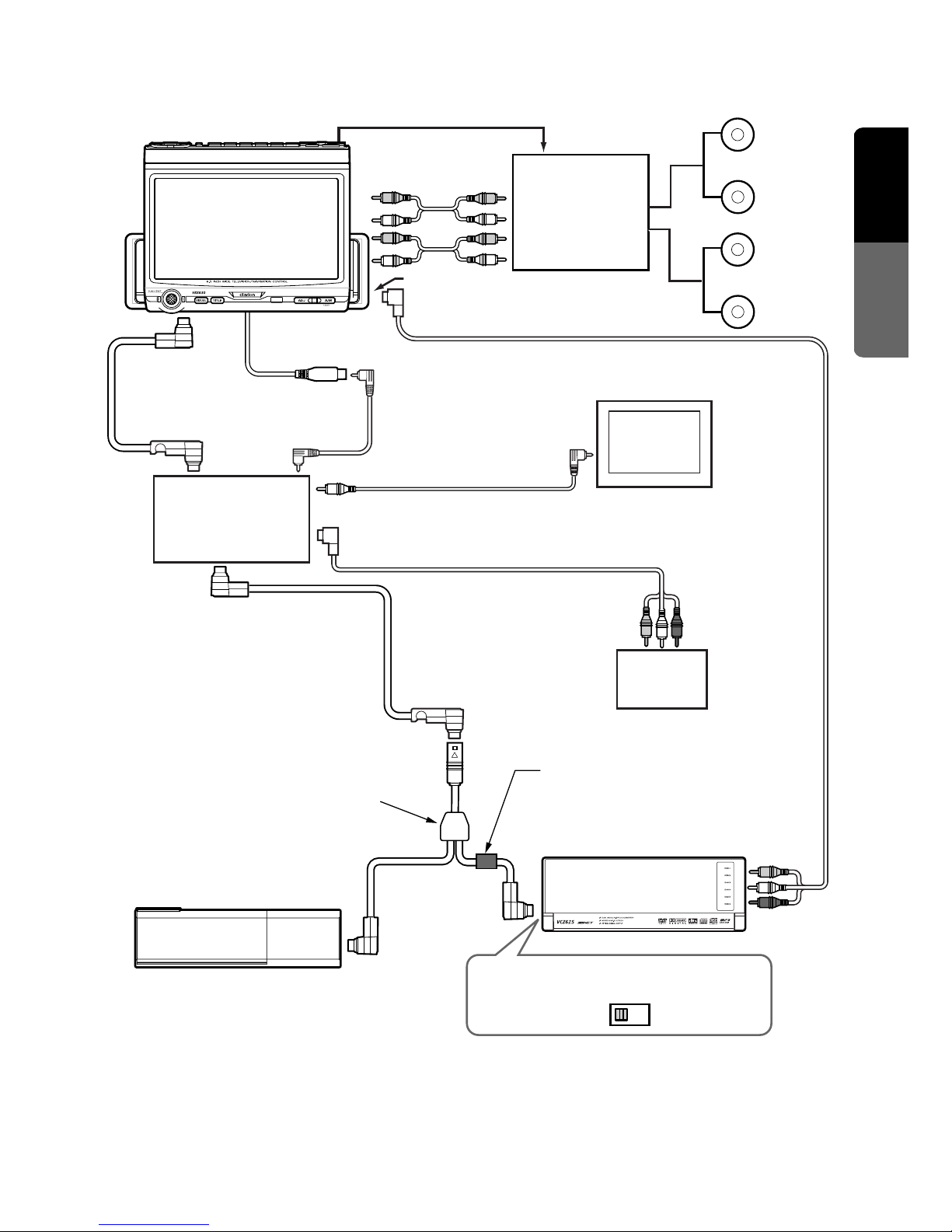

■Sample System 2
(VRX630)
(VCZ625)
(CDC655z/655Tz/1255z/
DCZ625)
CeNET STAND
ALONE
VTR
(TTX7501z)
TVTuner
CeNET cable
(included the
TV tuner) RCA video cable
(included the TV tuner)
DVD Changer
CD Changer
CeNET Y-adapter
(CCA-519-601,
sold separately)
Ferrite clamp
(Included the DVD changer)
CeNET Cable
(included the Changer)
Front
Speakers
Rear
Speakers
Set the [CeNET/STAND ALONE]
switch to the [CeNET] position.
Amp.
RCA PIN cable
(Sold separately)
∗To enable the correct input, it is
necessary to configure the
VRX630 as described on page
30.
∗When two CD changers or
MD changers are connected,
CCA-519-601 is required.
Amp remote
Main Unit
Rear
Monitor
RCA video cable
(sold separately)
VIDEO INPUT terminal
VISUAL/CCD/DVD changer terminal
AV Adapter cable (CCA-389, sold separately)
AV Adapter cable (CCA-389, sold separately)
∗Images from the DVD changer
cannot be displayed.

52 VRX630
English
Installation and Wire
connection manual
■Sample System 3
(VRX630)
(TTX7501z)
(CDC655z/655Tz/1255z/
DCZ625)
(DPH910)
TVTuner
CeNET cable
(included the TV tuner)
RCA video cable
(included the TV tuner)
CD Changer
CeNET Cable
(included the
Changer)
Front
Speakers
Rear
Speakers
Mini DIN(8P) Cable
(included the
CCD camera)
Amp remote
Main Unit
CCD camera
Sub-
woofer
4-channel
Power Amplifier
2-channel
power amplifier
Digital Sound
Processor
CeNET Cable
(included the DPH910)
RCA PIN cable
(included the DPH910)
Amp remote
RCA PIN cable
(sold separately)
Digital optical fiber cable(sold separately)
VIDEO INPUT terminal
∗To enable the correct input, it is
necessary to configure the VRX630 as
described on page 30.
