Clarke weld MIG 90EN Installation and operation manual

OPERATING & MAINTENANCE
INSTRUCTIONS
Models
90EN, 100EN, 105EN & 151EN 0515
GAS/NO-GAS MIG WELDER
GAS/NO-GAS MIG WELDER

2
Thank you for purchasing this CLARKE MIG Welder, designed to operate with or
without gas....so-called GAS/NO-GAS welders. This is explained in greater detail
within the manual.
Before attempting to operate the machine, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure
the safety of yourself and that of others around you, and you can also look forward
to the welder giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a
period of 12 months from the date of purchase. Please keep your receipt
as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

CONTENTS PAGE
Guarantee .............................................................................................. 3
Parts & Service Contacts ...................................................................... 3
Electromagnetic Interference (EMC) ................................................. 4
Safety Precautions ................................................................................. 6
Additional Safety Precautions for MIG Welding ............................... 11
Principles of Operation ....................................................................... 12
Electrical Connections ....................................................................... 13
Unpacking and Parts Identification ................................................... 14
Assembly ....................... Loose Components .................................... 15
Welding Shield ........................................... 15
Installing the Welding Wire ....................... 16
Selecting the Drive Roller Groove ........... 18
Converting to Gas Supply ........................ 18
Preparation for Use ....... Preparing the Work .................................... 20
Setting the Controls ................................... 20
Welding Wire Preparation ......................... 21
Attaching the Earth Lead & Clamp .......... 21
MIG Welding Operation ...................................................................... 22
Thermal Overload ...................................... 22
Welding Tips .......................................................................................... 23
Maintenance ....................................................................................... 23
Renewing the Wire Liner ............................ 24
Troubleshooting ................................................................................... 25
Control Settings Reference Tables............................................... 26-28
Wiring diagrams ............................................................................. 29-31
Parts Lists and Diagrams ................................................................ 32-37
Accessories .......................................................................................... 38
Parts & Service Contacts .................................................................... 38
Welder Specifications ......................................................................... 39
3

ELECTROMAGNETIC INTERFERENCE (EMC)
Whilst this unit complies with EMC regulations, the user is responsible for installing
and using the welding equipment according to the manufacturers instructions. If
electromagnetic disturbances are detected then it shall be the responsibility of
the user of the welding equipment to resolve the situation. In some cases this
remedial action may be as simple as earthing the welding circuit, see ‘Note’. In
other cases it could involve constructing an electromagnetic screen enclosing
the power source and the work complete with associated input filters. In all cases
electromagnetic disturbances must be reduced to the point where they are no
longer troublesome.
Note - The welding circuit may or may not be earthed for safety reasons. Changing
the earthing arrangements should only be authorised by a person who is
competent to assess whether the changes will increase the risk of injury, e.g. by
allowing parallel welding current return paths which may damage the earth circuits
of other equipment.
1.ASSESSMENT OF AREA
Before installing welding equipment the user shall make an assessment of potential
electromagnetic problems in the surrounding area. Avoid using your welder in the
vicinity of:
a) other supply cables, control cables, signalling and telephone cables;
above, below and adjacent to the welding equipment;
b) radio and television transmitters and receivers;
c) computer and other control equipment;
d) safety critical equipment, e.g. guarding of industrial equipment;
e) pacemakers and hearing aids etc.;
f) equipment used for calibration or measurement;
g) other equipment in the environment. The user shall ensure that other
equipment being used in the environment is compatible. This may
require additional protection measures;
It may be possible to avoid the above by changing the time of day that welding
or other activities are to be carried out.
The size of the surrounding area to be considered will depend on the structure of
the building and other activities that are taking place. The surrounding area may
extend beyond the boundaries of the premises.
2. METHODS OF REDUCING EMISSIONS
2.1 Mains supply
Welding equipment should be connected to the mains supply according to the
manufacturers recommendations. If interference occurs, it may be necessary to
4

5
take additional precautions such as filtering of the mains supply. Consideration
should be given to shielding the supply cable of permanently installed welding
equipment, in metallic conduit or equivalent. Shielding should be electrically
continuous throughout its length. The shielding should be connected to the welding
power source so that good electrical contact is maintained between the conduit
and the welding power source enclosure.
2.2 Maintenance of the welding equipment
The welding equipment should be routinely maintained according to the
manufacturers recommendations. All access and service doors and covers should
be closed and properly fastened when the welding equipment is in operation.
The welding equipment should not be modified in any way except for those
changes and adjustments covered in the manufacturers instructions. In particular,
the spark gaps of arc striking and stabilizing devices should be adjusted and
maintained according to the manufacturers recommendations.
2.3 Welding cables
The welding cables should be kept as short as possible and should be positioned
close together, running at or close to the floor level.
2.4 Equipotential bonding
Bonding of all metallic components in the welding installation and adjacent to it
should be considered. However, metallic components bonded to the work piece
will increase the risk that the operator could receive a shock by touching these
metallic components and the electrodes at the same time. The operator should
be insulated from all such bonded metallic components.
2.5 Earthing of the workpiece
Where the workpiece is not bonded to earth for electrical safety, nor connected
to earth because of its size and position, e.g. ships hull or building steelwork, a
connection bonding the workpiece to earth may reduce emissions in some, but
not all instances.
Care should be taken to prevent the earthing of the workpiece increasing the risk
of injury to users, or damage to other electrical equipment.
Where necessary, the connection of the workpiece to earth should be made by
a direct connection to the workpiece, but in some countries where direct
connection is not permitted, the bonding should be achieved by suitable
capacitance, selected according to national regulations.
2.6 Screening and shielding
Selective screening and shielding of other cables and equipment in the surrounding
area may alleviate problems of interference. Screening of the entire welding
installation may be considered for special applications.

SAFETY PRECAUTIONS FOR ALL TYPES OF WELDING
1. WARNING:
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked, or
ignored, personal injury to the operator may result.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY
2. GENERAL PRECAUTIONS
A) Burn prevention
Wear protective clothing - gauntlet gloves designed for use in welding, apron, and
protective shoes. Button shirt collar and pocket flaps, and wear cuffless trousers to
avoid entry of sparks and slag. Wear helmet with safety goggles or glasses with side
shields underneath, appropriate filter lenses or plates (protected by clear cover
glass). This is a MUST for welding or cutting, (and chipping) to protect the eyes from
radiant energy and spatter. Replace cover glass when broken, pitted, or spattered.
Avoid oily greasy clothing. A spark may ignite them. Hot metal such as electrode
stubs and workpieces should never be handled without gloves. First aid facilities
and a qualified first aid person should be available unless medical facilities are close
by for immediate treatment of flash burns of the eyes and skin burns. Ear plugs
should be worn when working overhead or in a confined space. A hard hat should
be worn when others work overhead. Flammable hair preparations should not be
used by persons intending to weld or cut.
B) Toxic fume prevention
Severe discomfort, illness or death can result from fumes, vapours, heat, or oxygen
enrichment or depletion that welding (or cutting) may produce. Prevent them
with adequate ventilation. NEVER ventilate with oxygen. Lead-, cadmium-, zinc-,
mercury- and beryllium-, bearing materials, when welded (or cut) may produce
harmful concentrations of toxic fumes. Adequate local exhaust ventilation must
be used, or each person in the area as well as the operator must wear an air-
supplied respirator. For beryllium, both must be used. Metals coated with or
containing materials that emit toxic fumes should not be heated unless coating is
removed from the work surface, the area is well ventilated, or the operator wears
an air-supplied respirator. Work in a confined space only while it is being ventilated
and, if necessary, while wearing an air-supplied respirator. Vapours from
chlorinated solvents can be decomposed by the heat of the arc (or flame) to
form PHOSGENE, a highly toxic gas, and other lung and eye irritating products.
The ultraviolet (radiant) energy of the arc can also decompose trichloroethylene
and perchloroethylene vapours to form phosgene. DO NOT WELD or cut where
solvent vapours can be drawn into the welding or cutting atmosphere or where
the radiant energy can penetrate to atmospheres containing even minute
amounts of trichloroethylene or perchloroethylene.
6

7
C) Fire and explosion prevention
Causes of fire and explosion are:
1) combustibles reached by the arc, flame, flying sparks, hot slag or heated
material;
2) misuse of compressed gases and cylinders;
3) short circuits.
BE AWARE THAT flying sparks or falling slag can pass through cracks, along pipes,
through windows or doors, and through wall or floor openings, out of sight of the
goggled operator. Sparks and slag can fly 10M.
To prevent fires and explosion: keep equipment clean and operable, free of oil,
grease, and (in electrical parts) of metallic particles that can cause short circuits.
If combustibles are in area, do NOT weld or cut. Move the work if practicable, to
an area free of combustibles.
Avoid paint spray rooms, dip tanks, storage areas, ventilators. If the work cannot
be moved, move combustibles at least 10M, away out of reach of sparks and
heat; or protect against ignition with suitable and snug fitting, fire- resistant covers
or shields.
Walls, ceilings, and floor near work should be protected by heat resistant covers
or shields. Fire watcher must be standing by with suitable fire extinguishing
equipment during and for some time after welding or cutting if:
a) appreciable combustibles (including building construction) are within 10m.
b) appreciable combustibles are further than 10m but can be ignited by sparks.
c) openings (concealed or visible) in floors or walls within 10m can expose
combustibles to sparks.
d) combustibles adjacent to walls, ceilings, roofs or metal partitions can be
ignited by radiant or conducted heat.
After work is done, check that area is free of sparks, glowing embers, and flames.
An empty container that held combustibles, or that can produce flammable or
toxic vapours when heated, must never be welded on or cut, unless container
has first been cleaned. This includes.......a thorough steam or caustic cleaning (or
a solvent or water washing, depending on the combustible’s solubility) followed
by purging and inerting with nitrogen or carbon dioxide, and using protective
equipment.
Water filling just below working level may substitute for inerting.
A container with unknown contents should be cleaned (see paragraph above),
do NOT depend on sense of smell or sight to determine if it is safe to weld or cut.
Hollow castings or containers must be vented before welding or cutting - they
can explode.
In explosive atmospheres, never weld or cut where the air may contain flammable
dust, gas, or liquid vapours.

8
3. ELECTRIC ARC (MIG, TIG) WELDING
Comply with precautions in 1 above, and this section. Arc welding, properly done,
is a safe process, but a careless operator invites trouble. The equipment carries
high currents at significant voltages. The arc is very bright and hot. Sparks fly, fumes
rise, ultraviolet and infrared energy radiates, weldments are hot. The wise operator
avoids unnecessary risks and protects himself and others from accidents.
3A) BURN PROTECTION
Comply with precautions in 2. The welding arc is intense and visibly bright. Its
radiation can damage eyes, penetrate lightweight clothing, reflect from light
coloured surfaces, and burn the skin and eyes. Skin burns resemble acute sunburn,
those from gas - shielded arcs are more severe and painful.
DON’T GET BURNED! COMPLY WITH PRECAUTIONS!
1) Protective clothing
Wear long sleeved clothing (particularly for gas shielded arc) in addition to such as
leather jacket or sleeves, flameproof apron, and fire-resistant leggings. Avoid outer
garments of untreated cotton. Bare skin protection: Wear dark substantial clothing,
Button collar to protect chest and neck. Button pockets to prevent entry of sparks.
2) Eye and head protection
Protect eyes from exposure to arc. NEVER look at an electric arc without protection.
Welding helmet or shield containing a filter plate shade no. 12 or denser must be
used when welding. Place over face before striking arc. Protect filter plate with a
clear cover plate. Cracked or broken helmet or shield should NOT be worn; radiation
can pass through to cause burns. Cracked, broken, or loose filter plates must be
replaced IMMEDIATELY. Replace clear cover plate when broken, pitted, or spattered.
WE SUGGEST you wear flash goggles with side shields under the helmet, to give
some protection to the eyes should the helmet not be lowered over the face before
an arc is struck. Looking at an arc momentarily with unprotected eyes (particularly
a high intensity gas-shielded arc) can cause a retinal burn that may leave a
permanent dark area in the field of vision. Before welding whilst wearing contact
lenses, seek advice from your optician.
3) Protection of nearby personnel
For production welding, a separate room or enclosed bay is best. In open areas,
surround the operation with low reflective, non- combustible screens or panels. Allow
for free air circulation, particularly at floor level. Provide face shields for all persons
who will be looking directly at the weld. Others working in the area should wear flash
goggles. Before starting to weld, make sure that screen or bay doors are closed.

9
3C) FIRE AND EXPLOSION PREVENTION
Comply with precautions in 2C. Equipment’s rated capacity. Do not overload arc
welding equipment. It may overheat cables and cause a fire. Loose cable
connections may overheat or flash and cause a fire. Never strike an arc on a cylinder
or other pressure vessel. It creates a brittle area that can cause a violent rupture or
lead to such a rupture later under rough handling.
3D) SHOCK PREVENTION
Exposed live conductors or other bare metal in the welding circuit, or in
unearthed, electrically-LIVE equipment can fatally shock a person whose
body becomes a conductor. DO NOT STAND, SIT, LIE, LEAN ON, OR TOUCH a
wet surface when welding, without suitable protection.
3E) PROTECTION FOR WEARERS OF ELECTRONIC LIFE SUPPT DEVICES (PACEMAKERS)
Magnetic fields from high currents can affect pacemaker operation. Persons wearing
electronic life support equipment (pacemaker) should consult with their doctor
before going near arc welding, gouging, or spot welding operations.
3F) TO PROTECT AGAINST SHOCK:
Keep body and clothing dry. Never work in damp area without adequate
insulation against electrical shock. Stay on a dry duckboard, or rubber mat
when dampness or sweat can not be avoided. Sweat, sea water, or moisture
between body and an electrically LIVE part - or earthed metal - reduces the
body surface electrical resistance, enabling dangerous and possibly lethal
currents to flow through the body.
1) Earthing the equipment
When arc welding equipment is earthed according to the National
Electrical Code, and the workpiece is earthed, a voltage may exist
between the electrode and any conducting object.
Examples of conducting objects include, but are not limited to, buildings,
electrical tools, work benches, welding power source cases, workpieces, etc.
Never touch the electrode and any metal object unless the welding power
source is off. When installing, connect the frames of each unit such as welding
power source, control, work table, and water circulator to the building earth.
Conductors must be adequate to carry earth currents safely. Equipment made
electrically LIVE by stray current may shock, possibly fatally. Do NOT EARTH to
electrical conduit, or to a pipe carrying ANY gas or a flammable liquid such as
oil or fuel.
2) Electrode holders
Fully insulated electrode holders should be used. Do NOT use holders
with protruding screws or with any form of damage.
3) Connectors
Fully insulated lock-type connectors should be used to join welding
cable.

10
4) Cables
Frequently inspect cables for wear, cracks and damage. IMMEDIATELY
REPLACE those with excessively worn or damaged insulation to avoid
possibly lethal shock from bared cable. Cables with damaged areas may
be taped to give resistance equivalent to original cable. Keep cable dry,
free of oil and grease, and protected from hot metal and sparks.
5) Terminals and other exposed parts
Terminals and other exposed parts of electrical units should have insulating
covers secured before operation.
6) Electrode
a) Equipment with output on/off control (contactor)
Welding power sources for use with the gas metal arc welding, gas
tungsten arc welding and similar processes normally are equipped with
devices that permit on/off control of the welding power output. When
so equipped the electrode wire becomes electrically LIVE when the
power source switch is ON and welding gun switch is closed. Never
touch the electrode wire or any conducting object in contact with
the electrode circuit unless the welding power source is off.
b) Equipment without output on/off control (no contactor)
Welding power sources used with shielded metal arc welding and similar
processes may not be equipped with welding power output on/off
control devices. With such equipment the electrode is electrically LIVE
when the power switch is turned ON. Never touch the electrode unless
the welding power source is off.
7) Safety devices
Safety devices such as interlocks and circuit breakers should not be
disconnected or shunted out. Before installation, inspection, or service of
equipment, shut OFF all power and remove line fuses (or lock or red-tag
switches) to prevent accidental turning ON of power. Do not open power
circuit or change polarity while welding. If, in an emergency, it must be
disconnected, guard against shock burns, or flash from switch arcing.
Always shut OFF and disconnect all power to equipment. Power disconnect
switch must be available near the welding power source.
PREPARATION OF THE WORKING AREA
The working area must be sufficiently spacious, not humid, and well-ventilated as
to avoid any fumes which develop from the welding process and from incidental
material adhering to the pieces to be welded (oils, paints, tars...) which may cause
annoyance to the operator.
Avoid welding by contact with humid parts nearby combustible liquids. Least of
all, do not weld upon tanks which may contain flammable residuals.

11
ADDITIONAL SAFETY PRECAUTIONS for MIG WELDING
•ALWAYS ensure that there is full free air circulating around the outer casing of
the machine, and that the louvres are unobstructed.
• Welding arc can seriously damage your eyes. Both operator and spectators
must ALWAYS use a proper welding face shield or helmet, with suitable filter
lenses. Proper gloves and working clothes should be worn at all times.
•ALWAYS inspect the hose before use to ensure it is in good condition.
•ALWAYS keep the free length of gas hose outside the work area.
•ALWAYS remove all flammable materials from the welding area.
•ALWAYS Keep fire extinguisher handy....’Dry Powder, C02 or BCF, NOT Water
•NEVER remove any of the panels unless the machine is disconnected from
the supply, AND never use the machine with any of the panels removed.
•NEVER attempt any electrical or mechanical repair unless your are a qualified
technician. If you have a problem with the machine contact your local
CLARKE dealer.
•NEVER use or store in a wet/damp environment. DO NOT EXPOSE TO RAIN.
•NEVER continue to weld, if, at any time, you feel even the smallest electric shock.
Stop welding IMMEDIATELY, and DO NOT attempt to use the machine until the fault
is diagnosed and corrected.
•NEVER point the MIG torch at any person or animal.
•NEVER touch the MIG torch nozzle until the welder is switched OFF and the
nozzle has been allowed to cool off.
•NEVER connect, disconnect, or attempt to service the MIG torch, until the
machine is switched OFF and disconnected from the mains supply.
•NEVER allow the cables to become wrapped around the operator or
any person in the vicinity.
If you convert your welder to operate with gas, observe the following precautions
•NEVER expose the gas cylinder to high temperatures
•NEVER strike an arc near the gas cylinder

SAFETY EQUIPMENT
A comprehensive range of CLARKE safety equipment for use when
welding is available from your local dealer.
NO-GAS MIG WELDING - PRINCIPLES OF OPERATION
MIG (Metal Inert Gas) welding is a process in which a power wire electrode
is fed continuously into the weld pool at a controlled, constant rate.
The wire is connected to the positive side of a rectified voltage supply. The
workpiece is connected to the negative side of the supply (NO-GAS Welding).
When the wire is fed, it comes into contact with the workpiece and an arc
is struck. The arc melts the wire and the material, fusing it together.
The wire, which is fed by the wire feed motor is fed into the weld pool,
burning itself off at a rate dependent upon the selected wire feed speed.
To protect the weld pool from oxidation and impurities during the welding
process, a shielding gas flows over and around the weld pool. This gas flow
is provided by a flux core within the welding wire electrode. The flux melts
due to the heat produced, giving off a gas. This gas prevents oxygen, in
the surrounding air, from coming into contact with the molten pool at a
critical time. Solidification takes place, creating a much stronger, cleaner
weld, free of impurities.
This range of welders may be converted to use gas bottles, essential when
welding aluminium, stainless steel etc. Please refer to the note on page 19.
BENEFITS OF MIG WELDING
• Better outdoor use as wind has less chance of disturbing the gas shroud.
• 50% faster welding time.
• There is no slag removal, thus eliminating almost all post-welding
cleaning operations.
• Overall, a faster more efficient way of getting the job done.
• Less heat - less distortion.
• Ability to weld thin material.
NO-GAS welding additionally allows for :
• Operator training time kept to a minimum
• No need for short life gas bottles
• Outdoor use is easier as wind or breeze has less chance of blowing
away the gas cloud.
12

ELECTRICAL CONNECTIONS
WARNING! THIS APPLIANCE MUST BE EARTHED.
These welders are fitted with a standard 13 amp BS 1363 plug, fitted with a 13 amp
fuse. Connect to a 230 volt (50Hz) domestic electrical supply and we strongly
recommend that this be done via a Residual Current Device (RCD).
IMPORTANT: If the welder is fitted with a plug which is moulded onto the electric
cable (i.e. non- re-wirable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a danger of
electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the correct
replacement is used (as indicated by marking or colour code). Replacement fuse
covers can be obtained from your local dealer or most electrical stockists.
Fuse Rating
The fuse in the plug must be replaced with one of the same rating (13 amps) and
this replacement must be ASTA approved to BS1362.
IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code:
Green & Yellow .......... Earth
Blue .......... Neutral
Brown .......... Live
As the colours of the flexible cord of this appliance may not correspond with the
coloured markings identifying terminals in your plug, proceed as follows:
•Connect GREEN & YELLOW cord to plug terminal marked with a letter “E” or
Earth symbol “ ”, or coloured GREEN or GREEN & YELLOW.
•Connect BROWN cord to plug terminal marked letter “L” or coloured RED.
•Connect BLUE cord to plug terminal marked letter “N” or coloured BLACK.
Extension Cable
If an extension cable is fitted, ensure the minimum cross section of the conductor
is 1.5mm2for up to 15 metres in length, and 2.5mm2for up to 25 metres.
13

14
UNPACKING & PARTS IDENTIFICATION
Unpack and lay out the components, checking against the following list. Any
damage or deficiency should be reported to your CLARKE dealer immediately.
Most of the components are stored within the side compartment. To open the
compartment, pull the side panel up sharply.
The cover may be quite tight when new, so exercise a little care.
MIG 90EN,105EN & 110EN
1. Rubber Feet with washers and
screws (4 pcs)
2. 2-Piece Welding Mask
3. Welding Mask handle, complete
with plastic nut and 2xplastic screws.
4. Package containing 1x Clear
Glass and 1x Dark Glass Lens
5. Flux cored Wire Spool
6. Spare welding tip (1 pc)
MIG151EN
1. Foot with screw and washer
2. Wheels with retaining clips (2 pcs)
3. Axle
4. Spare welding tips (2 pcs)
5. 2-Piece Welding Mask
6. Welding Mask handle, complete
with plastic nut and 2xplastic screws.
7. 1xPackage containing 1x Clear
Glass and 1x Dark Glass Lens
8. Flux cored Wire Spool

15
ASSEMBLY & INSTALLATION
A. LOOSE COMPONENTS
MIG’s, 90EN, 100EN & 105EN
Lay the welder gently on its side and attach the four feet using the screws and flat
washers provided.
MIG 151EN only
Insert the axle through the holes in the rear base of the machine, then attach the
wheels, securing them by pushing the star locking washers provided, on to the axle,
using a piece of tube or an old socket, ensuring the centre tines of the washer face
outwards.
Lay the machine gently on its side and attach the foot to the front base using the
screw and washer provided.
Attach the handle to the top of the machine by slotting it into place and securing with the
screws provided. Slide the handle extension into the handle and secure with the screw
provided.
The gas bottle is secured to the machine using the large worm drive fastening band which
is threaded through the opening provided on the rear panel of the machine.
B. THE WELDING SHIELD
WARNING:
NEVER look at an electric arc without eye protection as this can injure the
eyes permanently. ALWAYS use a protection mask or welding helmet.
1. Push the two halves of the
shield together as shown.
2. Place the handle into
position and secure using
the plastic screw and clip
provided
3. Working from the inside of
the shield, insert the clear
glass panel into the recess
in the shield, followed
by the dark glass panel.
4. Secure the glass panels
with the lens surround and
plastic screws/clips
provided. The clear glass MUST be on the outside of the shield.
5. Finally use the last plastic screw and clip as shown to fix the two halves of the
shield together.

(1) Removing/Replacing the Wire Spool
If the wire spool is mounted on the spool
holder, it needs to be removed in order
to remove the plastic wrapper. To do this,
proceed as follows:
Unscrew and remove the plastic knob (A),
followed by the spring and collar (B) from
the hub.
Remove the plastic wrapper then slide the
spool back over the hub, ensuring that it sits
snugly, and replace the collar, spring and
plastic knob, tightening it sufficiently to allow
the spool to rotate smoothly but with a slight
amount of braking friction.
Do not over tighten as this will exert undue
pressure on the wire drive motor and may
cause serious damage.
C. INSTALLING THE WELDING WIRE
NOTE: These machines are supplied with a Clarke ‘Mini’ spool of mild steel flux cored
welding wire. A 5kg spool is available from your Clarke dealer. See ‘Accessories’ for
full details.
1. IMPORTANT: Ensure that theelectrical supply is disconnected.
2. Firstly remove the side cover, on the left hand side of the unit, by pulling it sharply
upwards.
Fig.3
Fig.4
(2) Threading the Welding Wire
Re: Fig.4
1. Loosen the plastic knob (A) by turning it
anticlockwise, (this device maintains
pressure on the wire).
2. Pull, on the plastic knob, so that
the screw rod hinges out of its slot.
This releases the pivoted pressure
roller bracket (C). Raise the bracket,
in the direction of the arrow, and pull
out any wire that has been left in the
wire liner (D), pulling it from the
nozzle end of the hose.
16

17
IMPORTANT!
If you are changing the size of wire, you must also select the appropriate
groove on the feed roller. See p. 19
Pull out the end of the wire
from the rim of the spool,
taking care NOT to release it.
The spool is wound firmly and
should remain this way.
Ensuring the wire is straight
and not kinked in any way,
clip off the end cleanly,
ensuring there are no burrs or
sharp edges.

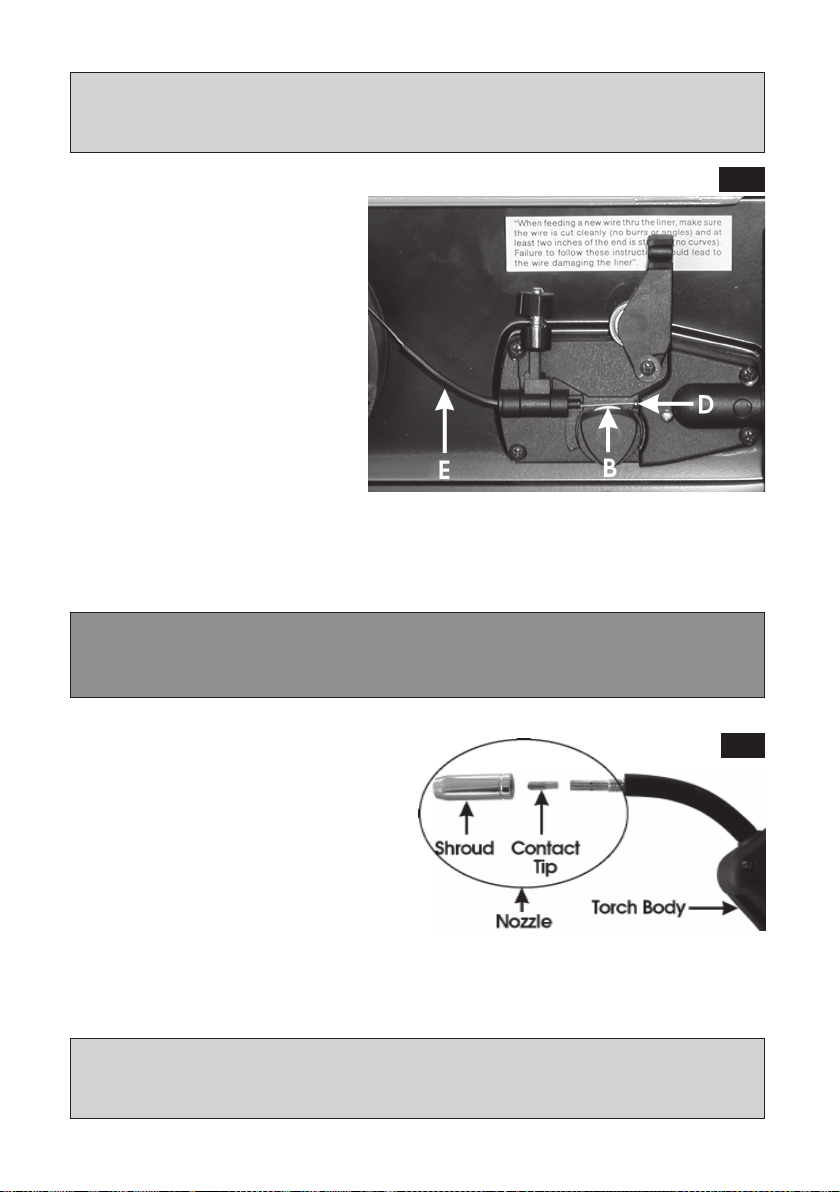

Proceed to feed it through
the guide tube (E), over the
groove on the roller (B), and
into the wire liner (D), by
about 10 - 15 cm.
Fig.5
3. Re: Fig.5
5. (Ref. Fig 6)
Unscrew and pull off the torch
shroud by twisting it anti clockwise,
then unscrew the contact tip.
6. Close the side panel of the machine,
plug into a 230V, 50HZ outlet (or
switch on isolator), switch on the
machine and press the trigger.
The wire will feed through the hose and when it appears at the torch end,
release the trigger, switch off the machine and disconnect the machine from
the mains supply. Replace the contact tip and the torch shroud.
IMPORTANT:
Ensure the hose is kept straight during this operation, to assist the wire as it
is fed through to the wire liner and contact tip.
Fig6
4. Reposition the pressure roller bracket (C, FIG.4) and plastic knob (A, Fig.4) and
tighten slightly.
CAUTION:
Tightening the knob (A) too tightly will crush the wire and damage the
wire feed

18
(3) Selecting the Correct Drive Roller Groove
As previously mentioned, it is important that the correct groove in the drive roller is
selected for the particular wire being used. Two grooves, 7mm and 9mm are
provided.
The 7mm groove should be used with 6mm dia. wire and the 9mm groove for all
8mm wire and 9mm flux cored wire. The welder s factory set with the 9mm groove
in position.
To change to the other groove, proceed as follows: Fig.7
1. With the pressure roller bracket
raised, and the old wire removed, as
shown, turn the roller securing knob
(A), fully anticlockwise, as indicated
in Fig.7, and pull it from the shaft,
followed by the roller.
Turn the roller through 180O, replace
it on the shaft, followed by the
securing knob, which should then
be turned fully clockwise to lock the
roller securely in place.
D. CONVERTING TO GAS WELDING
For welding stainless steel or aluminium, it is necessary to convert your NO-GAS
machine to GAS operation. This is a simple process once you have purchased the
following parts, readily available from your dealer.
1. Welding Wire
Either Mini or 5kg wire spools, at 0.6mm or 0.8mm diameter. (See Accesssories)
2. Contact Tips
The appropriate tip must be used to suit the thickness of wire being used. i.e.,
8mm wire requires a 0.8mm tip and 0.9mm wire requires a 1.0mm tip.
3. Gas Regulator
This is available from your dealer.
NOTE: Decide in advance whether you are going to use disposable or
rechargable gas bottles as this will effect the type of regulator purchased. Consult
your dealer
4. Gas
Disposable gas bottles are available from your dealer, or
rechargeable bottles from your welding supply shop.
SEE ALSO THE NOTES ON PAGE 21 - ATTACH THE EARTH LEAD

Always use the appropriate gas for the material being welded. Three types are
provided by Clarke International, as follows:
Carbon Dioxide (CO2) ......... For Mild Steel .................... Part No. 6000642
Argon .................................... For Aluminium ................... Part No. 6000661
CO2/Argon Mix.................... For Thin Sheet metal
Mild Steel/ Stainless ......... Part No. 6000660
Additionally a larger CO2 bottle is available ............... Part No. 6000643
Replacement Gas Regulator........................................... Part No. 8132000
Attaching Gas Bottle and Regulator
1. If using disposable gas bottles
remove the protective plastic cap
from the threaded top of the bottle
and screw the regulator (F) down
in a clockwise fashion until tight (be
careful not to put too much force
on the regulator when tightening).
2. Insert the plastic gas tube into the
regulator (push all the way in). Note:
when changing disposable bottles,
push in the outer flange of the
regulator orifice to allow easy
release of the plastic tube.
3. The operation of the pressure regulator, for use with disposable bottles, is based on
the action of a needle operated by a knob placed over a graduated dial plate
(from “0” to “6”), acting on the valve of the bottle. With the knob turned to position
“0” there is no gas flow; before starting to weld bring the knob to position “3” or “4”,
achieving a gas flow of 2/3 litres/minute. In order to obtain the maximum service
from each gas bottle, always maintain a minimum gas flow (2/3 litres per minute)
which is sufficient to obtain a good weld without porosity. The pressure regulator is
equipped with a safety valve which will automatically operate should the pressure
surge.
4. For safety and economy, ensure that the regulator is fully closed (turning fully anti-
clockwise) when not welding and/or before fitting or removing the gas bottle.
5. When using a rechargeable bottle insert the plastic gas tube into a
large gas bottle adaptor. Connect the tail end of the adaptor to a length
of 1/4" (6 mm.) dia. flexible gas pipe and connect this pipe to a gauged
pressure regulator which is screwed onto the rechargeable bottle. The
gauged pressure regulator is then used to control the flow of gas which
should be XXX litres per minute.
Fig.9
19

PREPARATION FOR USE
A. PREPARE THE WORK
MOST IMPORTANT!
It is VITAL that the workpiece is perfectly clean at the point of weld. Any coating,
plating or corrosion MUST be removed, otherwise a good weld will be impossible
to achieve.

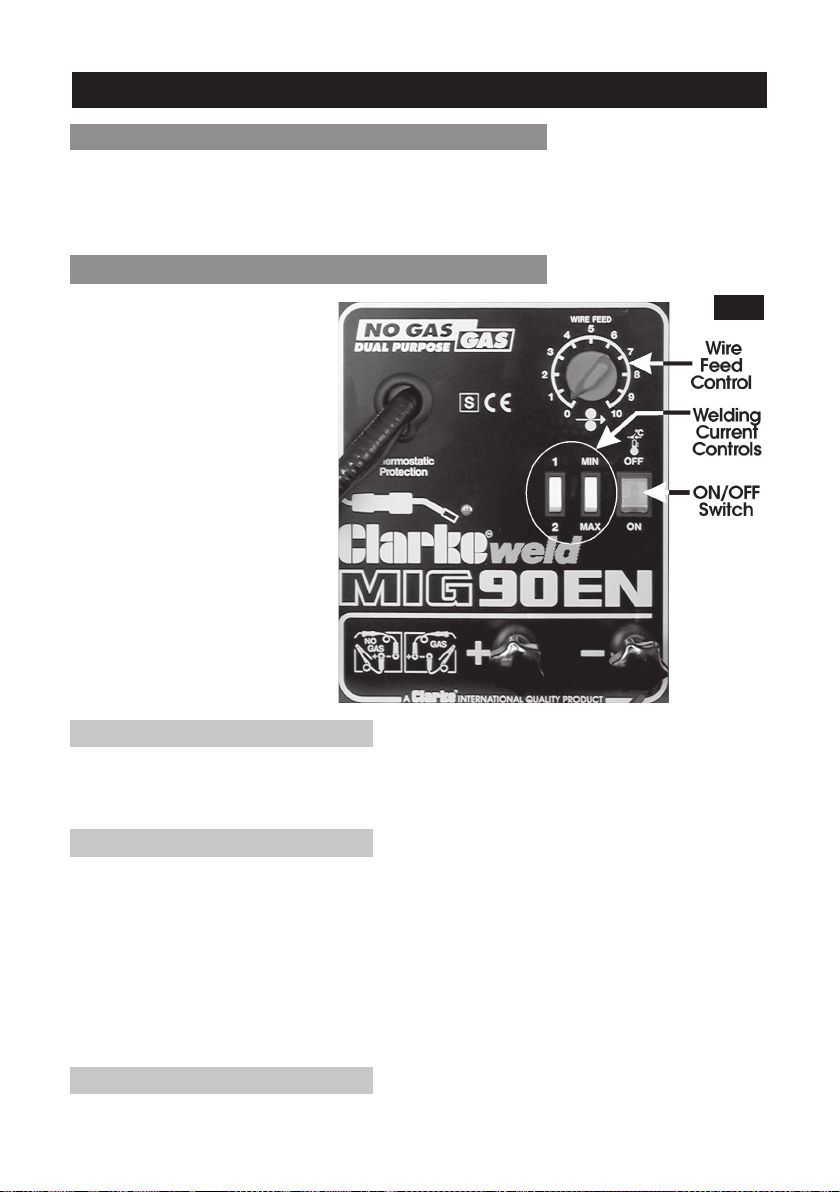

B. SET THE CONTROLS
Three sets of controls
are provided....
In order to produce a
satisfactory weld, the
controls must be fine tuned
whenever there is a material
change in weld
characteristics.
(i) ON/OFF,
The ON/OFF switch is self explanatory, but serves a secondary function. You will note
that it is coloured amber. The switch doubles as a lamp, which will illuminate if the
Thermal Overload intervenes. (See Thermal Overload on page 23)
(ii) WIRE FEED SPEED CONTROL.
The WIRE FEED Rotary Control Knob, with graduations from 0 to 10, is used to
control the wire speed feed to the nozzle.
The knob should be set to position 6 to begin with for welding steel, and 8 for welding
aluminium, then adjusted as required. (See notes under ‘Operation’)
Note: This control is for fine tuning the wire speed. The speed of wire delivery will
increase automatically as the current is increased and vice versa. Therefore, once
the ideal speed is achieved by fine tuning, it should not be necessary to adjust
this control when the welding current is changed.
(iii) WELDING CURRENT CONTROLS
Controls differ from model to model and are described as follows:
20
Fig.10
