Clas Ohlson 106 User manual

EnglishSvenskaNorskSuomiDeutsch
Ver. 20130321
Art.no Model
38-4754 106
Web Camera
Webbkamera
Webkamera
Web-kamera
Webcam

2

3
English
3
4
5
6
1
2
Webcam
Art.no 38-4754 Model 106
Please read the entire instruction manual before use and save it for future reference.
We reserve the right for any errors in text or images and for making any necessary
technical changes to this document. If you should have any questions concerning
technical problems please contact our Customer Services.
Safety
• To avoid damaging the image sensor, do not point the camera directly at the sun.
• Do not expose the camera to oil, steam, dust or water.
• The camera is intended for indoor use only.
• Do not use strong detergents or solvents to clean the lens. Just use a soft cloth.
• The camera can become hot during long periods of use. Always turn the camera
off when it is not in use.
Description
1. Focus ring
2. Lens
3. Shutter button
4. USB cable
5. Base
6. Adjustable screen bracket

4
English
a
b
c
Use with MSN, Skype or other similar programmes
When using MSN or Skype no extra drivers need be installed.
MSN
• Connect the web camera to an
available USB port.
• Start MSN and log in.
• Click Display Menu (a), then
Tools (b) and Web Camera
Settings (c).
• Input your desired settings.
• The camera will start
automatically.
Skype
• Connect the web camera to an available USB port.
• Start Skype and log in.
• Go in under Tools > Alternatives> Audio Settings.
Select USB-Microphone and click Save.
• Find the person you wish to contact on your contact list and click on the contact.
• Click on Video Call in the large window.
• The camera will start automatically.

5
English
Installing drivers
(if you are not using MSN or Skype)
Important: Connect the web camera to an available USB port before installing
the software.
1. Exit all programmes before installing the drivers (especially any antivirus
programmes).
2. Insert the installation CD into the computer’s CD-ROM drive.

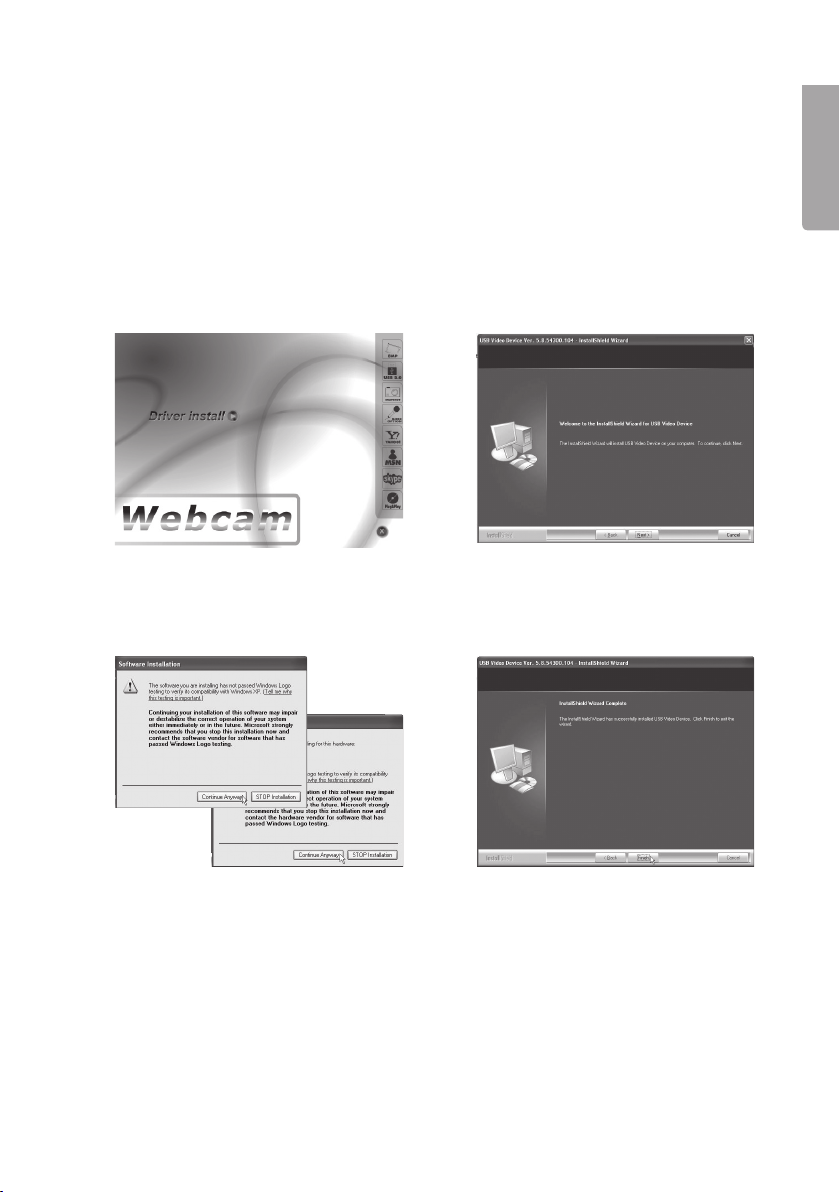

Installation example using Windows XP
1. Open the installation files using
Windows Explorer and double-click
Driver install.
2. Installation will begin. Click on Next
when prompted.
3. Two warning messages will be
displayed, one after another.
Click on Continue Anyway for both
messages to continue installation.
4. Click on Finish when
the installation is complete.

6
English
Installation example using Windows 7
1. The disc should start automatically
and the start window should display
on screen. Click on Driver install.
2. A warning message will be displayed.
Click on Yes to continue.
3. Click on Next to continue installation. 4. Tick the box “Always trust software
from SONIX…” Click on Install to
accept installation.
5. Click on Finish when the installation is complete.

7
English
Operation
1. Double click the PMCap icon found under
Program > USB Video Device > AMCap
in order to start the programme.
3. Activate the Microphone (USB
Microphone) and the USB Video Device.
4. Aim the camera.
5. Adjust the focus using the camera’s focus
ring (1).
Picture taking (snapshots/still-images)
1. Adjust the focus using the camera’s focus ring (1).
2. Press the shutter button (2) to take a picture.
3. The image will open automatically in a new window.
4. Select File/Save As to name the file and select the file format.
Press Save to save the image.
5. Select Rotate Orientation to rotate the image, if needed.
2. Activate Preview under “Options” to
display images from the camera.

8
English
Setup
The most essential settings can be found under Options:
• Audio Capture filter:
Audio input settings.
• Video Capture filter:
Video input settings.
• Video Capture Pin: Settings for
video streaming, image sizing,
frames per second, etc.
Troubleshooting guide
Description Problem Solution
The computer cannot
find the web camera,
or the programme
doesn’t start.
The drivers aren’t correctly
installed.
Reinstall the drive routines.
The web camera is not
properly connected.
Check your USB connection.
Restart your computer.
Preview is not selected. Select Preview under “Options”.
The picture is too
bright or too dark.
The image settings are not
properly set.
Adjust “Video Capture Filter”
settings”.
Rolling horizontal
parallel lines are
seen.
The mains voltage fre-
quency isn’t properly set.
Select the proper Flicker
frequency in the “Video
Capture Filter” settings.
The colours displayed
are not true.
The image settings are too
dark.
Adjust “Video Capture Filter”
settings.

9
English
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.
Specifications
Picture sensor CMOS sensor
Resolution 1.3 megapixels (up to 3,200–2,400)
Video mode RGB24/YUY2
Interface USB 2.0
Video capture 640 x 480 at 30 frames per second
1600 x 1200 at 10–15 frames per second
SNR Better than 48 dB
Dynamic range Better than 72 dB
Focus From 3 cm to infinity
White balance Automatic
Lens High-quality lens
Microphone Built-in
Bracket Folding base bracket
Still image file format .bmp and .jpg
System requirements
Operating system Windows XP/Vista (32/64-bit)
Windows 7 (32/64-bit)
Windows 8 (32/64-bit)
Processor 1 GHz or greater
Memory 256 MB RAM or more

10
Svenska
3
4
5
6
1
2
Webbkamera
Art.nr 38-4754 Modell 106
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida bruk.
Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska data. Vid tekniska
problem eller andra frågor, kontakta vår kundtjänst (se adressuppgifter på baksidan).
Säkerhet
• För att undvika skador på bildsensorn, rikta inte kameran mot direkt solljus.
• Utsätt inte kameran för olja, ånga, damm eller vatten.
• Kameran är avsedd för inomhusbruk.
• Använd inte starka rengöringsmedel eller lösningsmedel för att rengöra linsen.
Använd en mjuk trasa.
• Kameran kan bli mycket varm om den används under långa perioder.
Stäng av kameran när den inte används.
Beskrivning
1. Fokuseringsratt
2. Lins
3. Slutarknapp
4. USB-kabel
5. Fot
6. Utvikbart fäste för skärm
