DOUBLE SCISSOR LIFT 3T
PE 6001T

PE 6001T DOUBLE SCISSOR LIFT 3T
Before returning this product for any reason (installation problem, instructions for use,
breakdown, manufacturing problem...), please contact us.
Contact :
You can reach us by mail [e-mail] or by phone [phone] or go directly to our
website clas.com
If you have changed your mind regarding your purchase, please return this product before you
attempt to install it.
ATTENTION

PE 6001T DOUBLE SCISSOR LIFT 3T
WARRANTY
DISCLAIMER
THIS USER’S MANUAL IS WRITTEN IN THE MANUFACTURER’S LANGUAGE, AND IN OTHER
COMMUNITY LANGUAGES. IN CASE OF COMPLAINT, FOR LEGAL PURPOSES, THE VERSION IN
ITALIAN LANGUAGE ONLY WILL APPLY. THE MANUFACTURER.
DISCLAIMS ANY LIABILITY FOR DIRECT AND/OR INDIRECT DAMAGES CAUSED BY POOR
TRANSLATION OR WRONG TEXT INTERPRETATION.
CAREFULLY READ THE INSTRUCTIONS GIVEN IN THIS MANUAL BEFORE USING THE LIFT.
The manufacturer warrants lifts and the relevant accessories for 12 months after purchase date.
This warranty consists in the repair or replacement - free of charge - of those parts that, after a
careful analysis by the Manufacturer’s Technical Service, turn out to be faulty from origin. Warranty
is limited to material defects, and becomes null and void if the returned parts are tampered with or
disassembled by unauthorised sta. Any liability for direct and indirect injuries to people, animals
or property due to machine failure or malfunction are excluded from warranty. The expenses
deriving from lubricants replacement, transport charges, and any customs duty, VAT and any
other expense not specified in the supply contract are at the purchaser’s charge. The replacement
and repair of parts under warranty, anyway, do not extend warranty terms. The purchaser will
nevertheless be entitled to assert its rights on warranty, specified in the supply contract. Should
the parties not be willing to submit any dispute arising from the supply contract to arbitration, or
in any other case where the judgement of a body of the ordinary competent court is required, the
Court of Vicenza will be the only competent court on the territory.
Upon delivery, please check that the product has not been damaged during transportation, and that
the accessories coming with it are intact and complete.
Any complaint shall be filed within 8 days after lift delivery date. Besides the cases envisaged by the
supply contract, the warranty becomes null and void:
In case of a manoeuvre error caused by the operator.
If the damage is caused by poor maintenance.
If the envisaged capacity is exceeded.
If the machine has been somehow modified, and the damage has been caused by such a
modification, due to repair operations by the user without the authorisation of the manufacturer
or after fitting non-original spare parts.
If the instructions described in the user’s manual are not complied with.
MANUAL INTRODUCTIONS

PE 6001T DOUBLE SCISSOR LIFT 3T

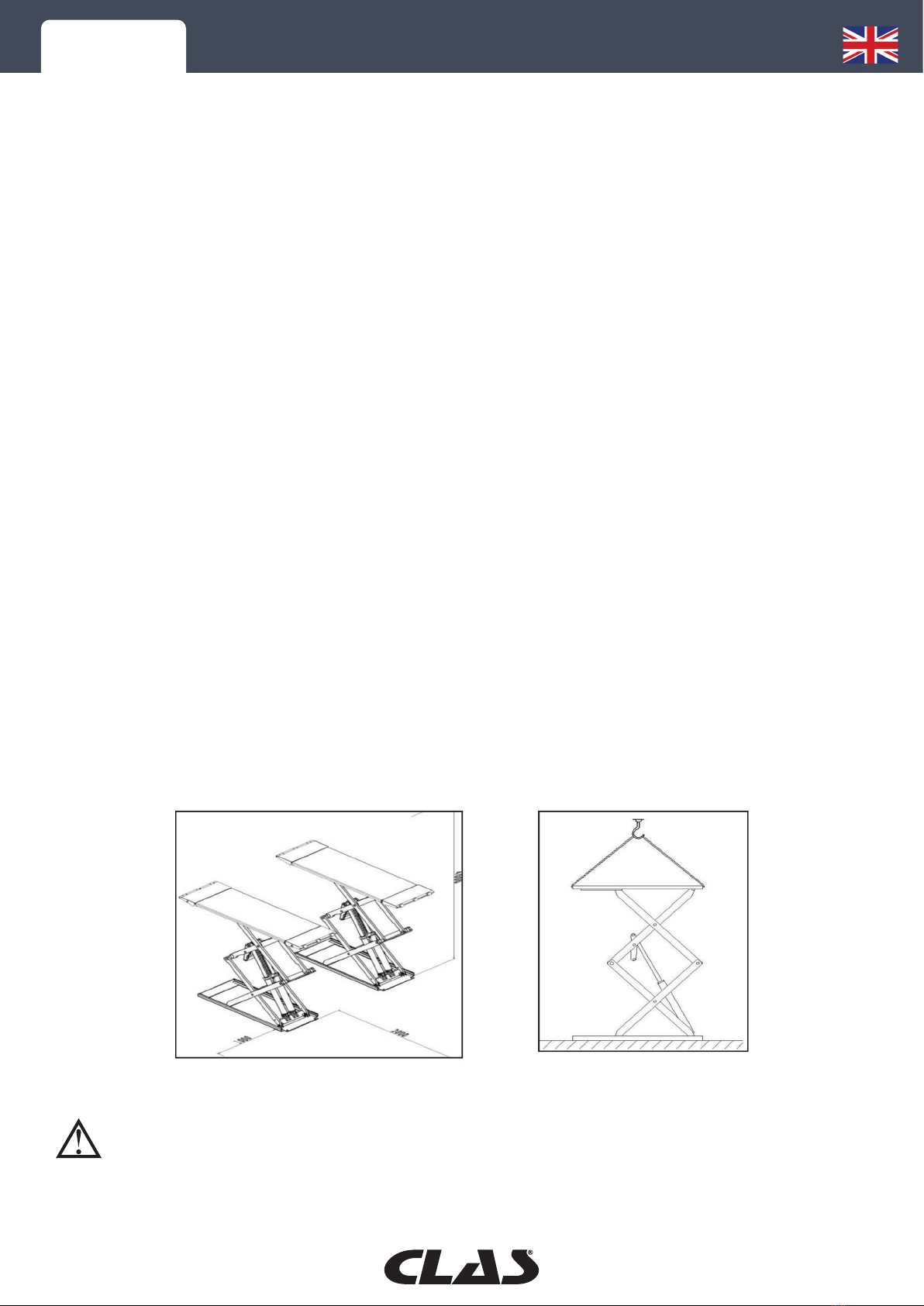

Packing (Picture 1)
Transport (Picture 2)
Storage:
Picture 1
Picture 2
Packaging can be lifted or moved by lift trucks, cranes or overhead cranes. In case of slinging,
a second person must always take care of the load, in order to avoid dangerous oscillations.
During loading and unloading operations, goods must be moved by appropriate vehicles
such as trucks, ships or fork lift.
At the moment the goods are delivered, verify immediately that all of the items specified in
the delivery notes are included.
If finding missing parts, possible defects or damages to the goods caused during the transport
you should immediately inform the person in charge, or the carrier.
The lifter is really heavy! Don’t move it manually, the safety on work place is very important.
Furthermore, during loading and unloading operations, goods must be handled as shown in
the picture. (Picture 2)
The equipment should be stocked inside the warehouse, if stocked outside one has to make it
sure that the equipment stay o the water.
Use box tracks for ground transportation , use container when shipping.
The control box should be placed perpendicularly during the transport.
Temperature range for machine storage: min -25ºC – max + 55ºC
PACKING, TRANSPORT & STORAGE

PE 6001T DOUBLE SCISSOR LIFT 3T
CONSERVING THE MANUAL
The lift is designed and manufactured according to the European Standard
Manufacturer reserves the right to make changes to the user manual if there are technological
improvements.
OPERATOR: person authorized to use the lift
MAINTENANCE FITTER: person authorized for routine maintenance on the lift.
This manual has been prepared for those who are expert in the use of the lifters, operators
and technicians responsible for the routine maintenance.
Workers should read carefully the ‘Maintenance & User Manual’ before carrying out any
operation on the lift. This manual contains important information regarding:
Personal safety of the operator and the maintenance workers.
Lift safety
The safety of the lifted vehicles
This manual is an integral part of the lift.
The manual must be kept in the vicinity of the lift, so that the operator and maintenance sta can
easily locate and consult the manual at any time.
We particularly recommended reading Chapter 3 which contains important information and
safety warnings.
Lifting, transport, unpacking, assembly, installation, starting up, initial adjustment and
testing, extraordinary maintenance, repair, overhauls, transport and dismantling of the lift
are all operations that must be performed only by specialized personnel or by licensed
dealer authorized by the manufacturer.
The manufacturer declines all responsibility for injury to persons and damages to v
ehicles
and objects when any of the above mentioned operations has been performed
by unauthorized
personnel or when the lift has been subject to improper use.
This manual indicates: the operative and safety aspects that may be useful to the operator
and maintenance workers. For a better understanding of the structure and its functioning,
workers must carefully read the ‘Maintenance & Use Manual’.
In order to understand the terminology used in this manual, maintenance and repair personnel
must have the ability to interpret correctly the drawings and the descriptions contained in the
manual and be able to read and understand correctly the language of the country in which
the lift has been installed and the manual has been written. They must have the ability to read
technical drawings and have a specialized knowledge both in mechanical and engineering field.
MANUAL INTRODUCTIONS

PE 6001T DOUBLE SCISSOR LIFT 3T
This lifter can lift each kind of vehicle whose weight is less than 3000/3500kg. It is suitable to be use
in vehicle tests, maintenance and automobiles care, it is also suitable to be installed on floor or in floor
without the need of particular structures.
The lift has to be installed in a floor made of cement and concrete, like the manual explains with
technical information shown at page 9.
A main lifting platform activated by a double scissor platform, a control box.
Under the control box it is located the electrical system. The oil tank, the hydraulic pump, the valve
and other control systems are located in the underlying area, easily accessible through the two
inspection doors.
Scissor lift is designed and built to lift all kinds of vehicles, all other use are unauthorized.
In particular, the lift is not suitable for washing spray work. And do not lift vehicles whose
weight exceed the maximum weight.
Thanks to the narrow structure of the scissors, it is not required too much space for the in floor
installation .
Independent control box, low-voltage controlling, excellent security.
Hydraulic compensation.
Equipped with hydraulic (H) or mechanic (M) safety lock, depending on the version requested.
Equipped with safety valve to protect from hydraulic failure and/or over loading. So if the oil
pipe breaks, the machine will not fall quickly when in UP position.
Equipped with manual pump for lowering operation when there is no electricity.

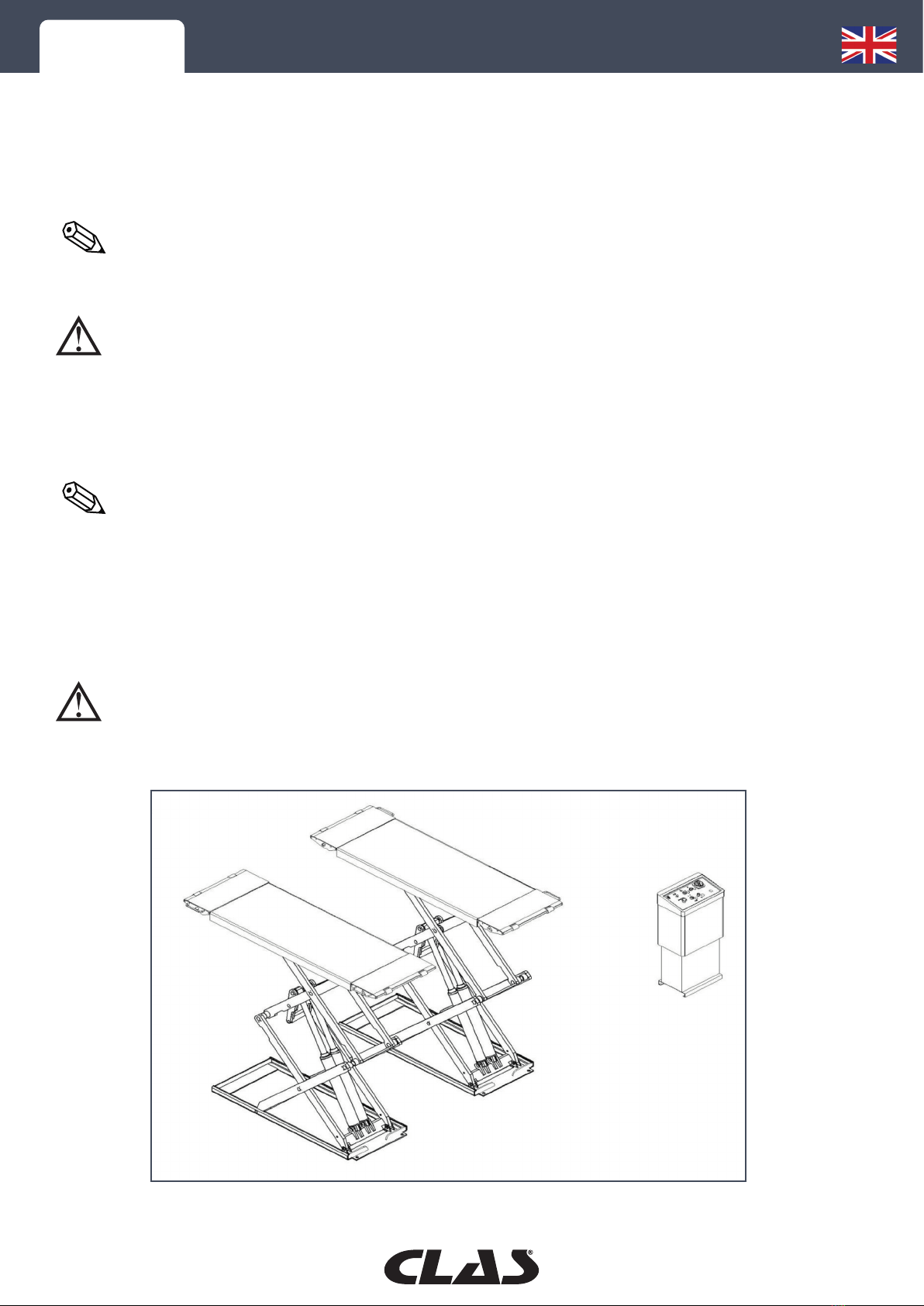

Equipment:
- Complete Lifter
- Control box
Using the Lift:
Structure Features:
Foundation
Structure of the Lifter
Control box
DESCRIPTION OF THE LIFT

PE 6001T DOUBLE SCISSOR LIFT 3T
Machine Type
Drive
Safety Lock
Lifting weight
Lifting height
Platform initial height
Platform length
Platform width
Lifting time
Descent time
Whole machine length
Whole machine width
Weight
Pressione esercizio (M)
Voltage
Engine power
Hydraulic oil
Working temperature
Working humidity
Noise level
Installation height
Storage temperature
Installation place
PE 6001
Electrical hydraulic
Hydraulic
3500kg
1950mm
105mm
1420mm
650mm
≤50s
≤60s
2270mm
2130mm
50kg
400V ± 5% 50Hz(or 60HZ--special ordered) Please check the nameplate on
the control box for details!
2kw
18L – H46 (not supply by the manufacturer)
From + 5°C to +40°C
30-95%
< 76db
Height above the sea level ≤1000M
-25°C ~ 55°C
Indoor
SPECIFICATIONS

PE 6001T DOUBLE SCISSOR LIFT 3T

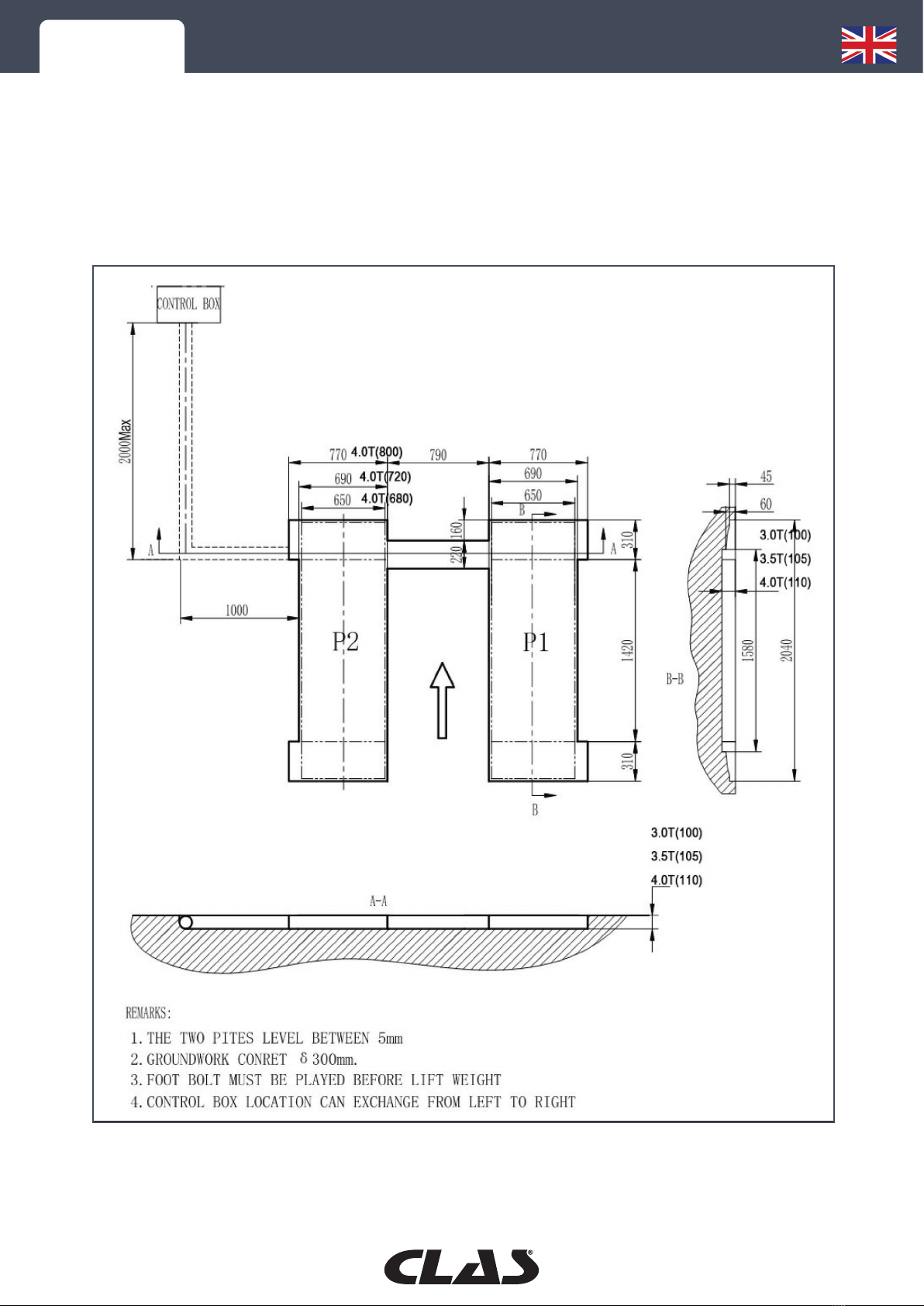

Lift dimension picture (Picture 3):

PE 6001T DOUBLE SCISSOR LIFT 3T
Lift groundwork drawing-for in ground installation (Picture 4):

PE 6001T DOUBLE SCISSOR LIFT 3T
Motor
Type
Power
Voltage
Current
Frequency
Poles
Speed
Building shape
Energy efficiency Class
ML90L
2.2kw
AC 400 or 230V ±5%
400V: 5A 230V: 10A
50Hz /60 Hz (optional)
3+N+PE
1400 r/min
B14
F
Pump
Type
Model
Flux
Joint type
Safety valve
Setting pressure
Adjustable working pressure
Suggested pneumatic pressure(M)
hydraulic pump
P4.3
4.3cc/3.7cc (60Hz)
direct connection
280 bar
150~300 bar
6 bar
Requirements:
Concrete type 425#, drying time 15 days
Clean the basic layer before installing the lift. -Thickness of concrete ≥150mm, leveling of
whole length ≤5mm.
Note: The ending part of the lift platform nr. P1 and nr. P2 represents the concrete structure. When the thickness
of the inside level ground is less than 150mm, the end of P1 and P2 should be taken to 2500×2500mm length
and the thickness of the concrete should be taken to ≥150mm.
The minimum thickness of the concrete, and its right leveling, are main keys to complete the alignment operation
successfully.
TYPES OF VEHICLES THIS LIFT IS SUITABLE FOR:
THE LOWER PARTS OF THE VEHICLES, LIKE SPORTIVE CAR UNDERBODY, COULD INTERFERE WITH SOME
STRUCTURAL PARTS OF THE LIFT.
The lift will also handle customized or non-standard vehicles assuming they are within the maximum specified
carrying capacity.
Also the personnel safety zone must be redefined in relation to vehicle with unusual dimensions.
INSTALLATION SCHEME FOR SCISSOR LIFT

PE 6001T DOUBLE SCISSOR LIFT 3T
Read carefully and completely this chapter since important information is included about
the operator safety in the case of improper use of the lift.
In the following text there are some clear explanations regarding certain situations of risk
or danger that may arise during the operation or maintenance on the lift, the safety devices
installed and the correct use of such systems, residual risks and operative procedures to use
(general precautions used to eliminate potential hazards).
Lifts are designed and built to lift vehicles and hold them in the elevated position in an enclosed
workshop. All other uses of the lifts are unauthorized. In particular, the lifts are not suitable for:
- Washing spray work;
- Creating raised platforms for personnel or lifting personnel;
- Use as a press for crushing purposes;
- Use as elevator;
- Use as elevator for single parts of vehicles.
The manufacturer is not liable for any injury to persons or damages to vehicles and to other
property caused by the incorrect and unauthorized use of the lifts.
During lifting and descendant phases, the operator must remain in the control station, like the
diagrams illustrates.
As the diagrams illustrate, the presence of persons inside the indicated danger zone is strictly
prohibited. Persons are admitted to the area beneath the vehicle only when the vehicle is already
in the elevated position, when the platforms are stationary, and when the mechanical safety
devices are firmly engaged.
DO NOT USE THE LIFT WITHOUT THE PROTECTION DEVICES OR WITH THE PROTECTION DEVICES
INHIBITED. FAILURE IN FOLLOWING THESE RULES CAN CAUSE SERIOUS INJURY TO PERSONS,
AND IRREPARABLE
DAMAGE TO THE LIFT AND/OR TO THE VEHICLE BEING LIFTE

PE 6001T DOUBLE SCISSOR LIFT 3T
GENERAL PRECAUTIONS
The operator, the installer and the maintenance fitter are required to observe the prescriptions
of the safety regulation in force in the country of installation of the lift.
Furthermore, the operator and maintenance fitter must:
- Always work in the stations specified and illustrated in this manual;
- Never remove or deactivate the guards and the mechanical, electrical or other types of
safety devices;
- Read the safety notices placed on the lift and the safety information in this manual.
In the manual all safety notices are shown as follows:
WARNING : indicates operations that are unsafe and can cause minor injury to persons and/or
damage to the lift, the vehicle or other property.
CAUTION: indicates possible danger that can result in serious injury to people and/or damage to
properties.
RISK OF ELECTRIC SHOCK: a specific safety notice placed on the lift in areas where the risk of
electric shock is particularly high.
RISK AND PROTECTION DEVICES
We shall now examine the risks that operators or maintenance fitters may be exposed to when
the vehicle is standing on the platforms in its raised position, together with the various safety and
protection devices adopted by the manufacturer to reduce all such hazards to the minimum:
For an optimal personal and vehicles safety, observe the following regulations:
- Do not enter the danger areas when vehicles are being lifted. (Picture 5)
- Make sure the vehicle is positioned correctly. (Picture 6)
- Be sure to lift only approved vehicles, never exceeding the specified carrying capacity,
maximum height, and projection (vehicle length and width);
- Make sure that there is no person on the platforms during up and down movements and
during the standing position.
GENERAL RISKS FOR LIFTING OR DESCENDANT PHASES:
The following safety equipment is used to protect from over loading or from the possibility
of engine failure. In the condition of over loading, the overflow valve will open and it will
directly return the oil to its tank. (Picture 7)Each bottom of the oil cylinders are equipped
with antiknock valve. If the oil pipe bursts, the specific valve will be activated and it will
limit the lowering speed of the platforms.(Picture 8)

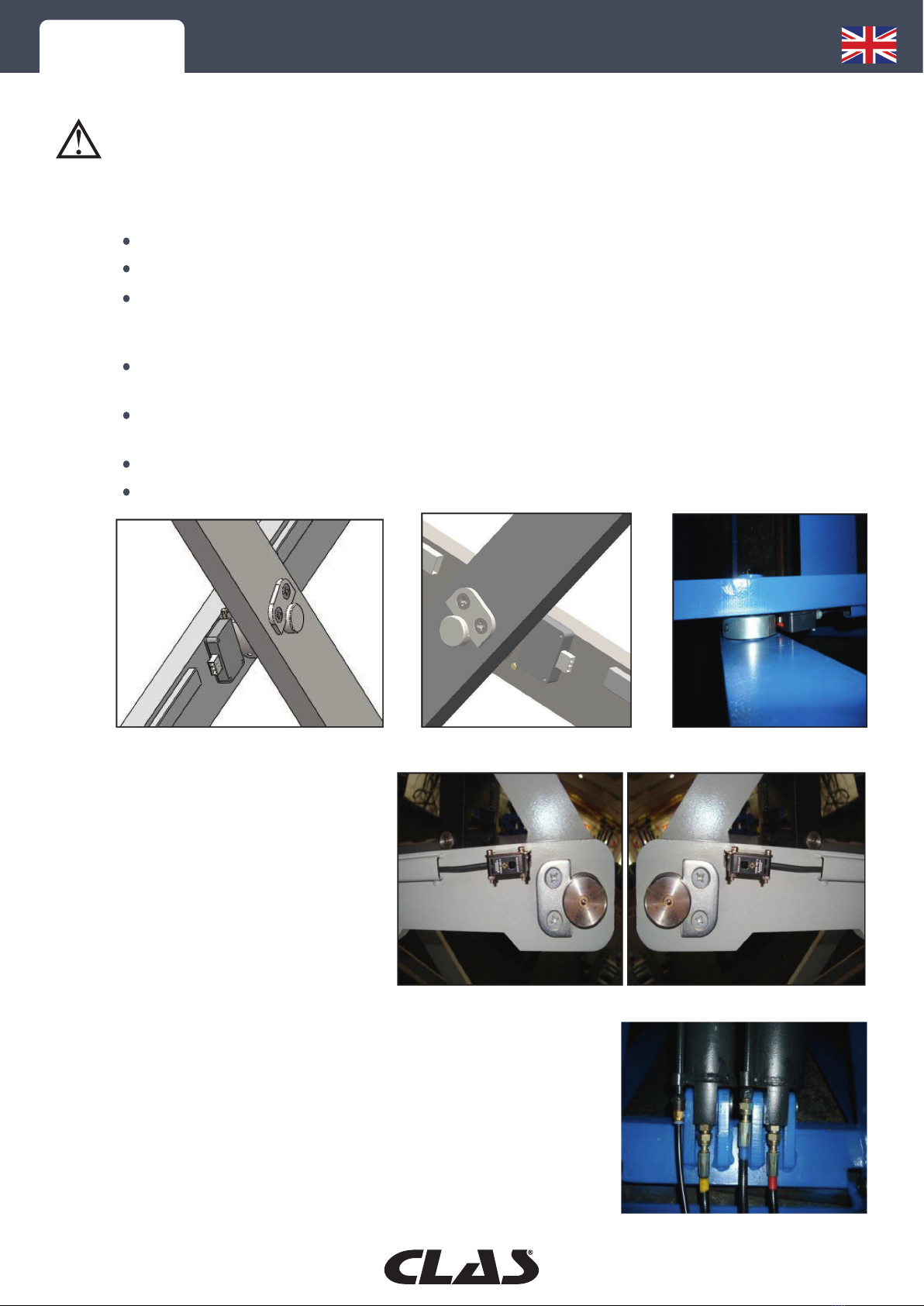

Picture 6
Picture 7 Picture 8
SAFETY

PE 6001T DOUBLE SCISSOR LIFT 3T
RISKS FOR PERSONNEL
This manual illustrates potential risks for operators, maintenance fitters or any other person standing in
the area around the lift when an incorrect use of it is carried out.
RISKS IN USING THE LIFT
During the up and down operations the personnel must stand within the safety area, following the rules
and the instruction given by the manufacturer.
During the up and down operations no one is allowed to work beneath the movable parts of the lift, but
he has stand in the safety zone.
RISK OF IMPACT (Picture 9)
Before the operator begins up and down movements, make sure that there are no personnel inside the
danger zone. When,
due to operational reasons, the lift is stopped at relatively low elevations (lower than 1.75m above the
ground) personnel
must be careful to avoid impact with parts of the machine that are not marked with special colors.
RISK OF FALLING OFF (PERSONNEL)
During up and down operations personnel are prohibited from entering the platforms and the vehicle
lifted to avoid falling o.
RISK OF FALLING (VEHICLE) (Picture 10)
This hazard may arise in the case of incorrect positioning of the vehicle on the platforms, overweight of
the lifted vehicle, or in the case the vehicle dimensions are not compatible with the capacity of the lift.
When the platform is being tested, the vehicle engine cannot be turned on.
There is nothing that should be placed on the lift-lowering area and the movable parts of the lift.
RISK OF SLIPPING (Picture 10)
The area beneath and immediately surrounding the lift, or its platforms, must be kept clean. Remove any
oil spills immediately. Keep Clean the working area.
RISK OF ELECTRIC SHOCK
The risk of electric shock in the insulated areas is shattered.
Do not use jets of water, steam solvents or paint next to the lift and take special care to keep such
substances away from the electrical control panel.
RISKS RELATED TO INAPPROPRIATE LIGHTING
The operator and the maintenance fitter must be able to assure that all of the lift areas are properly and
uniformly illuminated, in the respect of the laws in force in the place of installation.
During up and down operations the operator should constantly observe the lift movements and he can only
operate it through the operator safety zone. The handling of safety devices is strictly forbidden.
Never exceed the maximum carrying capacity and make sure that the lifted vehicle has no loads on board.
It is also essential to adhere scrupulously to all of the regulations, maintenance and safety contained in this
manual.
Picture 9 Picture 10

PE 6001T DOUBLE SCISSOR LIFT 3T
ONLY SKILLED AND AUTHORISED PERSONNEL ARE ALLOWED TO PERFORM THESE
OPERATIONS. FOLLOW ALL THE INSTRUCTIONS SHOWN BELOW IN ORDER TO PREVENT
POSSIBLE DAMAGE TO THE LIFT OR RISK OF INJURY TO PEOPLE.
Only Skilled technicians, named by the manufacturer or by an authorized dealer, are allowed to
install the lift.
INSTALLATION REQUIREMENTS
The lift must be installed respecting the specified safety distance from walls and any other
equipment. (Picture 11)
The specified safety distance from the walls is at least 1000 mm. Take into consideration the
necessary space to work easily, the space needed for the control site and also for a possible
runway in case of emergency.
The room must be previously arranged with all the electrical and pneumatic devices needed by
the lift functioning.
The room must be 4000 mm in height, at least.
The lift can be placed on any floor, as long as it is perfectly leveled and suciently resistant.
(≥250 kg/ cm², the thickness of concrete ≥150 mm)
All parts of the lift must be uniformly illuminated with enough light to make sure that the adjustment
and maintenance operations can be performed safely, and without reflective or dazzling light
that may cause eye problems.
The integrity of the incoming product must be verified before the process of installing the machine
is started. Moving and installing operations must follow the process illustrated at picture 12.
For the transportation and the storage of the lift, please refer to “TRANSPORT AND STORAGE”
page 4.
Platform Installation:
- Place the two bases on their final position.
- The bottom of the oil cylinder is located on the front of the lift where there’s the access for
the vehicle.
- Use a forklift or other lifting equipments to move the platform (Picture 12).
Picture 11 Picture 12
Avoid working under the moving lift when the hydraulic system is not fully equipped with oil. When a
platform is being moved, adjust the space between the two bases and make it sure that they are fixed
and parallel.

PE 6001T DOUBLE SCISSOR LIFT 3T
ELECTRIC CIRCUIT CONNECTION:
Follow the line path stated in the ‘electrical diagram’ to connect electric circuit.
Only skilled persons are allowed to perform the operations.
Connection of the photocell
sensor (PH):
see the connection on the
circuit diagram.
OIL PIPE CONNECTION:
Follow the “oil pipe connection diagram “ to connect the oil pipes.
Only skilled and authorized personnel is allowed to pe rform the
operations.
Pay particularly attention to the oil pipe fitting protection.
Refer to the “oil pipe diagram” while:
connecting pipes, pay attention to the oil pipe joint protections
to prevent impurities from entering t he hydraulic cir cuit.
connecting the oil pipes, be careful not to mistake the oil pipe
Open the front cover on the control box.
Connection of power supply:
The three-phase connection cables with 5 poles 400V (5 x 2.5 mm- cable dimension) are connected
to the control box . The PE ground cable must be connected under the marked clamp and then
connected to the plugs of the two bases.
If the lift is operated at 230V three-phase, a dierent electrical diagram must be used. Request it
to the lift manufacturer.
If the lift is operated at 230V single-phase, a dierent electrical diagram must be used. Request it
to the lift manufacturer.
Connection of upper limit switch(SQ1): see the connection on the circuit diagram.
Connection of lower limit switch(SQ2): see the connection on the circuit diagram.
Picture 13 up limit switch Picture 14 lower limit switch
Picture 16 (photocell sensor)
Picture 17
Picture 15 Limit switch positioning

PE 6001T DOUBLE SCISSOR LIFT 3T
reference numbers.
- In the case of a standard installation, the control unit is close to the vehicle’s entry direction.
If it is positioned to the right, it is necessary to adjust also the oil pipe.
Oil pressure adjustment:
Add hydraulic oil as instructed.
After installing the lift, as required in Picture 4, and after connecting the hydraulic /electrical circuits
and any other pneumatic circuits, proceed as follows:
open the hydraulic oil tank and add 18L of hydraulic oil - type H46 - into it. The hydraulic
oil is not supplied by the manufacturer.
Make sure the hydraulic oil does not have impurities to avoid the malfunction of the
solenoid valve.
activate the «MAIN SWITCH» button to turn on the power, by clicking the ‘UP’ button
proceed checking that the engine rotates clockwise ( by looking down), if it’s not turn o
the «MAIN SWITCH» and then change the motor phase.
When power is switched on, the high voltage in the control box is activated. Only
authorized person can do such operation.
Pressing the ‘UP’ button the engine starts to bring the platforms to the maximum height that can
be reached.
Open the control box door, and press the “UP” and “SB4» button, as shown in picture 20, for a few
minutes until the all the air outflow from the hydraulic circuit.
Press the ‘DOWN’ button until the platforms stop at the minimum permissible height and then
press the « SECOND DOWN» button, in this way the platforms will reach the closing position.
The oil pressure adjustment is now completed.
1)
2)
3)
4)
Picture 20 The level setting button (SB4)
CALIBRATION

PE 6001T DOUBLE SCISSOR LIFT 3T
ANCHOR PLUG INSTALLATION:
The anchor plugs installation must be carried out simultaneously whit the installation of the lift,
this is to ensure the stability of the structure and a perfect seal:
Leveling:
Lift loading test:
Picture 21
Picture 22
Adjust the base parallelism and the distance between the two platforms.
Fasten the anchor plugs with a percussion electric drill, poke a 120 mm hole and clean it
before inserting the dowels. (Picture21)
Use a rubber hammer to insert the dowels into the floor.
Use a level to adjust the leveling of the bases.
If the irregularity of the platforms is due to the irregularity of the bases, use an iron thickness
to level it.
After adjusting the level, insert the anchor and use a hammer to secure it.
Switch one the machine with the «MAIN SWITCH» power button.
Press the “UP” button, and pay attention to the synchronization and to the lifting fluidity.
Check that there is no leakage of oil.3
The gap between the base plate and the ground after the adjustment has to be filled with
an iron or concrete plate.
During the test of the lift, no person, object and or material must be located near the two sides
and below the lift. If an anomaly occurs, press the “EMERGENCY STOP” button to stop the lift
immediately. After removing the obstacles repeat the test.

PE 6001T DOUBLE SCISSOR LIFT 3T
Test of load:
Drive a vehicle, with a weight that does not exceed the maximum allowed lifting weight,
on the platform. At this point the driver must leave the car.
Put the rubber buer on the platforms.
Press the ‘UP’ button, lift the platforms and pay attention to the synchronization the
fluidity of the lift.
Check that there is no leakage in the hydraulic oil line.
When starting the load test no person or other things are allowed to stand below or close
to any of the moving parts of the lift.
Process the test with vehicle that does not exceed the maximum permissible lifting weight.
Check and make it sure that there is no leakages on the hydraulic circuit. If an anomaly
occurs, press the “EMERGENCY STOP» button to stop the process immediately.
Resolve the problem and repeat the test again.
Before any operation, remove possible obstacles from the lifting area of the lift.
When lifting or lowering the platforms, no operator is allowed to stand in the lateral side
of the machine, underneath it or on both platforms.
Avoid lifting those vehicles whose weight is above the maximum permissible lifting
weight.
When placing the vehicles on the platforms, make it sure that the body is resting on the
rubber pads supplied.
Pay attention to the synchronization of the lift. If there are anomalies, stop the lift
immediately, check and resolve the problem.
When the equipment is not going to be used for a long period of time or during the night
hours lower the platforms to their full stop, remove the vehicle from the lift and stop the
power supply.
Check the procedure as follows.
Operating alerts:

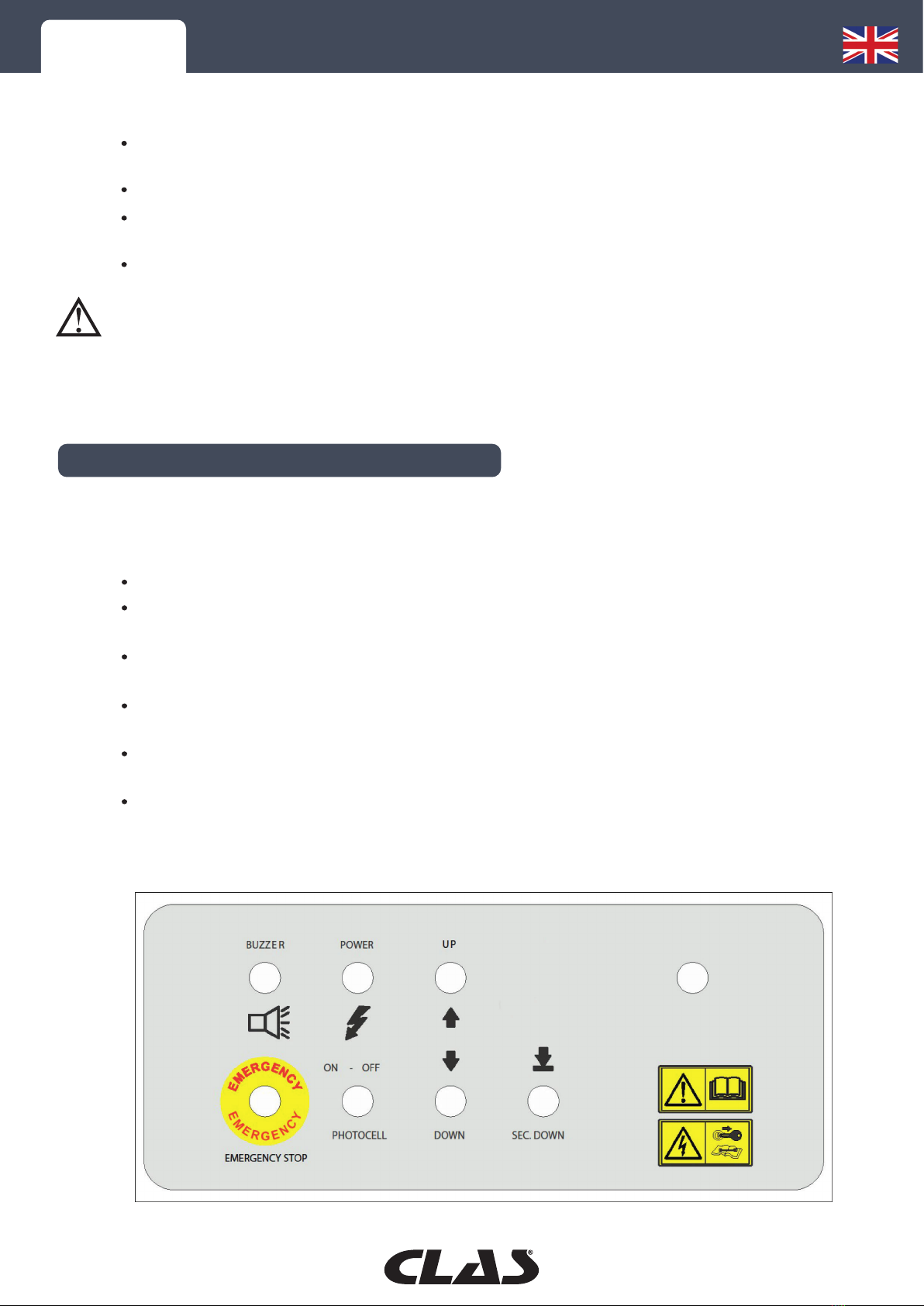

Instructions for the electronic drive: (see picture 23)
MODE OF OPERATION

PE 6001T DOUBLE SCISSOR LIFT 3T
Test of load: LIFTING:
DESCENT:
LOCK:
STOP FOR PLATFORM DISALIGMENT:
EMERGENCY STOP:
By Pressing the ‘UP’ button the platforms will rise. Platforms will stop climbing when
they reach the upper limit.
By Releasing the ‘UP’ button, the oil pump stops working and the platforms stop lifting.
By pressing the ‘DOWN’ button, the platforms will begin to descend.
By releasing the ‘DOWN’ button, the platforms will stop descending.
When the “DOWN” button is kept pressed, the platforms continue to descend
automatically, stopping at a high of about 330mm reaching the lower limit switch. By
releasing the “DOWN” button and pressing the “SEC. DOWN» button the platforms will
go down to their closing position.
Press the ‘SEC. DOWN’ button to lock the platform when the lift is in the required position.
When the platforms are not leveled, follow the process described in the next paragraph to
adjust the alignment. The lift can only be put into use after the two platforms have been
placed back at the same level.
If the lift has a malfunction while a vehicle is on the platform, press the «EMERGENCY STOP»
button to stop the entire operating circuit and to interrupt any other operations.
HYDRAULIC OIL ADJUSTMENT (normal conditions of use):
EMERGENCY PROCEDURE FOR PLATFORM MANUAL LOWERING (POWER FAILURE):
After completing the installation process, the platform P1 is lower than the P2 one, this is due
to the air still present in the oil cylinder. When performing the “oil circuit setting operation”,
the lift must not be placed in operation and no weight have to be placed on the platform. The
adjustment process is shown at page 16.
During the manual lowering of the platforms observe the vehicle on
the deck until the operation is ended.
If anomalies occur during the process, immediately close the hydraulic
circuit safety valve.
The manual lowering process take place as follow:
You will notice that the platform will start to descend.
Place the «MAIN SWITCH» button on the “OFF” position (do not cut
o the power from the power supply).
Open the rear door of the control box and look for the valve figure 24.
Loosen slowly the RED final part of the oil valve.
Always check the correct floor leveling during lowering process.
After lowering the platforms immediately tighten the lower valve
screw.
The manual lowering process is now completed.

PE 6001T DOUBLE SCISSOR LIFT 3T
Symptom
The engine does not
work If the engine works by forcing the contactor with an
isolation rod, replace the contactor.
Connect the power cable to the power socket.
Modify the phases of the power cables
Check the limit switch, its cable and adjust or replace
the limit switch.
Check the plug and the descent valve, check that the
nut is properly sealed.
The safety pressure set on the overflow valve can be
increased by slightly rotating the right knob. The valve
is defective and should be replaced.
Remove the “antiknock valve” from the oil supply hole
placed at the bottom of the oil cylinder, and clean the
“antiknock valve”.
Replace the oil with an oil conforming to the operating
manual.
Refer to page 16 “Oil pressure adjustment
Operation”.
Check the hydraulic circuit and seals, then adjust the
pressure and the level of the oil.
Lubricate all pins and slider parts (including piston
rod) with mechanical oil.
Remove the “antiknock valve” from the oil supply hole
placed at the bottom of the oil cylinder, clean the
“antiknock valve” or replace it.
Add hydraulic oil.
The power cable is not plugged in by
the power outlet.
The AC contactor does not work.
The limit switch is not closed.
The motor turns reverse.
Lifting with light load works
normally but not with heavy load.
The hydraulic oil has a high viscosity, is
deteriorated or frozen (in Winter).
The air in the hydraulic circuit has not
been completely removed.
Oil leakages along the oil pipe or one
of its joints.
The lubricant is not enough.
The “antiknock valve” is blocked.
The amount of hydraulic oil is not
enough.
The descent valve is activated but does
not work.
The “antiknock valve” is blocked.
In lifting
operation, the motor
runs, but there is no
lifting
movement
The lift lowers very slowly
when subjected
to standard weight loads.
Platform P1 and P2 are
misaligned
Noisy lifting and
lowering
Cause Troubleshooting
Maintenance operations are only allowed to personnel with adequate training.
All pins and upper/lower sliding blocks of the lift must be lubricated regularly.
Hydraulic oil should be replaced once a year.
The oil level should always reach at least the upper limit indicated.
When replacing the oil, the lifting platforms of the lift must always be in the closed position, then
proceed with the extraction of the used oil.
The lift maintenance technicians must check that the pneumatic safety valve is reliable and in
operation.
Using the Lift:
MAINTENANCE & CARE
TROUBLESHOOTING
