Classic Cantabile DP-30 User manual

00032968/00033008
Version 08/2013
DP
-
30
Digital Piano
Users manual

INFORMATION FOR YOUR SAFETY!THE FCC REGULATION WARNING (for USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.Unauthorized changes or modification to this system can void the user's authority to operate this equipment.CAUTIONThe normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner's manual. In case the function could not resume, please use the product in other location.PRECAUTIONSPLEASE READ CAREFULLY BEFORE PROCEEDING Please keep this manual in a safe place for future reference. Power SupplyPlease connect the designated AC adaptor to an AC outlet of the correct voltage.Do not connect it to an AC outlet of voltage other than that for which your instrument is intended.Unplug the AC power adaptor when not using the instrument, or during electrical storms.ConnectionsBefore connecting the instrument to other devices, turn off the power to all units. This will help prevent malfunction and / or damage to other devices.LocationDo not expose the instrument to the following conditions to avoid deformation, discoloration, or more serious damage: Direct sunlight Extreme temperature or humidity Excessive dusty or dirty location Strong vibrations or shocks Close to magnetic fieldsInterference with other electrical devicesRadios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.CleaningClean only with a soft, dry cloth.Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.HandlingDo not apply excessive force to the switches or controls.Do not let paper, metallic, or other objects into the instrument. If this happens, unplug the AC adaptor from the wall outlet. Then have the instrument inspected by qualified service personnel.Disconnect all cables before moving the instrument.205257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:00

ContentsPanel DescriptionFront Panel...............................................................4Rear Panel....................................................................................................................................................................5SetupPart List........................................................................................................................................................................6Setup Guide..................................................................................................................................................................7Power Supply................................................................................................................................................................8ConnectionsConnecting a pair of Headphones................................................................................................................................9Connecting an Audio Equipment..................................................................................................................................9Connecting an MP3/CD................................................................................................................................................9 Connecting a Computer................................................................................................................................................9Listening to the Demo song...........................................................................................................................10Adjusting the Volume........................................................................................................................................10Playing VoicesSelecting a Voice........................................................................................................................................................10Playing two Voice Simultaneously..............................................................................................................................11Playing a Lower Voice................................................................................................................................................11Touch Response.........................................................................................................................................................11Digital Effects.......................................................................................................................................................12Metronome............................................................................................................................................................12Tempo......................................................................................................................................................................13Beep Tone..............................................................................................................................................................13Troubleshooting..................................................................................................................................................14Specifications......................................................................................................................................................14AppendicesVoice List.................................................................................................................................................................14MIDI Implementation List chart...................................................................................................................................15....................................................................................................305257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:01

Panel DescriptionFront Panel41. POWER ON / OFF Turn the power ON or OFF.2. MASTER VOLUME Adjust the master volume.3. FUNCTION Button Hold down this button and press the special keys to realize different functions.4. VOICE SELECT Key Hold down the [FUNCTION] button and press the key to select a voice.5. TEMPO ADJUST Key Hold down the [FUNCTION] button and press the key to adjust the current tempo.16. SUSTAIN Pedal Step on the sustain pedal, all notes played on the keyboard would have a longer sustain.17. SOSTENUTO Pedal Step on the sostenuto pedal, the notes played before you step on would have a sustain effect.18. SOFT Pedal Step on the soft pedal, all notes played on the keyboard would have a softer effect.12345161718
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:01

Panel DescriptionRear Panel512. Connect to a computer.13. AUX. OUT Jack Connect the audio equipment. 14. AUX. IN Jack Connect an external sound source, such as an MP3 or CD player.15. DC IN Jack Connect the DC 12V power adaptor.USB Jack678910116. METRONOME Key Hold down the [FUNCTION] button and press the [ON/OFF] key to turn the metronome ON or OFF. Hold down the [FUNCTION] button and press the other key to select the time signature.7. REVERB Key Hold down the [FUNCTION] button and press the [ON/OFF] key to turn reverb effect ON or OFF. Hold down the [FUNCTION] button and press the other key to select the reverb type.8. CHORUS Key Hold down the [FUNCTION] button and press the [ON/OFF] key to turn chorus effect ON or OFF. Hold down the [FUNCTION] button and press the other key to select the chorus type.9. TOUCH Key Hold down the [FUNCTION] button and press the key to select different touch response level.10. DEMO Key Hold down the [FUNCTION] button and press the key to start or stop playing the demo song.11. BEEP Key Hold down the [FUNCTION] button and press the key to turn the prompt tone ON or OFF.
DC IN
14131215
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:02

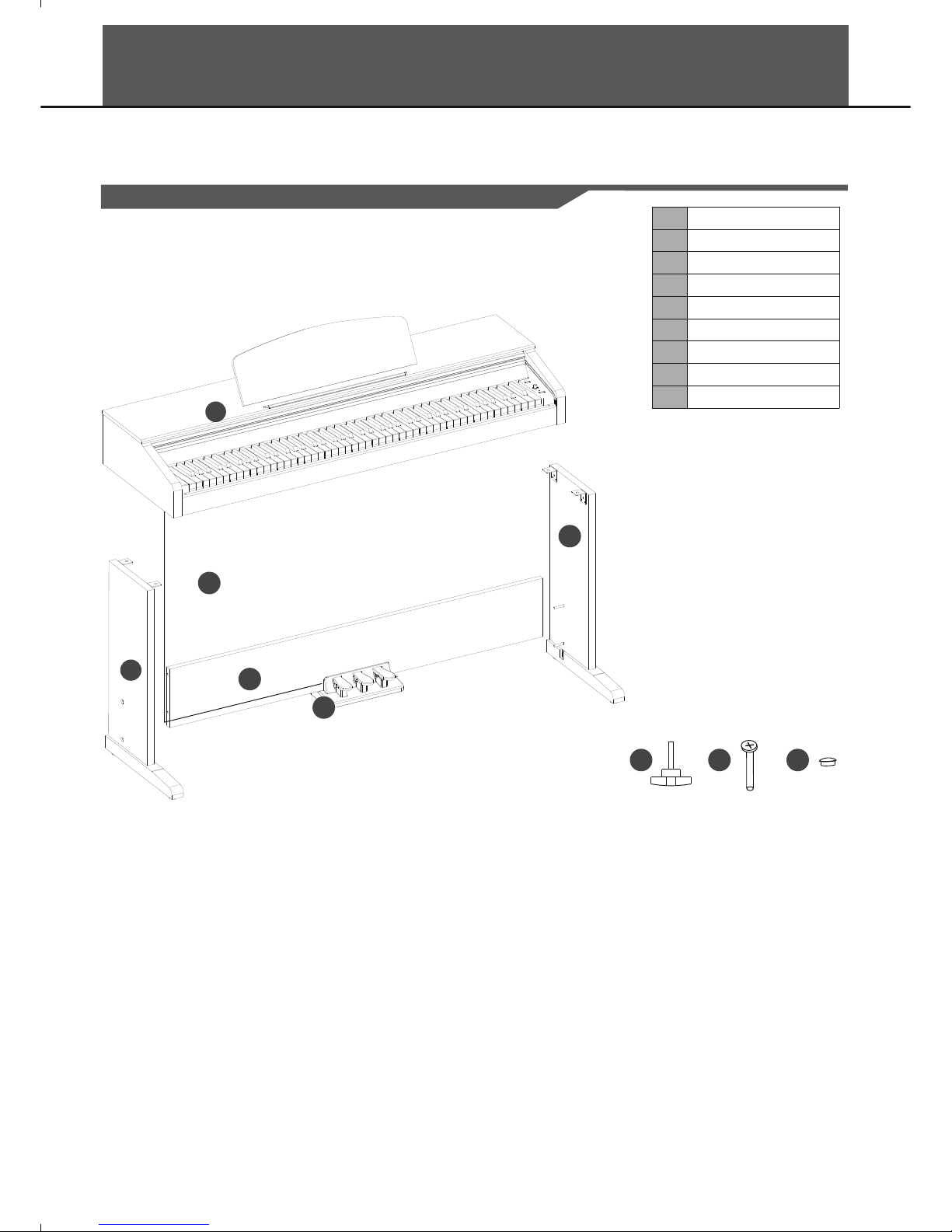

SetupThis section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Before you proceeding to assemble the stand, get a Philip's screwdriver (not supplied).Make sure you have the following parts, which are supplied into package.Part List61. Piano Cabinet2. Support Plate3. Pedal Box4. Left Feet edge board5. Right Feet edge board6. Hand Screw7. Screw CM6*50mm(4)8. Screw Cover(4 pcs)9. Pedal Cable124567893
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:02

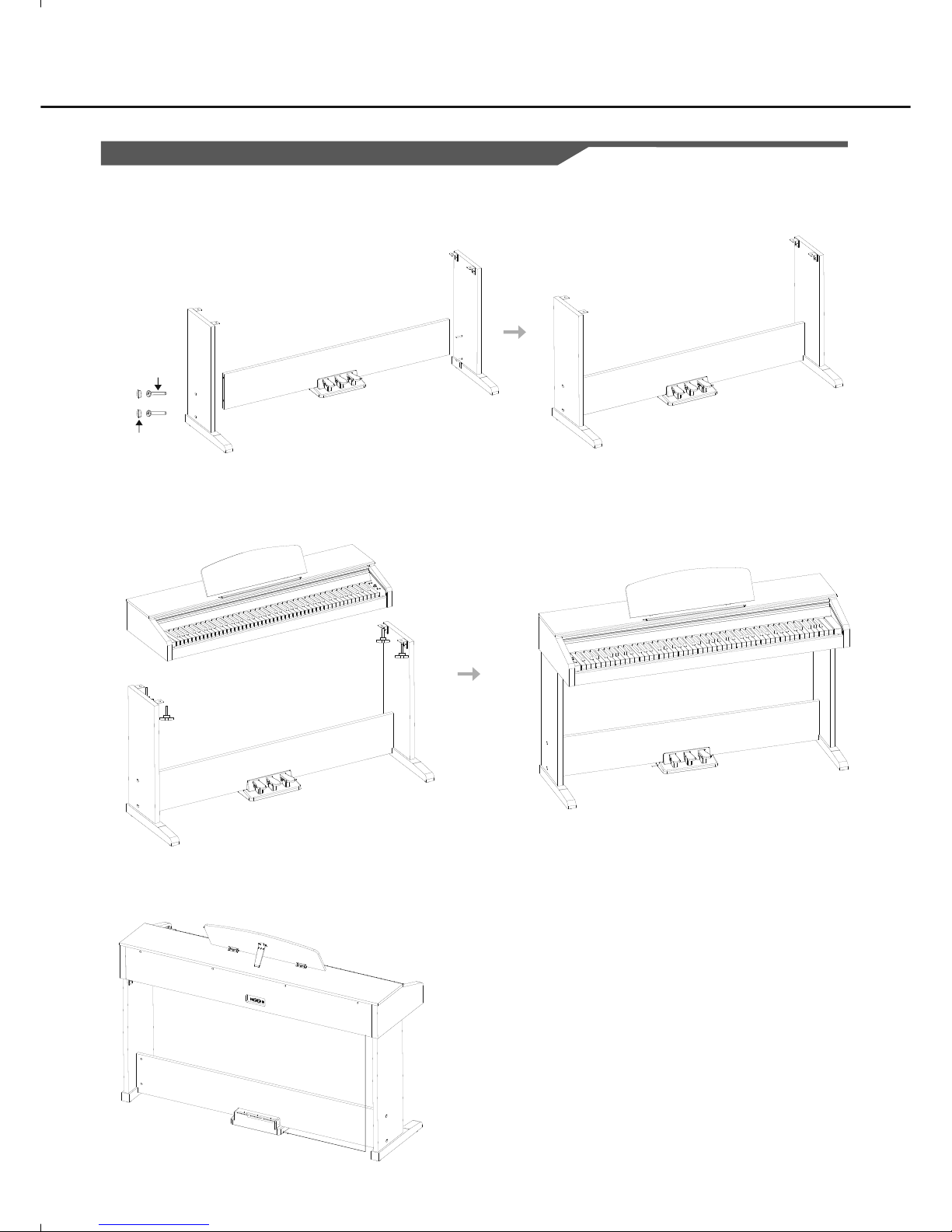

Setup7B. Place the piano cabinet [1] on the stand, fix it with Hand Screw [6].C. Insert the pedal cable [9] into the proper socket of the cabinet [1].Hand screw [6]Setup GuideA. Fix and well tighten the left and side boards [4] & [5] to the Support Plate[2] with Screw CM6*50mm(4pcs) [7]. The screw Cover(4pcs) [8] above Screw CM6*50mm(4pcs) [7].rightScrew CM6*50mm [7]Screw Cover [8]
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:03

SetupPower Supply1. Make sure that the piano is turned off. Before you switch your piano on or off, turn down the volume of piano and any connected audio equipments first.2. Connect the AC adaptor to the power supply jack.3. Plug the AC adaptor into an AC outlet.4. Press the [POWER] button, the LED display will lights up, that indicates the piano has powered on.5. If you are ready to turn off the piano, press the [POWER] switch again.Note:1. In order to save energy, we have designed the “Automatic Shutdown” function to the piano. With this function, the piano will shutdown automatically when you have left it idle for more than 30 minutes. If you don't need this feature, just press and hold the [A0] key (the 1st key) and turn it on.2. When the piano is not in use or during thunderstorm, please disconnect the power for safety purpose.8
DC IN
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

ConnectionsConnecting a pair of HeadphonesA standard pair of stereo headphones can be plugged in here for private practice or late-night playing.Jack1: When a pair of headphones is plugged into the Jack 1, the sound can be heard from headphones and speakers of the instrument.Jack2: When a pair of headphones is plugged into Jack 2, the internal stereo speaker system is automatically shut off . The sound can be heard from headphones. Note：Do not listen with the headphones at high volume for long periods of time. Doing so may cause hearing loss.Headphone Jack 1Headphone Jack 2
Connecting an Audio EquipmentThe rear-panel AUX.OUT jack delivers the output of the instrument for connection to a keyboard amplifier, stereo sound system, a mixing console, or tape recorder. Use an audio cord to plug into the AUX.OUT jack located on the rear board then plug the other end of the cord into AUX.IN of the amplifier.Note:To avoid damaging the speakers, please ensure that the volume has been set to the minimum level before connecting the power and other devices.Connecting a ComputerConnect PC or other USB host devices that support USB audio.For devices with USB cable, you can simply connect the MIDI/USB converter to your USB connector on the device and plug the USB cable into the piano, after the driver is installed and initialization is finished, you can choose USB Audio Device in the device menu of the software to transfer midi data.Note:Do not select USB audio device in both of input and output setting together, otherwise the sound overlaps.9Connecting an MP3/CD PlayerConnect the audio output of an MP3/CD player or other audio source to the stereo AUX. IN jack on the rear panel.The input signal is mixed with the piano signal, allowing you to play along.
DC INDC INDC IN
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

Listening to the Demo songWhile holding down the [FUNCTION] button, press DEMO key to start the demo song playing. Press it again to stop playing.The keyboard would be disabled when the demo song is playing.Adjusting the Volume 10Move the [VOLUME] knob rightwards, the volume increases. Moving it leftwards will turn the volume down.
Playing Voices
Selecting a Voice
While holding down the [FUNCTION] button, press corresponding key in voice selecting area to select the voice you want.Note: While only one voice is selected, the dual voice and lower voice will be turned off automatically.
Electric Piano
Electric Piano
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

Playing two Voice Simultaneously
You can play two voices synchronously on the keyboard by selecting a dual voice. While holding down the [FUNCTION] button, press 2 keys simultaneously in voice selecting area. Press the first key to select the upper voice, press the second key to select the dual voice.Notes: , Whiledualvoiceisturnedonlowervoicewouldbeturnedoff automatically.
Playing a Lower Voice
11While holding down the [FUNCTION] button, select the on the keyboard. This will select Strings (Lower) as lower voice and split the keyboard at F#3 automatically.Strings (Lower)Split PtLower
Electric Piano
Electric Piano
Electric PianoElectric Piano
Playing Voices
Touch Response
While holding down the [FUNCTION] button, press a key in the TOUCHselectingareatoselectdifferenttouchresponselevel.0: OFF1: Soft2: Medium3: Hard
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

12Digital EffectsWhile holding down the [FUNCTION] button, press the corresponding keys in effect setting area to select the voice effect type.Reverb Value:0: OFF1: Room2: Small Hall3: Large Hall4: StadiumChorus Value:0: OFF1: Light Chorus2: Medium Chorus3: Deep Chorus4: FlangerMetronomeTurn on the metronome:While holding down the [FUNCTION] button, press METRONOME ON/OFF key to turn the metronome ON or OFF. Select different time signature: While holding down the [FUNCTION] button, select a demanded time signature by pressing the corresponding keys in metronome setting area. There are 6 types of time signature: 0, 2, 3, 4, 5, 6.
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

While holding down the [FUNCTION] button, press beep key to turn the Beep Tone ON or OFF. The default setting is ON.If you turn on the beep tone, you can hear a beep sound when you press a valid functional key while the [FUNCTION] button is held down.TempoBeep ToneWhile holding down the [FUNCTION] button, press corresponding keys in TEMPO selection area. You can change the tempo by input number or using tap tempo, or press tempo +/- keys to change current tempo. Notes: 1. Press [tempo +] and [tempo –] keys simultaneously to set the tempo value back to the default (120).2. The tempo range is :30 ~ 2803. If you want to change tempo value by the number keys, you should input 3 numbers. For example, if you want to set the tempo value as 85, you should input “085”.13
+-
+-
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:04

TroubleshootingProblemThe speakers produce a “pop” sound whenever the power is turned ON or OFF.No sound when the keyboard is played.When using a mobile phone, noise is produced.Possible Cause and SolutionThis is normal and is no cause for alarm. Make sure the voice volumes are set at appropriate levels.Using a mobile phone in close proximity to the instrument may produce interference. To prevent this, turn off the mobile phone or use it further away from the instrument.SpecificationsAppendices
Voice List
12.Grand Piano 23.Electric Piano4.Harpsichord5.Vibraphone .Grand Piano 1 Church Organ Stereo Strings Sweet Trumpet Soprano Sax Sweet Oboe Lower: Strings (Lower) 6.7.8.9.10.Keyboard88 Hammer-action keysPolyphony64Voice11(including 1 Lower Voice)Demo1Tempo30-280Control ButtonPower On/Off switch, Volume, Function.Control KeyVoice Select Keys, Tempo Tap, Tempo +/-, Tempo Number Keys, Metronome On/Off, Metronome select keys, Reverb On/Off, Reverb Type Select Keys, Chorus On/Off, Chorus Type Select Keys, Touch On/Off, Touch Select Keys, Demo, Beep.ConnectorsDC IN, Headphones (2 standard. ¼” phone), AUX IN, AUX OUT, USB, Pedals(Sustain, Soft, Sostenuto)Power SupplyDC INSpeaker20W + 20WDimensions1370(W) x 435(D) x 830(H) mmWeight44KG14
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:05

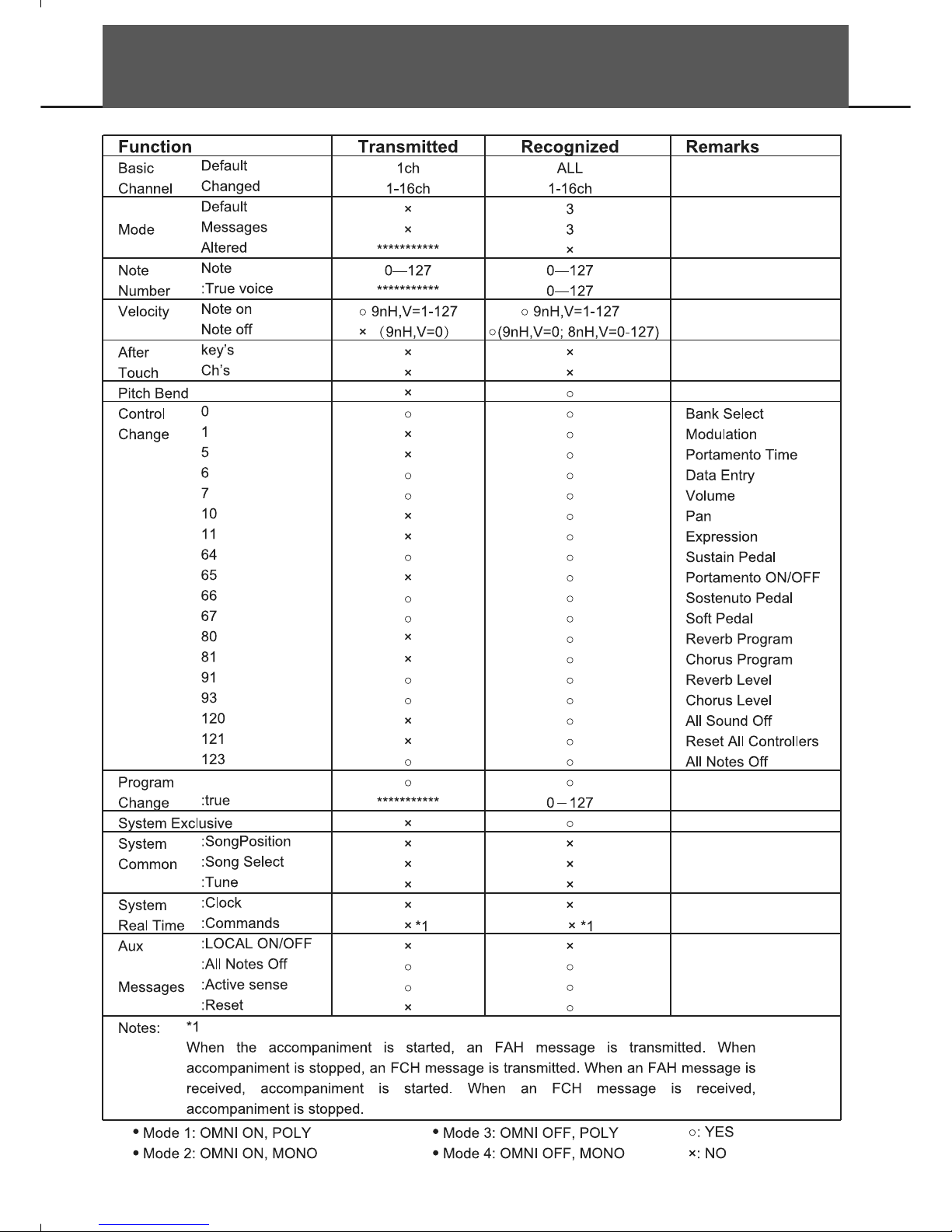

15MIDI Implementation List chart
05257595100aw_DP10Serp_Manual_G03_1211162012󾾠󾾠11󾾠󾾠16󾾠󾾠 12:58:05

WEEE-Declaration / Disposal
Your product is designed and manufactured with materials and components of high quality, which are recyclable
and can be reused. The symbol means that your product should be disposed of separately from household waste
when it reaches its end of life. Please dispose of this equipment at your local collection point or recycling center.
Please help to protect the environment in which we all live.
All specifications and appearances are subject to change without notice. All information was correct at time of printing.
Musikhaus Kirstein GmbH does not guarantee for the accuracy or completeness of any description, photograph or statement
contained in this manual. Printed colors and specifications may vary slightly from product. Products from Musikhaus Kirstein
GmbH are only sold through authorized dealer. Distributors and dealers are not agents of Musikhaus Kirstein GmbH and have
no authority to bind Musikhaus Kirstein GmbH legally in any way. This manual is protected by copyright. Any copying or reprint,
even in excerpts, is only allowed with written consent of Musikhaus Kirstein GmbH. The same applies to reproduction or copying
of images, even in altered form.
Musikhaus Kirstein GmbH
Bernbeurener Strasse 11
86956 Schongau
Telefon: [phone]
Telefax: 0049-909494-19
www.kirstein.de
