WHAT’S INCLUDED (STRAIGHT BAR):
1 x LED Light Bar
Side and Bottom Mounting Brackets & Hardware
WHAT’S INCLUDED (CURVED BAR):
1 x LED Light Bar
Side Mounting Brackets & Hardware
HIGH POWER DUAL ROW LIGHT BAR
CLDBAR12D / CLDBAR20D / CLDBAR30D /
CLDBAR40D / CLDBAR50D / CLDBAR20DC /
CLDBAR30DC / CLDBAR40DC / CLDBAR50DC
FEATURES & SPECIFICATIONS:
Light Output: 4,720 - 18,940 Lumens
LEDs: OSRAM P8
Power: 120W - 600W @ 13.6V DC
Voltage: 10 - 36V DC
Optional Length:
12", 20", 30", 40" and 50" for Straight Bars
20", 30", 40" and 50" for Curved Bars
Beam Pattern: Spot/Flood Combo
20" Straight Light Bar (For Example)
MOUNTING INSTALL INSTRUCTION
20" Curved Light Bar (For Example)

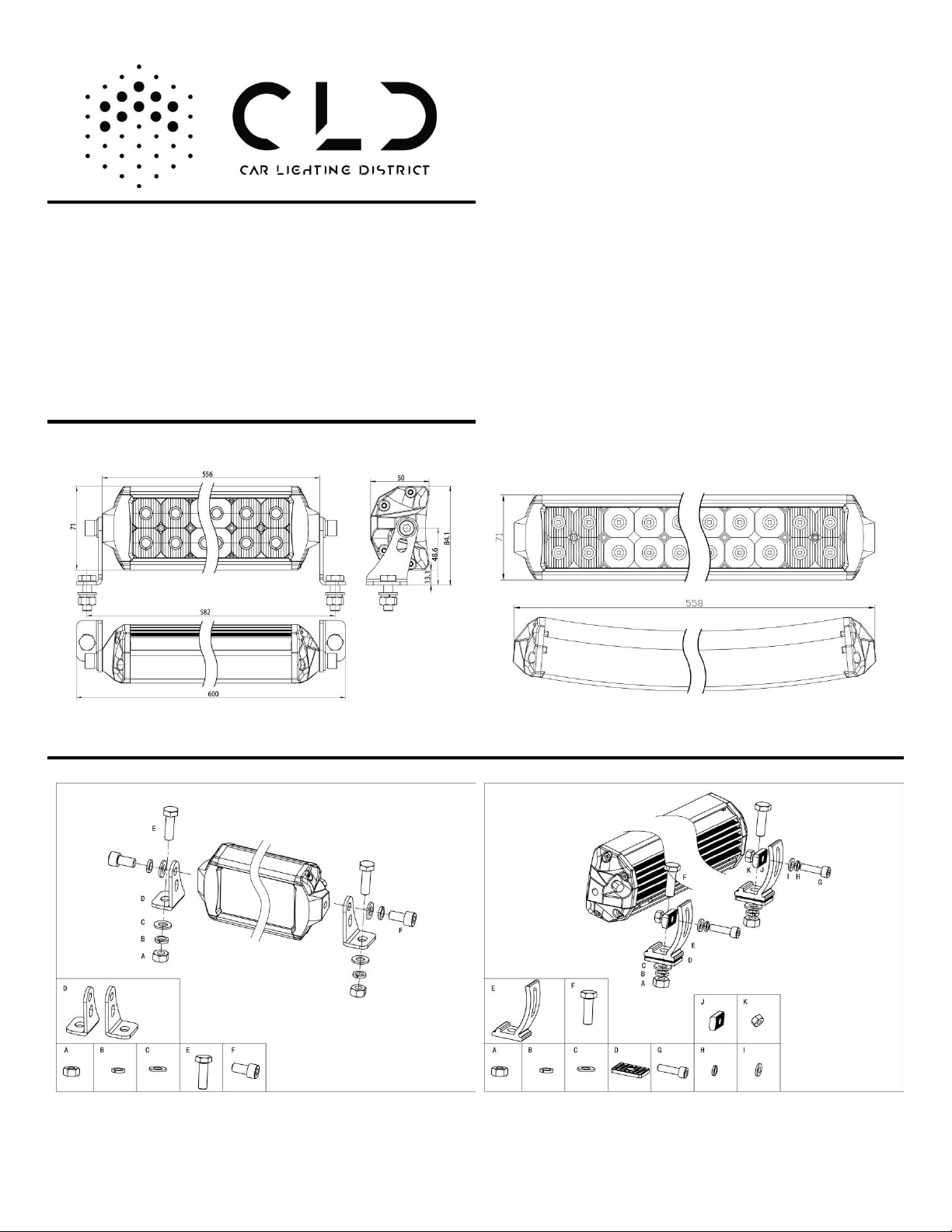

Dimensions: mm
Side Mounts
Bottom Mounts (ONLY FOR STRAIGHT BAR)

CLDBAR12D / CLDBAR20D / CLDBAR30D / CLDBAR40D / CLDBAR50D
/ CLDBAR20DC / CLDBAR30DC / CLDBAR40DC / CLDBAR50DC CLDLED.COM
2
INSTALL INSTRUCTION
For Two 12" Light Bars
For One 12", 20", 30", 40" or 50" Light Bar
1. Determine the appropriate mounting locations to install the LED light bars, wiring harness and
switch. Once all mounting locations are confirmed, connect the wires as shown above. Proper
insulation at connections is required.
2. Connect positive wire and negative wire properly. Press the switch to test if the lights are working
properly.
3. Adjust the light to the desired angle and then secure by tightening all mounting screws.
