Elation Waterfall 250 User manual

Rev 03/05
F O C U S S P O T 2 5 0
Elation Professional
4295 Charter Street
Los Angeles, Ca 90058
www.elationlighting.com

Focus Spot 250™
©Elation Professional® - １– Focus Spot 250™
INTRODUCTION: Congratulations, you have just purchased one of the most innovative
and reliable lighting fixtures on the market today! The Focus Spot 250™, has been
designed to perform reliably for years when the guidelines in this booklet are followed.
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this unit. These instructions contain important information regarding
safety during use and maintenance.
UNPACKING: Thank you for purchasing the Focus Spot 250™ by Elation Professional®.
Every Focus Spot 250™ has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your unit for damage
and be sure all accessories necessary to operate the unit have arrived intact. In the event
damage has been found or parts are missing, please contact our customer support team for
further instructions. Please do not return this unit to your dealer without first contacting
customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: suppo[email protected]
Forum: www.ElationLighting.com/forum/
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

Focus Spot 250™
©Elation Professional® - ２– Focus Spot 250™
yourself, doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The Focus Spot 250™ carries a two year (730 days) limited
warranty. Please fill out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid and accompany a
return authorization (R.A.) number. The R.A. number must be clearly written on the outside
of the return package. A brief description of the problem as well as the R.A. number must
also be written down on a piece of paper and included in the shipping container. If the unit is
under warranty, you must provide a copy of your proof of purchase invoice. Items returned
without a R.A. number clearly marked on the outside of the package will be refused and
returned at customers expanse. You may obtain a R.A. number by contacting customer
support at [phone].
DISCHARGE LAMP WARNING: This fixture is fitted with a discharge
lamp, which is highly susceptible to damage if improperly handled. Never
touch the lamp with your bare hands, as the oil from your hands will
shorten lamp life. Also, never move the fixture until the lamps have had
ample time to cool. Remember, lamps are not covered under warranty
conditions.
This fixture emits intense UV radiation, which is harmful to the eyes and skin. The intense
luminance of the lamp can cause severe damage to the retina. Never operate this fixture
with the protective covers removed, these covers have been specially designed to shield
against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the
lamp at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp
life and intensity.
To achieve the intensity associated with discharge lamps, these lamps use a gas sealed in a
high-pressure environment to emit a brilliant output. Due to the high pressure involved with

Focus Spot 250™
©Elation Professional® - ３– Focus Spot 250™
the construction of the lamp, the lamp may explode during prolonged extensive use. This
risk is increased with age; added care is encouraged when dealing with older lamps. Thus,
lamp should always be replaced at the end of their recommended duty cycle. Extreme
caution should be used when operated this or any fixture fitted with a gas discharge lamp.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp.

Focus Spot 250™
©Elation Professional® - ４– Focus Spot 250™
Safety Instructions
The Focus Spot 250™ is an extremely sophisticated piece of
electronic equipment. To guarantee a smooth operation, it is
important to follow the guidelines in this manual. The
manufacturer of this device will not accept responsibility for
damages resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.
1. Always be sure that the fan and the air inlets remain clean and are never blocked.
Allow about 6” (15cm) between this fixture and other devices or a wall to allow for
proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personal
injuries and/or damage to the fixture.
3. Be sure to unplug the FOCUS SPOT 250™ from the power outlet before
performing any service related issues.
4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power
before you open the FOCUS SPOT 250™. To prevent personal injury, never touch
the lamp if you are not absolutely sure it has cooled.
5. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
6. Be sure to track and record the lamp running time. The lamp should be changed at
the end of the specified lamp life, regardless of lamp output. You may also have to
change the lamp if it shows any deformations or damage. The same is with all
glass components, color filters, lenses and mirrors.
7. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the FOCUS SPOT 250™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
8. Installation should only be performed by qualified and certified personal.
9. When mounting this fixture, use only the original rigging parts included with this
fixture. Any structural modification will void the original manufactures warranty and

Focus Spot 250™
©Elation Professional® - ５– Focus Spot 250™
may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this unit to rain or moisture.
11. Do not attempt to operate this fixture if the power cord is frayed or damaged.

Focus Spot 250™
©Elation Professional® - ６– Focus Spot 250™
Features
gPan 630° / Tilt 265°
g17° Beam Angle
g8 Dichroic color plus spot, for a total of 9 colors
g7 Rotating Gobos
gStrobe: 0~10Hz
gElectronic Focus via DMX
gSound Active – Master/Slave Operation
g4 Segment Digital LED
gHigh speed pan & tilt movements
gReversible Display (Can be turned 180°)
gBright MSD 250 Discharge Lamp
gLamp switches ON/OFF locally
gGlass Dischoric Reflector for Even Lamp Dispersement
gSwitchable Power Supply (Internal)
gInternal Program:
edit and save programs to the incorporated EEPROM through the front control panel or
external controller; you can save a maximum of 48 scenes, and run the saved programs
by using the “run” menu on the front control panel
This device falls under protection-class I. Therefore it is essential that the device be
grounded properly.
All electrical connections must carried out by qualified person.
Be sure the available voltage matches the voltage requirements of the unit..
Be sure the power cord is never crimped or damaged. If the power cord is damaged, replace
it immediately with a new one of similar power rating.
Always disconnect from the mains, when the device is not in use or before performing any
service or cleaning procedure.

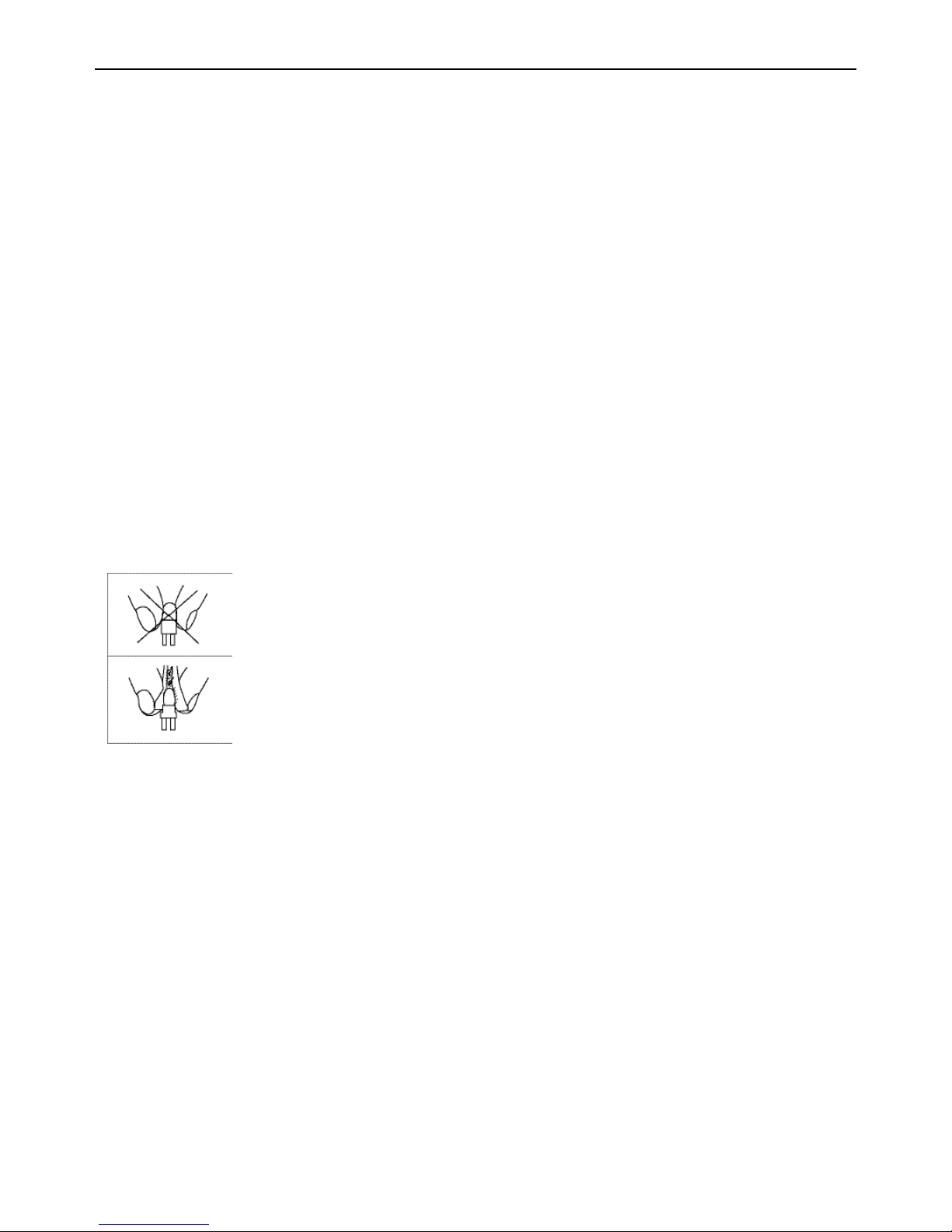

Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of
the cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually over time.

Focus Spot 250™
©Elation Professional® - ７– Focus Spot 250™
Never look directly into the light source,
as sensitive persons may suffer an epileptic shock.
Never touch the device during operation!
The housing may heat up
Please be aware that damages caused by manual modifications to the device are not
subject to warranty.
Keep away from children and non-professionals.
GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc.
This fixture is only allowed to be operated with the max alternating current which is stated in
the technical specifications in the last page of this manual. This device was designed for
indoor use only.
Consistent operation breaks may ensure that the device will serve you for a long time
without defects.
Do not shake the device. Avoid brute force when installing or operating the device.
While choosing the installation-spot, please make sure that the device is not exposed to
extreme heat, moisture or dust. The minimum distance between light-output from the
projector and the illuminated surface must be more than 0,5 meter.
Always fix the fixture with an appropriate safety cable if you use the clamp to hang up the
fixture. When fixing the device on a raised-from-the- ground support, be sure to use no less
than screws and nuts of M10 x 25 mm and insert them in the pre-arranged screw holes in
the base of the fixture.

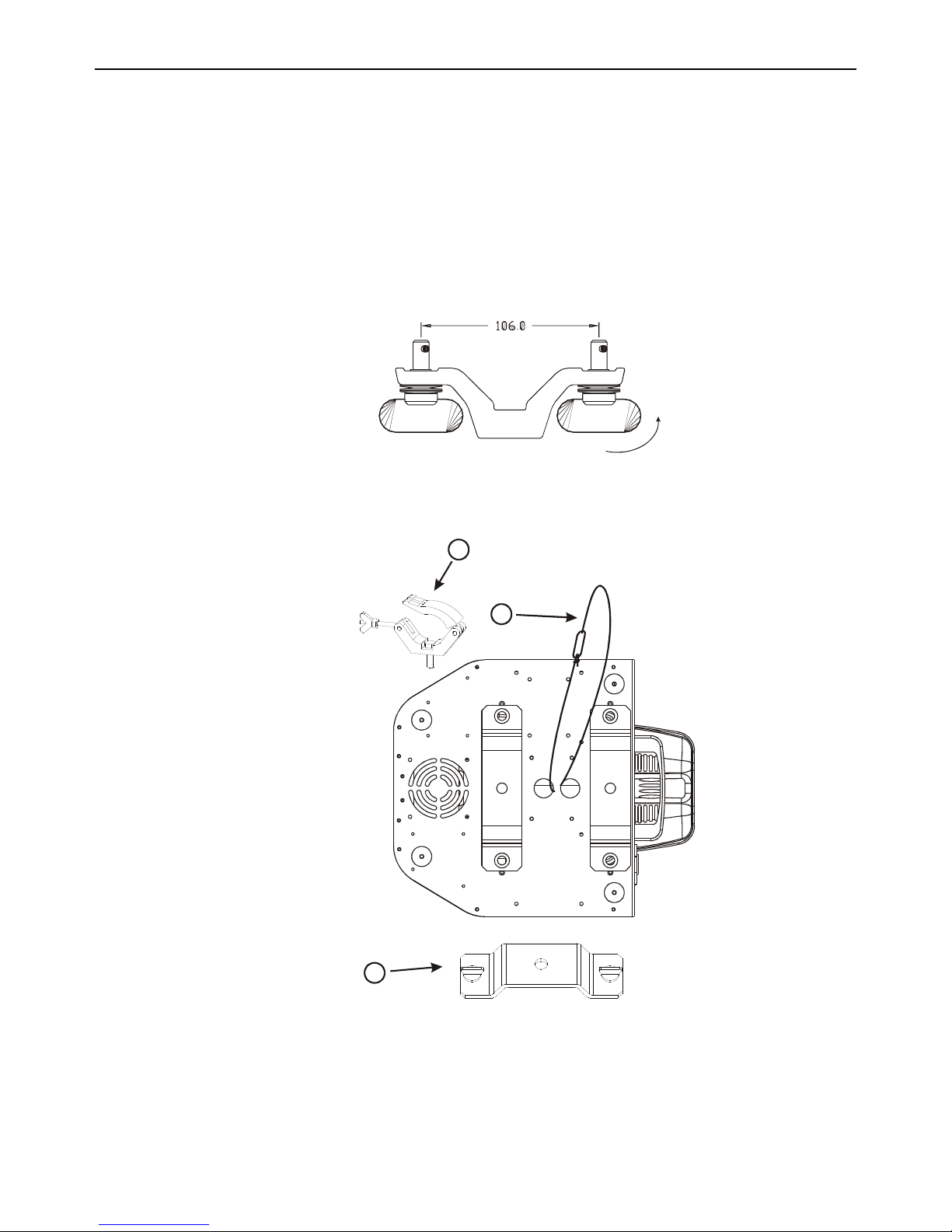

If you use the quick lock cam in hanging up the fixture, please make sure the 4 quick lock
fasteners turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation

Focus Spot 250™
©Elation Professional® - ８– Focus Spot 250™
by persons not qualified for operating the device. Most damages are the result of
unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.
If this device will be operated in any way different to the one described in this manual, the
product may suffer damages and the guarantee becomes void. Furthermore, any other
operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc.

Focus Spot 250™
©Elation Professional® - ９– Focus Spot 250™
LAMP INSTALLATION INSTRUCTIONS
a) Installing or replacing the lamp
Only install the lamp with the device unplugged from the mains.
The lamp has to be replaced when it is damaged or deformed.
Before replacing the lamp be sure the unit has ample time to cool, to avoid injury to yourself
never touch the lamp when it is hot.
During the installation of halogen lamps do not touch the glass bulbs bare handed. Always
use a cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage. They generate higher temperatures than which
the device was designed for.
For the installation, you need one MSD250/2 GY9.5 lamp ;
Procedure :
1. Remove the two thumb screws labeled “A” and “B” on the rear housing of the head.
2. Gently pull the lamp/socket assembly to access the lamp.
3. Gently remove the old lamp by grasping it by the ceramic base.
4. Carefully insert the new lamp into the socket. Please remember there is only one way to
insert the lamp. Once the lamp has be inserted into the socket, gently slide the socket

Focus Spot 250™
©Elation Professional® - １０ – Focus Spot 250™
assembly back into place and fasten the two thumb screws.
b) Lamp Optimization
The lamp orientation and optimization must be adjusted after every lamp change. This
procedure centers the lamp in the reflector. Proper optimization will increase lamp life and
ensure a bright crisp output. Improper optimization may add a yellow tint to the lamp output
and reduce intensity. The minimum deviation amount is 1.0mm. Running the fixture within a
lower deviation can cause damage to the lamp and/or lens.
The Focus Spot 250™ lamp holder is aligned at the factory. However, due to slight
imperfections in all lamps, fine adjustments will improve light performance. Please follow the
procedure below for proper lamp optimization:
1. Using either a DMX controller or the control panel on the unit, strike the lamp and
focus the light on a flat surface (beam open, white, no gobo, no effects).
2. Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws.
Turn one screw at a time to drag the hot-spot diagonally across the projected image.
If you cannot detect a hot-spot, adjust the lamp until the light is even.
3. To reduce a hot-spot, pull the lamp in by turning all three screws clockwise 1/4-turn at
a time until the light is evenly distributed.
4. If the light is brighter around the edge than it is in the center, or if light output is low,
the lamp is too far back in the reflector. "Push” the lamp out by turning each the
adjustment screws ("A, B, C”) counterclockwise ¼-turn until the light is bright and
evenly distributed.

Focus Spot 250™
©Elation Professional® - １１ – Focus Spot 250™
Do not operate this device with open cover
Please remember the lamp is not a hot-restrike type, you must wait approximately 10
minutes after having turned the lamp off before you can turn it back on again.

Focus Spot 250™
©Elation Professional® - １２ – Focus Spot 250™
Preparation and Installation
Mounting
The FOCUS SPOT 250™ is fully operational in two different mounting positions, hanging
upside-down from a ceiling or set on a flat level surface. To avoid internal damage to the unit,
never mount the unit on its side as illustrated below. Be sure this fixture is kept at least 0.5m
away from any flammable materials (decoration etc.). Install a safety cable that can hold at
least 10 times the weight of the fixture. Never use the carrying handles for secondary
attachment.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE
0711-217 for proper installation in Europe
To ensure proper installation, only qualified staff should
attempt installation.
Clamps
The FOCUS SPOT 250™ has been designed to hold multiple clamps to the bottom of the
unit in several different orientations. Always use an appropriately rated clamp to mount this
unit to truss. Refer to the printed instructions on the bottom of the fixture for proper clamp
installation.

Focus Spot 250™
©Elation Professional® - １３ – Focus Spot 250™
a) Cam lock System: This system allows a quick and efficient means to
secure a clamp to the unit. To attach a clamp to the unit, attach a clamp that
is rated to handle the weight of the unit to your cam lock. After a clamp has
been attached to the cam lock, attach the cam locks to the designated
position on the bottom of your unit. Lock the cam locks into position by
turning the wing nuts 90°.
90°
b) Be sure to always use two cam locks mounted to the bottom of unit to
ensure safe truss mounting.
2
3
1
1.Quick-lock fastener
2.Clamp
3.Safety-rope

Focus Spot 250™
©Elation Professional® - １４ – Focus Spot 250™
Secure the FOCUS SPOT 250™
Regardless of the rigging option you choose for your FOCUS SPOT 250™ always
be sure to secure your fixture with a safety cable. The fixture provides a built-in
rigging point for a safety cable on the underside of the fixture, be sure to use this
point and never secure a safety cable to a carrying handle.

Focus Spot 250™
©Elation Professional® - １５ – Focus Spot 250™
Connections

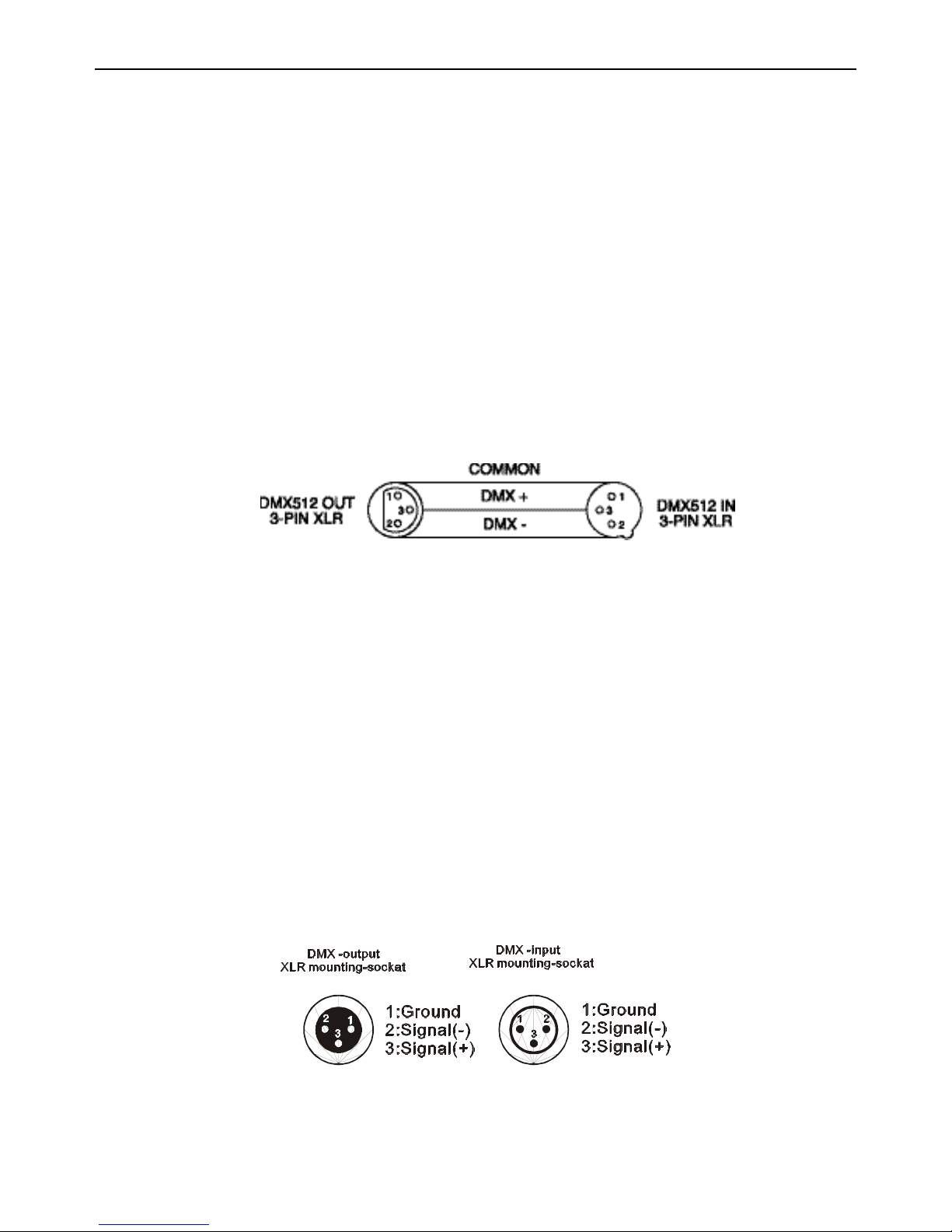

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation):
Your fixture and your DMX controller require a standard 3-pin XLR connector for data
input and data output (Figure Below). If you are making your own cables, be sure to
use standard two conductor shielded cable (This cable may be purchased at almost all
professional sound and lighting stores). Your cables should be made with a male and
female XLR connector on either end of the cable. Also remember that DMX cable must
be daisy chained and can not be split.
Be sure to follow the above figure when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram below.

Focus Spot 250™
©Elation Professional® - １６ – Focus Spot 250™

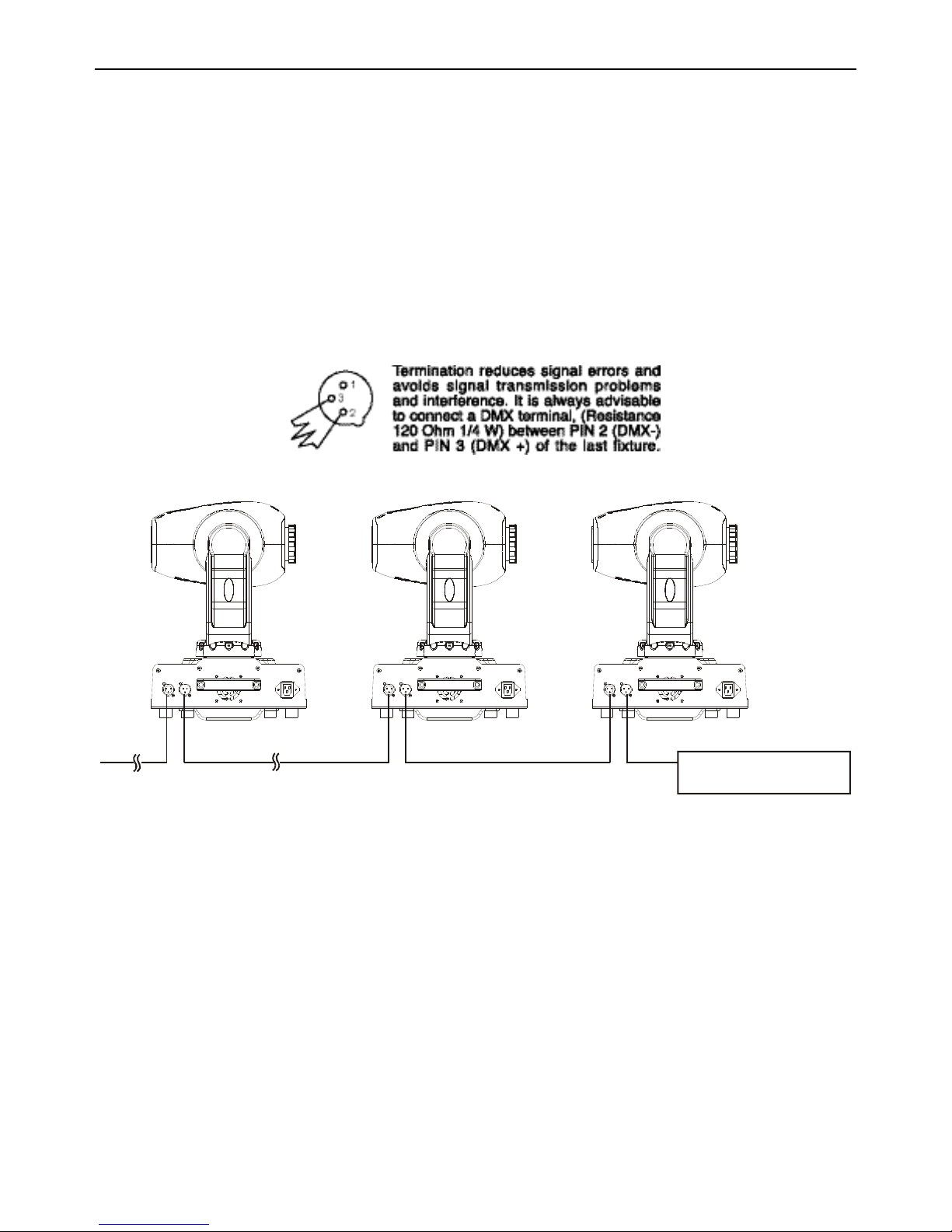

DMX-512 connection with DMX terminator
When longer runs of cable are used, you may need to use a terminator on the last fixture to
avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is connected
between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted
in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using
a cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
CONTROLLER

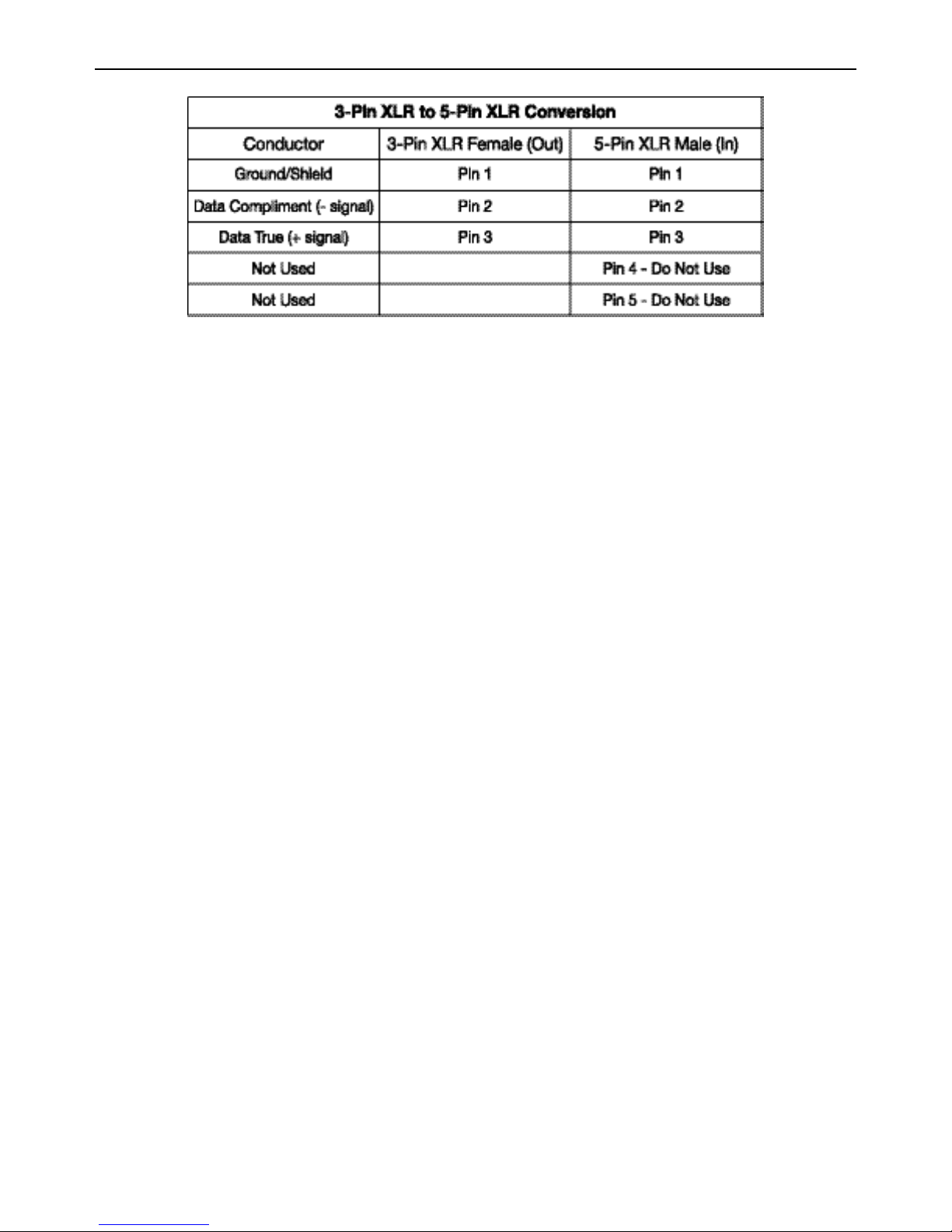

5-Pin XLR DMX Connectors . Some manufactures use 5-pin XLR connectors for DATA
transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX
line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must
be used, these adaptors are readily available at most electric stores. The following chart
details a proper cable conversion.

Focus Spot 250™
©Elation Professional® - １７ – Focus Spot 250™
Fixture DMX address;
All fixtures should be given a DMX starting address when using a DMX signal, so that the
correct fixture responds to the correct control signals. This digital starting address is the
channel number from which the fixture starts to “listen” to the digital control information sent
out from the DMX controller. The allocation of this starting address is achieved by setting the
correct number on the display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures , or make different
address for each fixture individually.
If you set the same address, all the units will start to “listen” to the same control signal from
the same channel number. In other words, changing the settings of one channel will affect all
the fixtures simultaneously.
If you set a different address, each unit will start to “listen” to the channel number you have
set, based on the quantity of control channels of the unit. That means changing the settings
of one channel will affect only the selected fixture.
In the case of the Focus Spot 250™, which is a 11 channel fixture, you should set the
starting address of the first unit to 1, the second unit to 12 (11 + 1), the third to 23 (12 + 11),
and so on.

Focus Spot 250™
©Elation Professional® - １８ – Focus Spot 250™
Note:
After switching on, the Focus Spot 250™ will automatically detect whether DMX 512 data is
received or not. If the data is received, the display will show "A.XXX" (XXX representing the
actual DMX address). If the fixture is not receiving DMX signal the display will flash "A.XXX"
(XXX representing the actual DMX address). This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input
of the machine.
- the controller is switched off or defective, if the cable or connector is defective or the signal
wires are swap in the input connector.

Focus Spot 250™
©Elation Professional® - １９ – Focus Spot 250™
Control Board
The control panel located on the top of the fixture allows you to access the main menu and
make all necessary adjustments to the Focus Spot 250™. During normal operation, tapping
the “MODE” key once will access the fixture’s main menu. Once in the main menu you can
navigate through the different functions and access the sub-menus with the Up and Down
buttons. Once you reach a field that requires adjusting, tap the ENTER button to activate
that field and use the UP and Down button to adjust the field. Tapping the Enter button once
more will confirm your setting. Once a setting is saved the LED will briefly readout PASS to
confirm a new setting has been made and locked into memory. You may exit the main menu
at any time without making any adjustments by tapping the EXIT button.
Default settings shaded.
1
ADDR
A001~A511
Indicate the staring DMX address
A001 also is the setting for slave
2
TEST
T-01~T-XX
Automatically test the function
MSTR
Runs fixture as “master” for audio
3
AUDI
ALON
Runs fixture as “alone” for audio
4
LAMP
ON/OFF
Manually switches lamp “on” and “off”
ALL
ON/OFF
Reset all motors and returns fixture to
home
SCAN
ON/OFF
Reset only motors for pan/tilt
COLR
ON/OFF
Reset only motors for colors
GOBO
ON/OFF
Reset only motors for gobo and
rotation
SHTR
ON/OFF
Reset only motors for shutter and/or
dimmer
5
RESE
OTHR
ON/OFF
Reset other motors
LIFE
0000~9999
Displays the total fixture running time
LAMP
0000~9999
Displays a lamps running time
6
TIME
CLMP
ON/OFF
Clear lamp running time
7
RPAN
ON/OFF
Reverses the pan movements
8
RTLT
ON/OFF
Reverses the tilt movements
9
FINE
ON/OFF
Switch between 16 bit/8 bit
VALU
D–XX D-00 (DXXX)
Display the DMX512 value of each
channel
D ON
ON/OFF
Display turn off after 2mins
10
DISP
FLIP
ON/OFF
This function will reverse the display
180
LAAU
ON/OFF
Automatic lamp start with power
11
SPEC
DLOF
ON/OFF
Switch lamp via DMX
