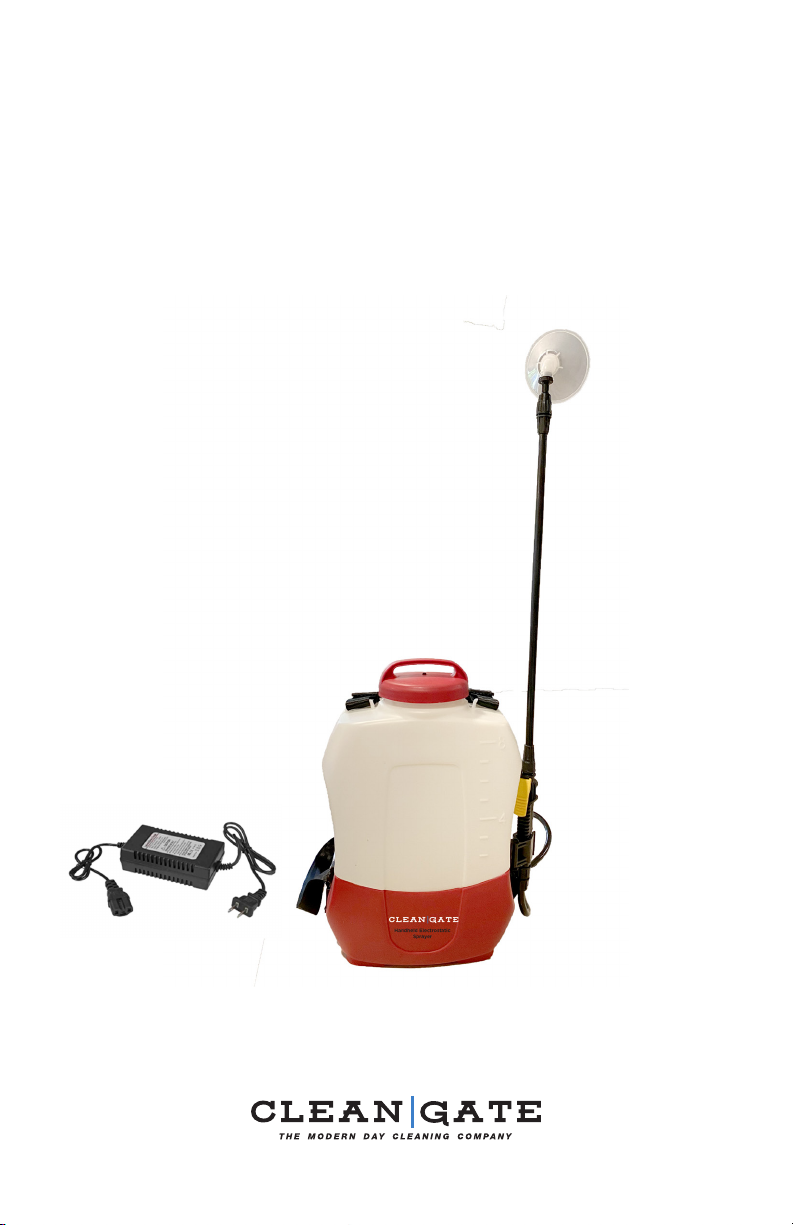

CLEAN GATE CORDLESS ELECTROSTATIC BACKPACK SPRAYER User manual
CORDLESS ELECTROSTATIC
BACKPACK SPRAYER
BY CLEAN GATE
OPERATION MANUAL AND SPECIFICATION SHEET
Cordless Electrostatic Sprayer By Clean Gate: You’ll be able to
sanitize more eciently and eectively in less time and use less
sanitizing, disinfecting, or cleaning chemicals using the Clean Gate
Cordless Electrostatic Sprayer. Signicantly more eective than tra-
ditional spray-and-wipe cleaning, electrostatic sprayers create a ne
mist of electrically charged chemical droplets. The sprayed mist
“seeks out” surfaces to be sanitized or cleaned and “wraps” itself
around uncoated surfaces and hard-to-reach areas with minimal
eort. Clean Gate Cordless Electrostatic Sprayers apply a very ne
coating (5- to 80-micron size droplets), so surfaces aren’t drenched
with liquid, meaning virtually any surface can be sprayed.
Warning: If the solution overows from the mouth of the barrel,
and wets the outer surface of the barrel or the clothes or body of
the operator, it will easily lose the electrostatic adsorption eect and
cause electrostatic leakage to stimulate the skin. Therefore, be sure
to tighten the lid during operation to prevent spillage of the liquid
from the mouth of the bucket. If soluble powder is sprayed, the
pump and nozzle should be cleaned in time, and charged after the
operation. The machine should not use wettable powder.
SAFETY AND OPERATION PRECAUTIONS
1. Pay great attention to the ltration of chemical liquid and water,
so as not to block the nozzle and aect the operation. If the nozzle
is blocked, the particulate matter can be removed and the machine
can be turned on again when the machine is stopped.
2. The operator must understand the performance and protective
methods of the agent used to avoid poisoning accidents caused by
direct body contact with pesticides. Avoid spraying with chemicals
that have a corrosive eect on plastics and metals. Please do not
spray wettable powder to avoid damage to the pump and nozzle
clogging.
CORDLESS ELECTROSTATIC SPRAYER
OPERATION MANUAL AND SPECIFICATION SHEET
3. After using the machine, clean the inside of the tank and the
spray system with clean water in a timely manner and wipe it
clean, then place it in a suitable place indoors for proper storage.
Cleaning method: After spraying the liquid medicine, pour clean
water into the storage tank, and spray it for 15 seconds after start-
ing up, pour out the remaining clean water and wipe it clean.
4. It is forbidden to immerse the spray head and the fuselage in
water to avoid damage to the motor, battery and electronic compo-
nents by moisture. It is forbidden to use the machine in a amma-
ble and explosive environment.
5. During operation, pay attention to keep the outer surface and
handle of the barrel clean and dry. It is forbidden to make limb
contact with other people during operation. It is forbidden to touch
the spray rod, nozzle and charging socket of the barrel during
operation.
6. Please note that if an alarm sounds in the machine, it should
be charged in time. After charging, please leave it for 10 minutes
before use. When the battery is not used for a long time, the bat-
tery should be maintained and charged no less than once a month.
Correct use and maintenance of the battery can greatly extend the
service life of the battery.
7. There are tens of thousands of volts in the machine. It is strictly
prohibited to disassemble the machine by yourself.
8. The use of special working uids such as strong acids and bases
is prohibited. When using pesticides, follow the safety instructions
provided by pesticide manufacturers.
10. Due to the high humidity and water vapor in the greenhouse,
please do not store the machine in the greenhouse to avoid damp-
ening the electrical circuits in the machine, aecting the electro-
static adsorption eect of the spray and generating electrostatic
leakage.
WORKING PRINCIPLE
This machine uses a 12V lead-acid battery or a lithium battery as
a power source. The high-voltage electrostatic generator charges
the drug solution. At the same time, the drug solution is pressurized
through the diaphragm pump and directly extruded from the small
nozzle hole. Under the combined action of external force and
electrostatic force, the sprayed tiny droplets directly run to the front
and back of the crop (target) and are rmly absorbed by the stems
and leaves of the crop, thereby achieving the purpose of ecient
disinfection, insecticide and sterilization.
SCOPE OF APPLICATION
This machine is suitable for the prevention and control of diseases
and insect pests of low and sparse crops and various agricultural
and forest crops such as tea, tobacco, owers, fruit trees (especially
suitable for greenhouse crops). It can be used for spraying insec-
ticides, fungicides, herbicides, plant hormones, foliage fertilizers,
etc., and can also be used for sanitation and epidemic prevention
and disinfection and sterilization of plants, warehouses, stations,
docks, airports, shopping malls, oces, etc. Spray various liquids,
emulsions and soluble powders. After spraying soluble powder, the
pump and nozzle should be cleaned in time.
MACHINE SPECIFICATIONS
ASSORTED NOZZLES
• Includes 12V rechargeable lithium battery with a 3.5 hour run
time.
• 2.1 Gallon rellable tank capacity will cover 15,000+ square feet
per tank.
• Weights 7.5 lbs. empty
• Use either the convenient handle for easy transport, or adjustable
backpack straps for comfortable portability.
• Includes 3 nozzles and 1 wand for up to 40” reach.
