Graco Pro 230ES User manual

Operation
Pro 230ES and Pro 270ES Electric
Airless Sprayers
3A2813A
EN
For the application of architectural paints and coatings. For professional use only.
3000 psi (20.7 MPa, 207 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual and in other manuals. Save all
instructions.
Related Manuals
3A2817
312830
312015
ti19332a
ti19331a
Pro 230ES
Model: 262863
Pro 270ES
Model: 262864

Warnings
23A2813A
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
GROUNDING
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This product is equipped with a cord
having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that
is properly installed and grounded in accordance with all local codes and ordinances.
• Improper installation of the grounding plug is able to result in a risk of electric shock.
• When repair or replacement of the cord or plug is required, do not connect the grounding wire to
either flat blade terminal.
• The wire with insulation having an outer surface that is green with or without yellow stripes is the
grounding wire.
• Check with a qualified electrician or serviceman when the grounding instructions are not completely
understood, or when in doubt as to whether the product is properly grounded.
• Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a
qualified electrician.
• This product is for use on a nominal 120V circuit and has a grounding plug similar to the plug
illustrated in the figure below.
• Only connect the product to an outlet having the same configuration as the plug.
• Do not use an adapter with this product.
Extension Cords:
• Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that
accepts the plug on the product.
• Make sure your extension cord is not damaged. If an extension cord is necessary, use 12 AWG
(2.5 mm2) minimum to carry the current that the product draws.
• An undersized cord results in a drop in line voltage and loss of power and overheating.
ti9164
Ground

Warnings
3A2813A 3
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Do not spray flammable or combustible materials near an open flame or sources of ignition such as
cigarettes, motors, and electrical equipment.
• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity cre-
ates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of the spray system,
including the pump, hose assembly, spray gun, and objects in and around the spray area shall be
properly grounded to protect against static discharge and sparks. Use Graco conductive or grounded
high-pressure airless paint sprayer hoses.
• Verify that all containers and collection systems are grounded to prevent static discharge. Do not use
pail liners unless they are antistatic or conductive.
• Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2 adapter.
• Do not use a paint or a solvent containing halogenated hydrocarbons.
• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area. Keep pump
assembly in a well ventilated area. Do not spray pump assembly.
• Do not smoke in the spray area.
• Do not operate light switches, engines, or similar spark producing products in the spray area.
• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
• Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets
(MSDS) and container labels provided with the paints and solvents. Follow the paint and solvents
manufacturer’s safety instructions.
• Fire extinguisher equipment shall be present and working.
• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or for flushing or
cleaning, keep sprayer at least 20 feet (6 m) away from explosive vapors.
ELECTRIC SHOCK HAZARD
This equipment must be grounded.Improper grounding, setup, or usage of the system can cause electric
shock.
•Turn off and disconnect power cord before servicing equipment.
•Connect only to grounded electrical outlets.
•Use only 3-wire extension cords.
•Ensure ground prongs are intact on power and extension cords.
•Do not expose to rain. Store indoors.
WARNING

Warnings
43A2813A
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that
injection occurs, get immediate surgical treatment.
•Do not aim the gun at, or spray any person or animal.
•Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with
any part of the body.
•Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
•Use Graco nozzle tips.
•Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spray-
ing, follow the Pressure Relief Procedure, page 9 for turning off the unit and relieving the pressure
before removing the nozzle tip to clean.
•Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off
the unit and follow the Pressure Relief Procedure, page 9 for turning off the unit.
•Check hoses and parts for signs of damage. Replace any damaged hoses or parts.
•This system is capable of producing 3000 psi. Use Graco replacement parts or accessories that are
rated a minimum of 3000 psi.
•Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
•Verify that all connections are secure before operating the unit.
•Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not exceed the maximum working pressure or temperature rating of the lowest rated system compo-
nent. See Technical Data in all equipment manuals.
•Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all equip-
ment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about your
material, request MSDS from distributor or retailer.
•Do not leave the work area while equipment is energized or under pressure.
•Turn off all equipment and follow the Pressure Relief Procedure, page 9 when equipment is not in use.
•Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufac-
turer’s replacement parts only.
•Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
•Make sure all equipment is rated and approved for the environment in which you are using it.
•Use equipment only for its intended purpose. Call your distributor for information.
•Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
•Do not kink or over bend hoses or use hoses to pull equipment.
•Keep children and animals away from work area.
•Comply with all applicable safety regulations.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property
damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids
containing such solvents.
•Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for
compatibility.
WARNING

Warnings
3A2813A 5
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
•Keep clear of moving parts.
•Do not operate equipment with protective guards or covers removed.
•Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, fol-
low the Pressure Relief Procedure and disconnect all power sources.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swal-
lowed.
•Read MSDSs to know the specific hazards of the fluids you are using.
•Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
RECOIL HAZARD
Gun may recoil when triggered. If you are not standing securely, you could fall and be seriously injured.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye
injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited
to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer
WARNING

Component Identification
63A2813A
Component Identification
ti19331a
B
H
E
G
C
F
D
J
K
Q
R
A
S
T
ti9667a
M
ti16978a
V (SG2/SG3)
W
L
X
V

Component Identification
3A2813A 7

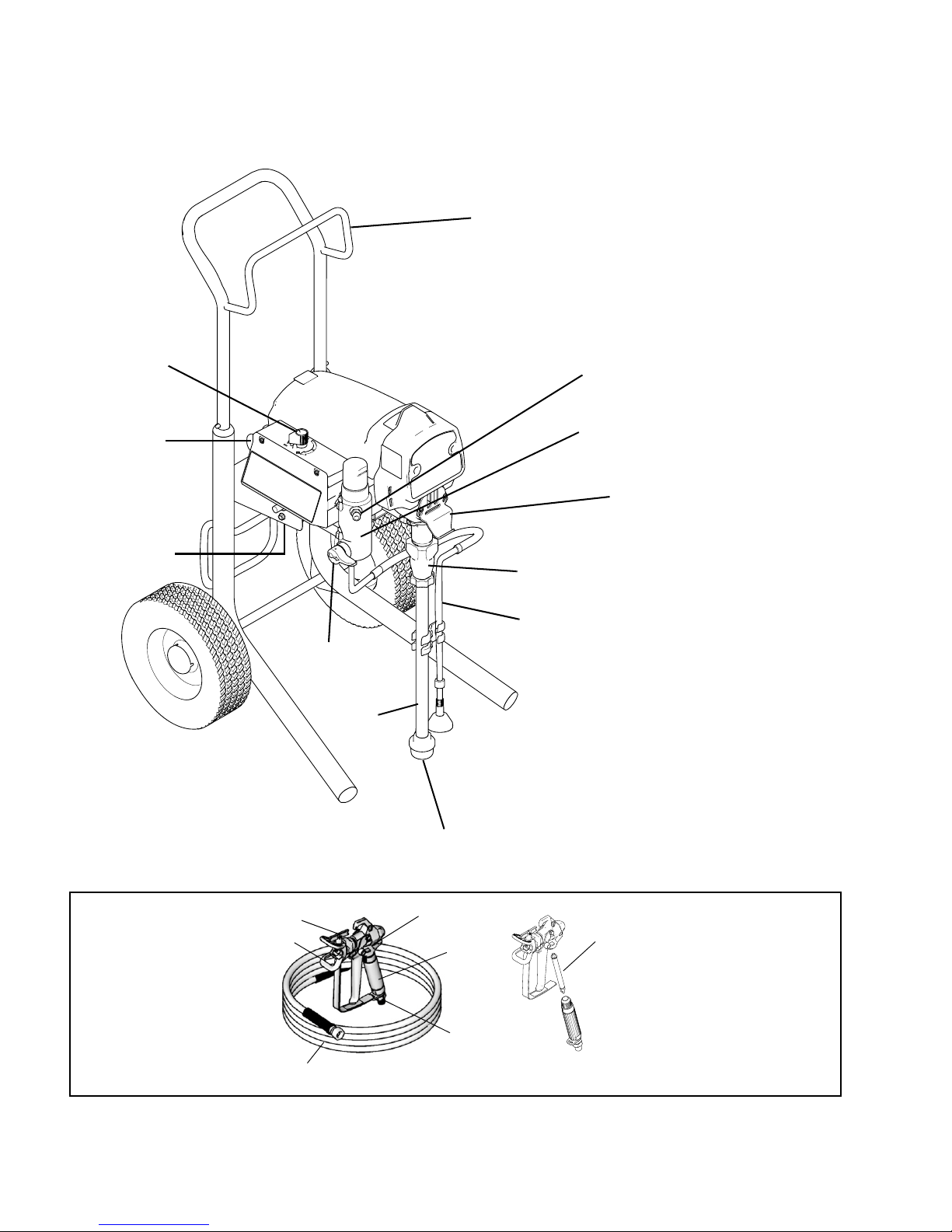

A Airless spray gun Dispenses fluid.
B Power switch Turns sprayer ON and OFF.
C Pressure control knob Increases (clockwise) and decreases (counter-clockwise) fluid pressure in
pump, hose, and spray gun.
D Pump fluid outlet fitting Threaded connection for paint hose.
E Filter Filters fluid coming out of pump to reduce tip plugging and improve finish.
FEndurance™Pump Pumps and pressurizes fluid and delivers it to paint hose.
G Suction tube Draws fluid from paint pail into pump.
H Prime tube (with diffuser) Drains fluid in system during priming and pressure relief.
JPrime/Sprayvalve
• In PRIME position (pointing down) directs fluid to prime tube.
• In SPRAY position (pointing forward) directs pressurized fluid to paint
hose.
• Automatically relieves system pressure in overpressure situations.
K Serial Tag (below sprayer frame) Sprayer model and serial number information
L Inlet screen Prevents debris from entering pump.
M Paint hose Transports high-pressure fluid from pump to spray gun.
Q Tip guard Reduces risk of fluid injection injury.
R Reversible spray tip
• Atomizes fluid being sprayed, forms spray pattern and controls fluid flow
according to hole size.
• Reversed, it unclogs plugged tips without disassembly.
S Gun trigger safety lever Prevents accidental triggering of spray gun.
T Gun fluid inlet fitting Threaded connection for paint hose.
V Gun fluid filter Filters fluid entering spray gun to reduce tip clogs.
W Hose wrap Rack Stows paint hose.
X Pail hanger For transporting pail by its handle.

Installation
83A2813A
Installation
Grounding
• The sprayer cord includes a grounding wire with an
appropriate grounding contact.
• The plug must be plugged into an outlet that is prop-
erly installed and grounded in accordance with all
local codes and ordinances.
• Do not modify plug! If it will not fit in outlet, have
grounded outlet installed by a qualified electrician.
Do not use an adapter.
Thermal Overload
Motor has a thermal overload sensor to shut itself down
if overheated. If unit overheats, perform Pressure Relief
Procedure, page 9, and allow approximately 45 minutes
for unit to cool before attempting to resume operation.
Power Requirements
• 100-120V units require 100-120 VAC, 50/60 Hz,
15A, 1 phase.
• Use an extension cord with an undamaged ground
contact.
• If an extension cord is necessary, use a 3-wire, 12
AWG (2.5 mm2) minimum.
Pails
•Solvent and oil/based fluids: follow local code.
Use only conductive metal pails, placed on
a grounded surface such as concrete.
• Do not place pail on a nonconductive surface such
as paper or cardboard which interrupts grounding
continuity.
•Grounding a metal pail: connect a ground wire to
the pail by clamping one end to pail and other end to
a true earth ground such as a water pipe.
•To maintain grounding continuity when flushing
or relieving pressure: hold metal part of spray gun
firmly to side of a grounded metal pail. Then trigger
gun.
The equipment must be grounded to reduce the risk
of static sparking and electric shock. Electric or static
sparking can cause fumes to ignite or explode.
Improper grounding can cause electric shock.
Grounding provides an escape wire for the electric
current.
ti2810a
ti5572b
ti5850a
ti5851a
ti5310c

Operation
3A2813A 9
Operation
Trigger Lock
Always engage the trigger lock when you stop spraying
to prevent the gun from being triggered accidentally by
hand or if dropped or bumped.

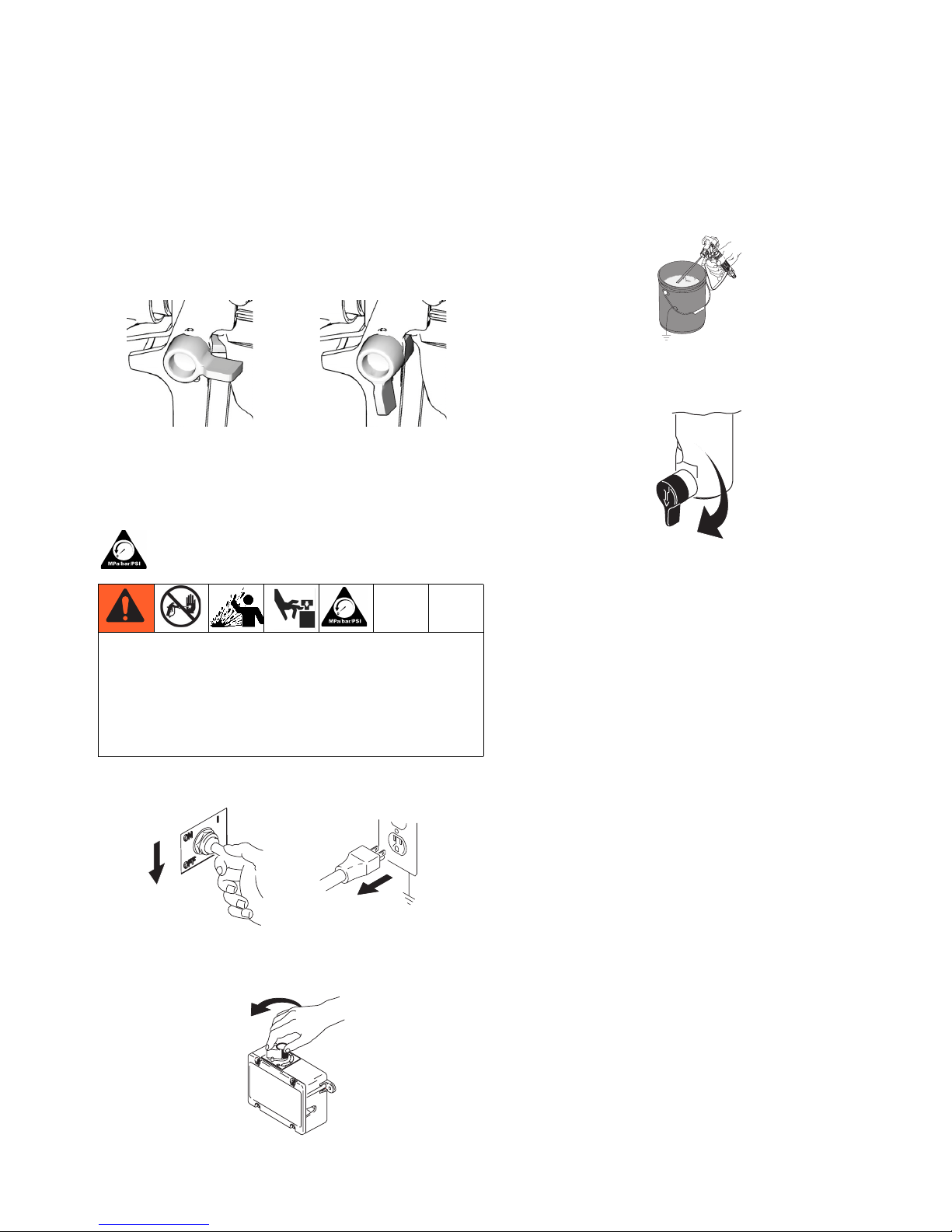

Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Turn power OFF and unplug sprayer.
2. Turn pressure to lowest setting.
3. Trigger gun to relieve pressure.
4. Turn prime valve down.
If you suspect spray tip or hose is completely clogged,
or that pressure has not been fully relieved after follow-
ing these steps, VERY SLOWLY loosen tip guard retain-
ing nut or hose end coupling to relieve pressure
gradually, then loosen completely. Now clear tip or hose
obstruction.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
ti8908a
Trigger Locked Trigger Unlocked
ti8909a
ti2707a ti2718a
TIB
-
WASTE
WASTE
ti2599a
ti2719a

Setup
10 3A2813A
Setup
1. Turn OFF power switch.
2. Turn Pressure Control Knob all the way left
(counter-clockwise) to minimum pressure.
3. Unscrew tip and guard assembly from gun.
4. Uncoil hose and connect one end to gun. Use two
wrenches to tighten securely
5. Connect other end of hose to sprayer.
NOTE: If hose is already connected, make sure connec-
tions are tight.
6. Check inlet strainer for clogs and debris.
7. Fill throat packing nut with TSL to prevent premature
packing wear. Do this each time you spray.
ti2707a
ti2614a
-
ti9714a
ti9681a
ti9674b
ti2812a
Approximate Fill Level

Setup
3A2813A 11
Prime and Flush Storage Fluid
Before you use your sprayer for the first time or begin a
new spraying project, you need to prime the sprayer and
flush the storage fluid out of the sprayer.
Oil- or Water-based Materials
• When spraying water-based materials, flush the
system thoroughly with water.
• When spraying oil-based materials, flush the sys-
tem thoroughly with mineral spirits or compatible,
oil-based flushing solvent.
• To spray water-based materials after spraying
oil-based materials, flush the system thoroughly
with water first. The water flowing out of prime tube
should be clear and solvent-free before you begin
spraying the water-based material.
• To spray oil-based materials after spraying
water-based materials, flush the system thoroughly
with mineral spirits or a compatible oil-based flush-
ing solvent first. The solvent flowing out of the prime
tube should not contain any water.
• When flushing with solvents, ground pail and gun.
Read Grounding and Electric Requirements, page
8.
• To avoid fluid splashing back on your skin or into
your eyes, always aim gun at inside wall of pail.
1. Make sure the power switch is OFF and the sprayer
is unplugged.
2. Separate prime tube (smaller) from suction tube
(larger).
3. Place prime tube in waste pail.
4. Submerge suction tube in water or flushing solvent.
5. Turn Prime/Spray Valve to PRIME.
6. Plug sprayer in a grounded outlet.
7. Turn power switch ON.
ti2707a
ti2039a
ti9651a
ti2810a
ti2706a
ti2719a

Setup
12 3A2813A
8. Increase pressure to start motor and allow fluid
to circulate through drain tube for 15 seconds; then
turn pressure down.
9. When sprayer starts pumping, flushing solvent and
air bubbles will be purged from system. Allow fluid to
flow out of prime tube, into waste pail, for 30 to 60
seconds.
10. Turn power switch OFF.
11. Transfer suction tube to paint pail and submerge
suction tube in paint.
12. Turn power switch ON.
13. When you see paint coming out of prime tube:
a. Point gun into waste pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Turn Prime/Spray valve to SPRAY.
14. Continue to trigger gun into waste pail until you see
only paint coming out of gun.
15. Release trigger. Engage trigger lock.
NOTE: Motor stopping indicates pump and hose are
primed with paint. If motor continues to run the sprayer
is not properly primed. To reprime, turn Prime/Spray
valve to PRIME and repeat step 13.
16. Transfer prime tube to paint pail and clip prime tube
to suction tube.
TIB
TIB
-
i2 0
ti9653a
ti2706a
WASTE
WASTE
ti2599a
ti8909a
ti2712a
ti8908a

Setup
3A2813A 13
Install Tip and Guard on Gun
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in order
shown.
3. Screw tip and guard assembly on gun. Tighten
retaining nut.
4. Ensure spray tip arrow is pointed forward to spray
position.
Spraying Techniques
Preventing Excessive Tip Wear
• Spray should be atomized (evenly distributed, no
gaps at edges). Start at low pressure setting,
increase pressure a little at a time until you see a
good spray pattern, without tails.
• Spray at lowest pressure that atomizes paint.
• If maximum sprayer pressure is not enough for a
good spray pattern, tip is too worn.
NOTE: If tails persist when spraying at the highest pres-
sure, a smaller tip is needed or the material may need to
be thinned.
Adjust Spray Pressure
This sprayer is set up for most airless spraying applica-
tions.
NOTE: Motor only runs when gun is triggered. Sprayer
is designed to stop pumping when gun trigger is
released.
• Turning knob to right (clockwise), increases pres-
sure at gun.
• Turning it left (counter-clockwise), decreases pres-
sure.
• General spraying instructions are provided in Get-
ting Started section of this manual, page 14.
ti8908a
retaining nut
black rubber gasket and
guard tip
ti8911a
metal seat
Use tip to align seat Tip must be pushed
all the way into guard
in guard
ti9574a
ti5606a
ti9713a
ti9049a
tails-gaps
at edges
good
spray pattern
pressure
too low
ti5592a

Setup
14 3A2813A
Getting Started
Use a piece of scrap cardboard to practice these basic
spraying techniques before you begin spraying the sur-
face.
• Hold gun 12 in. (30 cm) from surface and aim
straight at surface. Tilting gun to direct spray angle
causes an uneven finish.
• Flex wrist to keep gun pointed straight. Fanning gun
to direct spray at angle causes uneven finish.
Triggering Gun
Pull trigger after starting stroke. Release trigger before
end of stroke. Gun must be moving when trigger is
pulled and released.
Aiming Gun
Aim tip of gun at bottom edge of previous stroke, over-
lapping each stroke by half.
Unclogging Spray Tip
Occasionally, debris from material can accumulate and
clog the spray tip. Perform the following steps to unclog
the tip.

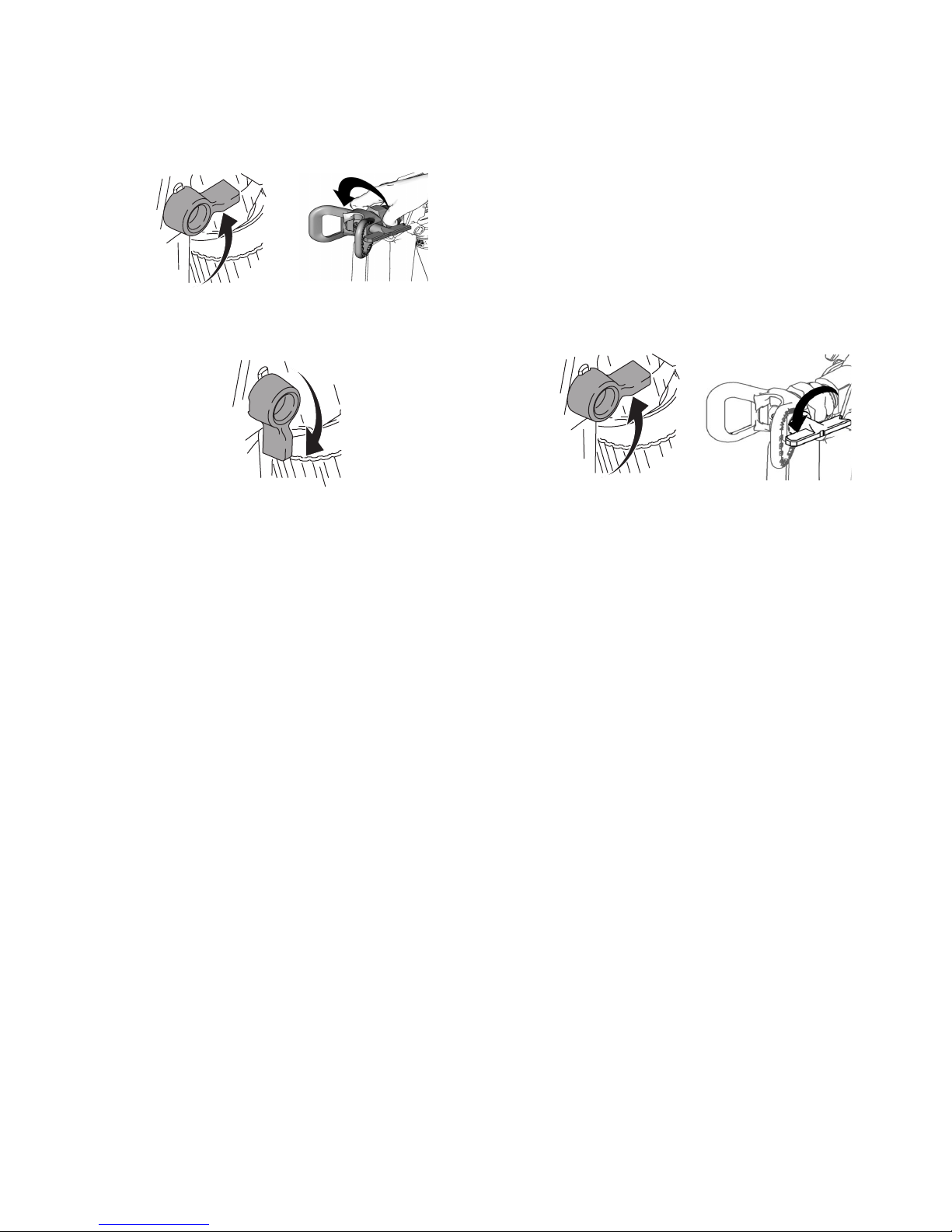

1. To unclog tip obstruction, engage trigger lock.
2. Reverse spray tip to UNCLOG position.
NOTE: Trapped pressure in the gun and paint hose may
make the spray tip very difficult to turn. If so, perform the
Pressure Relief Procedure, page 9, before rotating
spray tip.
3. Aim gun at waste area, disengage trigger lock. Pull
trigger to clear clog.
12 in.
(30 cm)
even
finish
thick
thin
uneven
finish ti5585a
even finish thin thick thin
ti2036a
TIA
ti2038a
Do not operate or spray near children. Do not aim the
sprayer at, or spray any person or animal. Keep hands
and other body parts away from the discharge. For
example, do not try to stop leaks with any part of the
body.
ti11309a
ti9048a
ti11308a

Setup
3A2813A 15
4. Engage trigger lock. Rotate spray tip back to SPRAY
position.
5. Disengage trigger lock and resume spraying.
6. If the tip is still clogged, you may have to repeat
steps 1 - 5 and rotate the tip from SPRAY to
UNCLOG several times.
To help reduce tip clogs:
• strain the paint to remove debris
• repeat step 1 to relieve pressure
• remove and clean gun filter.
7. If obstruction is cleared, engage trigger lock and
rotate arrow-shaped handle back to SPRAY
position.
ti11309a ti9714a
ti11308a ti11309a ti9049a

Shutdown and Cleaning
16 3A2813A
Shutdown and Cleaning
Flushing
• For short term shutdown periods (overnight to two
days) refer to Short Term Storage, page 19.
• For flushing after spraying oil-based coatings, use
compatible oil-based flushing fluid or mineral spirits.
Read Priming and Flushing Storage Fluid, page 11.
• For flushing after spraying water-based coatings,
use water. Read Priming and Flushing Storage
Fluid, page 11.
1. Relieve pressure, page 9.
2. Remove tip and guard assembly from gun and place
in flushing fluid.
3. Lift suction tube and prime tube from paint pail. Let
them drain into paint pail for a while.
4. Separate prime tube (smaller) from suction tube
(larger).
5. Place empty waste and water or solvent pails side
by side.
6. Place prime tube in waste pail.
7. Submerge suction tube in water or flushing solvent.
8. Turn pressure control knob to minimum setting.
9. Turn power switch ON.
10. Flush until approximately 1/3 of the flushing fluid is
emptied from the pail.
ti2039a
ti2756b
WASTE
FLUSH
ti2756B
ti9652a
FLUSH
ti2714a
ti2614a
-
ti2706a

Shutdown and Cleaning
3A2813A 17
11. Turn power switch OFF.
NOTE: Step 12 is for returning paint in hose back to
paint pail. One 50-ft hose holds approximately 1-quart
(1-liter) of paint.
12. To recover paint in hose:
a. Point gun into paint pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trigger.
d. Turn Prime/Spray valve to SPRAY.
e. Turn power switch ON.
f. Continue to hold gun trigger until you see paint
diluted with flushing fluid starting to come out of
gun.
13. While continuing to trigger gun, quickly move gun to
redirect spray into waste pail. Continue triggering
gun into waste pail until flushing fluid dispensed
from gun is relatively clear.
14. Stop triggering gun. Engage the trigger lock.
15. Turn prime/spray valve to Prime.
16. Turn power switch OFF.
17. Clean gun filter and gun, page 18.
18. Fill unit with Pump Armor™storage fluid. Read Long
Term Storage, page 19.
ti2707a
PAINT
ti2770a
ti8909a
ti2712a
ti
2
ti9745
a
PAINT WASTE
ti8908a
ti2719a
ti2707a

Shutdown and Cleaning
18 3A2813A
Cleaning Gun
• Clean gun fluid filter (d) with water or flushing sol-
vent and a brush every time you flush the system.
Replace gun filter if damaged.
• Remove tip and guard and clean with water or flush-
ing solvent. A soft brush can be used to loosen and
remove dried-on material if needed.
• Wipe paint off outside of gun using a soft cloth
moistened with water or flushing solvent.
ti9668a
d
ti9671a

Storage
3A2813A 19
Storage

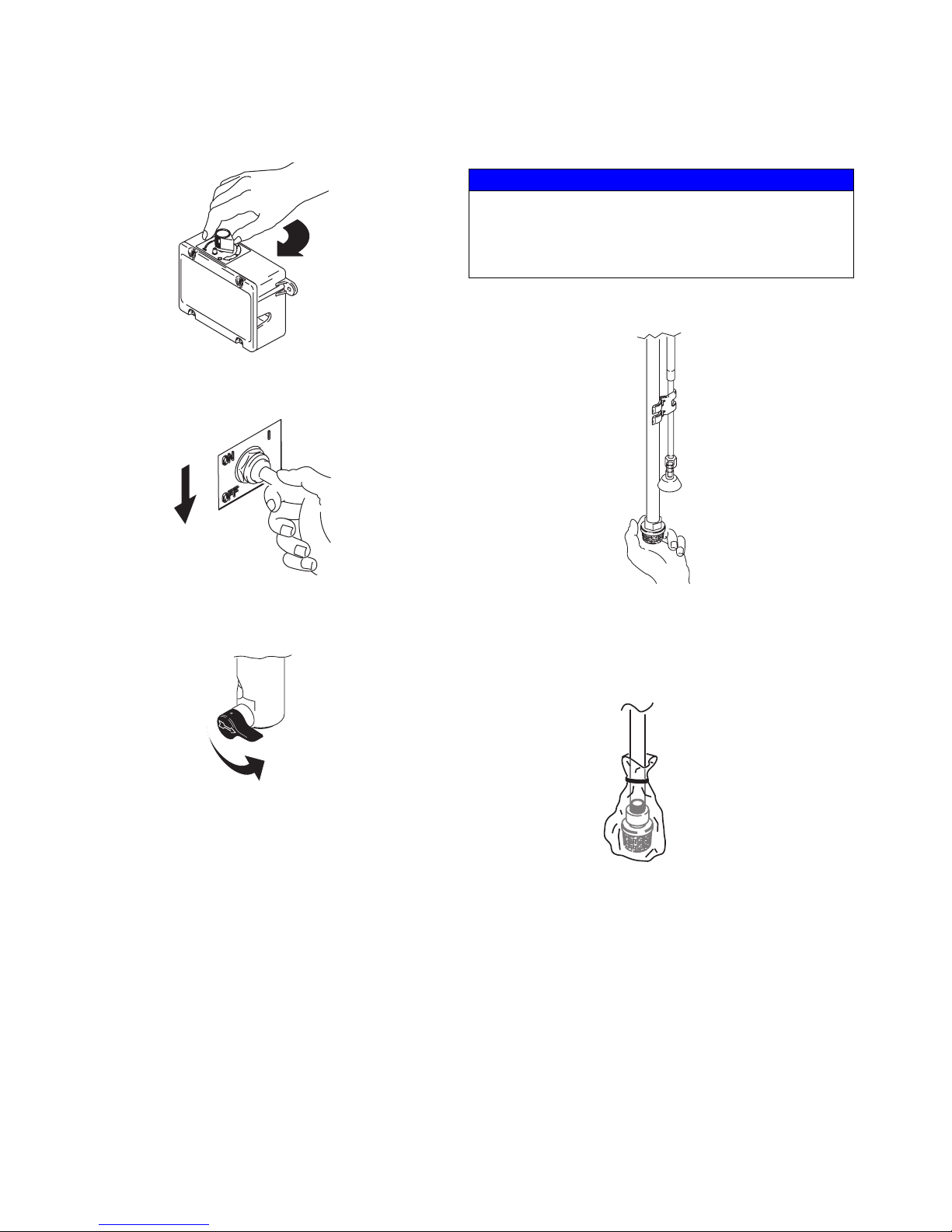

Short Term Storage
(up to 2 days)
1. Relieve pressure, page 9.
2. Leave suction tube and prime tube in paint pail.
3. Cover paint pail and hoses tightly with plastic wrap.
4. Engage trigger lock.
5. Leave gun attached to hose.
6. If you have not already cleaned them, remove tip
and guard from gun and clean with water or flushing
solvent. A soft brush can be used to loosen and
remove dried-on material if needed.
7. Wipe paint off outside of gun using a soft cloth
moistened with water or flushing solvent.

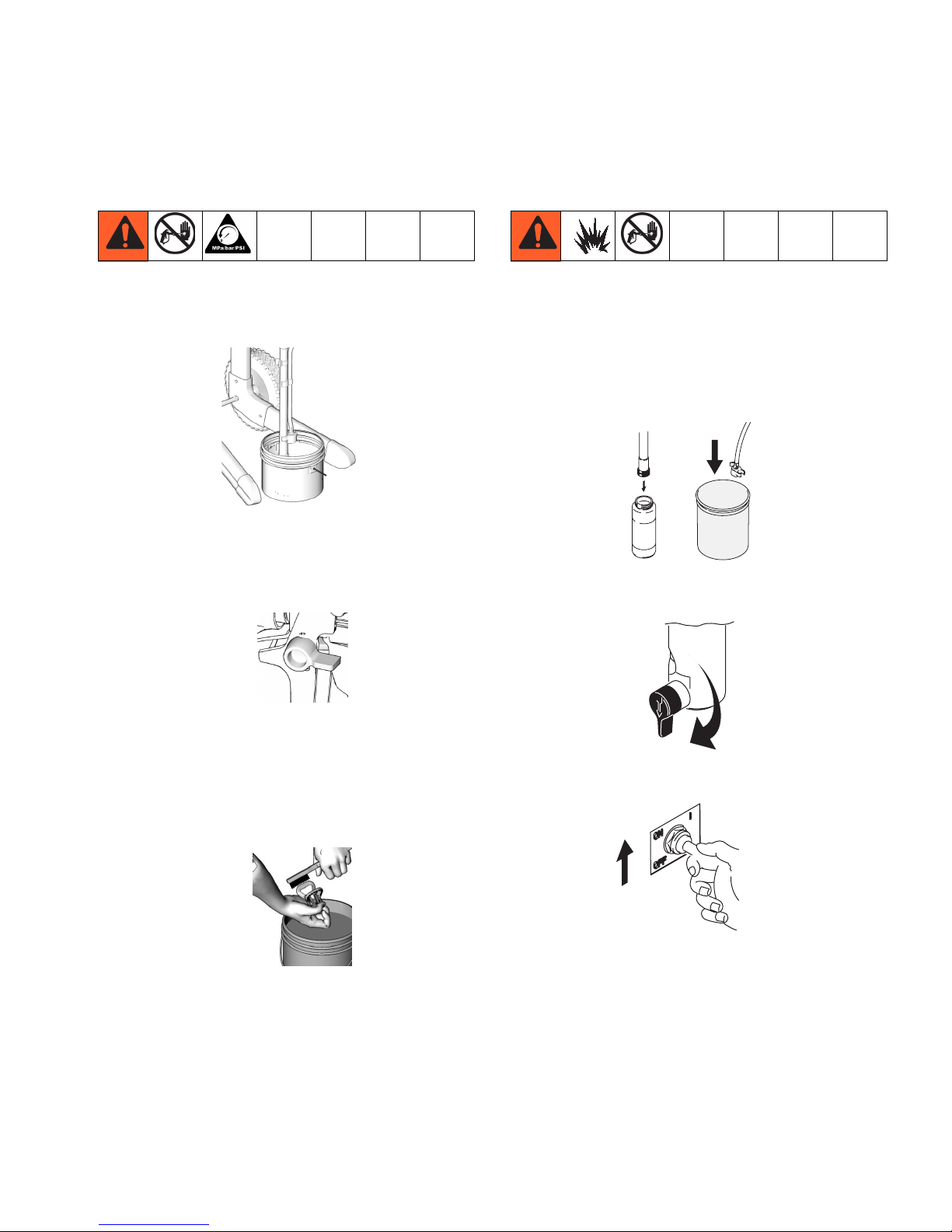

Long Term Storage
(more than 2 days)
NOTE: Always circulate Pump Armor storage fluid
through system after cleaning. Water left in sprayer will
corrode and damage pump. Follow Shutdown and
Cleaning, page 16.
1. Place suction tube in Pump Armor storage fluid bot-
tle and prime tube in waste pail.
2. Turn Prime/Spray valve to PRIME.
3. Turn power switch ON.
ti9353b
ti8908a
ti9671a
ti2057a
ti2719a
ti2706a

Storage
20 3A2813A
4. Turn pressure control knob clockwise until the pump
turns on.
5. When storage fluid comes out of prime tube (5-10
seconds) turn power switch OFF.
6. Turn Prime/Spray valve to SPRAY to keep storage
fluid in sprayer during storage.
Stowing Sprayer
1. Screw inlet screen onto suction tube.
2. Coil hose. Leave it connected to sprayer. Wrap hose
around hose wrap bracket.
3. Secure a plastic bag around suction tube to catch
any drips.
4. Store sprayer indoors.
TIB
ti2707a
ti2712a
NOTICE
• Before storing sprayer make sure all water is
drained out of sprayer and hoses.
• Do not allow water to freeze in sprayer or hose.
• Do not store sprayer under pressure.
ti2812a
ti5552a
