Clear TV X-70 User manual

X-70 HDTV DIGITAL
INDOOR ANTENNA
INSTRUCTIONS

PRODUCT FEATURES:
• Stylish and compact size design
• Shielded for minimum interference
• Specially compatible with HDTV of various digital terrestial signal
(DVB-T, ISDB-T, DMB-T/H, ATSC) and DAB/FM radios
INCLUDED IN PACKAGE:
Before you begin installation, please check contents:
The Free TV Key is a super thin Flat Digital antenna. The Free TV Key connects
directly to the back of your TV and receives Digital Free to Air TV reception for
VHF, UHF and FM signals. It hides discreetly behind your TV.
TECHNICAL DATA:
Frequency range: VHF 87.5-230MHz, UHF 470-862MHz
Gain: 5-7dB
Receiving Range: FM/VHF/UHF
Power Supply: Passive
Impedance: 75Ω
1. Antenna main unit
2. 90° F male to F female
right angle connector
1
2

INSTALLATION:
STEP 1:
Connecting antenna to a tv with a digital tuner

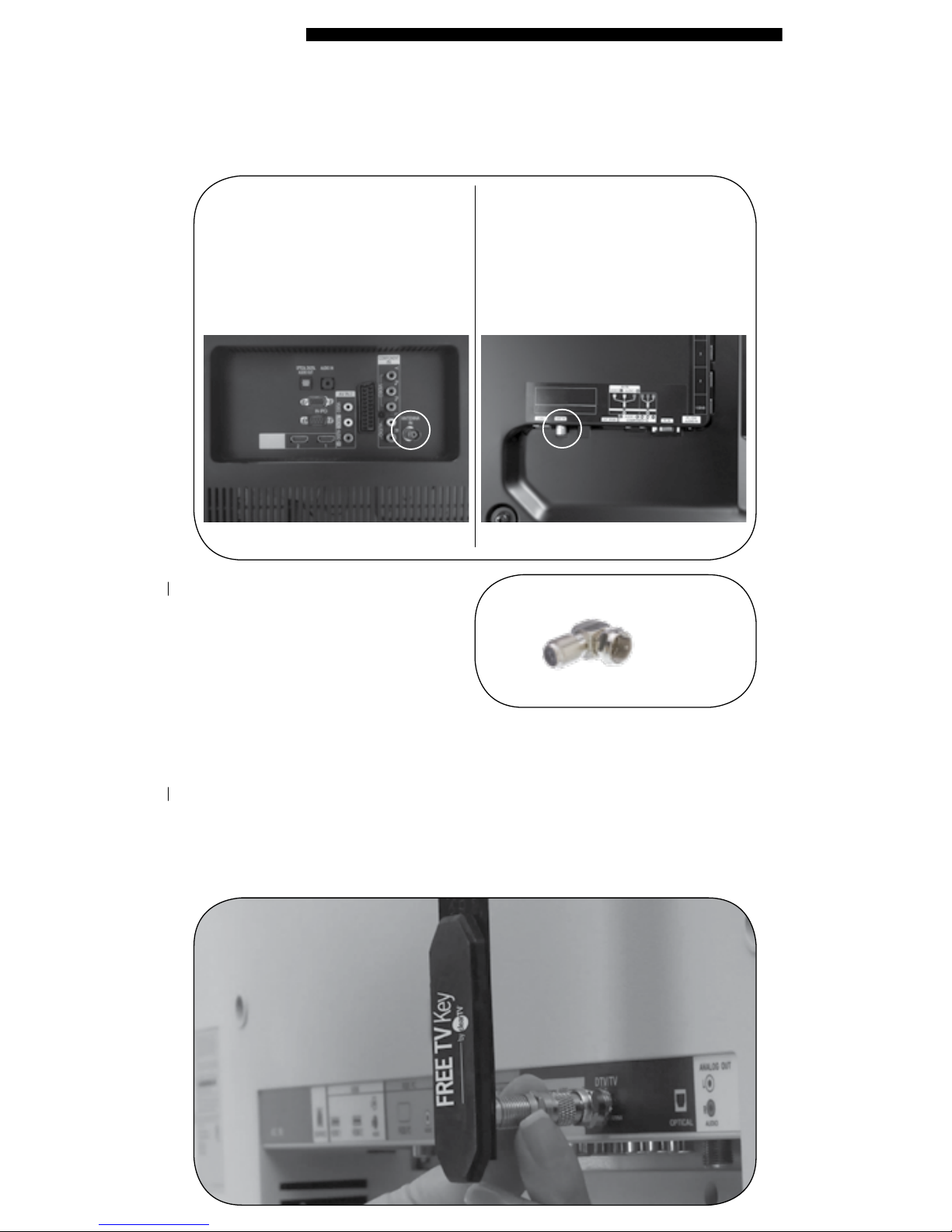

Determine where the antenna plug is located on your TV set and which
conguration it is, Horizontal or Vertical (See Fig. 1).
Horizontal Mount
antenna plug angled horizontally
from the back of the TV set
Vertical Mount
Antenna plug is angled vertically
from the back of the TV set.
Right angle connector needed.
Right
Angle
Connector
The Free TV Key should be mounted
in the vertical position (Extending
upward). Some TV sets have the
antenna plug connection facing
downward. The right angle coax
connector will be used (See Fig. 2).
Attach the Free TV Key antenna to the antenna TV plug on the back of your TV.
Simply screw the connector into the Antenna In or Cable IN port. If right angle
connector is needed, attach connector to the antenna rst and then to the TV.
Make sure Antenna is vertically mounted as shown. When in correct position,
tighten connectors (See Fig. 3).
Fig. 1
Fig. 2

BACK OF TV
FREE TV KEY
ANTENNA
ANT IN
Set-Top Converter Box
ANT IN
STANDARD 75 ohm
COAX CONNECTION
INSTALLATION (CONTINUED):
Connecting antenna to a tv without a digital tuner
Attach the antenna to the STB (Set Top Box) by simply screwing the connector
into the connector into the Antenna In or Cable IN port on the back of your set
top box converter box (STB) and then connect your STB to you television
(See Fig. 3).
Note:
1. After the installation is nished, you can use your Set Top Box to check the
signal strength and quality. If you do not have a steady picture, please move
the antenna to a better reception position.
STEP 2:
Auto program scan
Using your TV’s remote control, navigate to the system menu and set the TV’s
input to antenna. Then begin an auto search or auto program to nd the new
stations (See Fig. 4). Free TV Key is recommended of use with TV transmitting
stations within 10-25 miles.
Fig. 3
Fig. 4

STEP 3:
Adjusting antenna location
To maximize the number of stations, you may need to adjust or reposition the
antenna. Try placement in alternate locations and re-scan for new channels. We
recommend Free TV Key be used within 0-25 miles of the broadcasting towers.
FREQUENTLY ASKED QUESTIONS:
What is Free TV Key?
A government mandate requires television broadcasters to convert from analog
to digital broadcast. Now, only digital signals are available over the air in the
United States and Canada. Free TV Key is an antenna that receives over-the-air
digital and HD signals for free. The signal is a better visual and audio quality than
analog. Digital television enables broadcasters to offer multiple programming
choices on a single channel (sub channels), greatly expanding viewer choices.
How many channels can I receive over the air?
Reception will vary based on factors like geography and location of the broadcast
signal; antenna, hills, buildings and even tall trees can impact reception. It
is recommended that you be within 25 miles of a broadcast antenna. Most
households can receive these popular networks: PBS, NBC, CBS, ABC, FOX, ION,
CW, Qubo - a children’s channel, 24-hour sports programming, a 24-hour classic
movie channel, 24-hour news and weather, and popular Spanish-language
channels: Azteca, Univision, Telemundo, TeleFutura, may also be available.
Will I receive Cable shows?
No, FreeTV Key does not receive shows that are produced for cable only.
Will it t all Televisions?
FreeTV Key will connect with televisions that have an Antenna IN or a Cable IN
port on the back of the television. Most televisions sold after May 25, 2007 are
required by law to have an ATSC (Digital) tuner built-in and will receive digital
broadcasts. If your television was purchased earlier, but has a menu option for
scanning digital channels, then your television has a digital ATSC tuner. Check for
the letters ‘ATSC’. If it does not say that it is equipped with an ATSC tuner, you
will need to purchase a converter box.
Do I need an amplier?
The Free TV Key connects directly to the TV. An optional accessory amplier can
be added. The amplier will boost the signal strength.
Can I add an extension cable to my Free TV Key?
Yes, if you would like to move your Free TV Key to a different location you can
purchase an extension cable and stand.
Are all broadcasts now in High Denition?
Not all digital signals are High Denition.

Is the picture better than cable?
All cable companies compress their HD signals; the result is a degraded signal
that is usually inferior to Over the Air (OTA) broadcast.
What is signal compression?
Signal compression is a method of making video transmissions smaller. The
quality of the signal is degraded in order to t in more quantity. All cable
companies compress their signals in order to make room for all of those extra
channels. OTA broadcast television signals are not compressed and are
Does Free TV Key work with my DVR or TIVO?
Yes FreeTV Key is compatible with TiVo and other digital video recorders (DVR)
so you can watch what you want, when you want. Since Free TV Key is a HD
antenna and can receive a HD broadcast signal there is no need for an HD
converter box.
Will the channel numbers be the same?
With the digital system, the channel number that appears on your television
screen and the actual channel number can be and often are different. Many
stations have sub channels (channel 2, channel 2.1, 2.2, 2.3, etc.). Keep in mind
reception will vary in your area due to geography and location of the broadcast
antenna.
What if I can’t receive a signal with Free TV Key?
Signal strength will vary based on certain variables, such as distance from the
transmitter, hills, buildings, and even tall trees can impact reception. To check the
exact distance from your residence to the nearest transmitters, and get an idea
of what to expect in the way of reception, go to antennaweb.org and type in your
address. It is recommended that you be within 25 miles of a broadcast antenna.

ATTENTION:
1. Free TV Key™ Digital HDTV Antenna is intended for indoor use only.
2. Maintenance of antenna: please use soft cloth with diluted mild detergent to
clean its shell. horizontal mounting.
MANUFACTURER’S LIMITED WARRANTY:
The manufacturer warrants that your Free TV Key™ is free of defects in
materials and workmanship and will, at its option, repair or replace any defective
Free TV Key™ that is returned to it. This warranty runs for sixty (60) days from
the original date of purchase, and is valid only in accordance with the conditions
set forth below:
3. Normal wear and tear are not covered by this warranty. This warranty applies
to consumer use only, and is void when the product is used in a commercial
or institutional setting.
4. The warranty extends only to the original consumer purchaser and is not
transferable. In addition, proof of purchase must be demonstrated. This
warranty is void if the product has been subject to accident, misuse, abuse,
improper maintenance or repair, or unauthorized modication.
5. This limited warranty is the only written or express warranty given by the
manufacturer. Any implied warranty of merchantability or tness for a
particular purpose on this product is limited in duration to the duration of
this warranty. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
6. Repair or replacement of the product (or, if repair or replacement is not
feasible, a refund of the purchase price) is the exclusive remedy of the
consumer under this warranty. The manufacturer shall not be liable for any
incidental or consequential damages for breach of this warranty or any
implied warranty on this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
7. This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
PROCEDURE FOR WARRANTY REPAIRS OR REPLACEMENT
If warranty service is necessary, the original purchaser must pack the product
securely and send it postage paid with a description of the defect, proof of
purchase, and a check or money order for $7.95 to cover return postage and
handling to the following address: Free TV Key™, P.O. Box 3007, Wallingford,
CT 06492.

Distributed by:
Tristar Products, Inc.
Faireld, NJ 07004.
©2015 Tristar Products, Inc.
FTV_X70_IB_ENG_V1_151007
