Clear TV X-71 User manual

FEATURES
• Innovative at, razor-thin
antenna design.
• Receives digital and
HDTV channels.
• Multi-directional design pulls in
signals from all directions.
• Easy installation,
no assembly required.
• Suction fasteners make for
easy setup and placement.
X-71 HDTV DIGITAL
INDOOR ANTENNA
The Super Thin Flat Digital Indoor Antenna
specially designed for digital TV!
CTV_INST_TP_ENG_V3_140123 Distributed by: ClearTV, Wallingford, CT 06492
Manufacturer’s Limited Warranty
The manufacturer warrants that your ClearTV™X-71 is free of defects in materials and workmanship and will, at its option, repair or replace
any defective ClearTV™X-71 that is returned to it. This warranty runs for sixty (60) days from the original date of purchase, and is valid only
in accordance with the conditions set forth below:
1. Normal wear and tear are not covered by this warranty. This warranty applies to consumer use only, and is void when the product is
used in a commercial or institutional setting.
2. The warranty extends only to the original consumer purchaser and is not transferable. In addition, proof of purchase must be
demonstrated. This warranty is void if the product has been subject to accident, misuse, abuse, improper maintenance or repair, or
unauthorized modication.
3. This limited warranty is the only written or express warranty given by the manufacturer. Any implied warranty of merchantability or
tness for a particular purpose on this product is limited in duration to the duration of this warranty. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
4. Repair or replacement of the product (or, if repair or replacement is not feasible, a refund of the purchase price) is the exclusive remedy
of the consumer under this warranty. The manufacturer shall not be liable for any incidental or consequential damages for breach of
this warranty or any implied warranty on this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
5. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
Procedure for Warranty Repairs or Replacement:
If warranty service is necessary, the original purchaser must pack the product securely and send it postage paid with a description of the
defect, proof of purchase, and a check or money order for $7.95 to cover return postage and handling to the following address:
ClearTV™, P.O. Box 3007, Wallingford, CT 06492.
ATTENTION
1. X-71 Digital HDTV Antenna is intended for indoor use only.
2. The location of the antenna is important to maximize signal strength. The antenna should
be kept far from disturbance source, big electrical appliances like air conditioners, elevator,
washing machine, blower or microwave oven, etc.

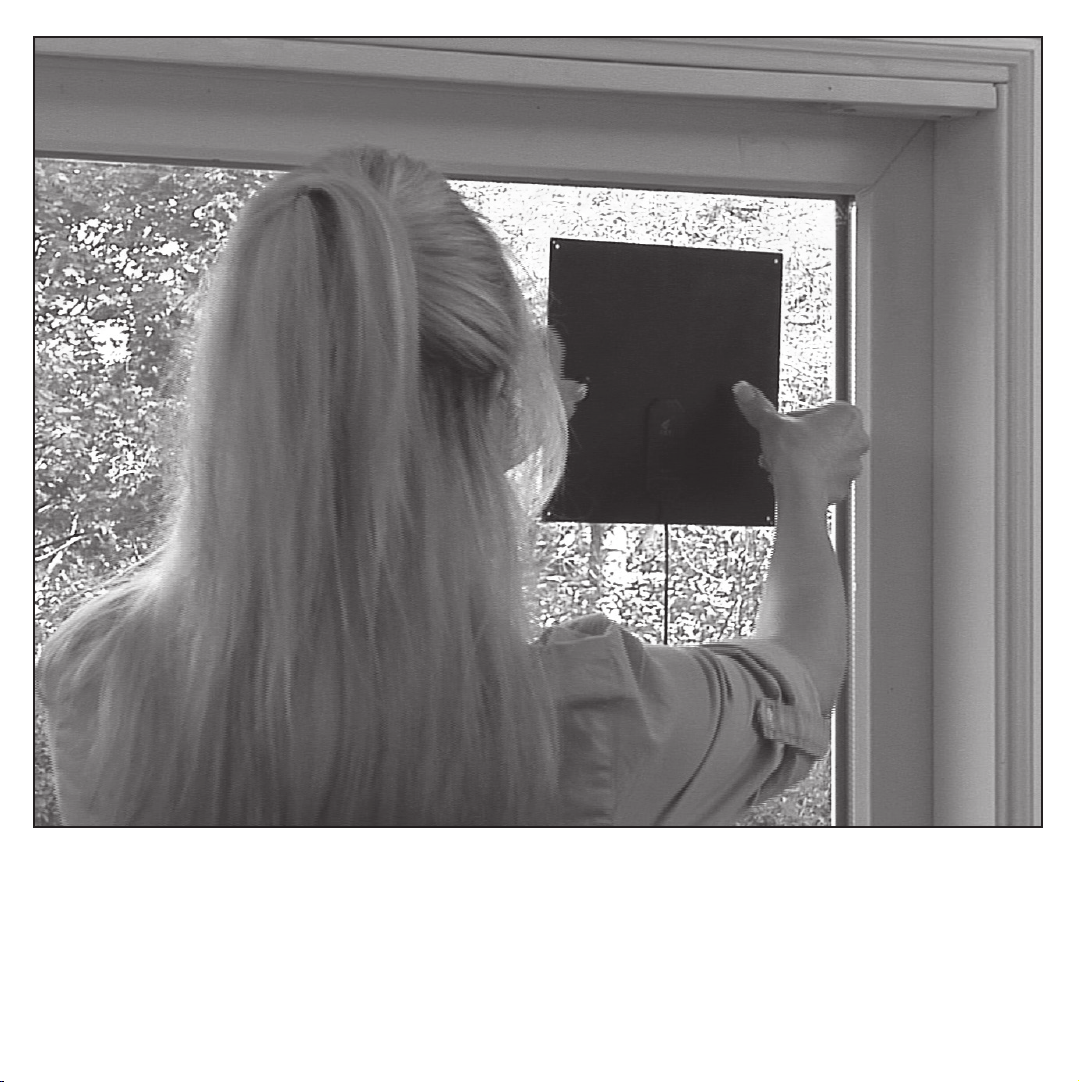

3. Window mounting results in the best performance. The incoming signals will not be
downgraded by objects in the home, ofce or vehicle. Please ensure the antenna is not
blocked by aluminum or metallic screening as this will degrade incoming signals.
4. Be sure to hang the antenna vertically with the cable on the bottom.
5. Maintenance of antenna, please use soft cloth with diluted mild detergent to clean its shell.
MADE IN CHINA
CTV_INST_TP_ENG_V3_140123.indd 1 1/23/14 12:26 PM

ANT IN
ANT IN
BACK OF TV
CLEAR TV
ANTENNA
COAX CABLE
CONNECTOR STANDARD 75 ohm
COAX CONNECTION

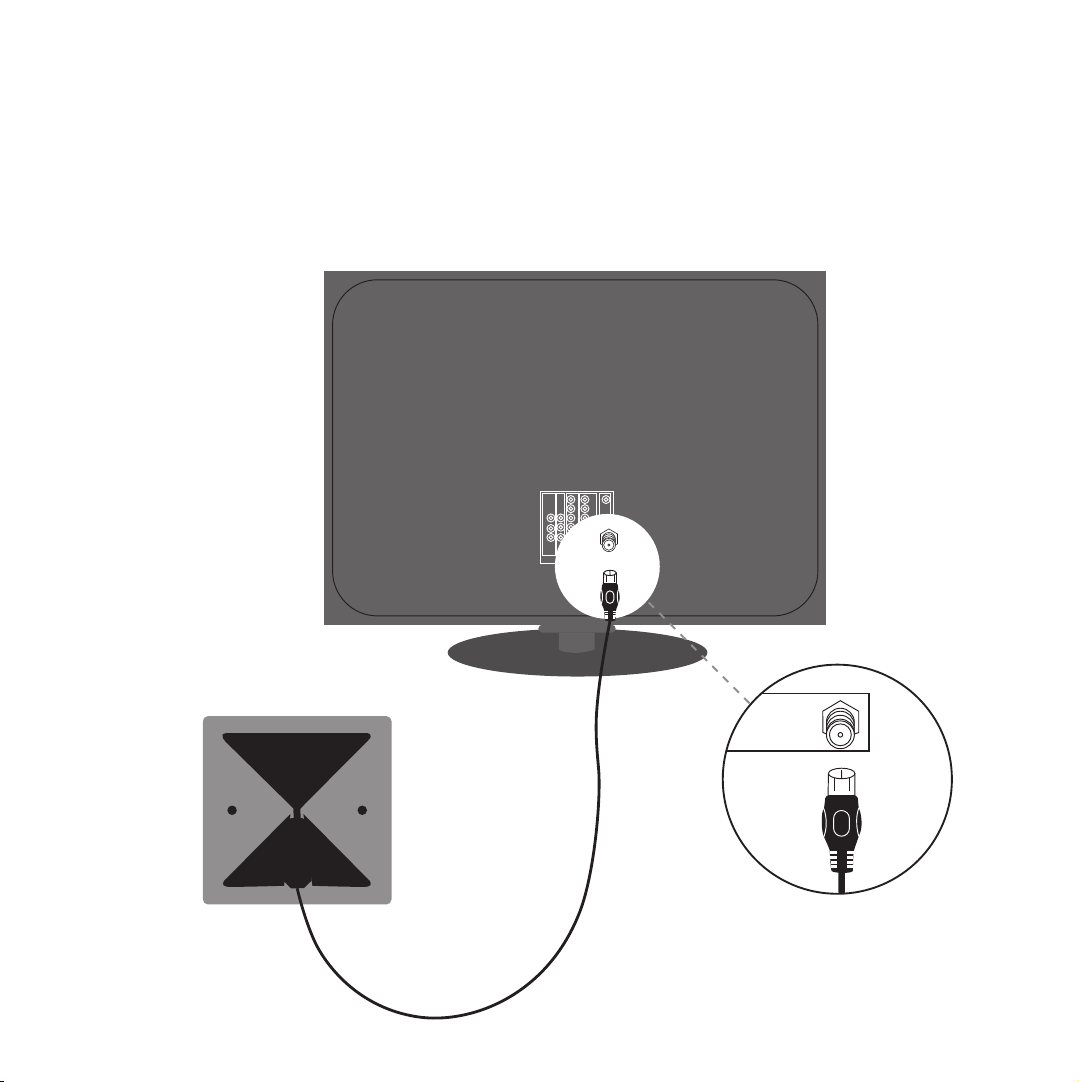

Step 1 — CONNECTING ANTENNA
Attach the mini coax cable, which is the small black cable coming from the
antenna. Simply screw the connector into the ANTENNA IN or CABLE IN
port on the back of your television.
IMPORTANT!
TV must be
a digital TV
to receive
a digital HD
broadcast.
Is the picture better than cable?
All cable companies compress their HD signals; the result is a degraded signal that is usually inferior to
OTA broadcast.
What is signal compression?
Signal compression is a method of making video transmissions smaller. The quality of the signal is degraded in
order to t in more quantity. All cable companies compress their signals in order to make room for all of those
extra channels. OTA broadcast television signals are not compressed and are therefore better quality.
Does Clear TV work with my DVR or TIVO?
Yes, Clear TV is compatible with TiVo and other digital video recorders (DVR) so you can watch what you want,
when you want. Since Clear TV is a HD antenna and can receive an HD broadcast signal there is no need for an
HD converter box.
Will the channel numbers be the same?
With the digital system, the channel number that appears on your television screen and the actual channel number
can be and often are different. Many stations have sub channels (channel 2, channel 2.1, 2.2, 2.3, etc.) Keep in
mind reception will vary in your area due to geography and location of the broadcast antenna.
What if I can’t receive a signal with Clear TV?
Signal strength will vary based on a certain variables, such as distance from the transmitter, hills, buildings, and
even tall trees can impact reception. To check the exact distance from your residence to the nearest transmitters,
and get an idea of what to expect in the way or reception, go to antennaweb.org and type in your address. It is
recommended that you be within 25 to 30 miles of a broadcast antenna.
Clear TV Reception Tips
Place Clear TV in the location with the strongest reception, typically this will be on an exterior wall or window. A
television signal can become weak or intermittent by passing through walls that are exceptionally thick or contain
large amounts of metal. In this case, consider attaching Clear TV to the inside surface of a window pane using the
provided suction cups. This will help to capture a weak station. However, Clear TV or the cable should never be
allowed to interfere with the normal operation of the window.
For optimal performance
Place Clear TV on the inside surface of an exterior wall, ideally a wall facing the general direction of local
transmission towers. (You can nd out the location of your towers by going to antennaweb.org). If there are
multiple tower locations, optimize the position of Clear TV to the weakest signal. Clear TV can pick up the stronger
signals from any direction. Experiment with different walls and even different rooms to nd the best location
Concealing Clear TV behind your Television or Artwork
Hiding Clear TV behind your television, artwork, wall hangings, or even furniture should not affect its performance.
We recommend that rst, nd the best location for your antenna and it may or may not be behind your television.
2 7
CTV_INST_TP_ENG_V3_140123.indd 2 1/23/14 12:26 PM

ANT IN
ANT IN
BACK OF TV
CLEAR TV
ANTENNA
COAX CABLE
CONNECTOR STANDARD 75 ohm
COAX CONNECTION
Step 1 — CONNECTING ANTENNA
Attach the mini coax cable, which is the small black cable coming from the
antenna. Simply screw the connector into the ANTENNA IN or CABLE IN
port on the back of your television.
IMPORTANT!
TV must be
a digital TV
to receive
a digital HD
broadcast.
Is the picture better than cable?
All cable companies compress their HD signals; the result is a degraded signal that is usually inferior to
OTA broadcast.
What is signal compression?
Signal compression is a method of making video transmissions smaller. The quality of the signal is degraded in
order to t in more quantity. All cable companies compress their signals in order to make room for all of those
extra channels. OTA broadcast television signals are not compressed and are therefore better quality.
Does Clear TV work with my DVR or TIVO?
Yes, Clear TV is compatible with TiVo and other digital video recorders (DVR) so you can watch what you want,
when you want. Since Clear TV is a HD antenna and can receive an HD broadcast signal there is no need for an
HD converter box.
Will the channel numbers be the same?
With the digital system, the channel number that appears on your television screen and the actual channel number
can be and often are different. Many stations have sub channels (channel 2, channel 2.1, 2.2, 2.3, etc.) Keep in
mind reception will vary in your area due to geography and location of the broadcast antenna.
What if I can’t receive a signal with Clear TV?
Signal strength will vary based on a certain variables, such as distance from the transmitter, hills, buildings, and
even tall trees can impact reception. To check the exact distance from your residence to the nearest transmitters,
and get an idea of what to expect in the way or reception, go to antennaweb.org and type in your address. It is
recommended that you be within 25 to 30 miles of a broadcast antenna.
Clear TV Reception Tips
Place Clear TV in the location with the strongest reception, typically this will be on an exterior wall or window. A
television signal can become weak or intermittent by passing through walls that are exceptionally thick or contain
large amounts of metal. In this case, consider attaching Clear TV to the inside surface of a window pane using the
provided suction cups. This will help to capture a weak station. However, Clear TV or the cable should never be
allowed to interfere with the normal operation of the window.
For optimal performance
Place Clear TV on the inside surface of an exterior wall, ideally a wall facing the general direction of local
transmission towers. (You can nd out the location of your towers by going to antennaweb.org). If there are
multiple tower locations, optimize the position of Clear TV to the weakest signal. Clear TV can pick up the stronger
signals from any direction. Experiment with different walls and even different rooms to nd the best location
Concealing Clear TV behind your Television or Artwork
Hiding Clear TV behind your television, artwork, wall hangings, or even furniture should not affect its performance.
We recommend that rst, nd the best location for your antenna and it may or may not be behind your television.
2 7
CTV_INST_TP_ENG_V3_140123.indd 2 1/23/14 12:26 PM

Frequently Asked Questions
What is Clear TV?
A government mandate requires television broadcasters to convert from analog to digital broadcast. Now, only
digital signals are available over the air in the United States and Canada. Clear TV is an antenna that receives over-
the-air digital and HD signals for free. The signal is a better visual and audio quality than analog. Digital television
enables broadcasters to offer multiple programming choices on a single channel (sub channels), greatly expanding
viewer choices.
How many channels can I receive over the air?
Reception will vary based on factors like geography and location of the broadcast, antenna, hills, buildings, and
even tall trees can impact reception. It is recommended that you be within 25 to 30 miles of a broadcast antenna.
Most households can receive these popular networks: PBS, NBC, CBS, ABC, FOX, ION, CW, Qubo - a children’s
channel, a 24 hour sports programming, a 24 hour classic movie channel, 24 hour news and weather channel,
and popular Spanish-language channels: Azteca, Univision, Telemundo, TeleFutura, may also be available.
Will I receive Cable shows?
No, Clear TV does not receive shows that are produced for cable only.
Will it t all Televisions?
Clear TV will connect with televisions that have an (Antenna IN or a Cable IN) port on the back of the television.
Most televisions sold after May 25, 2007 are required by law to have an ATSC (Digital) tuner built-in and will
receive digital broadcasts. If your television was purchased earlier, but has a menu option for scanning digital
channels then your television has a digital ATSC tuner. Check for the letters ‘ATSC’. If it does not say that it is
equipped with an ASTC tuner, you will need to purchase a converter box.
Can I use it outside, in my attic, or basement ?
Clear TV is designed as an indoor antenna only. We recommend Clear TV be hung on the inside of an exterior wall
or window that is facing the broadcast towers. Placing it in a basement or attic is not recommended. Exposure to
outside elements such as moisture or temperature extremes can be harmful to your antenna.
Do I need an amplier?
If you live in a major metropolitan area you should not need to boost the signal strength. If you live in a rural area
of the country where the signal is weak or intermittent, you may want to purchase a Clear TV amplier to boost
your reception.
Can I add an extension cable to my Clear TV?
Yes, if you would like to move your Clear TV to a location the exceeds the reach of the cable connected to your
antenna you can purchase an extension cable.
Are all broadcasts now in High Denition?
Not all digital signals are High Denition.

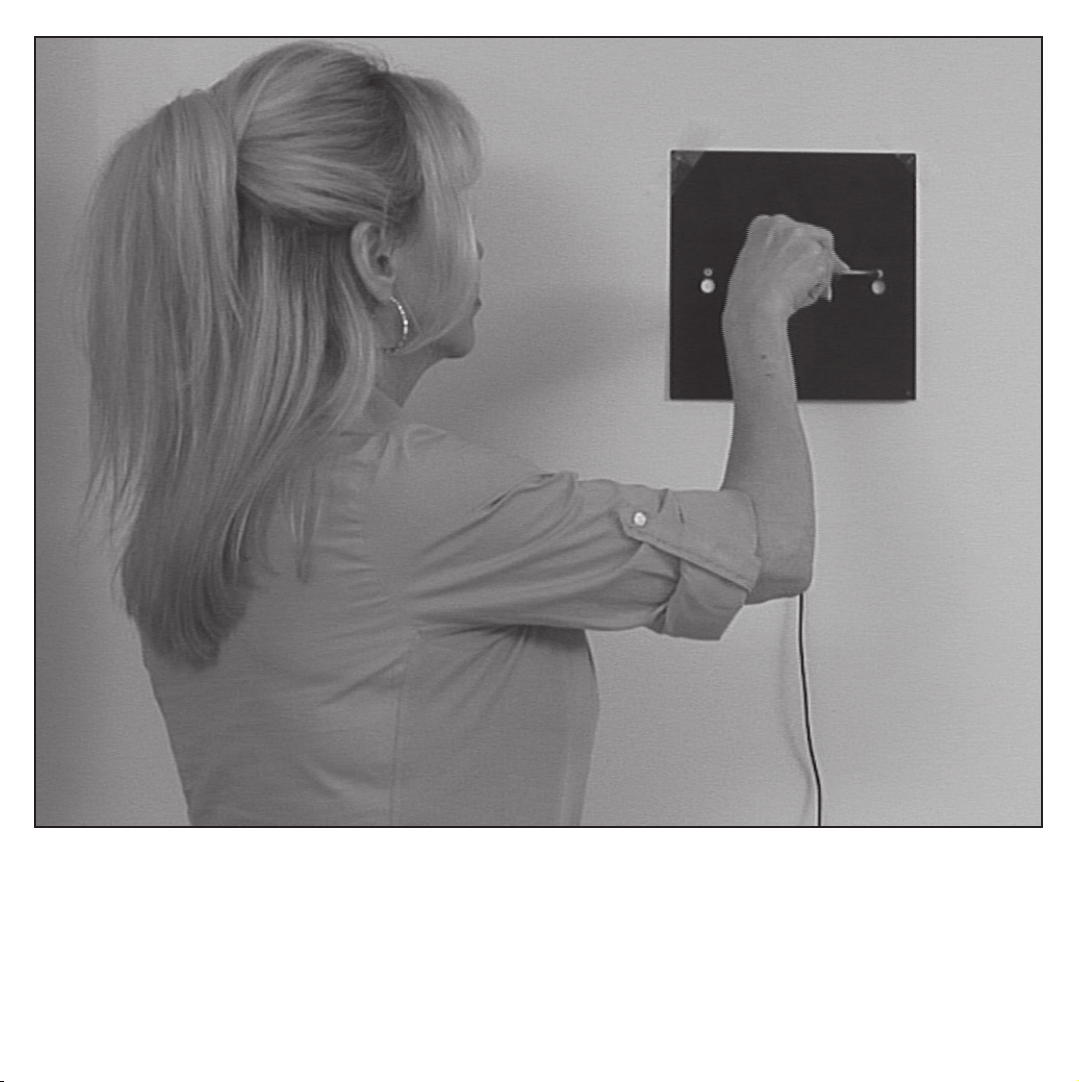

Step 2A — MOUNTING ANTENNA TO WALL
For mounting your antenna on a wall, simply remove the suction cups
and use the holes to mount your antenna in your desired location. We
recommend using tape to temporarily stick the antenna to the wall before
permanently mounting it with the screws provided.
36
CTV_INST_TP_ENG_V3_140123.indd 3 1/23/14 12:26 PM

Frequently Asked Questions
What is Clear TV?
A government mandate requires television broadcasters to convert from analog to digital broadcast. Now, only
digital signals are available over the air in the United States and Canada. Clear TV is an antenna that receives over-
the-air digital and HD signals for free. The signal is a better visual and audio quality than analog. Digital television
enables broadcasters to offer multiple programming choices on a single channel (sub channels), greatly expanding
viewer choices.
How many channels can I receive over the air?
Reception will vary based on factors like geography and location of the broadcast, antenna, hills, buildings, and
even tall trees can impact reception. It is recommended that you be within 25 to 30 miles of a broadcast antenna.
Most households can receive these popular networks: PBS, NBC, CBS, ABC, FOX, ION, CW, Qubo - a children’s
channel, a 24 hour sports programming, a 24 hour classic movie channel, 24 hour news and weather channel,
and popular Spanish-language channels: Azteca, Univision, Telemundo, TeleFutura, may also be available.
Will I receive Cable shows?
No, Clear TV does not receive shows that are produced for cable only.
Will it t all Televisions?
Clear TV will connect with televisions that have an (Antenna IN or a Cable IN) port on the back of the television.
Most televisions sold after May 25, 2007 are required by law to have an ATSC (Digital) tuner built-in and will
receive digital broadcasts. If your television was purchased earlier, but has a menu option for scanning digital
channels then your television has a digital ATSC tuner. Check for the letters ‘ATSC’. If it does not say that it is
equipped with an ASTC tuner, you will need to purchase a converter box.
Can I use it outside, in my attic, or basement ?
Clear TV is designed as an indoor antenna only. We recommend Clear TV be hung on the inside of an exterior wall
or window that is facing the broadcast towers. Placing it in a basement or attic is not recommended. Exposure to
outside elements such as moisture or temperature extremes can be harmful to your antenna.
Do I need an amplier?
If you live in a major metropolitan area you should not need to boost the signal strength. If you live in a rural area
of the country where the signal is weak or intermittent, you may want to purchase a Clear TV amplier to boost
your reception.
Can I add an extension cable to my Clear TV?
Yes, if you would like to move your Clear TV to a location the exceeds the reach of the cable connected to your
antenna you can purchase an extension cable.
Are all broadcasts now in High Denition?
Not all digital signals are High Denition.
Step 2A — MOUNTING ANTENNA TO WALL
For mounting your antenna on a wall, simply remove the suction cups
and use the holes to mount your antenna in your desired location. We
recommend using tape to temporarily stick the antenna to the wall before
permanently mounting it with the screws provided.
36
CTV_INST_TP_ENG_V3_140123.indd 3 1/23/14 12:26 PM

Step 2 — MOUNTING ANTENNA TO WINDOW
Firmly push the suction cups into place along the top of the windowpane
(Use caution when applying pressure to glass window).

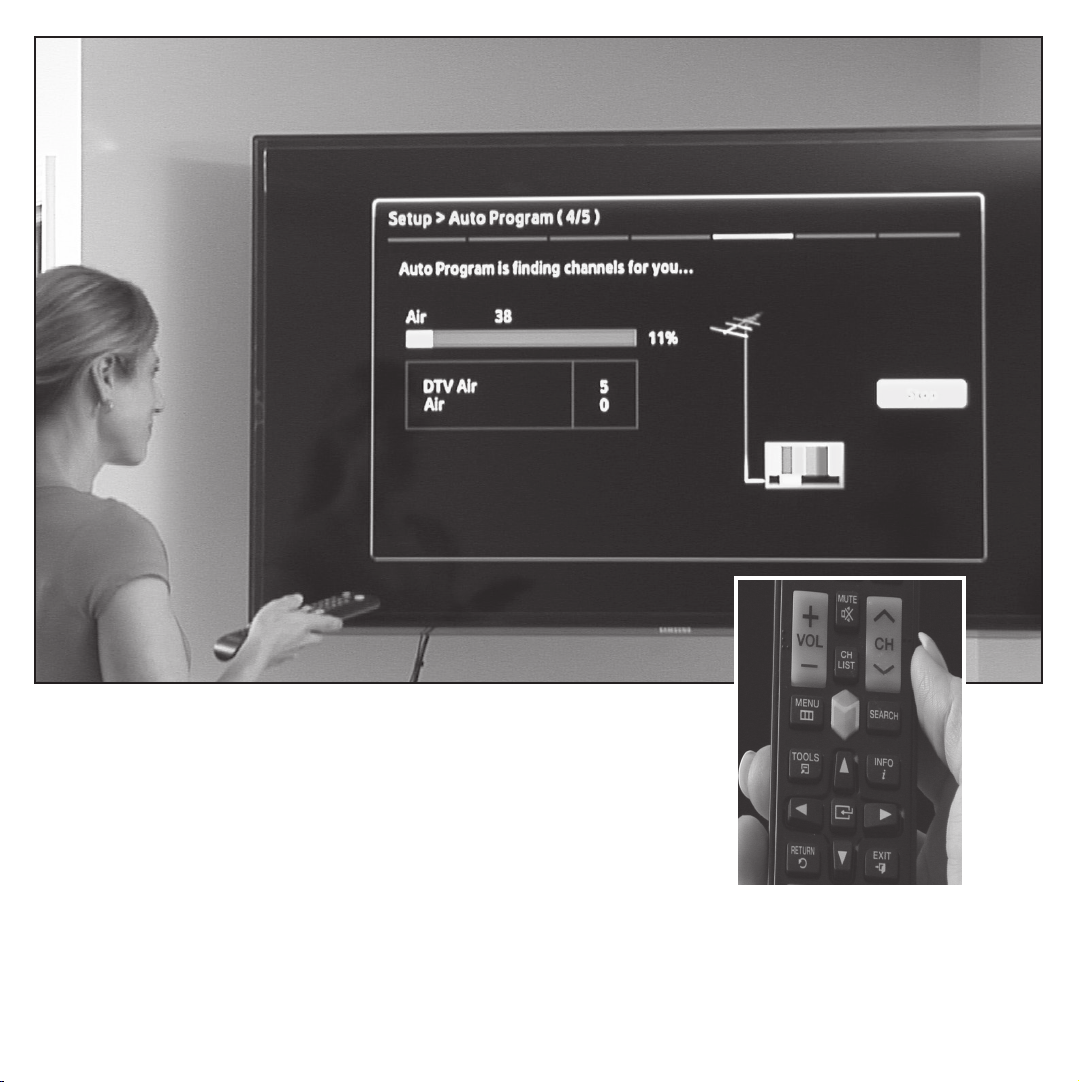

Step 3 — AUTO PROGRAM SCAN
Using your TV’s remote control, navigate to the system menu
and set the TV’s input to ANTENNA. Then begin an auto search
or auto program to nd new stations.
Step 4 — ADJUSTING ANTENNA LOCATION
To maximize the number of stations, you may need to adjust or reposition the antenna.
Try placement in alternate locations and re-scan for new channels. We recommend
Clear TV be used within 35 miles of the broadcasting towers.
4 5
CTV_INST_TP_ENG_V3_140123.indd 4 1/23/14 12:26 PM

Step 2 — MOUNTING ANTENNA TO WINDOW
Firmly push the suction cups into place along the top of the windowpane
(Use caution when applying pressure to glass window).
Step 3 — AUTO PROGRAM SCAN
Using your TV’s remote control, navigate to the system menu
and set the TV’s input to ANTENNA. Then begin an auto search
or auto program to nd new stations.
Step 4 — ADJUSTING ANTENNA LOCATION
To maximize the number of stations, you may need to adjust or reposition the antenna.
Try placement in alternate locations and re-scan for new channels. We recommend
Clear TV be used within 35 miles of the broadcasting towers.
4 5
CTV_INST_TP_ENG_V3_140123.indd 4 1/23/14 12:26 PM

FEATURES
• Innovative at, razor-thin
antenna design.
• Receives digital and
HDTV channels.
• Multi-directional design pulls in
signals from all directions.
• Easy installation,
no assembly required.
• Suction fasteners make for
easy setup and placement.
X-71 HDTV DIGITAL
INDOOR ANTENNA
The Super Thin Flat Digital Indoor Antenna
specially designed for digital TV!
CTV_INST_TP_ENG_V3_140123 Distributed by: ClearTV, Wallingford, CT 06492
Manufacturer’s Limited Warranty
The manufacturer warrants that your ClearTV™X-71 is free of defects in materials and workmanship and will, at its option, repair or replace
any defective ClearTV™X-71 that is returned to it. This warranty runs for sixty (60) days from the original date of purchase, and is valid only
in accordance with the conditions set forth below:
1. Normal wear and tear are not covered by this warranty. This warranty applies to consumer use only, and is void when the product is
used in a commercial or institutional setting.
2. The warranty extends only to the original consumer purchaser and is not transferable. In addition, proof of purchase must be
demonstrated. This warranty is void if the product has been subject to accident, misuse, abuse, improper maintenance or repair, or
unauthorized modication.
3. This limited warranty is the only written or express warranty given by the manufacturer. Any implied warranty of merchantability or
tness for a particular purpose on this product is limited in duration to the duration of this warranty. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you.
4. Repair or replacement of the product (or, if repair or replacement is not feasible, a refund of the purchase price) is the exclusive remedy
of the consumer under this warranty. The manufacturer shall not be liable for any incidental or consequential damages for breach of
this warranty or any implied warranty on this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
5. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
Procedure for Warranty Repairs or Replacement:
If warranty service is necessary, the original purchaser must pack the product securely and send it postage paid with a description of the
defect, proof of purchase, and a check or money order for $7.95 to cover return postage and handling to the following address:
ClearTV™, P.O. Box 3007, Wallingford, CT 06492.
ATTENTION
1. X-71 Digital HDTV Antenna is intended for indoor use only.
2. The location of the antenna is important to maximize signal strength. The antenna should
be kept far from disturbance source, big electrical appliances like air conditioners, elevator,
washing machine, blower or microwave oven, etc.
3. Window mounting results in the best performance. The incoming signals will not be
downgraded by objects in the home, ofce or vehicle. Please ensure the antenna is not
blocked by aluminum or metallic screening as this will degrade incoming signals.
4. Be sure to hang the antenna vertically with the cable on the bottom.
5. Maintenance of antenna, please use soft cloth with diluted mild detergent to clean its shell.
MADE IN CHINA
CTV_INST_TP_ENG_V3_140123.indd 1 1/23/14 12:26 PM
