Airack Operating Instructions
About The Airack
1. The Airack is designed to facilitate fast drying and cooling of glasses following the
washing process.
2. The Airack reduces the drying times from > 40 minutes to ~ 4 minutes.
3. Airack speeds up the turnaround of glasses whilst delivering them in perfect
condition for dispense.
4. The use of wet, warm glasses will impair the presentation of the glass, and
carbonated drinks will appear flat.
5. The Airack is available in three sizes - 40cm, 45cm and 50cm. For best results use the
correct size Airack for your Glasswasher baskets (400mm, 450mm or 500 mm
square).
How To Use The Airack
1. Switch on the power to the Airack.
2. Immediately after the washing process, place a full basket of glasses on top of the
unit and press the button to start the drying cycle. The indicator neon will be lit.
The drying action is achieved by drawing in air from the base of the unit and blowing
this air onto the glasses using a matrix of air nozzles.
The cooling action is achieved by the velocity of air passing over the glasses,
reducing the glass temperature to just below ambient.
3. At the end of the drying cycle the unit will automatically switch off, indicated by the
neon going out.
4. When the drying cycle is complete, remove the basket of clean dry glasses for
immediate use, or to storage.

4 of 17
Standard Baskets

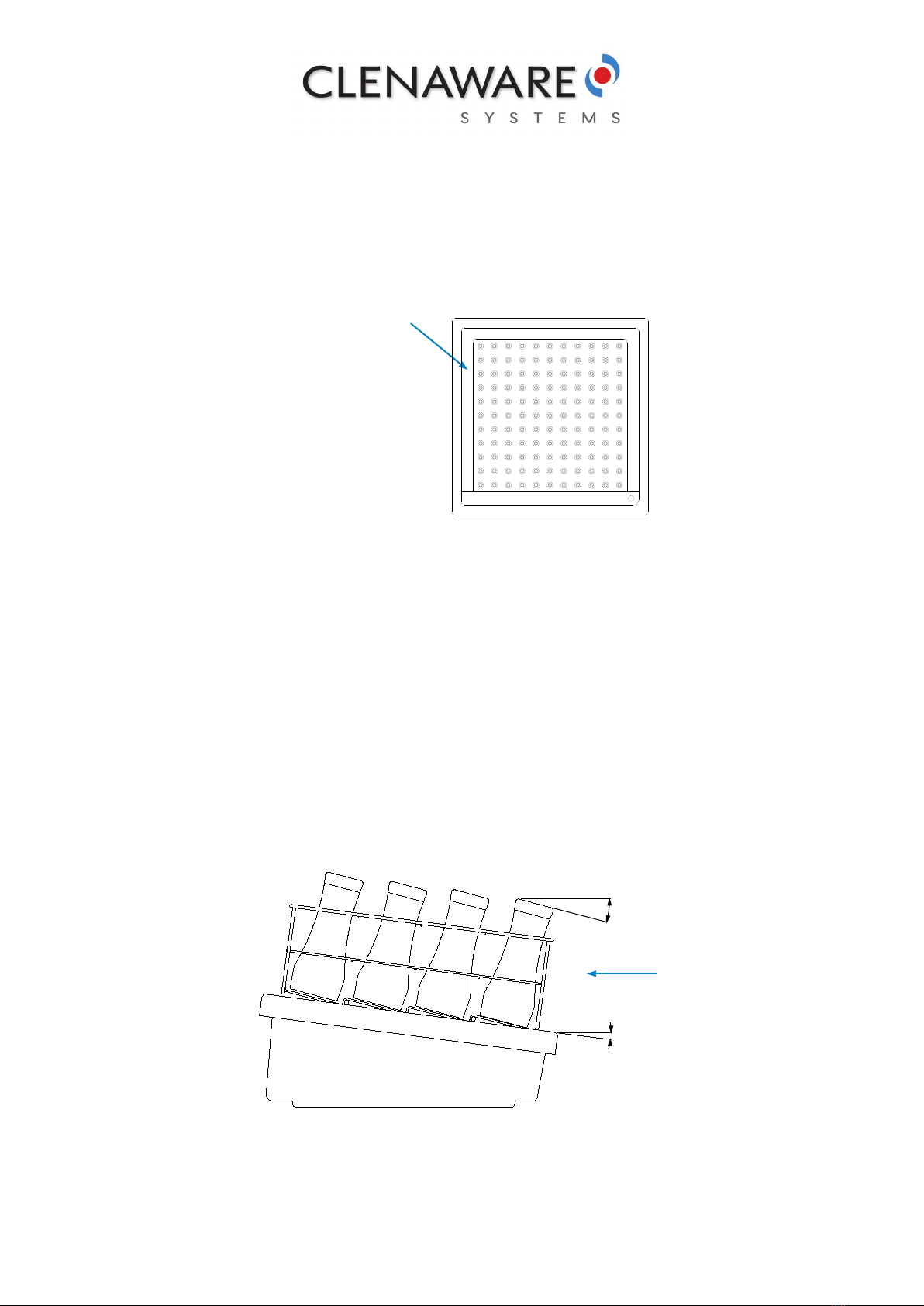

1. The top of the Airack incorporates a moulded recess to locate the 400, 450 or
500mm sq basket (dependant on the Airack model) centrally over the matrix of air
nozzles.
Compartmented Baskets
1. Good results will be provided when using standard racks, however, for best drying
performance and optimum glass care, use the Clenaware 400/450/500mm sq
compartmented glass racks.
2. Clenaware compartmented baskets tilt the glass at 7½° from horizontal. This is to aid
the drying process.
3. When placed onto the Airack the glasses will be angled at a further 7½° resulting
with a total glass angle of 15° to the horizontal.
Important: Place the compartmented Basket onto the Airack, orientated so that the glasses
are tilted towards you, to give the maximum angle.
Recess for Basket
15°
7.5°
Front

5 of 17
Replacing The Air Filter
1. It is recommended that the air filter is replaced every six months, or sooner if the
drying performance deteriorates. The filter is fitted to the underside of the Airack
unit, retained by a clip-on filter frame.
2. Air Filter Replacement:
a) Disconnect the Airack from the electrical supply
b) Carry out the ‘Daily Cleaning Procedure’
c) Carefully invert the Airack to give access to the Filter
d) With care unclip the Filter Frame, lift up, and replace the Filter
e) Position the new filter centrally over the air intake
f) Retain the filter by carefully clipping the frame back into position
Filter
Filter Frame
Filter in Position
Filter Frame Clipped Into
Position

6 of 17
Daily Maintenance
Cleaning The Airack
Step 1
1. Isolate the electrical supply and remove the Cover from the Base.
Step 2
1. Clean the top of the cover using a damp cloth
2. Clean the underside of the top cover using a damp cloth, paying particular attention
to the air nozzles and base mating surfaces.
a) Do not use proprietary cleaning agents.
b) The odours will contaminate the glasses.
Lift Off the Cover

7 of 17
Step 3
1. Use a damp cloth to clean the Airflow Area.
Do not use proprietary cleaning agents in the Airflow Area. The odours will
contaminate the glassware.
2. Clean the Drain Funnel using a cleaning agent. Then rinse out with fresh water and
ensure the water vacates down to the Drain Outlet.
Step 4
1. Reassemble the unit, Reconnect the electrical supply and operate several cycles
before use.
Airflow Area
Drain Funnel
Drain Outlet

8 of 17
Caring For Your Airack
Observance of the following will ensure maximum efficiency from your Airack:
Please “Do” The Following:
1. Dry the glasses immediately after the washing process.
2. Always use a full load of glasses in the basket.
3. Always place the basket centrally on the drying unit (top is recessed).
4. Always ensure the correct orientation of compartmented baskets placed on the
Airack.
5. Always wait for the drying cycle to finish before removing the basket of glasses.
6. Clean the Airack daily (see daily maintenance).
Please “Do Not” Do The Following:
1. Never use the Airack for dregs disposal, or for liquid disposal.
2. Never use proprietary cleaning agents in the Airack (except the drain outlet).
3. Do not sit or stand on the Airack unit, or use the unit for any purpose other than
drying glassware.

9 of 17
Airack Installation
Siting

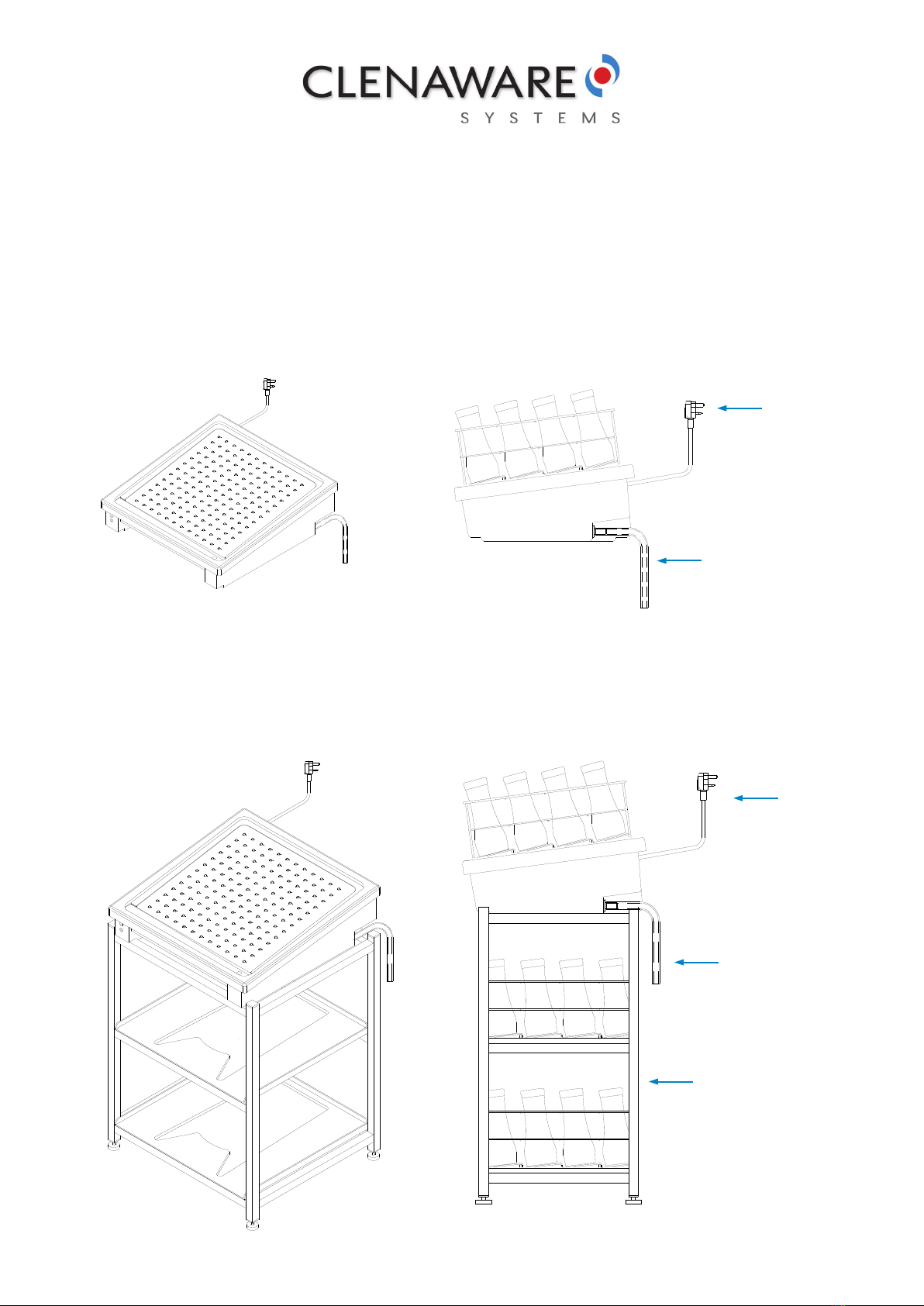

1. The Airack can be free-standing on a flat horizontal counter-top, onto a shelf, or on
the top of a glasswashing machine.
2. The unit can be mounted onto a Clenaware Basket Unit close to the Glasswasher.
This solution provides an optimum working height and storage for 400, 450 &
500mm sq. racks.
3-Pin Plug
Drain Hose
Basket Unit
3-Pin Plug
Drain Hose

10 of 17
Drain Hose
Basket Unit with
Tundish fitted
3-Pin Plug

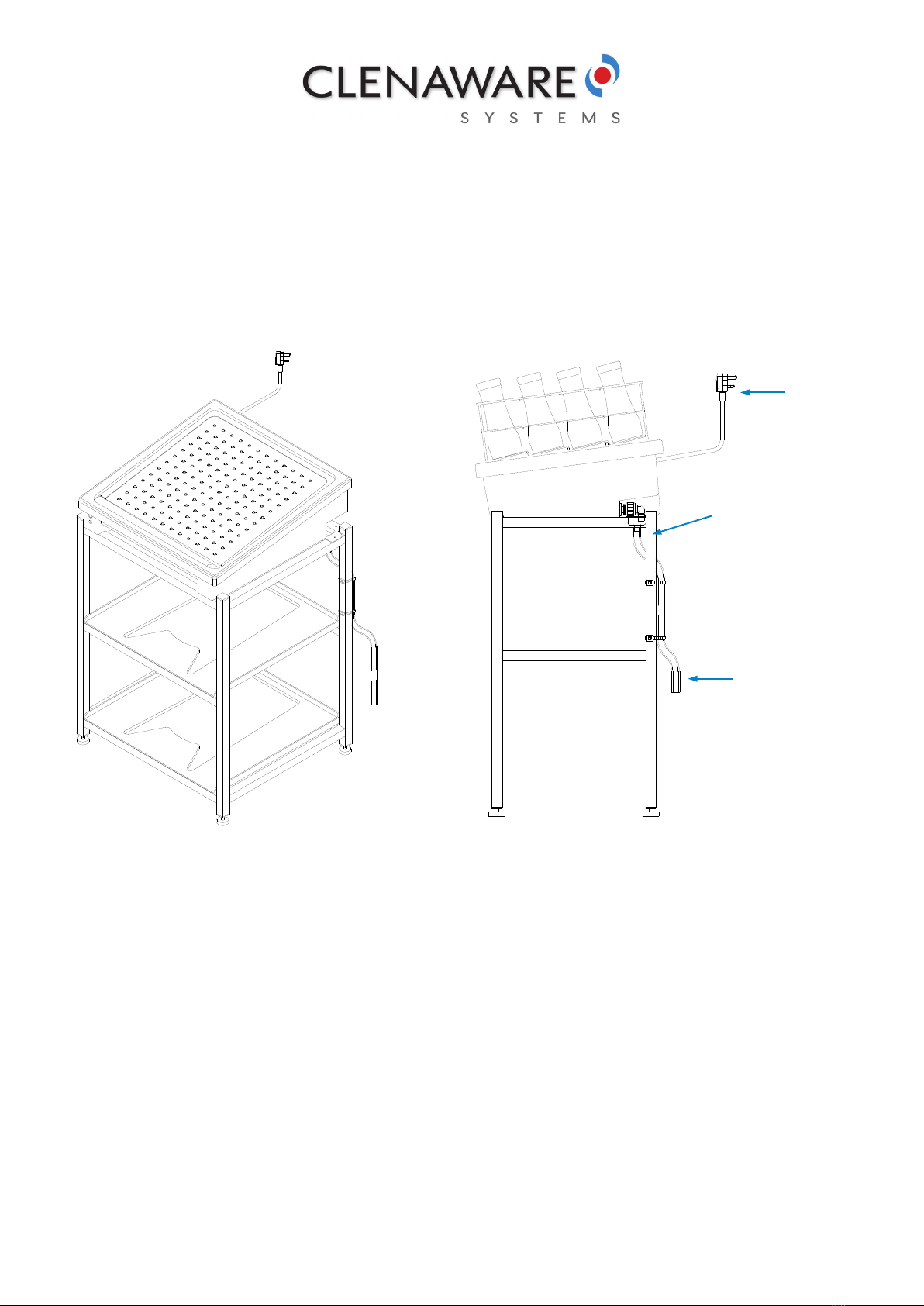

3. Alternatively, the unit can be mounted onto a Clenaware Basket Unit with a Tundish
fitted.
The Tundish allows the operator to remove the Airack when fitting a new Filter, or
cleaning the machine, without disturbing the drain connection.

11 of 17
Connection To Services
Electrical
The unit is supplied complete with mains cable and 3 pin 13A plug-top (fused @ 3 amp). A
240V 3 pin socket is required within 1 metre of the unit, and accessible for isolation.
Check that your supply voltage is within the range stamped on the plate fitted to the rear of
the unit.
Warning: This Appliance Must Be Earthed
Important: The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow - Earth
Brown - Live
Blue - Neutral
As these colours may not correspond with the colour markings on your plug terminals,
proceed as follows:
1. The wire coloured green and yellow must be connected to the plug terminal marked
"E", or by the earth symbol or coloured green or green and yellow.
2. The wire coloured brown must be connected to the terminal marked "L", or coloured
red.
3. The wire coloured blue must be connected to the terminal marked "N", or coloured
black.
Drain
A silicone rubber outlet pipe (19mm O.D.) is fitted to the rear right of the unit, and this
removes any excess water build-up resulting from the draining/drying process. A drain
upstand or receptacle is required within 1 metre of the unit.
Note: To ensure correct draining, the drain outlet hose must be routed so that it falls
gradually down from the unit.

12 of 17
Technical Specification
1. Designed for drying glasses in 400, 450mm & 500mm square baskets.
2. Drying cycle period is ~ 4 minutes.
3. Drying cycle starts when the pushbutton is activated.
4. Drying cycle stops after the pre-set 4 minute drying cycle.
5. The drying cycle period is engineer adjustable.
6. Crossflow Fan delivering an airflow up to 320m³/h.
7. Quiet operation, typically 59dB.
8. Replaceable air intake filter.
9. 220-240V 50Hz 150W electrical (fused @ 3 amps).
10. 19mm O.D. drain outlet.
11. Drying platform angled @ 7½° to aid draining/drying.
