Fisher & Paykel 428108C User manual

Installation Instructions
Please read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections carefully before using your dryer!
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer. You will find them inside the drum:
• 1 x Drying rack (DE6060P and DE6060G only)
• 1 x Installation instructions and user guide
• 1 x Wall mounting kit
• 1 x Duct adapter
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1. Remove the outer packaging (including the polystyrene packer and plastic wrapping). All packaging must be
removed prior to use.
• Ensure packaging materials are kept out of reach of children.
• Please help protect the environment and dispose of the packaging from around the dryer in an
environmentally friendly manner.
2. Tilt the dryer backwards and ‘walk’ it off the base one foot at a time. Not doing so may cause damage to your
floor and dryer.
3. Remove all packaging and accessories from inside the drum and ensure you remove protective covers from
the door and console.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
1

Location
•The dryer must be installed in a well-ventilated, dust- free environment.
•The dryer must not be installed on any textured floor coverings (eg carpet, rugs).
•Do not install the dryer behind a lockable door, sliding door, or behind a door where the
hinge is on the opposite side to that of the dryer in such a way that the full opening of
the door is inhibited. Ensure the dryer door can always be opened fully.
•Do not install the dryer outside, in a damp place, where there is a risk of freezing,
where it may be rained on, in direct sunlight or close to a source of heat.
•Do not place your dryer on top of its power cable.
Venting
Correct installation is very important for all dryers to ensure maximum efficiency and safety.
Never run the dryer unless the airflow system is free from obstruction.
There must be adequate ventilation to avoid the back flow of gases into the room from appliances burning fuels,
including open fires, when operating the dryer.
Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other
fuels.
External venting
Your dryer has been designed to be vented outside to provide the following advantages:
• Ensures optimum efficiency by preventing recirculation of moist air.
• Eliminates condensation on walls and ceilings.
• Reduces the chance of lint being sucked into the dryer.
• Prevents lint and other fine particles being blown into the room.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
2

All External Venting Systems should be:
• Made from 100 mm diameter flexible foil sleeved with a galvanised metal pipe where the vent system goes
through the wall, or 100 mm diameter galvanised metal piping.
• Exhausted outside and not into another confined space, eg the roof cavity of a house.
• Fitted with a vent cap outside to stop rain water entering the dryer exhaust system.
• Angled to avoid condensation running back into the dryer.
• The vent system should be a maximum of 2 metres with no more than three 90° bends.
• Vent systems over 2 metres long require special installation. Contact a Fisher & Paykel trained and supported
service technician.
Internal venting
The dryer is set up in the factory for front venting. If front venting is used there must be adequate ventilation to avoid the
build up of moisture in the room, which can affect the performance of the dryer. Venting must comply with local by-laws
and regulations.
Installation options
There are two different ways your dryer can be positioned. Freestanding or inverted and mounted on a wall.
Free Standing
The dryer stands on the floor and can easily be moved into
position.
1. Move the dryer into the desired position. Do not lift the
dryer by the top panel.
2. Have a minimum clearance on all sides of at least 20
mm.
3. Have a minimum clearance at the rear of 75 mm. The
spacers from the accessory wall mounting kit can be
used to set this distance.
4. Install the dryer on a stable and level floor.

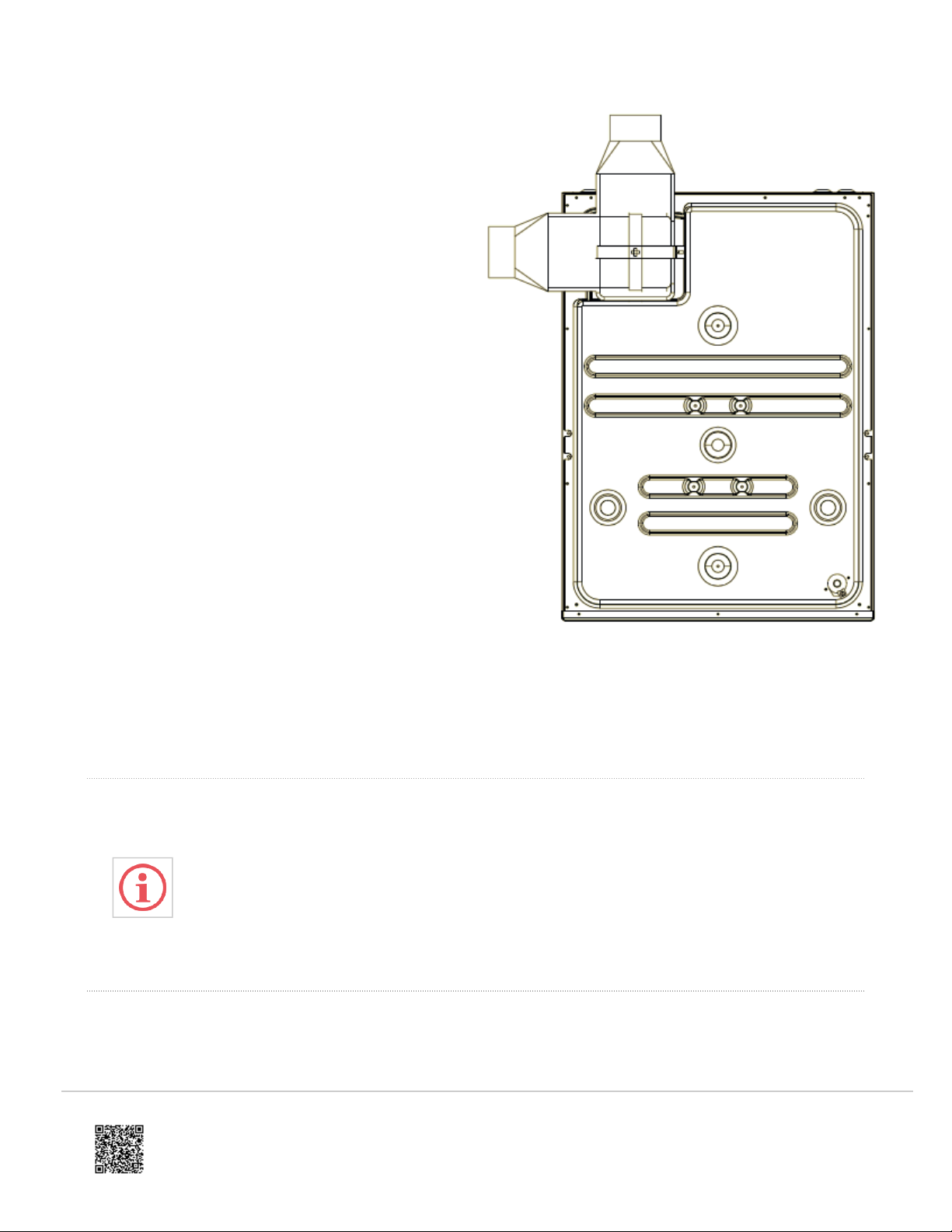

External venting with kit part number PD-DK4W
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
3

Free Standing Venting Options
The vent system should be a
maximum of 2 metres with no
more than three 90° bends.
Before a rear venting option is installed the dryer must be
changed from the front venting factory setup. Remove the
outlet grille from the front left-hand side and replace with the
outlet cover from the rear left-hand side. These covers should
be gently pried at the sides to prevent damage.
External Venting
The dryer is vented with a kit that can be positioned to
remove air to the side.
The dryer is vented directly through the wall using a ducting
kit in combination with the duct adaptor supplied with the
dryer.
The dryer is vented through a window using a ducting kit in
combination with the duct adaptor supplied with the dryer.
This requires the dryer to be a minimum distance of 140mm
from the wall to ensure the ducting is not restricted with tight
bends or can be crushed.
PD-DK4W Models
The dryer can be vented with a kit that can be positioned to
vent upwards or to the side. Kit part number PD-DK4W.
The dryer can be vented directly through the wall with Kit part
number PD- SVHCW4, in combination with the duct adaptor
supplied with the dryer.
External venting with kit part number PD-
SVHCW4
External venting with kit part number PD-F0408
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
4

The vent system should be a
maximum of 2 metres
with no more than three 90⁰bends.
Internal Venting
Front venting is the only recommended option for venting into
the room. The dryer is set up for front venting when it leaves
the factory.
Where possible all efforts should be
made to vent the dryer externally to
avoid moisture build up around the
dryer.
Through-Wall Venting
The dryer is vented directly through the wall using Kit part
number PD-SVHCW4, in combination with the duct adaptor
supplied with the dryer. The dryer is vented with a kit that can
be positioned to remove the air to the side. Kit part number
PD-DK4W.
Movable Venting
The dryer is vented through a window using Kit part number
PD-F0408, in combination with the duct adaptor supplied with
the dryer. This requires the dryer to be a minimum distance of
140 mm from the wall to ensure the ducting is not restricted
with tight bends or can be crushed.
Before a rear venting option is installed the dryer must be
changed from the front venting factory setup. Remove the
outlet grille from the front left-hand side and replace with the
outlet cover from the rear left-hand side. These covers should
be gently pried at the sides to prevent damage.
Through-wall venting with kit
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
5

Front Venting
Front venting is the only recommended option for venting into
the room. The dryer is set up for front venting when it leaves
the factory.
All efforts should be made to
vent the dryer externally if
possible, to avoid moisture build
up in the area around the dryer.
Through-wall venting
Wall Mount Ducting
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
6

Movable venting
Inverted Wall Mounting Installation
Your dryer has been designed to be inverted and mounted on the wall above a washer or tub. A wall mounting kit must
be used. Inverting allows access to the dryer control panel.
Tools and Parts Required:
• Drill and 3 mm bit
• Phillips head screwdriver
Wall Mounting Kit Includes:
• 2 x Plastic spacers
• 2 x Wall hanging brackets
• 2 x Hanging hook
• 4 x Wood screws
• 6 x Screws for hanging hooks and plastic spacers
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
7

Inverted Wall Mounting
Example 1
Inverted Wall Mounting
Example 2
Inverting the panel
1. Unplug your dryer from the wall.
2. Invert the panel of the dryer by unscrewing the screws on the side of the console (A).
3. Remove the console from the dryer.
4. Unscrew six screws on the inside of the console (B).
5. Rotate the grey panel 180 (C).
6. Re-screw the six screws on the inside of the console.
7. Align the console by placing the hooks into the spaces on the dryer.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
8

8. Ensure the wiring is firmly pressed into the clips (D).
9. Re-screw the console to the dryer.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
9

Mounting Dryer on Wall
1. Determine the position of the dryer on the wall and
mark the bracket position. A minimum of 50 mm is
needed between the top of the dryer and the
ceiling for ease of installation. If mounting above a
washing machine, allow sufficient room to open the
lid of the washer. Refer to page 10 for lid
clearances.
2. Fix the wall hanging brackets to the wall securely,
eg into the stud. If the studs are too far apart, fit a
timber slat to the studs and then mount the
brackets onto the slat. Add the same slat under the
two spacers. The distance between the centre of
each bracket is 555 mm (A).
3. To install the hooks onto the dryer, remove one
screw from each side (B), reuse these with two
more (each side) from the kit to fasten the hooks in
place.
4. Remove plastic plugs from the back of the dryer
and screw the spacers provided in place (C).
5. With assistance, mount the dryer on the wall
brackets.
Before a rear venting option is installed the dryer must be changed from the front venting factory setup. Remove the
outlet grille from the front left-hand side and replace with the outlet cover from the rear left-hand side. These covers
should be gently pried at the sides to prevent damage.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
10

External Venting Options
• The dryer can be vented with a kit that can be
positioned to vent upwards or to the side. Kit part
number PD-DK4W.
• The dryer can be vented directly through the wall
with Kit part number PD-SVHCW4, in combination
with the duct adaptor supplied with the dryer.
The vent system should be
a maximum of 2 metres
with no more than three 90°
bends.
Internal Venting
Front venting is the only option for internal venting. The
dryer is set up for front venting when it leaves the
factory.
All efforts should be made
to vent the dryer externally,
if possible, to avoid
moisture build up in the
area around the dryer.
Electrical Connection
1. This appliance must be connected to a 220 V –
240 V, 50 Hz, sinusoidal, 10A electrical supply.
2. Uncoil the power cord, remove and discard the
plastic pin cover and plug into a power socket.
3. Connect the appliance to an earthed outlet
protected by a fuse of suitable capacity.
• Check the power cord for damage and make sure it
is not squashed or twisted when installing the dryer.
Wall mounting ducting
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
11

• Always remove the power cord from the power
socket by the plug, not by the cord.
Through-wall mounted ducting
• Do not touch or operate the dryer with wet hands or with bare-feet.
• A damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician.
The appliance must not be operated until it is repaired, as there is risk of electric shock.
• Do not operate this dryer if it has been damaged during transport. Contact your Fisher &
Paykel dealer or Fisher & Paykel trained and supported service technician.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
12

The appliance must not be supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by a utility.
Completing the Installation
Installation Test Cycle
Ensure the installation test cycle is completed before you dry any items in your dryer. This
is to check that your dryer is installed correctly and that it is functioning properly prior to
use.
1. Turn your dryer on by pressing the ‘Power’ button.
2. Select the ‘Time Dry’ cycle for 30 minutes. Ensure the drum is empty and the door is closed (you will hear it click
shut).
3. Touch the button. The drum will start rotating.
• Observe the dryer for any problems.
• The dryer will beep and display any faults on the screen if there are any problems.
Refer to 'Before you call for service'.
4. At the completion of the cycle open the door and check that there is warmth inside the dryer. This indicates the
dryer is operating normally.
If there are any problems, you must address these before proceeding with normal
use. The dryer will automatically turn off at the end of the cycle if there are no
problems.
Before you start, it is a good idea to go through the following checklist:
1. Has the packaging been removed?
2. Is the lint filter correctly in place?
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
13

3. Has the power cord been connected to an appropriate power supply and the power turned on?
4. Have you performed the installation test cycle?
Product Specifications
Property DE5060G DE6060G DE6060P
Capacity (kg)* 5 6 6
Dimensions (mm)
Property DE5060G DE6060G DE6060P
Width 600 600 600
Depth 571 571 578
Height 825 825 825
Electrical
Property DE5060G DE6060G DE6060P
Volts 220 – 240 220 – 240 220 – 240
Hz 50 50 50
Amps (maximum) 10 10 10
Rated Power (W) 1750 1750 1750
*Capacity refers to the maximum dry weight of items the dryer can dry at any one time.
Some cycles have a lower maximum capacity (see the ‘Drying cycles’ section). Maximum
capacity according to AS/NZS 2442.1:1996.
https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
14

https://producthelp.fisherpaykel.com/Manuals/Dryer_Manuals/User_Guides/428108C_Dryer/03_Installation_instructions
Updated: Mon, 10 Apr 2023 10:28:19 GMT
Powered by
15
