CleverMade TAMARACK User manual

TAMARACK CHAIR
INSTRUCTIONS
Scan QR code to watch
Tamarack Chair setup

H - Plugs (6)
(4 needed + 2 extra)
TAMARACK CHAIR COMPONENTS
SEAT ASSEMBLY
A - Seat (1) B - Back (1)
C - Thick Slat (2)
D - Thin Slat (10)
E - Connection Rods (2)
Lay Seat (A) at on the ground
with the CleverMade Logo on
the outside of the left leg.
NOTE: Loosen nuts on rod that
holds Seat (A) together with
both Hex Wrenches (I) - one to
secure and one to loosen.
Starting on the left
side, place 1 Thin Slat
(D) slat between each
gap on the Seat (A),
continue until all 10
Thin Slats (D) have
been placed
NOTE: Be sure to align
the top holes of the
slats with the holes on
the Seat (A).
CleverMade logo
F - Endcap Screws (6)
(4 needed + 2 extra)
G - Allen Wrench (2) I - Hex Wrench (2)
1 2
Use provided tools only, power tools could
damage product and make assembly difcult.
B
A
C
H
H
D

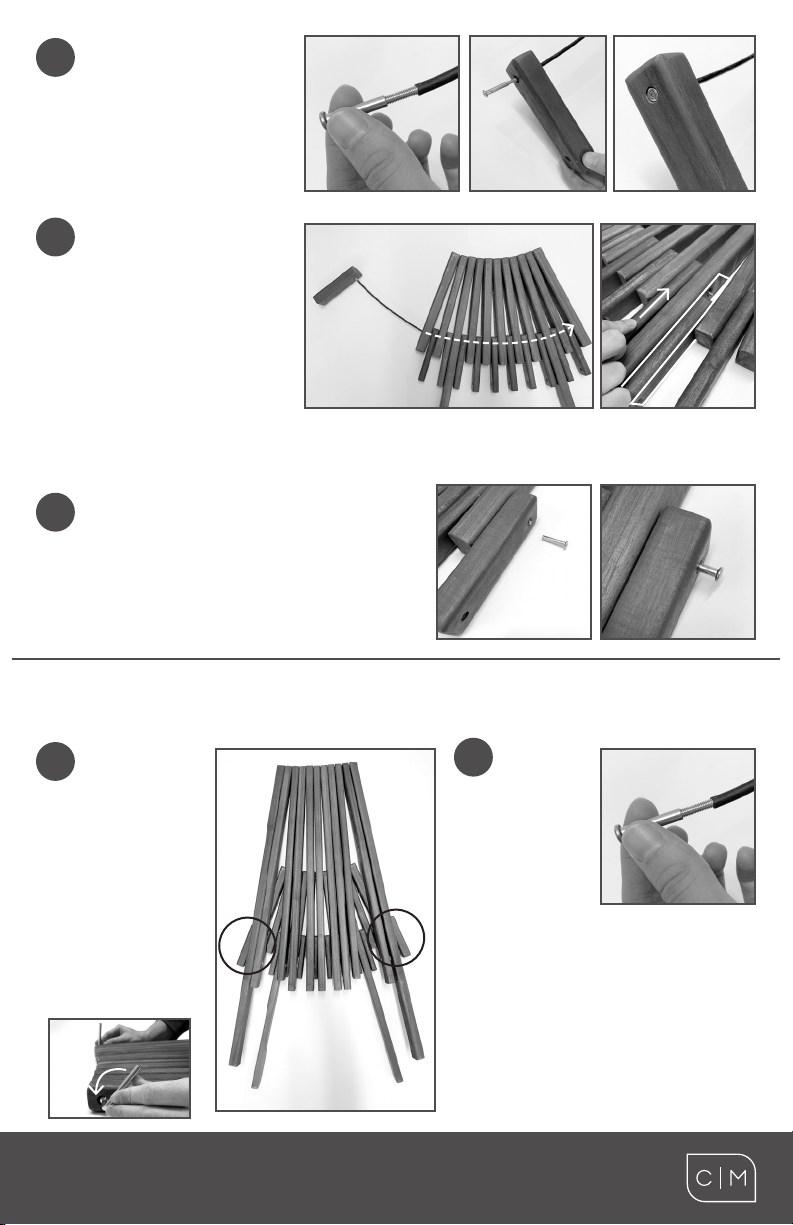

ATTACH BACK TO SEAT
Thread Connection Rod (E)
with secured Thick Slat (C)
through the Seat (A) and inserted Thin
Slats (D), starting on the left.
Slide last Thick Slat (C) onto the end of the rod.
Hand tighten 1 Endcap Screw (F) leaving slight
gap. You will tighten all Endcap Screws once chair
is completely built.
Hand tighten 1 Endcap Screw
(F) to 1 Connection Rod (E) and
then slide on 1 Thick Slat (C).
Endcap will nest into counter
sunk hole for a ush nish.
Fan out Back (B) on top
of Seat (A). Making sure
Thick Slats (C) are on the
outside.
NOTE: Loosen nuts on
rod that holds Back (B)
together with both Hex
Wrenches (I) - one to
secure and one to loosen.
Hand tighten 1
Endcap Screw (F) to
1 Connection Rod (E)
NOTE: Push up on previous slat to
allow rod to slide through holes. You
may need to adjust slats slightly to
line up the holes and allow the rod to
pass through.
3
67
4
5
gap
C
CAUTION: TO AVOID INJURY DO NOT PUT YOUR HAND OVER THE HOLE AS YOU ARE THREADING
THE CONNECTION ROD THROUGH

Slide Connection Rod (E) rst through the outer
Thick Slat (C). Proceed to thread Connection
Rod (E) through Back (B) planks. Alternate
sliding the rod through Thin Slat (D) and plank.
You will end with the rod going through the
remaining Thick Slat (C).
NOTE: You may need to slightly raise BACK (B)
portion to easily insert rod.
CAUTION: TO AVOID INJURY DO NOT PUT YOUR HAND OVER THE HOLE AS YOU ARE
THREADING THE CONNECTION ROD THROUGH
8
Hand tighten
Endcap Screw (F)
Tighten all hex bolts in the 4 exposed
holes using the Hex Wrenches (I). Then
insert plugs (H) to cover exposed holes on
the Back (B) and Seat (A) portion of chair.
Sit, relax, and enjoy your new Tamarack Chair.
