Preface
I
Preface
Notebook Computer
M770SU/M775SU
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
November 2008
Trademarks
Intel,Celeron and Intel Core are trademarks of Advanced Micro Devices, Inc.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the M770SU/
M775SU series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 19V, 4.74A (90W) minimum AC/DC
Adapter).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2

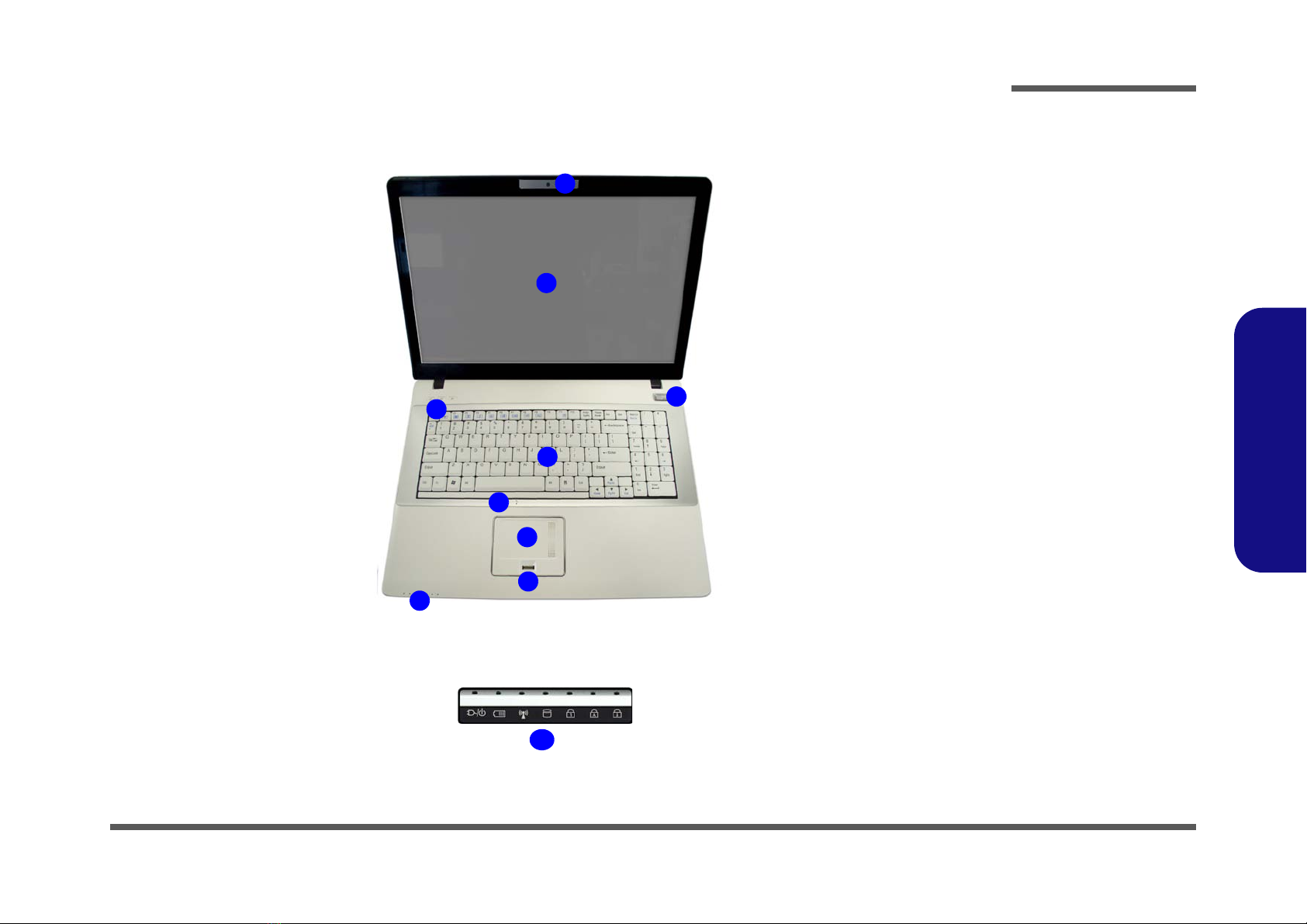

External Locator - Top View with LCD Panel Open ......................1-5
External Locator - Front & Right side Views .................................1-6
External Locator - Left Side & Rear View .....................................1-7
External Locator - Bottom View .....................................................1-8
Mainboard Overview - Top (Key Parts) .........................................1-9
Mainboard Overview - Bottom (Key Parts) ..................................1-10
Mainboard Overview - Top (Connectors) .....................................1-11
Mainboard Overview - Bottom (Connectors) ...............................1-12
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Optical (CD/DVD) Device ......................................2-8
Removing the System Memory (RAM) ..........................................2-9
Removing the Inverter Board ........................................................2-11
Removing and Installing the Processor .........................................2-12
Removing the Wireless LAN Module ...........................................2-15
Removing the Keyboard ................................................................2-16
Removing the Modem ...................................................................2-17
Removing the Bluetooth Module ..................................................2-18
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top with Fingerprint (M770SU) ................................................... A-3
Top with Fingerprint (M775SU) ................................................... A-4
Top without Fingerprint (M770SU) .............................................. A-5
Top without Fingerprint (M775SU) .............................................. A-6
Bottom (M770SU/M775SU) ......................................................... A-7
LCD (M770SU/M775SU) ............................................................. A-8
HDD (M770SU/M775SU) ............................................................. A-9
COMBO (M770SU/M775SU) ..................................................... A-10
DVD-Dual Drive (M770SU/M775SU) ....................................... A-11
Schematic Diagrams................................. B-1
System Block Diagram ...................................................................B-2
Penryn (Socket-P) 1/2 .....................................................................B-3
Penryn (Socket-P) 2/2 .....................................................................B-4
SiSM672 Host, PCIE 1/5 ................................................................B-5
SiSM672 DRAM 2/5 ......................................................................B-6
SiSM672 MuTIOL VGA 3/5 ..........................................................B-7
SiSM672 PWR 4/5 .........................................................................B-8
SiSM672 GND 5/5 .........................................................................B-9
DDRII SO-DIMM - 1 ...................................................................B-10
DDRII SO-DIMM - 2 ...................................................................B-11
External VGA NB9M-GS-1 .........................................................B-12
External VGA NB9M-GS-2 .........................................................B-13
External VGA NB9M-GS-3 .........................................................B-14
External VGA NB9M-GS-4 .........................................................B-15
External VGA NB9M-GS-5 .........................................................B-16
External VGA NB9M-GS-6 .........................................................B-17
External VGA NB9M-GS-7 .........................................................B-18
Panel, CRT ....................................................................................B-19
Inverter, Bluetooth, Fan ................................................................B-20
968 PCI, IDE, MuTIOL, SPI 1/4 ..................................................B-21

Preface
X
Preface
968 PCIE, LAN, GPIO 2/4 ........................................................... B-22
968 USB SATA 3/4 ...................................................................... B-23
968 PWR, GND 4/4 ..................................................................... B-24
Clock Generator & Clock Buffer ................................................. B-25
PHY Realtek 8201CL ................................................................... B-26
KBC ITE8512E ............................................................................ B-27
ENE MR510, Card Reader ........................................................... B-28
Audio Codec ALC662 .................................................................. B-29
Audio AMP .................................................................................. B-30
SATA HDD, PWR, LID .............................................................. B-31
Multi I/O, ODD, 3G, Click BD for M74 ...................................... B-32
New Card, Mini PCIE, USB ........................................................ B-33
LED, PC Beep, TP, FP ................................................................. B-34
System/Ext-VGA Power .............................................................. B-35
AC-IN, Charger ............................................................................ B-36
VCORE ........................................................................................ B-37
VDD3, VDD5) ............................................................................. B-38
1.05VS, 1.2V, 1.5V ...................................................................... B-39
1.8V, 0.9VS .................................................................................. B-40
Click BD, Finger BD for M76 ..................................................... B-41
Multi Function Board ................................................................... B-42
Audio Board ................................................................................. B-43
Finger Sensor Board ..................................................................... B-44
Power Switch Board for M74 ....................................................... B-45
External ODD Board for M76 ...................................................... B-46
FingerPrint Board for M74 ........................................................... B-47
Power Switch Board for M76 ....................................................... B-48
PATA ODD C/B for M77 ............................................................ B-49
SATA ODD C/B for M77 ............................................................ B-50
Keyboard C/B for M77 ................................................................ B-51
HDD C/B for M77 ........................................................................ B-52
Power Switch Board for M77 ....................................................... B-53

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the M770SU/M775SU series notebook computer.
Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The M770SU/M775SU series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed
description of the upgrade procedures for each specific component. Please note the warning and safety information indi-
cated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T8100/ T8300
45nm (45 Nanometer) Process Technology
3MB On-die L2 Cache & 800MHz FSB
2.1/ 2.4 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T9300/ T9500
45nm (45 Nanometer) Process Technology
6MB On-die L2 Cache & 800MHz FSB
2.5/ 2.6 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7100/ T7250
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 800MHz FSB
1.80/ 2.0 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7300/ T7500/ T7700/ T7800
65nm (65 Nanometer) Process Technology
4MB On-die L2 Cache & 800MHz FSB
2.0/ 2.2/ 2.4/ 2.6 GHz
Intel® Celeron® M Processor
(478-pin) Micro-FCPGA Package, Socket P
530/ 540/ 550/ 560
65nm (65 Nanometer) Process Technology
1MB On-die L2 Cache & 533MHz FSB
1.73/ 1.86/ 2.0/ 2.13 GHz
Core Logic SiS M671DX + SiS968 Chipset
LCD 17." WXGA (1440 * 900) / WSXGA+ (1680 * 1050) / WUXGA (1920 * 1200) TFT LCD
Video Adapter nVIDIA GeForce 9300M GS (NB9M-GS) Discrete Graphics On-Board
TurboCache™ Supporting Total Graphics Memory up to 512MB (depending on system memory)
Supports DirectX 10.0
256MB of GDDR2 Video Memory On-Board
Memory 64-bit Wide DDRII (DDR2) Data Channel
Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 667MHz
Memory Expandable up to 4GB (1024MB/ 2048MB DDRII Modules)
Security Security (Kensington® Type) Lock Slot
Fingerprint ID Reader Module (Factory Option)
BIOS Password
BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS

Introduction
System Specifications 1 - 3
1.Introduction
Storage One Changeable 12.7mm(h) PATA Optical Device (CD/DVD) Type Drive (see “Optional” on page 1 - 4) Easy
Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD
Audio High Definition Audio (HDA)
Compliant with Microsoft UAA (Universal Audio
Architecture)
Direct Sound 3D™ Compatible
2 * Built-In Speakers
Built-In Microphone
Keyboard &
Pointing Device
Winkey Keyboard Built-In TouchPad with Scrolling Function
Interface Three USB 2.0 Ports
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF-Out Jack
One RJ-11 Modem Jack
One RJ-45 LAN Jack
One DC-In Jack
One External Monitor Port
Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo)
Note: MS Duo/ Mini SD/ RS MMC Cards require a PC adapter
ExpressCard Slot One ExpressCard/34(54) Slot
Communication 10M/100Mb Base-T Ethernet LAN
56K MDC Modem V.90 & V.92 Compliant
802.11b/g Wireless LAN Mini-Card Module with USB interface (Option)
1.3M (UVC or non UVC) or 2.0M Pixel USB PC Camera Module (Factory Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)
OR
3.5G Module:
UMTS/HSPDA-based 3.5G Module with Mini-Card Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Power
Management
Supports ACPI 3.0
Supports Wake on LAN
Supports Wake on USB
Supports Resume from Modem Ring
Power Full Range AC/DC Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 4.74A (90 Watts)
Battery 6 Cell Smart Lithium-Ion Battery Pack, 4000mAH OR 4400mAH
9 Cell Smart Lithium-Ion Battery Pack, 7200mAH (Option)
Feature Specification

UMTS Modes
Note that UMTS
modes CAN
NOT be used in
North America.

Introduction
1 - 4 System Specifications
1.Introduction
Environmental
Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions
& Weight
397.2mm (w) * 282.5mm (d) * 39.5mm (h)
2.9 kg With 6 Cell Battery & ODD
Optional Optical Drive Module Options:
DVD-ROM/CD-RW Combo Drive Module
DVD Dual (Super Multi) Drive Module
802.11b/g Wireless LAN Mini-Card Module with USB
interface
9 Cell Smart Lithium-Ion Battery Pack
1.3M or 2.0M Pixel USB PC Camera Module (Factory
Option)
Fingerprint ID Reader Module (Factory Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module
(Factory Option)
UMTS/HSPDA-based 3.5G Module with Mini-Card
Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz,
1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Feature Specification

UMTS Modes
Note that UMTS modes CAN NOT be used in
North America.

Introduction
External Locator - Top View with LCD Panel Open 1 - 5
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Optional Built-In
PC Camera
2. LCD
3. Power Button
4. Hot Key Buttons
5. Keyboard
6. Built-In
Microphone
7. Touchpad &
Buttons
8. Fingerprint
(Optional)
9. LED Indicators
*Note: This model may have
either a fingerprint module or
card reader module, depend-
ing on the purchase configura-
tion.
9
2
4
1
6
7
3
5
9
8

Introduction
1 - 6 External Locator - Front & Right side Views
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. LED Indicators
Figure 3
Right Side Views
1. S/PDIF-Out Jack
2. Microphone-In
Jack
3. Headphone-Out
Jack
4. USB 2.0 Port
5. Optical Device
Drive Bay
6. RJ-11 Phone
Jack
7. Security Lock
Slot
1
15 24 367

Introduction
External Locator - Left Side & Rear View 1 - 7
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. DC-In Jack
2. External Monitor
Port
3. RJ-45 LAN Jack
4. Vent/Fan Intake/
Outlet
5. 2 * USB 2.0 Ports
6. ExpressCard Slot
7. 7-in-1 Card
Reader
14
35
2
6
7
Figure 5
Rear View
1. Battery
1

Introduction
1 - 8 External Locator - Bottom View
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Battery
2. RAM & CPU Bay
Cover
3. Vent/Fan Intake/
Outlet
4. Hard Disk Bay
Cover
5. 3.5G USIM Card
Location
6. Speakers

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
2
3
1
45
6
3
3
6
