Clevo N150RF1 User manual

N150RF1 / N150RF1-G

Introduction
1 - 2 Specifications
1.Introduction
Specifications

Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™ i7 Processor
i7-6700HQ (2.60GHz)
6MB Smart Cache, 14nm, DDR4-2133MHz, TDP 45W
Intel® Core™ i5 Processor
i5-6440HQ (2.60GHz), i5-6300HQ (2.30GHz)
6MB Smart Cache, 14nm, DDR4-2133MHz, TDP 45W
Core Logic
Intel® HM170 Chipset
BIOS
64Mb SPI Flash ROM
AMI BIOS
Memory
Two 260 Pin SO-DIMM Sockets Supporting DDR4 2133MHz
Memory
Memory Expandable up to 32GB
(The real memory operating frequency depends on the FSB
of the processor.)
LCD Options
15.6" (39.62cm), 16:9, QFHD (3840x2160)/FHD
(1920x1080)
Storage
One Changeable 2.5" 9.5mm/7.0mm (h) SATA HDD/SSD
(Factory Option) One 9.5mm(h) Optical Device Type Drive
(Super Multi Drive)
Or
(Factory Option) 2.5" 7.0mm 2nd HDD/SSD caddy
(Factory Option) One M.2 SATA/PCIe Gen3 x4 Solid State
Drive (SSD)
Video Adapter
Microsoft Hybrid Graphics Mode or Discrete Graphics
Mode
Supports up to 4 Active Displays
Supports NVIDIA Surround View via HDMI x 1 and MiniDP x2
Supports NVIDIA G-SYNC Technolgy in dGPU Mode
Virtual Reality Ready
Intel Integrated GPU
Intel® HD Graphics 530
Dynamic Frequency
Intel Dynamic Video Memory Technology
Microsoft DirectX®12 Compatible
NVIDIA® Discrete GPU
NVIDIA® GeForce GTX 965M
4GB GDDR5 Video RAM
Microsoft DirectX®12 Compatible
Audio
High Definition Audio Compliant Interface
2 * Built-In Speakers
ANSP™3D sound technology on headphone output
Built-In Array Microphone
Sound Blaster
™ Cinema 2
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) Fingerprint Reader
(Factory Option) TPM v2.0
Intel PTT for systems without hardware TPM

Introduction
Specifications 1 - 3
1.Introduction
Keyboard
Full-size Winkey Illuminated White-LED Keyboard (with
numeric keypad)
Pointing Device
Built-in Touchpad
Card Reader
Embedded Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
M.2 Slots
Slot 1 for Combo WLAN and Bluetooth
Slot 2 for SATA/PCIe Gen3 x4 SSD
(Factory Option) Slot 3 for 3G/4G Module
Interface
Three USB 3.0 (USB 3.1 Gen 1) Ports
One USB 3.1 (Gen 2 - Type C) Port
Two Mini DisplayPorts 1.2
One HDMI-Out Port
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF Out Jack
One RJ-45 LAN Jack
One DC-in Jack
Communication
Built-In Gigabit Ethernet LAN
2.0M FHD PC Camera Module
(Factory Option) M.2 3G or 4G Module
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Wireless-AC 8260 Wireless LAN
(802.11ac) + Bluetooth 4.1
(Factory Option) Intel® Wireless-AC 3165 Wireless LAN
(802.11ac) + Bluetooth 4.0
(Factory Option) Intel® Wireless-N 7265 Wireless LAN
(802.11b/g/n) + Bluetooth 4.0
(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC
1535 Wireless LAN (802.11ac) + Bluetooth 4.1
(Factory Option) Third-Party Wireless LAN (802.11b/g/n) +
Bluetooth 4.0
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 6.15A (120W)
Built-in 6 Cell Smart Lithium-Ion Battery Pack, 62WH
Dimensions & Weight
385mm (w) * 268mm (d) * 28.5mm (h)
2.5kg (Barebone with 62WH Battery)

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
2. *PC Camera LED
*When the PC
camera is in use,
the LED will be
illuminated.
3. Microphone
4. LCD
5. Speakers
6. Power Button
7. Keyboard
8. Touchpad &
Buttons
9. Fingerprint
Reader (Optional)
2 1
8
7
6
5
4
5
3
9

Introduction
External Locator - Front & Right Side Views 1 - 5
1.Introduction

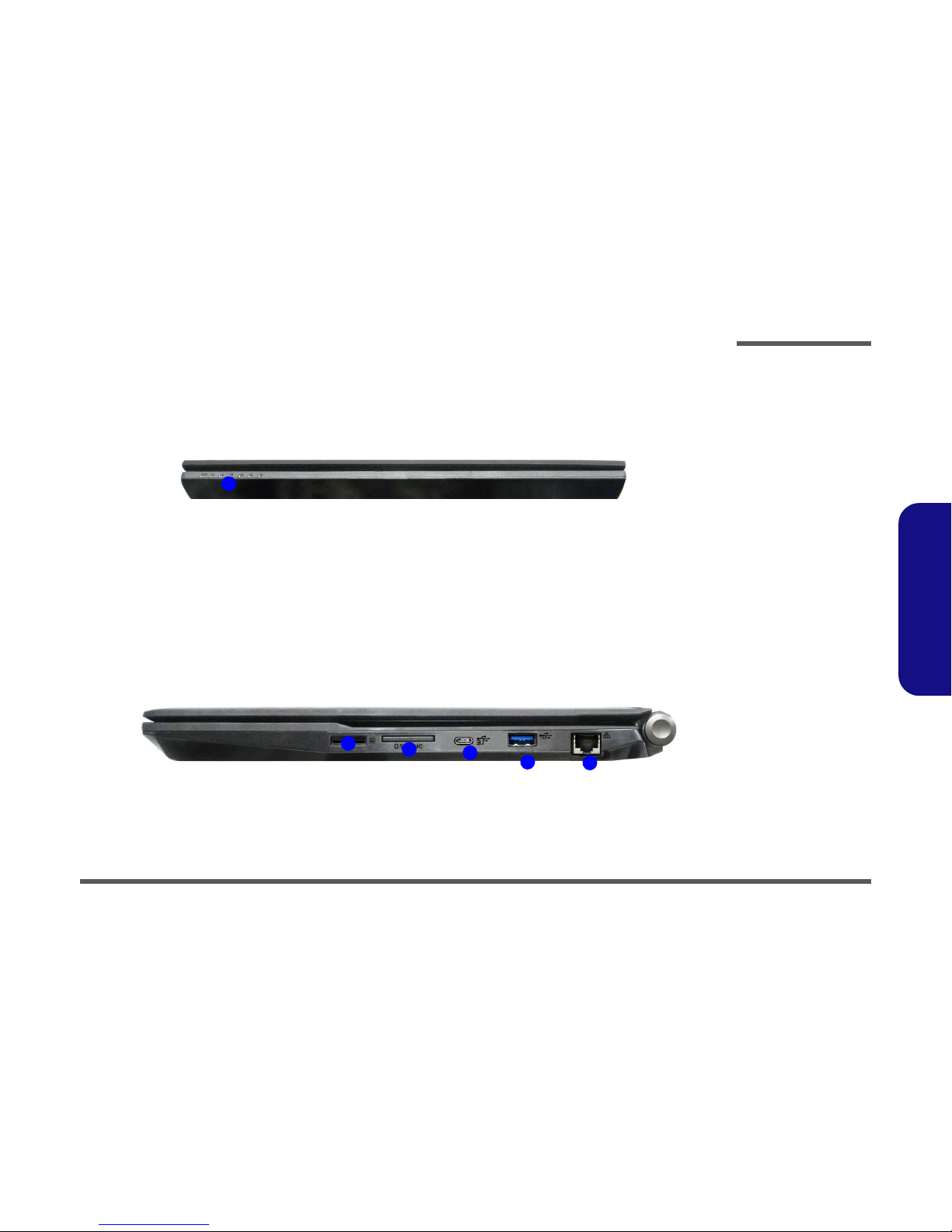

External Locator - Front & Right Side Views
Figure 2
Front View
1. LED Indicators
Figure 3
Right Side View
1. USIM Card
Reader (for 3G/
4G USIM Cards)
2. Multi-in-1 Card
Reader
3. USB 3.1 Port
4. External Monitor
Port
5. RJ-45 LAN Jack
FRONT VIEW
1
RIGHT SIDE VIEW
1235
4

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
/
Figure 4
Left Side View
1. Security Lock Slot
2. USB 3.0 Ports
3. S/PDIF-Out Jack
4. Microphone-In
Jack
5. Headphone-Out
Jack
6. Optical Device
Drive Bay
7. Emergency Eject
Hole
LEFT SIDE VIEW
12 3 4
6
2
7
5
Figure 5
Rear View
1. Vent
2. Mini Display Ports
3. HDMI-Out Port
4. DC-In Jack
REAR VIEW
1
2 3
1
2 4

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Vent
2. Battery

Overheating
To prevent your com-
puter from overhea-
ting, make sure no-
thing blocks any vent
while the computer is
in use.
1
1
2
1

Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.

Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 5
To remove the HDD:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 6
To remove the Optical Device:
1. Remove the battery page 2 - 5
2. Remove the Optical device page 2 - 10

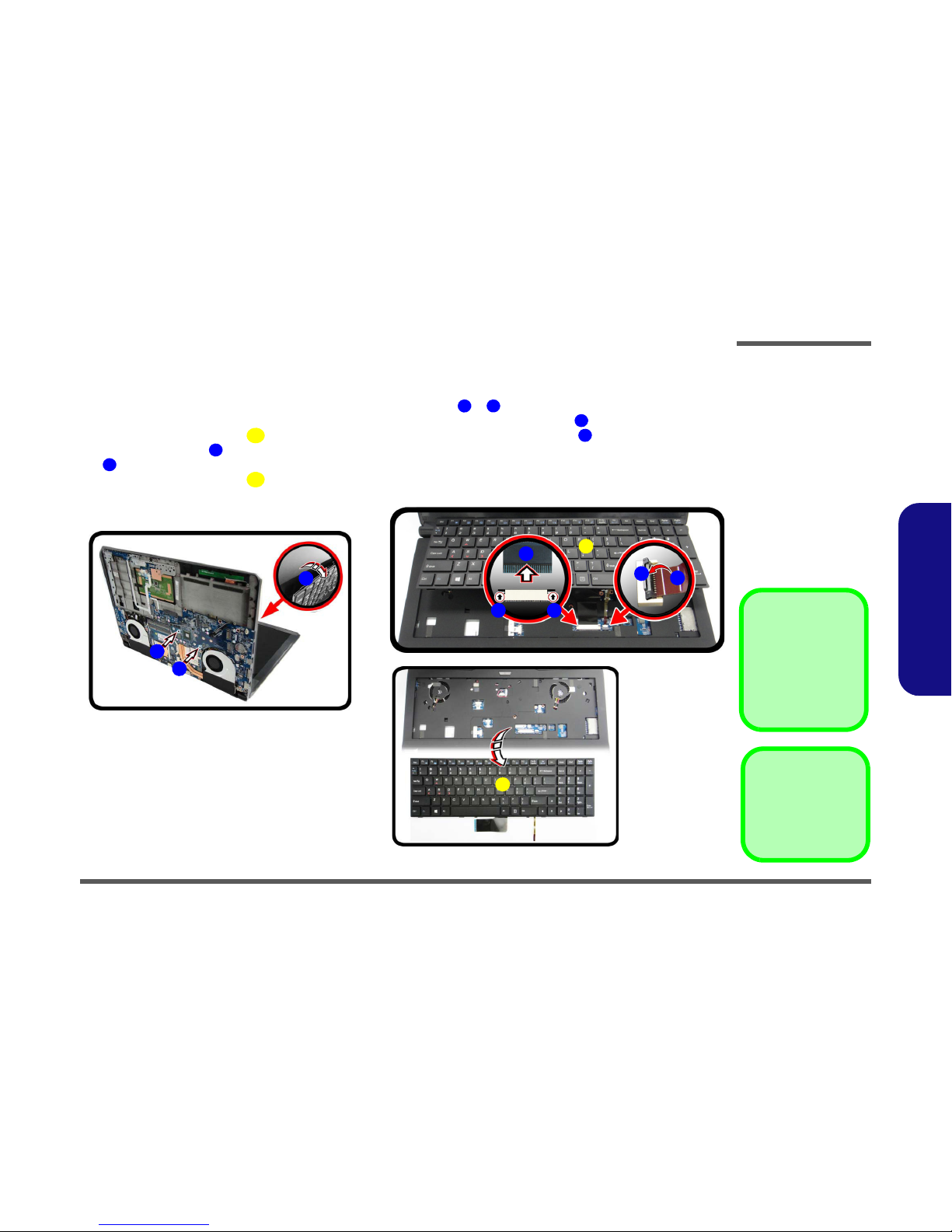

To remove the Keyboard:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 11

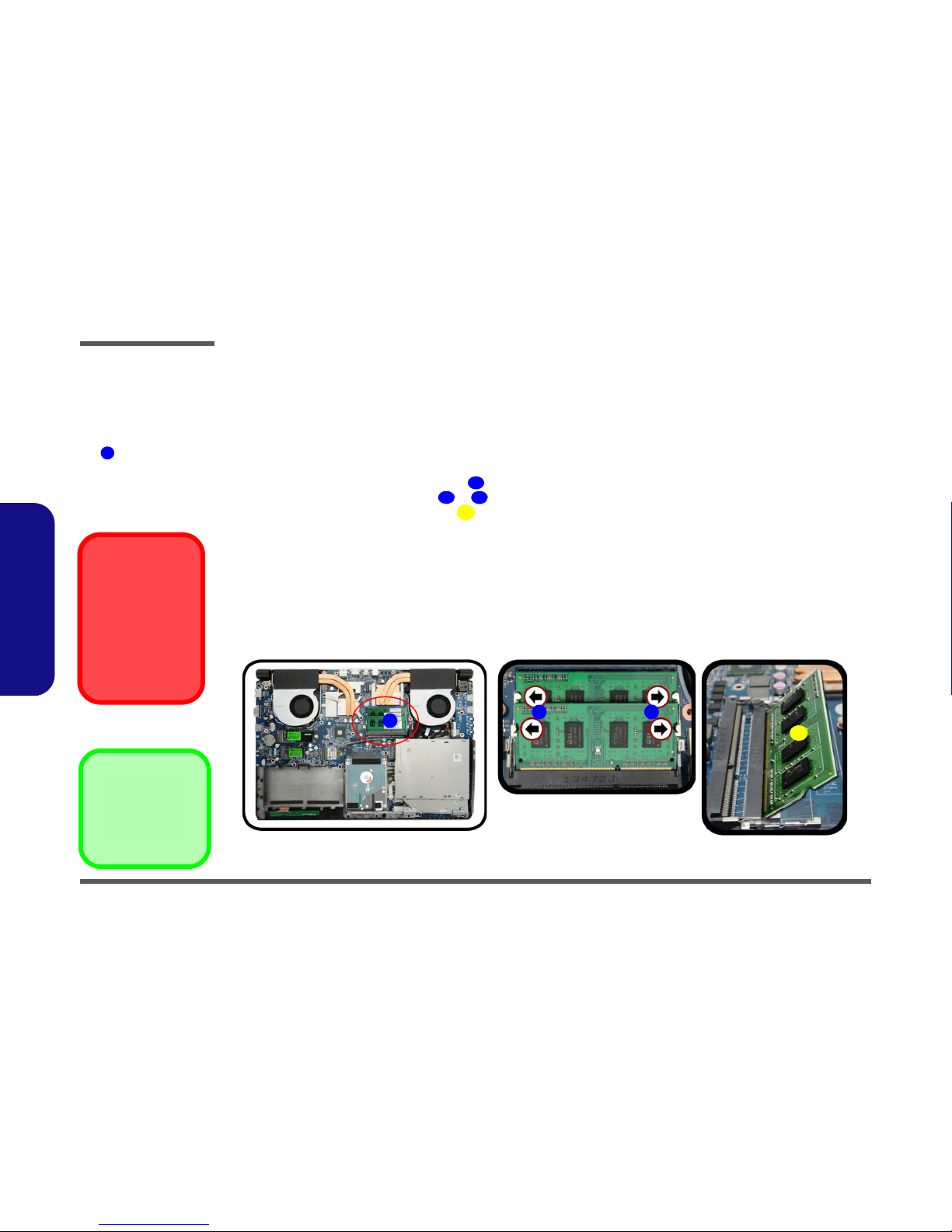

To remove the System Memory:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 12
To remove the M.2 SSD:
1. Remove the battery page 2 - 5
2. Remove the SSD page 2 - 13
To remove the Wireless LAN Module:
1. Remove the battery page 2 - 5
2. Remove the WLAN page 2 - 14
To remove the 3G Module:
1. Remove the battery page 2 - 5
2. Remove the 3G page 2 - 16

Disassembly
Removing the Battery 2 - 5
2.Disassembly

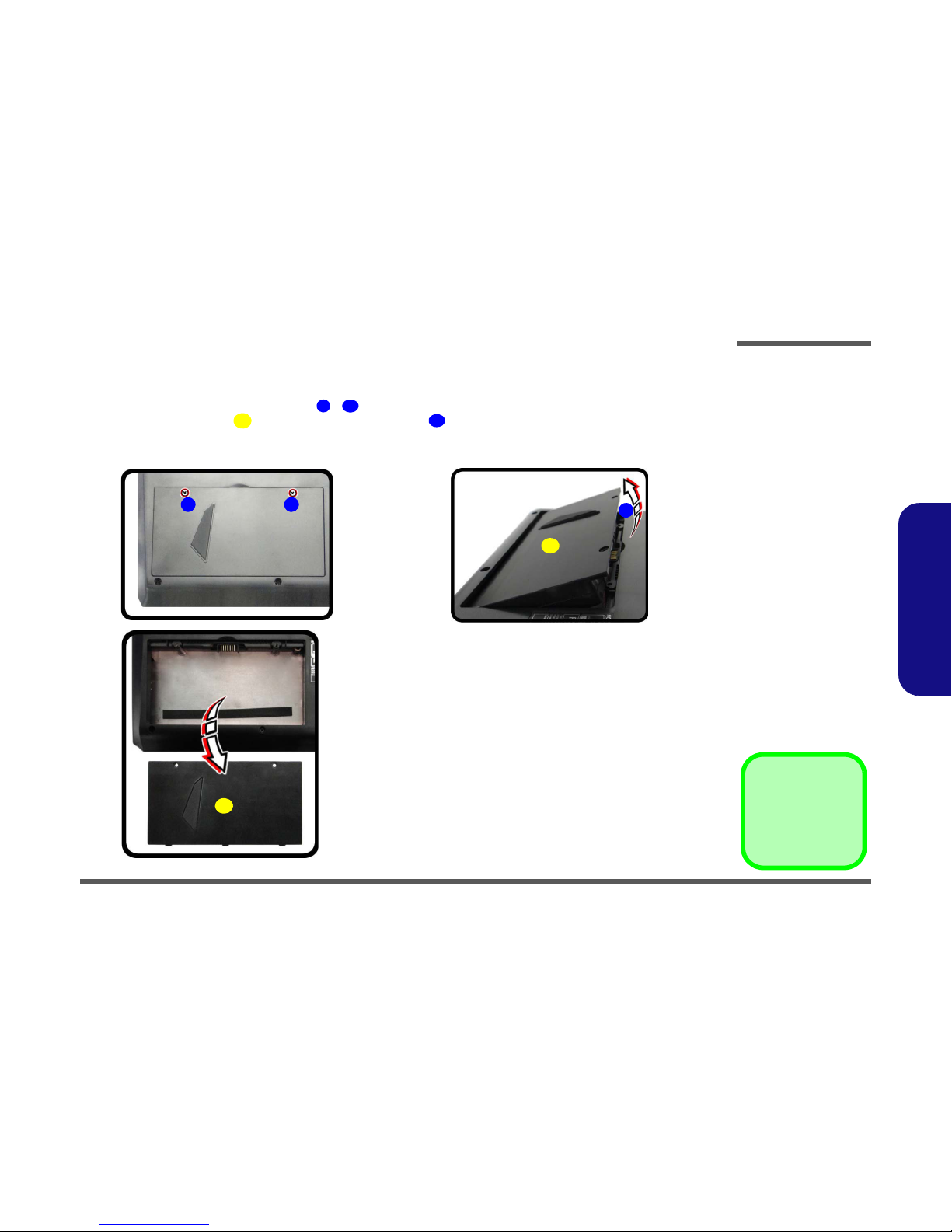

Removing the Battery
1. Turn the computer off, and turn it over.
2. Locate the battery and remove screws - (Figure 1a).
3. Carefully lift the battery up in the direction of the arrow (Figure 1b).
4. Remove the battery off the computer (Figure 1c).
1
2
3
4
Figure 1
Battery Removal
a. Remove the screws.
b. Lift the battery.
c. Remove the battery.
2
a. b.
4
3
c.
3
1

3. Battery
•2Screws

Disassembly
2 - 6 Removing the Hard Disk Drive
2.Disassembly

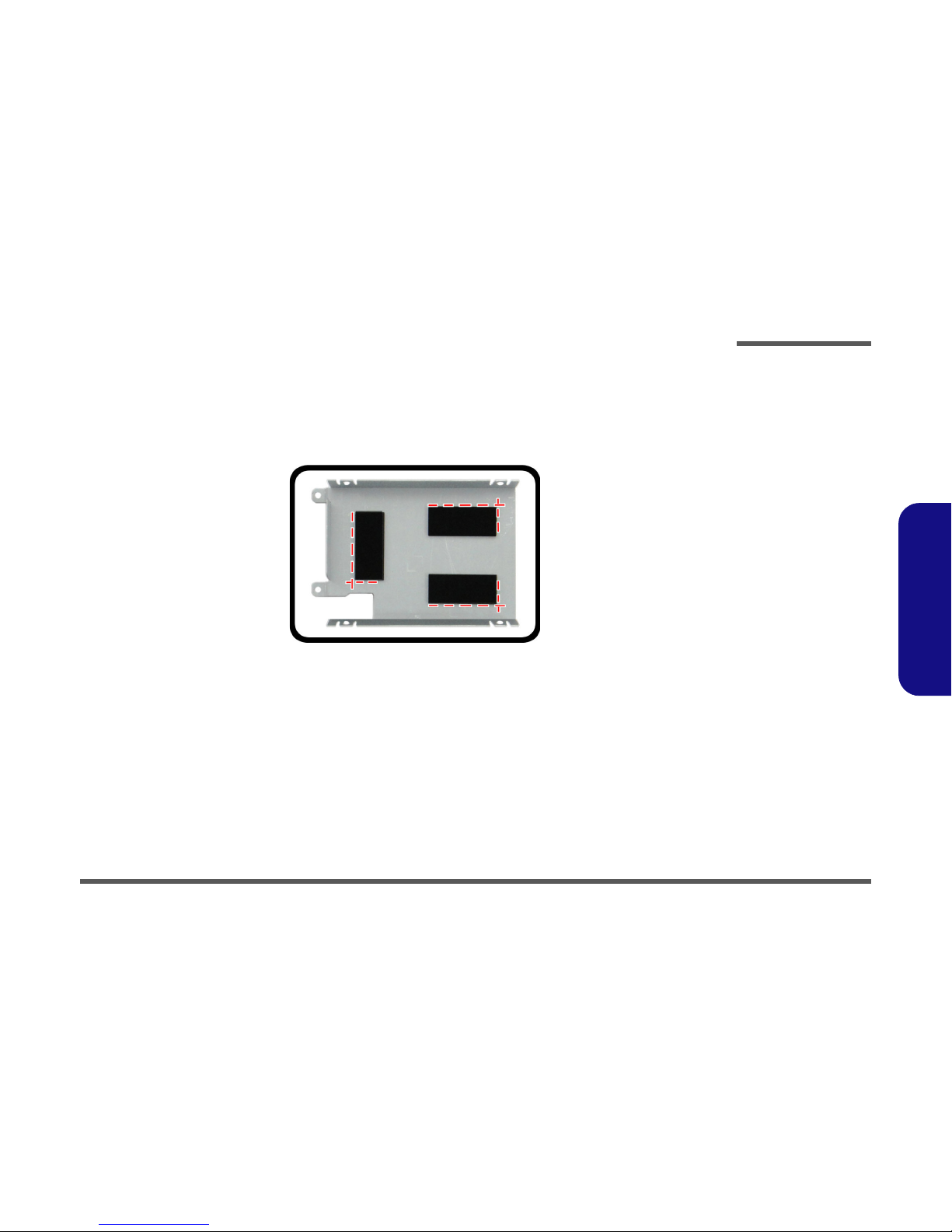

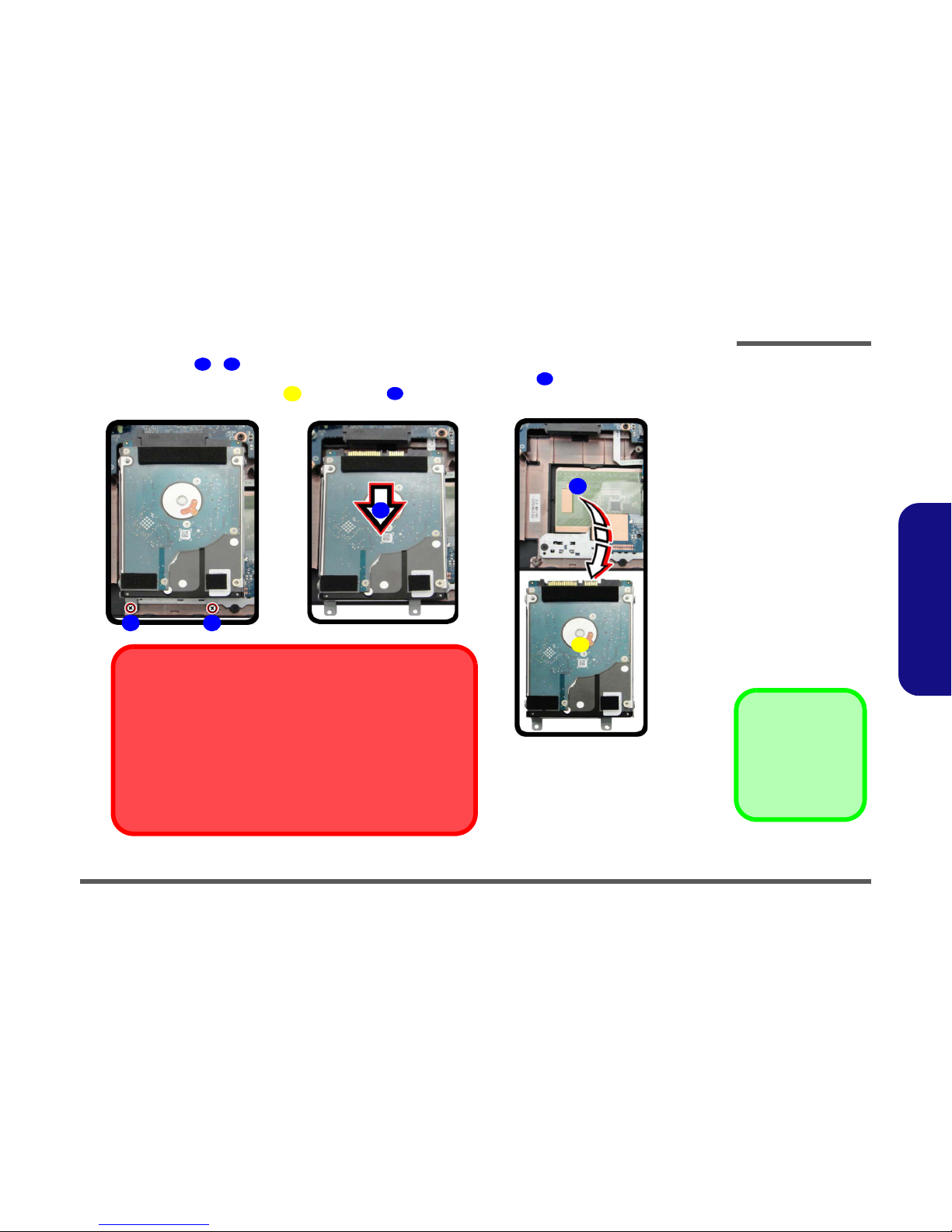

Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as
outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.

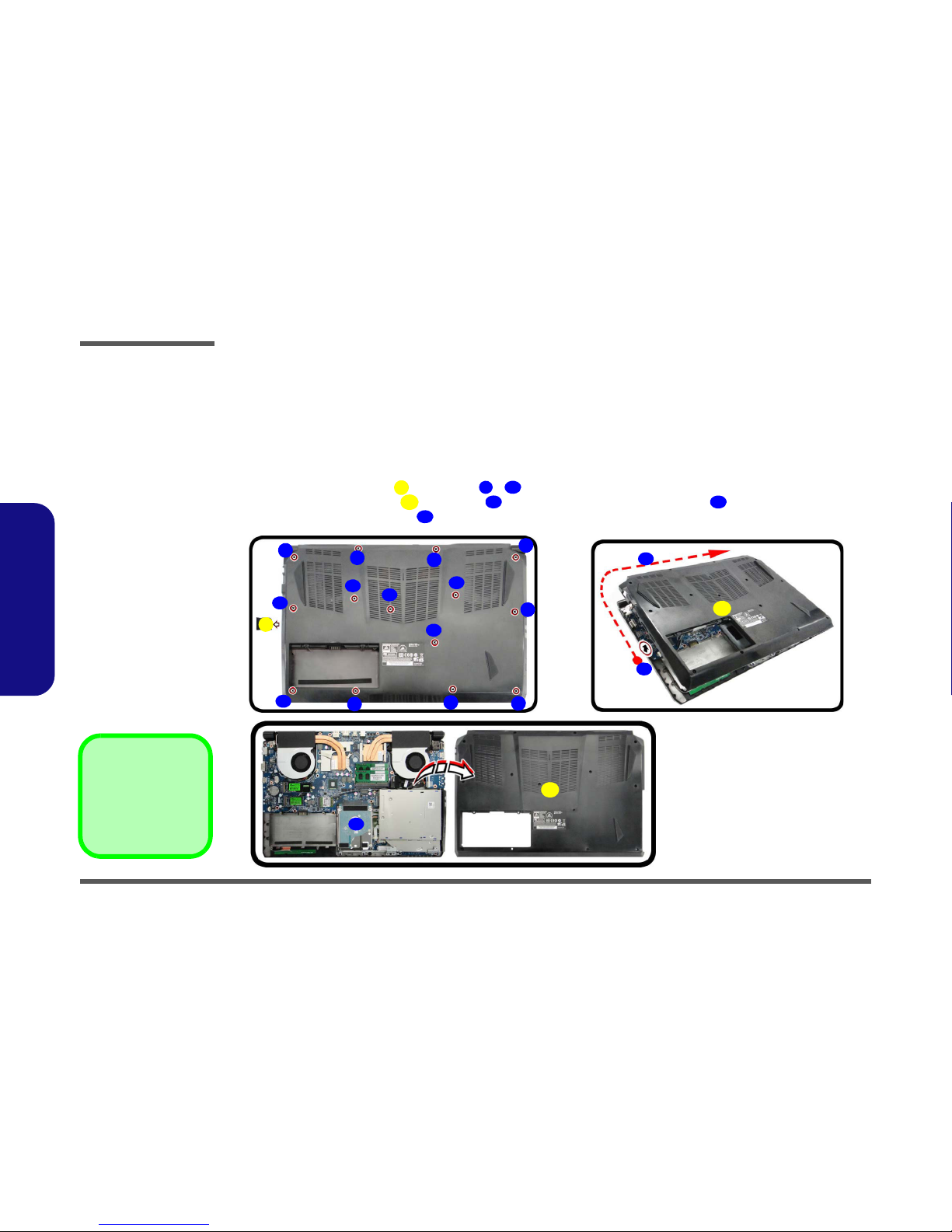

Hard Disk Disassembly Process
1. Turn off the computer, remove the battery (page 2 - 5) and keyboard (page 2 - 11).
2. Remove the SD card cover and screws - (Figure 2a).
3. Carefully lift the bottom case up at point and slide in the direction of the arrow to remove it (Figure 1b).
4. The HDD will be visible at point on the mainboard (Figure 2a).
6
1
2
15
16
17
18
19
a.
c.
1
234
5
13
6
7
8
9
11
12
14
15
10
b.
16
17
18
16
19
Figure 2
HDD Assembly
Removal
a. Remove the SD cover
and screws.
b. Remove the bottom
case.
c. Locate the HDD.

1. SD Card Cover
16. Bottom Case
•14Screws

Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
5. Remove screws - from the HDD assembly (Figure 3c).
6. Lift the hard disk at a 45 degrees angle and slide it out in the direction of arrow (Figure 4d).
7. Remove the hard disk assembly out of the bay (Figure 4e).
20
21
22
23
24
c. d.
23
22

HDD System Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any data you want to keep from your old HDD.
You have all the CD-ROMs and FDDs required to install your operating sys-
tem and programs.
If you have access to the internet, download the latest application and hard-
ware driver updates for the operating system you plan to install. Copy these
to a removable medium.
20 21
e.
24

22. HDD Assembly
•2Screws
Figure 3
HDD Assembly
Removal (cont’d.)
c. Remove the screws.
d. Slide the HDD in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.

Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
8. Remove screws - from the hard disk assembly (Figure 4f).
9. Separate the hard disk from the bracket and mylar cover (Figure 4g).
10. Reverse the process to install a new hard disk (do not forget to insert the mylar cover between the bracket and
hard disk as shown before replacing the screws).
25
29
30
31
32
f.
28
30
26 2927
32
31

Installing 9.5mm or 7mm HDD
Note that the hard disks pictured on the following pages
are all 9.5mm(h) hard disk drive.
In some cases, a 7.0mm(h) hard disk drive will be in-
stalled. Do pay attention on the alignment of the hard
disk and bracket when tightening the screws.
For more information, contact your distributor/supplier,
and bear in mind your warranty terms.
25
g.

30. HDD
31. Bracket
32. Mylar Cover
•5Screws
Figure 4
HDD Assembly
Removal (cont’d.)
f. Remove the screws from
the HDD assembly.
g. Separate the HDD, my-
lar cover and bracket.

Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
Hard Disk Size Note (Foam Rubber Insert)
Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard
disk drives will be installed. Also pay attention on the alignment of the hard disk and bracket when tightening the screws.
For more information contact your distributor/supplier, and bear in mind your warranty terms.
Figure 5
Foam Rubber
Insert for 7mm(H)
HDDs
• If you are replacing a 9.5mm(H) HDD with a
7mm(H) HDD then insert the foam rubber
insert (as shown above).
• If you are replacing a 7mm(H) HDD with a
9.5mm(H) HDD then remove the foam rub-
ber insert.

Disassembly
2 - 10 Removing the Optical (CD/DVD) Device
2.Disassembly
Removing the Optical (CD/DVD) Device
Figure 6
Optical Device
Removal
a. Push the optical device
out off the computer.
b. Pry the bezel off the opti-
cal device.
c. Separate the bezel and
optical device
d. Install the front bezel.
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. Carefully push out the optical device out of the bay in the direction of the arrow (Figure 6a).
3. Carefully pry the bezel off the optical device at point (Figure 6b).
4. Separate the bezel and the optical device (Figure 6d).
5. Reverse the process to attach the front bezel with the new optical device at point (Figure 6d).
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up). Replace the bottom cover and tighten the screws.
7. Restart the computer to allow it to automatically detect the new device.
6
1
2
4
3
4
4
5

1. Optical Device
4. Bezel Cover
2
1
a.
d.
4
b.
c.
3
4
5

Disassembly
Removing the Keyboard 2 - 11
2.Disassembly
Removing the Keyboard
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. Open it up with the LCD on a flat surface before pressing at point & to release the keyboard module (use the
special eject stick to do this) while releasing the keyboard in the direction of the arrow as shown (Figure 7a).
3. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-
board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar pins
away from the base (Figure 7b).
4. Carefully lift the keyboard off the computer (Figure 7c).
1
2
3
4
5
5
6
4
a. b.
2
c.
4
5
5
6
4
1
6
36

4. Keyboard
Figure 7
Keyboard Removal
a. Eject the keyboard using
a special eject stick to
push the keyboard out
while releasing the key-
board as shown.
b. Lift the keyboard up and
disconnect the keyboard
ribbon cable from the
locking collar socket.
c. Remove the keyboard.

Re-inserting the Key-
board
When re-inserting the
keyboard firstly, align the
keyboard tabs at the bot-
tom of the keyboard with
the slots in the case.

Disassembly
2 - 12 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR3L up to 1600 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically de-
tected by the POST routine once you turn on your computer.
Memory Upgrade Process
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. The RAM modules will be visible at point on the mainboard (Figure 8a).
3. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 8b). The RAM module will pop-up (Figure 8c), and you can then remove it.
4. Pull the latches to release the second module if necessary.
5. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
6. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
7. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
8. Replace the bottom cover and the screws (see page 2 - 5).
9. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
1
2
3
4
b. c.
2 3
1
a.
4

4. RAM Module
Figure 8
RAM Module
Removal
a. The RAM modules
will be visible at point
on the main-
board.
b. Pull the release lat-
ches.
c. Remove the module.

Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s performance.
1

Disassembly
Removing the M.2 SSD Module 2 - 13
2.Disassembly
Removing the M.2 SSD Module
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 9a).
3. Remove the screw (Figure 9b)
4. The M.2 SSD module (Figure 9c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new SSD (make sure that the hexagonal screw is in the correct location). Note that
a flat-head screw driver can be used to tighten or remove the hexagonal screw as shown (Figure 9d).
1
2
3
b.
c.
a.
2
3
1
3

3.M2 SSD Module
•1Screw
Figure 9
M.2 SSD Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.

Disassembly
2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 11) and bottom case (page 2 - 6).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 10b)
4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
2
3
5
1
5
4

5.Wireless LAN Module
•1Screw
Figure 10
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).
