Clevo TN120R User manual

Preface
I
Preface
Notebook Computer
TN120R
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
January 2008
Trademarks
Intel, Celeron and Intel Core are trademarks/registered trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the TN120R series
notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 19V, 3.42A or 18.5V, 3.5A (65W) AC/DC Adapter).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
External Locator - Top View with LCD Panel Open ......................1-5
External Locator - Front & Rear Views ..........................................1-6

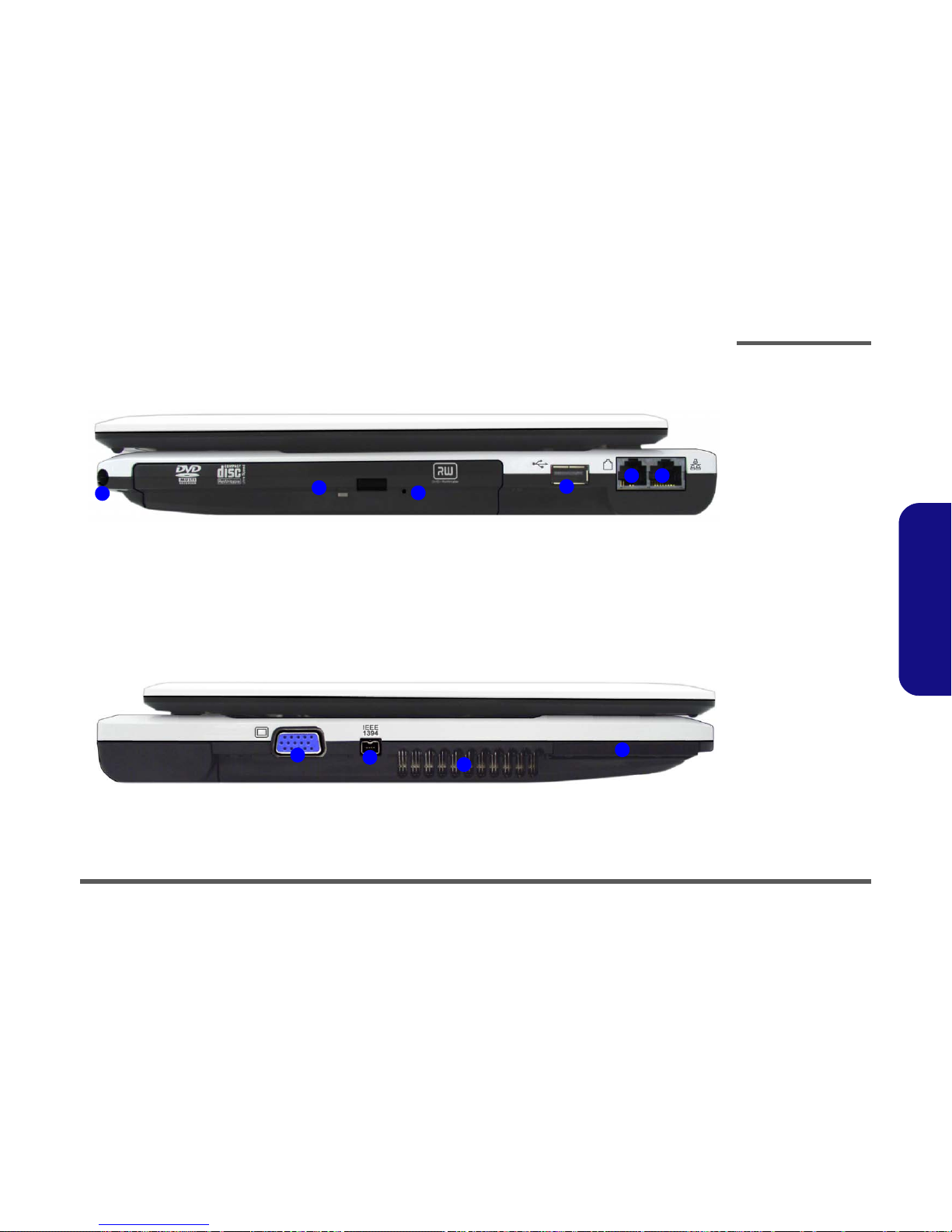

External Locator - Right & Left Side Views ...................................1-7

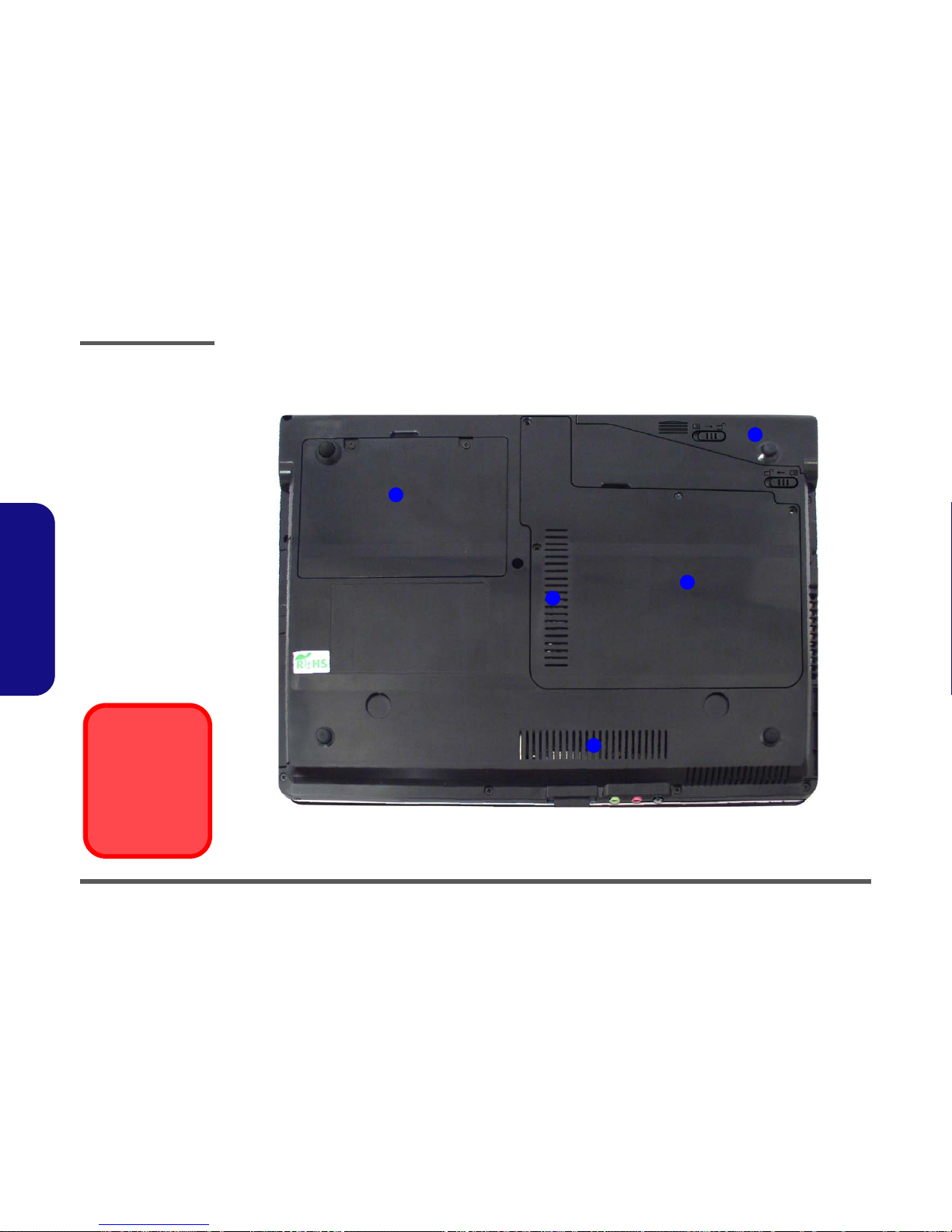

External Locator - Bottom View .....................................................1-8
Mainboard Overview - Top (Key Parts) .........................................1-9
Mainboard Overview - Bottom (Key Parts) ..................................1-10
Mainboard Overview - Top (Connectors) .....................................1-11
Mainboard Overview - Bottom (Connectors) ...............................1-12
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Modem Module .......................................................2-8
Removing the System Memory (RAM) ..........................................2-9
Removing the Processor ................................................................2-11
Removing the Wireless LAN Module ...........................................2-14
Removing the Bluetooth Module ..................................................2-15
Removing the Optical (CD/DVD) Device ....................................2-16
Removing the Keyboard ................................................................2-17
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top (TN120R) ................................................................................A-3
Bottom (TN120R) ..........................................................................A-4
LCD (TN120R) .............................................................................. A-5
Combo (TN120R) .......................................................................... A-6
DVD-DUAL-RW (TN120R) ......................................................... A-7
HDD (TN120R) ............................................................................. A-8
Schematic Diagrams.................................B-1
SYSTEM BLOCK DIAGRAM ......................................................B-2
Merom CPU-1 ................................................................................B-3
Merom CPU-2 ................................................................................B-4
GM965 Crestline 1/5 ......................................................................B-5
GM965 Crestline 2/5, DRAM ........................................................B-6
GM965 Crestline 3/5 .....................................................................B-7
GM965 Crestline 4/5 ......................................................................B-8
GM965 Crestline 5/5 ......................................................................B-9
DDRII SO-DIMM 0 .....................................................................B-10
DDRII SO- DIMM 1 ....................................................................B-11
PANEL, INVERTER, CRT, FTP .................................................B-12
ICH8-M 1/4, SATA ......................................................................B-13
ICH8-M 2/4, PCI, USB ................................................................B-14
ICH8-M 3/4 ..................................................................................B-15
ICH8-M 4/4 ..................................................................................B-16
CLOCK GENERATOR ................................................................B-17
NEW CARD, MINI PCIE ...........................................................B-18
IEEE 1394 VT6311S ....................................................................B-19
ENE MR510, 7 IN 1 .....................................................................B-20
AUDIO CODEC ALC883 ............................................................B-21
AUDIO AMP2056A .....................................................................B-22
KBC-ITE IT8512E .......................................................................B-23
ODD, CCD, BT, Multi I/O ...........................................................B-24
LED, FAN, CLICK, LID ..............................................................B-25
3VS, 5VS, POWER S/W ..............................................................B-26

Preface
X
Preface
POWER GPU/1.25VS ..................................................................B-27
POWER 3.3V/5V ......................................................................... B-28
POWER 1.5VS/1.05VS ............................................................... B-29
POWER 1.8V/0.9V ...................................................................... B-30
CHARGER ...................................................................................B-31
VCORE FOR MEROM CPU .......................................................B-32
Multi Board, PCIE LAN RTL8111B ...........................................B-33
Multi Board, LED, USB ...............................................................B-34
Multi Board, 3G, MDC, RJ11, LID .............................................B-35
FPT ExBoard FINGERPRINT .....................................................B-36
FPT MBoard FINGERPRINT .....................................................B-37
FPT MBoard TP, KEY, CIR ........................................................B-38
CLICK BOARD ...........................................................................B-39

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the TN120R series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv-
ers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The TN120R series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed description
of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the
“” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T8100/ T8300
45nm (45 Nanometer) Process Technology
3MB On-die L2 Cache & 800MHz FSB
2.1/ 2.4 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T9300/ T9500
45nm (45 Nanometer) Process Technology
6MB On-die L2 Cache & 800MHz FSB
2.5/ 2.6 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7100/ T7250
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 800MHz FSB
1.8/ 2.0 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7300/ T7500/ T7700/ T7800
65nm (65 Nanometer) Process Technology
4MB On-die L2 Cache & 800MHz FSB
2.0/ 2.2/ 2.4/ 2.6 GHz
Intel® Celeron® M Processor
(478-pin) Micro-FCPGA Package, Socket P
530/ 540/ 550/ 560
65nm (65 Nanometer) Process Technology
1MB On-die L2 Cache & 533MHz FSB
1.73/ 1.86/ 2.0/ 2.3 GHz
Core Logic Intel® GM965 + ICH8M Chipset
LCD 12.1" WXGA (1280 * 800) TFT LCD Touch Panel
BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS

Latest Specification Information
The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/speeds and
CD/DVD device types) may be changed, delayed or updated due to the manufacturer's release schedule. Check with your service center
for details.

Introduction
System Specifications 1 - 3
1.Introduction
Memory Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 667 MHz
Memory Expandable up to 4GB (512/ 1024/ 2048 MB DDRII Modules)
512MB Or 1GB Intel® Turbo Memory Module (Option)
Security Security (Kensington® Type) Lock Slot
Fingerprint ID Reader Module (Factory Option)BIOS Password
Storage One Changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive (see “Optional” on page 4) Easy Changeable 2.5"
9.5 mm (h) SATA (Serial) HDD
Video Adapter Intel GM965 Integrated Video
Shared Memory Architecture - Supports up to 256MB of Video Memory (dynamically allocated from system memory
where needed)
Supports DirectX9.0 3D Graphics Engine Accelerator
Supports DualView™
Audio Integrated Azalia Compliant Interface
3D Stereo Enhanced Sound System
Sound-Blaster PRO™ Compatible
2 * Built-In Speakers
Built-In Microphone
Keyboard &
Pointing Device Winkey Keyboard Stylus Pen for Touch Panel Built-In TouchPad with Scrolling Function
Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo)
Note: MS Duo/ Mini SD/ RS MMC Cards require a PC adapter
Card SlotS One ExpressCard/34(54) Slot
Interface Three USB 2.0 Ports
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF Out Jack
One RJ-11 Modem Jack
One RJ-45 LAN Jack
One DC-in Jack
One External Monitor Port
One Mini-IEEE 1394 Port
2 Built-In Instant Keys (Menu, Rotation)
Power
Management Supports ACPI 3.0 Supports Wake on LAN Supports Wake on USB Supports Resume from Modem Ring
Power Full Range AC/DC Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 3.42A / 18.5V, 3.5A (65 Watts)
Battery 4 Cell Smart Lithium-Ion Battery Pack, 14.8V/2.4AH
8 Cell Smart Lithium-Ion Battery Pack, 14.8V/4.4AH (Option)
Feature Specification

Introduction
1 - 4 System Specifications
1.Introduction
Communication
*Note: The Intel
Turbo Memory and
3.5G Modules can-
not coexist. If one of
these factory options
is included in your
purchase option, then
the other is unavail-
able.
1000/100/ 10 Mb Fast Ethernet LAN
Azalia 56K Plug and Play Fax Modem V.90 & V.92 Compliant
Wireless LAN Module Options:
802.11 b/g MiniCard USB Wireless LAN Module (Option)
Intel PRO/Wireless 3945ABG MiniCard PCIe Wireless LAN Module (Option)
Intel PRO/Wireless 4965AGN MiniCard PCIe Wireless LAN Module (Option)
1.3M or 2.0M Pixel USB PC Camera Module (Factory Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)
*UMTS/HSPDA-based 3.5G Module with MiniCard Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Environmental
Spec Temperature Operating: 5°C ~ 35°C
Non-Operating: -20°C ~ 60°C
Relative Humidity
Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%
Dimensions
& Weight 306mm (w) * 224mm (d) * 35 - 37.5mm (h) 2.1 kg With 4 Cell Battery and ODD
Optional
*Note: The Intel
Turbo Memory and
3.5G Modules can-
not coexist. If one of
these factory options
is included in your
purchase option, then
the other is unavail-
able.
Optical Drive Module Options:
DVD/CD-RW Combo Drive Module
Super Multi Drive Module
Wireless LAN Module Options:
802.11 b/g MiniCard USB Wireless LAN Module
Intel PRO/Wireless 3945ABG MiniCard PCIe Wireless
LAN Module
Intel PRO/Wireless 4965AGN MiniCard PCIe Wireless
LAN Module
8 Cell Smart Lithium-Ion Battery Pack
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module
(Factory Option)
1.3M or 2.0M Pixel USB PC Camera Module (Factory
Option)
Fingerprint ID Reader Module (Factory Option)
*512MB Or 1GB Intel® Turbo Memory Module(Robson)
NAND Flash Memory Card Module (Factory Option)
or
*UMTS/HSPDA-based 3.5G Module with MiniCard
Interface (Factory Option)
Feature Specification

UMTS Modes
Note that UMTS
modes CAN NOT be
used in North Amer-
ica.

Introduction
External Locator - Top View with LCD Panel Open 1 - 5
1.Introduction
External Locator - Top View with LCD Panel Open Figure 1
Top View with LCD
Panel Open
1. Built-In PC
Camera
(Optional)
2. LCD
3. Fingerprint
Reader Module
(Optional)
4. Menu & Screen
Rotation Buttons
5. Speakers
6. Screen Hinge
7. LED Status
Indicators
8. Keyboard
9. Touchpad &
Buttons
10.LED Power &
Communication
Indicators
11. Power Switch
12.Built-In
Microphone
2
5
1
7
8
4
6
9
3
11
10
5
12

Introduction
1 - 6 External Locator - Front & Rear Views
1.Introduction
External Locator - Front & Rear Views
Figure 2
Front View
1. LED Power &
Communication
Indicators
2. Power Switch
3. S/PDIF-Out Jack
4. Microphone-In Jack
5. Headphone-Out
Jack
6. 7-in-1 Card Reader
7. Stylus Pen Holder
Figure 3
Rear View
1. Security Lock Slot
2. 2 * USB 2.0 Ports
3. DC-In Jack
4. Battery
254
16
3Front 7
13
24
Rear

Introduction
External Locator - Right & Left Side Views 1 - 7
1.Introduction
External Locator - Right & Left Side Views
15
24
36
Right
Figure 4
Right Side View
1. Stylus Pen Holder
2. Optical Device (for
DVD Device)
3. Emergency Eject
Hole
4. 1 * USB 2.0 Port
5. RJ-11 Phone Jack
6. RJ-45 LAN Jack
Figure 5
Left Side View
1. External Monitor
Port
2. Mini-IEEE 1394
Port (supports
SELF Powered
IEEE 1394 devices
only)
3. Vent
4. ExpressCard/
54(34) Slot
1234
Left

Introduction
1 - 8 External Locator - Bottom View
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Battery
2. Hard Disk Bay
Cover
(3.5G Module
Location)
3. RAM & CPU Bay
Cover
4. Vent

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
3
1
4
4
2
