CLF Lighting Aorun User manual

manual
V2.0 MARCH 2018WWW.CLF-LIGHTING.COM
aorun

WWW.CLF-LIGHTING.COM
Dimensions 2
Safety instruction 5
Physical installation 6
Control panel 8
Menu navigation 9
DMX Protocols 12
DMX protocol CH14 12
DMX protocol CH16 15
DMX protocol CH16 PLUS 18
Cleaning and maintanances 21
Troubleshooting 21
Circuit connection diagram 22
Specications 23
Included items 24
table of CONTENTS
1.0

WWW.CLF-LIGHTING.COM
2.0
Dimensions
All dimensions are in millimeters
275
380
280
380
275
280
120
529
424
529
424
120
188
483
377
336
188
336
483
377
φ\f@??|b0|i0|c0|p2;155
334.8188±0.0100
380
335
235
155
380
275
280
335
235
188
336
377
483
120
424
529
OPTIONAL HANGING BRACKET
ART. NO. 160022

WWW.CLF-LIGHTING.COM
Safety Instruction
The following symbols are used to identify important safety information on the product and in this manual:
WARNING!
Read the safety precautions in this section before
installing, powering, operating or servicing this
product
DANGER!
Safety hazard.
Risk of severe
injury or death.
DANGER!
Hazardous
voltage. Risk of
lethal or severe
electric shock.
WARNING!
Fire hazard.
WARNING!
LED light
emission. Risk of
eye injury.
WARNING!
Burn hazard. Hot
surface. Do not
touch.
WARNING!
Wear protective
eyewear.
WARNING!
Referto user
manual.
INSTALLATION
Make sure all (mounting) parts of the fixture are in a good state.
Make sure the point of attachment is stable before positioning the fixture.
The safety chain must be properly hooked on to the safety attachment point. If the safety chain gets
worn out, it needs to be replaced.
MINIMUM DISTANCE OF ILLUMINA TED OBJECTS
The fixture must be positioned so that the objects within the reach
of the beam are at least 12 metres from the lens of the fixture.
MINIMUM DISTANCE FROM FLAMMABLE MATERIALS
The fixture must be positioned so that any flammable materials are
at a distance of at least 0.2 metres from every point on the surface of the fitting.
MOUNTING SURFACES
Do not mount the fixture on flammable surfaces.
MAXIMUM AMBIENT TEMPERATURE
Stop using the fixture when the ambient temperature (Ta) exceeds 35°C.
3.0

WWW.CLF-LIGHTING.COM
4.0
Safety Instruction
WWW.CLF-LIGHTING.COM
RNING!
e safety precautions in this section before
ng, powering, operating or servicing this
PROTECTION AGAINST ELECTRICAL SHOCK
The connection must be made with a power supply system including efficient earthing (Class I appliance according to
standard EN 60598-1). It is important to protect the supply lines of the fuxture from indirect contact and/or shorting to
earth by using appropriately sized residual current devices.
CONNECTION TO MAIN SUPPLY
Connection to the electricity main supply must be carried out by a qualified electrical installer. Check if the main
frequency and voltage corresponds with the values of the fixture as described on the fixture electrical data label.
This label also provides you the maximum number of fixtures to connect to the main supply in order to
avoid overloading. Do not use the power cable when the insulation is damaged. The damaged cable must be
repaired by the manufacturer or the distributor in order to avoid any dangerous situations.
TEMPERATURE OF THE EXTERNAL SURFACE
The maximum temperature that can be reached on the external surface of the fixture, in a thermally steady state, is 100°C.
MAINTENANCE
Before starting any maintenance or cleaning work on the fixture, cut off the power from the main power supply.
After switching off the power, do not remove any parts of the fixture, for at least 30 minutes to avoid any burns.
The fixture is designed to hold any splinters when the lamp explodes. The lenses must be mounted properly,
and when damaged, the lenses must be replaced with proper spare parts.
RNING!
e safety precautons in this section before
ng, powering, operating or serviing this
roduct
LAMP
Carefully read the "operating instructions" provided by the lamp manufacturer and immediately replace the lamp
when damaged or deformed by heat.
BATTERY
This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose the battery
at the end of its life according to the applied regulation.
The products referred to in this manual conform to the European Community Directives to which they are subject:
• Low Voltage 2014/35/EU
• Electromagnetic Compatibility 2014/30/EU

WWW.CLF-LIGHTING.COM
5.0
WWW.CLF-LIGHTING.COM
AORUN PHOTOMETRICS

WWW.CLF-LIGHTING.COM
6.0
physical installation
WWW.CLF-LIGHTING.COM
aorun
nuroa

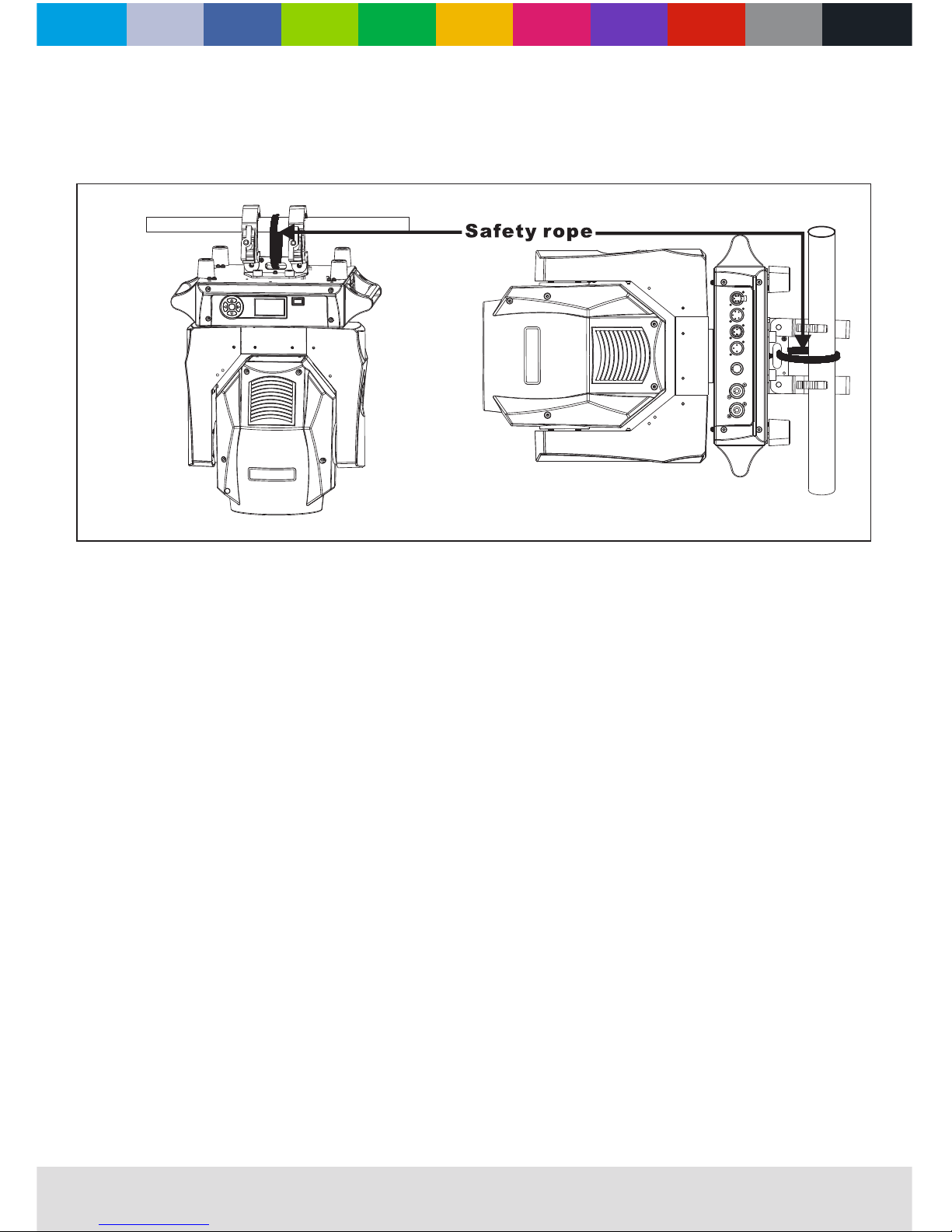

Installing the fixture - Fig. 3
The fixture can be installed on the floor resting on a special rubber feet or on a truss.
WARNING: When the fixture is positioned on truss, the safety rope must be fitted. This must be securely fixed to the
support structure of the fixture and then connected to the fixing point at the centre of the base.
The xture can be installed on the oor resting on the special rubber feet or on a truss.
WARNING: When the xture is positioned on truss, the safety rope must be tted. This must be securely xed to the support structure of the
xture and then connected to the xing point at the centre of the base.

WWW.CLF-LIGHTING.COM
7.0

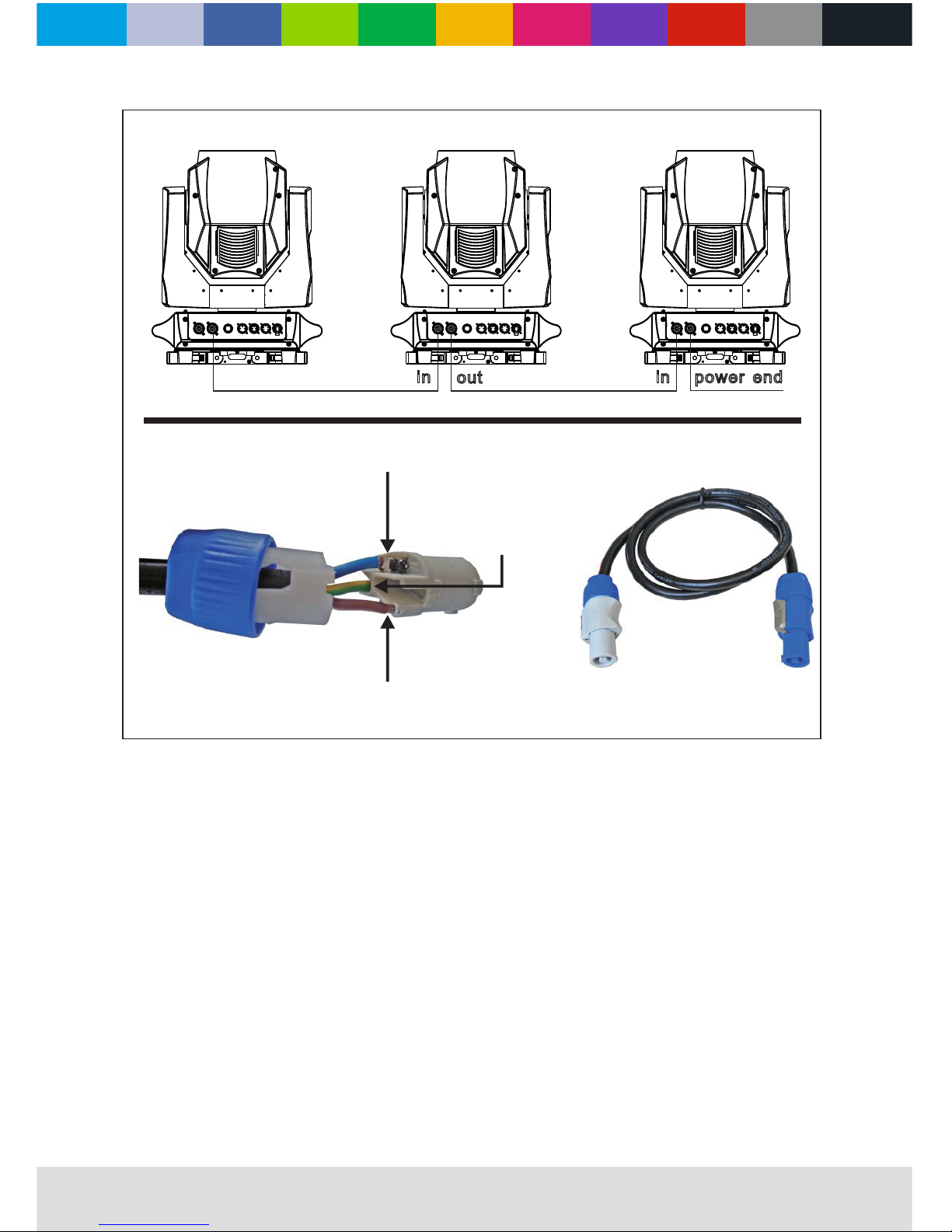

● Not more then 4 xtures in a series.
● Connection to the mains must be carried out by a qualied electrical installer.
out power endin in
The L terminal is connected with the brown line.
The N terminal is connected with the blue line.
L
NGround

WWW.CLF-LIGHTING.COM
8.0
WWW.CLF-LIGHTING.COM
11.0
Test
AORUN
Test
AORUN
• Please use the round 3 or 5-pin XLR plugs & sockets o󰀨ered by the manufacturer to connect the rst output to the second input and
connect the second xture’s output to the third xture’s input. And in the same way for the rest. Connect the rst xture to a DMX controller.
• It is recommended to use a DMX signal terminator for the installation to avoid the electronic noise damage the digital control signal. The
DMX terminator is an XLR connector with a 120 1/2W resistor connected across pin 2 and 3. Which is then plugged into the output socket
on the last projector in the chain refer to the connection.
control panel
WWW.CLF-LIGHTING.COM
11.0
Test
AORUN
Test
AORUN

WWW.CLF-LIGHTING.COM
menu navigation
9.0
MAIN MENU MENU I MENU II MENU III
DMX address Address: 001 - 512
Information
Lamp hours
Total: ****(h)
Lamp open: ****(h)
Temperatuur Board: 000.0
RDM UID Undistributed
MOTOR UID
Fan speed / voltage
Fan 1: 00.0V
Fan 2: 00.0V
Fan 1: 0000 RPM
Fan 2: 0000 RPM
Fan3: 0000 RPM
DMX live
1. Color (***)
2. Shutter (***)
3. Dimmer (***)
4. Gobo (***)
5. Prism (***)
6. Prism ROTA (***)
7. Prism Macro (***)
8. Frost (***)
9. Focus (***)
10. Pan (***)
11. Pan ne (***)
12. Tilt (***)
13. Tilt ne (***)
14. Function (***)
15. Reset (***)
16. Lamp control (***)
System version
XY: V*.**
10M: V*.**
DIS board: V*.**
Return (ESC)
Personal
Channel mode
Simple (14 CH)
Standard (16 CH)
16CH PLUS (16+ CH) Additions to 16 CH; Slow - Fast rotation,
Fast - Slow rotation & stop
Auto lamp on
OFF
ON
P/T invert
Pan invert
OFF
ON
Tilt invert
OFF
ON

WWW.CLF-LIGHTING.COM
menu navigation
MAIN MENU MENU I MENU II MENU III
Personal
Display
Language English
Backlight
Open
Auto close (15s)
Reversal
Normal
Rota. 180
Backlight blink
ON
OFF
Return (ESC)
Return (ESC)
Manual control
Channel control
1. Color (***)
2. Shutter (***)
3. Dimmer (***)
4. Gobo (***)
5. Prism (***)
6. Prism ROTA (***)
7. Prism Macro (***)
8. Frost (***)
9. Focus (***)
10. Pan (***)
11. Pan ne (***)
12. Tilt (***)
13. Tilt ne (***)
14. Function (***)
15. Reset (***)
16. Lamp control (***)
Return (ESC)
Reset
System reset
Pan / tilt reset
Head motor reset
Return (ESC)
Service
Error list
Pan 000-255
Tilt 000-255
10.0

WWW.CLF-LIGHTING.COM
menu navigation
MAIN MENU MENU I MENU II MENU III
Service
Calibration
Dimmer 1 000-255
Dimmer 2 000-255
Focus 1 000-255
Focus 2 000-255
Color 000-255
Stat. gobo 000-255
Prism 1 000-255
Prism 2 000-255
Prism rota 000-255
Frost 000-255
Return (ESC) 000-255
Factory
Default Input: 1111
Time clean Input: 4286
Developer
Firmware update Input: 7273
Return (ESC)
Return (ESC)
Lamp
OFF
ON
Test
Test P/T STEP***
Test e󰀨ect STEP***
Test all STEP***
Return (ESC)
Reversal
Normal
Rota. 180°
11.0

WWW.CLF-LIGHTING.COM
12.0
dmx protocol (14 Ch)
CHANNEL DMX PERCENTAGE FUNCTION
1
COLOR
0 - 4 0 - 1.56 White
5 - 8 1.96 - 3.14 White + red
9 - 12 3.53 - 4.71 Red
13 - 17 5.10 - 6.67 Red + orange
18 - 21 7.06 - 8.24 Orange
22 - 25 8.63 - 9.80 Orange + aquamarine
26 - 29 10.2 - 11.4 Aquamarine
30 - 34 11.8 - 13.3 Aquamarine + dark green
35 - 38 13.7 - 14.9 Dark green
39 - 42 15.3 - 16.5 Dark green + green
43 - 46 16.9 - 18.0 Green
47 - 51 18.4 - 20.0 Green + lavender
52 - 55 20.4 - 21.6 Lavender
56 - 59 22.0 - 23.1 Lavender + pink
60 - 63 23.5 - 24.7 Pink
64 - 68 25.1 - 26.7 Pink + yellow
69 - 72 27.0 - 28.2 Yellow
73 - 76 28.6 - 29.8 Yellow + magenta
77 - 81 30.2 - 31.8 Magenta
82 - 85 32.2 - 33.3 Magenta + cyan
86 - 89 33.7 - 34.9 Cyan
90 - 93 35.3 - 36.5 Cyan + CTO 260
94 - 98 36.9 - 38.4 CTO 2
99 - 102 38.8 - 40.0 CTO 2 + CTO 1
103 - 106 40.4 - 41.6 CTO 1
107 - 110 42.0 - 43.1 CTO 1 + CTB
111 - 115 43.5 - 45.1 CTB
116 - 119 45.5 - 46.7 CTB + Dark blue
120 - 123 47.1 - 48.2 Dark blue
124 - 127 48.6 - 49.8 Dark blue + white
128 - 191 50.2 - 74.9 CCW, fast --> slow rotation
192 - 255 75.3 - 100 CW, slow --> fast rotation

WWW.CLF-LIGHTING.COM
CHANNEL DMX PERCENTAGE FUNCTION
2
STROBE
0 - 3 0 - 1.2 Closed
4 - 103 1.6 - 40.4 Slow-fast strobe
104 - 107 40.8 - 42.0 Open
108 - 157 42.4 - 61.6 Pulsation slow-fast, fast o󰀨, slow open
158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow o󰀨
208 - 212 81.6 - 83.1 Open
213 - 251 83.5 - 98.4 Random slow-fast strobe
252 - 255 99.8 - 100 Open
3
DIMMER
0 - 255 0 - 100
4
GOBO
0 - 3 0 - 1.2 White
4 - 7 1.6 - 2.7 Gobo 1
8 - 11 3.1 - 4.3 Gobo 2
12 - 15 4.7 - 5.9 Gobo 3
16 - 19 6.3 - 7.5 Gobo 4
20 - 23 7.8 - 9.0 Gobo 5
24 - 27 9.4 - 10.6 Gobo 6
28 - 31 11.0 - 12.2 Gobo 7
32 - 35 12.5 - 13.7 Gobo 8
36 - 39 14.1 - 15.3 Gobo 9
40 - 43 15.7 - 16.9 Gobo 10
44 - 47 17.3 - 18.4 Gobo 11
48 - 51 18.8 - 20.0 Gobo 12
52 - 55 20.4 - 21.6 Gobo 13
56 - 59 22.0 - 23.1 Gobo 14
60 - 73 23.5 - 28.6 Gobo 1 shake slow-fast speed
74 - 87 29.0 - 34.1 Gobo 2 shake slow-fast speed
88 - 101 31.4 - 39.6 Gobo 3 shake slow-fast speed
102 - 115 40.0 - 45.1 Gobo 4 shake slow-fast speed
116 - 129 45.5 - 50.6 Gobo 5 shake slow-fast speed
130 - 143 51.0 - 56.1 Gobo 6 shake slow-fast speed
144 - 157 56.5 - 61.6 Gobo 7 shake slow-fast speed
158 - 171 62.0 - 67.1 Gobo 8 shake slow-fast speed
172 - 185 67.5 - 72.6 Gobo 9 shake slow-fast speed
186 - 199 72.9 - 78.0 Gobo 10 shake slow-fast speed
200 - 213 78.4 - 83.5 Gobo 11 shake slow-fast speed
214 - 227 83.9 - 89.0 Gobo 12 shake slow-fast speed
228 - 241 89.4 - 94.5 Gobo 13 shake slow-fast speed
242 - 255 94.9 - 100 Gobo 14 shake slow-fast speed
13.0

WWW.CLF-LIGHTING.COM
CHANNEL DMX PERCENTAGE FUNCTION
5
PRISM
0 - 63 0 - 24.7 Unused range
64 - 127 25 - 49.8 Prism 1
128 - 191 50.2 - 74.9 Prism 2
192 - 255 75.3 - 100 Prism 1 + prism 2
6
PRISM ROTATION
0 0 Unused range
1 - 63 0.4 - 24.7 0 - 180°
64 - 127 25.1 - 49.8 CCW, fast --> slow
128 - 191 50.2 - 74.9 CW, slow --> fast
192 - 207 75.3 - 81.2 Slow --> fast rotation, 90° back and forth
208 - 223 81.6 - 87.5 Slow --> fast rotation, 180° back and forth
224 - 239 87.8 - 93.7 Slow --> fast rotation, 270° back and forth
240 - 255 94.1 - 100 Slow --> fast rotation, 360° back and forth
7
PRISM MACRO
0 - 15 0 - 5.9 Unused range
16 - 55 6.3 - 21.6 From fast to slow, 8 prism free switch
56 - 95 22.0 - 37.3 From fast to slow, 16 prism free switch
96 - 135 37.6 - 52.9 From fast to slow, 8 prism + 16 prism at the same time free switch
136 - 175 53.3 - 68.6 8 prism + 16 prism to free switch from fast to slow
176 - 215 69.0 - 84.3 16 prism + 8 prism to free switch from fast to slow
216 - 255 84.7 - 100 From fast to slow, 8 prism and the 16 prism interlock switch
8
FROST
0 - 255 0 - 100
9
FOCUS
0 - 255 0 - 100
10
PAN
0 - 255 0 - 100
11
PAN FINE
0 - 255 0 - 100
12
TILT
0 - 255 0 - 100
13
TILT FINE
0 - 255 0 - 100
14
FUNCTION
0 - 25 0 - 9.8 Unused range
26 - 30 10.2 - 11.8 E󰀨ects reset
31 - 35 12.2 - 13.7 Pan/tilt reset
36 - 40 14.4 - 15.7 Complete reset
41 - 180 16.1 - 70.6 Unused range
181 - 200 71 - 78.4 Lamp OFF
201 - 220 78.8 - 86.3 Unused range
221 - 255 86.7 - 1000 Lamp ON
14.0

WWW.CLF-LIGHTING.COM
15.0
dmx protocol (16 Ch)
CHANNEL DMX PERCENTAGE FUNCTION
1
COLOR
0 - 4 0 - 1.56 White
5 - 8 1.96 - 3.14 White + red
9 - 12 3.53 - 4.71 Red
13 - 17 5.10 - 6.67 Red + orange
18 - 21 7.06 - 8.24 Orange
22 - 25 8.63 - 9.80 Orange + aquamarine
26 - 29 10.2 - 11.4 Aquamarine
30 - 34 11.8 - 13.3 Aquamarine + dark green
35 - 38 13.7 - 14.9 Dark green
39 - 42 15.3 - 16.5 Dark green + green
43 - 46 16.9 - 18.0 Green
47 - 51 18.4 - 20.0 Green + lavender
52 - 55 20.4 - 21.6 Lavender
56 - 59 22.0 - 23.1 Lavender + pink
60 - 63 23.5 - 24.7 Pink
64 - 68 25.1 - 26.7 Pink + yellow
69 - 72 27.0 - 28.2 Yellow
73 - 76 28.6 - 29.8 Yellow + magenta
77 - 81 30.2 - 31.8 Magenta
82 - 85 32.2 - 33.3 Magenta + cyan
86 - 89 33.7 - 34.9 Cyan
90 - 93 35.3 - 36.5 Cyan + CTO 260
94 - 98 36.9 - 38.4 CTO 2
99 - 102 38.8 - 40.0 CTO 2 + CTO 1
103 - 106 40.4 - 41.6 CTO 1
107 - 110 42.0 - 43.1 CTO 1 + CTB
111 - 115 43.5 - 45.1 CTB
116 - 119 45.5 - 46.7 CTB + Dark blue
120 - 123 47.1 - 48.2 Dark blue
124 - 127 48.6 - 49.8 Dark blue + white
128 - 191 50.2 - 74.9 CCW, fast --> slow rotation
192 - 255 75.3 - 100 CW, slow --> fast rotation

WWW.CLF-LIGHTING.COM
CHANNEL DMX PERCENTAGE FUNCTION
2
STROBE
0 - 3 0 - 1.2 Closed
4 - 103 1.6 - 40.4 Slow-fast strobe
104 - 107 40.8 - 42.0 Open
108 - 157 42.4 - 61.6 Pulsation slow-fast, fast o󰀨, slow open
158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow o󰀨
208 - 212 81.6 - 83.1 Open
213 - 251 83.5 - 98.4 Random slow-fast strobe
252 - 255 99.8 - 100 Open
3
DIMMER
0 - 255 0 - 100
4
GOBO
0 - 3 0 - 1.2 White
4 - 7 1.6 - 2.7 Gobo 1
8 - 11 3.1 - 4.3 Gobo 2
12 - 15 4.7 - 5.9 Gobo 3
16 - 19 6.3 - 7.5 Gobo 4
20 - 23 7.8 - 9.0 Gobo 5
24 - 27 9.4 - 10.6 Gobo 6
28 - 31 11.0 - 12.2 Gobo 7
32 - 35 12.5 - 13.7 Gobo 8
36 - 39 14.1 - 15.3 Gobo 9
40 - 43 15.7 - 16.9 Gobo 10
44 - 47 17.3 - 18.4 Gobo 11
48 - 51 18.8 - 20.0 Gobo 12
52 - 55 20.4 - 21.6 Gobo 13
56 - 59 22.0 - 23.1 Gobo 14
60 - 73 23.5 - 28.6 Gobo 1 shake slow-fast speed
74 - 87 29.0 - 34.1 Gobo 2 shake slow-fast speed
88 - 101 31.4 - 39.6 Gobo 3 shake slow-fast speed
102 - 115 40.0 - 45.1 Gobo 4 shake slow-fast speed
116 - 129 45.5 - 50.6 Gobo 5 shake slow-fast speed
130 - 143 51.0 - 56.1 Gobo 6 shake slow-fast speed
144 - 157 56.5 - 61.6 Gobo 7 shake slow-fast speed
158 - 171 62.0 - 67.1 Gobo 8 shake slow-fast speed
172 - 185 67.5 - 72.6 Gobo 9 shake slow-fast speed
186 - 199 72.9 - 78.0 Gobo 10 shake slow-fast speed
200 - 213 78.4 - 83.5 Gobo 11 shake slow-fast speed
214 - 227 83.9 - 89.0 Gobo 12 shake slow-fast speed
228 - 241 89.4 - 94.5 Gobo 13 shake slow-fast speed
242 - 255 94.9 - 100 Gobo 14 shake slow-fast speed
16.0

WWW.CLF-LIGHTING.COM
CHANNEL DMX PERCENTAGE FUNCTION
5
PRISM
0 - 63 0 - 24.7 Unused range
64 - 127 25 - 49.8 Prism 1
128 - 191 50.2 - 74.9 Prism 2
192 - 255 75.3 - 100 Prism 1 + prism 2
6
PRISM ROTATION
0 0 Unused range
1 - 63 0.4 - 24.7 0 - 180°
64 - 127 25.1 - 49.8 CCW, fast --> slow
128 - 191 50.2 - 74.9 CW, slow --> fast
192 - 207 75.3 - 81.2 Slow --> fast rotation, 90° back and forth
208 - 223 81.6 - 87.5 Slow --> fast rotation, 180° back and forth
224 - 239 87.8 - 93.7 Slow --> fast rotation, 270° back and forth
240 - 255 94.1 - 100 Slow --> fast rotation, 360° back and forth
7
PRISM MACRO
0 - 15 0 - 5.9 Unused range
16 - 55 6.3 - 21.6 From fast to slow, 8 prism free switch
56 - 95 22.0 - 37.3 From fast to slow, 16 prism free switch
96 - 135 37.6 - 52.9 From fast to slow, 8 prism + 16 prism at the same time free switch
136 - 175 53.3 - 68.6 8 prism + 16 prism to free switch from fast to slow
176 - 215 69.0 - 84.3 16 prism + 8 prism to free switch from fast to slow
216 - 255 84.7 - 100 From fast to slow, 8 prism and the 16 prism interlock switch
8
FROST
0 - 255 0 - 100
9
FOCUS
0 - 255 0 - 100
10
PAN
0 - 255 0 - 100
11
PAN FINE
0 - 255 0 - 100
12
TILT
0 - 255 0 - 100
13
TILT FINE
0 - 255 0 - 100
14 UNUSED RANGE
15
RESET
0 - 25 0 - 9.8 Unused range
26 - 76 10.2 - 29.8 E󰀨ect reset
77 - 127 30.2 - 49.8 PAN/TILT reset
128 - 255 50.2 - 100 Complete reset
16
LAMP CONTROL
0 - 25 0 - 9.8 Unused range
26 - 100 10.2 - 39.2 Lamp OFF
101 - 255 39.6 - 100 Lamp ON
17.0

WWW.CLF-LIGHTING.COM
18.0
dmx protocol (16 Ch plus)
CHANNEL DMX PERCENTAGE FUNCTION
1
COLOR
0 - 4 0 - 1.56 White
5 - 8 1.96 - 3.14 White + red
9 - 12 3.53 - 4.71 Red
13 - 17 5.10 - 6.67 Red + orange
18 - 21 7.06 - 8.24 Orange
22 - 25 8.63 - 9.80 Orange + aquamarine
26 - 29 10.2 - 11.4 Aquamarine
30 - 34 11.8 - 13.3 Aquamarine + dark green
35 - 38 13.7 - 14.9 Dark green
39 - 42 15.3 - 16.5 Dark green + green
43 - 46 16.9 - 18.0 Green
47 - 51 18.4 - 20.0 Green + lavender
52 - 55 20.4 - 21.6 Lavender
56 - 59 22.0 - 23.1 Lavender + pink
60 - 63 23.5 - 24.7 Pink
64 - 68 25.1 - 26.7 Pink + yellow
69 - 72 27.0 - 28.2 Yellow
73 - 76 28.6 - 29.8 Yellow + magenta
77 - 81 30.2 - 31.8 Magenta
82 - 85 32.2 - 33.3 Magenta + cyan
86 - 89 33.7 - 34.9 Cyan
90 - 93 35.3 - 36.5 Cyan + CTO 260
94 - 98 36.9 - 38.4 CTO 2
99 - 102 38.8 - 40.0 CTO 2 + CTO 1
103 - 106 40.4 - 41.6 CTO 1
107 - 110 42.0 - 43.1 CTO 1 + CTB
111 - 115 43.5 - 45.1 CTB
116 - 119 45.5 - 46.7 CTB + Dark blue
120 - 123 47.1 - 48.2 Dark blue
124 - 127 48.6 - 49.8 Dark blue + white
128 - 191 50.2 - 74.9 CCW, fast --> slow rotation
192 - 255 75.3 - 100 CW, slow --> fast rotation

WWW.CLF-LIGHTING.COM
CHANNEL DMX PERCENTAGE FUNCTION
2
STROBE
0 - 3 0 - 1.2 Closed
4 - 103 1.6 - 40.4 Slow-fast strobe
104 - 107 40.8 - 42.0 Open
108 - 157 42.4 - 61.6 Pulsation slow-fast, fast o󰀨, slow open
158 - 207 62.0 - 81.2 Pulsation slow-fast, fast open, slow o󰀨
208 - 212 81.6 - 83.1 Open
213 - 251 83.5 - 98.4 Random slow-fast strobe
252 - 255 99.8 - 100 Open
3
DIMMER
0 - 255 0 - 100
4
GOBO
0 - 3 0 - 1.2 White
4 - 7 1.6 - 2.7 Gobo 1
8 - 11 3.1 - 4.3 Gobo 2
12 - 15 4.7 - 5.9 Gobo 3
16 - 19 6.3 - 7.5 Gobo 4
20 - 23 7.8 - 9.0 Gobo 5
24 - 27 9.4 - 10.6 Gobo 6
28 - 31 11.0 - 12.2 Gobo 7
32 - 35 12.5 - 13.7 Gobo 8
36 - 39 14.1 - 15.3 Gobo 9
40 - 43 15.7 - 16.9 Gobo 10
44 - 47 17.3 - 18.4 Gobo 11
48 - 51 18.8 - 20.0 Gobo 12
52 - 55 20.4 - 21.6 Gobo 13
56 - 59 22.0 - 23.1 Gobo 14
60 - 69 23.5 - 27.0 Gobo 1 shake slow-fast speed
70 - 79 27.4 - 31.0 Gobo 2 shake slow-fast speed
80 - 89 31.4 - 34.9 Gobo 3 shake slow-fast speed
90 - 99 35.3 - 38.9 Gobo 4 shake slow-fast speed
100 - 109 39.3 - 42.7 Gobo 5 shake slow-fast speed
110 - 119 43.1 - 46.6 Gobo 6 shake slow-fast speed
120 - 129 47.0 - 50.5 Gobo 7 shake slow-fast speed
130 - 139 50.9 - 54.5 Gobo 8 shake slow-fast speed
140 - 149 54.9 - 58.4 Gobo 9 shake slow-fast speed
150 - 159 58.8 - 62.3 Gobo 10 shake slow-fast speed
160 - 169 62.7 - 66.2 Gobo 11 shake slow-fast speed
170 - 179 66.7 - 70.2 Gobo 12 shake slow-fast speed
180 - 189 70.6 - 74.1 Gobo 13 shake slow-fast speed
190 - 199 74.5 - 78.0 Gobo 14 shake slow-fast speed
200 - 225 78.4 - 88.2 Fast - Slow Rotation
226 - 229 88.6 - 89.8 Stop
230 - 255 90.2 - 100 Slow - Fast Rotation
19.0
