CLF Lighting Apollo User manual

manual
WWW.CLF-LIGHTING.COM V1.0 AUGUST 2018
Apollo
271
493.33
472
Ø 385

table of CONTENTS
Dimensions 1
Safety Instruction 2
Fixture overview 4
Introduction 5
AC Power 5
Power voltage 5
Power cables 6
Relaying power to other devices 6
Data link 6
Tips for reliable data transmission 6
Physical installation 7
Fastening the xture to a at surface 7
Outdoor IP-rated xtures 8
Fixtures temperature specication 8
Setup 9
Control panel and menu navigation 9
DMX address setting 9
Control mode 10
Control panel 11
DMX protocol 2CH, 7 CH & 16 CH 12
DMX protocol 51 CH 13
DMX protocol 55 CH 14
DMX protocol 64 CH 16
Exploded view 18
Specif i cations 19
WWW.CLF-LIGHTING.COM

Dimensions
All dimensions are in millimeters
WWW.CLF-LIGHTING.COM
1
271
493.33
472
Ø 385

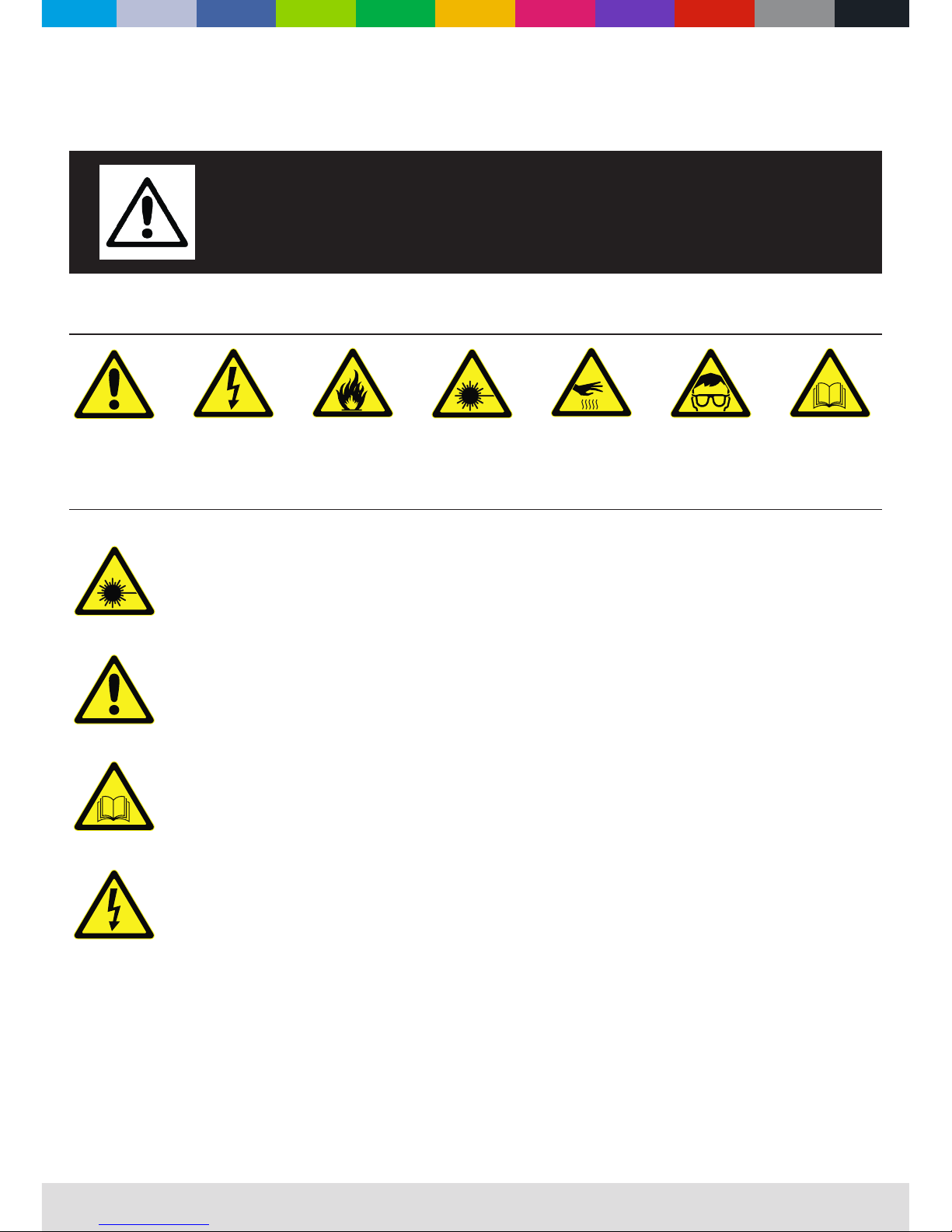

Safety Instruction
WWW.CLF-LIGHTING.COM
2
WARNING!
Read the safety precautions in this section before
installing, powering, operating or servicing this
product.
The following symbols are used to identify important safety information on the product and in this manual:
DANGER!
Safety hazard.
Risk of severe
injury or death.
DANGER!
Hazardous
voltage. Risk of
lethal or severe
electric shock.
WARNING!
Fire hazard.
WARNING!
LED light
emission. Risk of
eye injury.
WARNING!
Burn hazard. Hot
surface. Do not
touch.
WARNING!
Wear protective
eyewear.
WARNING!
Refer to user
manual.
Warning! Risk Group 3 (high risk) LED product according to EN 62471. Do not look into the beam at a
distance of less than 8.3 meters from the front surface of the product. Do not view the light output with optical
instruments or any device that may concentrate the beam.
This product is for professional use only. It is not for household use.
This product presents risks of severe injury or death due to re and burn hazards, electric shock and falls.
Read this manual before installing, powering or servicing the xture, follow the safety precautions listed below and
observe all warnings in this manual and printed on the xture. If you have questions about how to operate the xture
safely, please contact your supplier.
PROTECTION FROM ELECTRIC SHOCK
• Disconnect the xture from AC power before removing or installing any cover or part and when not in use.
• Always ground (earth) the xture electrically.
• Use only a source of AC power that complies with local building and electrical codes and has both overload and
ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are in perfect condition and rated
for the current requirements of all connected devices.
• Power input and throughput cables must be rated 20 A minimum, have three conductors 1.5 mm² (16 AWG)
minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or
equivalent) and heat-resistant to 90° C minimum.
• Use only PowerCON TRUE 1 ® cable connectors to connect to power input sockets. Use only PowerCON TRUE 1
® cable connectors to connect to power through put sockets.
• Isolate the xture from power immediately if the power plug or any seal, cover, cable, or other component is
damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been
completed.
• Refer any service operation not described in this manual to a qualied technician.
• Socket outlets used to supply xture xtures with power or external power switches must be located near the
xtures and easily accessible so that the xtures can easily be disconnected from power.

WWW.CLF-LIGHTING.COM
3
PROTECTION FROM BURNS AND FIRE
• The exterior of the xture becomes hot during use. Avoid contact by persons and materials.
Allow the xture to cool for at least 5 minutes before handling.
• Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm away from the xture.
• Keep ammable materials well away from the xture.
• Ensure that there is free and unobstructed airow around the xture.
• Do not illuminate surfaces within 200 mm of the xture.
• Do not attempt to bypass thermostatic switches or fuses.
• If you relay power from one xture to another using power throughput sockets, do not connect more than ten
xture xtures in total to each other in an interconnected chain.
• Connect only other xture xtures to xture power throughput sockets.
• Do not connect any other type of device to these sockets.
• Do not stick lters, masks or other materials onto any optical component.
• Do not modify the xture in any way not described in this manual.
PROTECTION FROM INJURY
• Do not look continuously at LEDs from a distance of less than 3 meters from the front surface of the xture without
protective eyewear such as shade 4-5 welding goggles. At less than this distance, the LED emission can cause
eye injury or irritation. At distances of 3 meters and above, light output is harmless to the naked eye provided that
the eye’s natural aversion response is not overcome.
• Do not look at LEDs with magniers, telescopes, binoculars or similar optical instruments that may concentrate the
light output.
• Ensure that persons are not looking at the LEDs from within 8.3 meters when the product lights up suddenly.
This can happen when power is applied, when the product receives a DMX signal, or when SERVICE menu items
are selected.
• Fasten the xture securely to a xed surface or structure when in use. The xture is not portable when installed.
• Ensure that any supporting structure and/or hardware used can hold at least 10 times the weight of all the devices
they support.
• Allow enough clearance around the head to ensure that it cannot collide with an object or another xture when it
moves.
• Check that all external covers and rigging hardware are securely fastened.
• Block access below the work area and work from a stable platform whenever installing, servicing or moving the
xture.
• Do not operate the xture with missing or damaged covers, shields or any optical component.

WWW.CLF-LIGHTING.COM
4
Fixture overview
5P DMX output
Control buttons
5P DMX input
LCD display
AC mains power input
AC mains power output
apollo

WWW.CLF-LIGHTING.COM
5
Introduction
RETRO STYLE LED Fixture
Affordable lighting essential
■RGB center e󰀨ect
■Warm white center e󰀨ects
■Outer RGB ring
■PowerCON TRUE 1 in and out
■5 pin DMX
Using for the rst time
Warning! Read “Safety Information” before installing, powering, operating or servicing the xture. Before applying power to the
xture:
Check that the local AC mains power source is within the xture’s power voltage and frequency ranges.
See “Power cables and power plug” on page 6. Install a PowerCON TRUE 1 ® power input connector power cable.
AC Power
Warning! Read “Safety Information” starting on before connecting the xtures to AC mains power.
Warning! For protection from electric shock, the xture must be grounded (earthed). The power
distributioncircuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection.
Warning! Socket outlets or external power switches used to supply the xture with power must be located near
the xture and easily accessible so that the xtures can easily be disconnected from power.
Important! Do not insert or remove live PowerCON TRUE 1 connectors to apply or cut power, as this may cause
arcing at the terminals that will damage the connectors.
Important! Do not use an external dimming system to supply power to the xture, as this may cause damage to
the xture that is not covered by the product warranty.
The xture can be hard-wired to a electrical installation if you want to install it permanently, or a power plug that is
suitable for the local power outlets can be installed on the power cable.
Power voltage
Warning! Check that the voltage range specied on the xtures serial number label matches the local AC mains power
voltage before applying power to the xture.
The xtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the xture at any
other voltage than specied.

WWW.CLF-LIGHTING.COM
6
Power cables
Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and
an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the
EU the cable must be HAR approved or equivalent.
If you install a power plug on the power cable, install a grounding-type (earthed) plug that is rated 16A minimum. Follow the plug
manufacturer’s instructions. Table 1 shows standard wire color-coding schemes and some possible pin identication schemes; if pins are
not clearly identied.
Data link
A DMX 512 data link is required in order to control a xture via DMX. The xture has 3 and 5-pin XLR connectors for DMX data input and
output.
Tips for reliable data transmission
To connect the xture to data:
1. Connect the DMX data output from the controller to the DMX connector of the nearest xture.
2. Connect the DMX output of the xture closest to the controller to the DMX input of the next xture and continue connecting xtures
output to input.
Relaying power to other devices
Warning! Do not connect more than 8 xtures in total to AC mains power in one interconnected chain. Power can be relayed to another
device via the PowerCON TRUE 1 throughput socket.
If you daisy chain the xtures they all draw AC mains power through the rst xture, certain points must be respected:
A heavy duty, three-conductor, 16 AWG or 1.5 mm2 cable with SJT or equivalent cable jacket must be used to connect the rst xture to
AC mains power.
PowerCON TRUE 1 connectors must be used to draw AC mains power from the xtures power throughput sockets and yellow PowerCON
TRUE 1 must be used to supply power at the xture’s power input sockets.
Wire Color (EU models) Wire Color (US models) Conductor Symbol
Brown Black Live L
Blue White Neutral N
Yellow/Green Green Ground (earth) or
Table 1 : Wire color-coding and power connections

WWW.CLF-LIGHTING.COM
7
Physical installation
Warning! The xture must be either fastened to a at surface such as a stage or wall, or clamped to a truss or
similar structure in any orientation using a rigging clamp.
Warning! If the xture can cause injury or damage if it falls, attach an approved safety cable to one of the safety cable
attachment points on the base (see “Fixture overview”).
Check that all surfaces to be illuminated are minimum 200 mm. from the xture, that combustible materials
(wood, fabric, paper, etc.) are minimum 100 mm. from the xture, that there is free airow around the xture
and that there are no ammable materials nearby.
Fastening the xture to a at surface
The xture can be fastened to a xed at surface that is oriented at any angle. Check that the surface can
support at least 10 times the weight of all xtures and equipment to be installed on it.
Warning! The supporting surface must be hard and at or cooling may be blocked, which will cause overheating.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or can fall over. Attach a
securely anchored safety cable to the safety cable attachment point (see “Fixture overview”) if the xture is
to be installed in any location where it may fall and cause injury or damage if the primary attachment fails.
1. Block access under the work area. Working from a stable platform, hang the xture on the truss with the
arrow on the base towards the area to be illuminated. Tighten the rigging clamp.
2. Secure the xture against clamp failure with a secondary attachment such as an approved safety cable
that is rated for the weight of the xture using one of the attachment points at the edges of the base (see
“Fixture overview”). Do not use any other part of the xture as a safety cable attachment point.

WWW.CLF-LIGHTING.COM
8
Outdoor IP-rated xtures
CLF products are applied to o󰀩cial classied IP norm levels. For this product the IP rate is IP20 when using the covers for the chassis
parts. IP65 means according classied norm: shielded against dust and pressurized water from any side. Typical use for outdoor rated
stage events with normal weather acceptance. So no heavy rain, because then the water pressure over exceeds the IP norm.
Fixtures temperature specication
Make sure the xture is used within its working temperature range. Outside this range we cannot guarantee correct operation.
Temporary usage:
Stage event equipment is designed with temporary use in mind. Our product purpose is for theatre, festival, (disco) clubs and indoor &
outdoor concerts. Long term use is possible but keep in mind that it can bring damage to aging materials and a󰀨ect the coated surface (
i.e. stainless steel). Rubber sealings will be negatively a󰀨ected after long-term UV exposure and should be checked by qualied service
technicians over time.
Tighten screws too hard will also a󰀨ect the IP-rating.
solid object Moisture
IP
Ingress
Protection
20
Protected against a solid object greater
than 50mm such as a hand.
Protected against a solid object greater
than 12.5mm such as a finger.
Protected against a solid object greater
than 2.5mm such as a screwdriver.
Protected against a solid object greater
than 1mm such as a wire.
Dust protected. Limited ingress of
dust permitted. Will not interfere
with operation of the equipment.
Dust tight. No ingress of dust.
Protected against vertical falling drops of
water. Limited ingress permitted.
No protection
Protected against water splashes from
all directions. Limited ingress permitted.
Protected against vertical falling drops
of water with enclosure tilted up to 15
degrees from the vertical. Limited
ingress permitted.
Protected against sprays of water up
to 60 degrees from the vertical.
Limited ingress permitted.
Protected against jets of water.
Limited ingress permitted.
Protected against powerful jets of water.
Limited ingress permitted.
Protected against the effects of
immersion in water between 15cm and
1m for 30 minutes.
Protected against the effects of
immersion in water under pressure for
long periods.
123456 012345678

WWW.CLF-LIGHTING.COM
9
Setup
Warning! Read “Safety Information” before installing, powering, operating the xture.
Control panel and menu navigation
The onboard control panel and backlit graphic display are used to set the xture’s DMX address, congure individual xture settings
(personality), read out data and execute service utilities. See “Onboard control menus” for a complete list of menus and commands.
Using the control buttons
• To enter the menu select [MODE].
• Press [UP] and [DOWN] to scroll within a menu or adjust values.
• To enter a menu, select a function or apply a selection, press [ENTER].
• To escape a function or move back one level in the menu structure, press [MODE].
DMX address setting
• Press [ENTER] button when shown the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button
• Press [ENTER] to conrm or pressing [ESC] to return to main menu.

WWW.CLF-LIGHTING.COM
10
Control mode
DMX control mode is selected in the CONTROL MODE menu. The xture can be controlled with 6 DMX control modes:
2ch 7 ch 16ch 51ch 55ch 64ch
Master dimmer
Master strobe
E󰀨ect
Dimmers
Strobes
Dimmer speed
RGB control
Center
RGB segments

WWW.CLF-LIGHTING.COM
11
control panel
DMX Address 1 - 511
Control Mode
2 CH
7 CH
16 CH
51 CH
55 CH
64 CH
Personality
Display
On
30 Sec
DMX Hold
On
O󰀨
Dimmer Speed
Normal
Smooth
Fan Speed
Regulated
Silent 2
Silent 1
Full
Fan Test
Center Fan Test
Ring Fan Test
LED Test Test All LED
Auto
Auto Mode 1
Auto Mode 2
Auto Mode 3
Auto Mode 4
Auto Mode 5
Auto Mode 6
Information
Temperature
Software Version
Factory Reset
No
Yes

WWW.CLF-LIGHTING.COM
12
DMX protocol
2 CH FUNCTION VALUES DESCRIPTION
1 Master 000 - 255 0 - 100%
2 Flow e󰀨ect
000 - 041 No Fucntion
042 - 083 E󰀨ect 1
084 - 125 E󰀨ect 2
126 - 167 E󰀨ect 3
168 - 209 E󰀨ect 4
210 - 255 E󰀨ect 5
7 CH FUNCTION VALUES DESCRIPTION REMARK
1 Master 000 - 255 0 - 100%
2 Outer Dimmer 000 - 255 0 - 100% White color
3 Outer Strobe
000 - 010 No function
011 - 240 From slow to fast
241 - 255 Random ash
4 Inner Dimmer 000 - 255 0 - 100%
5Inner Strobe
000 - 010 No function Inner dimmer (4 CH) and
master (1 CH) need to
be on.
011 - 240 From slow to fast
241 - 255 Random ash
6 Center Dimmer 000 - 255 0 - 100%
7Center Strobe
000 - 010 No function Center dimmer(6 CH)
and master (1 CH) need
to be on.
011 - 240 From slow to fast
241 - 255 Random ash
16 CH FUNCTION VALUES DESCRIPTION
1 Master 000 - 255 0 - 100%
2ALL LED Strobe 000 - 255 Slow to fast
3Flow E󰀨ect
000 - 041 No Function
042 - 083 E󰀨ect 1
084 - 125 E󰀨ect 2
126 - 167 E󰀨ect 3
168 - 209 E󰀨ect 4
210 - 255 E󰀨ect 5
4Dimmer Speed 000 - 254 Fast to slow
255 Tungsten E󰀨ect
5Outer Red 000 - 255 0 - 100%
6Outer Green 000 - 255 0 - 100%
7 Outer Blue 000 - 255 0 - 100%
8 Outer Strobe
000 - 010 No Function
011 - 240 Slow to fast
241 - 255 Random ash
9 Inner Red 000 - 255 0 - 100%
10 Inner Green 000 - 255 0 - 100%
11 Inner Blue 000 - 255 0 - 100%
12 Inner Stobe
000 - 010 No Function
011 - 240 Slow to fast
241 - 255 Random ash

WWW.CLF-LIGHTING.COM
13
DMX protocol
16 CH FUNCTION VALUES DESCRIPTION
13 Center Warm White 000 - 255 0 - 100%
14 Center Amber 000 - 255 0 - 100%
15 Back Warm White 000 - 255 0 - 100%
16 Central Strobe
000 - 010 No Function
011 - 240 Slow to fast
241 - 255 Random ash
51 CH FUNCTION VALUES DESCRIPTION
1Outer Red 1 000 - 255 0 - 100%
2 Outer Green 1 000 - 255 0 - 100%
3 Outer Blue 1 000 - 255 0 - 100%
4 Outer Red 2 000 - 255 0 - 100%
5Outer Green 2 000 - 255 0 - 100%
6Outer Blue 2 000 - 255 0 - 100%
7 Outer Red 3 000 - 255 0 - 100%
8 Outer Green 3 000 - 255 0 - 100%
9 Outer Blue 3 000 - 255 0 - 100%
10 Outer Red 4 000 - 255 0 - 100%
11 Outer Green 4 000 - 255 0 - 100%
12 Outer Blue 4 000 - 255 0 - 100%
13 Outer Red 5 000 - 255 0 - 100%
14 Outer Green 5 000 - 255 0 - 100%
15 Outer Blue 5 000 - 255 0 - 100%
16 Outer Red 6 000 - 255 0 - 100%
17 Outer Green 6 000 - 255 0 - 100%
18 Outer Blue 6 000 - 255 0 - 100%
19 Outer Red 7 000 - 255 0 - 100%
20 Outer Green 7 000 - 255 0 - 100%
21 Outer Blue 7 000 - 255 0 - 100%
22 Outer Red 8 000 - 255 0 - 100%
23 Outer Green 8 000 - 255 0 - 100%
24 Outer Blue 8 000 - 255 0 - 100%
25 Inner Red 1 000 - 255 0 - 100%
26 Inner Green 1 000 - 255 0 - 100%
27 Inner Blue 1 000 - 255 0 - 100%
28 Inner Red 2 000 - 255 0 - 100%
29 Inner Green 2 000 - 255 0 - 100%
30 Inner Blue 2 000 - 255 0 - 100%
31 Inner Red 3 000 - 255 0 - 100%
32 Inner Green 3 000 - 255 0 - 100%
33 Inner Blue 3 000 - 255 0 - 100%
34 Inner Red 4 000 - 255 0 - 100%
35 Inner Green 4 000 - 255 0 - 100%
36 Inner Blue 4 000 - 255 0 - 100%
37 Inner Red 5 000 - 255 0 - 100%
38 Inner Green 5 000 - 255 0 - 100%

WWW.CLF-LIGHTING.COM
14
DMX protocol
51 CH FUNCTION VALUES DESCRIPTION
39 Inner Blue 5 000 - 255 0 - 100%
40 Inner Red 6 000 - 255 0 - 100%
41 Inner Green 6 000 - 255 0 - 100%
42 Inner Blue 6 000 - 255 0 - 100%
43 Inner Red 7 000 - 255 0 - 100%
44 Inner Green 7 000 - 255 0 - 100%
45 Inner Blue 7 000 - 255 0 - 100%
46 Inner Red 8 000 - 255 0 - 100%
47 Inner Green 8 000 - 255 0 - 100%
48 Inner Blue 8 000 - 255 0 - 100%
49 Center Warm White 000 - 255 0 - 100%
50 Center Amber 000 - 255 0 - 100%
51 Back Warm White 000 - 255 0 - 100%
55 CH FUNCTION VALUES DESCRIPTION
1 Master 000-255 0 -100%
2 Outer Red 1 000-255 0 -100%
3 Outer Green 1 000-255 0 -100%
4 Outer Blue 1 000-255 0 -100%
5Outer Red 2 000-255 0 -100%
6Outer Green 2 000-255 0 -100%
7 Outer Blue 2 000-255 0 -100%
8 Outer Red 3 000-255 0 -100%
9 Outer Green 3 000-255 0 -100%
10 Outer Blue 3 000-255 0 -100%
11 Outer Red 4 000-255 0 -100%
12 Outer Green 4 000-255 0 -100%
13 Outer Blue 4 000-255 0 -100%
14 Outer Red 5 000-255 0 -100%
15 Outer Green 5 000-255 0 -100%
16 Outer Blue 5 000-255 0 -100%
17 Outer Red 6 000-255 0 -100%
18 Outer Green 6 000-255 0 -100%
19 Outer Blue 6 000-255 0 -100%
20 Outer Red 7 000-255 0 -100%
21 Outer Green 7 000-255 0 -100%
22 Outer Blue 7 000-255 0 -100%
23 Outer Red 8 000-255 0 -100%
24 Outer Green 8 000-255 0 -100%
25 Outer Blue 8 000-255 0 -100%
26 Outer Strobe
000 - 010 No function
011 - 240 Slow to fast
241 - 255 Ramdom ash
27 Inner Red 1 000-255 0 -100%
28 Inner Green 1 000-255 0 -100%
29 Inner Blue 1 000-255 0 -100%

WWW.CLF-LIGHTING.COM
15
DMX protocol
55 CH FUNCTION VALUES DESCRIPTION
30 Inner Red 2 000-255 0 -100%
31 Inner Green 2 000-255 0 -100%
32 Inner Blue 2 000-255 0 -100%
33 Inner Red 3 000-255 0 -100%
34 Inner Green 3 000-255 0 -100%
35 Inner Blue 3 000-255 0 -100%
36 Inner Red 4 000-255 0 -100%
37 Inner Green 4 000-255 0 -100%
38 Inner Blue 4 000-255 0 -100%
39 Inner Red 5 000-255 0 -100%
40 Inner Green 5 000-255 0 -100%
41 Inner Blue 5 000-255 0 -100%
42 Inner Red 6 000-255 0 -100%
43 Inner Green 6 000-255 0 -100%
44 Inner Blue 6 000-255 0 -100%
45 Inner Red 7 000-255 0 -100%
46 Inner Green 7 000-255 0 -100%
47 Inner Blue 7 000-255 0 -100%
48 Inner Red 8 000-255 0 -100%
49 Inner Green 8 000-255 0 -100%
50 Inner Blue 8 000-255 0 -100%
51 Inner Strobe
000 - 010 No function
011 - 240 Slow to fast
241 - 255 Ramdom ash
52 Center Warm White 000-255 0 -100%
53 Center Amber 000-255 0 -100%
54 Back Warm White 000-255 0 -100%
55 Center Strobe
000 - 010 No Function
011 - 240 Slow to fast
241 - 255 Ramdom ash

WWW.CLF-LIGHTING.COM
16
DMX protocol
64 CH FUNCTION VALUES DESCRIPTION
1 Master 000 - 255 0 - 100%
2All LED Strobe 000 - 255 Slow to fast
3 Flow E󰀨ect
000 - 041 No function
042 - 083 E󰀨ect 1
084 - 125 E󰀨ect 2
126 - 167 E󰀨ect 3
168 - 209 E󰀨ect 4
210 - 255 E󰀨ect 5
4Dimmer Speed 000 - 254 Fast to slow
255 Tungsten e󰀨ect
5Outer Red 000 - 255 0 - 100%
6Outer Green 000 - 255 0 - 100%
7 Outer Blue 000 - 255 0 - 100%
8 Outer Strobe 000 - 010 No function
011 - 240 Slow to fast
241 - 255 Random ash
9 Inner Red 000 - 255 0 - 100%
10 Inner Green 000 - 255 0 - 100%
11 Inner Blue 000 - 255 0 - 100%
12 Inner Strobe
000 - 010 No function
011 - 240 Slow to fast
241 - 255 Random ash
13 Center Warm White 000 - 255 0 - 100%
14 Center Amber 000 - 255 0 - 100%
15 Back Warm White 000 - 255 0 - 100%
16 Central Strobe
000 - 010 No function
011 - 240 Slow to fast
241 - 255 Random ash
17 Outer Red 1 000 - 255 0 - 100%
18 Outer Green 1 000 - 255 0 - 100%
19 Outer Blue 1 000 - 255 0 - 100%
20 Outer Red 2 000 - 255 0 - 100%
21 Outer Green 2 000 - 255 0 - 100%
22 Outer Blue 2 000 - 255 0 - 100%
23 Outer Red 3 000 - 255 0 - 100%
24 Outer Green 3 000 - 255 0 - 100%
25 Outer Blue 3 000 - 255 0 - 100%
26 Outer Red 4 000 - 255 0 - 100%
27 Outer Green 4 000 - 255 0 - 100%
28 Outer Blue 4 000 - 255 0 - 100%
29 Outer Red 5 000 - 255 0 - 100%
30 Outer Green 5 000 - 255 0 - 100%
31 Outer Blue 5 000 - 255 0 - 100%
32 Outer Red 6 000 - 255 0 - 100%
33 Outer Green 6 000 - 255 0 - 100%
34 Outer Blue 6 000 - 255 0 - 100%

WWW.CLF-LIGHTING.COM
17
DMX protocol
64 CH FUNCTION VALUES DESCRIPTION
35 Outer Red 7 000 - 255 0 - 100%
36 Outer Green 7 000 - 255 0 - 100%
37 Outer Blue 7 000 - 255 0 - 100%
38 Outer Red 8 000 - 255 0 - 100%
39 Outer Green 8 000 - 255 0 - 100%
40 Outer Blue 8 000 - 255 0 - 100%
41 Inner Red 1 000 - 255 0 - 100%
42 Inner Green 1 000 - 255 0 - 100%
43 Inner Blue 1 000 - 255 0 - 100%
44 Inner Red 2 000 - 255 0 - 100%
45 Inner Green 2 000 - 255 0 - 100%
46 Inner Blue 2 000 - 255 0 - 100%
47 Inner Red 3 000 - 255 0 - 100%
48 Inner Green 3 000 - 255 0 - 100%
49 Inner Blue 3 000 - 255 0 - 100%
50 Inner Red 4 000 - 255 0 - 100%
51 Inner Green 4 000 - 255 0 - 100%
52 Inner Blue 4 000 - 255 0 - 100%
53 Inner Red 5 000 - 255 0 - 100%
54 Inner Green 5 000 - 255 0 - 100%
55 Inner Blue 5 000 - 255 0 - 100%
56 Inner Red 6 000 - 255 0 - 100%
57 Inner Green 6 000 - 255 0 - 100%
58 Inner Blue 6 000 - 255 0 - 100%
59 Inner Red 7 000 - 255 0 - 100%
60 Inner Green 7 000 - 255 0 - 100%
61 Inner Blue 7 000 - 255 0 - 100%
62 Inner Red 8 000 - 255 0 - 100%
63 Inner Green 8 000 - 255 0 - 100%
64 Inner Blue 8 000 - 255 0 - 100%

WWW.CLF-LIGHTING.COM
18
Exploded view
NO. Description Part number NO. Description Part number
1 Frost cover ring CLF-21-011 21 Support bracket reector CLF-21-029
2 LED PCB outer ring CLF-21-001 22 Support plate back housing CLF-21-025
3 Support frame LED PCB CLF-21-040 23 Driver board center dot CLF-21-007
4Heatsink front ring CLF-21-039 24 Cable support back frame CLF-21-030
5Fixing plate knob CLF-21-027 25 Power supply CLF-21-006
6Outer housing CLF-21-024 26 Display board CLF-21-009
7 Outer housing support frame CLF-21-028 27 Back housing CLF-21-023
8Driver board ring CLF-21-008 28 Power in / out PCB CLF-21-018
9 Support frame fan CLF-21-041 29 XLR5 PCB CLF-21-017
10 Support frame driver board ring CLF-21-036 30 Fuse CLF-21-042
11 Ring housing back CLF-21-022 31 Support bracket back panel CLF-21-026
12 Front cover CLF-21-015 32 Fan dot CLF-21-014
13 LED PCB inner ring center CLF-21-005 33 Heatsink center CLF-21-033
14 LED PCB inner ring CLF-21-004 34 LED PCB dot CLF-21-003
15 Heatsink dot CLF-21-038 35 Frost cover dot CLF-21-012
16 Support bracket dot CLF-21-034 36 Fan ring CLF-21-013
17 Temperature PCB dot CLF-21-037 37 Knob bracket CLF-21-016
18 LED PCB center CLF-21-002 38 Joke CLF-21-031
19 Support bracket heatsink dot CLF-21-035 39 Stand CLF-21-043
20 Reector CLF-21-032
2
5
6
1
3
4
37
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22 23
12
24
25
26
27
28
29
30
31
32
33
34
35
36
38
39
