CLF SPECTRUM P1 User manual

manual
WWW.CLF-LIGHTING.COM V1.0 JAN. 2019
SPECTRUM P1

table of CONTENTS
WWW.CLF-LIGHTING.COM
Power voltage
Dimensions 1
Safety Instruction 2
Fixture overview 4
Introduction 5
AC Power 5
Power voltage 5
Power cables 6
Relaying power to other devices 6
Data link 6
Tips for reliable data transmission 6
Physical installation 7
Fastening the xture to a at surface 7
Indoor IP-rated xtures 8
Setup 9
Control panel and menu navigation 9
DMX address setting 9
W-DMX control (optional ±q1 2019) 9
Control mode 10
control panel 11
Personality 11
Information 11
Factory reset 11
Dimmer CURVE 12
Onboard control menu 13
DMX protocols 14
Exploded view 15
Specications 16

Dimensions
All dimensions are in millimeters
WWW.CLF-LIGHTING.COM 1
106
278 267
360

Safety Instruction
WWW.CLF-LIGHTING.COM 2
WARNING!
Read the safety precautions in this section before installing, powering, operating or servicing this
product

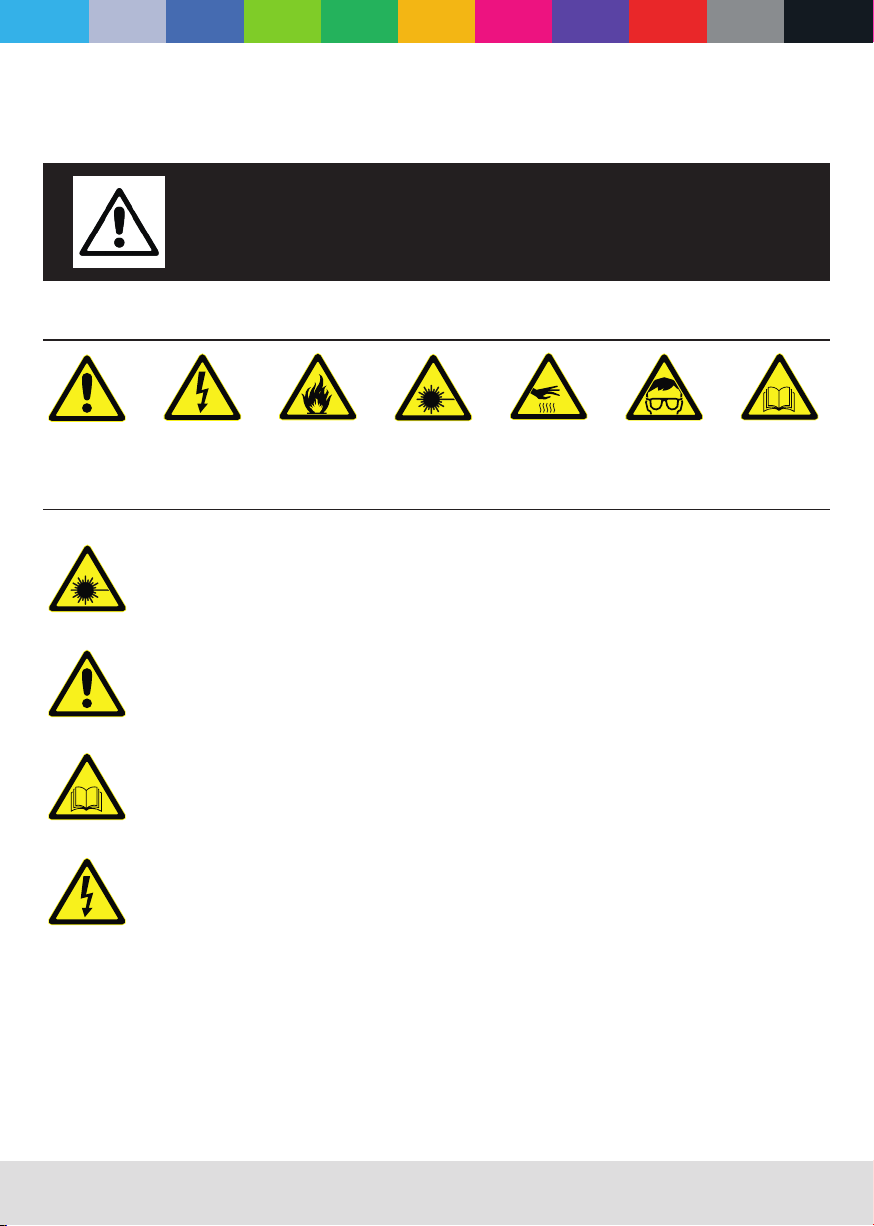

The following symbols are used to identify important safety information on the product and in this manual:
DANGER!
Safety hazard.
Risk of severe
injury or death.
DANGER!
Hazardous
voltage. Risk of
lethal or severe
electric shock.
WARNING!
Fire hazard.
WARNING!
LED light
emission. Risk of
eye injury.
WARNING!
Burn hazard. Hot
surface. Do not
touch.
WARNING!
Wear protective
eyewear.
WARNING!
Refer to user
manual.
Warning! Risk Group 3 (high risk) LED product according to EN 62471. Do not look into the beam at a
distance of less than 8.3 meters from the front surface of the product. Do not view the light output with optical
instruments or any device that may concentrate the beam.
This product is for professional use only. It is not for household use.
This product presents risks of severe injury or death due to re and burn hazards, electric shock and falls.
Read this manual before installing, powering or servicing the xture, follow the safety precautions listed below and
observe all warnings in this manual and printed on the xture. If you have questions about how to operate the xture
safely, please contact your supplier.
PROTECTION FROM ELECTRIC SHOCK
• Disconnect the xture from AC power before removing or installing any cover or part and when not in use.
• Always ground (earth) the xture electrically.
• Use only a source of AC power that complies with local building and electrical codes and has both overload and
ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are in perfect condition and rated
for the current requirements of all connected devices.
• Power input and throughput cables must be rated 20 A minimum, have three conductors 1.5 mm² (16 AWG)
minimum conductor size and an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or
equivalent) and heat-resistant to 90° C minimum.
• Use only PowerCON TRUE 1 ® cable connectors to connect to power input sockets. Use only PowerCON TRUE 1
® cable connectors to connect to power through put sockets.
• Isolate the xture from power immediately if the power plug or any seal, cover, cable, or other component is
damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs have been
completed.
• Refer any service operation not described in this manual to a qualied technician.
• Socket outlets used to supply xture xtures with power or external power switches must be located near the
xtures and easily accessible so that the xtures can easily be disconnected from power.

WWW.CLF-LIGHTING.COM 3
PROTECTION FROM BURNS AND FIRE
• The exterior of the xture becomes hot during use. Avoid contact by persons and materials.
Allow the xture to cool for at least 5 minutes before handling.
• Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm away from the xture.
• Keep ammable materials well away from the xture.
• Ensure that there is free and unobstructed airow around the xture.
• Do not illuminate surfaces within 200 mm of the xture.
• Do not attempt to bypass thermostatic switches or fuses.
• If you relay power from one xture to another using power throughput sockets, do not connect more than 4 xtures
in total to each other in an interconnected chain.
• Connect only other xture to xture power throughput sockets.
• Do not connect any other type of device to these sockets.
• Do not stick lters, masks or other materials onto any optical component.
• Do not modify the xture in any way not described in this manual.
PROTECTION FROM INJURY
• Do not look continuously at LEDs from a distance of less than 3 meters from the front surface of the xture without
protective eyewear such as shade 4-5 welding goggles. At less than this distance, the LED emission can cause
eye injury or irritation. At distances of 3 meters and above, light output is harmless to the naked eye provided that
the eye’s natural aversion response is not overcome.
• Do not look at LEDs with magniers, telescopes, binoculars or similar optical instruments that may concentrate the
light output.
• Ensure that persons are not looking at the LEDs from within 8.3 meters when the product lights up suddenly.
This can happen when power is applied, when the product receives a DMX signal, or when SERVICE menu items
are selected.
• Fasten the xture securely to a xed surface or structure when in use. The xture is not portable when installed.
• Ensure that any supporting structure and/or hardware used can hold at least 10 times the weight of all the devices
they support.
• Allow enough clearance around the head to ensure that it cannot collide with an object or another xture when it
moves.
• Check that all external covers and rigging hardware are securely fastened.
• Block access below the work area and work from a stable platform whenever installing, servicing or moving the
xture.
• Do not operate the xture with missing or damaged covers, shields or any optical component.

WWW.CLF-LIGHTING.COM 4
Fixture overview
LCD Display
WDMX (accessoires ±Q1 2019)
AC mains power
throughput
Safety cable
attachment point
5P DMX output
5P DMX input
Omega bracket with
Quicklock # 520114/520113
(accessoires)
3P DMX input
3P DMX output
Safety cable
attachment point
AC mains power
input
G Clamp with
Quicklock # 875760
(Optional)

WWW.CLF-LIGHTING.COM 5
Introduction
powerful cold
white led par
■Impressive output
■5700K cold white LEDs
■Touring-ready, compact housing
■PowerCON TRUE in and out
■XLR3 and XLR5 pin
■9° beam angle
Using for the rst time
Warning! Read “Safety Information” before installing, powering, operating or servicing the xture. Before
applying power
to the xture:
Check that the local AC mains power source is within the xture’s power voltage and frequency ranges.
See “Power cables and power plug” on page 6. Install a PowerCON TRUE 1 ® power input connector power cable.
AC Power
Warning!Read“SafetyInformation”startingonbeforeconnectingthexturestoACmainspower.
Warning!Forprotectionfromelectricshock,thexturemustbegrounded(earthed).Thepower
distributioncircuitmustbeequippedwithafuseorcircuitbreakerandground-fault(earth-fault)protection.
Warning!Socketoutletsorexternalpowerswitchesusedtosupplythexturewithpowermustbelocatednear
thextureandeasilyaccessiblesothatthexturescaneasilybedisconnectedfrompower.
Important! Do not insert or remove PowerCON TRUE 1 ® connectors to apply or cut power, as this may cause
arcingattheterminalsthatwilldamagetheconnectors.
Important!Donotuseanexternaldimmingsystemtosupplypowertothexture,asthismaycausedamageto
thexturethatisnotcoveredbytheproductwarranty.
The xture can be hard-wired to a electrical installation if you want to install it permanently, or a power plug that is
suitable for the local power outlets can be installed on the power cable.
Power voltage
Warning! Check that the voltage range specied on the xtures serial number label matches the local AC mains power
voltage before applying power to the xture.
The xtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the xture at any
other voltage than specied.

WWW.CLF-LIGHTING.COM 6
Power cables
Power input and throughput cables must be rated 16A minimum, have three conductors 1.5 mm² (16 AWG) minimum conductor size and
an outer cable diameter of 5 - 15 mm. Cables must be hard usage type (SJT or equivalent) and heat- resistant to 90°C minimum. In the
EU the cable must be HAR approved or equivalent.
If you install a power plug on the power cable, install a grounding-type (earthed) plug that is rated 16A minimum. Follow the plug
manufacturer’s instructions. Table 1 shows standard wire color-coding schemes and some possible pin identication schemes; if pins are
not clearly identied.
Data link
A DMX 512 data link is required in order to control a xture via DMX. The xture has 5-pin XLR connectors for DMX data input and output.
The pin-out on all connectors is pin 1 = shield, pin 2 = cold (-), and pin 3 = hot (+) Pins 4 and 5 in the 5-pin XLR connectors are not used.
Tips for reliable data transmission
To connect the xture to data:
1. Connect the DMX data output from the controller to the 5-pin XLR connector of the nearest xture.
2. Connect the DMX output of the xture closest to the controller to the DMX input of the next xture and continue connecting xtures
output to input.
Relaying power to other devices
Warning! Do not connect more than ten xtures in total to AC mains power in one interconnected chain. Power can be relayed to another
device via the PowerCON TRUE 1 ® throughput socket.
If you daisy chain the xtures in a chain so that they all draw AC mains power via the rst xture, certain points must be respected:
• A heavy duty, three-conductor, 16 AWG or 1.5 mm2 cable with SJT or equivalent cable jacket must be used to connect the rst
xture to AC mains power.
• PowerCON TRUE 1 ® connectors must be used to draw AC mains power from the xtures power throughput sockets and yellow
PowerCON TRUE 1 ® connectors must be used to supply power at the xture’s power input sockets.
• No matter what the AC mains power voltage is, do not connect more than ten the xture in total ( including the rst xture) to AC
mains power in one interconnected daisy chain using power input and through out connectors.
WireColor(EUmodels) WireColor(USmodels) Conductor Symbol
Brown Black Live L
Blue White Neutral N
Yellow/Green Green Ground(earth) or
Table 1: Wire color-coding and power connections

WWW.CLF-LIGHTING.COM 7
Physical installation
Warning! The xture must be either fastened to a at surface such as a stage or wall, or clamped to a truss or
similar structure in any orientation using a rigging clamp.
Warning! If the xture can cause injury or damage if it falls, attach an approved safety cable to one of the safety cable
attachment points on the base (see “Fixture overview”).
Check that all surfaces to be illuminated are minimum 200 mm. from the xture, that combustible materials
(wood, fabric, paper, etc.) are minimum 100 mm. from the xture, that there is free airow around the xture
and that there are no ammable materials nearby.
Fastening the xture to a at surface
The xture can be fastened to a xed at surface that is oriented at any angle. Check that the surface can
support at least 10 times the weight of all xtures and equipment to be installed on it.
Warning! The supporting surface must be hard and at or cooling may be blocked, which will cause overheating.
Fasten the xture securely. Do not stand it on a surface or leave it where it can be moved or can fall over. Attach a
securely anchored safety cable to the safety cable attachment point (see “Fixture overview”) if the xture is
to be installed in any location where it may fall and cause injury or damage if the primary attachment fails.
1. Block access under the work area. Working from a stable platform, hang the xture on the truss with the
arrow on the base towards the area to be illuminated. Tighten the rigging clamp.
2. Secure the xture against clamp failure with a secondary attachment such as an approved safety cable
that is rated for the weight of the xture using one of the attachment points at the edges of the base (see
“Fixture overview”). Do not use any other part of the xture as a safety cable attachment point.

WWW.CLF-LIGHTING.COM 8
INdoor IP-rated xtures
CLF products are applied to o󰀩cial classied IP norm levels, for this product the IP rate is IP20.
Fixtures temperature specication
Make sure the xture is used within its working temperature range. Outside this range we cannot guarantee correct operation.
Temporary usage:
Stage event equipment is designed with temporary use in mind. Our product purpose is for theatre, festival, (disco) clubs and indoor &
outdoor concerts. Long term use is possible but keep in mind that it can bring damage to aging materials and a󰀨ect the coated surface (
i.e. stainless steel). Rubber sealings will be negatively a󰀨ected after long-term UV exposure and should be checked by qualied service
technicians over time.
Tighten screws too hard will also a󰀨ect the IP-rating.
0
1
1
2
2
3
3
4
4
5
5
6
6
7
8

WWW.CLF-LIGHTING.COM 9
Setup
Warning! Read “Safety Information” before installing, powering or operating the xture.
Control panel and menu navigation
The onboard control panel and backlit graphic display are used to set the xture’s DMX address, congure individual xture settings
(personality), read out data and execute service utilities. See “Onboard control menus” on page 13 for a complete list of menus and
commands.
Using the control buttons
• To enter the menu select [MODE].
• Press [UP] and [DOWN] to scroll within a menu or adjust values.
• To enter a menu, select a function or apply a selection, press [ENTER].
• To escape a function or move back one level in the menu structure, press [MODE].
• Hold [MENU] = static color
• Hold [ENTER] = highlight for 15 seconds
• Press [UP] and [DOWN] together to rotate display
DMX address setting
The DMX address, also known as the start channel, is the rst channel used to receive instructions from the controller. For independent
control, each xture must be assigned its to a separate channel. The DMX address can be congured by using the DMX ADDRESS menu
in the control panel. For setting the DMX address press [ENTER] before you can change the address.
• The main screen will show a ‘dot’ and the backlight will be switched o󰀨 when a DMX signal is detected.
• The xture is fully RDM ready. So when you are using a RDM ready console you can address the unit and read out its complete
status. For RDM functions please refer to the ANSI/ESTA E1.20-2006 standard
W-DMX control (optional ±q1 2019)
Go to the W-DMX section in the main menu, press the button “UP” to switch o󰀨 Wireless DMX or disconnect with all connected
Transmitters.
Press the button “DOWN’ to set the unit in the ”ready to connect with all not connected transmitters’ mode. If you press the mode button
on the Wireless sollution transmitter all the units in this mode will be connected.
If the unit is successfully connected in the home display the sign “ : V ” appears. If the unit is not connected to a transmitter in the home
display the sign “ : X ”. If the unit is switched o󰀨 in the home display the sign “ : OFF ”.
• Holding the MENU and ENTER button for more than 3 seconds, the wireless board will reset.
• Do not use Wireless DMX and Wired DMX at the same time because it will give unwanted interference

WWW.CLF-LIGHTING.COM 10
Control mode
DMX control mode is selected in the CONTROL MODE menu. The xture can be controlled with 2 DMX control modes:
2ch 3ch
Strobe
Dimmer
Dimmer ne

WWW.CLF-LIGHTING.COM 11
control panel
Here you can set all functions for the xture.
Information
Factory reset
Resets the xture to its factory default settings.
Software type Shows software version (Vx.x)
Usage time Use of time and use time reset (password)
Temperature LED board current temperature xxx°C
(Stored max:xxx°C, Stored min:xxx°C)
RDM.UID Shows the unique ID for the RDM protocoll. <0x02E20002xxxx>
Error message No errors detected
Error message Clear error message?
LED MODE
normal mode = T h e o u t p u t w i l l b e c h a n g e d w i t h t h e
t e m p e r a t u r e
Regulated (power : 420W, FAN : variable)
Full (power : 420W, FAN : 4000RPM)
Silent 1 (power : 380W, FAN : 2000RPM)
Silent 2 (power : 400W, FAN : 3000RPM)
brightness rst = High output mode
Regulated (power : 420W, FAN : variable)
Full (power : 420W, FAN : 4000RPM)
Silent 2 (power : 400W, FAN : 3000RPM)
silence operation = Three level of silent mode to control the
output,when temperature higher than
50°C ,it will lower down by fan speed
and ledoutput
Regulated (power : 400W, FAN : 3000RPM)
Silent 1 (power : 380W, FAN : 2000RPM)
Silent 2 (power : 400W, FAN : 3000RPM)
safe operation = when it is higher than 80 °C , will turn o󰀨
xture
Regulated (power : 355W, FAN : variable)
Full (power : 355W, FAN : 4000RPM)
Silent 2 (power : 355W, FAN : 3000RPM)
Dimmer speed “Normal” means select linear dimming, or choose dimmer 1-4 to control the dimming speed, dimming 1 of the
fastest dimming curves, 4 for the most slowly dimming curve.
Dimmer curve Linear / Square law / INV Square law / S- Curve / Special
W-DMX
ON =Turn on the Wireless Board
OFF=Turn o󰀨 the Wireless Board
RESET =Reset the Wireless Board
DMX HOLD
DMX HOLD = The xture will remember on last values when you disconnect DMX
NO DMX HOLD = The xture has no output when you disconnect DMX
FULL output = The xture always full output
LCD Brightness Set the LCD display brightness (1-10)
LCD Background
Controls the duration of the backlight of the OLED display
Alawys on = continously on
10 sec = 10 seconds before switch o󰀨
20 sec= 20 seconds before switch o󰀨
30 sec= 30seconds before switch o󰀨
Temperature display ON / OFF
Refresh rate Controls the icker frequency of the xture
1.2K / 4.8K / 9.6K Hz
Personality

WWW.CLF-LIGHTING.COM 12
Dimmer CURVE
provides ve dimming options (see picture below):
O utp ut
O utp ut
O utp ut
Out p ut
DM X %
LI NEA R
DMX %
SQ UAR E LAW
DM X %
INV ER SE S QU AR E LA W
DM X %
S - CUR VE
O utp ut
DM X % UP DMX % Do w n
SP E CIA L
• LINEAR – the increase in light intensity appears to be linear as DMX value is increased.
• SQUARE LAW – light intensity control is ner at low levels and coarser at high levels.
• INV Square law – light intensity control is coarser at low levels and ner at high levels.
• S-CURVE – light intensity control is ner at low levels and high levels and coarser at medium levels.
• Special – the light intensity was linear increase with DMX value , and light intensity control is ner at low level with DMX values
decrease , the dimmer speed will also has e󰀨ect on it.
Whichever DIMMER CURVE option you select, you can choose between NORMAL or SMOOTH 1 / 2 / 3 / 4 dimming settings:
• NORMAL is the default setting. It gives a virtually instantaneous reaction when you dim from one intensity to another, but dimming
slowly from one intensity to another may appear slightly uneven.
• The SMOOTH 1 / 2 / 3 / 4 setting gives smoother dimming during slow changes in intensity, but it limits the speed of dimming
changes slightly. This makes it ideal for slow, smooth dimming, but a short time-lag may be noticeable if you try to dim quickly from
one intensity to another.

WWW.CLF-LIGHTING.COM 13
Onboard control menu
NO. Main menu Menu level 2 Menu level 3 Remark
1DMX ADDRESS <001> Default : 001
2 CONTROL MODE
2CH 1. Dimmer, 2.Dimmer ne
Default : 2CH
3CH 1. Strobe, 2. Dimmer, 3.Dimmer ne
3 Static color
White 0 - 255 Default 255
Strobe 0 - 255 same function as the 3
channel strobe function
3 PERSONALITY
LED MODE
Normal mode
Regulated
Full
Silent 1
Silent 2
Default : Normal mode
Brightness rst
Regulated
Full
Silent 2
Silence operation
Regulated
Silent 1
Silent 2
Safe operation
Regulated
Full
Silent 2
Dimmer speed
Normal
Default : Normal
Smooth 1 / Smooth 2 / Smooth 3 / Smooth 4
Dimmer curve
Linear
Default : Linear
Square law
INV Square law
S- Curve
Special
W-DMX ON / OFF / RESET Default : ON
DMX HOLD
DMX HOLD
Default : DMX HOLDNO DMX HOLD
FULL output
LCD Brightness Level 1- 5 - 10
LCD Background Always on / 10sec / 20sec / 30sec Default : 10S
Temperature display ON / OFF Default : ON
Refresh rate 1.2K Hz / 4.8K Hz / 9.6K Hz Default : 4800 Hz
4Info
Software VX.XX
Usage time Total:xxxxxH
Temperature xxx°C Stored max: xx°C
Stored min: xx°C
RDM-UID 0x02E20002xxxx
Error message No errors detected
Error message Clear error message?
5 Factory reset LOAD Please reboot power before reset takes e󰀨ect!

WWW.CLF-LIGHTING.COM 14
DMX protocols
2 CH Function Value Setting Remark
1Dimmer 000 - 255 0 - 100%
2Dimmerne 000 - 255 Dimmer ne
3 CH Function Value Setting Remark
1Shutter
000 - 019 No function
020 - 024 Shutter open
025 - 064 Strobe 1 (fast → slow)
065 - 069 Shutter open
070 - 084 Strobe 2: opening pulse (fast → slow)
085 - 089 Shutter open
090 - 104 Strobe 3: closing pulse (fast → slow)
105 - 109 Shutter open
110 - 124 Strobe 4: random strobe (fast → slow)
125 - 129 Shutter open
130 - 144 Strobe 5: random opening pulse (fast → slow)
145 - 149 Shutter open
150 - 164 Strobe 6:random closing pulse (fast → slow)
165 - 169 Shutter open
170 - 184 Strobe 7: burst pulse (fast → slow)
185 - 189 Shutter open
190 - 204 Strobe 8: random burst pulse (fast → slow)
205 - 209 Shutter open
210 - 224 Strobe 9:sine wave (fast → slow)
225 - 229 Shutter open
230 - 244 Strobe 10: burst (fast → slow)
245 - 255 Shutter open
2Dimmer 000 - 255 0 - 100%
3Dimmerne 000 - 255 Dimmer ne

WWW.CLF-LIGHTING.COM 15
Exploded view
NO. Description Part number
1 Lens kit CLF-18-002
2 LED board CLF-18-001
3 LED board radiator CLF-18-003
4 Mount plate fan CLF-18-007
5 Fan CLF-18-013
6Power supply CLF-18-012
7 Power supply support bracket CLF-18-008
8Driver board CLF-18-016
9Air inlet ring CLF-18-010
10 Front case body CLF-18-004
11 Back case body CLF-18-005
12 Display board CLF-18-017
13 PowerCON TRUE1 input socket CLF-14-027
14 PowerCON TRUE1 output socket CLF-14-028
15 XLR board CLF-18-018
16 Knob bracket CLF-14-014
17 Bracket CLF-18-009

WWW.CLF-LIGHTING.COM 16
Specications
Power
Input voltage & rate 100-240V, 50/60hZ
Standby power 10W
Nominal total power consumption
(at nominal voltage 230V)
430 W
Typical current (at nominal voltage 230V) 1.9A
Cos φ 0,97
Power plug type Seetronic PowerCon True
Conguration
LED color COLD white
LED color temperature 5700 K
LED CRI level > 90
Quantity of LED 36 pcs
Dimming frequency 1200/4800/9600
Dimmer resolution 16 bit
Optical
Beam angle 9°
Photometric
Output @1M 265.000 lux
Output @5M 23.000 lux
Heat management
Cooling type: Fan inside
MAX. Ambient temp (Ta max) 40, °C
MIN. Ambient temp (Ta min) -20, °C
MAX housing temp.(ta=25°C) 40, °C
MAX housing temp.(ta=40°C) 53, °C
Menu
Auto program none
Static color yes
Manual calibration none
Factory calibration none
Strobe speed 0 - 20Hz
Random strobe yes
* PF = power factor. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

WWW.CLF-LIGHTING.COM 17
* PF = power factor. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Control
Control protocol USITT DMX512/1990
DMX channel range 2 / 3
RDM yes
RDM compliance ANSI/ESTA E.120
WDMX optional
ACN none
DMX input connection DMX 5P in en out, DMX 3P in en out
Data input (artnet, SACN) none
Hardware
Interface Backlite LCD display
Software upload method XLR
Installation
IP rating IP20
Housing
Safety attachment point yes
Physical
Net product weight 5.7 kg
Machine dimensions - Length 278 mm
Machine dimensions - Width 278 mm
Machine dimensions - Height 346 mm
Accessories
Included items
Approvals
Approved certications

WWW.CLF-LIGHTING.COMCLFLIGHTING
SPECTRUM P1
