Clifford Intelliguard 770 User manual

Intelliguard 770
OOwwnneerr’’ssGGuuiiddee

i
© 2006 directed electronics
limited lifetime consumer warranty
Directed Electronics ("Directed") promises to the original purchaser to repair or replace with a
comparable reconditioned model any Directed unit (hereafter the "unit"), excluding without
limitation the siren, the remote transmitters, the associated sensors and accessories, which
proves to be defective in workmanship or material under reasonable use during the lifetime of
the vehicle provided the following conditions are met: the unit was professionally installed and
serviced by an authorized Directed dealer; the unit will be professionally reinstalled in the vehi-
cle in which it was originally installed by an authorized Directed dealer; and the unit is returned
to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof of pur-
chase bearing the following information: consumer's name, telephone number and address;
the authorized dealers name, telephone number and address; complete product description,
including accessories; the year, make and model of the vehicle; vehicle license number and
vehicle identification number. All components other than the unit, including without limitation
the siren, the remote transmitters and the associated sensors and accessories, carry a one-year
warranty from the date of purchase of the same. This warranty is non-transferable and is auto-
matically void if: the original purchaser has not completed the warranty card and mailed it with-
in ten (10) days of the date of purchase to the address listed on the card; the unit's date code
or serial number is defaced, missing or altered; the unit has been modified or used in a man-
ner contrary to its intended purpose; the unit has been damaged by accident, unreasonable
use, neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installation or
removal of the unit. Directed, in its sole discretion, will determine what constitutes excessive
damage and may refuse the return of any unit with excessive damage. TO THE MAXIMUM
EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS
WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICU-
LAR PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE
EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON
OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH
ITS PRODUCTS. DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL
ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED
SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT.
DIRECTED IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE
OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND HEREBY EXPRESSLY DIS-
CLAIMS ANY LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, LIABILITY FOR
THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS
FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL
DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR
ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALI-
FORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOV-
ERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL
BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE
UNIT. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING
BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES
FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC

ii
OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES
OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED
ABOVE. Some states do not allow limitations on how long an implied warranty will last or the
exclusion or limitation of incidental or consequential damages. This warranty gives you specif-
ic legal rights and you may also have other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your authorized
Directed dealer for details of the plan or call Directed Customer Service at 1-800-876-0800.
Directed security systems, including this unit, are deterrents against possible theft. Directed is
not offering a guarantee or insurance against vandalism, damage or theft of the automobile,
its parts or contents; and hereby expressly disclaims any liability whatsoever, including without
limitation, liability for theft, damage and/or vandalism. Directed does not and has not autho-
rized any person or entity to create for it any other obligation, promise, duty or obligation in
connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
zDate of purchase
zYour full name and address
zAuthorized dealer's company name and address
zType of alarm installed
zYear, make, model and color of the automobile
zAutomobile license number
zVehicle identification number
zAll security options installed on automobile
zInstallation receipts
trademarks and copyrights
Bitwriter™, Clifford®, Code-Hopping™, Directed®, Doubleguard®, ESP™, FailSafe®, Ghost Switch™,
Learn Routine™, Nite-Lite®, Nuisance Prevention Circuitry®, NPC®, Revenger®, Silent Mode™, Soft
Chirp®, Stealth Coding™, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away®are
all Trademarks or Registered Trademarks of Directed Electronics, Inc.
iimmppoorrttaanntt!!Please note that this manual was intended for US consumers
and therefore includes American phrases or words.

1
© 2006 directed electronics
limited lifetime consumer warran-
ty . . . . . . . . . . . . . . . . . . . . . . . . . . .i
trademarks and copyrights . . . . .ii
what is included . . . . . . . . . . . . . .2
important information . . . . . . . . .2
system maintenance . . . . . . . .3
your warranty . . . . . . . . . . . . .3
fcc/id notice . . . . . . . . . . . . . . .3
replacement remote controls . . .4
remote configurations . . . . . . . . .5
remote functions . . . . . . . . . . . . .6
standard configuration . . . . . . .6
using your system . . . . . . . . . . . . .8
arming . . . . . . . . . . . . . . . . . . .8
disarming . . . . . . . . . . . . . . . . .9
disarming without a remote . .10
remote siren silencing . . . . . .10
remote chirp muting . . . . . . .10
remote sensor disable . . . . . .11
intellistart and smartwindows
sensor bypass . . . . . . . . . . . . .11
auxiliary channel bypass . . . . .12
panic mode with smart door
locking . . . . . . . . . . . . . . . . . .12
disarm/valet® mode . . . . . . . .12
remote valet® mode . . . . . . .13
one-time auto-arming bypass .14
low battery warning . . . . . . .14
multiple event total recall . . . .14
false alarm control technology
(FACT II) . . . . . . . . . . . . . . . . .15
select siren sounds . . . . . . . . . . .16
diagnostics . . . . . . . . . . . . . . . . . .16
arming diagnostics . . . . . . . . .16
disarming diagnostics . . . . . . .17
arm/disarm diagnostic chart . .17
table of zones . . . . . . . . . . . .18
anti-code grabbing (ACG) . . . . .18
high frequency . . . . . . . . . . . . . .19
smart power up II . . . . . . . . . . . .19
power saver mode . . . . . . . . . . .19
programming options . . . . . . . .20
cliffnet wizard installation soft-
ware programming . . . . . . . .22
manual programming instruc-
tions . . . . . . . . . . . . . . . . . . .22
user selectable features . . . . .24
user selectable features descrip-
tions - column one . . . . . . . . .25
user selectable features descrip-
tions - column two . . . . . . . .27
user selectable features descrip-
tions - column three . . . . . . .29
pin programming . . . . . . . . . . . .31
auto-immobilization feature . . .32
auto-immobilization sequence 32
one-time valet feature . . . . . .33
blackjax feature . . . . . . . . . . . . .33
blackjax activation sequence .34
blackjax deactivation sequence35
bypass blackjax temporarily . .35
blackjax off warning indicator 36
audio sensor . . . . . . . . . . . . .37
adjusting the omnisensor . . . .37
glossary of terms . . . . . . . . . . . . .39
security & convenience expansions
41
health check . . . . . . . . . . . . . . . .42
contents

what is included
zIntelliguard control module and harness
zTwo five-button remotes
zPresentation envelope and quick reference card
zTwo window decals
zExternal antenna/receiver with harness
zPre-wired blue status LED
zPlainView 2 Valet®button
z518C neo-siren
z506T audio sensor
zDigital dual-zone omnisensor
important information
Congratulations on the purchase of your state-of-the-art vehicle
security system. It has been designed to provide years of trouble-free
operation. This system must be installed by an authorized dealer.
Installation of this product by anyone other than an authorized dealer
voids the warranty. As verification of authorization, all authorized deal-
ers are provided with preprinted dealer certificates.
In order to maximize the use of this system, please review this owner's
guide carefully prior to using your system. You can print additional or
replacement copies of this owner’s guide by accessing the Clifford web-
site at www.clifford.com.
2

3
© 2006 directed electronics
system maintenance
The system requires no specific maintenance. Your remote is powered
by a pair of miniature 3V lithium batteries that will last approximately
one year under normal use. When the battery weakens, operating
range will be reduced and the system will provide a low battery warn-
ing chirp indication when disarming.
your warranty
Your warranty registration must be completely filled out and returned
within 10 days of purchase. Your product warranty will not be validat-
ed if your warranty registration is not returned. Make sure you receive
the warranty registration from your dealer. It is also necessary to keep
your proof of purchase, which reflects that the product was installed by
an authorized dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesirable operation.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate this device.

4
replacement remote controls
You can purchase replacement remote controls from your Authorized
Dealer or on-line at the following web site:
www.directedstore.com
Once you receive your new remote control, please refer to instruc-
tions included on the remote packaging.

5
© 2006 directed electronics

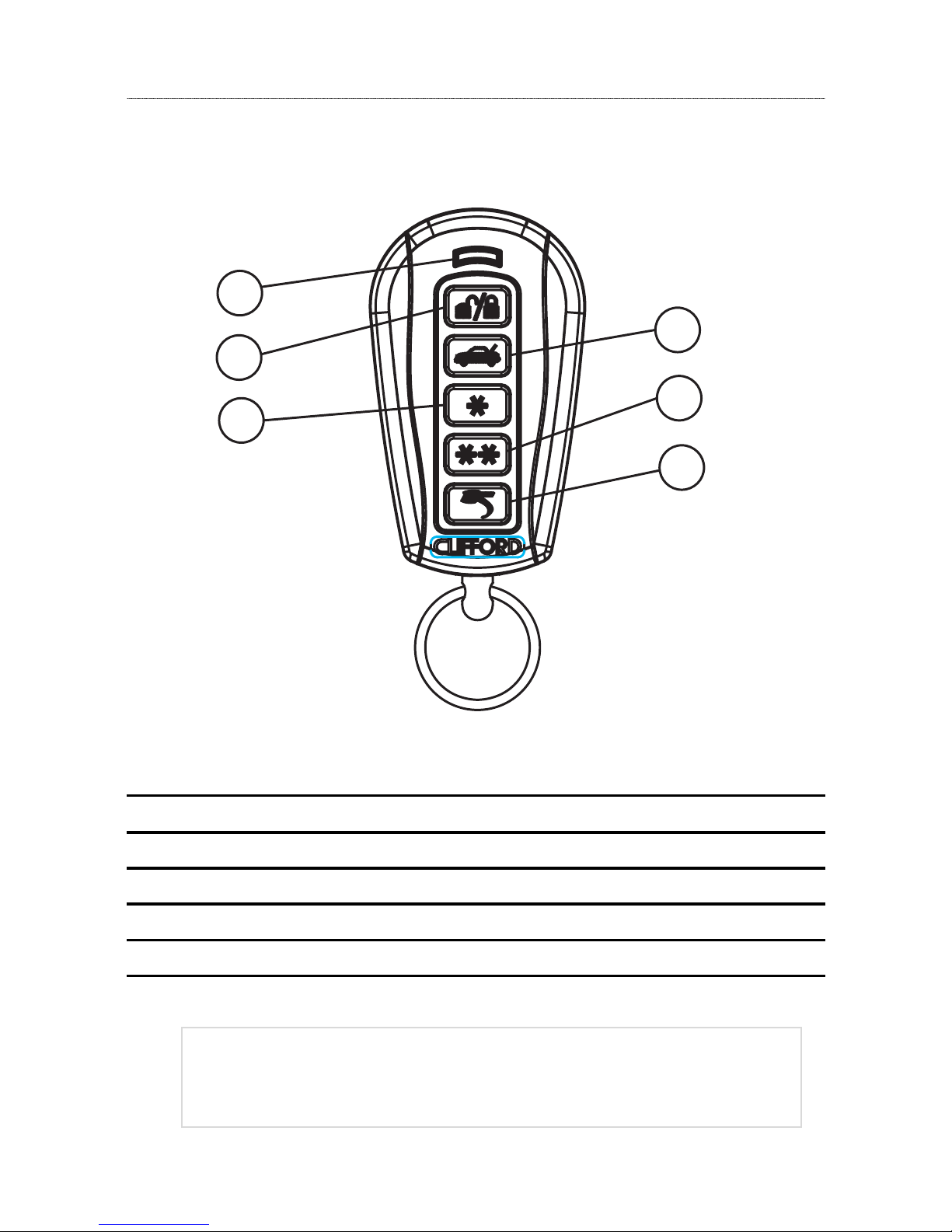

remote configurations
1. LED Indicator
2. Arm/Disarm Button
3. Remote Start Button
4. Trunk Release Button
5. Silent Arm/Disarm Button
6. Clifford G5 Button
nnoottee::This manual describes the features and accessories that are
included with your system along with information about compatible
Clifford accessories that are not included. For a list of included acces-
sories, please refer to the
What Is Included section of this manual.
1
2
1
3
4
5
6

6
remote functions
This system uses computer-based code learning to learn the remote
buttons. This makes it possible to assign any remote button to any sys-
tem function. The remote initially comes programmed with standard
configuration, but may also be customized using the CliffNet Wizard
PC program. The buttons in all of the instructions in this manual corre-
spond to a standard configuration remote.
standard configuration
Button
The arming, disarming, and panic function are controlled by this but-
ton.
Button
The trunk release or accessory output A is controlled by this button.
Button
Remote start is controlled by this button (optional accessory) .
Button
Silent arm and disarm is controlled by this button.
Button, then Button
Accessory B output is controlled by these buttons.
Button, then Button
These buttons activate SmartWindows.

7
© 2006 directed electronics
Button, then Button
Accessory C output is controlled by these buttons.
Button twice, then Button
These buttons active remote Valet®.
Button twice, then Button
These buttons disable the sensors.
Button three times, then Button
These buttons adjust the dual-zone radar sensor.
Button twice, then Button
These buttons enter safe start mode for manual transmission vehicles
and activate Autostart mode.
Button three times, then Button
These buttons adjust the dual-zone omnisensor.

8
using your system
The buttons used in the instructions in this manual correspond to the
standard remote configuration. If your remote has been custom con-
figured, the icons on your remote buttons may not correspond to the
indicated functions.
arming
You can activate, or arm, the system by pressing on your remote
for one second. When the system arms, you will hear two short siren
sounds, or chirps, and see the parking lights flash twice. The LED will
begin to flash steadily. If the vehicle’s power door locks have been con-
nected to the system, the doors will lock.
While the system is armed, the LED status indicator will flash approxi-
mately once per second showing that the system is actively protecting
your vehicle. If you hear more than two chirps when arming, refer to
the Diagnostics section of this guide. These extra chirps confirm a mal-
function autobypass.
The security system also can be programmed to arm itself
automatically (called passive arming). If the system is programmed for
passive arming, it will automatically arm 30 seconds after the ignition
is turned off and the system sees you leave the vehicle by opening and
closing a door. Whenever the system is in its 30-second passive-arming
countdown. The siren will chirp twice and the lights will flash twice five
seconds after the last door has been closed. The system is not actually
armed at that point. The system arms and the doors lock (if connected

9
© 2006 directed electronics
and programmed for passive locking) at 30 seconds, but the siren will
not chirp. The early chirps provide you with a 25-second warning prior
to arming.
When armed, your vehicle is protected as follows:
zThe LED will flash as a visible theft deterrent.
zLight impacts will trigger the Warning Zone signal. When
triggered, the siren will sound for a few seconds.
zHeavy impacts will trigger the system. The triggered
sequence is 30, 60, or 90 seconds of constant siren sound-
ing and flashing parking lights.
zIf a protected entry (door, hood, or trunk) is opened, the sys-
tem will immediately trigger the siren and flash the parking
lights. If any vehicle glass is broken the system will immedi-
ately trigger the siren and flash the lights.
disarming
To disarm the system, press . You will hear a chirp and the park-
ing lights will flash once. If the power locks are connected to the sys-
tem, the doors will unlock. If the siren chirps three times when disarm-
ing, refer to the Diagnostics section of this guide. This is called Tamper
Alert. If the siren is active when the system is disarmed you will hear
two chirps but the system is not disarmed. (Refer to the Remote Siren
Silencing section of this guide.) However, if the alarm completes the full
trigger cycle when disarmed you will hear three chirps.
nnoottee::If any protected entry point (a door or a switch-protected trunk or
hood) is open, the system will not passively arm. Additionally, each
time a protected entry is triggered during the arming countdown, the
30-second countdown starts over.

© 2004 directed electronics, inc.
disarming without a remote
This feature allows you to disarm the system without the remote should
it be lost, damaged, or disabled. In order to disarm without a remote,
you must have the vehicle’s ignition key, know where the PlainView 2
Valet® button is located, and have the PIN code. Be sure to check with
the installer for the location of the PlainView 2 Valet® button. Please
refer to the Disarm/Valet®Mode section of this guide for instructions to
enter the pin code.
remote siren silencing
This system offers remote siren silencing. Remote siren silencing is a fea-
ture that makes it possible to silence and reset the system when it is
triggering without disarming the system. If the system is triggered and
the siren has been sounding, press on the remote to stop the
trigger and return the unit to the armed state. The system will not dis-
arm, but rather reset. This prevents you from disabling the system
should you wish to silence it without visually checking the vehicle. After
resetting the system, press again to disarm the system.
remote chirp muting
To temporarily turn off the arm or disarm chirps, use remote chirp mut-
ing. Simply press on the remote, and the confirmation chirp(s)
will be eliminated for that one operation only. The parking lights will
flash to confirm the arm/disarm command. If you want the arm/disarm
chirps turned off permanently, please refer to the User-Selectable
Features section of this guide.

11
© 2006 directed electronics
remote sensor disable
To temporarily disable a sensor input, arm the system, press
twice and then . The lights will flash four times and
all warn away trigger zones one, two, three, and eight are bypassed.
Press the buttons again; the lights flash four times and both warn away
and full trigger zones one, two, three, and eight are bypassed until the
system is disarmed. This can be performed anytime the system is
armed.
1. Arm the system.
2. Press twice and then .
3. The lights will flash four times; all warn away zones are now
bypassed.
4. Transmit the sensor bypass channel again.
5. The lights will flash four more times; the sensor warn away
and full trigger zones are now bypassed.
6. The sensor zones will reset when disarmed.
intellistart and smartwindows sensor bypass
When the system sees a command to start the vehicle via the
Intellistart, it bypasses sensor zones and will continue to bypass these
zones until the remote start shuts down.
When the system sees a SmartWindows command for up or down
operation, the unit will automatically bypass sensor zones one, two,
three, and eight until the windows complete their operation.

12
auxiliary channel bypass
Alarm sensor input zones one, two, three, and eight will be bypassed
while a pulsed or timed auxiliary Output is active.
panic mode with smart door locking
If you are threatened in or near your vehicle, you can attract attention
by triggering the system with your remote! Just press for two
seconds to enter Panic Mode. The siren will sound and the parking
lights will flash for the programmed duration. If the ignition is on, the
doors will lock; if the ignition is off, the doors will unlock. To stop Panic
Mode at any time press on the remote again.
disarm/valet®mode
Entering your pin code using the PlainView 2 Valet® button allows you
to disarm the system or enter valet®mode without using the remote.
In valet®mode, the security system will not arm, even with the remote,
but all convenience functions (door locks, trunk release, etc.) will con-
tinue to work normally.
To disarm or enter Valet®Mode:
nnoottee::Intellistart and SmartWindows are optional Clifford accessories.
Ask your dealer for more details.

13
© 2006 directed electronics
1. Turn the ignition on.
2. Enter PIN code (factory setting is 2).
3. After the last digit of the pin code is entered:
a. To disarm the system: press and release .
b. To enter valet®mode: Press and hold for
three seconds.
The LED status indicator will light steadily if you are entering Valet®
Mode and will turn off if you are exiting Valet®Mode.
To exit Valet®Mode:
1. Turn the ignition on.
2. Enter PIN code.
3. After the last digit press for one second.
The LED will turn off.
remote valet®mode
The operations described in this section refer to remote buttons.
Remember, the buttons used in all the instructions in this guide corre-
spond to a Standard Configuration remote. This may not be how your
remote is set up.
To enter Valet®Mode, press twice and then . The
LED status indicator will light solid if you are entering Valet®Mode, or
will turn off if you are exiting Valet®Mode.

14
one-time auto-arming bypass
This will bypass the auto arm feature once only.
1. With the key, turn the ignition on, then off within two seconds.
2. The siren will chirp once to confirm auto arming bypass.
3. The system will not auto arm.
During auto arming bypass the system will not roll up the windows if
SmartWindows is connected, and the accessory output will not auto-
activate when using the remote to arm the system.
low battery warning
When the remote battery is low, the system will generate a low-pitched
tone when disarmed.
multiple event total recall
This will report the last eight system triggers.
1. Press and hold of the PlainView 2 Valet®button.
2. While still holding , arm and disarm the system, then
release the button.
3. The LED will start to blink to indicate the most recent trigger
and proceed down to the eighth trigger. If fewer than eight
triggers are stored in memory, the LED will blink continuous-
ly until the system is armed/disarmed using the remote or
nnoottee::The system will revert to normal auto arming when the system
sees the ignition on for at least three seconds.

15
© 2006 directed electronics
the ignition is turned on. For more information, please refer
to the Table of Zones section of this guide.
false alarm control technology (FACT II)
Your system offers FACT II, a feature that prevents annoying
repetitive trigger sequences due to a faulty sensor or environmental
conditions such as thunder, jackhammers, airport noise, etc.
Here’s how it works: The alarm triggers three times. If the same sensor is
triggering the alarm and the first and the third triggers are within 60 min-
utes of each other, FACT II will interpret this pattern of triggers as false
alarms. After the third trigger, FACT II ignores, or bypasses, that sensor
(along with any other sensors sharing the same zone) for 60 minutes.
If the bypassed sensor tries to trigger the system while it is being
bypassed, the 60-minute bypass period will start over. This ensures that
a sensor that continually triggers will remain bypassed.
Doors are covered by FACT II differently; if the alarm is triggered by an
open door for three full cycles, the doors will be bypassed until the trig-
ger ceases. FACT II is programmable. See the Programming Options
section of this guide.
nnoottee::Arming and disarming the system does not reset this function! The
only way to reset a bypassed zone is for 60 minutes or to turn on the igni-
tion. If testing your system, it is important to remember that the FACT II pro-
gramming can cause zones to be bypassed and appear to stop working.
If you wish to clear the FACT II memory, turn the ignition key on.

16
select siren sounds
To customize siren sounds, please refer to the selectable siren sounds fea-
ture in the User Selectable Features grid. Once in programming mode,
press on the remote to begin playback of the available sounds.
Press on the PlainView 2 Valet®button while playing the desired
sound to add that sound; press while playing the desired sound to
delete that sound.
diagnostics
The microprocessor at the heart of your security system is constantly
monitoring all of the switches and sensors that are connected to it. It
detects any faulty switches and sensors and prevents them from dis-
abling the entire system. The microprocessor will also record and report
any triggers that occurred during your absence.
arming diagnostics
If the system is armed while an input is active (door open, sensor trig-
gering, etc.) the unit will chirp twice when arming and then four more
times five seconds later. This is called Bypass Notification.
The security system will ignore the input that was active when the sys-
tem was armed, until the input goes away. Three seconds later the sys-
tem will monitor that input normally. For example, if your vehicle has

17
© 2006 directed electronics
interior light exit delay, and you arm the system before the interior light
goes out, you may hear Bypass Notification chirps. Once the light shuts
off, however, the doors are monitored normally.
disarming diagnostics
Extra disarm chirps are the Tamper Alert. If three chirps are heard when
disarming, the system was triggered in your absence. If three chirps are
heard, the LED status indicator will indicate which zone was involved
when you turn the ignition on (see the Table of Zones section). The sys-
tem will retain this information in its memory. Refer to the Multiple
Event Total Recall section of this guide.
arm/disarm diagnostic chart
Action Chirps Light Flashes Description
Arm 2 2 System armed
Arm 4 4 System armed with hood/
trunk active and bypassed
(zones 5 and 6)
Arm 2 (5 sec.) 4 2 (5 sec.) 4 System armed with door
active and bypassed (zone 4)
Arm 2 (10 sec.) 4 2 (10 sec.) 4 System armed with sensor
active and bypassed zones
1, 2, 3, and 8
Disarm 1 1 System disarmed
Disarm 3 3 System disarmed with
tamper alert
