Clifford Matrix 12.5x User manual

MMooddeell1122..55XX
➤
OOwwnneerr’’ssGGuuiiddee

i
© 2006 directed electronics
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy
Directed Electronics ("Directed") promises to the original purchaser to repair or replace
with a comparable reconditioned model any Directed unit (hereafter the "unit"), exclud-
ing without limitation the siren, the remote transmitters, the associated sensors and acces-
sories, which proves to be defective in workmanship or material under reasonable use dur-
ing the lifetime of the vehicle provided the following conditions are met: the unit was pro-
fessionally installed and serviced by an authorized Directed dealer; the unit will be pro-
fessionally reinstalled in the vehicle in which it was originally installed by an authorized
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy
of the bill of sale or other dated proof of purchase bearing the following information: con-
sumer's name, telephone number and address; the authorized dealers name, telephone
number and address; complete product description, including accessories; the year, make
and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote trans-
mitters and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void if: the
original purchaser has not completed the warranty card and mailed it within ten (10) days
of the date of purchase to the address listed on the card; the unit's date code or serial num-
ber is defaced, missing or altered; the unit has been modified or used in a manner con-
trary to its intended purpose; the unit has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installa-
tion or removal of the unit. Directed, in its sole discretion, will determine what consti-
tutes excessive damage and may refuse the return of any unit with excessive damage. TO
THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-
ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,
ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY
AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-
ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS
UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-
AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND
HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR
VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR
MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY

ii © 2006 directed electronics
CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM
OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY
AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE
AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.
DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights and you may also have
other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-
rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-
876-0800. Directed security systems, including this unit, are deterrents against possible
theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability what-
soever, including without limitation, liability for theft, damage and/or vandalism.
Directed does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
➤Date of purchase
➤Your full name and address
➤Authorized dealer's company name and address
➤Type of alarm installed
➤Year, make, model and color of the automobile
➤Automobile license number
➤Vehicle identification number
➤All security options installed on automobile
➤Installation receipts

iii
© 2006 directed electronics
ttaabblleeooffccoonntteennttss
lliimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy................................................................................ii
22--wwaayyLLCCDDrreemmootteeccoonnttrrooll.............................................................
.............................11
LLCCDDssccrreeeenn..................................................................................................................22
ssttaannddaarrddrreemmootteeccoonnffiigguurraattiioonn..............
........................................................................33
wwhhaattiissiinncclluuddeedd..........
..................................................................................................44
iimmppoorrttaannttiinnffoorrmmaattiioonn..................................................................................................44
system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
rreeppllaacceemmeennttrreemmootteeccoonnttrroollss...................................................
.....................................77
22--wwaayyLLCCDDrreemmootteeccoonnttrroollffuunnccttiioonnss...........................
...............................................77
standard configurations (1-way and 2-way remote controls) . . . . . . . . . . . . . . . . 7
standard LCD icon configurations (2-way only) . . . . . . . . . . . . . . . . . . . . . . . . . 9
rreemmootteeooppeerraattiioonn........................................................................................................1144
system signal paging features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
out of range notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
pprrooggrraammmmiinnggLLCCDDrreemmoottee........................................................................................1166
To enter programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Beeps/Vibration On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Illumination On/Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Page notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To exit programming mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
uussiinnggyyoouurrssyysstteemm......................................................................................................1188
active arming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
passive arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
disarming without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
dome light control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
valet mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
nuisance prevention® circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
aauuxxiilliiaarryyoouuttppuuttss((ooppttiioonnss))........................................................
..................................2299
sshhoocckksseennssoorraaddjjuussttmmeenntt........................................
....................................................3300
To enter shock sensor adjustment mode:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adjusting the Shock Sensor Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Exit Shock Sensor Adjustment Mode:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reset Shock Sensor to Default Setting: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

iv © 2006 directed electronics
ddiiaaggnnoossttiiccss..................................................................................................................3355
arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
interpreting zone diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
oowwnneerrrreeccooggnniittiioonn......................................................................................................3399
rraappiiddrreessuummeellooggiicc......................................................................................................3399
ppoowweerrssaavveerrmmooddee......................................................................................................4400
pprrooggrraammmmiinngg..............................................................................................................4411
iinnssttaallllaattiioonnooppttiioonnss....................................................................................................4455
vveehhiicclleerreeccoovveerryyssyysstteemm((vvrrss®®))....................................................................................4455
arming the vrs® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
vrs® triggered sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
disarming the vrs® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
pprrooggrraammmmiinnggooppttiioonnss................................................................................................4499
sseeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss............................................................................5500
gglloossssaarryyoofftteerrmmss........................................................................................................5533
qquuiicckkrreeffeerreenncceegguuiiddee..................................................................................................5555

1
© 2006 directed electronics

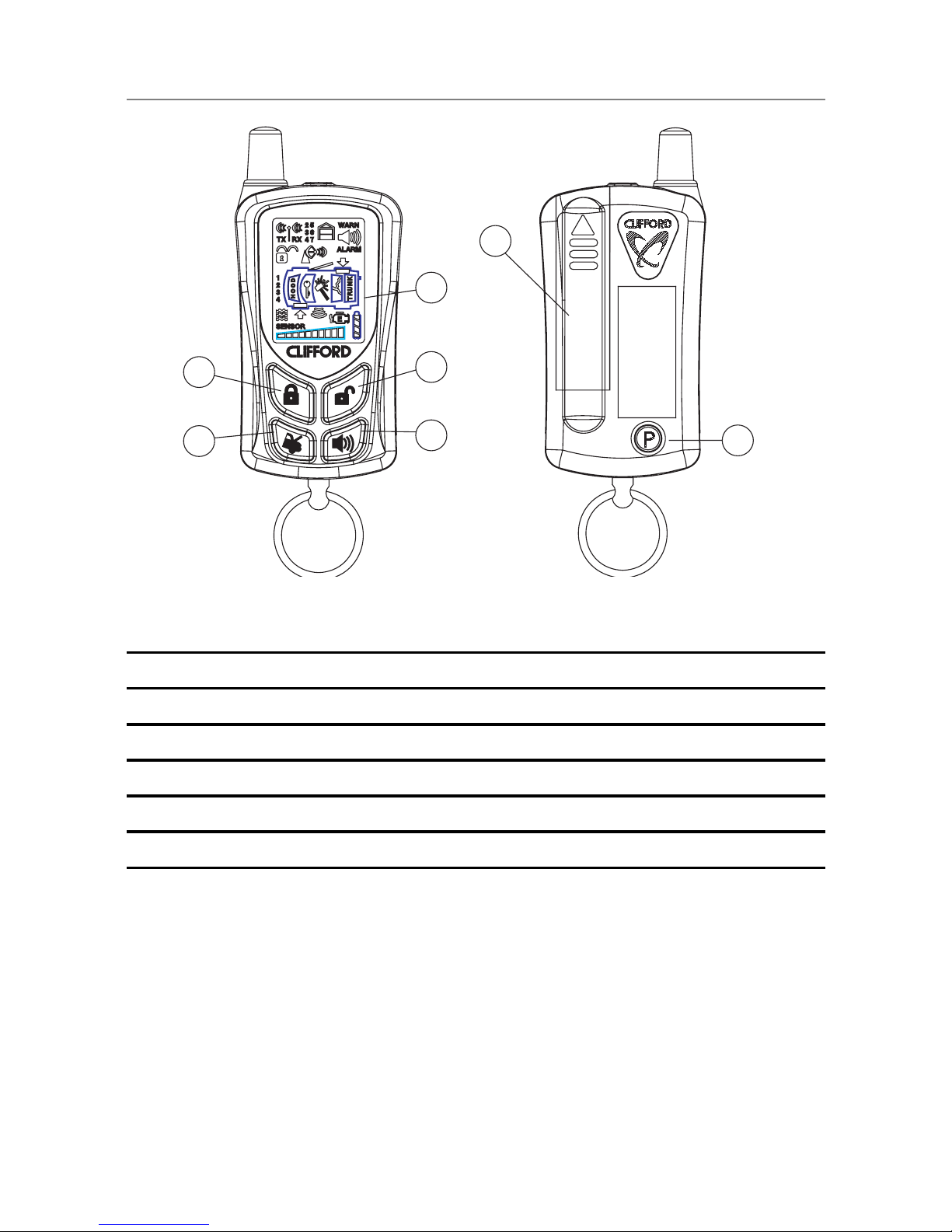

22--wwaayyLLCCDDrreemmootteeccoonnttrrooll
1. Auxiliary Channel Button
2. Arm Button
3. LCD Screen (see LCD Screen)
4. Disarm Button
5. Panic Button
6. Battery Compartment
7. Program Button
2
15
4
3
6
7
1-800-274-0200
RPN 489V/P/X
2(66) CODES
FCC ID:EZSDEI489

2© 2006 directed electronics

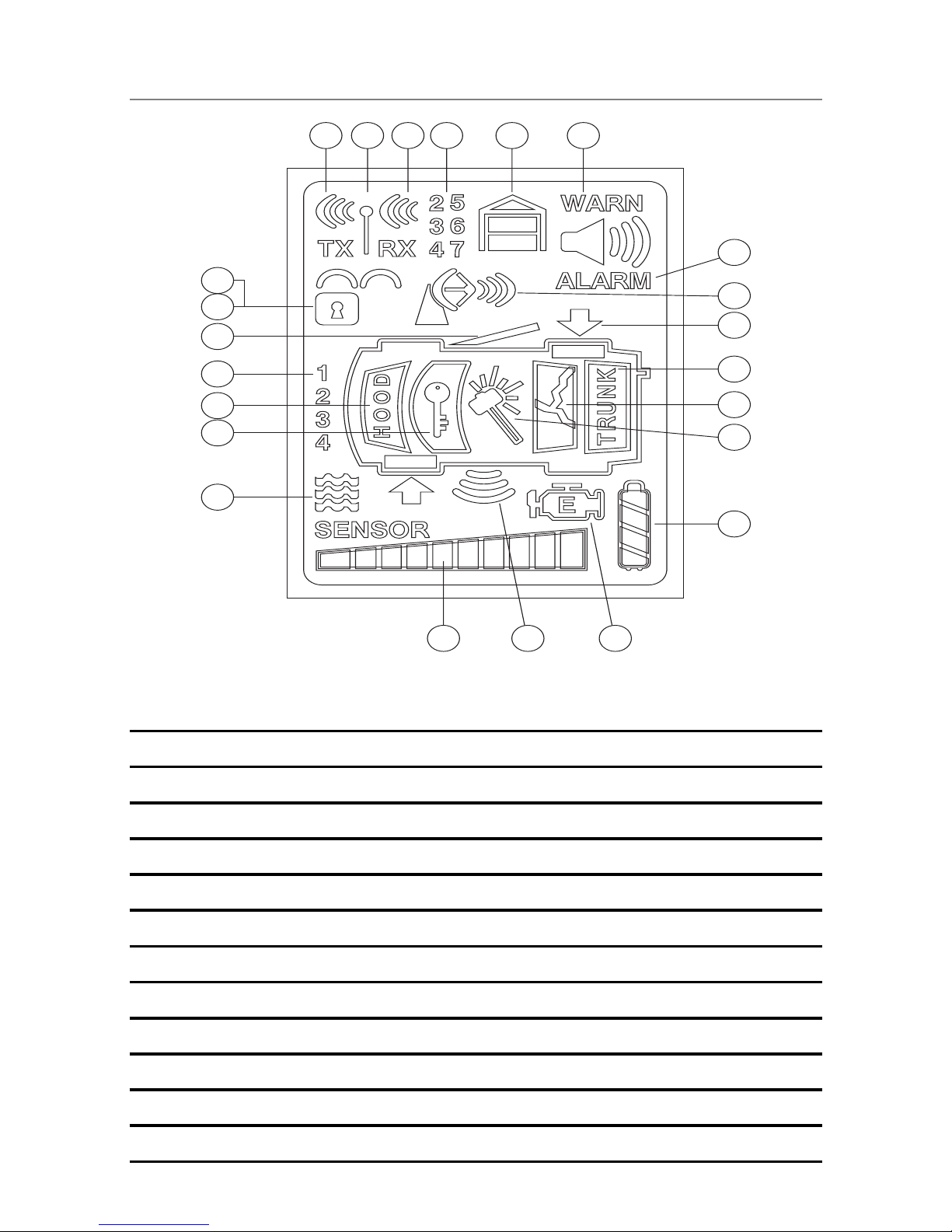

LLCCDDssccrreeeenn
1. Transmit 13. Battery level indicator
2. Out of range 14. Remote start (option)
3. Receive 15. Field disturbance sensor *
4. Auxiliaries 16. Shock sensor setting
5. Garage door (519H2 option) 17. Vibrator
6. Warn Away®18. Ignition
7. Alarm 19. Hood
8. Ultrasonic sensor * 20. Vehicle number
9. Tilt sensor * 21. Door
10. Trunk 22. Arm
11. Glass breakage sensor * 23. Disarm
12. Shock sensor
* Optional sensors. Additional parts and labor required
1234 5 6
7
8
9
10
11
12
13
141516
17
19
20
21
18
22
23

3
© 2006 directed electronics
ssttaannddaarrddrreemmootteeccoonnffiigguurraattiioonn
controls the LLoocckk––AArrmm//PPaanniiccOOnn//PPaanniiccOOfffffunction.
controls the UUnnlloocckk––DDiissaarrmm//PPaanniiccOOfffffunction.
controls SSiilleennttMMooddee™™and an AAuuxxiilliiaarryyOOuuttppuutt((22)).
or controls the
PPaanniic
cOOnn//OOfffffunction (hold for 2-
seconds).
and pressed together control an AAuuxxiilliiaarryyOOuuttppuutt((33)).
or and pressed together control an AAuuxxiilliiaarryy
OOuuttppuutt((44)).
and pressed together control an AAuuxxiilliiaarryyOOuuttppuutt((55)).
and or pressed together control an AAuuxxiilliiaarryy

4© 2006 directed electronics
OOuuttppuutt((66)).
(located on back of the remote) selects the vehicle to control
and also provides user selection of LCD remote response .
wwhhaattiissiinncclluuddeedd
➤Control module
➤1 four-button 2-way LCD transmitter
➤1 four-button transmitter
➤Wire harnesses
➤Dual diode harness
➤The 514N six-tone programmable siren
➤In-vehicle status LED indicator light
➤A push-button Valet switch
➤Your warranty registration
➤Failsafe®Starter Kill ready circuitry
(may require additional labor)
➤548T transceiver/antenna
iimmppoorrttaannttiinnffoorrmmaattiioonn
Congratulations on the purchase of your state-of-the-art vehicle
security system. This system has been designed to provide years
note: On both remotes the panic button is the same color.
P

5
© 2006 directed electronics
of trouble-free operation. Due to the complexity of this system,
it must be installed by an authorized dealer only. Installation of
this product by anyone other than an authorized dealer voids the
warranty. All dealers are provided with preprinted dealer certifi-
cates to verify that they are authorized.
This owner’s guide should help you to get the most out of your
system. Please take the time to read it prior to using the system.
system maintenance
This system needs no specific maintenance beyond remote
control battery replacement. The 2-way remote is powered by a
1.5V AAA battery. The 1-way remote is powered by a pair of 3V,
CR2016 batteries.
BBaatttteerryyLLeevveellIInnddiiccaattoorr((22--wwaayyrreemmoottee))
The Battery Level indicator has four level indicators that serve as
a visual indication of battery charge. When the battery reaches a
low charge level that requires replacement, the remote control
will generate a single notification chirp, and the Battery Level
indicator will flash continuously.
Battery Replacement (2-way remote)
Gently pull the end of the battery door away from the top of the
remote control then slide the door up to expose the battery and
remove the expired battery. Place the new battery into the remote
EMPTY
REPLACE
FULL
➜

6© 2006 directed electronics
control observing the correct polarity. When power is returned
the remote control will display all icons in the LCD and generate
all beeper tones once. Press any button on the remote to termi-
nate the beeper tone review.
your warranty
Your warranty registration must be returned and the bar code
serial number must not be removed. If the warranty registration
is not returned, you do not have a warranty. It is also necessary
to keep your proof of purchase, which reflects that the product
was installed by an authorized dealer. Make sure that you receive
the warranty registration from your dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
➜
➜

7
© 2006 directed electronics
rreeppllaacceemmeennttrreemmootteeccoonnttrroollss
You can purchase replacement remote controls from your
Authorized Dealer or on-line at the following web site:
www.directedstore.com
Once you receive your new remote control, please refer to
instructions included on the remote packaging.
22--wwaayyLLCCDDrreemmootteeccoonnttrroollffuunnccttiioonnss
The LCD remote control buttons are used to send commands to
the system. The descriptions below reflect the standard configu-
ration for this system. The buttons can be custom configured for
the user’s specific needs by the installer. Also, the user can
configure the LCD remote for certain responses (see
Programming LCD Remote section).
standard configurations (1-way and 2-way remote
controls)
Button
The arming function is controlled by pressing this button for
one second.
Button
The disarming function is controlled by pressing this button for
one second.
➜

8© 2006 directed electronics
Button
Silent Mode™ and an optional auxiliary function are controlled
by pressing this button. (Silent Mode™ works by pressing this
button for less than one second before arming or disarming. An
optional auxiliary function, such as trunk release, can be
controlled by pressing this button for 1.5 seconds.)
The auxiliary output controls __________________________.
or Button
The panic feature is controlled by pressing this button for
approximately two seconds.
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls_________________________.
or and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls_________________________.
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these

9
© 2006 directed electronics
buttons simultaneously.
The auxiliary output controls_________________________.
and or Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls_________________________.
Program Button (on rear of 2-way LCD remote only)
Use this button to select the vehicle to control from the remote.
Also use this button to configure response characteristics from
the LCD remote (see Programming 2-Way Remote).
standard LCD icon configurations (2-way only)
Icon
The transmit icon will be displayed while the remote control is
transmitting a command to the vehicle.
Icon
The signal icon will be displayed if a command is transmitted to
the vehicle but the command page is not received.
Icon
The receive icon will be displayed while the remote control is
receiving a page from the vehicle.
Icon
The auxiliary and sensor icons will display which auxiliary is oper-
➜

10 © 2006 directed electronics
ating, or which security sensor (zone 2,4 or 7) is in Warn Away®
or alarm state.
Icon
The garage door icon—for use with optional 519H2.
and Icons
The above Warn Away®displays when a security feature has been
tripped, but not to full alarm.
and Icons
The above icons will display when a security feature has been
tripped to a full alarm condition.
Icon
The ultrasonic sensor (detects motion within the vehicle) icon
will display for full alarm by flashing for a few seconds and then
display continuously until the page is cleared.
Icon
The tilt sensor icon will display for full alarm by flashing for a
few seconds and then display continuously until the page is
cleared.
Icon
The trunk icon will display for full alarm by flashing for a few
seconds and then display continuously until the page is cleared.
Icon
The glass breakage sensor icon will display for full alarm by

11
© 2006 directed electronics
flashing for a few seconds and then display continuously until
the page is cleared.
Icon
The shock sensor icon will display for both Warn Away®and full
alarm by flashing for a few seconds and then display continu-
ously until the page is cleared.
Icon
The battery icon always displays the current charge capacity
remaining in the remote’s battery.

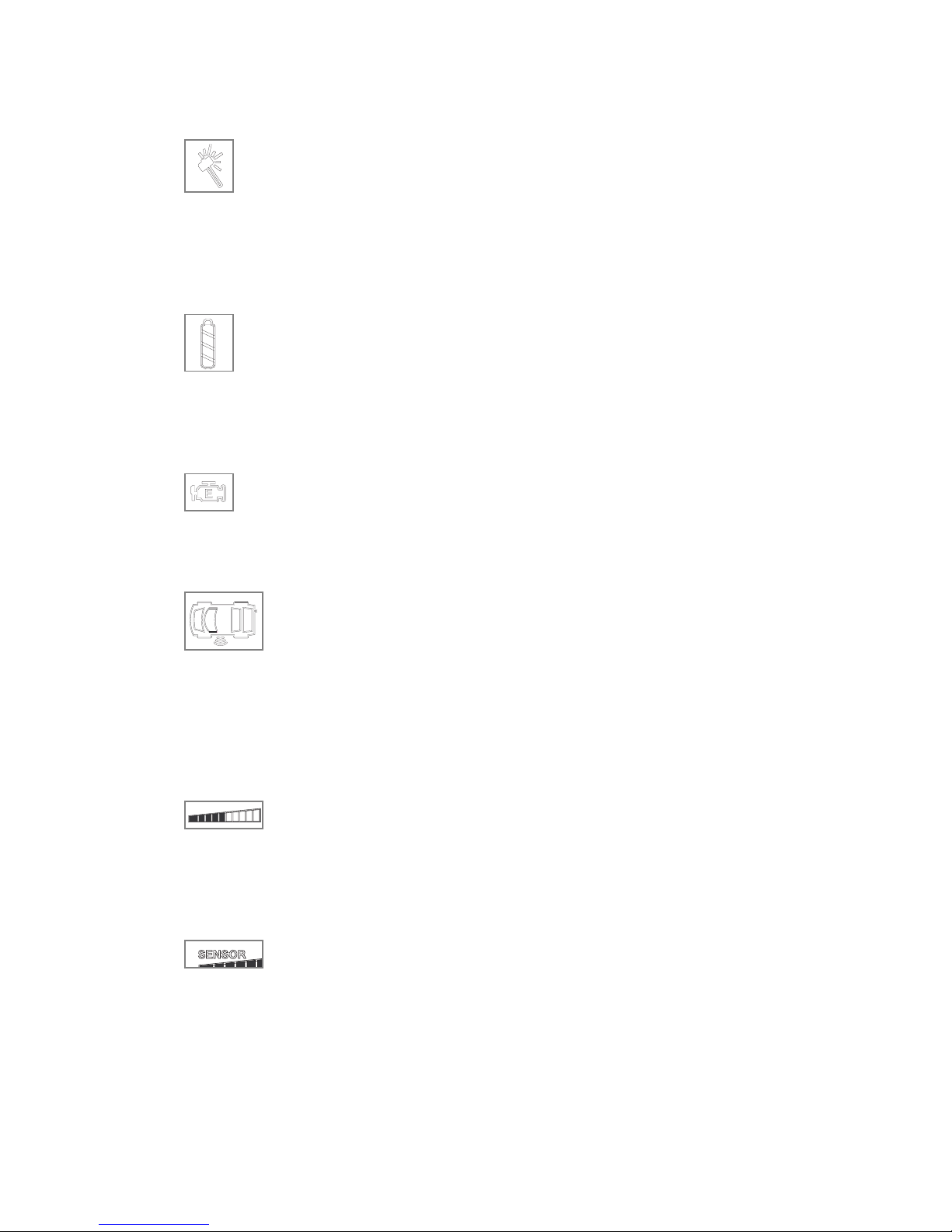

Icon
The remote start (option) icon displays when the vehicle is being
remote started.
Icon
The field disturbance sensor icon will display for both Warn
Away®and full alarm by flashing for a few seconds and then
display continuously until the page is cleared.
Icon
The shock sensor bar icon always displays the current sensitivity
setting of the shock sensor.
Icon
The shock sensor “sensor” icon will display for both Warn Away®
and full alarm by displaying continuously until the page is
cleared.

12 © 2006 directed electronics
Icon
The vibrator icon will always display if the remote is
programmed for vibrator notification (see programming LCD
remote section of the guide).
Icon
The ignition icon will display for full alarm by flashing for a few
seconds and then display continuously until page is cleared.
Icon
The hood icon will display for full alarm by flashing for a few
seconds and then display continuously until the page is cleared.
Icon
The vehicle icon always displays the current vehicle (maximum
of 4 vehicles) being controlled by the remote. If a Warn Away®
or alarm trigger should occur at one of the other vehicles, that
vehicle’s number will be displayed and the LCD will display that
vehicle’s status. To change back to the original vehicle selected,
press and release the program button until the vehicle number is
shown.
For example, If the remote was originally on vehicle number 1 and
a trigger page was received for vehicle number 2, the remote will
show the trigger alarm and show number 2 on the display. After
clearing the page, press and release the program button until number
1 is displayed. Now you can operate the alarm system on vehicle
number 1.

13
© 2006 directed electronics
Icon
The door icon will display for full alarm by flashing for a few
seconds and then display continuously until the page is cleared.
Icon
The arm icon will flash when the system is locking the doors and
display continuously until the system is armed.
Icon
The disarm icon will flash when the system is unlocking the
doors and display continuously until the system is disarmed.

14 © 2006 directed electronics
ttrraannssmmiitttteerrffuunnccttiioonnss
This system uses a computer-based learn routine to learn the
transmitter buttons. This makes it possible to assign any trans-
mitter button to any system function. The transmitter initially
comes programmed with Standard Configuration, but may also
be customized by an authorized dealer. The buttons described in
this manual correspond to a Standard Configuration transmitter.
rreemmootteeooppeerraattiioonn
The system operates at 434 MHz and incorporates Directed’s propri-
etary out-board technology transceiver. The high frequency combined
with Binary Data communication achieves superior range with two-
way communication.
system signal paging features
A page is the signal the control module sends to the remote control
as confirmation of receipt of a command or alarm system status.
When the remote control receives a page it will generate a page
notification to the user (notifications are audible beeps and-or
vibration) and the LCD Icons will display the current system status.
Command Page
When a command (arm/disarm, or auxiliary channel) from the
remote control is sent and received, the system will send a
command page back to confirm receipt.
➜

15
© 2006 directed electronics
Alarm Page
If the alarm system is triggered while armed, an Alarm Page will be
sent to the remote control. When the remote receives an Alarm
Page, the LCD icons will display the alarm system status informa-
tion and the remote control will generate beeps and-or vibration.
An Alarm Page alert is a series of 5 groups of 4 rapid beeps
(shock, trunk, door, ignition, or hood trigger) and the LCD icon
that caused the alarm will display. The remote will beep and or
vibrate every 60 seconds to alert the user that the alarm system
was triggered and will continue until the alarm page is cleared.
Page Recognition (Acknowledgement)
To clear a page alert/notification, quickly press any button on
the remote control. This can be performed at any time during or
after the page notification has occurred.
The remote control will not send a command to the system at
this time; it will only clear future repeats of the page notification.
The next time a button is pressed on the remote control it will
send a command to the system.
out of range notification
If a command is issued from the remote, but the remote is set to
the incorrect vehicle or is beyond the range of the vehicle to
receive the command, the remote responds with 3 set of 2 quick
beeps and the icon will flash 3-times.
➜
