Climate RENTAL SOLUTIONS AAM110 User manual

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
INSTRUCTION MANUAL

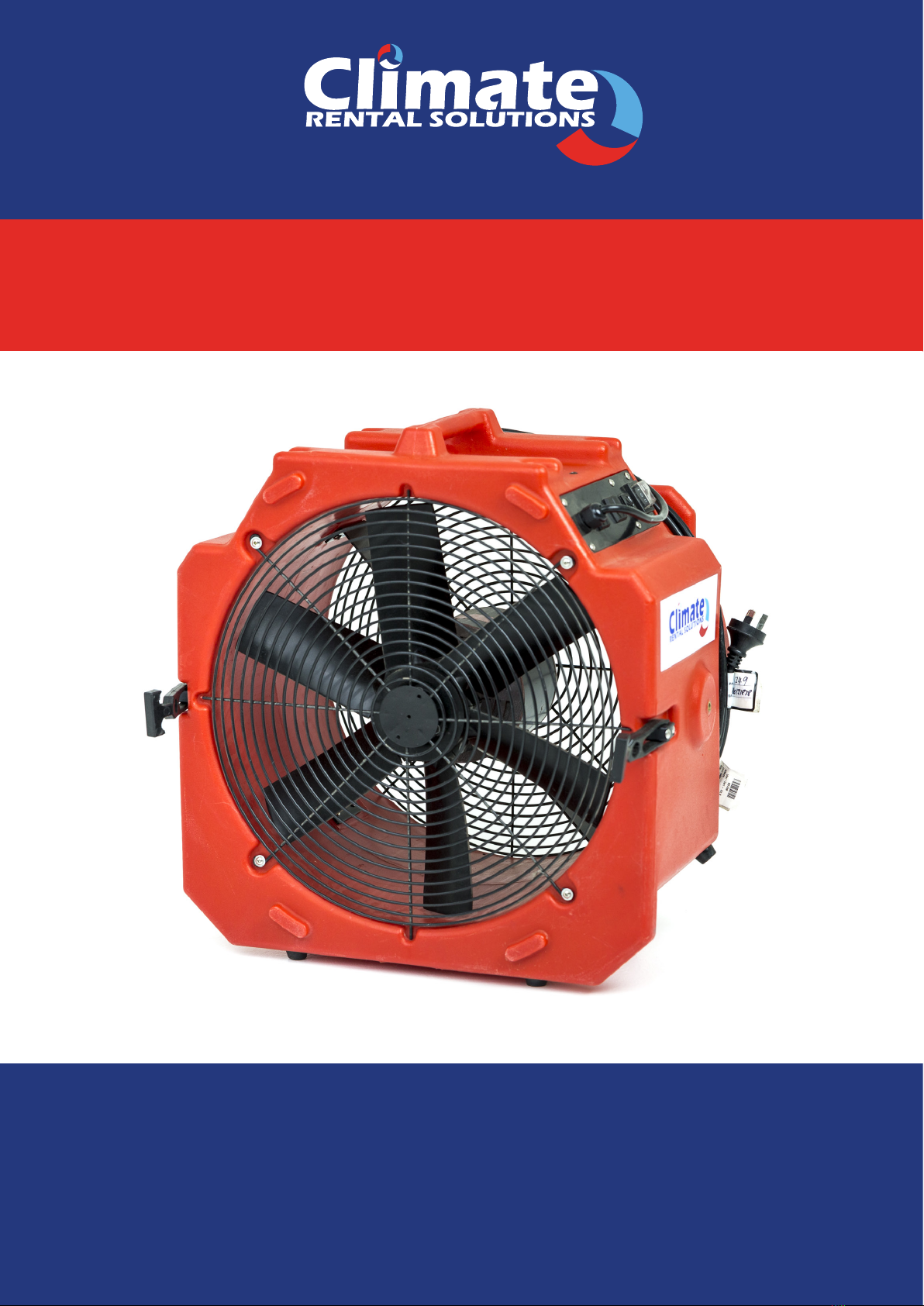

AXIAL FAN
MODEL: AAM110

INSTRUCTION MANUAL AAM110 AIR MOVER
Page 2
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS
BEFORE USING THIS AIR MOVER!
WARNING! To reduce the risk of re, electric shock, or injury:
1. Read the manual carefully and completely before attempting to operate the unit. This manual has important
information for the use and safe operation of the machine. Following the recommendations outlined in this
manual will assure years of satisfactory service from your unit.
2. Improper connectian of the equipment grounding conductor can result in a risk of re, electrical shock or personal
injury. Always use a three-wire electrical system connected to the electricl ground. For maximum protection
against electrical shock, use a circuit that is protected by a ground fault circuit interrupter. Check with a qualied
electrician or service person if you are in doubt as to whether your outlet is properly grounded. Do not use a unit
with a damaged cord or plug.
3. Machines can cause an explosion when near ammable materials and vapors. Do not use or store this machine
with or near fuels, grain dust, solvents, thinners, or other ammable materials. Do not use ammables to clean
this machine.
4. Do not immerse or use this unit in standing water. Such use may cause electrical shock. To avoid electrical
shock, do not expose the unit to rain - store it indoors only. Do not expose the unit to freezing temperatures.
5. Do not move or carry the unit when it is turned on. Do not pull or carry by the cord, use cord as a handle, close
a door on the cord or pull cord around sharp edges or corners. Keep cord away from heated surfaces. Do not
unplug cord by pulling on it. To unplug, grasp plug, not the cord Do not handle plug or air mover with wet hands.
6. Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and
anything that may reduce air ow. Keep hair, loose clothing, ngers and all parts of the body away from openings
and moving parts.
7. Turn o󰀨 all controls before unplugging.
8. Operate unit on a level and stable surface to prevent it from falling and possible cause of in jury or damage.
9. Do not drop or throw the unit. Treatment of this type can cause damage to the components and create hazardous
conditions.
OPERATION :
• Inspect the electrical cord and wiring for damage or discoloration
• Inspect for loose fasteners
• Clean grills on the front and back of the unit
• Listen for abnormal sounds
• Keep unit clean
PERIODIC MAINTENANCE:
Use compressed air or a vacuum to remove lint and other debris from
the motor, screen and blower wheel. Do not use a pressure washer to
clean the unit.
ITEM No
DESCRIPTION
VOLTS 240V
POWER 1/4 HP
CYCLE 50Hz
MAX AIR VOLUME 4000 CFM
AMPS 2.0 AMPS
WEIGHT 35LBS
SIZE L/W/H 22"/12"/20"
SPEED 2 SPEEDS
CORD LENGTH 25'

INSTRUCTION MANUAL AAM110 AIR MOVER
Page 3
GROUNDING INSTRUCTIONS:
This machine must be grounded. If it should malfunction or break down, wounding provides a path of Ieast resistance
for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-
grounding conductor and grounding plug. The plug must be inserted into an appropriate outIet that is properfy installed
and grounded in accordance with all local codes and ordinances.
WARNING! - Improper connection of the equipment-grounding conductor can resuIt in a risk of electric
shock. Check with a qualed electrician or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the machine if it will not t the outlet; have a proper outlet installed
by a qualied electrician. This machine is designed to operate on a standard 15 amp, 115 Volt, 60 Hz, AC circuit.
Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor.
NOTE: ln Canada, the use of a temporary adapter is not permitted by the Canadian ElectricaI Code.
EXTENSION CORDS:
Use onIy three-wire 16/3 or larger gauge approved extension cords that have three-prong grounding type plugs and
three-pole receptacles that accept the appIiance’s plug. Replace or repair any damaged cords or plugs.
WARNING! - FFor the safe operation of this machine follow the instructions given in this booklet and the
training given by your supervisor. Failure to do so can result in personal injury and/or damage to machine and
property!
DO NOT OPERATE MACHINE IN AN EXPLOSIVE ENVlRONMENT!
GFCI PROTECTION AND THE ON-BOARD DUPLEX OUTLET:
The standard AC voltage outlet GFCI (Ground Fault Circuit Interrupter) promotes operator safety in wet applications.
GFCI devices trip when a fault to electrical ground is sensed. It is recommendad to check the GFCI protection prior
to operation. To check, push the “TEST” button Iocated on the GFCI duplex outlet will pop out. If operating property
the “RESET” button on the GFCI outlet wil pop out. Depencing on your Centrifugal Air Movers specic equipment, a
tripped GFCI may be indicated by a small LED. The device can only be “RESET” when the Centrifugal Air Mover is
connected to a wall outlet providing standard voltage. This duplex AC outlet allows the inter-connection of other AC
power devices. The sum total amperage of all devices (excluding the rst fan) plugged into the receptacle must not
exceed 8.7 amps.

INSTRUCTION MANUAL AAM110 AIR MOVER
Page 4
TROUBLESHOOTlNG:
PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not run.
1. No power to unit.
2. Switch not on.
3. Switch is faulty.
4. Faulty/broken cord or motor wire.
1. Plug unit in. Check circuit breaker.
2. Place in “ON” position.
3. Replace switch.
4. Perform continuity check, using volt/amp
meter.
Repair/replace faulty broken wire.
Unit runs but air mover makes loud
scraping noise.
1. Unit has been severely jolted causing
blower wheel to rub against housing.
2. Unit has been severely jolted causing
housing to deform.
1. Remove motor and replace damaged
motor mounts.
2. Replace blower wheel.
Unit runs but vibrates excessively.
1. Severe jolt has bent motor shaft causing
unit to be out of balance.
2. Air mover blade damaged.
3. Dirt build up on one side of air mover
blade.
1. Remove and replace motor.
2. Replace blade if necessary.
3. Clean air mover blade.
Unit runs but blower wheel does not turn.
1. Motor bearings are failing or motor has
developed an internal electrical fault.
2. Intake grill and/or exhaust grill is
obstructed.
3. Excessive duct length.
1. Replace motor.
2. Remove obstruction.
3. Reduce duct length to recommended
maximum

INSTRUCTION MANUAL AAM110 AIR MOVER
Page 5
ITEM No DESCRIPTION QTY ITEM No DESCRIPTION QTY
1Screw 10 13 Capacitor 1
2Wire grills 2 14 Nut, hex 1
3Nut 115 Gasket, Switch plate 1
4Flat washer 1 16 Switch plate 1
5Fan blade 1 17 On/o󰀨 rocker switch, blk 1
6Blade backing washer 1 18 Strain relief-lq tight 1
7AC Motor 119 Buckle 2
8Rivet 4 20 Buckle 2
9Multi Foor Fan Shell 1
10 Rivet 12
11 Rubber foot 12
12 Power cord 1
SLANT AXIAL AIR MOVER ASSEMBLY
