CLIVET VRF MV6R Service manual

TECHNICAL BULLETIN
VRF MV6R
MV6R-XMi SERIES 252T - 500T

VRF MV6R
1
CONTENTS
CONTENTS
Part 1 General Information ............................................................................ 3
Part 2 Outdoor Unit Engineering Data ....................................................... 21
Part 3 System Design and Installation ...................................................... 109
Part 4 Customized additional functions.........................................................177

VRF MV6R
2
Clivet MV6R Series Technical Bulletin

3
Part 1 - General Information
Part 1
General Information
1 Indoor and Outdoor Unit Capacities ...................................................... 4
2 External Appearance .............................................................................. 6
3 Outdoor Unit Combinations ................................................................. 10
4 Nomenclature ...................................................................................... 11
5 Combination Ratio ............................................................................... 13
6 Selection Procedure ............................................................................. 15
VRF MV6R

4
Clivet MV6R Series Technical Bulletin
1Indoor and Outdoor Unit Capacities
1.1 Indoor Units
1.1.1 Standard indoor units
Table 1-1.1: Standard indoor unit abbreviation codes
Abbreviation
code Type Abbreviation code Type
Q1DN One-way Cassette CN High Static Pressure Duct
Q2DN Two-way Cassette GWMN Wall-mounted
Q4AN Compact Four-way Cassette DDLC Ceiling & Floor
Q4DN Four-way Cassette DZ Floor Standing
CNT2 Medium Static Pressure Duct
Table 1-1.2: Standard indoor unit capacity range
Capacity Capacity
index Q1DN Q2DN Q4AN Q4DN CNT2 CN GWMN DDLC DZ
kW HP
1.8 0.6 18 18 — — — — — — — —
2.2 0.8 22 22 22 22 — 22 — 22 — 22
2.8 1 28 28 28 28 28 28 — 28 — 28
3.6 1.25 36 36 36 36 36 36 — 36 36 36
4.5 1.6 45 45 45 45 45 45 — 45 45 45
5.6 2 56 56 56 — 56 56 — 56 56 56
7.1 2.5 71 71 — 71 71 71 71 71 71
8.0 3 80 — — — 80 80 80 80 80 80
9.0 3.2 90 — — — 90 90 90 90 90 —
10.0 3.6 100 — — — 100 — — — — —
11.2 4 112 — — — 112 112 112 — 112 —
14.0 5 140 — — — 140 140 140 — 140 —
16.0 6 160 — — — — — 160 — — —
20.0 7 200 — — — — — 200 — — —
25.0 9 250 — — — — — 250 — — —
28.0 10 280 — — — — — 280 — — —
1.1.2 Fresh air processing unit
Table 1-1.3: Fresh air processing unit capacity range
Capacity 12.5kW 14kW
Capacity index 125 140
1.2 Heat recovery ventilator
Table 1-1.4: Heat recovery ventilator capacity range
Capacity 200m3/h 300m3/h 400m3/h 500m3/h 800m3/h 1000m3/h 1500m3/h 2000m3/h
40.0 14 400 — — — — — 400 — — —
45.0 16 450 — — — — — 450 — — —
56.0 20 560 — — — — — 560 — — —
1.7 17 — —17
— 17 — 17 — —
5.2 52 — — 52 — — — — — —
0.5
1.9
71
VRF MV6R

5
Part 1 - General Information
1.3 High Temperature Hydro Module
Table 1-1.5: 1.3 High temperature hydro module capacity range
Capacity
14kW
Capacity index
140
1.4 Outdoor Units
Table 1-1.6: Outdoor unit capacity range
Capacity
Model Name
Combination Type
8HP
MV6R-XMi 252T
/
10HP
MV6R-XMi 280T
/
12HP
MV6R-XMi 335T
/
14HP
MV6R-XMi 400T
/
16HP
MV6R-XMi 450T
/
18HP
MV6R-XMi 500T
/
20HP
MV6R-XMi 560T
10HP+10HP
22HP
MV6R-XMi 615T
10HP+12HP
24HP
MV6R-XMi 680T
10HP+14HP
26HP
MV6R-XMi 735T
12HP+14HP
28HP
MV6R-XMi 785T
12HP+16HP
30HP
MV6R-XMi 835T
12HP+18HP
32HP
MV6R-XMi 900T
16HP+16HP
34HP
MV6R-XMi 950T
16HP+18HP
36HP
MV6R-XMi 1000T
18HP+18HP
38HP
MV6R-XMi 1070T
12HP+12HP+14HP
40HP
MV6R-XMi 1120T
12HP+12HP+16HP
42HP
MV6R-XMi 1185T
12HP+14HP+16HP
44HP
MV6R-XMi 1235T
12HP+16HP+16HP
46HP
MV6R-XMi 1300T
14HP+16HP+16HP
48HP
MV6R-XMi 1350T
16HP+16HP+16HP
50HP
MV6R-XMi 1400T
16HP+16HP+18HP
52HP
MV6R-XMi 1450T
16HP+18HP+18HP
54HP
MV6R-XMi 1500T
18HP+18HP+18HP
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.
VRF MV6R

6
VRF MV6R
2 External Appearance
2.1 Indoor Units
2.1.1 Standard indoor units
Table 1-2.1: Standard indoor unit appearance
One-way Cassette
Q1DN
Two-way Cassette
Q2DN
Compact Four-way Cassette
Q4AN
Four-way Cassette
Q4DN
Medium Static Pressure Duct
CNT2
High Static Pressure Duct
CN
Wall-mounted
GWMN
Ceiling & Floor
DDLC
Floor Standing
DZ
2.1.2 Fresh air processing unit
Table 1-2.2: Fresh air processing unit appearance
Fresh Air Processing Unit
CNFA
Clivet MV6R Series Technical Bulletin

7
Part 1 - General Information
2.2 Heat Recovery Ventilator
Table 1-2.3: Heat recovery ventilator appearance
Heat Recovery Ventilator
2.3 High Temperature Hydro Module
Table 1-2.4: High temperature hydro module appearance
High Temperature Hydro Module
VRF MV6R

8
2.4 Outdoor Units
2.4.1 Single units
Table 1-2.5: Single outdoor unit appearance
8/10/12HP
(with single fan)
14/16/18HP
(with dual fan)
2.4.2 Combinations of units
Table 1-2.6: Combination outdoor unit appearance
20/22HP
24/26/28/30HP
32/34/36HP
38/40HP
42/44HP
46/48/50/52/54HP
VRF MV6R
Clivet MV6R Series Technical Bulletin

9
Part 1 - General Information
2.5 Mode Selection Box
Table 1-2.7: MS box appearance
Model name Appearance
Max. number of
downstream indoor
units
MS01N1-D1,2 8
MS04N1-D 20
MS06N1-D 30
MS08N1-D 40
MS10N1-D 47
MS12N1-D 47
Notes:
1. MS01 can be ceiling-suspended installed and wall-mounted installed.
2. Low temperature cooling operation and leakage detection function are available in MS01.
VRF MV6R

10
3 Outdoor Unit Combinations
Table 1-3.1: Outdoor unit combinations
System capacity
Number
of units
Modules1
Outdoor branch
joint kit2
kW
HP
8
10
12
14
16
18
22.4
8
1
●
—
28.0
10
1
●
33.5
12
1
●
40.0
14
1
●
45.0
16
1
●
50.0
18
1
●
56.0
20
2
●●
FQZHW-02SB1
61.5
22
2
●
●
68.0
24
2
●
●
73.5
26
2
●
●
78.5
28
2
●
●
83.5
30
2
●
●
90.0
32
2
●●
95.0
34
2
●
●
100.0
36
2
●●
107.0
38
3
●●
●
FQZHW-03SB1
112.0
40
3
●●
●
118.5
42
3
●
●
●
123.5
44
3
●
●●
130.0
46
3
●
●●
135.0
48
3
●●●
140.0
50
3
●●
●
145.0
52
3
●
●●
150.0
54
3
●●●
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.
2. For systems with two or more outdoor units, outdoor branch joints (sold separately) are required.
VRF MV6R
Clivet MV6R Series Technical Bulletin

11
Part 1 - General Information
4 Nomenclature
4.1 Indoor Units
4.1.1 Standard indoor units
4.1.2 Fresh air processing unit
Legend
No. Code Remarks
1 Q1DN
Indoor unit type
Q1DN: One-way Cassette
Q2DN: Two-way Cassee
Q4AN: Four-way Cassee Compact
Q4DN: Four-way Cassee
CNT2: Medium Stac Pressure Duct
CN: High Stac Pressure Duct
GWMN: Wall-mounted
DDLC: Ceiling & Floor
DZ: Floor Standing
3 X R410A
4 M Midea
5 i Inverter
6 D Series category (D: DC series)
7 22 Capacity index (the capacity in kW mulplied by 10)
2 2 2nd generation indoor unit
CNFA - 2 - X M i D 140
Legend
No. Code Remarks
1 CNFA Fresh Air Processing Unit
3 X R410A
4 M Midea
5 i Inverter
6 D Series category (D: DC series)
7 140 Capacity index (the capacity in kW mulplied by 10)
1
○ 2
○ 3 ○ 4 ○ 5 ○6 ○7 ○
2 2 2nd generation indoor unit
Q1DN -2 - X M i D 22
1
○ 2
○ 3 ○ 4 ○ 5 ○ 6 ○ ○
7
VRF MV6R

12
4.3 High Temperature Hydro Module
HWM - 2 -M i 140
○
1○
2○ 3○ 4○ 5
Legend
No. Code Remarks
1,tD ,LJĚƌŽŵŽĚƵůĞ
2ϮϮŶĚŐĞŶĞƌĂƚŝŽŶŝŶĚŽŽƌƵŶŝƚ
3DDŝĚĞĂ
4ŝ/ŶǀĞƌƚĞƌ
5ϭϰϬ ĂƉĂĐŝƚLJ
4.2 Heat recovery ventilator
HRV
No. Code Remarks
1 HRV Heat recovery ventilator
2
M Midea
4 i
1
○
-2
○
2
- M i D 200
3
○ 4 ○ 5 ○ 6 ○
2 2nd generation indoor unit
3
5
6
D

Inverter
Series category (D: DC series)
Airflow in m3/h
Legend
4.3 Outdoor Units MV6R - X M i 252 T
1
○ 2
○ 3 ○ 4 ○5 ○6 ○
Legend
No. Code Remarks
1
MV6 The 6th generation heat pump VRF
2
R
R410A
3 M Midea
4 i Inverter
5 252 Capacity index (the capacity in kW multiplied by 10)
6 T 3 phase, 380-415V, 50 Hz
VRF MV6R
Clivet MV6R Series Technical Bulletin
Heat recovery
X

13
Part 1 - General Information
5 Combination Ratio
Table 1-5.1: Indoor and outdoor unit combination ratio limitations
Type
Total
combination ratio
Allowed combination ratio
VRF indoor units1
HT hydro
module
AHU
Fresh air
processing units
VRF indoor units only
50%~200% (Single)
50%~150% (2 units
combination)
50%~130% (3 units
combination)
50%~200% (Single)
50%~150% (2 units
combination)
50%~130% (3 units
combination)
/
/
/
V6R indoor units + HT hydro
module units
50%~200%
50%~130%
0%~100%2
/
/
V6R indoor units + AHUs
50%~100%
50%~100%
/
0%~50%3
/
V6R indoor units + fresh air
processing units
50%~100%
50%~100%
/
/
0%~30%3
Fresh air processing units only
50%~100%
/
/
/
/
Notes:
1. V6R series outdoor units are compatible with the 2nd generation DC VRF indoor unit.
2. When HT hydro module units are installed together with VRF indoor units, the total capacity of HT hydro module units must not exceed 100% of the total
capacity of the outdoor units and the combination ratio must not exceed 200%.
3. When AHUs are installed together with VRF indoor units, the total capacity of AHUs must not exceed 50% of the total capacity of the outdoor units and the
combination ratio must not exceed 100%.
4. When fresh air processing units are installed together with VRF indoor units, the total capacity of the fresh air processing units must not exceed 30% of the
total capacity of the outdoor units and the combination ratio must not exceed 100%.
Combination ratio =
Sum of capacity indexes of the indoor units
Capacity index of the outdoor units
VRF MV6R

14
Table 1-5.2: Combinations of indoor and outdoor units
Outdoor unit capacity Sum of capacity indexes Maximum
number of
connected
indoor
units1
kW HP Capacity
index
VRF indoor units
only
VRF indoor units
+HT hydro
module
VRF indoor units
+AHUs
VRF indoor units +
fresh air processing
units
22.4 8 224 112 to 291.2 112 to 448 112 to 224 112 to 224
64
28 10 280 140 to 364 140 to 560 140 to 280 140 to 280
33.5 12 335 167.5 to 435.5 167.5 to 670 167.5 to 335 167.5 to 335
40 14 400 200 to 520 200 to 800 200 to 400 200 to 400
45 16 450 225 to 585 225 to 900 225 to 450 225 to 450
50 18 500 250 to 650 250 to 1000 250 to 500 250 to 500
56 20 560 280 to 728 280 to 1120 280 to 560 280 to 560
61.5 22 615 307.5 to 799.5 307.5 to 1230 307.5 to 615 307.5 to 615
68 24 680 340 to 884 340 to 1360 340 to 680 340 to 680
73.5 26 735 367.5 to 955.5 367.5 to 1470 367.5 to 735 367.5 to 735
78.5 28 785 392.5 to 1020.5 392.5 to 1570 392.5 to 785 392.5 to 785
83.5 30 835 417.5 to 1085.5 417.5 to 1670 417.5 to 835 417.5 to 835
90 32 900 450 to 1170 450 to 1800 450 to 900 450 to 900
95 34 950 475 to 1235 475 to 1900 475 to 950 475 to 950
100 36 1000 500 to 1300 500 to 2000 500 to 1000 500 to 1000
107 38 1070 535 to 1391 535 to 2140 535 to 1070 535 to 1070
112 40 1120 560 to 1456 560 to 2240 560 to 1120 560 to 1120
118.5 42 1185 592.5 to 1540.5 592.5 to 2370 592.5 to 1185 592.5 to 1185
123.5 44 1235 617.5 to 1605.5 617.5 to 2470 617.5 to 1235 617.5 to 1235
130 46 1300 650 to 1690 650 to 2600 650 to 1300 650 to 1300
135 48 1350 675 to 1755 675 to 2700 675 to 1350 675 to 1350
140 50 1400 700 to 1820 700 to 2800 700 to 1400 700 to 1400
145 52 1450 725 to 1885 725 to 2900 725 to 1450 725 to 1450
150 54 1500 750 to 1950 750 to 3000 750 to 1500 750 to 1500
Notes:
1. The Maximum number of connected indoor units depend upon indoor unit type and total combination ratio.
VRF MV6R
Clivet MV6R Series Technical Bulletin

15
Part 1 - General Information
6 Selection Procedure
6.1 Procedure

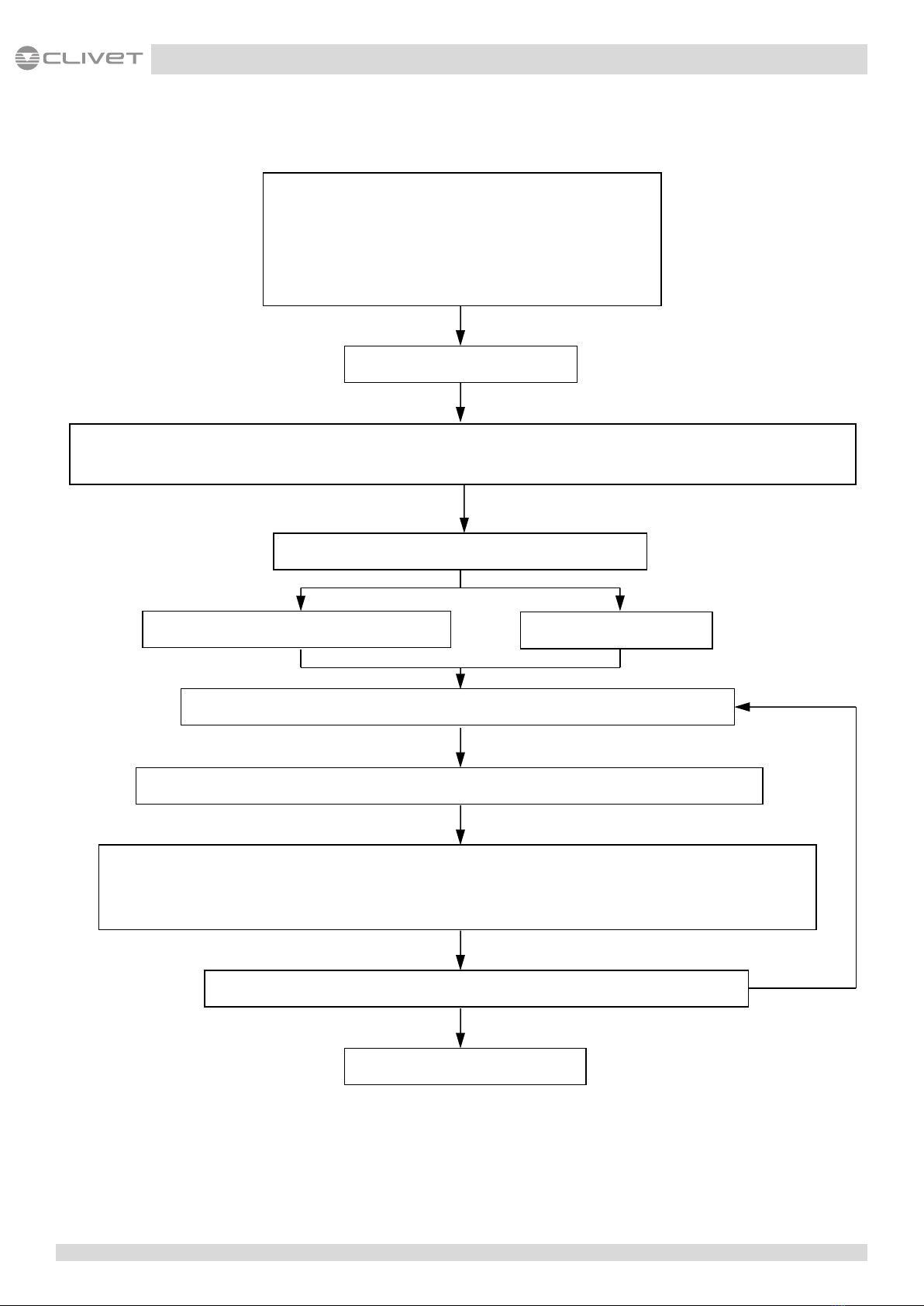

Step 1: Establish design conditions
Step 2: Select indoor units
Step 3: Select outdoor units
Notes:
1. If the indoor design temperature falls between two temperatures listed in the indoor unit's capacity table, calculate the corrected capacity by interpolation.
If the indoor unit selection is to be based on total heat load and sensible heat load, select indoor units which satisfy not only the total heat load requirements
of each room but also the sensible heat load requirements of each room. As with total heat capacity, the sensible heat capacity of indoor units should be
corrected for indoor temperature, interpolating where necessary. For the indoor unit capacity tables, refer to the indoor unit technical manuals.
Design temperature and humidity (indoor and outdoor)
Required heat load of each room
System peak load
Piping length, level differences
Indoor unit specifications (type and quantity)
Decide indoor unit safety factor
Select indoor unit models ensuring that:
Indoor unit capacity corrected for indoor air temperature WB1 ≥ Required heat load × Indoor unit safety factor
Determine required total heat load on outdoor units
Use the sum of the peak load of each room
Use the system peak load
Provisionally select outdoor unit capacity based on combination ratio limitations
Confirm that the number of indoor units connected to the outdoor units is within limitation
Correct cooling and heating capacities of the outdoor units for the following items:
Outdoor air temperature / Indoor air temperature WB / Combination ratio / Piping length, level difference
/ Piping heat loss / Frost accumulation (for heating capacity only)
Is corrected outdoor unit capacity ≥ Required total heat load on outdoor units?
VRF system selection is complete
No
Yes
VRF MV6R

16
6.2 Example
The following is a selection example based on total heat load for cooling. All the indoor units are VRF indoor unit.
Figure 1-6.1: Room plan
Room A
Room F
Room E
Room D
Room B
Room C
Step 1: Establish design conditions
Indoor air temperature 25°C DB, 18°C WB; outdoor air temperature 33°C DB.
Determine peak load of each room and system peak load. As shown in Table 1-6.1, the system peak load is 34kW.
Table 1-6.1: Required heat load of each room (kW)
Time
Room A
Room B
Room C
Room D
Room E
Room F
Total
9:00
4.8
3.0
3.0
9.0
2.9
2.9
25.6
12:00
6.6
5.1
5.1
6.8
4.0
4.0
31.6
14:00
9.0
4.9
4.9
6.8
4.2
4.2
34
16:00
10.6
3.9
3.9
6.2
3.8
3.8
32.2
The maximum piping lengths and level differences in this example are as given in Figure 1-6.2.

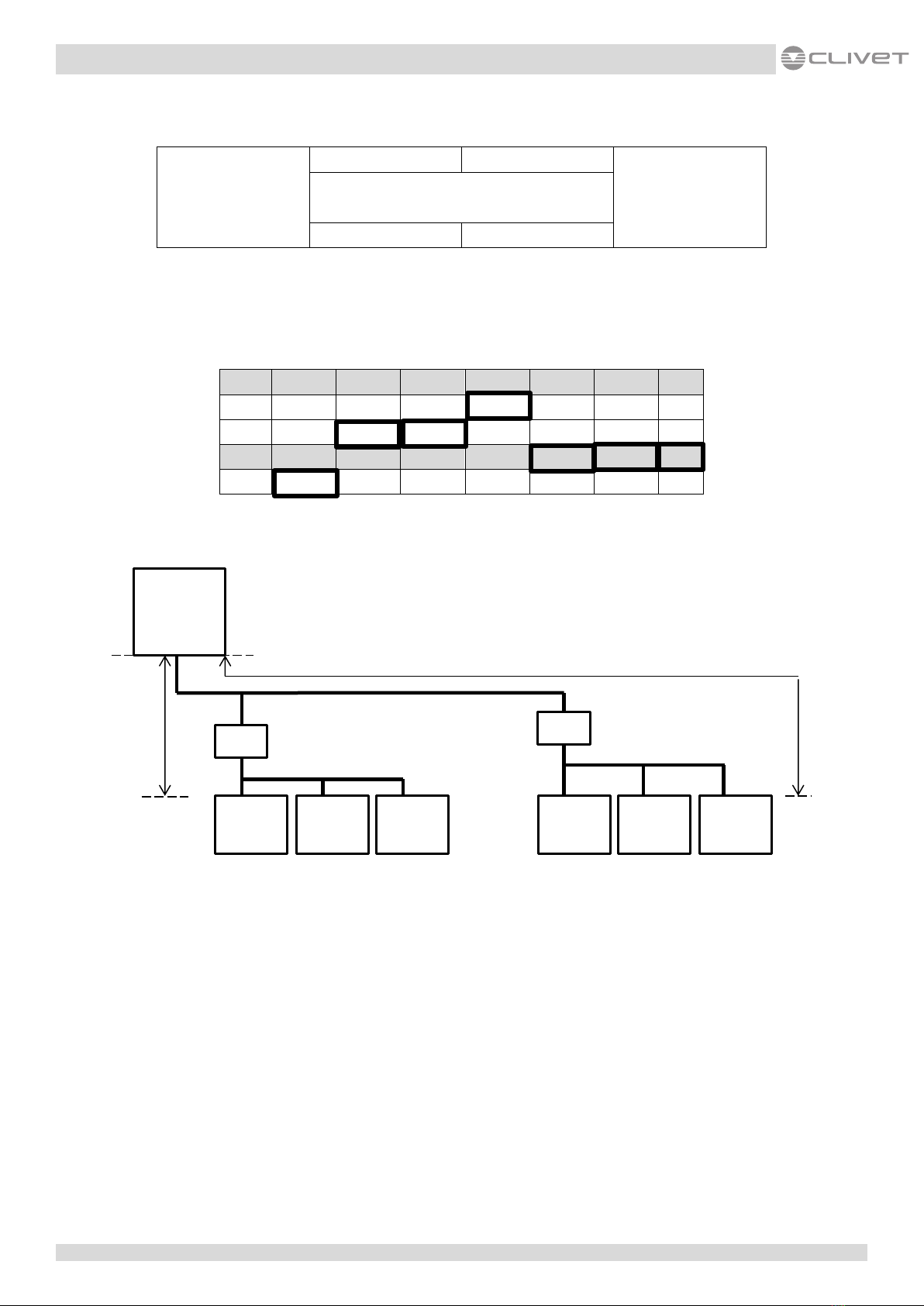

Figure 1-6.2: System diagram
Indoor unit type for all rooms: Medium Static Pressure Duct (CNT2).
Step 2: Select indoor units
In this example, a safety factor is not used (i.e. the safety factor is 1).
Select indoor unit models using the medium static pressure duct cooling capacity table. Each indoor unit's corrected
capacity needs to be greater than or equal to the peak load of the relevant room. The selected indoor units are shown
in Table 1-6.3.
Equivalent length of piping 60m
Level
difference
40m
Outdoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
MS
MS
VRF MV6R
Clivet MV6R Series Technical Bulletin

17
Part 1 - General Information
Table 1-6.2: Extract from medium static pressure duct (CNT2) cooling capacity table
Model
Capacity
index
Indoor air temperature
14°C WB
16°C WB
18°C WB
19°C WB
20°C WB
22°C WB
24°C WB
20°C DB
23°C DB
26°C DB
27°C DB
28°C DB
30°C DB
32°C DB
TC
SHC
TC
SHC
TC
SHC
TC
SHC
TC
SHC
TC
SHC
TC
SHC
CNT2
22
1.5
1.4
1.8
1.5
2.1
1.6
2.2
1.6
2.3
1.7
2.4
1.5
2.4
1.5
28
1.9
1.7
2.3
1.9
2.6
2.1
2.8
2.1
3.0
2.1
3.1
2.0
3.1
1.9
36
2.5
2.1
2.9
2.3
3.4
2.5
3.6
2.6
3.8
2.7
4.2
2.8
3.9
2.3
45
3.1
2.6
3.7
2.8
4.2
3.1
4.5
3.2
4.8
3.2
4.9
3.1
5.1
2.9
56
3.9
3.0
4.6
3.3
5.3
3.6
5.6
3.7
5.9
3.8
6.2
3.7
6.2
3.4
71
4.9
3.9
5.8
4.3
6.7
4.7
7.1
4.9
7.5
4.8
7.8
4.6
7.8
4.3
80
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.8
5.2
8.8
4.8
90
6.2
5.3
7.3
5.8
8.4
6.3
9.0
6.4
9.6
6.5
9.9
6.1
9.9
5.7
112
7.7
6.4
9.1
7.1
10.5
7.7
11.2
7.8
11.9
8.1
12.5
7.8
12.5
7.4
140
9.7
7.8
11.3
8.6
13.2
9.6
14.0
9.8
14.8
9.8
15.7
9.7
15.4
8.8
Abbreviations:
TC: Total capacity (kW); SHC: Sensible heat capacity (kW)
Table 1-6.3: Selected indoor units
Room A
Room B Room C
Peak heat load (kW)
10.6
5.1 5.1
Selected indoor unit
CNT2-2-XMi D140 CNT2-2-XMi D56 CNT2-2-XMi D56
Corrected TC (kW)
13.2 5.3 5.3
Room D
Room E Room F
Peak heat load (kW)
9.0
4.2 4.2
Selected indoor unit
CNT2-2-XMi D112 CNT2-2-XMi D45 CNT2-2-XMi D45
Corrected TC (kW)
10.5
4.2 4.2
Step 3: Select outdoor units
Determine the required total heat load from the indoor units to the outdoor units based on either the sum of the peak
loads of each room or the system peak load. In this example, it is determined based on the system peak load. Therefore,
the required heat load is 34kW.
Provisionally select outdoor units using the sum of the capacity indexes (CIs) of the selected indoor units (as shown in
Table 1-6.4), ensuring that the combination ratio is between 50% and 130%. Refer to Table 1-6.5. As the sum of CIs of
the indoor units is 454, outdoor units from 14HP to 32HP are potentially suitable. Start from the smallest, which is the
14HP unit.
Table 1-6.4: Sum of indoor unit capacity indexes
Model
Capacity Index No. of units
CNT2-2-XMi D140 140 1
CNT2-2-XMi D112 112 1
CNT2-2-XMi D56 56 2
CNT2-2-XMi D45 45 2
Sum of CIs
454
VRF MV6R

18
Table 1-6.5: Extract from Table 1-5.2 Combinations of Indoor and outdoor units
Outdoor unit capacity
Sum of capacity indexes
Maximum
number of
connected
indoor units
kW
HP
Capacity
index
VRF indoor units
only
VRF indoor units
+HT hydro
module
VRF indoor units
+AHUs
VRF indoor units +
fresh air processing
units
33.5
12
335
167.5 to 435.5
167.5 to 670
167.5 to 368.5
167.5 to 335
64
40
14
400
200 to 520
200 to 800
200 to 440
200 to 400
45
16
450
225 to 585
225 to 900
225 to 495
225 to 450
50
18
500
250 to 650
250 to 1000
250 to 550
250 to 500
56
20
560
280 to 728
280 to 1120
280 to 616
280 to 560
61.5
22
615
307.5 to 799.5
307.5 to 1230
307.5 to 676.5
307.5 to 615
68
24
680
340 to 884
340 to 1360
340 to 748
340 to 680
73.5
26
735
367.5 to 955.5
367.5 to 1470
367.5 to 808.5
367.5 to 735
78.5
28
785
392.5 to 1020.5
392.5 to 1570
392.5 to 863.5
392.5 to 785
83.5
30
835
417.5 to 1085.5
417.5 to 1670
417.5 to 918.5
417.5 to 835
90
32
900
450 to 1170
450 to 1800
450 to 990
450 to 900
95
34
950
475 to 1235
475 to 1900
475 to 1045
475 to 950
The number of connected indoor units is 6 and the maximum number of connected indoor units on the 14HP outdoor
unit is 28, so the number of connected indoor units is within the limitation.
Calculate the corrected capacity of the outdoor units:
a) The sum of the indoor unit CIs is 454 and the CI of the 14HP outdoor unit (MV6R-XMi 400T) is 400, so the
combination ratio is 454 / 400 = 113.5%.
b) Using the outdoor units’ cooling capacity table, interpolate to obtain the capacity (“B”) corrected for outdoor air
temperature, indoor air temperature, and combination ratio. Refer to Tables 1-6.6 and 1-6.7.
Table 1-6.6: Extract from Table 2-9.4 MV6R-XMi 400T
cooling capacity
Table 1-6.7: Cooling capacity calculated by interpolation
CR
Outdoor
air
temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
CR
Outdoor
air
temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
25.8 / 18.0
25.8 / 18.0
TC
PI
TC
PI
kW
kW
kW
kW
120%
31
48.00
11.02
120%
33
45.73
10.99
33
45.73
10.99
35
44.05
11.00
B = 41.21
110%
31
40.62
8.74
110%
33
40.62
9.38
33
40.62
9.38
35
40.62
10.17
Notes:
1. 40.62 + (45.73 – 40.62) × (113.5 – 110) / (120 – 110) =
41.2.
VRF MV6R
Clivet MV6R Series Technical Bulletin

19
Part 1 - General Information
c) Find the correction factor for piping length and level difference (“K1”)

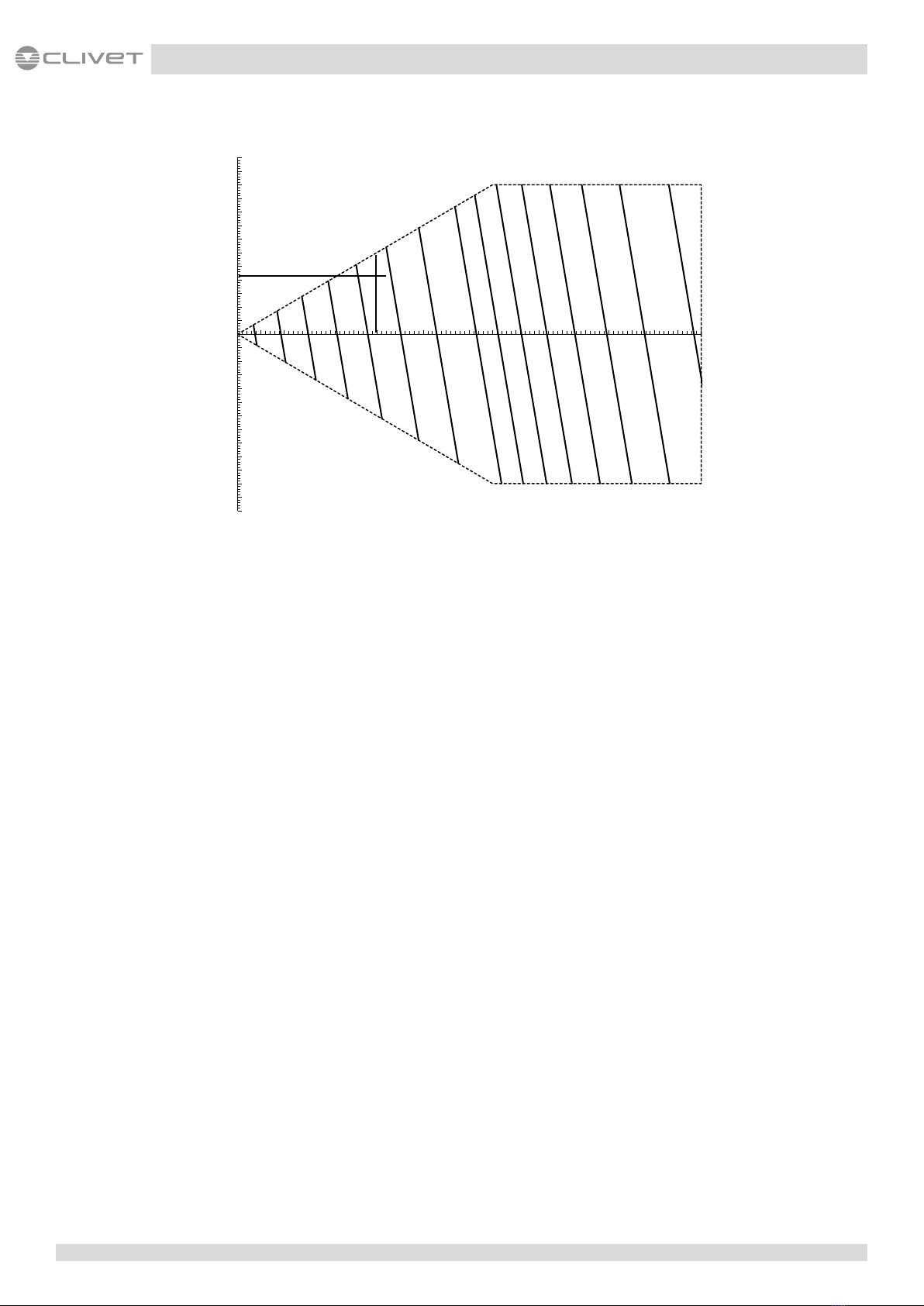

Figure 1-6.3: V6R rate of change in cooling capacity
Notes:
1. The horizontal axis shows equivalent length of piping between farthest indoor unit and first outdoor
branch joint; the vertical axis shows the largest level difference between indoor unit and outdoor
unit. For level differences, positive values indicate that the outdoor unit is above the indoor unit,
negative values indicate that the outdoor unit is below the indoor unit.
d) Calculate the corrected capacity of MV6R-XMi 400T (“C”) by using K1:
C = B × K1 = 41.2 × 0.91 = 37.5kW
The corrected capacity 37.5kW is larger than required total heat load 34kW, so selection is complete. (In the event that
the corrected capacity is lower than the required total heat load, Step 3 should be repeated from the point where the
outdoor unit capacity is provisionally selected.)
1.00
1.00
0.98
0.98
0.96
0.96
0.94
0.94
0.92
0.92
0.90
0.90
0.88
0.88
0.86
0.86
0.85
0.85
0.84
0.84
0.83
0.83
0.82
0.82
0.81
0.81
0.80
0.80
0.79
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
010 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
K1
VRF MV6R
