FW3000
Under-bench air conditioner
Installation Manual. . . . . . . . . . . . . . . . . . . . .2
Staukastenklimaanlage
Montageanleitung. . . . . . . . . . . . . . . . . . . . 17
Climatiseur de coffre
Instructions de montage . . . . . . . . . . . . . . .33
Equipo de aire acondicionado de
cajón
Instrucciones de montaje . . . . . . . . . . . . . .49
Sistema de climatização para caixa
de arrumação
Instruções de montagem . . . . . . . . . . . . . .65
Climatizzatore per vano di carico
Indicazioni di montaggio . . . . . . . . . . . . . .82
Airco onder de bank
Montagehandleiding . . . . . . . . . . . . . . . . .97
Klimaanlæg til montering i et
magasin
Monteringsvejledning. . . . . . . . . . . . . . . . 114
Klimatanläggning för
förvaringsutrymmen
Monteringsanvisning . . . . . . . . . . . . . . . . 130
Takboksklimaanlegg
Monteringsanvisning . . . . . . . . . . . . . . . . 144
Kaappi-ilmastointilaite
Asennusohje . . . . . . . . . . . . . . . . . . . . . . . 159
Встраиваемый в багажный ящик
кондиционер
Инструкция по монтажу. . . . . . . . . . . . . . 174
Klimatyzator umieszczany
wschowku
Instrukcja montażu . . . . . . . . . . . . . . . . . . 190
Klimatizačné zariadenie do
úložného priestoru
Návod na montáž . . . . . . . . . . . . . . . . . . . 205
Klimatizace do zavazadlového
prostoru
Návod k montáži . . . . . . . . . . . . . . . . . . . . 219
Tárolóládás klímaberendezés
Szerelési útmutató . . . . . . . . . . . . . . . . . . 233
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
AIR CONDITIONERS
FRESHWELL
FreshWell3000-I-16s.book Seite 1 Freitag, 18. August 2017 2:28 14

EN
Explanation of symbols FreshWell3000
2
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3 Target group for this instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6 Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
FreshWell3000-I-16s.book Seite 2 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Safety and installation instructions
3
2 Safety and installation instructions
Pleaseobservetheprescribedsafety instructionsandstipulations fromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Note the following basic safety information when using electrical devices to protect
against:
•Electric shock
•Fire hazards
•Injury
2.1 Handling the device
!WARNING!
•Installation and repair of the under-bench air conditioner may only be
carried out by qualified personnel who are familiar with the risks
involved and the relevant regulations. Inadequate repairs may cause
serious hazards. For repair service, please contact the service centre in
your country (addresses on the back page).
•Electrical devices are not toys.
Keep electrical devices out of reach of children or infirm persons. Do
not allow them to use electrical devices without supervision.
•Persons whose physical, sensory or mental capabilities or whose lack
of experience and knowledge prevent them from using the device
safely should not use it without supervision or instruction by a
responsible person.
•In the event of a fire only use approved extinguishing agents. Do not
use water to extinguish fires.
!CAUTION!
•The under-bench air conditioner must be installed securely so that it
cannot fall down.
•Only operate the under-bench air conditioner if you are certain that
the housing and the cables are not damaged.
FreshWell3000-I-16s.book Seite 3 Freitag, 18. August 2017 2:28 14

EN
Target group for this instruction manual FreshWell3000
4
•Do not use the under-bench air conditioner near flammable fluids.
•Make sure no combustible objects are stored or installed near the air
outlet. A distance of at least 50 cm must be kept.
•Do not reach into air outlets or insert any foreign objects in the device.
ANOTICE!
•Only use the device as intended.
•The under-bench air conditioner isnot suitable for use in agricultural or
construction vehicles.
•Do not make any alterations or conversions to the device.
•If faults occur in this refrigerant circuit, the system must be checked by
a specialist company and repaired properly. The refrigerant must
never be released into the air.
2.2 Handling electrical cables
!WARNING!
•The electrical power supply may only be connected by a qualified
electrician (e.g. VDE 0100, Part 721 in Germany).
!CAUTION!
•Attach and lay the cables so that they cannot be tripped over or
damaged.
ANOTICE!
•Use cable ducts to lay cables through walls with sharp edges.
•Do not lay loose or bent cables next to electrically conductive
materials (metal).
•Do not pull on the cables.
3 Target group for this instruction manual
The instructions in this manual are intended for qualified personnel at workshops
who are familiar with the guidelines and safety precautions to be applied.
FreshWell3000-I-16s.book Seite 4 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Scope of delivery
5
4Scopeofdelivery
5 Intended use

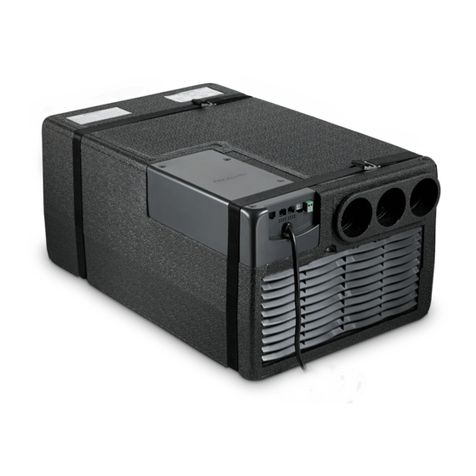

The Dometic FreshWell3000 under-bench air conditioner (ref. no. 9105306670) is
designed for use in motorcaravans, caravans and other vehicles with habitation
compartments only. It is not suitable for houses and appartments.
The under-bench air conditioner is not suitable for installation in construction
machines, agricultural machines or similar equipment. It will not work properly if
exposed to strong vibrations.
The operating mode of FreshWell3000 is guaranteed for temperatures between
0°Cand52°C.
I
6Labels
Labels are attached to the Dometic FreshWell under-bench air conditioners. These
labels provide the user and fitter with information on specifications of the device.
No. in fig. 1Qunatity Description
1 1 Under-bench air conditioner
2 1 Remote control
3 1 Receiver
4 4 Air filter
5 2 Angle section
6 4 Fastening bracket
7 14 Fastening screw
8 2 Drain pipe
9 2 External grids
– 1 Assembly template
NOTE
You can find additional information on under-bench air conditioners in
the operating manual, such as the technical description or the controls.
FreshWell3000-I-16s.book Seite 5 Freitag, 18. August 2017 2:28 14

EN
Installation FreshWell3000
6
7 Installation
!
7.1 Note on installation
Read this installation manual completely before installing the under-bench air
conditioner.
The following tips and instructions must be observed while installing the under-
bench air conditioner:
D
!
A
Note on transport
•Always have someone help you carry the under-bench air conditioner.
•Always lift the under-bench air conditioner to move it and never drag it over the
floor (fig. 2A).
•Do not use the ventilation slots to lift it (fig. 2B).
CAUTION! Beware of injury
The under-bench air conditioner may only be installed by qualified
personnel from a specialist company. The following information is
intended for technicians who are familiar with the guidelines and safety
precautions to be applied.
DANGER! Danger of electrocution
Disconnect all power supplies when working on the under-bench air
conditioner.
CAUTION! Beware of injury
•Improper installation of the under-bench air conditioner can result in
irreparable damage to the device and put the safety of the user at
risk.
•The manufacturer assumes no liability for malfunctions and for the
safety of the under-bench air conditioner, especially for injury and/or
damage to property, if the under-bench air conditioner is not fitted in
accordance with these installation instructions.
•Always wear the recommended protective clothing (e.g. protective
goggles, gloves).
NOTICE! Beware of damage
Observe the structural engineering of the vehicle and seal of all open-
ings made when installing the under-bench air conditioner.
FreshWell3000-I-16s.book Seite 6 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Installation
7
Note on installation location
•To install the machine it is necessary to create openings in the floor. These open-
ings must be accessible and must not be covered by any parts of the vehicle.
•Before installing the under-bench air conditioner, check whether any vehicle
components could be damaged by the installation of the under-bench air
conditioner (such as lamps, cupboards, doors).
•Make sure no combustible objects are stored or installed near the air outlet. A
distance of at least 50 cm should be kept.
•The inclination of the installation surface may not exceed 10°.
•For safety reasons, note the location of existing wiring harnesses, wires and other
components within the installation area, in particular those which are not visible,
when installing the under-bench air conditioner (when drilling or screwing etc.).
•To obtain the optimal air-conditioning in the vehicle, install the under-bench air
conditioner in a central position, in a compartment or a similar housing.
•Choose a place that is easily accessible for servicing as well as disassembling and
installing.
•Place the assembly template into the chosen compartment and check the space
available for the openings in the floor.
•To minimize the transmission of noise and vibration during operation, the under-
bench air conditioner should have a all around minimum clearance of 30 mm to
walls and furniture.
•The under-bench air conditioner must be installed on the floor.
•Keep a distance of 200 mm between the front of the under-bench air conditioner
and the walls of the compartment to facilitate filter replacement.
•Installing the under-bench air conditioner into an external compartment (e.g.
false bottoms), the air to be treated must be drawn in from the vehicle’s
passenger compartment.
•Suctioning of outside air can significantly reduce the power of the system.
FreshWell3000-I-16s.book Seite 7 Freitag, 18. August 2017 2:28 14

EN
Installation FreshWell3000
8
Note on electrical system (see fig. c)
•Only a qualified electrician should connect the under-bench air conditioner to
the electrical power.
•Check that the voltage specification on the type plate is the same as that of the
power supply.
•Do not lay cables which are loose or bent next to electrically conductive material
(metal).
•Install an all-pole switch with a contact opening width of at least 3 mm on the
installation side.
No. in fig. cDescription
1 Motor ventilator (inner)
2 Motor ventilator (outer)
3 Capacitor
4 Compressor
5 Temperature sensor
6PCB
7PCBdisplay
8 PCB interface
9 Soft start
10 Valve
11 Resistor
FreshWell3000-I-16s.book Seite 8 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Installation
9
7.2 Making openings
See fig. 3
➤Mark the position and size of the openings using the template included in the
packaging (Aand B).
See fig. 4
➤Drill out the corners (A).
➤Carefully cut out the openings using a keyhole saw or a similar tool (B).
Make sure no electrical power cables are damaged.
➤Drill out a condensation water drainage opening with a diameter of 32 mm (C).
See fig. 5
➤Mark the position of the angle sections (A) and the fastening brackets (B).
7.3 Installing the fastening brackets and belts
See fig. 6
➤Fasten the four fastening brackets (A).
➤Pull the belts through the fastening brackets (B).
➤Install the drain pipes under the under-bench air conditioner (C).
➤Fasten the under-bench air conditioner with the belts (D).
7.4 Installing the angle section
See fig. 7
➤Fasten the under-bench air conditioner with the two angle sections an three
fastening screw for each as shown.
7.5 Installing the external grids
See fig. 8
➤Fasten the external grids as shown with the screws and washers included in the
supply.
FreshWell3000-I-16s.book Seite 9 Freitag, 18. August 2017 2:28 14

EN
Installation FreshWell3000
10
7.6 Installing the receiver
See fig. 9
➤Drill an opening of 50 mm into the wall.
See fig. 0
➤Lay the cable through the hole to the under-bench air conditioner.
➤Fasten the receiver as shown.
7.7 Laying the connecting cables
D
The under-bench air conditioner must be connected to an electric circuit which is
able to supply the required current (see chapter “Technical data” on page 15).
➤Select the cross-section of the cable corresponding to the length:
– Length<7.5m:1.5mm²
–Length>7.5m:2.5mm²
See fig. a
➤Plug the four-pole plug of the receiver into the IR socket of the (1).
➤Plug the 230 Vwplug into an 230 Vwsocket (2).
DANGER! Danger of electrocution
Make sure there is no voltage at electrically operated components
before carrying out work on them!
FreshWell3000-I-16s.book Seite 10 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Installation
11
7.8 Air ducting
See fig. b
Make the air ducting with trade parts (not included in the supply). It is recommended
to use cardboard pipe for air conditioning with an aluminium core and external cov-
ering of PVC. The nominal inside diameter should size up to 60 mm, the outside
diameter 65 mm.
The ventilation pipes are joined by pressing them together thanks to the tapered
hole on the air outlet.
The pipes are connected to the register output.
To achieve the best efficiency it is recommended to:
•lay the air pipes as short and straight as possible
•restrict the length of the pipes to 5 m
•don‘t lay the pipes near any heat sources
The recirculation air is drawnin through a grille or through otheropenings with a total
cross-section of at least 300 cm². The recirculation air opening must be created near
the machine. If this is not possible, make sure that the air flow must be obstructed by
anything; if necessary, create an air duct between the opening and the machine.
I
The recirculation air must be taken from inside the passenger compartment; if taken
from the outside then the efficiency of the under-bench air conditioner will be
reduced.
NOTE
To avoid condensation on the pipes insulate the pipes with insulation
material (not included in the scope of delivery).
FreshWell3000-I-16s.book Seite 11 Freitag, 18. August 2017 2:28 14

EN
Troubleshooting FreshWell3000
12
8 Troubleshooting
Problem Cause Remedy
No cooling
capacity
The under-bench air conditioner is not
set to cooling.
➤Set the under-bench air
conditioner to cooling.
The ambient temperature is above 52 °C. The under-bench air conditioner is
only designed for ambient
temperatures of up to 52 °C.
The temperature set is higher that the
room temperature.
➤Select a lower temperature.
The ambient temperature is below 16 °C. The under-bench air conditioner is
only designed for ambient tempera-
tures above 16 °C.
The thermal protection is defective. ➤Contact an authorised workshop.
The compressor is damaged.
The refrigerating agent filling is
insufficient.
The heat exchange coils are polluted.
The external blower is defective.
No heating
capacity
The under-bench air conditioner is not
set to heating.
➤Set the under-bench air
conditioner to heating.
The ambient temperature is below 0 °C. The under-bench air conditioner is
only designed for ambient
temperatures higher than 0 °C.
The temperature set is lower than the
room temperature.
➤Select a higher temperature.
The ambient temperature is higher than
31 °C.
The temperature is adjustable
between 16 °C and 31 °C.
The thermal protection is defective. ➤Contact an authorised workshop.
The compressor is damaged.
The refrigerating agent filling is
insufficient.
The heat exchange coils are polluted.
The external blower is defective.
Low air output The air filter is obstructed. ➤Clean the air filter.
The heat exchange coils are polluted. ➤Contact an authorised workshop.
The internal blower is defective.
FreshWell3000-I-16s.book Seite 12 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Disposal
13
9Disposal
Regulations for environmental safety and correct disposal
All organisations must apply a set of procedures to identify, evaluate and control the
influence that their activities (manufacturing, products, services, etc.) have on the
environment.
The proceduresto be followed toidentify significant environmental impact must take
the following factors into account:
•use of raw materials and natural resources
•atmospheric emissions
•discharge of liquids
Water enters the
vehicle
The condensation water drainage open-
ings are clogged up.
➤Clean the drainage openings for
condensation water.
The seals are damaged. ➤Contact an authorised workshop.
Under-bench air
conditioner does
not switch on.
No supply voltage (230 Vw) connected. ➤Check the power supply.
The voltage is too low (under 200 Vw).
The voltage converter is defective.
➤Contact an authorised workshop.
The defective thermal protection is
defective.
The electrical fuse of the power supply is
too low.
➤Check the electrical fuse of the
power supply.
Under-bench air
conditioner stops
working.
The air filter is obstructed. ➤Clean the air filter.
The voltage is too low (under 200 Vw).
The voltage converter is defective.
➤Contact an authorised workshop.
The defective thermal protection is
defective.
The condenser fan is damaged.
The heat exchange coils are polluted.
The external blower is defective.
Under-bench air
conditioner does
not switch off.
One of the temperature sensors is
defective.
➤Contact an authorised workshop.
Problem Cause Remedy
FreshWell3000-I-16s.book Seite 13 Freitag, 18. August 2017 2:28 14

EN
Disposal FreshWell3000
14
•waste management and recycling
•contamination of the soil
In order to minimise environmental impact, the manufacturer provides a series of
indications here below that should be taken into account by all those who, for
whatever reason, interact with the appliance during its working life.
•All packing components must be disposed of (preferably recycled) in compli-
ance with statutory legislation in the country in which disposal takes place.
•All product components must be disposed of (preferably recycled) in compli-
ance with statutory legislation in the country in which disposal takes place.
•For correct disposal, the appliance must be consigned to an authorised waste
disposal company to ensure that all recyclable components are reused and the
remaining materials are processed properly.
•During installation ensure the room has adequate ventilation to prevent the build-
up of stale air that might be harmful to the health of the operators.
•During operation and maintenance ensure that any waste pollutant products (oil,
grease, etc.) are disposed of correctly.
•Keep noise levels down to reduce noise pollution.
For more information on correct dismantling of our products please refer to the
recycling handbooks at www.dometic.com.
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
➤When in operation or undergoing repairs and maintenance work, make sure that
the refrigerant circuit is not damaged and refrigerant cannot escape. It acts as a
greenhouse gas and should not be allowed into the environment.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
➤Dispose of the product at an official waste disposal facility in accordance with the
applicable recycling or disposal guidelines.
BProtect the environment!
Do not dispose of any batteries with general household waste.
Return defective or used batteries to your retailer or dispose of them at
collection points.
FreshWell3000-I-16s.book Seite 14 Freitag, 18. August 2017 2:28 14

EN
FreshWell3000 Technical data
15
10 Technical data
FreshWell3000
Ref. no.: 9105306670
Cooling capacity according to ISO 5151: 2700 W
Heating capacity: 3000 W
(2500 W + 500 W additional
heating element)
Rated input voltage: 230 Vw/ 50 Hz
Current consumption: Cooling: 4.3 A
Heating: 4.8 A
Required fuse: 5 A
Operating temperature range: 0 °C to +52 °C
Refrigerant: R-410A
Refrigerant quantity: 0.6 kg
CO2equivalent: 1,2528 t
Global warming potential (GWP): 2088
Additional heating element: 500 W
Blower: 3 blower levels
1 Automatic mode
Protection class: IP X5
Max. volume of space in the vehicle
(with insulated walls):
30 m³
Dimensions L x W x H: 628 x 400 x 286 mm
FreshWell3000-I-16s.book Seite 15 Freitag, 18. August 2017 2:28 14

EN
Technical data FreshWell3000
16
Contains fluorinated greenhouse gases
Hermetically sealed equipment
Weight: approx. 21 kg
Inspection/certification:
FreshWell3000
400 628
286
FreshWell3000-I-16s.book Seite 16 Freitag, 18. August 2017 2:28 14

DE
FreshWell3000 Erklärung der Symbole
17
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2 Sicherheits- und Einbauhinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3 Zielgruppe dieser Anleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6 Kennzeichnungsschilder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
7 Montage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
1 Erklärung der Symbole
!
!
A
I
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
FreshWell3000-I-16s.book Seite 17 Freitag, 18. August 2017 2:28 14

DE
Sicherheits- und Einbauhinweise FreshWell3000
18
2 Sicherheits- und Einbauhinweise
Beachten Sie die vom Fahrzeughersteller und vom Kfz-Handwerk vorge-
schriebenen Sicherheitshinweise und Auflagen!
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Beschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
Beachten Sie folgende grundsätzliche Sicherheitsmaßnahmen beim Gebrauch von
elektrischen Geräten zum Schutz vor:
•elektrischem Schlag
•Brandgefahr
•Verletzungen
2.1 Umgang mit dem Gerät
!WARNUNG!
•Die Montage und Reparaturen der Staukastenklimaanlage dürfen nur
von Fachkräften durchgeführt werden, die mit den verbundenen
Gefahren bzw. den einschlägigen Vorschriften vertraut sind. Durch
unsachgemäße Reparaturen können erhebliche Gefahren entstehen.
Wenden Sie sich im Reparaturfall an den Service-Stützpunkt in Ihrem
Land (Adressen auf der Rückseite).
•Elektrogeräte sind kein Kinderspielzeug!
Kinder können Gefahren, die von elektrischen Geräten ausgehen,
nicht richtig einschätzen. Lassen Sie Kinder nicht ohne Aufsicht elekt-
rische Geräte benutzen.
•Personen, die aufgrund ihrerphysischen, sensorischen oder geistigen
Fähigkeiten oder ihrer Unerfahrenheit oder Unkenntnis nicht in der
Lage sind, das Gerät sicher zu benutzen, sollten dieses Gerät nicht
ohne Aufsicht oder Anweisung durch eine verantwortliche Person
nutzen.
•Im Falle von Feuer verwenden Sie nur zugelassene Löschmittel.
Verwenden Sie kein Wasser zum Löschen.
FreshWell3000-I-16s.book Seite 18 Freitag, 18. August 2017 2:28 14
