CLIVET MSRN-XSC3 + CEV-XN User manual

M04X00001-01 30-01-2020
Installation and
operating manual
MSRN-XSC3 + CEV-XN
Air cooled heat pump in two sections

Dear Customer,
We congratulate you on choosing this product
For many years Clivet has been oering systems that provide maximum comfort, together with high
reliability, eciency, quality and safety.
The aim of the company is to oer advanced systems, that assure the best comfort, reduce energy
consumption and the installation and maintenance cost for the life cycle of the system.
The purpose of this manual is to provide you with information that is useful from reception of
the equipment, through installation, operational usage and nally disposal so that this advanced
system oers the beat solution.
Yours faithfully.
CLIVET Spa
The data contained in this manual is not binding and may be changed by the manufacturer without
prior notice.
Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia

3
Index of contents
1 General description 4
2 Reception 6
3 Positioning 8
4 Water connections 10
5 Refrigeranting connections 14
6 Electrical connections 18
7 Start-up 26
8 Control 35
9 Maintenance 47
10 Accessories 53
11 Decommissioning 55
12 Residual risks 56
General technical date 57
Dimensional drawings 69

4
1 General description
1.1 Manual
The manual provides correct unit installation, use and maintenance.
Pay particular attention to:
Warning, identies particularly important operations or information.
Prohibited operations that must not be carried out, that compromise the operating of the unit or may cause damage to persons or things.
• It is advisable to read it carefully so you will save time during operations.
• Follow the written indications so you will not cause damages to things and injuries people.
1.2 Preliminaries
Only qualied personnel can operate on the unit, as required by the regulation in force.
1.3 Risk situations
The unit has been designed and created to prevent injures to people.
During designing it is not possible to plane and operate on all risk situation.
Read carefully “Residual risk” section where all situation which may cause damages to things and injuries to people are reported.
Installation, starting, maintenance and repair required specic knowledge; if they are carried out by inexperienced personnel, they may cause
damages to things and injuries people.
1.4 Intended use
Use the unit only:
• for cooling/heating water or a water and glycol mix
• keep to the limits foreseen in the technical schedule and in this manual
The manufacturer accepts no responsibility if the equipment is used for any purpose other than the intended use.
1.5 Installation
Outdoor installation
The positioning, hydraulic system, refrigerating, electrics and the ducting of the air must be determined by the system designer in accordance
with local regulations in force.
Follow local safety regulations.
Verify that the electrical line characteristics are in compliance with data quotes on the unit serial number label.
1.6 Maintenance
Plan periodic inspection and maintenance in order to avoid or reduce repairing costs.
Turn the unit o before any operation.
1.7 Modication
All unit modications will end the warranty coverage and the manufacturer responsibility.
1.8 Breakdown/Malfuction
Disable the unit immediately in case of breakdown or malfunction.
Contact a certied service agent.
Use original spares parts only.
Using the unit in case of breakdown or malfunction:
• voids the warranty
• it may compromise the safety of the unit
• may increase time and repair costs

5
1.9 User training
The installer has to train the user on:
• Start-up/shutdown
• Set points change
• Standby mode
• Maintenance
• What to do / what not to do in case of breakdown
1.10 Data update
Continual product improvements may imply manual data changes.
Visit manufacturer web site for updated data.
1.11 Indications for the User
Keep this manual with the wiring diagram in an accessible place for the operator.
Note the unit data label so you can provide them to the assistance centre in case of intervention (see “Unit identication” section).
Provide a unit notebook that allows any interventions carried out on the unit to be noted and tracked making it easier to suitably note the
various interventions and aids the search for any breakdowns.
In case of breakdown or malfunction:
• Immediately deactivate the unit
• Contact a service centre authorized by the manufacturer
The installer must train the user, particularly on:
• Start-up/shutdown
• Set points change
• Standby mode
• Maintenance
• What to do / what not to do in case of breakdown
1.12 Unit indentication
The serial number label is positioned on the unit and allows to indentify all the unit features.
The matriculation plate shows the indications foreseen by the standards, in particular:
• unit type
• serial number (12 characters)
• year of manufacture
• wiring diagram number
• electrical data
• type of refrigerant
• refrigerant charge
• manufacturer logo and address
The matriculation plate must never be removed.
It contains uorinated greenhouse gases
Type of refrigerant: R410A
1.13 Serial number
It identies uniquely each unit.
Must be quoted when ordering spare parts.
1.14 Assistance request
Note data from the serial number label and write them in the chart on side, so you will nd them easily when needed.
Series
Size
Serial number
Year of manufacture
Electrical wiringdiagram

6
2 Reception
You have to check before accepting the delivery:
• That the unit hasn’t been damaged during transport
• That the materials delivered correspond with that indicated on the transport document comparing the data with the identication label
positioned on the packaging.
In case of damage or anomaly:
• Write down on the transport document the damage you found and quote this sentence: “Conditional acceptance clear evidence of
deciencies/damages during transport”
• Contact by fax and registered mail with advice of receipt to supplier and the carrier.
Any disputes must be made within 8 days from the date of the delivery. Complaints after this period are invalid.
2.1 Storage
Observe external packaging instructions.
2.2 Handling
1. Verify unit weight and handling equipment lifting capacity.
2. Identify critical points during handling (disconnected routes, ights, steps, doors).
3. Suitably protect the unit to prevent damage.
4. lifting brackets
5. Lifting with balance
6. Lifting with spacer bar
7. Align the barycenter to the lifting point
8. Use all the lifting brackets (see the dimensional section)
9. Gradually bring the lifting belts under tension, making sure they are positioned correctly.
10. Before starting the handling, make sure that the unit is stable.

7
2.3 Packaging removing
Be careful not to damage the unit.
Keep packing material out of children’s reach it may be dangerous.
Recycle and dispose of the packaging material in conformity with local regulations.
A
B
A Supports for handling: remove after the handling.
B Remove the coil protective mesh before the start-up

8
3 Positioning
During positioning consider these elements:
• Technical spaces requested by the unit
• Electrical connections
• Water connections
• Spaces for air exhaust and intake
3.1 Functional spaces
Functional spaces are designed to:
• guarantee good unit operation
• carry out maintenance operations
• protect authorized operators and exposed people
Respect all functional spaces indicated in the DIMENSIONS section.
Double all functional spaces if two or more unit are aligned.
3.2 Positioning
Units are designed to be installed:
• EXTERNAL
• in xed positions
Limit vibration transmission:
• use anti-vibration devices or neoprene strips on the unit support points
• install exible joints on the hydraulic connections
• install exible joints on the hydraulic connections
Choose the installation place according to the following criteria:
• Customer approval
• safe accessible position
• technical spaces requested by the unit
• spaces for the air intake/exhaust
• max. distance allowed by the electrical connections
• install the unit raised from the ground
• verify unit weight and bearing point capacity
• verify that all bearing points are aligned and leveled
• condensate water draining
• consider the maximum possible snow level
• Avoid installations in places subject to ooding
Protect the unit with suitable fence in order to avoid access to unauthorised personnel (children, vandals, etc.)
A correct circulation of the air is mandatory to guarantee the good unit operating.
Avoid therefore:
• obstacles to the airow
• diculty of exchange
• leaves or other foreign bodies that can obstruct the air coil
• winds that hinder or favour the airow
• heat or pollution sources close to the unit (chimneys, extractors etc..)
• stratication (cold air that stagnates at the bottom)
• recirculation (expelled air that is sucked in again)
• incorrect positioning, close to very high walls, attics or in angles that could give rise to stratication or recirculation phenomenons
Ignoring the previous indications could:
• reduce energy eciency
• alarm lockout due to HIGH PRESSURE (in summer) or LOW PRESSURE (in winter)
3.3 Saftey valve gas side
The installer is responsible for evaluating the opportunity of installing drain tubes, in conformity with the local regulations in force (EN 378).

9
3.4 AxiTop
3.5 Functional spaces
1500
1500
1500
1500
1500
800
800
1500
800 800
1200 1200
A
A
B
A full height wall: standard compliance spaces
B low height wall: reduced space
3.6 Anti-vibration mount support
For details see:
10 Accessoriesp.53

10
4 Water connections
4.1 Water quality
Water features
• conrming to local regulations
• total hardness < 14°fr
• within the limits indicated by table
The water quality must be checked by qualied personnel.
Water with inadequate characteristics can cause:
• pressure drop increase
• reduces energy eciency
• increased corrosion potential
Acceptable water quality values:
SO
42-
HCO
3-
/SO
42-
Total Hardness
Cl
-
PO
43-
< 100
> 1
4,5 ÷8,5
< 50
< 2,0
NH3< 0,5
PH 7,5 ÷9,0
ppm
dH
ppm
ppm
ppm
Fe
3+
Mn
++
CO
2
H
2
S
Temperature
< 0,5
< 0,05
< 50
< 50
< 65
Oxygen content < 0,1
Free Chlorine < 0,5
ppm
ppm
ppb
°C
ppm
ppm
ppm
Provide a water treatment system if values fall outside the limits.
The warranty does not cover damages caused by limestone formations, deposits and impurities from the water supply and / or failure from
failed system clearing to clean system.
4.2 Risk of freezing
If the unit or the relative water connections are subject to temperatures close to 0°C:
• mix water with glycol, or
• safeguard the pipes with heating cables placed under the insulation, or
• empty the system in cases of long non-use
4.3 Anti-freeze solution
The use of an anti-freeze solution results in an increase in pressure drop.
Make sure that the glycol type utilized is inhibited (not corrosive) and compatible with the water circuit components.
Do not use dierent glicol mixture (i.e. ethylene with propylene).
4.4 Water ow-rate
The project water-ow must be:
• within exchanger operating range
• guarantee, also with variable system conditions (for example in systems where some circuits are bypassed in particular situations).
4.5 Minimum system water content
Minimum system water volumes have to be satised to avoid continuous compressor switching on and o.

11
4.6 Recommended connection
The installer must dene:
• component type
• position in system
Examples:
PD
TT
PD
TT
F
UNITCUSTOMER
UNIT
1
F
6
7
12
8
OPTION
3
11
9
5
10
CUSTOMER
PD
TT
F
UNITCUSTOMER
13
14
15
16
18
19
17
OPTION
Standard unit Unit with 2 pumps Unit with VARIFLOW +
6
7
12
8
11
9
10
6
7
12
8
11
9
10
18
19
13
14
15
16
17
1
3
5
1
3
5
19
22
2
1 exchanger 11 drain
2 Anti-ice electric heater 12 Flow Switch
3 water temperature probe 13 System load safety pressure switch
5 dierential pressure switch 14 pressure gauge
6 antivibration joints 15 non-return valve
7 piping support 16 Pump
8 exchanger chemical cleaning bypass 17 safety valve
9 Cleaning system bypass 18 shut-o valve
10 vent 19 lter

12
4.7 Hydraulic connections
UNIT
A
filettare – to threadsaldare –to weld
A1 A2
impianto - system
A + B : fornito da Clivet - Clivet supplied
o - or
B
A
Do not weld the system pipe with the Victaulic connection joint attached.
The rubber gasket might be irreparably damaged.
4.8 Water lter
Use lter with mesh pitch:
1,6 mm
It must be installed immediately in the water input of the unit, in a position that is easily accessible for cleaning.
The lter never should be removed, this operation invalidates the guaranty.
4.9 Flow Switch
The ow switch must be present to ensure shutdown of the unit if water is not circulating.
It has to be installed in a duct rectilinear part, not in proximity of curves that cause turbulences.
Electrically connect the ow switch at the inlet arranged on the XC terminal block.
The ow switch must be set to the minimum reachable ow rate.
A
!
A
A > 5 x Ø
Ø
B < A
A. minimum distance
4.10 Operation sequence
Close all vent valves in the high points of the unit hydraulic circuit
Close all drain valves in the low points of the unit hydraulic circuit:
• Heat exchangers
• Pumps
• collectors
• storage tank
• free-cooling coil
1. Carefully wash the system with clean water: ll and drain the system several times.
2. Apply additives to prevent corrosion, fouling, formation of mud and algae.
3. Fill the plant
4. Execute leakage test.
5. Isolate the pipes to avoid heat dispersions and formation of condensate.
6. Leave various point of service free (wells, vent-holes etc).
Neglecting the washing will lead to several lter cleaning interventions and at worst cases can cause damages to the exchangers and the
other parts.

13
4.11 Partial energy recovery
Option
A conguration which enables the production of hot water free-of-charge while operating in the cooling mode, thanks to the partial recovery
of condensation heat that would otherwise be rejected to the external heat source.
The maximum capacity available from the partial recovery is equal to the 15% of the rejected heating capacity (cooling capacity + compressor
power input)
The recovery exchanger must be always maintained full of water
The lack of water amplies the noise generated by the operation
When the temperature of the water to be heated is particularly low, it is wise to insert a ow-rate control valve into the system water circuit,
in order to maintain the temperature at the recovery output at above 35°C and thus avoid the condensation of the refrigerant into the partial
energy recovery device.
UNIT
QAB QB
QB
QA
QAB
V
M

14
5 Refrigeranting connections
5.1 Pressure Equipment Directive
This unit is a subset: to operate it has to be combined to another unit.
It is an installer responsability:
• follow the PED Directive and to the national regulations of PED Directive realization
• consider the insertion of any additional security devices
• check the safety device operation
• write on the serial label number the amount of total refrigerant
• issue the Declaration of conformity
• inform the user of the need to carry out regular checks
5.2 Vibrations / Noise
The installation of the pipes may aect the level of noise in the system:
• install exible joints between the unit and the pipes
• Install antivibration material between the brackets and the pipes so as to prevent the transmission of vibrations
• avoid the passage in particularly silent environments

15
5.3 General description
The sizing of the refrigerating connection lines is of extreme importance for the system operating and reliability.
The diameter of the connection between the two units is function of distances, dierences in level and curve number; it has so to be calculated
by a qualied technician.
Incorrect sizing may damage the compressor or aect cooling capacity.
• The operations must be performed by an expert refrigerator technician
• use only a copper pipe for chiller operating
• pipes must be perfectly clean (perform a cleaning with nitrogen or dry air before connecting the pipes to the two units) and without
humidity to allow a good vacuum operation
• pipes must not to be too much long and with too much curves
• for a good eciency do not perform curves with a radium too much short and avoid the pipe crushing
• to allow the vacuum and charge operations install service ttings on pipes (if the unit is not tted with taps with service ttings)
L1 L2
GAS 1GAS 2
L1
L2
GAS 1
GAS 2
Liquid (x 2)
Gas (x 2)
1/100
Max 5 mt Max 10 mt
4 mt
1/100
A B
4 mt

16
Maximum piping length and lift
Total equivalent length (m) Max. dierence in height (m)
A 20 10
B 20 5
The equivalent length is the sum of the eective length of the piping plus a length that is equivalent to the distributed and concentrated
pressure drop.
To determine the equivalent length refer to tables or data declared by the supplier of the piping.
Located leaks
5.4 Risk of explosion
When you install cut-o devices (solenoid valves, taps, etc.), be aware that they may cause traps for refrigerant in the form of closed zones
upstream and downstream where the refrigerant cannot freely expand.
In this situation, if there is an increase in temperature (due to exposure to the sun, proximity of pipes or sources of heat), the expansion of the
trapped gas may cause the refrigeration pipes to explode.
Evaluate whether safety valves can be installed, especially in the liquid pipes that are most exposed to this risk.
5.5 Supply line
Insulate only if you want to prevent burns due to accidental contact.
5.6 Liquid line
The liquid line must be insulated if it is exposed to the sunlight or it crosses zones with a temperature higher than the external one, otherwise
it can be free.
Avoid excessive diameters to not cause an excessive refrigerant charge.
5.7 solenoid valve on the liquid line
It is not necessary to install a solenoid valve.
The electronic thermostatic valve operates as a solenoid valve, also in case of blackout.
5.8 Checking for leaks
1 Check carefully that the evaporator unit taps are closed.
2 Connect the pressure gauges with the service ttings (on the taps or on the connection pipes).
3 Pressurise the system with nitrogen:
mode 1: up to PS (see the label) and wait few hours
mode 2: up to PS x 1,43 law (as according to UNI-EN 378-2)
CAUTION: EXPLOSION DANGER
4 Spray using a leak detector spray taps and pipes and check if bubbles are present (gas leaks).
5 Discharge the nitrogen from the unit.

17
5.9 Vacuum operations
Make sure that all the service outlets are closed with proper caps; if caps are not present a leak of refrigerant can be possible.
With the taps of the motor condenser closed, drain the system.
Using a gauge group, connect the vacuum pump on both connections of the taps, make sure that the solenoid valve or any intermediate taps
are open, proceed with the vacuum.
Stop the pump at a pressure of about 100 Pa and leave it under vacuum for a few hours; a slight initial rise of pressure is normal, followed by
stabilization.
If the pressure continues to rise, it means there are either small leaks or humidity is present. In the rst case, repeat the operations in the
paragraph on checking for leaks in the manual for the refrigerant pipes.
In the second case, recharge the system with refrigerant gas up to 100KPa and re-create the vacuum as described above.
Once the pressure is permanently stable, move on to the next phase, which is charging.
5.10 Refrigerant Charge
Check the type of refrigerant on the serial number label
The CEV-XN units are shipped with a nitrogen-tight charge.
The refrigerant charge must to be completed during the start-up phase, based on the type of indoor unit and on the pipe development.
Refrigerant charge for combination with remote condenser
Refrigerant charge for dierent equivalent lengths
With the system under vacuum, close the taps of the gauge group and disconnect the vacuum pump.
Connect the refrigerant gas tank, venting the air out of the hose for connection to the gauge group.
Open the tap of the liquid line.
Open the taps of the gauge group and let liquid-state refrigerant enter using an appropriate pump.
Once charging is complete, open the gas tap so that the unit is ready to be started.
5.11 Adding oil
Consider adding oil if the connection pipes are particularly long.
Check the oil level of the compressor in the indicator or in the Schrader plug.
Size 90.4 100.4 110.4 120.4 140.4 160.4
EXCELLENCE SC C1 [kg] 44 46 47 64 66 69
C2 [kg] 44 46 47 64 66 69
EXCELLENCE EN C1 [kg] 44 46 54 71 73 75
C2 [kg] 44 46 54 71 73 75
MSRN-XSC3 EXC SC
Size Refrigerant
charge
Total equivalent length (m)
10 15 20
90.4 C1 kg 258
C2 kg 258
100.4 C1 kg 259
C2 kg 259
110.4 C1 kg 269
C2 kg 269
120.4 C1 kg 2 7 12
C2 kg 2 7 12
140.4 C1 kg 3 8 12
C2 kg 3 8 12
160.4 C1 kg 4 8 13
C2 kg 4 8 13
MSRN-XSC3 EXC EN
Size Refrigerant
charge
Total equivalent length (m)
10 15 20
90.4 C1 kg 258
C2 kg 258
100.4 C1 kg 259
C2 kg 259
110.4 C1 kg 258
C2 kg 258
120.4 C1 kg 3 8 13
C2 kg 3 8 13
140.4 C1 kg 2 7 12
C2 kg 2 7 12
160.4 C1 kg 3 8 13
C2 kg 3 8 13

18
6 Electrical connections
The characteristics of the electrical lines must be determined by qualied electrica personnel able to design electrical installations; moreover,
the lines must be in conformity with regulations in force.
The protection devices of the unit power line must be able to stop all short circuit current, the value must be determined in accordance with
system features.
The power cables and the protection cable section must be dened in accordance with the characteristics of the protections adopted.
All electrical operations should be performed by trained personnel having the necessary qualications required by the regulations in force
and being informed about the risks relevant to these activities.
Operate in compliance with safety regulations in force.
6.1 Electrical data
The serial number label reports the unit specic electrical data, included any electrical accessories.
The electrical data indicated in the technical bulletin and in the manual refer to the standard unit, accessories excluded.
The matriculation plate shows the indications foreseen by the standards, in particular:
• Voltage
• F.L.A.: full load ampere, absorbed current at maximum admitted conditions
• F.L.I.: full load input, full load power input at max. admissible condition
• Electrical wiringdiagram Nr.
6.2 Connections
1. Refer to the unit electrical diagram (the number of the diagram is shown on the serial number label).
2. Verify that the electrical supply has characteristics conforming to the data shown on the serial number label.
3. Before starting work, ensure the unit is isolated, unable to be turned on and a safety sign used.
4. Ensure correct earth connection.
5. Ensure cables are suitably protected.
6. Before powering up the unit, make sure that all the protections that were removed during the electrical connection work have been
restored.
6.3 Signals / data lines
Do not exceed the maximum power allowed, which varies, according to the type of signal.
Lay the cables far from power cables or cables having a dierent tension and that are able to emit electromagnetic disturbances.
Do not lay the cable near devices which can generate electromagnetic interferences.
Do not lay the cables parallel to other cables, cable crossings are possible, only if laid at 90°.
Connect the screen to the ground, only if there aren’t disturbances.
Guarantee the continuity of the screen during the entire extension of the cable.
Respect impendency, capacity and attenuation indications.

19
6.4 Power input
Fix the cables: if vacated may be subject to tearing.
Respect the minimum distance from the ground to allow the entry of the power line.
The cable must not touch the compressor and the refrigerant piping (they reach high temparatures).

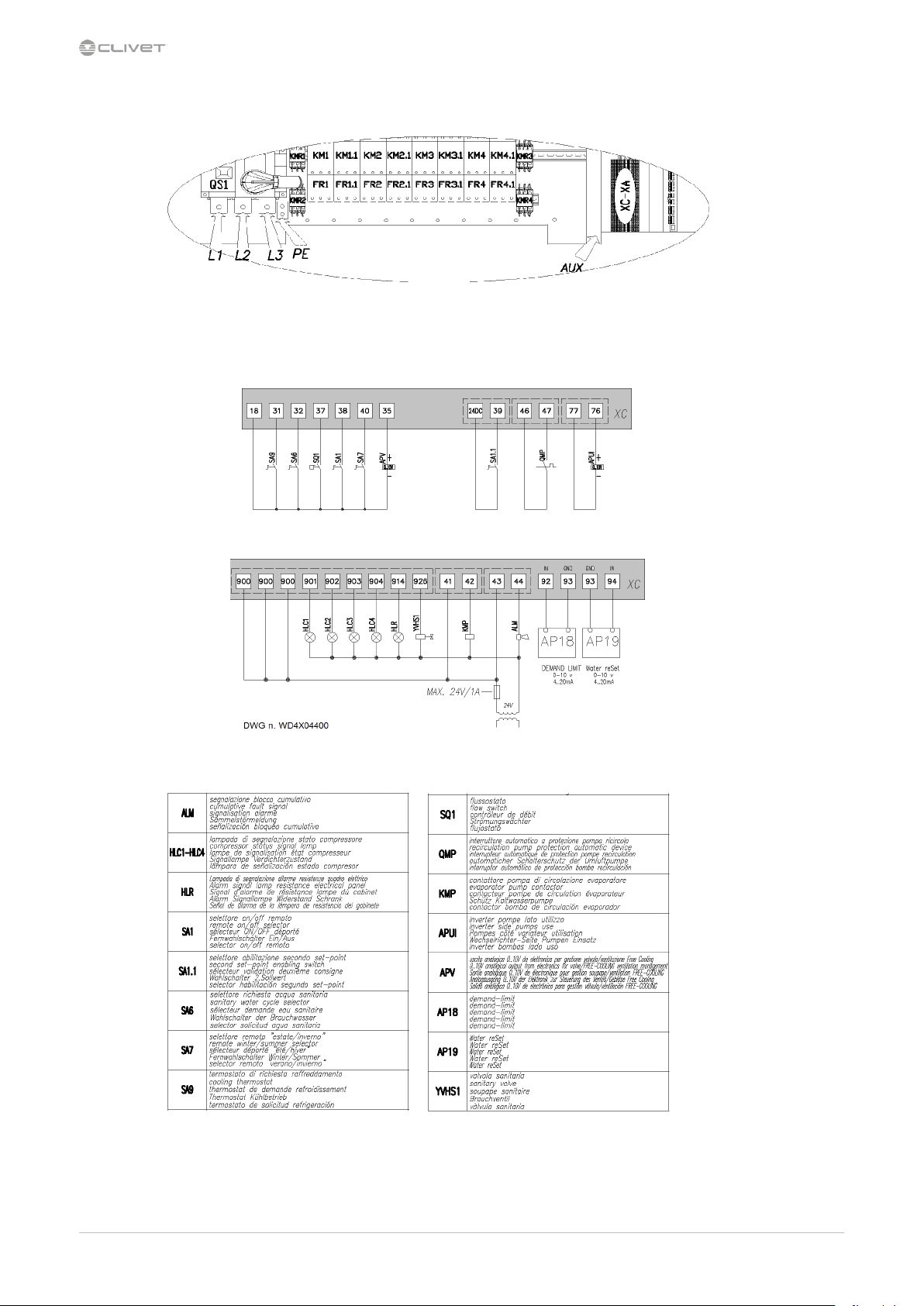

6.5 Connections performer by customer
MSRN-XSC3
CEV-XN

20
MSRN-XSC3
