CLIVET WSAT-YES 18.2 User manual

R32
M0SF00004-02 - 07/2021

The data contained in this manual is not binding and may be changed by the manufacturer without prior
notice. All reproduction, even partial, is prohibited. © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia
Dear Customer,
We congratulate you on choosing these product.
Clivet is being working for years to offer systems able to assure the maximum comfort
for long time with high reliability, efficiency , quality and safety. The target of the
company is to offer advanced systems, that assure the best comfort, reduce the energy
consumption, the installation and maintenance costs for all the life-cycle of the system.
With this manual, we want to give you information that are useful in all the phases: from
the reception, to the installation and use until the disposal so that a system so
advanced offers the best procedure of installation and use.
Best regards and have a nice reading !
CLIVET Spa

1SAFETY CONSIDERATIONS
Saftey
Operate in compliance with safety regulations in force .
Use single protection devices: gloves, glasses, helmet etc.
Manual
The manual provides correct unit installation, use and
maintenance.
It is advisable to read it carefully so you will save time during
operations.
Follow the written indications so you will not cause damages to
things and injuries people.
Preliminaries
Only qualified personnel can operate on the unit, as required by
the regulation in force.
Risk situations
The unit has been designed and created to prevent injures to
people.
During designing it is not possible to plane and operate on all
risk situation.
Read carefully “Residual risk” section where all situation which
may cause damages to things and injuries to people are
reported.
Installation, starting, maintenance and repair required specific
knowledge; if they are carried out by inexperienced personnel,
they may cause damages to things and injuries people.
Intended use
Use the unit only:
 cooling water or a water and glycol mix for air-conditioning
 keep to the limits foreseen in the technical schedule and in
this manual
The manufacturer accepts no responsibility if the equipment is
used for any purpose other than the intended use.
Installation
Outdoor installation
The positioning, hydraulic system, refrigerating, electrics and the
ducting of the air must be determined by the system designer in
accordance with local regulations in force.
Follow local safety regulations.
Verify that the electrical line characteristics are in compliance
with data quotes on the unit serial number label.
Maintenance
Plan periodic inspection and maintenance in order to avoid or
reduce repairing costs.
Turn the unit off before any operation.
Pay particular attention to:
 warnings / prohibitions / danger
indicating particularly important
operations or information, operations
that cannot be done, which compromise
the functionality of the unit or which
may cause damage to things or
persons.
Outdoor installation
Before any work read:
 Chapter. MAINTENANCE SAFETY
WARNINGS FOR OPERATIONS ON
UNITS CONTAINING R32

Modification
All unit modifications will end the warranty coverage and the
manufacturer responsibility.
Breakdown/Malfunction
Disable the unit immediately in case of breakdown or malfunction.
Contact a certified service agent.
Use original spares parts only.
Using the unit in case of breakdown or malfunction:
 voids the warranty
 it may compromise the safety of the unit
 it may increase time and repair costs
User training
The installer has to train the user on:
 start-up/shutdown
 set points change
 standby mode
 maintenance
 what to do / what not to do in case of breakdown.
Data update
Continual product improvements may imply manual data changes.
Visit manufacturer web site for updated data.
Indications for the User
Keep this manual with the wiring diagram in an accessible place
for the operator.
Note the unit data label so you can provide them to the
assistance centre in case of intervention (see “Unit identification”
section).
Provide a unit notebook that allows any interventions carried out
on the unit to be noted and tracked making it easier to suitably
note the various interventions and aids the search for any
breakdowns.
In case of breakdown or malfunction
 Immediately deactivate the unit
 Contact a service centre authorized by the manufacturer
The installer must train the user, particularly on:
 Start-up/shutdown
 Set points change
 Standby mode
 Maintenance
 What to do / what not to do in case of breakdown

Unit identification
The serial number label is positioned on the unit and allows to
indentify all the unit features.
The matriculation plate shows the indications foreseen by the
standards, in particular:
 unit type
 serial number (12 characters)
 year of manufacture
 wiring diagram number
 electrical data
 type of refrigerant
 refrigerant charge
 manufacturer logo and address
The matriculation plate must never be removed.
It contains fluorinated greenhouse gases.
Serial number
It identifies uniquely each unit.
Must be quoted when ordering spare parts.
Assistance request
Note data from the serial number label and write them in the
chart on side, so you will find them easily when needed.
Characteristics of R32 refrigerant:
 minimum environmental impact thanks to the low Global
Warming Potential GWP
 low flammability, class A2L according to ISO 817
 low combustion speed
 low toxicity
Serie
Size
Serial number
Year of manufacture
Wiring diagram
Physical characteristics of the R32 refrigerant
Safety class (ISO 817) A2L
GWP 675
LFL Low flammability limit 0.307 kg/m3 @ 60°C
BV Burning velocity 6,7 cm/s
Boiling point -52 °C
GWP 675 100 yr ITH
GWP 677 ARS 100 yr ITH
Self-ignition temperature 648 °C

Reception
You have to check before accepting the delivery:
 That the unit hasn’t been damaged during transport
 That the materials delivered correspond with that indicated on
the transport document comparing the data with the
identification label positioned on the packaging.
In case of damage or anomaly:
 write down on the transport document the damage you found
and quote this sentence: “Conditional acceptance clear
evidence of deficiencies/damages during transport”
 wontact by fax and registered mail with advice of receipt to
supplier and the carrier.
NOTE
 Any disputes must be made within 8 days from the date of
the delivery. Complaints after this period are invalid .
Storage
Respect the indications on the outside of the pack.
In particolar:
 minimum ambient temperature –15°C
(possible components damages)
 maximum ambient temperature +49°C
(possible safety valve opening)
 maximum relative humidity 95%
(possible damages to electrical components
NOTE
 The unit may not be tilted more than 15° during transport.
NOTE
Removal of packaging
Be careful not to damage the unit.
Recycle and dispose of the packaging material in compliance with
local regulations.
2BEFORE INSTALLATION
Before any work read:
 Chapter. MAINTENANCE SAFETY
WARNINGS FOR OPERATIONS ON
UNITS CONTAINING R32

 Check that all handling equipment complies with local safety
regulations (cran, forklifts, ropes, hooks, etc.).
 Provide personnel with personal protective equipment suitable
for the situation, such as helmet, gloves, accident-prevention
shoes, etc.
 Observe all safety procedures in order to guarantee the
safety of the personnel present and the of material.
A. Verify unit weight and handling equipment lifting capacity.
B. Identify critical points during handling (disconnected routes,
flights, steps, doors).
C. Suitably protect the unit to prevent damage.
D. Lifting with balance
E. Lifting with spacer bar
F. Align the barycenter to the lifting point
 Gradually bring the lifting belts under tension, making sure
they are positioned correctly.
 Before starting the handling, make sure that the unit is
stable.
3HANDLING
A
Do not get on the unit
B
C
F
D
E

4SCELTA DEL LUOGO DI INSTALLAZIONE
The unit must be level.
Do not get on the unit
3SELECTING THE INSTALLATION SITE
Positioning
 Installation must be in accordance with local regulations. If
they do not exist, follow EN378 .
During positioning consider these elements:
 customer approval
 unit weight and bearing point capacity
 safe accessible position
 functional spaces
 spaces for the air intake/exhaust
 electrical connections
 max. distance allowed by the electrical connections
 water connections
Functional spaces
Functional spaces are designed to:
 guarantee good unit operation
 carry out maintenance operations
 protect authorized operators and exposed people
 Respect all functional spaces indicated in the TECHNICAL
INFORMATION section.
Positioning
Units are designed to be installed:
 EXTERNAL
 in fixed positions
 Put the unit in a position where any leaking gas cannot enter
buildings or stagnate in closed areas. In the latter case,
observe the rules for machinery rooms (ventilation, leak
detection, etc.).
Installation standards:
 install the unit raised from the ground
 bearing points aligned and leveled
 discharged condensation water must not cause harm/danger
to people and property
 the accumulation of snow must not cause clogging of the
coils
 avoid installations in places subject to flooding
Limit vibration transmission:
 use anti-vibration devices or neoprene strips on the unit
support points
 install flexible joints on the hydraulic connections
Protect the unit with suitable fence in order to avoid access to
unauthorised personnel (children, vandals, etc.)
A correct circulation of the air is mandatory to guarantee the
good unit operating..

Avoid therefore:
 obstacles to the airflow
 exchange difficulties
 leaves or other foreign bodies that can obstruct the exchange
batteries
 winds that hinder or favour the airflow
 heat or pollution sources close to the unit (chimneys,
extractors etc)
 stratification (cold air that stagnates at the bottom)
 recirculation (expelled air that is sucked in again)
 positioning below the level of the threshold, close to very high
walls, attics or in angles that could give rise to stratification
or recirculation phenomenons.
Ignoring the previous indications could:
 energy efficiency decrease
 alarm lockout due to HIGH PRESSURE (in summer) or LOW
PRESSURE (in winter)
Pressure relief valve gas side
The installer is responsible for evaluating the opportunity of
installing drain pipes in compliance with the local regulations in
force (EN 378).
If ducted, the valves must be sized according to EN13136 .

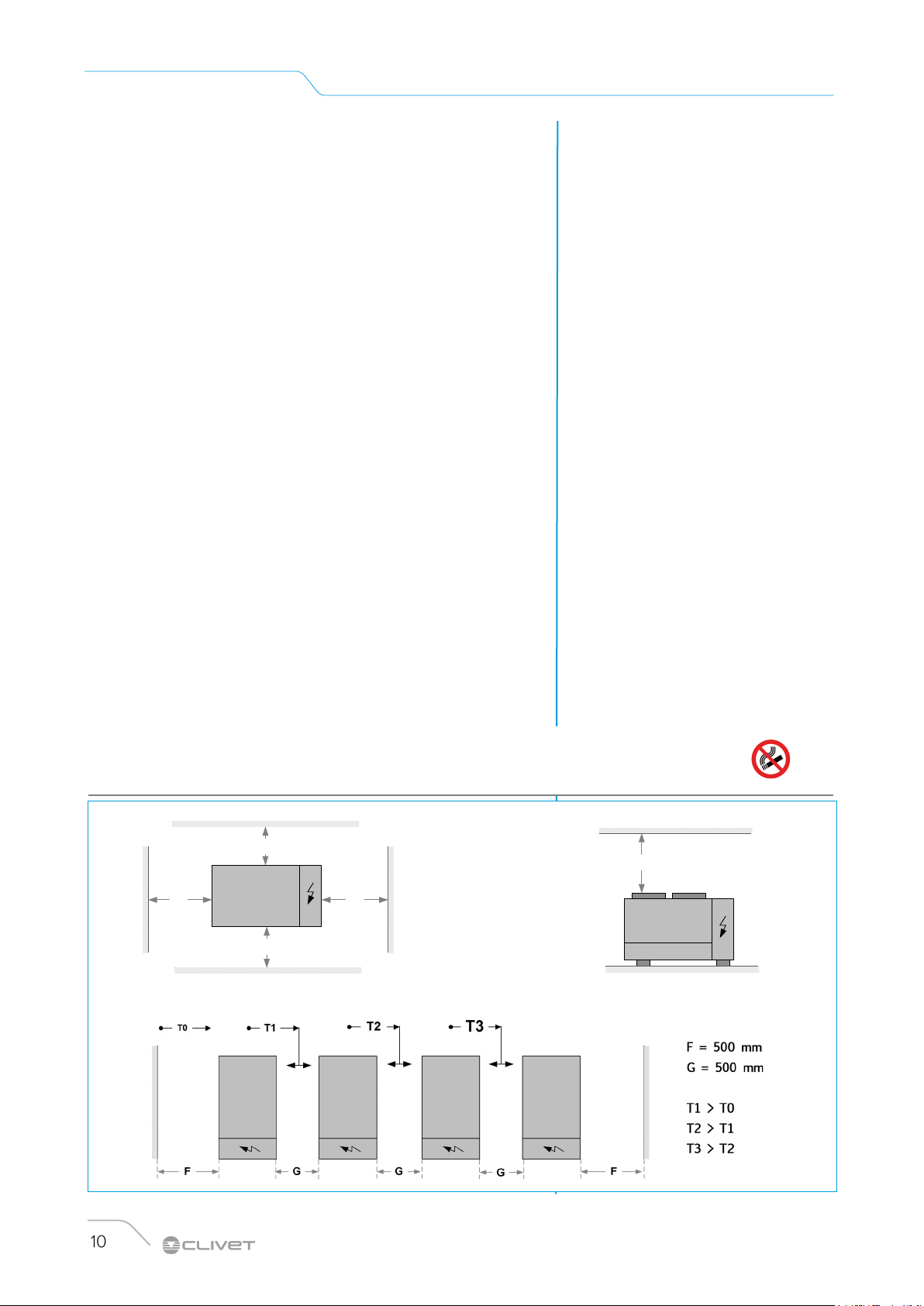

Functional spaces Safety Zone
Do not smoke or use open flames within this area
A
B
C
D
E
GF GG F
A = 800 mm
B = 500 mm
C = 800 mm
D = 500 mm
E = 6000
F = 500 mm
G = 500 mm
mm

Anti-vibration mounts
Option
Size 18.2 - 20.2 25.2 - 35.2
support points
Configuration standard with storage tank standard with storage tank
KIT PE PESM00003 PESM00004 PEST00003 PEST00004
W1 (code) PAF 11 SPEC PAF 13 SPEC PAF 14 SPEC PAF 22 SPEC
W2 PAF 11 SPEC PAF 13 SPEC PAF 90 SPEC PAF 12 SPEC
W3 PAF 11 SPEC PAF 13 SPEC PAF 90 SPEC PAF 12 SPEC
W4 PAF 11 SPEC PAF 13 SPEC PAF 14 SPEC PAF 22 SPEC
W1W1W2 W2
W3W4W3W4

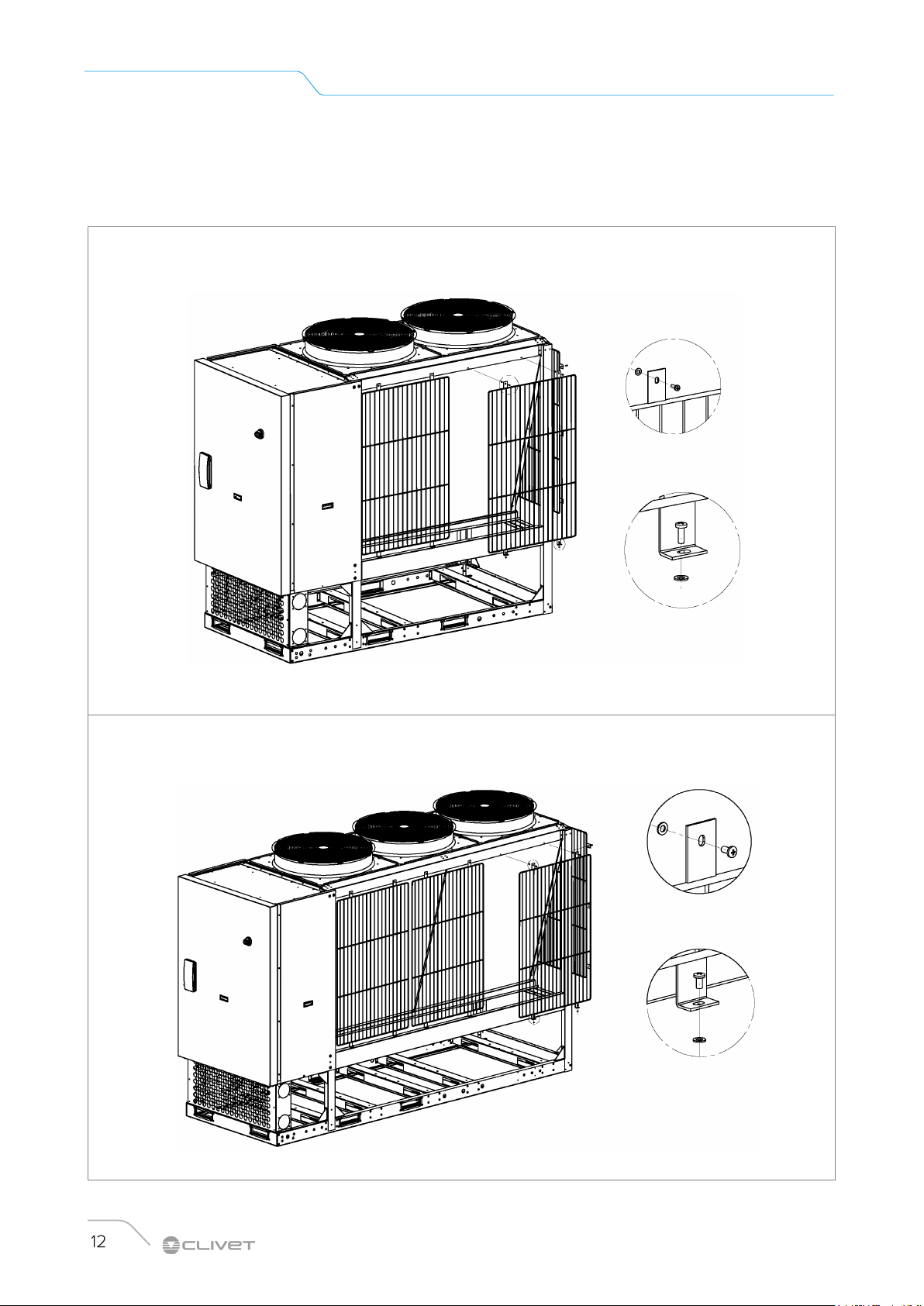

Protection grilles
Option
PESM00007
PESM00008

5 WATER CONNECTION
Water component for corrosion limit on
Copper
PH 7,5 ÷ 9,0
SO4-- < 100
HCO3- / SO4-- > 1
Total Hardness 8 ÷ 15 °f
Cl- < 50 ppm
PO4 3-< 2,0 ppm
NH3< 0,5 ppm
Free Chlorine < 0,5 ppm
Fe3 +< 0,5 ppm
Mn++ < 0,05 ppm
CO2< 50 ppm
H2S< 50 ppb
Temperature < 65 °C
Oxygen content < 0,1 ppm
Sand
10 mg/L
0.1 to 0.7mm max
diameter
Ferrite hydroxide
Fe3O4 (black)
Dose < 7.5 mg/L 50%
of mass
with diameter < 10
µm
Iron oxide Fe2O3
(red)
Dose < 7.5mg/L
Diameter < 1 µm
The warranty does not cover
damages caused by limestone
formations, deposits and impurities
from the water supply and/or from
failure to clean the systems.
Hydraulic system
The pipes must be designed and manufactured to limit pressure
drops as much as possible, i.e. optimise performance of the
system. Keep the following to a minimum:
 overall length
 number of bends
 number of vertical changes of direction
If the unit is to replace an existing unit, clean the system
thoroughly: see Sequence of operations on the following pages
Water quality
The water quality can be checked by qualified personnel.
Water with inadequate characteristics can cause:
 pressure drop increase
 energy efficiency decrease
 corrosive symptom increase
Water features:
 within the limits indicated by table
Provide a water treatment system if values fall outside the limits.
Cleanliness
Before connecting the water to the unit, clean the system
thoroughly with specific products effective to remove residues or
impurities that may affect functioning. Existing systems must be
free from sludge and contaminants and protected against build-
ups.
New systems
In case of new installations, it is essential to wash the entire
installation (with the circulator uninstalled) before commissioning
the central installation. This removes residues of the installation
process (welding, waste, joint products...). The system must then
be filled with clean high-quality tap water.
Existing systems
If a new unit is installed on an existing system, the system must
be rinsed to avoid the presence of particles, sludge and waste.
The system must be drained before installing the new unit. Dirt
can be removed only with a suitable water flow. Each section
must then be washed separately. Particular attention must also be
paid to “blind spots” where a lot of dirt can accumulate due to
the reduced water flow. The system must then be filled with clean
high-quality tap water. If, after rinsing, the quality of the water is
still unsuitable, a few measures must be taken to avoid problems.
An option to remove pollutants is to install a filter.

Water flow-rate
The design water flow-rate must be:
 inside the exchanger operating limits
 guaranteed also with variable system conditions (for example,
in systems where some circuits are bypassed in particular
situations)
If the system capacity is below the minimum flow, bypass the
system as indicated in the diagram.
If the system capacity exceeds the miaximum flow, bypass the
system as indicated in the diagram

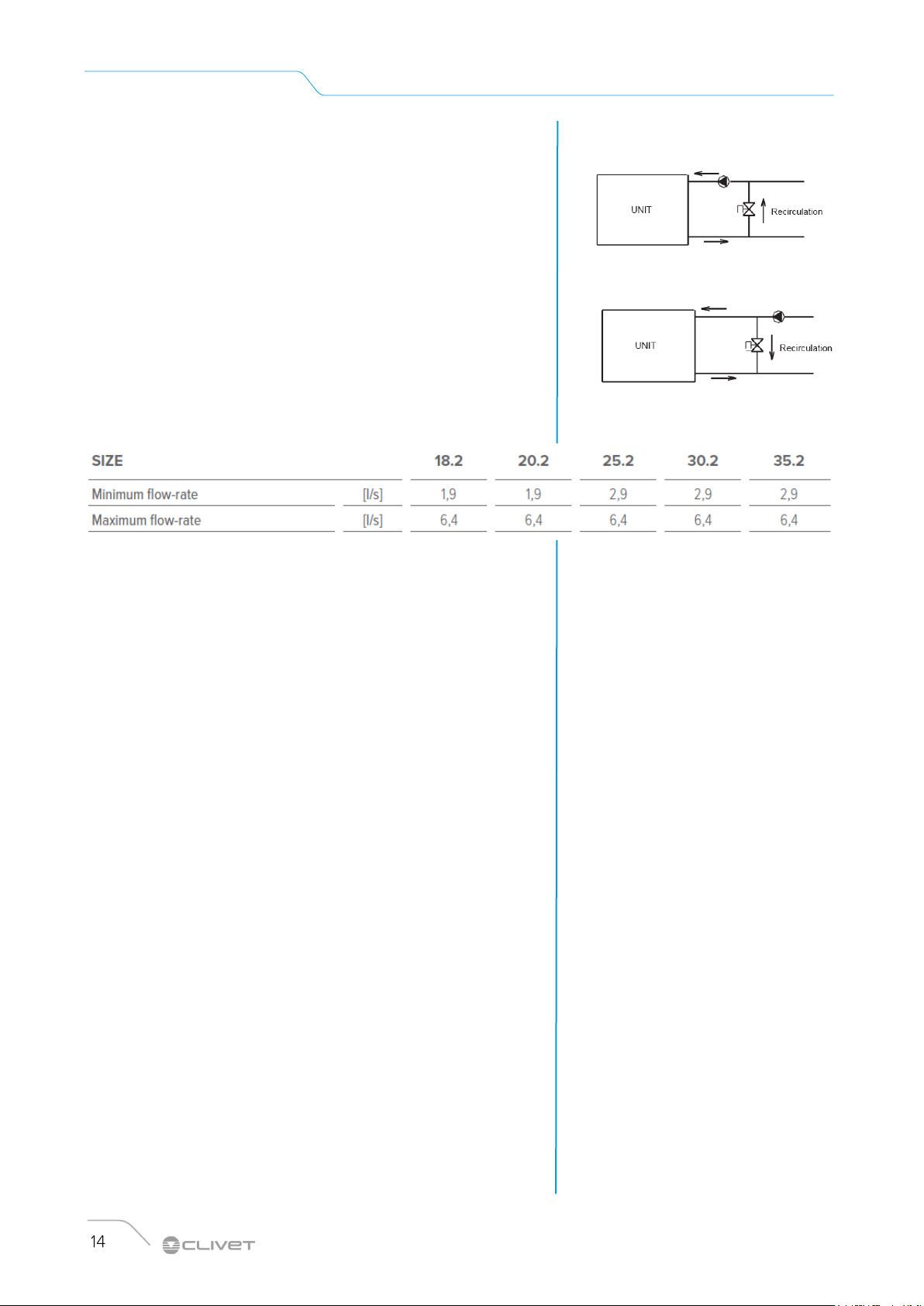

Admissible water flow-rate
Minimum (Qmin) and maximum (Qmax) admissible water flow for
the unit to operate correctly.
Minimum water flow
Maximum water flow

Risk of freeze
If the unit or the relative water connections can be subject to
temperatures close to 0°C:
 Mix water with ethylene glycol, or
 Safeguard the pipes with heating cables placed under the
insulation, or
 Empty the system in cases of long non-use
Anti-freeze solutions
Consider that the use of anti-freeze solution determines an
increase in a pressure drop.
Make sure that the glycol type utilized is inhibited (not
corrosive) and compatible with the hydraulic circuit components.
Do not use different glicol mixture (i.e. ethylic with propylene).
% ETHYLENE GLYCOL BY WEIGHT 5% 10% 15% 20% 25% 30% 35% 40% 45% 50%
Freezing temperature °C -2-3.9 -6.5 -8.9 -11.8 -15.6 -19.0 -23.4 -27.8 -32.7
Safety temperature °C 31-1-4-6-10 -14 -19 -23.8 -29.4
Water filter
 Must be installed immediately in the water input of the unit,
in a position that is easily accessible for cleaning.
 The filter never should be removed, this operation invalidates
the guaranty.
Recommended filter :
0,5 mm (30 mesh)
The unit must always be protected
from freeze.
Otherwise irreversible damage may
occur.

1exchanger
2antifreeze heater
3water temperature probe
4drain
5water flow switch
6vent
7system loading safety pressure switch
8pump
9pressure relief valve
10 storage tank
11 shut-off valves
12 filter
13 flexible couplings
14 piping supports
15 exchanger chemical cleaning bypass
16 system cleaning bypass
User side connection
Standard unit Unit + pump Unit + storage tank

TW Probe - Total water
It must be installed on the supply of the unit, as far away as
possible.
SINGLE UNIT: antifreeze function
MODULAR UNIT: thermoregulation (see diagram below)
Water connections
Standard: Victaulic type
Option: to weld
Operations sequence
Before starting the unit pump:
1Close all vents in the high points of the unit’s water circuit.
2Close all drain shut-off valves in the low points of the unit’s
water circuit
 Exchangers
 Pumps
 collectors
 storage tanks
3Thoroughly wash the system with clean water:
use the bypass to exclude the exchanger from the flow
(diagram on previous page) fill and drain the system several
times.
4Apply additives to prevent corrosion, fouling, formation of
mud and algae.
5Fill the system
do not use the unit pump
6Conduct a leak test.
7Isolate the pipes to avoid heat dispersions and formation of
condensate.
8Leave various service points free (wells, vents, etc).
 Neglecting to wash will lead to the filter having to be cleaned
many times and at worst may damage the exchangers and
compressors.
Taf1
T5
Tw
UNIT
A
filettare –to threadsaldare –to weld
A1 A2
impianto - system
A + B : fornito da Clivet - Clivet supplied
o - or
B
A
UNIT impianto - system
A+B: fornito da Clivet - Clivet supplied
Victaulic

Unit in modular configuration
 Maximum 16 total units.
 Maximum 4 units in the same water branch.
 The modular system is controlled by the MASTER unit
(address=0), → Electrical connections
 All units must be electrically connected to each other con
cavo schermato a 3 conduttori → Electrical connections Each
module must be configured with the water fittings for modular
unit (AMOD).
 Each module can be equipped with inertial system storage
tank (ACIMP).
 It is necessary to provide an external pumping unit, sized for
the entire capacity of the modular system (responsibility of
the Customer). The pumping unit will be managed by the
Master unit through a potential-free contact and 0-10V signal
→ electrical connections
Opon Code
Kit containing pipe closing caps for modular units PESM00001
CCKMUX
Water fittings for modular unit PEST00001
AMODX
12
34

Spacers
Option
A + A , A + B
Togliere le cornici di protezione gialle
per il sollevamento e usare i 4 fori per
fissare il distanziale
Remove yellow lift frame and use holes
to fix spacer
AAB
B
B + B
Usare i 4 fori predisposti
per fissare il distanziale
Use prepared holes
to fix spacer

6 ELECTRICAL CONNECTIONS
The characteristics of the electrical lines must be determined by
specialized personnel able to design electrical installations;
moreover, the lines must be in conformity with regulations in
force.
The protection devices of the unit power line must be able to
stop the presumed short circuit current, whose value must be
determined in function of system features.
The power cables and the protection cable section must be
defined in accordance with the characteristics of the protections
adopted.
All electrical operations should be performed by trained personnel
having the necessary requirements by the regulations in force and
being informed about the risks relevant to these activities.
Operate in compliance with safety regulations in force.
Electrical data
The serial number label reports the unit specific electrical data,
included any electrical accessories.
The electrical data indicated in the technical bulletin and in the
manual refer to the standard unit, accessories excluded.
Refer to the electrical data report on the serial number label:
 Tensione
 F.L.A.: full load ampere, absorbed current at maximum admitted
conditions
 F.L.I.: full load input, full load power input at max. admissible
condition
 Electrical wiring diagram Nr
Connections
refer to the unit electrical diagram (the number of the diagram is
shown on the serial number label).
verify that the network has characteristics conforming to the data
shown on the serial number label.
Before starting work, verify that the sectioning device at the start
of the unit power line is open, blocked and equipped with cartel
warning.
Primarily you have to realize the earthing connection.
Shelter the cables using adequate measure fairleads.
Before power the unit, make sure that all the protections that
were removed during the electrical connection work have been
restored.
