TOTAL NETWORK SOLUTIONS

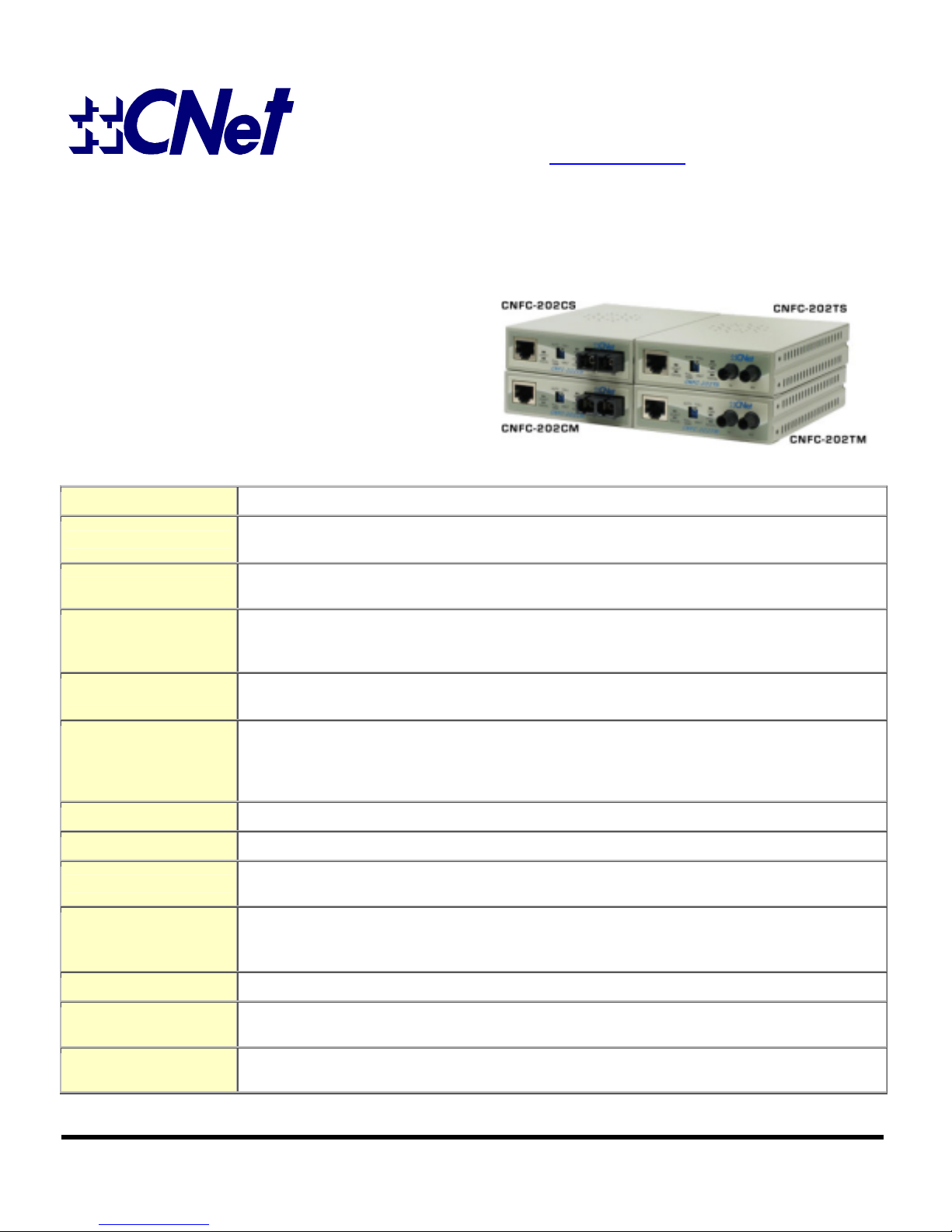

CNFC-202 10/100-TX TO 100-FX CONVERTERS
www.cnetusa.com
CNet media converters are hybrid-networking devices compliant to IEEE 802.3u standard. These products offer an
easy to deploy interconnection between copper and fiber networks. The 6 converters listed below are for copper to
single/multimode fiber cable and SC/ST/MT-RJ types of connectors.
Key Features
•=Operates at maximum packet filtering and
forwarding rate for 100Mbps: 148800pps.
•=Auto-Negotiation Full/Half duplex on TP port.
•=Convert twisted pair media interfaces to fiber
or vice versa.
•=Comply with IEEE 802.3u 100BASE-TX,
100BASE-FX.
•=Interoperable with 100BASE-TX/FX hubs or
switches.
Product Name Ethernet Media Converter
Fiber Mode CNFC-202CS, CNFC-202TS : SINGLE-MODE
CNFC-202CM, CNFC-202TM : MULTI-MODE
Wave Length 1310nm
FX Connector CNFC-202CS, CNFC-202CM : SC type.
CNFC-202TS, CNFC-202TM : ST type.
Fiber Cable* CNFC-202CS, CNFC-202TS : 9/125 µm
CNFC-202CM, CNFC-202TM : 62.5/125 µm
Fiber Length** CNFC-202CM, CNFC-202TM : 2 km
CNFC-202CS : 15 km
CNFC-202TS : 60 km
Full/Half Selector
TP Ports Shielded RJ45
UTP Cable *** CAT 5 UTP cable (100m max.)
LED Indicators Power : PWR (Power ON/OFF)
TP & Fiber: LK/ACT (Link/Activity)
TP & Fiber: FULL (Full/Half)
Power External AC/DC required, 9VDC, 1A
Net Weight 350g
Delay Time 315 nsec
*
Recommended fiber cable

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
** Maximum length for full duplex connection.
*** For RJ-45 port, using CAT 5 UTP or STP.
ORDERING INFORMATION
CNet Model# Description
CNFC-202CS 1 100BASE-TX RJ-45 port and 1 100BASE-FX Single-Mode Fiber SC type port
CNFC-202CM 1 100BASE-TX RJ-45 port and 1 100BASE-FX Multi-Mode Fiber SC type port
CNFC-202TS 1 100BASE-TX RJ-45 port and 1 100BASE-FX Single-Mode Fiber ST type port
CNFC-202TM 1 100BASE-TX RJ-45 port and 1 100BASE-FX Multi-Mode Fiber ST type port
