Cobra Garden Machinery GT3024V User manual

1
MODELS: GT3024V (GT-PS3035D)
Cobra Garden Machinery
Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK
www.cobragarden.co.uk
WARNING
For your ownsafety please read thismanual before attempting to operateyour new unit.
Failure to follow instructions can result in serious personal injury. Spend afew moments
to familiarize yourself with your garden tool before each use. Keep this manual inasafe
place,so that the information isavailable at all times. If you give the equipment to any
other person, hand over these operating instructions and safety regulations as well.

2
CONTENTS
Safety symbols..........................................................................3
Safety precautions ....................................................................3
General Safety ..........................................................................4
Description of the grass trimmer ...............................................7
TechnicalData...........................................................................7
Assembly....................................................
Starting and Operation ............................................................ 13
Maintenance and Care ...13
Troubleshooting ...14
Warranty 14
Disposal.................................................................................. 15
EC-Declaration........................................................................ 16
...........................................................................8

3
1. SYMBOLS
Some of the following symbols used on your tool, please study them and learn their
meaning, proper interpretation of these symbols willallowyou to operate the tool more
safely and effectively.
Caution / Warning!
Doubleinsulation
Read the Instruction
manual! Keep bystanders away
Wear hearing protection
Keep bystanders away
Before any work on the
product pull the power
plug.
Do not expose to rain
Safety precautions
When using the trimmer,the safety instructions mustbe closelyfollowed. Read this
manual carefully before starting the machine. Make sure that you knowhow to stop and
switch offthe motor incaseof an accident.All instructions regarding safety and
maintenance of the machine are for your own safety.
2. GENERALSAFETYRULES
WARNING: Read all safety warningsand all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury. Save all
warnings and instructions for future reference. The term “power tool”in the warnings
refers to your mains-operated (corded) power tool or battery operated (cordless) power
tool.
2.1 WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operatepower toolsin explosive atmospheres,such as in the presence of
flammable liquids gasesor dust. Power tools create sparks which may ignite the dust or
fumes
cKeep children and bystanders away while operating apower tool. Distractionscan
cause you to lose control.

4
2.2 ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.Never modify the plug in any way. Do not use
any adapter plugswith earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
bAvoid body contact with earthed or grounded surfaces, such as pipes,radiators,
ranges and refrigerators.There is an increased riskof electric shock if your body isearthed
or grounded.
cDo not expose power toolsto rain or wet conditions.Water entering apower toolwill
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges and moving parts. Damaged or
entangled cords increase the risk of electric shock
e) When operating apower tool outdoors,use an extension cord suitablefor outdoor use.
Use of a cord suitable for out-door use reduces the risk of electric shock.
f) If operating apower tool in adamp location is unavoidable, use aresidual current device
(RCD) protected supply.Use of an RCD reducesthe risk of electric shock.
2.3 PERSONAL SAFETY
a) Stay alert,watch what you are doing and use common sense when operating apower
tool. Donot use apower tool while you are tired or under the influenceof drugs, alcohol or
medication. Amoment of distraction whileoperating power toolsmay result in serious
person al injury.
b) Usepersonal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack,picking up or carrying the tool. Carrying power tools
with your finger on the switch or energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning the power tool on. Awrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power toolin unexpected situations.
f) Dress appropriately. Do not wear loose clothing or jewelry.Keep your hair, clothing and
glovesaway from moving parts. Loose clothes, jewelryor long haircan be caught in
moving parts.
g) If devicesare provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
2.4 POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer atthe rate for which it was designed.

5
b) Do not usethe power tool ifthe switch does not turn it on and off. Anypower tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idlepower toolsout of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operatethe power tool.Power tools are
dangerous in the handsof untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’soperation.If damaged, have
the power tool repaired before use.Manyaccidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edgesare less likely to bind and are easier to control.
g) Usethe power tool, accessoriesand tool bitsetc. inaccordance with these instructions,
taking into account the working conditions and the workto be performed. Use ofthe power
tool for operationsdifferent from those intended could resultin a hazardous situation.
2.5 BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the manufacturer. Acharger that is suitable
for one type of battery pack may create a risk of fire when used with another battery pack.
b) Usepower tools onlywith specificallydesignated battery packs. Use of any other
battery packs maycreate a risk of injury and fire.
c) When the battery pack isnot inuse, keep it away from other metal objects, like
paper clips, coins, keys,nails, screws or other smallmetal objects, that can make a
connection from one terminal to another.Shorting the battery terminalstogether may
cause burnsor a fire.
d) Under abusive conditions, liquidmay be ejected from the battery; avoid contact.If
contact accidentally occurs, flush with water.If liquid contacts eyes,additionallyseek
medical help. Liquid ejected from the battery may cause irritation or burns.
2.6 SERVICE
Have your power tool serviced by aqualified repair person using only identical
replacementparts. This will ensure that the safety of the power tool is maintained.
2.6.1 Grasstrimmer safety warnings
1. Keep allparts of the body away from the trimmer line. Donot removecut material nor
hold material to be cut when the head is moving. Make sure the switch is offwhen clearing
jammed material.Amomentof distraction while operating the trimmer may result in
serious personal injury.
2. Carry the trimmer by the handle. Proper handling of the trimmer willreducepossible
personal injury from the cutter blades.
3. Holdthe power tool by the insulated grip surfaces onlyto protect against potential

6
electric shock.
2.6.2 Additional safety warnings
1. Thistool is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities,or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the applianceby aperson
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
2. When working with the machine, alwayshold it firmly with both handsand provide for a
secure stance. The power toolis more securely held with both hands.
3. Always ensure all handles and guards are fitted when using the machine. Never at-
tempt to use an incomplete machine or one fitted with an unauthorized modification.
4. Wait until the machine has come to a stand still before placing it down.
5. Do not open the battery. There is adanger of short circuiting. Protect the battery against
heat, also againstcontinuoussun radiation and fire. There is danger of explosion.
6. In the case of damage and improper use of the battery, vapours may be emitted.
Provide fresh air and seek medical helpin this case. The vapourscan irritatethe
respiratory system.
7. When the battery is defective, liquid can escape and come into contact with adjacent
components. Check any parts concerned. Clean such parts or replace them, if required.
8. Use the correctbattery onlyfor the intended power tool. Avoid dangerous overloading
of the battery.
2.6.3 Safety Warnings for battery chargers
1. Keep the battery charger away from rainor moisture. Penetration of water inthe battery
charger increasesthe risk of an electric shock.
2. Do not charge other batteries. The battery charger is suitableonlyfor charging lithium
ion batteries within the listed voltage range. Otherwise there isdanger offire and
explosion.
3. Keep the battery charger clean. Contamination can lead to danger of an electric shock.
4. Before each use, check the battery charger, cable and plug. If damage is detected, do
not use the battery charger. Never open the battery charger yourself. Have repairs per-
formed only by aqualified technician and only using original spare parts. Damaged battery
chargers, cables and plugs increase the risk of an electric shock.
5. Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles,
etc.) or surroundings. The heating of the battery charger during the charging process can
pose a fire hazard.
6. Children should be supervised to ensure that they do not play with the battery charger.

7

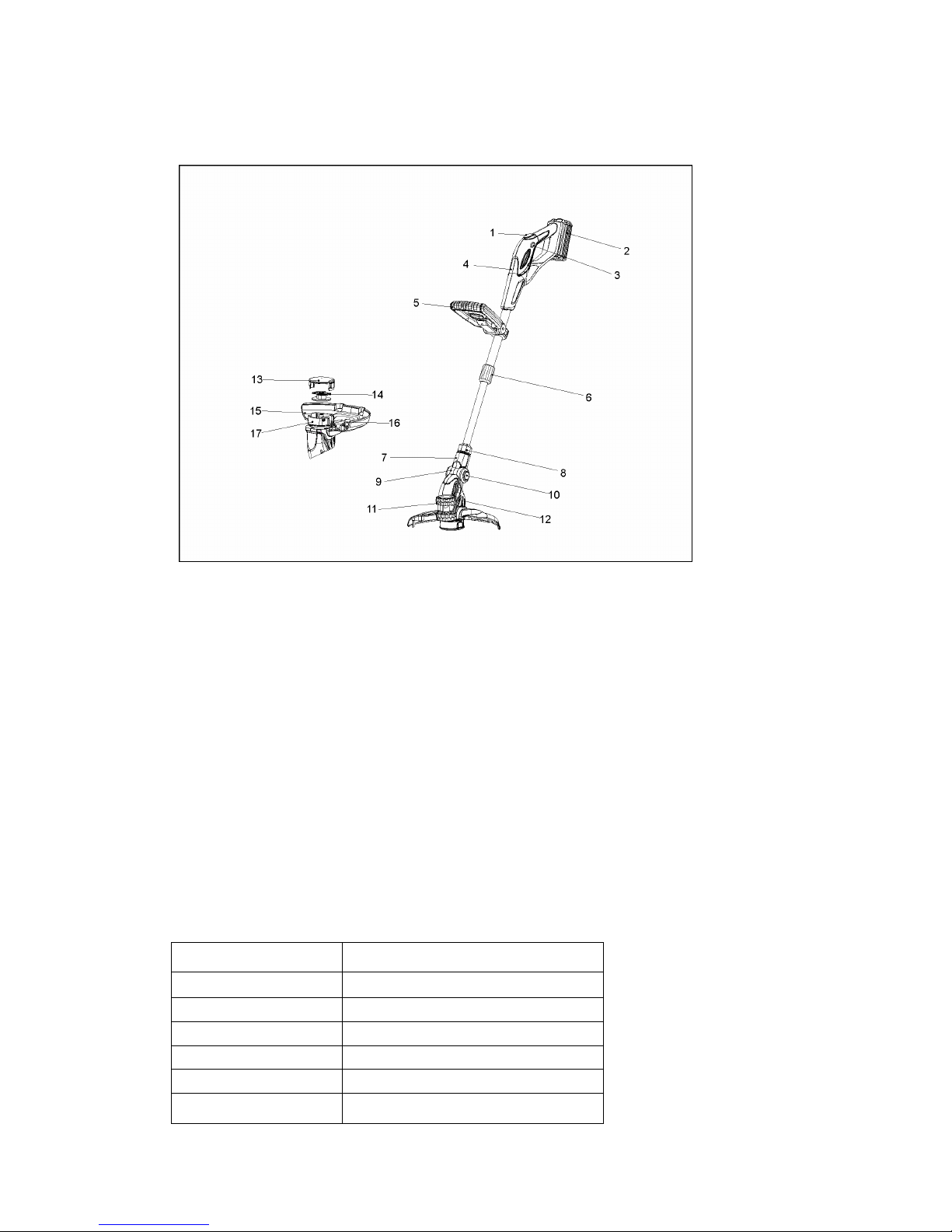

3. GENERALIDENTIFICATION
1
SwitchButton Panel 9
MotorBody
2
Battery
Pack
10
Rota
t
ing
Button
3
L
ock
-
off
S
lider
11
Edging W
heel
4
Handle
Clamshell
12
MiddleMotor
Clamshell
5
Middle
Handle
13
Cutting Head Cap
6
Twist Lock
–
Handle
14
Spool
7
Rotating Lower Section 15
Guard
8
Rotated
C
over
16
Razor
B
lade
–
L
ine
T
rimmer
17
Autofeed Cutting Head
4. TECHNICAL DATA
Model: GT3024V
Nominal voltage 24V
No-load speed n08500/6000Rpm
Weight 2.7（3.5 kg
Cutting width 300 mm
Cutting line diameter 1.6 mm
Battery 24v 2Ah

8
5. ASSEMBLY
WARNING: Switch off and removethe battery from machine before adjusting or
cleaning. The head will continue to move for afraction of asecond after the trimmer is
switched off. Do not touch the moving nylon line or the trimmer head.
5.1 FITTING THE BATTERY
The battery is supplied from the factory partly charged.Before using the tool for the first
time, charge the battery for aminimum 5hours. Thereafter the normal charging time is 2
to 3 hours.
Inserting battery pack
Hold the battery pack with one hand and slide the battery pack underneath the rear handle
as shown above. The battery will firmly locate with a click sound.
Removing battery pack
Release the battery pack by pressing the lock/release button with one hand and pullout
the battery with the other hand.
5.2 BATTERYPRECAUTIONS
1. Never open the battery.
2. Never expose the battery to open fire.
3. Use only an original battery.An alternativel battery can damage the power tool.
4. Rated charge voltage: 100V~240V, 50Hz/60Hz.
5. Use only the original charger, an alternative charger can damage the battery.
6. After long periods of using the power tool,the battery can become warm. Allow it tocool
off before it is charged again.
7. Keep both charger and battery away from children.
8. Store the battery below 40°and above 10°C.
9. Never short-circuit the polesof the battery.

9
10. Donot use the charger inan environment where there are toxic fumes or flammable
liquids.
11. Only use the charger indoors.
Start charging the battery for aminimum of 5hours before using the machine the first time.
Thereafter the normal charging time is approximately 2 to 3 hours.
The batterywill stop charging when it isfull. But it isrecommended to disconnectthe
charger once charged.The battery may be charged atany point,even if it is not
completely empty.
During charging, the red LED indicator on the charger will flash. When the battery is full
the LED will stay illuminated. When charging, the surface of the battery will be warm. This
is perfectly normal.Store the battery fully charged.
Important
Toprotect the batteryagainst deep discharging, when the batterycharge is low,the
garden power toolwill automatically switch offvia aprotective circuit.The trimmer will stop.
Do not continue to pressthe on/offswitch after an automatic shut-offof thetrimmer.The
battery may be damaged if excessively discharged. Recharge the battery before
continuing to use the grass trimmer.
5.3 FITTING THE GUARD
Insert the locating support of the guard intothe trimmer head as shown infigure1 above,
carefully push the guard down,see figure 2, so that it locks in place.

10

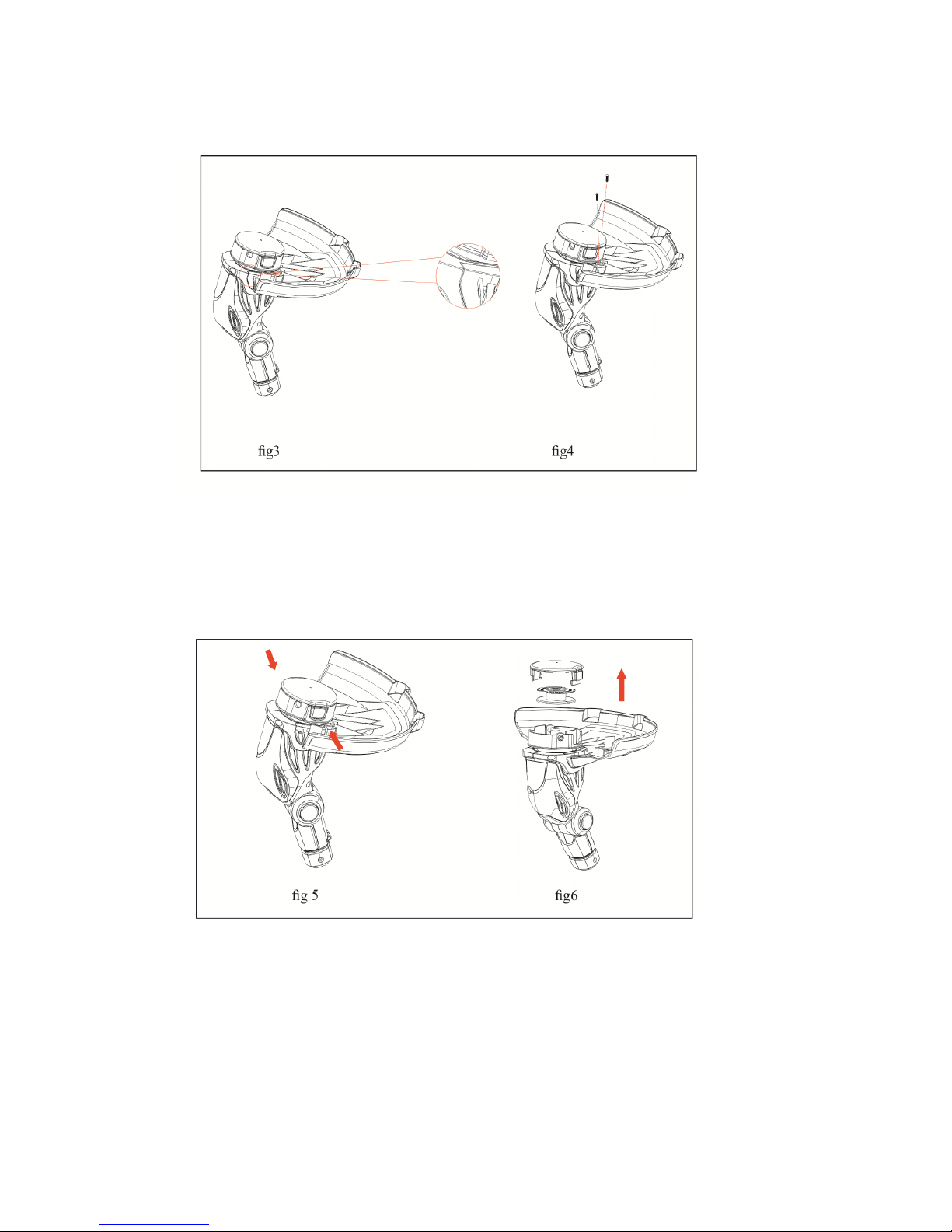

Ensure the guard is positioned as shown in figure 3, then proceed to fix the screwsin
place as illustrated below in figure 4.
5.4 FITTING THE SPOOL
To remove the spool and replace the nylon line:Firstlypressthe two tabs on the side of
the trimmer head,figure 5. Removing the head cover allowsaccess to the spool. The
spool may be replaced entirelyor alternatively 1.6mm nylon line may be rewound ontothe
spool.Ensure the line passes through the eyelets of the head correctly.

11
5.5 FITTING THE EDGING WHEEL
The lawn edging wheel issimply push fitted into place,with a firm locking mechanism.
5.6 ADJUSTING THE HANDLE POSITION
The middlesupport handle position may be adjusted by pulling the lever ‘F’as illustrated
in figure 7. Releasing the lever locks the handle in position.

12
5.7 CHANGING THE TRIMMER HEIGHT
The height of the trimmer may be adjusted by turning the central tube lock anti-clockwise
to allow the tube to be extended or shortened as required. Turn the lock clockwise to lock
the position in place.
5.8 CHANGING THE TRIMMER HEAD POSITION
The trimmer head anglemay be adjusted by pressing the head rotation button, as shown
in figure 12. The rotation collar mounted on the trimmer shaft, allowsthe trimmer head to
be rotated for lawn edging. See figure 13.

13
6. STARTING AND OPERATING INSTRUCTIONS
Step 1：Firstly press the power key until the “ECO”light is illuminated；
Step 2：Press the slider switch in and then engage the handletrigger,the motor will
operate at a low speed；
Step 3：If youwantto change from the low speed position to high speed position，press the
“TURBO”button. The trimmer will now operate athigh speed.
To switch back to the slower speed press the “ECO”button.
The trimmer is equipped with atwo safety switch system. Toengage the motor,firstly
press the lock slider and then squeeze the main handletrigger.Releasing the trigger
stops the motor.
7. MAINTENANCE AND CARE
WARNING: Switch off and remove the battery from the machine before adjusting or
cleaning. For safe and proper working, always keep the garden product clean.
Note: To ensure long and reliable service, carryout the following maintenance regularly.
1. If the garden product shouldhappen to fail despite the care taken in manufacture and
testing, repair should be carried outby an authorized customer service agentfor Cobra
products.
2. Use only manufacturer’s recommended replacementparts and accessories
WARNING: Switchthe machine offand removethe battery. Ensure the battery is
removed before storage.
1. Clean the exterior of the machine thoroughly using asoft brush and cloth. Do not use
water,solvents or polishes. Removeall debris, especially from the ventilation slots of the
motor.
2. Clear the nylon line cutting head assemblyof grassand other debristhat may

14
accumulate.
3. Store the trimmer inasecure, dry place out of the reach ofchildren. Donot place other
objects on top of the machine.
4. The battery should be stored between 0 °C and 50 °C.
8. TROUBLESHOOTING
The following chart lists problem symptoms, possiblecauses and correctiveaction, if your
garden product does notoperate properly. If these do not identify and correct the problem,
contact your service agent.
WARNING: Switch off and remove the battery prior to any troubleshooting.
Error Reason Solution
Line will not
advance
when
tapping the bump
feed button
1.Line is welded to
itself
2.Not enough line on
the spool
3.Line is worn too short
1. Lubricate with
a silicone
spray
2. Install more line
(refer to replacing
the cutting line
earlier in this
manual)
3. Pull lines while
alternately
pressing down on
and releasing
bump button.
Bump head is hard
to use
Grasswrapped or built
up around head
Clean affected parts of
the machine
Grasswraps around
the attachment shaft
and the trimmer head
assembly
Cutting verytall
grass at ground
level
Cut tall grass from
the top down
9. WARRANTY
This productis warranted in accordance with legal regulations for a24 month period
effective from the date of purchase by the first user.
This productwill not be covered if used in a commercial application.
This warranty covers all material or production failures, it does not include:defectsfrom
normal wear and tear,partssuch as, bearings, brushes, cables, air cleaning elements,
brake pad, clutch disc, tyre, wheel, recoil starter rope, belts, cutter blades, plugs, lubricant

15
oils and grease or accessories. Damage or defectsresulting from abuse, accidentsor
alterations, natural fading of painted or plated surfaces, sheet peeling and other natural
deterioration.
Any damage that occurs from the use of non-genuine Cobra parts will not be covered.
Wereserve the right to reject any claim where the purchase cannot be verified or when it
is clear that the product was not maintained properly.(Clean ventilation slots, carbon
brushes and serviced regularly)
Expenses incidental to the warranty claim that are not covered;
-Compensation for loss of time, commercial loss or rental costs of substitute product.
-Costsincurred for transportation to and from the dealership.
Any damage that occurs from the following will not be covered; exposure of the product to
smokeand soot, chemical agents, bird droppings or other animal waste, seawater,sea
breeze, salt or other environmental phenomena.
Any damage resulting from operating methods other than those indicated in the owner’s
manual will not be covered.
Your purchase receipt must be kept as proof for date of purchase. Your un-dismantled
product must be returned to your dealer in an acceptably clean state, accompanied by
your proof ofpurchase.
Please Register Your Product:
If your dealer did not collect registration information from you, please take afew minutes
and register your purchase with Cobra.
You can register by completing and mailing the registration card that should be in the box
or by going online to: www.cobragarden.co.uk and clicking on Product Registration.
Before using the product, all operators must read this manual
10. ENVIRONMENTALLY FRIENDLY DISPOSAL
According toEU directive 2012/19/EU on electric and electronic equipment
and itsimplementation into national law, allelectric toolsmustbe separately
collected and environmentally friendlyrecycled. Alternative disposal: If the
owner of the power tooldoes not return the tool to the manufacturer, he is
responsible for proper disposalat adesignated collection point that prepares
the device for recycling according to national recycling laws and regulations.
This does not include accessories and tools without electric or electronic components.

16
11. EC-DECLARATION OF CONFORMITY
We herewith declare, Cobra Garden Machinery, Henton & Chattell Ltd,
London Road, Nottingham NG2 3HW UK
That the following machine complies with the appropriate basic safety and health
requirementsof the EC Directive based on its design and type, asbrought into circulation
by us.
In case of alteration of the machine,not agreed upon by us, this declaration will lose its
validity
Product Cordless Grass Trimmer
Machine Type: GT5024V (GT-S3035D)
Rated voltage 24V d.c
Cutting length: 300mm
Measured sound power level:95.4dB(A)
Guaranteed sound power
level:
96dB(A);
Notified Body for EC Directive 2000/14/EC:0036
Intertek Testing Services Shanghai, Building no. 86,
1198 Quinzhou Road (North) Shanghai.
Applicable EC Directives: EC Directive of Electromagnetic Compatibility
2014/30/EU
EC Machinery Directive 2006/42/EC
EC Directive of noise emission 2000/14/EC
Applicable Harmonized
Standards:
EN 60745-1 EN 60745-2-15
EN 55014-1 EN 55014-2
Authorized Signature/Date/
Place:
Peter J. Chaloner 23-12-2015
Title of Signatory: Managing Director
Name and address of the
person authorized to compile
the technical file
Cobra Garden Machinery, Henton & Chattell Ltd,
London Road, Nottingham NG2 3HW UK
