Operating Instructions
for your Cobra CP-9105
Private Call®900
900 MHz
Cordless
Telephone
CP9105 manual layout.8 10/14/98 9:27 AM Page 1

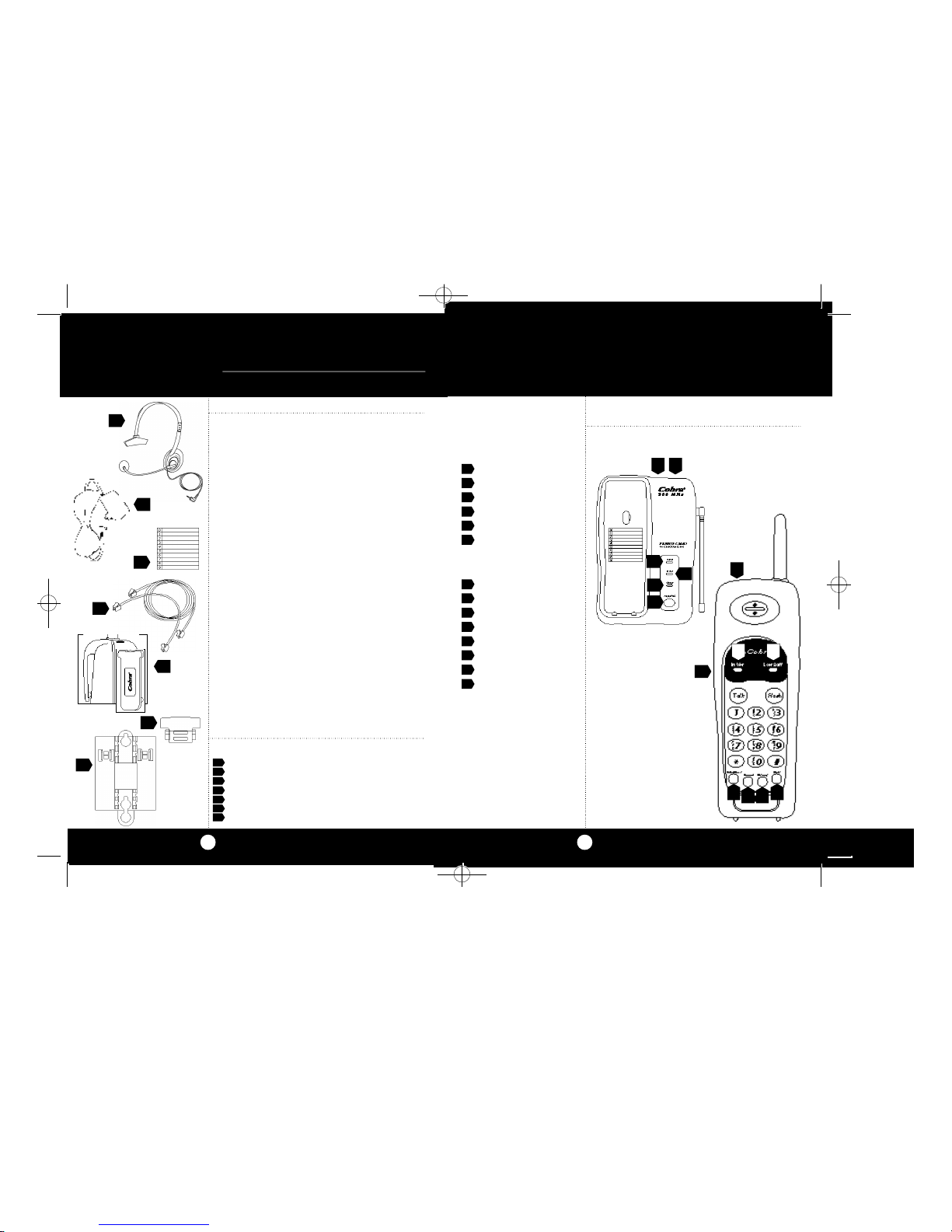

Controls and Indicators
11 1310 12
A2
Base:
1. Power Indicator
2. In Use Indicator
3. Charge Indicator
4. Page/Find Button
5. Tone/Pulse Switch
6. Ringer - On/Off Switch
Handset:
7. In Use Indicator
8. Low Battery Indicator
9. Volume - High/Low
10. Redial/Pause Button
11. Channel Button
12. Memory Button
13. Mute Button
14. Headset Jack
12
4
3
RegisteredwithTheFCC
Pleasenote: Thiscordless phoneoperatesunderpart 15and part 68 of FCC rules.
Operationis subject totwo conditions:
1.It may notinterferewithradio communications,and2.It mustaccept any interference
received,including that whichmaycauseundesirableoperation. See the Operational
Features section of this manual for ways to reduce interference.
Changesormodifications not expressly approved bythe party responsible for compliance
couldvoidthe user’s authoritytooperate this equipment.
NOTE:This equipmenthas been tested and foundto comply with thelimitsfor aClassB
digital device,pursuant to Part 15of theFCCRules.Thelimitsaredesignedto provide rea-
sonableprotection againstharmful interferencein a residentialinstallation.Thisequip-
ment generates,usesandcanradiateradio frequencyenergy and,ifnot installed andused
in accordancewiththe instructions,maycauseharmfulinterferenceto radiocommunica-
tions.However,there is no guaranteethatinterference willnotoccur ina particularinstalla-
tion.If this equipment does causeharmfulinterferenceto radioor televisionreception,
which can be determined by turning the equipment off and on,the user is encouraged to
trytocorrect the interference by one ofthe followingmeasures:
- Reorient or relocatethereceiving antenna.
-Increasetheseparationbetweentheequipmentandreceiver.
- Connect theequipment into an outlet ona circuit different
fromthat towhich the receiverisconnected.
-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Yourtelephonecompany is required by the Federal Communications Commissionto allow
you toconnectFCCregistered telephones to their lines.
TheFCCrequires you to provide information,ifrequested by thelocaltelephone company,
aboutthe connectionofanFCCregisteredtelephonetotheirlines. They may askyou for
theFCCregistrationnumberand ringer equivalence number (REN),both of whichare on
thebottom ofthe base. They may also askfor the UniversalService OrderCode(USOC)
number which is RJ-11C. It is illegalto use this phoneon a partyline orto
connectittoa coin-operatedtelephone.
TheREN is used todeterminethequantity of devices you may connectto thetelephone
line.Excessive RENson thetelephone line mayresult inthe devices not ringing in response
to an incomingcall.In most areas the sum of RENs shouldnot exceed5.0.Tobe sure,con-
tactthelocaltelephonecompany.
If yourequipmentcauses harmto thetelephone network,the telephonecompanywill
notify you in advance(if possible) of a temporarydiscontinuance of service.Also,youwill
beadvised of your rightto file a complaintwiththe FCC.
The telephone company may make changesin it’s facilities, equipment orprocedures that
couldaffect theoperation of your equipment.The telephone companywillprovide
advancenoticeto help you maintain uninterruptedservice.
FCC Information
Included Accessories
A1
What’s Included with Your CP-9105
1. Headset
2. AC/DC Power Adapter
3. Memory Label
4. Line Cords (6”and 6’)
5. Belt Clip
6. Belt Clip Slot Cover
7. Wall Mount Bracket
3
1
2
5
4
6
7
9
87
14
5 6
CP9105 manual layout.8 10/14/98 9:27 AM Page 3

How to Use Your Cobra
CP-9105 900 MHz
CordlessTelephone
Contents
Features............................................................................1
FCC Information/Included Accessories.................A1
Controls & Indicators...................................................A2
Our Thanks toYou........................................................A3
Customer Support
Important Safety Instructions..................................2,3
Installation
Quick Set-Up Guide.................................................3
Wall Mounting Instructions..................................6
Operating Your CP-9105
Answering/Placing Calls from Base...................8
Answering/Placing Calls Away from Base.......10
Battery Saver..............................................................11
Mute Button...............................................................11
Channel Selection....................................................12
Flash..............................................................................13
Secur-Loc™...................................................................13
Volume.........................................................................14
Hearing Aid Compatibility ....................................14
Last Number Redial.................................................15
Memory Number Storage.....................................16
Memory Number Recall.........................................18
Page/Find....................................................................19
Ringer Switch.............................................................20
Handset Battery Information...............................20
Private Call™Scrambling.........................................22
Tone/Pulse...................................................................22
Replacing Handset Battery...................................22
Disposal of The Battery ..........................................23

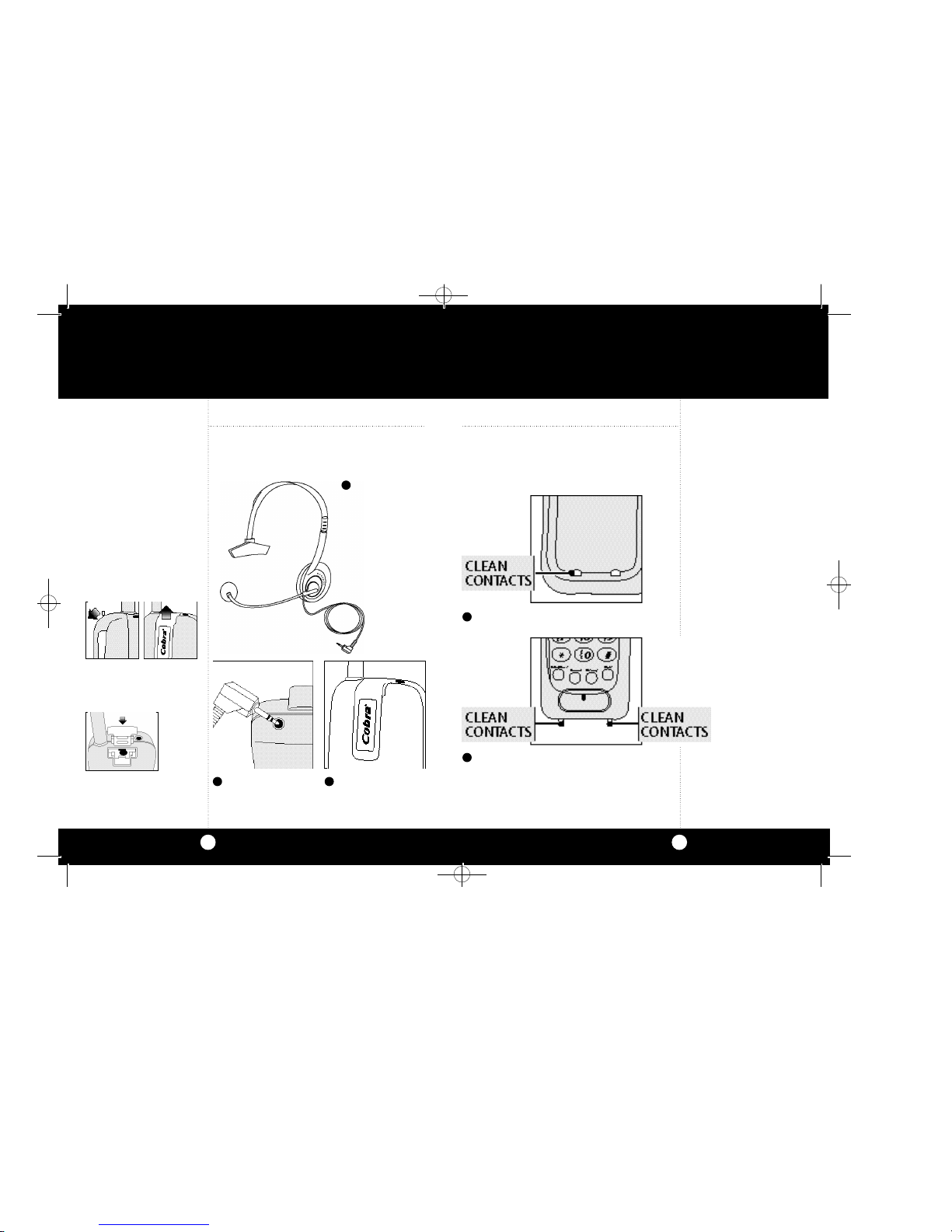

Headset Operation/Belt Clip/Slot Cover..........24
Cleaning The Charging Contacts........................25
Troubleshooting............................................................26
Frequently Asked Questions.....................................27
Limited One-YearWarranty.......................................31
Accessories and Order Form.....................................32
If You ThinkYou Need Service.................Back Cover
Features of This Product
• Headset for Hands Free Operation
• Private Call®Voice Scrambling -
Base and Handset
• 900 MHz Extended Range
• Detachable Belt Clip
• 30 Channel Autoscan
• Clear Call® PLUS Compander
• Ten (10) Number Memory
• Handset Volume Control
• Page/Find
• Mute Button
• Fourteen (14) Day Stand-By
• Wall Mountable
• Last Number Redial
• Hearing Aid Compatible
• Auto Answer
• Auto Stand-By
• Audible Battery Low Indicator
• Replaceable Handset Battery
• Tone/Pulse Switch on Base
• Secur-Loc™ 65,000 Security Codes
1
Cobra Customer Service
Live operators are available
M-F 8:00 am - 8:00 pm CST at:
773.889.3087
AutomatedTechnical
Assistance available 24 hours
a day,seven days a week.
Email questions to:
[email protected]
Cobra on the World Wide Web:
Frequently Asked Questions
(FAQ) can be found on-line at:
www.cobraelec.com
Our Thanks to You
Thank you for purchasing the Cobra CP-9105
cordless phone. Properly used,this Cobra prod-
uct will give you many years of reliable service.
Customer Support
Should you encounter any problems with the
product or not understand its many features,
please refer to this owner’s manual. If,after
referring to the manual, you still need help,
call Cobra Customer Service at 773.889.3087.
A3
CP9105 manual layout.8 10/14/98 9:27 AM Page 5

Connect round
connector into
power jack on base.
Connect power
adapter in outlet.
InstallationImportant Safety Instructions

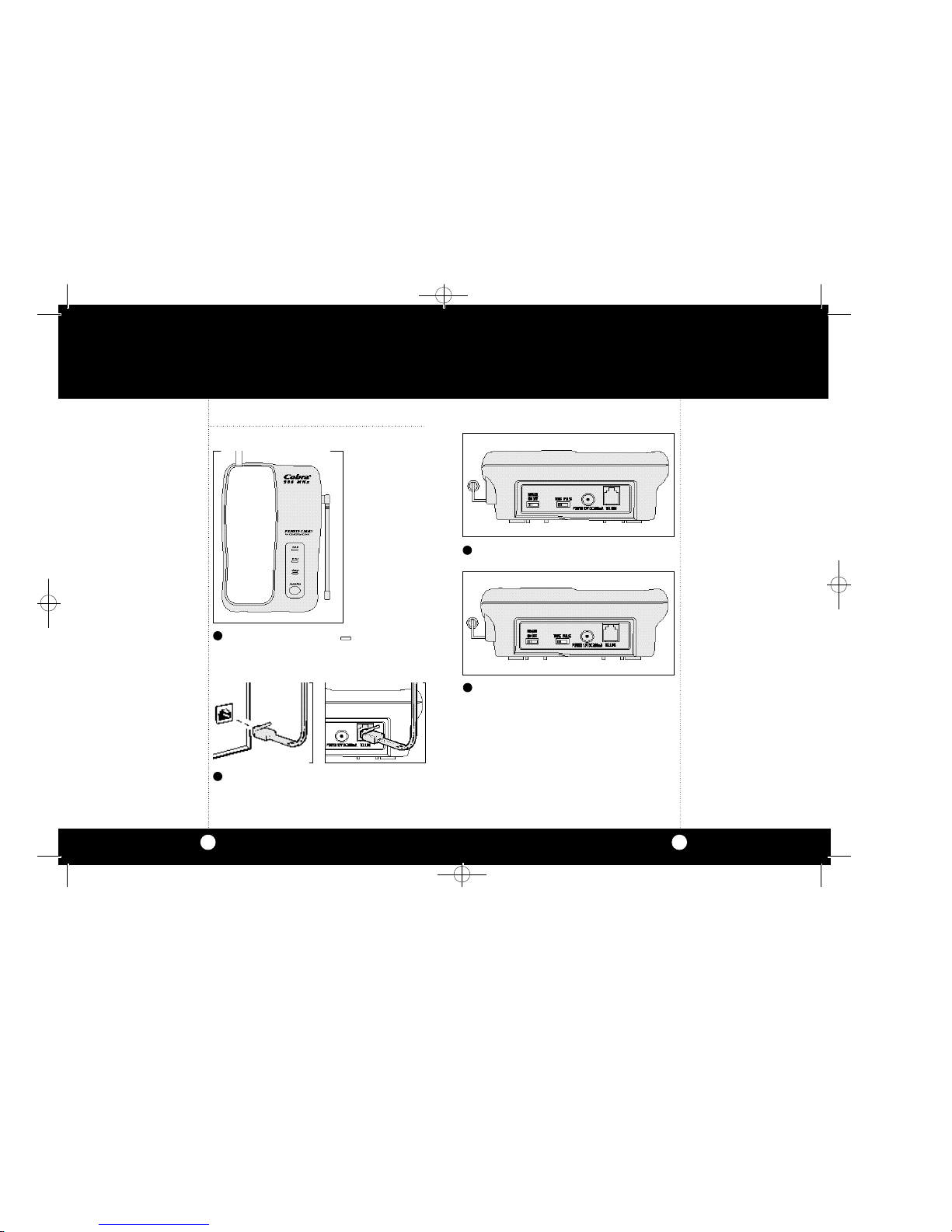

Quick Set-Up
Guide
32
Quick Set-Up Guide
2 3
continued on next page
Note
The battery must be charged
at least 12 hours before use.
Replacement batteries are
available direct from Cobra.
See Accessories section on
page 32.

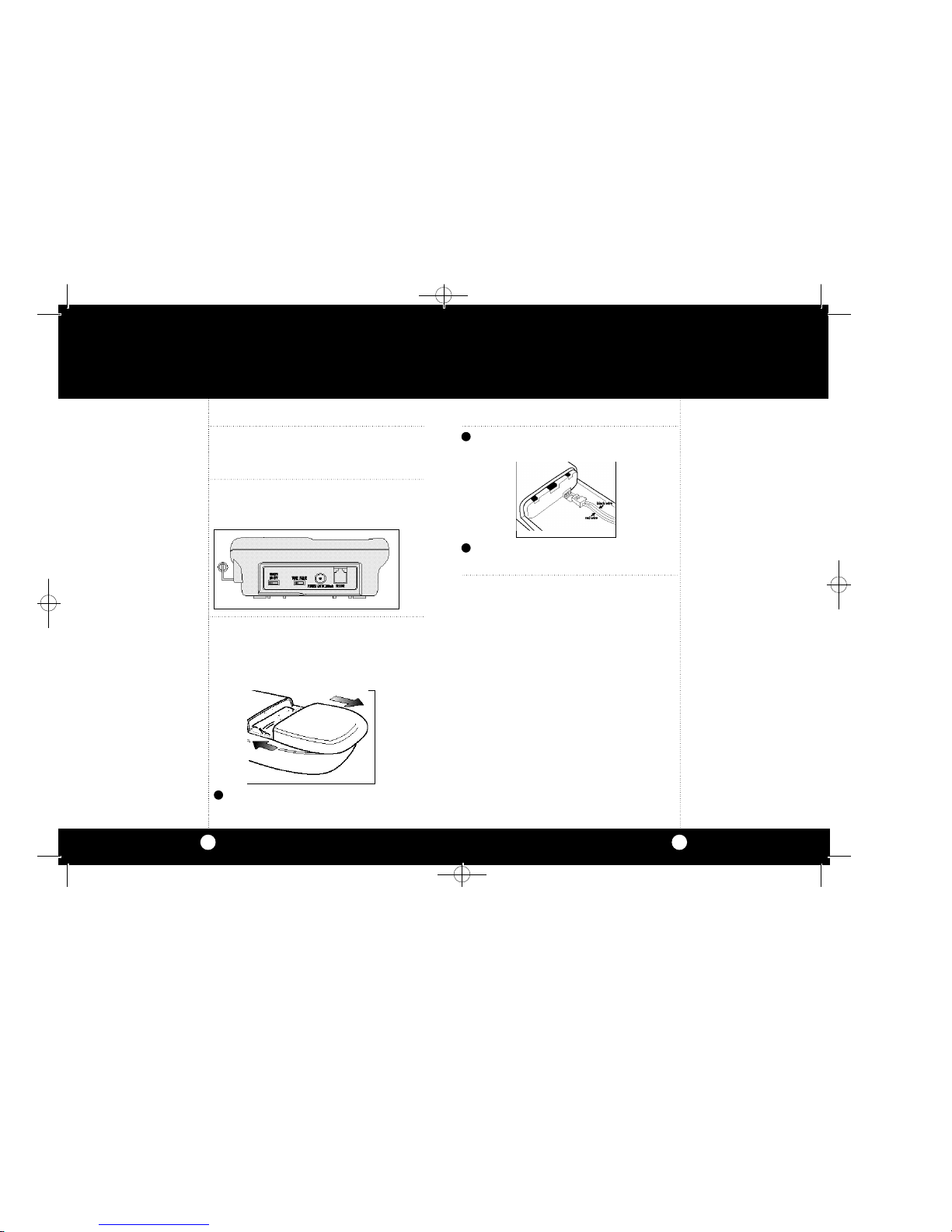

Install Ni-Cad battery in the handset.
To remove the battery door, press and slide
downward.
Observe connection orientation, connect the
battery and replace the door. The LOW
BATTERY indicator will blink until the handset
is placed in the base and power is applied to
the base.
1
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
4. Do not locate base unit near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement or
near a swimming pool.
5. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the bottom or back are provided for ventilation, to protect it from overheating; these open-
ings must not be blocked or covered. The openings should never be blocked by placing the product in the bed, sofa, rug or other
similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed
in a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking
on it.
9. Do not overload outlets and extension cords as this can result in the risk of fire or electric shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out
parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to qualified servicemen when service or repair
work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
12. Avoid using telephones (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from
lightning.
13. Do not use the telephone to report a gas leak in the vicinity of the leak.
14. Unplug this product from the outlet and refer servicing to qualified service personnel under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered
by the operating instructions because improper adjustment of other controls may result in damage and will often require exten-
sive work by a qualified technician to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
15. Never install telephone wiring during a lightning storm.
16. Never install telephone jacks in wet locations unless jack is specifically designed for wet locations.
17. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these instructions:
A. Use only the battery pack supplied with the unit or identical replacement.
B. Do not dispose of battery pack in a fire. The cells may explode. Check with local codes for possible disposal instruction.
C. Since released electrolyte is corrosive and may cause damage to eyes or skin and may be toxic if swallowed:
C1. Do not open or mutilate battery pack.
C2. Always replace the entire battery pack rather than reusing one or more cells.
C3. Do not expose batteries to heat or flame.
D. Exercise care in handling the battery pack in order not to “short” the battery contacts with conducting materials such as rings,
bracelets, and keys. The battery or conductor may overheat and cause burns.
Save These Instructions
Important Safety Instructions
(continued)
CAUTION (continued):
E. Charge the battery provided with or identified for use with this product only in accordance with the instructions and lim-
itations specified in this manual.
F. Observe proper polarity orientation between the battery and battery charger.
CP9105 manual layout.8 10/14/98 9:27 AM Page 7

Turn on RINGER switch.
Plug phone cord into wall jack and base
of phone.
InstallationInstallation
Quick Set-Up Guide continued
5
Quick Set-Up
Guide
4
Switch TONE/PULSE on base for proper
operation.
For tone dialing-switch TONE/PULSE on
base to TONE.
For pulse dialing-switch TONE/PULSE on
base to PULSE.
5
7
6
Place handset on base so CHARGE
indicator lights.
Note
Charge batteries for 12 hours
before first use.
4Charge
CP9105 manual layout.8 10/14/98 9:27 AM Page 9

Plug phone cord into wall jack.
Slide base down on wall plate.
Slide wall mount bracket onto base.
Plug 6”phone cord into jack on rear of base.

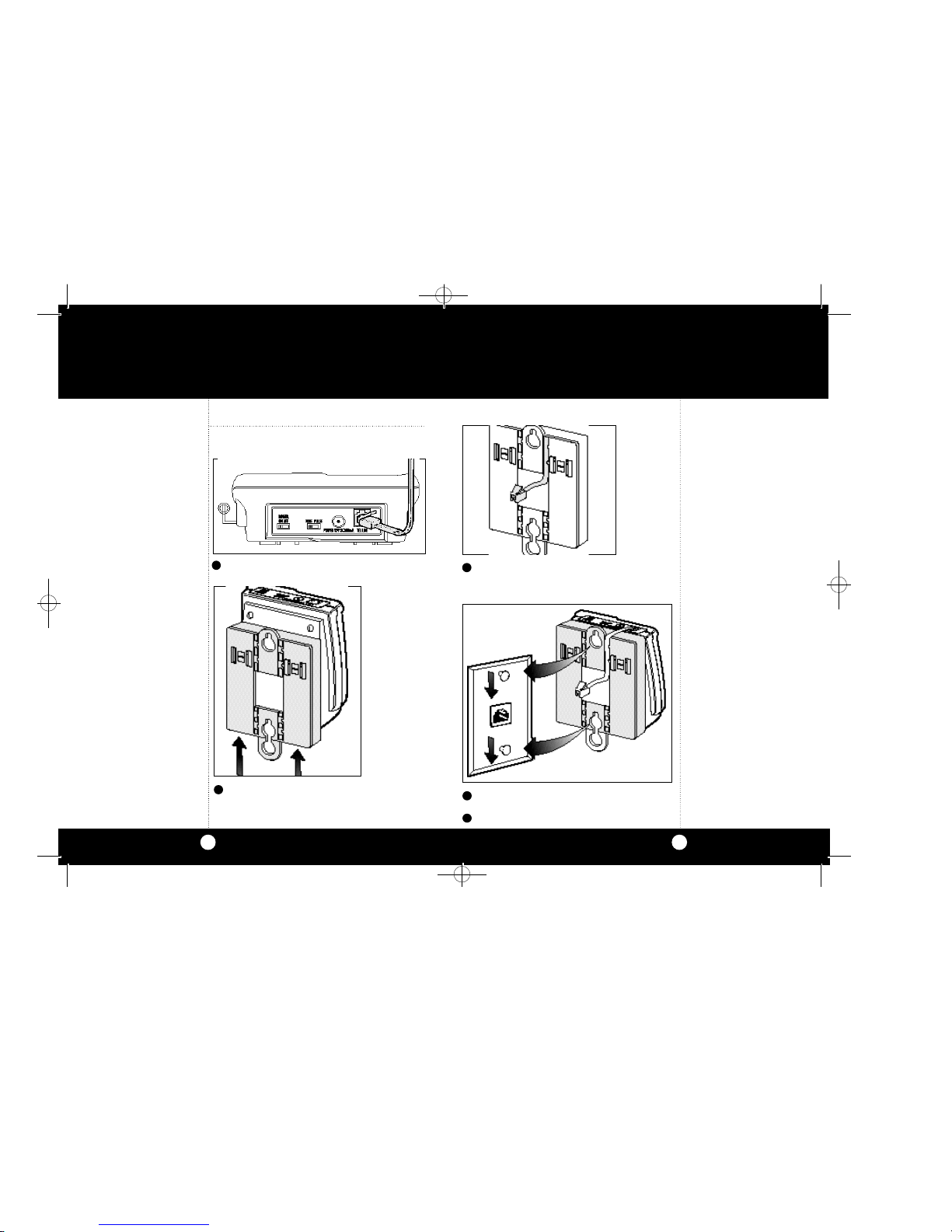

InstallationInstallation
Wall Mounting Instructions
76
Wall Mounting
Instructions
Note
If you do not have a wall
mount,contact your local
phone company for installa-
tion of phone line and wall
mount.
Thread cord through slot inwall mountbracket.
13
24
5
CP9105 manual layout.8 10/14/98 9:27 AM Page 11

OperationOperation

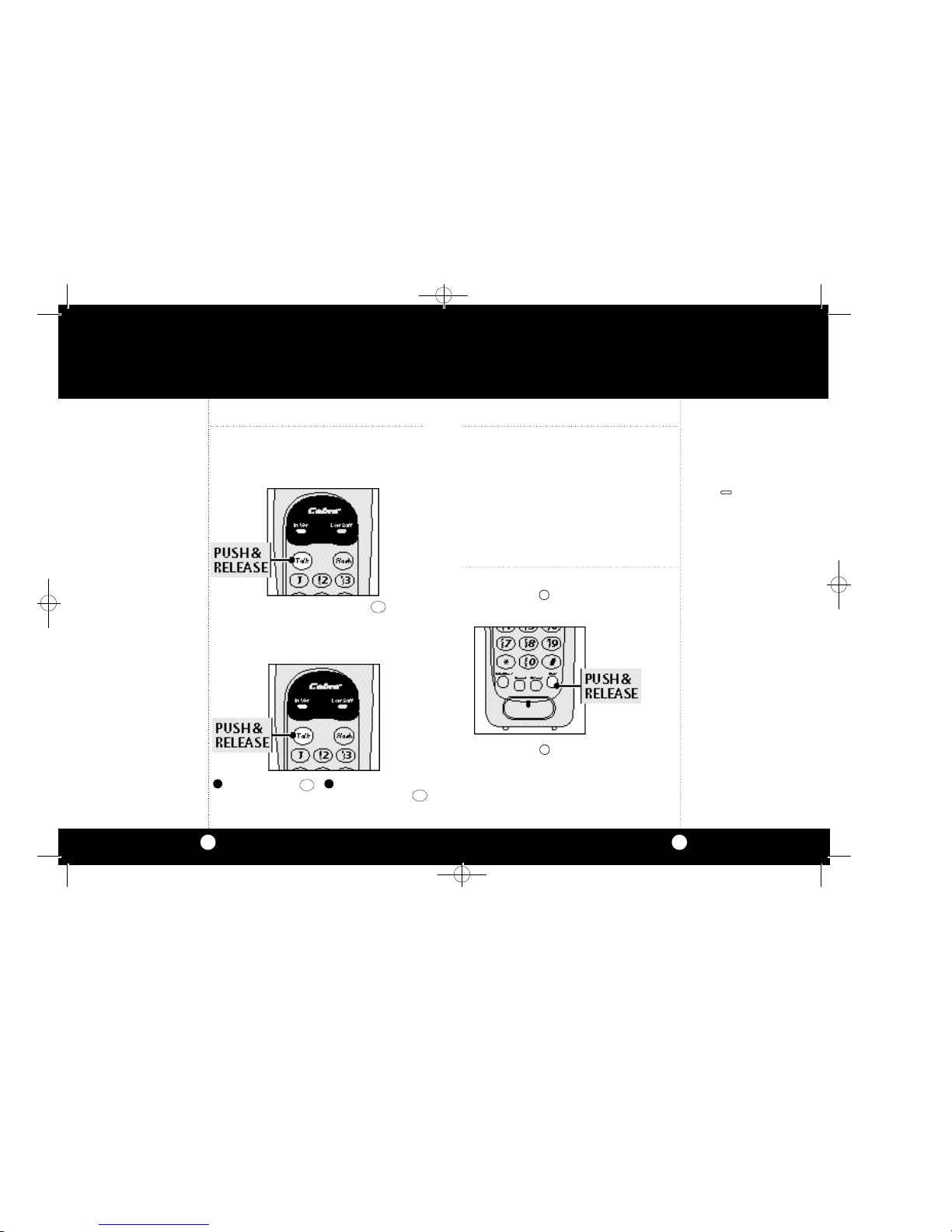

Answering And Placing Calls When The
Handset Is On The Base
To answer a call:
98
Answering And
Placing Calls
When The
Handset Is
On The Base
When call is completed:
Pick up handset,Push and release TALK but-
ton.
Wait for dial tone and place your call.
Return handset
to base.
Phone automati-
callydisconnects.
To place a call:
Pick up handset.
Just talk.
Note
When placing or answering a
call,the IN USE Indicator
will come on. It will blink
while the connection is being
made and will stay on during
the call.
Note
Use the STAR button to
temporarily change from
PULSE to TONE dialing.
Talk
*
CP9105 manual layout.8 10/14/98 9:27 AM Page 13

When completed,
push and release
TALKbutton again.
Push and release
TALK button, wait
for dial tone and
place call.
OperationOperation

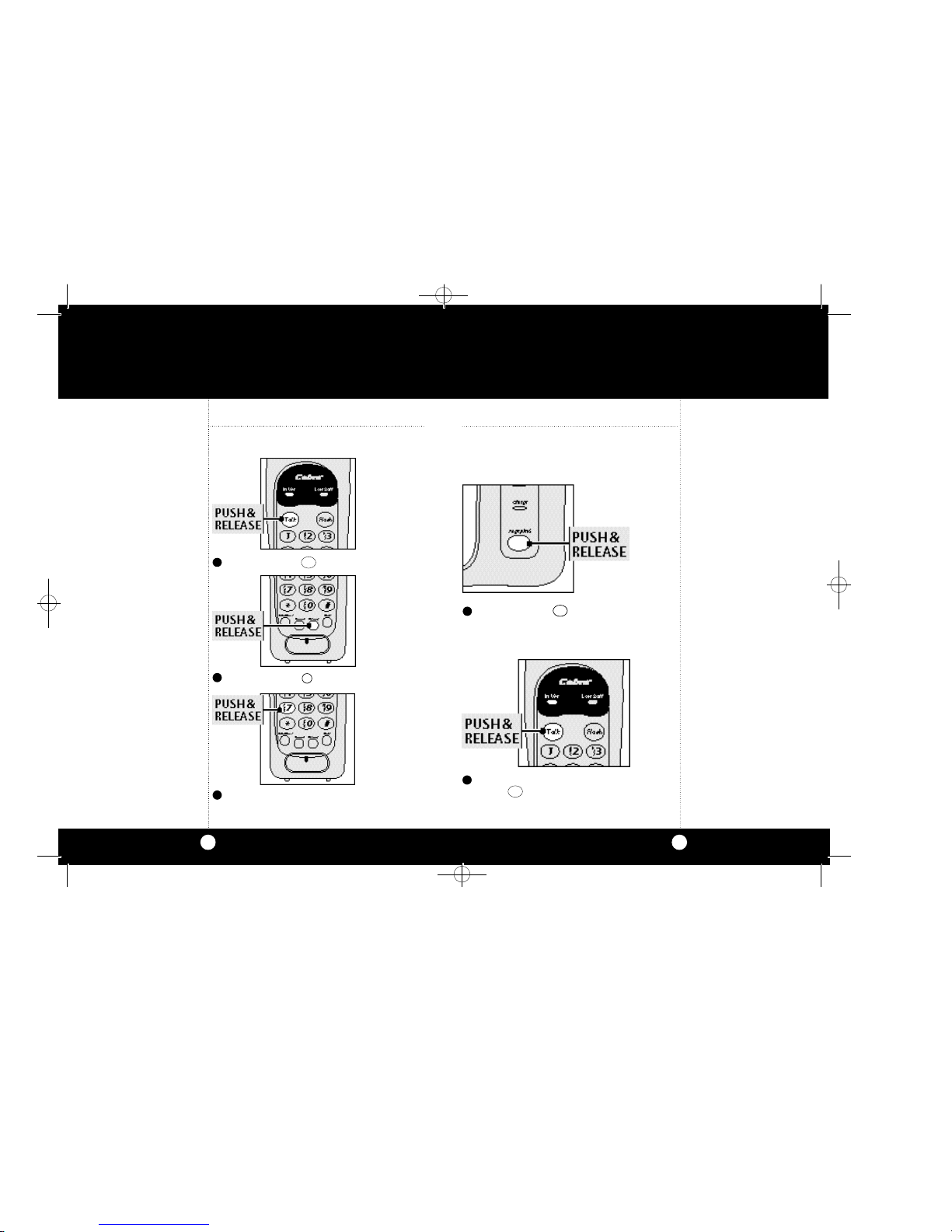

Answering And Placing CallsWhen Handset Is
Away From Base
To answer a call:
11
Answering And
Placing Calls
When Handset Is
Away From Base
10
Battery Saver
Handset may,in “off” position,remain away from
base for up to fourteen days.
Duration of battery charge depends upon actual
use of phone.
Battery Saver
1 2
To place a call:
Note
Warning beep tone will sound
and the Low BATT
Indicator will flash when the
handset needs recharging.
Mute Button
Push and release MUTEbutton to temporarily
prevent the other party from hearing you.
Mute Button
Press and release MUTE button again to
reconnect the microphone.
Talk
Talk
When phone rings, push and release
TALK button to receive calls. Talk
Low Batt
Mute
Mute
CP9105 manual layout.8 10/14/98 9:27 AM Page 15

OperationOperation
13
Channel
Selection
12
Channel Selection
Should you experience interference: Flash
Flash
Push and release CHANNEL button. You will
hear one beep.
The phone will scan for and advance to the next
clear channel.
• A second beep will indicate a successful
channel change.
• If a second beep is not heard after five sec-
onds,the channel change was not success-
ful. Move closer to base and press and
release CHANNEL button again.
Secur-Loc
™
Secur-LocTM
An exclusive security measure to protect your
phone from being accessed by another cordless
phone. Secur-LocTM activates automatically every
time your handset is placed in the base.
Push and release FLASH button to interrupt
the phone line to access:
• “CallWaiting”
• “Three Way Calling”
that might be offered by your phone company.
Note
Please also refer to questions
3,5 and 6 in the Frequently
Asked Questions section on
page 27
for more information about
interference.
Channel
Channel
Flash
CP9105 manual layout.8 10/14/98 9:27 AM Page 17

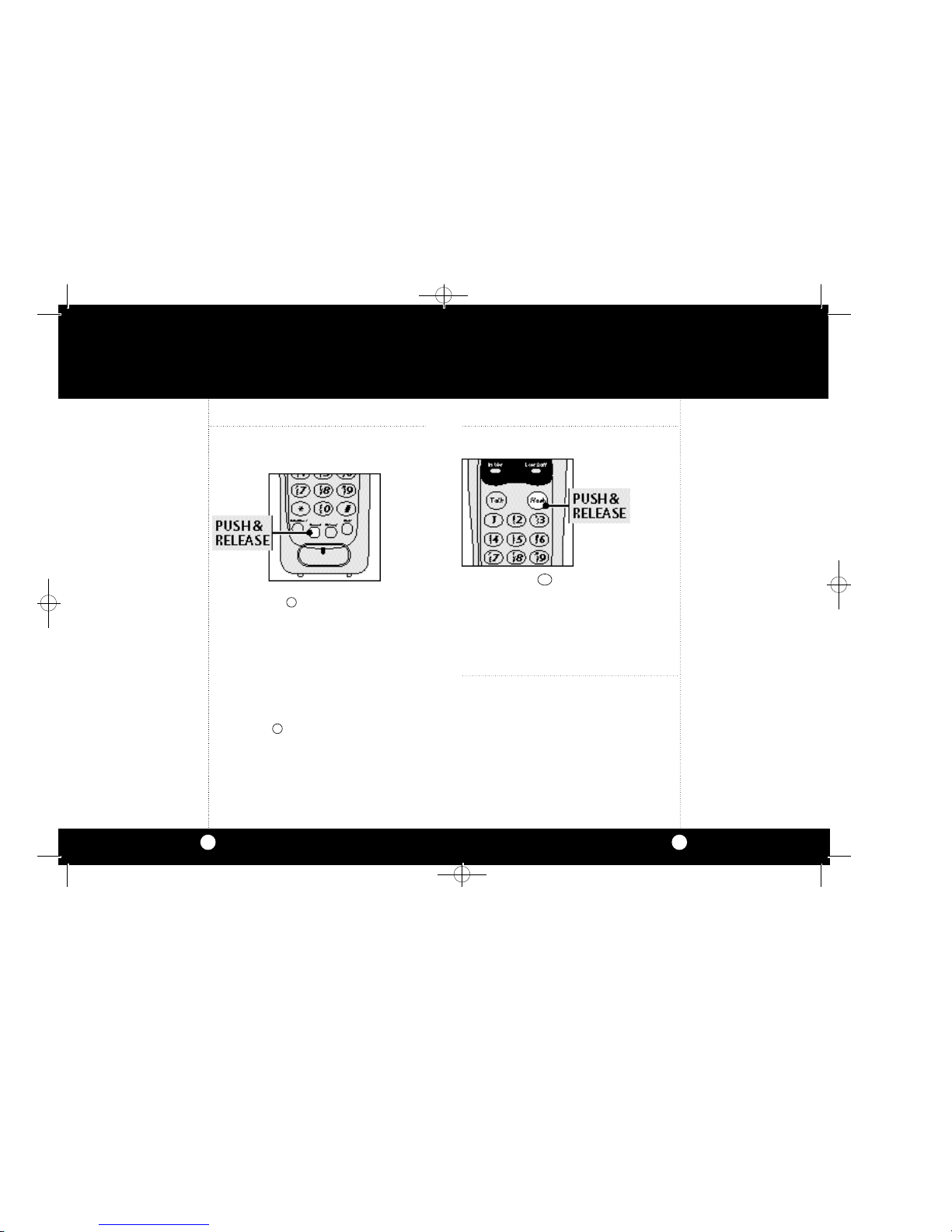

Push and release
FLASH button.
Listen for dial tone.
Push and release
REDIAL/PAUSE
button.
Volume is controlled by the HIGH/LOW switch.
Last Number Redial
Each time you dial a number, that number is
stored in the redial memory.Up to 16 digits can
be stored. To recall the number after receiving a
busy signal:
Push and release REDIAL/PAUSE button.
The number will be redialed.
Volume
OperationOperation
1514
Volume
Hearing Aid Compatibility
The CP-9105 handset is compatible with induc-
tively coupled hearing aids (HAC).
Hearing Aid
Compatibility
Last Number
Redial
If steps 1,2 and 3 still result in a busy signal,hang
up.If you would like to try again in a few minutes,
push and release TALK button for dial tone,
then:
1
4
2
3
Flash
Redial/Pause
Talk
Redial/Pause
CP9105 manual layout.8 10/14/98 9:27 AM Page 19
