Cobra Intenna CP-2506 User manual

OPERATING INSTRUCTIONS FOR YOUR
MODEL CP-2506
C O R D L E S S T E L E P H O N E
“The antenna is in the phone,
not in your way...and the sound is incredible.”
CHANNEL
25
CP-2506.qx 11/12/97 12:35 PM Page 1

Cordless Telephone
Table of Contents
SUBJECT PAGE
Important Safety Instructions ..............................................................................2, 3
Introduction ................................................................................................................4
Installation Information ............................................................................................5
Quick Set-Up Guide ..................................................................................................6
Wall-Mounting Instructions ......................................................................................7
Using Your Phone ......................................................................................................8
Answering/Placing Calls at the Base ......................................................8
Answering/Placing Calls Away From The Base....................................8
Cordless Phone Operational Features ....................................................................9
Battery Saver Circuitry ..............................................................................9
Channel Selection ........................................................................................9
Compander Noise Reduction....................................................................9
Digital Security ..........................................................................................9
Display Window..........................................................................................9
Flash ............................................................................................................10
Hearing Aid Compatibility......................................................................10
Intenna System ..........................................................................................10
Last Number Redial..................................................................................10
Memory Dialing ........................................................................................10
Out-of-Range Signal ..................................................................................11
Page/Find ..................................................................................................11
Power Failure Reset ..................................................................................11
Privacy Feature ..........................................................................................11
Pulse/Tone Switch ....................................................................................11
Ringer Switch ............................................................................................11
Secur-Loc¨..................................................................................................11
Rechargeable Battery Information..........................................................................12
Battery Recharging ....................................................................................12
Replacing the Battery..........................................................................12, 13
Battery Disposal ........................................................................................13
Cleaning The Charging Contacts............................................................................13
About Cordless Phone Performance......................................................................14
Intenna Cordless Telephone Troubleshooting Guide ..........................................15
If You Think You Need Service ..............................................................................16
Registered with the FCC..........................................................................................16
Limited One-Year Warranty ....................................................................................17
Cordless Phone Accessories........................................................Inside Back Cover
1
Model CP-2506
CP-2506.qx 11/12/97 12:35 PM Page 2

Important Safety Instructions
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liq-
uid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not locate base unit near water, for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming
pool.
5. Do not place this product on an unstable cart, stand or table. The product
may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the bottom or back are provided for
ventilation, to protect it from overheating; these openings must not be
blocked or covered. The openings should never be blocked by placing the
product in the bed, sofa, rug or other similar surface. This product should
never be placed near or over a radiator or heat register. This product
should not be placed in a built-in installation unless proper ventilation is
provided.
7. This product should be operated only from the type of power source indi-
cated on the marking label. If you are not sure of the type of power sup-
ply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this prod-
uct where the cord will be abused by persons walking on it.
9. Do not overload outlets and extension cords as this can result in the risk
of fire or electric shock.
10. Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a risk of fire or electric shock. Never spill liquid of any kind on
the product.
11. To reduce the risk of electric shock, do not disassemble this product, but
take it to qualified servicemen when service or repair work is required.
Opening or removing covers may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause electric shock when the appli-
ance is subsequently used.
12. Avoid using telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
2
CP-2506.qx 11/12/97 12:35 PM Page 3

3
14. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating in-
structions. Adjust only those controls that are covered by the operating
instructions because improper adjustment of other controls may result
in damage and will often require extensive work by a qualified techni-
cian to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
The cordless handset operates on batteries, please read and follow instruc-
tions:
A. Use only the battery pack supplied with the unit or identical replace-
ment.
B. Do not dispose of battery pack in a fire. The cells may explode. Check
with local codes for possible disposal instruction.
C. Since released electrolyte is corrosive and may cause damage to eyes or
skin and may be toxic if swallowed:
C1. Do not open or mutilate battery pack.
C2. Always replace the entire battery pack rather than reusing one or
more cells.
C3. Do not expose batteries to heat or flame.
D. Exercise care in handling the battery pack in order not to "short" the
battery contacts with conducting materials such as rings, bracelets, and
keys. The battery or conductor may overheat and cause burns.
15. Never install telephone wiring during a lightning storm.
16.Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
17.Never touch uninsulated telephone wires or terminals unless the telephone
line has been disconnected at the network interface.
18. Use caution when installing or modifying telephone lines.
Save These Instructions
Important Safety Instructions (continued)
CP-2506.qx 11/12/97 12:35 PM Page 4

How To Use Your
Introduction
Thank you for your purchase of a Cobra¨ Intenna ¨ Cordless Telephone Ñ
the world’s first and only full-range-power cordless telephone without any
external antennas!
No more extending, bending, or breaking the antennas found on traditional
cordless phones Ñ your Cobra Intenna conceals its antenna systems inside
the handset and base, where they should be, out of your way.
Now you can install your new Cobra Intenna cordless phone virtually any-
where. Without cumbersome external antennas to worry about, put your new
phone anywhere a corded phone can go! Then enjoy the freedom of using
your new cordless phone all over the house as well as outside in your yard.
Your new Cobra Model CP-2506 is equipped with Private Callª, which uses
voice scrambling to ensure totally private telephone conversations. Your
phone has twenty-five selectable channels (the maximum number available)
for optimum interference-free use, and 10-number memory dialing. The
CP-2506 is also equipped with Battery Saver Circuitry which extends battery
life up to 14 days between charges, and its Clear Call® PLUS Circuitry with
compander noise-reduction system ensures corded-phone sound quality.
Please take a moment to review this booklet and become familiar with all of
the many user-friendly convenience features built into your new Cobra
Intenna Cordless Phone.
If you need further assistance installing or using your new Intenna Cordless
Telephone, please call our consumer “hotline” at 1-773-889-3087, 8 a.m. to 8
p.m. CST, Monday through Friday (except holidays).
Note: Some cordless telephones operate at frequencies that may cause inter-
ference to nearby TV's and VCR's. To minimize or prevent such interference,
the base of the cordless telephone should not be placed near or on top of TV's
or VCR's. If interference is experienced, moving the cordless telephone base
further away from the TV or VCR will often reduce or eliminate the interfer-
ence.
4
Cordless Telephone
U.S. PATENT 4876709
U.S. PATENT 5351284
Model CP-2506
CP-2506.qx 11/12/97 12:35 PM Page 5

*

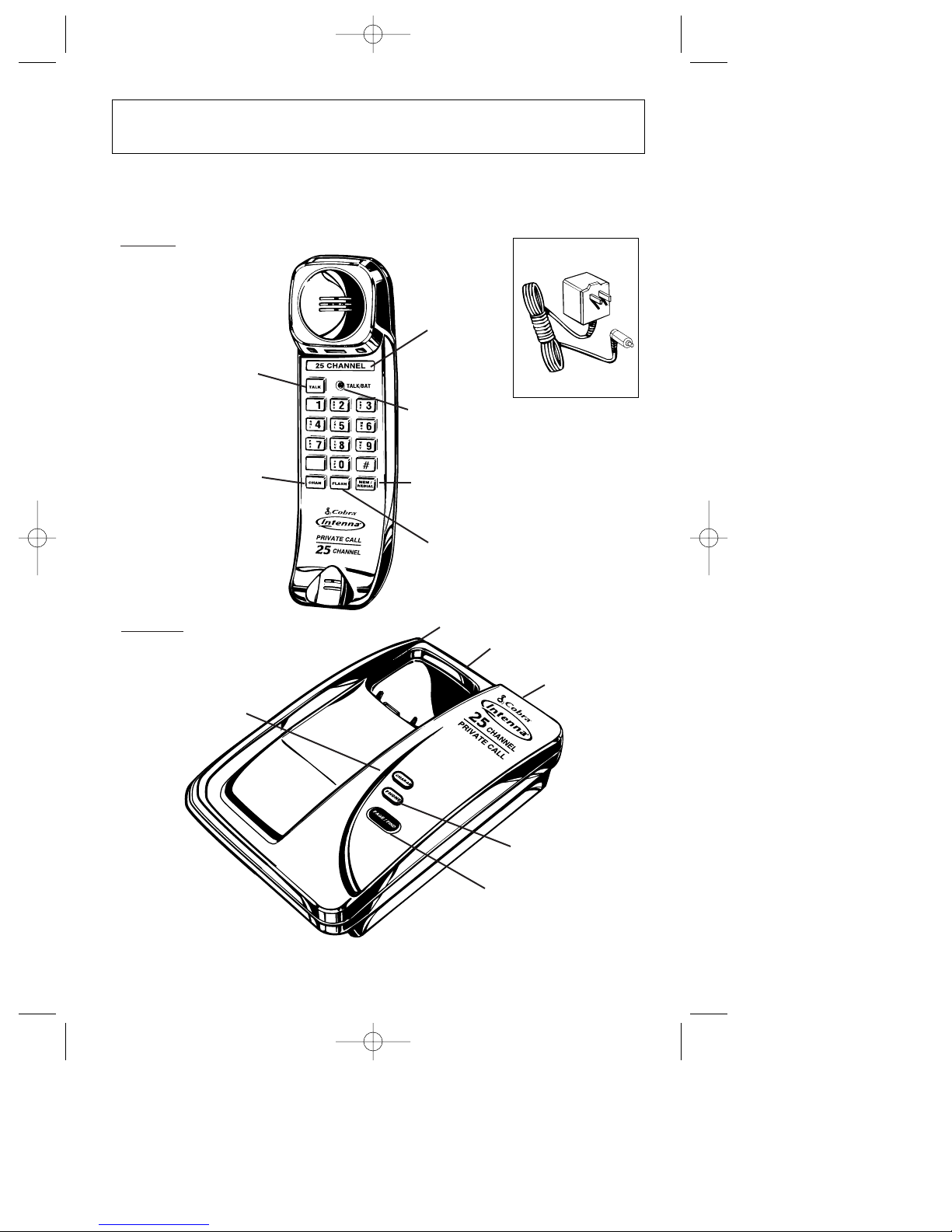

Installation Information
Maximum range is obtained by installing the base unit in the highest living
area of your home. The location you choose must be near an electrical outlet
and a telephone wall jack.
AC ADAPTER (1)
ACCESSORIES
HANDSET
BASE UNIT
5
PHONE
NUMBER
DISPLAY
WINDOW
PHONE (IN USE)
INDICATOR
CHARGE INDICATOR
PAGE/FIND
BUTTON
TALK & BATTERY
LOW INDICATOR
TALK BUTTON
CHANNEL
BUTTON
FLASH BUTTON
MEM/REDIAL BUTTON
POWER 9V DC
RINGER ON/OFF
SWITCH
PULSE/TONE
SWITCH
CP-2506.qx 11/12/97 12:35 PM Page 6

Quick Set-Up Guide
The following basic steps enable quick and easy installation of your new
Cobra Intenna Cordless Phone for use on a desk or countertop. You are en-
couraged to review this complete instruction manual to become familiar with
all of the operating instructions and features of your new phone.
NOTE: Before using, connect your new system to AC power (see instruc-
tions below) to charge it overnight (at least 12 hours) for optimum condi-
tioning of the rechargeable battery inside the cordless handset.
1Insert round connector of power adapter into POWER jack (at rear of
cordless phoneÕs base; see diagram #1 below). Plug power adapter into
a standard 120 VAC household electrical outlet. Then place handset in
base so CHARGE indicator lights (see p. 12).
2After charging, remove the twist-tie from the phone cord and plug the
modular telephone connector into the phone jack on your wall (see
above).
3Make sure that the RINGER switch is ON (located on base; see p. 11 for
details).
4Set the PULSE/TONE switch (at the rear of the base) for proper opera-
tion (see page 11 for details).
Note: Make sure you have charged handset in base 12 hours before
using.
ON OFF PULSE TONE
POWER 9VDC
RINGER
Diagram #1
Connecting
power and
telephone
BASE UNIT—
REAR VIEW
6
ELECTRICAL OUTLET MODULAR PHONE JACK
HANDSET
ON/OFF
RINGER SWITCH
➂
PULSE/TONE
SWITCH
2
2
4
①
1
DC POWER JACK
CP-2506.qx 11/12/97 12:35 PM Page 7

Wall Mounting Instructions
The following steps enable installation on a new or existing telephone wall-
mounting plate or directly onto a wall. (Your Cobra Intenna is designed to
be used with any AT&T, GTE, local phone company or other wall-mounting
plates that can be purchased from most local electronics stores.)
¥ Press telephone cord into slots under the base and wrap around cord-
storage area (as shown in diagram #2, below).
¥ Plug modular phone connector into telephone wall jack; attach the pow-
er adapter to the POWER connection (on the base of the phone) and
plug into to a household AC power outlet.
¥ Align mounting studs on the plate to the holes on the bottom of the
INTENNA base; push base onto studs and slide down on the wall plate.
To install directly on any wall, youÕll need to provide two screws and wall
anchors; follow these steps:
¥ Drill two holes 3 1/4Ó apart and insert the wall anchors.
¥ Drive the screws into the anchors until the head of each screw is
protruding about 1/8Ó from the wall.
¥ Align the holes in the cordless base over the screw heads; push base
in and slide down on screws (see diagram #3).
¥ Plug modular phone connector into telephone wall jack; attach the
power adapter to the POWER connection (on the base of the phone; see
p. 4) and plug into to a household AC power outlet.
Note: Make sure you have charged the handset at least 12 hours before use.
Screw Heads
Diagram #3:
Installation
directly on a wall
Mounting Studs
Diagram #2: In-
stallation on a
telephone wall-
mounting plate
Cord
Storage Area
Modular Phone Jack
Modular Phone Jack 7
CP-2506.qx 11/12/97 12:35 PM Page 8

Using Your Phone
After charging the handset batteries overnight (at least 12 hours), your
Cobra Intenna cordless phone will be ready for use.
ANSWERING/PLACING CALLS AT THE BASE
¥ To answer a call, just pick up handset from base when the phone rings.
TALK indicator will automatically light. When call is completed, return
handset to base without pressing TALK button; your phone automatical-
ly disconnects.
¥ To place a call, pick-up handset from base and press and release the
TALK button (indicator will light). When you hear the dial tone, place
your call.

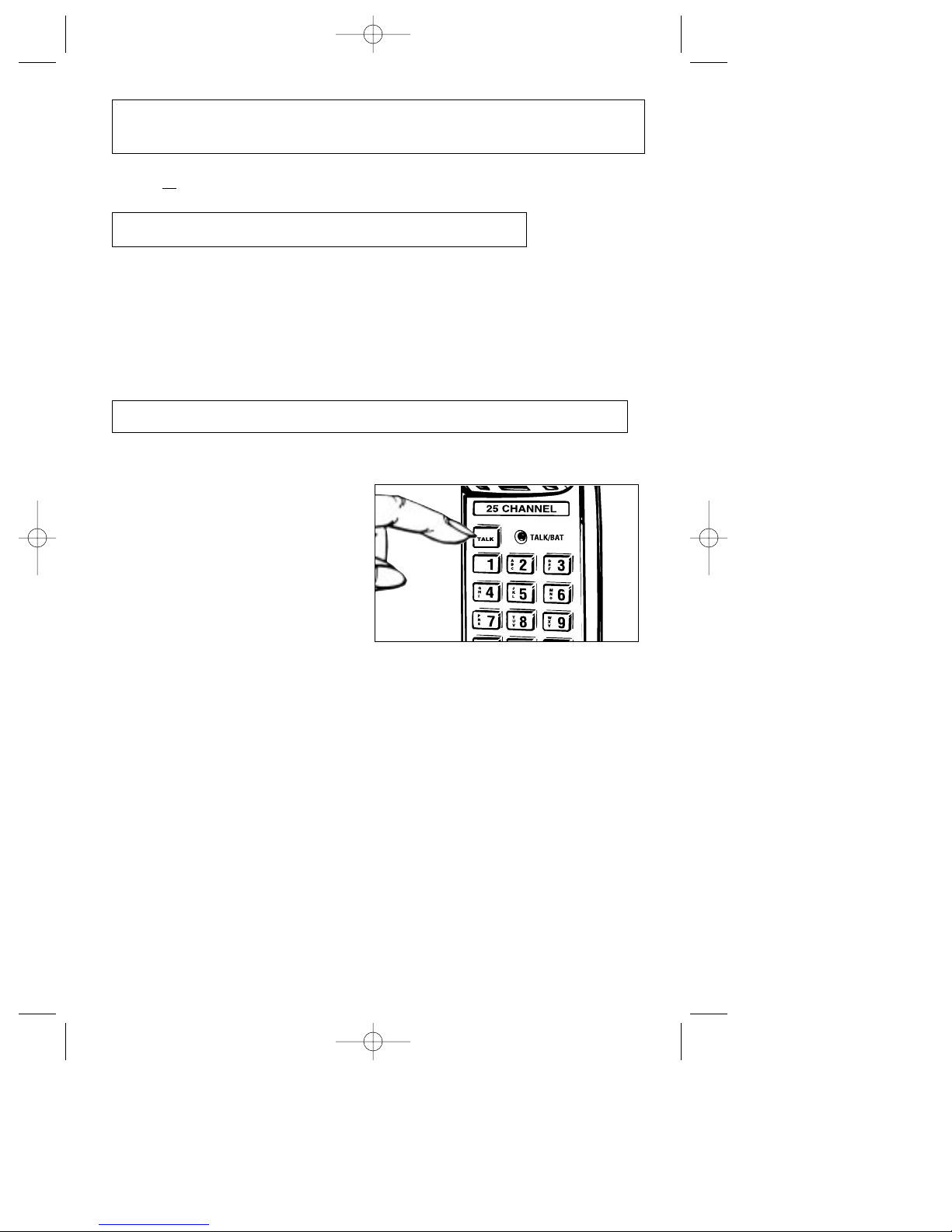

ANSWERING/PLACING CALLS AWAY FROM THE BASE
¥ The TALK indicator must be off (not lit) when the handset is away from
the base. The phone is ready to
ring if a call is received (RINGER
switch must be in ON position).
¥ Press and release the TALK but-
ton (indicator will light) to
answer or place a call.
¥ Press and release the TALK but-
ton when finished with a call.
TALK indicator light will go off
and the call will be disconnected.
*
8
CP-2506.qx 11/12/97 12:35 PM Page 9

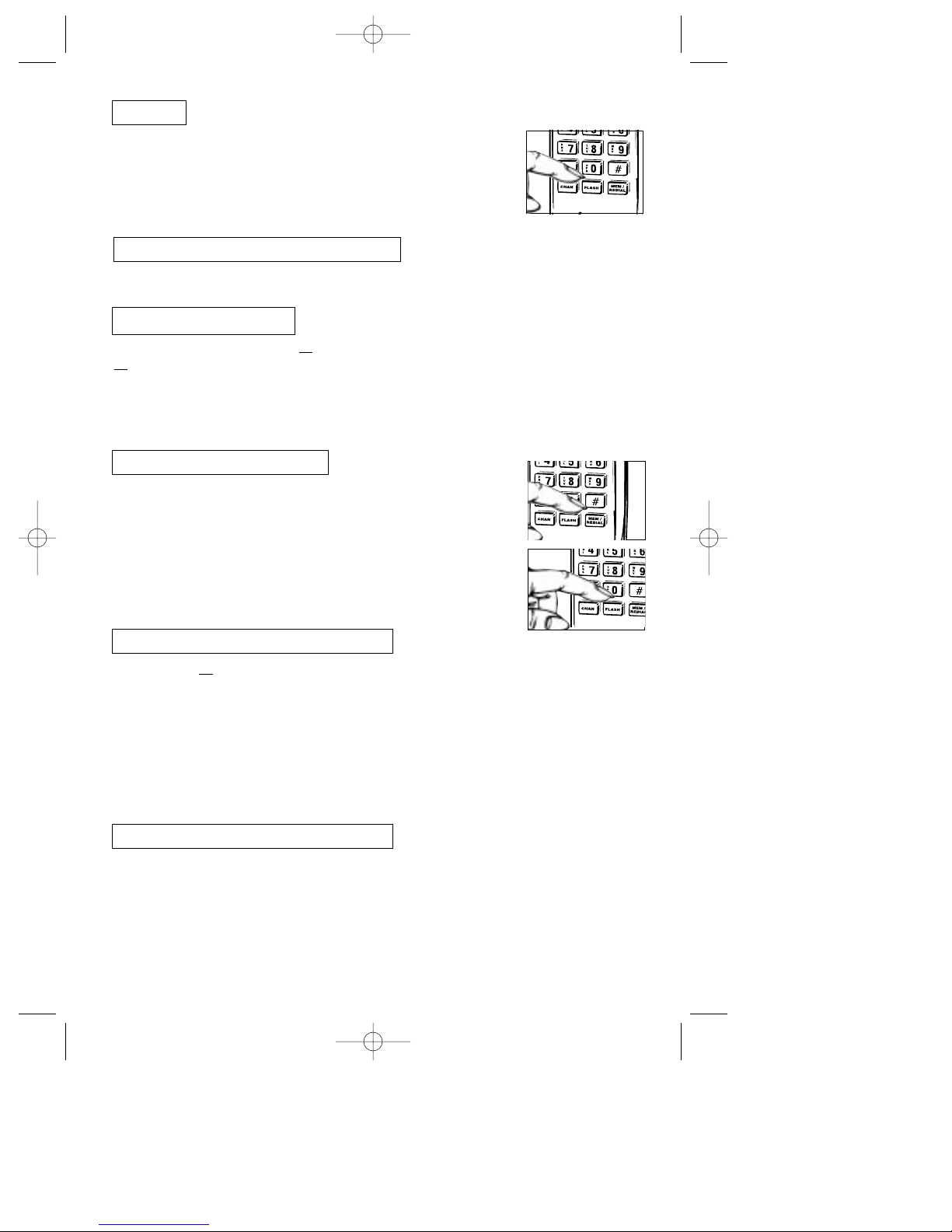

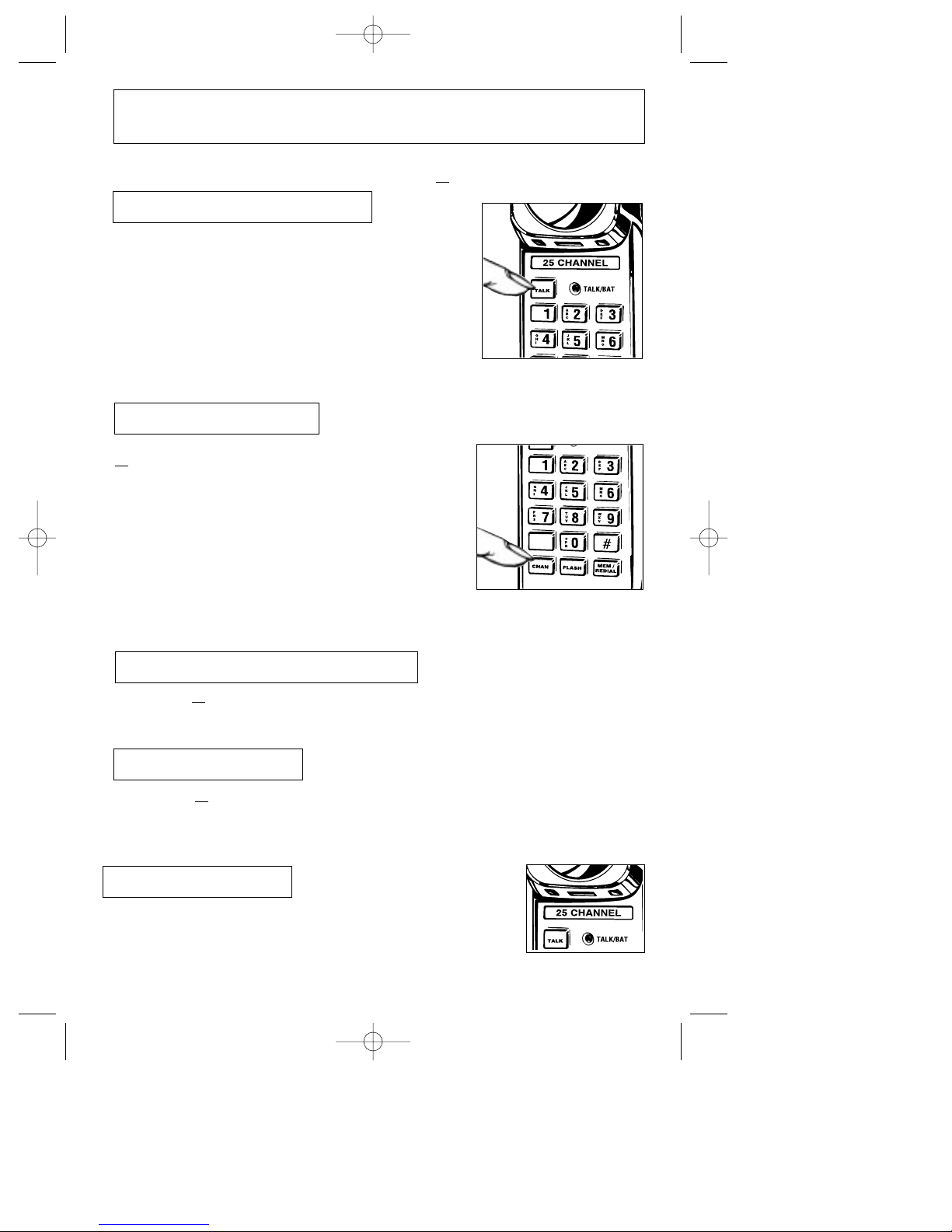

CHANNEL SELECTION
Selectable channels are built into your Cobra
Intenna for optimum interference-free use.
If interference begins during a conversation:
¥ Press and release the CHAN button on the
handset. Your phone will automatically scan
and advance to the next clear channel. A con-
firmation tone (two double beeps) will sound
to indicate a successful channel change.
¥ If an alert tone (3 beeps) sounds, channel
change was unsuccessful. In that case, move
closer to the phone base and press CHAN button again.
COMPANDER NOISE REDUCTION
Your Cobra Intenna has the Cobra Clear Call¨PLUS compander noise-reduction
system to minimize background noise for optimum audio performance. The
sound of your phone will be comparable to the performance of a corded phone.
DIGITAL SECURITY
Your Cobra Intenna features digital security coding (in accordance with FCC
regulations) to reduce the chance of interference from your neighbors' cordless
phones. These inaudible, electronic codes are transmitted automatically by your
phone to establish a secure link between your cordless handset and base.

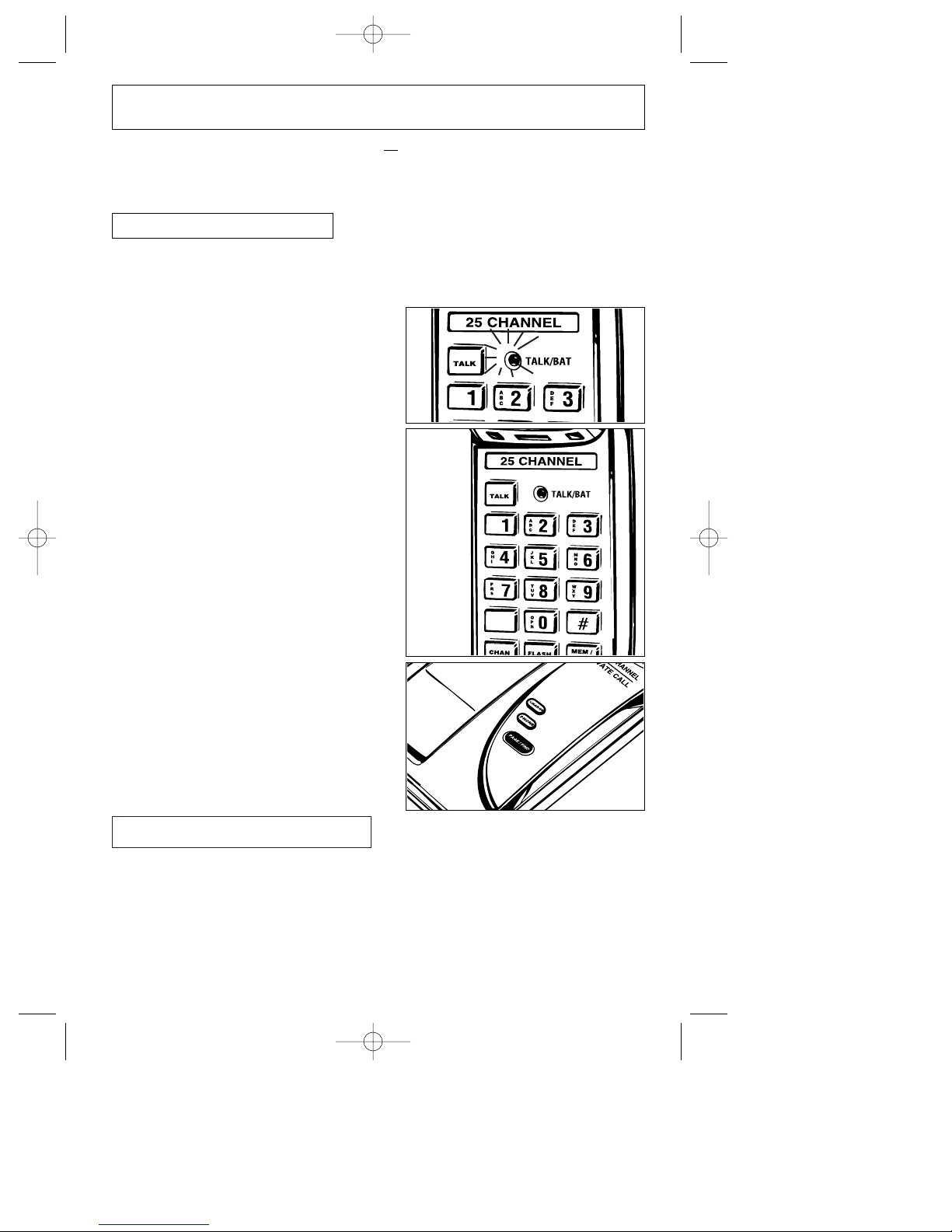

DISPLAY WINDOW
Use the back of the white "25 CHANNEL" card at the top
of the dialpad to write your phone number. Use the tip of
a paper clip to pry off the protective plastic cover; replace
card and cover to secure.
*
The following features offer state-of-the-art performance and the ultimate in
user-friendly convenience with your new Cobra Intenna cordless telephone.
BATTERY SAVER CIRCUITRY
The handset of this phone may be kept away from the
base (TALK indicator OFF) up to 14 days at a time.
In this condition, it is ready for you to answer or
place calls by pressing and releasing the TALK but-
ton. The duration of the battery charge will depend
on your actual use of the phone in its remote location.
Note: A warning beep tone will sound and the
TALK/BAT indicator will flash when the handset
battery needs recharging (see p. 12).
Cordless Phone Operational Features
9
CP-2506.qx 11/12/97 12:35 PM Page 10
