Coby CBPAC650 User manual

Portable Air Conditioner
CBPAC650
CBPAC710

ENGLISH
Page 2
Thank you for purchasing our
COBY product. This easy-to-use
manual will guide you in getting the
best use of your air conditioner.
Remember to record the model and
serial numbers. They are on a label
on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
Grounding Instructions......................................................................................................................................................... 5
LCDI Power Cord and Plug................................................................................................................................................6
Safety Guidelines ................................................................................................................................................ 7-8
ENGLISH
SET UP & USE
Parts & Features .......................................................................................................................................................................9
......................................................................................................................................................... 10
Installation Guide .................................................................................................................................................. 10
Window Slider Kit Installation............................................................................................................................11
Exhaust Hose Installation....................................................................................................................................12
Control Panel ...........................................................................................................................................................13
Operating from the Control Panel............................................................................................................. 13-15
Operating from the Remote Control........................................................................................................16-19
Water Drainage .....................................................................................................................................................20
CLEANING & CARE.............................................................................................................................................21
TROUBLE SHOOTING & WARRANTY
Before You Call For Service..............................................................................................................................22
Customer Service..................................................................................................................................................22
Troubleshooting ....................................................................................................................................................23
Limited Warranty..................................................................................................................................................................24

ENGLISH
Page 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. To reduce risk of injury, read this guide before using the appliance.
2. Air conditioner must be connected to proper electrical outlet with
the correct electrical outlet with the correct electrical supply.
3. Proper grounding must be ensured to reduce the risk of shock and
re. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do
not have a three-prong electric receptacle outlet in the wall, have a
certied electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
4. Do not operate air conditioner if power cord is frayed or otherwise
damaged. Avoid using it if there are any cracks or abrasion damage
along the length, plug connector or if the unit malfunctions or is
damaged in any manner. Contact an authorized service technician
for examination, repairs or adjustments. A damaged cord must be
replaced with one by the unit manufacturer and not repaired.
5. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
6. Do not block airow around the air conditioner. The exhaust hose
should be free of any obstructions.
7. Always unplug the air conditioner before servicing it or moving it.
8. Do not install or use the air conditioner in any area where the
atmosphere contains combustible gases or where the atmosphere is
oily or sulphurous. Avoid any chemical coming in contact with your
air conditioner.
9. Do not place any object on the top of the unit.
10. Never operate the air conditioner without lters in place.
11. Do not use the air conditioner near a bathtub, shower or wash basin.
12. This appliance is not intended for use by persons (including children)
with reduced physical sensory or mental capabilities or lack of
experience & knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
13. Children should be supervised to ensure that they do not play with
the appliance.
14. If the SUPPLY CORD is damaged, it must
be replaced by the manufacturer, a service
agent or similarly qualied persons in order
to avoid a hazard.
15. The air conditioner shall be installed in
accordance with national wiring regulations.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
ENGLISH

Page 4
ENGLISH
HANDLING ALKALINE BATTERIES
1. Should uid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a re, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak uid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak uid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact
a physician immediately.
5. If the alkali uid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali uid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the affected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The different
attributes may cause the battery to leak uid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak uid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak uid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak uid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak uid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the
batteries in the unit for a long time may cause the batteries to leak uid, overheat
or explode due to gas that is generated by the batteries.
13. Remove the batteries from the unit when not using the unit for an extended
period of time. The batteries may leak uid, overheat or explode due to gas that is
generated by the batteries.
14. Do not apply solder directly to the batteries. The heat may cause the batteries to
leak uid, overheat or explode.
15. Do not get the batteries wet. Doing so may cause the batteries to overheat
16. Store batteries someplace out of direct sunlight where the temperature and
humidity are not high. Not doing so may cause the batteries to leak uid,
overheat or explode. Also, it may cause the life and performance of the batteries
to decline.
17. Follow the regulations of the local government when disposing of these batteries.
18. NEVER mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium)
batteries with this product.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
SAFETY INFORMATION
ENGLISH

Page 5
ENGLISH

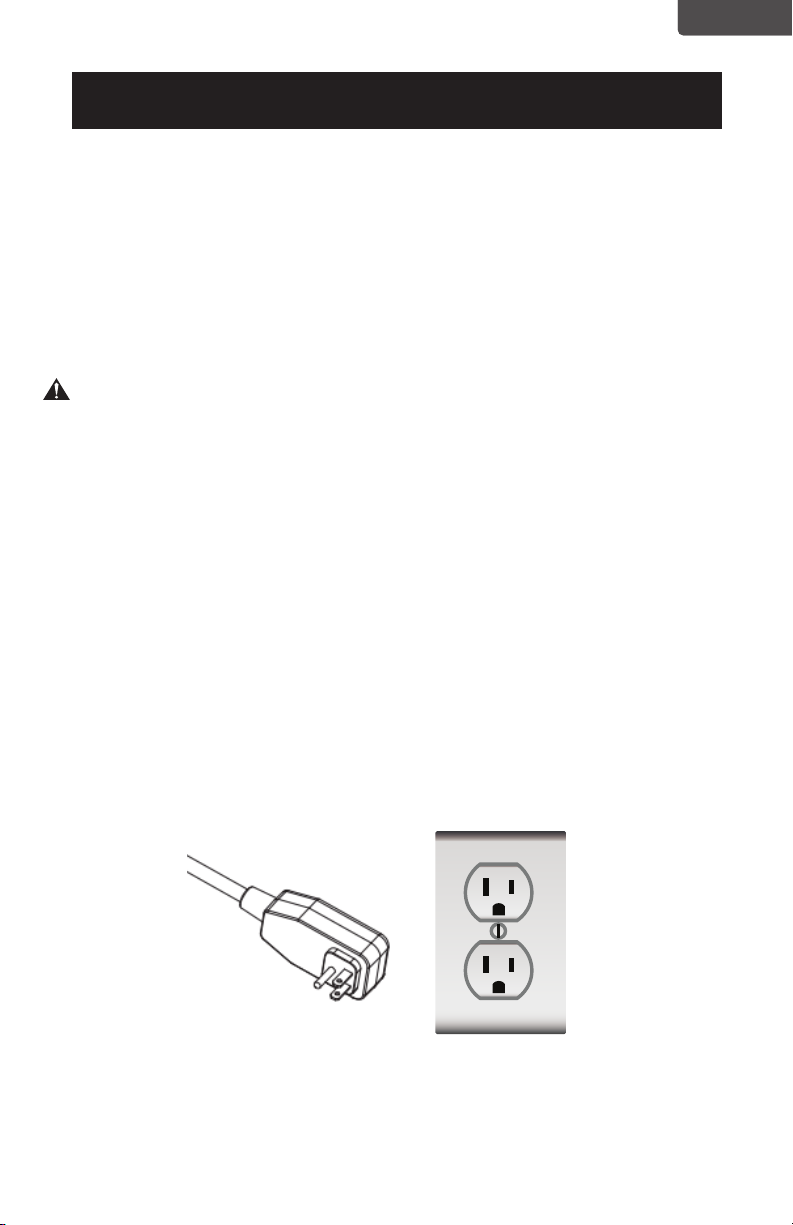

GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
In the event of malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.
The appliance must be connected to a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment grounding conductor
can result in a risk of electric shock. The conductor with insulation
having an outer surface that is green with or without yellow stripes is
the equipment grounding conductor. If repair or replacement of the
cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a qualied electrician or service
person if the grounding instructions are not completely understood, or
if in doubt as to whether the appliance is properly grounded. Do not
modify the plug connected to the appliance – if it will not t the outlet,
have a proper outlet installed by a qualied electrician.
FOR GROUNDED, CORD-CONNECTED APPLIANCE RATED LESS THAN
15A AND INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT
The appliance is for use on a nominal 120V circuit and should be
connected to a grounding outlet that looks like the one illustrated
below. The use of a temporary adaptor is not recommended.
SAFETY INFORMATION
ENGLISH

Page 6
ENGLISH
SAFETY INFORMATION

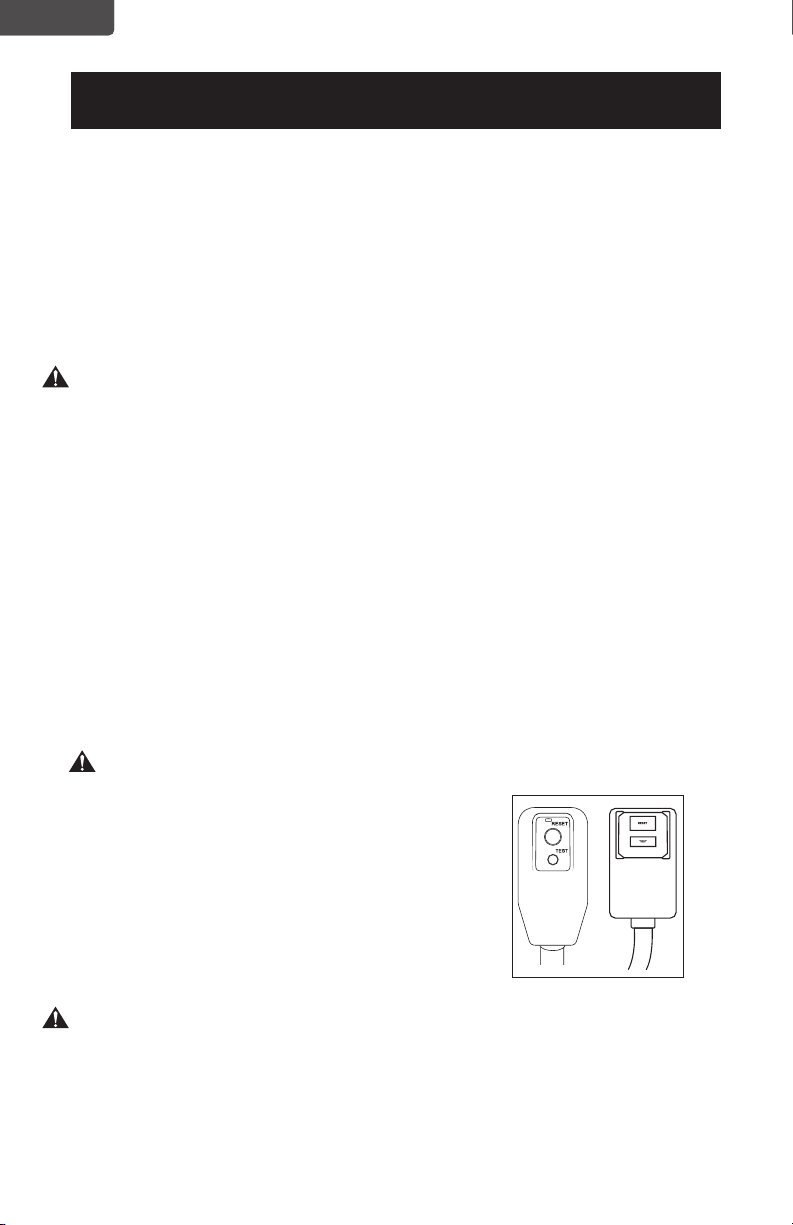

LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current
Detection and Interruption) power cord that is required by UL. This
power supply cord contains state-of-the-art electronics that sense
leakage current. If the cord is damaged and leakage occurs, power will
be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the
plug is functioning properly.
WARNING: Test LCDI before each use.
To test the plug:
1. Plug power cord into a grounded 3 prong outlet.
2. Press RESET (on some units a green light will turn on).
3. Press the TEST button, the circuit should trip and cut all power to the air
conditioner(on some units green light may turn off).
4. Press the RESET button for use. You will hear a click and the A/C is ready
for use.
5. The power supply cord must be replaced if it fails to trip when the TEST
button is pressed and the unit fails to reset.
NOTES:
• Do not use this device to turn the unit on or off.
• Always make sure the reset button is pushed in for correct operation
• WARNING:
• The power supply cord must be replaced if it
fails to reset when either the test button is
pushed, or it cannot be reset.
• If power supply cord is damaged, it cannot
be repaired.
• It must be replaced by one obtained from
the product manufacturer.
WARNING – RISK OF FIRE
It is important the plug ts tightly into the wall outlet.
If the plug does not t securely and appears loose, it should not be used.
Have a licensed electrician replace the receptacle.
ENGLISH

Page 7
ENGLISH
SAFETY INFORMATION
SAFETY GUIDELINES
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions
may cause harm or damage.
ALWAYS DO THIS NEVER DO THIS ENERGY SAVE
• Your air conditioner
should be used in such a
way that it is protected
from moisture. e.g.
condensation, splashed
water, etc. Do not place or
store your air conditioner
where it can fall or be
pulled into water or any
other liquid. Unplug
immediately.
• Always transport your air
conditioner in a vertical
position and stand on a
stable, level surface during
use.
• Turn o the product when
not in use.
• Always use the switch on
the control panel to start or
shut off the unit.
• Always contact a qualied
person to carry out
repairs. If the supply cord
is damaged it must be
repaired by a qualied
technician.
• Keep an air path of at least
12 inches. all around the
unit from walls, furniture
and curtains.
• If the air conditioner is
knocked over during use,
turn off the unit and unplug
from the power supply
immediately.
• Do not operate your air
conditioner in a wet room
such as a bathroom or
laundry room.
• Do not touch the unit with
wet or damp hands or when
barefoot.
• Do not press the buttons
on the control panel with
anything other than your
ngers.
• Do not remove any xed
covers. Never use this
appliance if it is not working
properly, or if it has been
dropped or damaged.
• Never use the plug to start
and stop the unit.
• Do not cover or obstruct the
inlet or outlet grilles.
• Do not use hazardous
chemicals to clean or come
into contact with the unit.
Do not use the unit in the
presence of inammable
substances or vapour such as
alcohol, insecticides, gasoline,
etc.
• Do not allow children
to operate the unit
unsupervised.
• Do not use this product for
functions other than those
described in this instruction
manual.
• Use the unit in the
recommended room size.
6,000 BTU
up to 250 sq. ft.
8,000 BTU
up to 350 sq. ft.
10,000 BTU
up to 450 sq. ft.
• Locate the unit where
furniture cannot obstruct
the air ow.
• Keep blinds / curtains
drawn.
•Keep the lters clean.
• Keep doors and windows
closed to keep cool air in
and warm air out.
ENGLISH
7,000 BTU
up to 300 sq. ft.

ENGLISH
SAFETY INFORMATION
Page 8
OPERATING CONDITION
The air conditioner must be operated within the temperature range indicated below:
NOTE: · Unit performance may be affected when in use outside of these operating temperatures.
MODE ROOM TEMPERATURE
COOL 64˚F (18˚C) ~ 95˚F (35˚C)
DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C)
HEAT (ELECTRICAL HEAT TYPE) 45˚F (7°C) ~ 81˚F (27˚C)
ENGLISH

ENGLISH
Power Cord
Filter
Frame Upper
Exhaust
Connector
Drainage
Hole
Rubber Plug
and Cap
PARTS & FEATURES
Air Exhaust Hose Hose Outlet
2x Wing Nut and Bolt Foam Strip
Drain Hose
SET UP & USE
Window Panel 3PCS
Page 9
ENGLISH
Hose Inlet
Handle
Castor
Control
Panel
Air Outlet
Louver
Remote Control

Page 10
ENGLISH
SPECIFICATIONS
Electric Requirements: 115V ~ 60Hz
INSTALLATION GUIDE
LOCATION
• The air conditioner should be placed on a rm oor to minimize noise and
vibration. For safe and secure positioning, place the unit on a smooth, level
oor strong enough to support the unit.
• The unit has casters to aid placement, but it should be rolled on smooth, at
surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll
the unit over objects.
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow 12 inches to 36 inches of space from the wall with window for efcient
air-conditioning.
SUGGESTED TOOLS FOR WINDOW KIT INSTALLATION
• Screwdrivers (medium size Phillips)
• Tape measure or ruler
• Knife or scissors
• Saw (In the event that the window kit needs to be cutdown in size because the
window is too narrow for direct installation)
SET UP & USE
ENGLISH
Unit Weight approx. 49.7 lbs.
Unit Weight approx. 50lbs.
CBPAC650
Unit dimensions (W x D x H): 13.9” x 13.3” x 27.5”
CBPAC710
Unit dimensions (W x D x H): 13.9” x 13.3” x 27.5”

Page 11
ENGLISH
DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type) to the proper length and attach it to the
window sash.
2.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely
against the window slider kit.
5. Secure the window slider kit
to the window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window Vertical Window Window Slider Kit
SET UP & USE
Foam
Seal Foam
Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
Foam
Seal
Window
Slider Kit
Window
Slider Kit
Window Sash
Window slider kit can be secured
by inserting the bolt.
Put the nut on opposite side of
the hole.
ENGLISH
hole in window slider kit.
WINDOW SLIDER KIT INSTALLATION
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 59” (150 cm) MINIMUM : 29.5” (75 cm)
NOTE: · Adjust the length of the window slider kit according to the window width or height,
and secure it with the provided locking screws.
NOTE: · If the window opening is less than 29.5” the minimum length of the window slider kit,
out the
Attach the window sliderkit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 29.5”.
29.5”– 59”
29.5”– 59”

Page 12
ENGLISH
Fig. 3
Clockwise

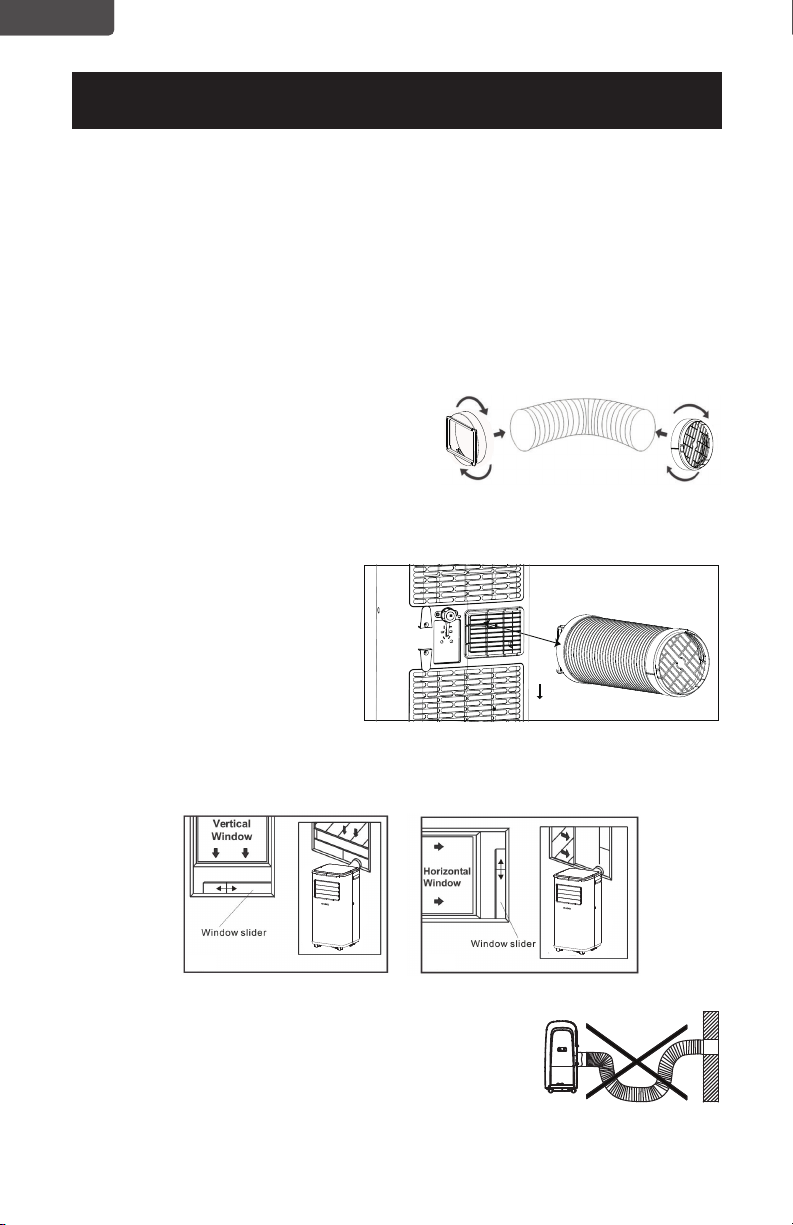

EXHAUST HOSE INSTALLATION
The air exhaust hose and hose inlet must be installed or removed from the portable
air conditioner in accordance with the way it is being used:
COOL, DEHUMIDIFY, HEAT (Heat models CCP8HJW and CCP10HJW only):
Air exhaust hose and hose inlet should be connected to the portable air
conditioner.
FAN: Air exhaust hose and hose inlet should be disconnected from the portable air
conditioner.
1. Connect hose inlet to one end of air
exhaust hose. Push hose inlet over the
end of the hose, push in slightly and then
start threading it on in a clockwise
direction. (see Fig. 1)
2. Connect hose outlet to other end of air exhaust hose. Push hose outlet over the end
of the hose, put it into the back panel vent slot slide to the left direction. (see Fig. 2)
3. Align the tabs on the hose
inlet into the slots over the
air outlet, insert and push
down. (see Fig. 3)
4. Insert the hose outlet into
the window panel.
5. Afx the hose outlet into the
window slider kit and seal.
(Fig. 4 & 5)
NOTE: The exhaust hose can be compressed or extended
moderately, but it is desirable to keep the length to a
minimum. Also make sure that the hose does not
have any sharp bends.
Hook
SET UP & USE
Fig. 4 Fig. 5
Fig. 1 Fig. 2
ENGLISH

Page 13
ENGLISH
Pictures are for illustration purpose only. Your model may or may not have all the features.
CONTROL PANEL
OPERATING FROM THE CONTROL PANEL
The Control Panel enables you to manage all the main functions of the appliance,
but to fully exploit its potential, you must use the remote control.
TURNING THE APPLIANCE ON
•Plug into the dedicated electrical outlet.
• Press the button until the appliance comes on. The last function active when
it was turned off will appear.
* Never turn the air conditioner off by unplugging from the outlet. Always press
the power button , then wait for a few minutes before unplugging. This
allows the appliance to perform a cycle of checks to verify operation.
Note: Before pressing Power button make sure the condensate drain plug in the
rear of the unit is securely in place to avoid any leaking.
•Press the MODE button until the light corresponding to the required Mode
lights up.
SET UP & USE
COOL FANDEHUMIDIFY
ENGLISH
Cool
Power Button
Display
Area
Fan Speed
Indicator Light
Dry
Fan
Full Tank
Indicator Light
Sleep
Button
Speed
Button
Increase
Button
Decrease
Button
Timer
Button
Mode
Selection
Button

Page 14
ENGLISH
SET UP & USE
ENGLISH
DRAINING IN
DEHUMIDIFICATION MODE
• It is recommended that the
•
• Press the “MODE” button until the
LOW: For quiet operation. •
•
•
•
COOL MODE
Ideal for hot weather when
you need to cool the room.
To set operation of the appliance
correctly, press the or buttons until
the desired temperature is displayed.
(See Fig. 7)
Then select the fan speed by pressing
the Fan Speed Button until the light
corresponding to the required fan
speed lights up:
hose can be used for continuous
drainage.
FULL TANK
- When the water
level reaches a predetermined level,
the “full tank” indicator light goes on.
The unit will have to be drained.
NOTE: Refer to Water Drainage
section.(page 21)
FAN MODE
“FAN” indicator light comes on.
Press the speed button to select
HIGH, LOW fan speed. The
temperature cannot be adjusted.
Exhaust hose attachment is not
required in this mode.
INCREASE: Increase the
temperature setting.
DECREASE: Decrease the
temperature setting.
DEHUMIDIFY
Press the “MODE” button until the
“DEHUMIDIFY” indicator light comes
on.
• Under this mode, you cannot select a
fan speed or adjust the temperature.
The fan motor operates at LOW
speed.
Keep window and door closed for
the best dehumidifying effect.
Exhaust hose attachment is not
required to reduce humidity,
however it is recommended in very
humid rooms so the warm air can be
exhausted outside.
HIGH: The Fan operates at
maximum to reach the
required temperature as
rapidly as possible.
When the appliance is powered on,
Press together the INCREASE and
DECREASE Buttons on the control
panel, then you can select the unit
of temperature from Fahrenheit or
Celsius.

Page 15
ENGLISH
Page 15
SET UP & USE
TIMER
• To set the AUTO STOP timer. When
the unit is ON, press the TIMER
button.
• Press the or button to select the
AUTO TIME by 1 hour increments,
up to 24 hours. The LED Display will
indicate the remaining time. Press
the TIMER button again. The TIMER
indicator light illuminates to show
that the AUTO STOP program is
initiated.
• To set the AUTO START timer. When
the unit is OFF, press the TIMER
button.
• Press the or button to select the
AUTO TIME by 1 hour increments,
up to 24 hours. The LED Display will
indicate the remaining time. Press
the TIMER button again. The TIMER
indicator light illuminates to show
that the AUTO START program is
initiated.
• Pressing the POWER button or the
TIMER button will cancel the AUTO
START/STOP timed program and
the timer indicator light will not be
illuminated
SLEEP INDICATOR LIGHT
When this light is illuminated, it
indicates that SLEEP has been
activated from the remote control and
that the temperature will gradually
adjust.
ENGLISH

Page 16
ENGLISH
Page 16
SET UP & USE
OPERATING FROM THE REMOTE CONTROL
BATTERY INSTALLATION (BATTERIES NOT INCLUDED)
(1) Slide open the battery compartment cover.
(2) Insert 2 × “AAA”batteries as shown.
(3) Slide back the battery cover.
CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries
if the remote is not used for a month or longer. Do not attempt to
recharge the batteries. Both batteries should be replaced at the same
time. Do not dispose of the batteries in a re as they man explode.
Point the remote control at the receiver on the appliance. The remote control
must be no more than 16 feet away from the appliance (without obstacle
between the remote control and the receiver).
The remote control must be handled with extreme care. Do not drop it or expose
it to direct sun light or sources of heat.
16 Feet
ENGLISH

Page 17
ENGLISH
SET UP & USE
REMOTE CONTROL
POWER BUTTON: Press to Turn ON or OFF
TIMER BUTTON: Used to set a delay start or shut down time.
MODE BUTTON: Each time you press the button COOL, DEHUMIDIFY, FAN,
INCREASE: Increase the temperature setting.
DECREASE: Decrease the temperature setting.
FAN SPEED BUTTON: Used to select the HIGH, LOW Fan speed.
SLEEP BUTTON: Gradually adjusts the temperature.
ENGLISH
Speed Button Mode Button
Increase Button
Sleep Button Timer Button
Decrease Button
ON / OFF

Page 18
ENGLISH
SET UP & USE
POWER BUTTON
• Press to Turn Air Conditioner ON or OFF.
MODE BUTTON
• Press the mode button to scroll through COOL , DRY , FAN
COOL
• Select the target temperature 61˚F – 88˚F (16˚C – 31˚C) by pressing the
or buttons until the desired temperature.
• Press the Fan Speed Button to select Low, High Speed.
ENGLISH
DEHUMIDIFY
Ideal for reducing humidity.
• Keep window and door closed for the best dehumidifying effect.
• Exhaust hose attachment is not required to reduce humidity, however it is
recommended in very humid rooms so the warm air can be exhausted outside.
Draining in Dehumidify mode
• It is recommended that the dehumidification drain and drain hose be used for
continuous drainage.
• FULL TANK - When the water level reaches a predetermined level, the “full
tank” indicator light goes on. The unit will have to be drained.
NOTE: Refer to Water Drainage section.
• In this mode, fan speed is selected automatically by the appliance and can not
be set manually.
FAN
• Press the Fan Speed Button to select Low, High Speed.

Page 19
ENGLISH
SET UP & USE
ENGLISH
TIMER
• To set the AUTO STOP timer. When the unit is ON, press the TIMER button.
•Press the or button to select the AUTO TIME by 1 hour increments, up to
24 hours. the TIMER indicator light will be illuminated on the control panel of
the unit to show that the AUTO STOP program is initiated.
• To set the AUTO START timer. When the unit is OFF, press the TIMER button.
•Press the or button to select the AUTO TIME by 1 hour increments, up to
24 hours. Press the TIMER button again to set the selected time. the TIMER
indicator light will be illuminated on the control panel of the unit to show that
the AUTO START program is initiated.
• Pressing the POWER button or the TIMER button will cancel the AUTO START/
STOP timed program and the timer indicator light will not be illuminated
SLEEP
• The SLEEP function gradually adjusts the temperature of the rooms to provide
a comfortable environment. Press the SLEEP button to activate.
• In COOL mode, the temperature will increase 1°F after an hour and 2°F after 2
hours.
• To cancel this setting press the SLEEP button again.

Page 20
ENGLISH
WATER DRAINAGE FOR COOLING AND HEAT MODES
This air conditioner is equipped with auto water evaporation so the water
compartment would not typically ll in cooling or heating mode unless there is
high humidity. Water drainage will generally only be required at the end of the
season for these modes. (see START-END OF SEASON OPERATIONS).
NOTE: FULL TANK - When the water level reaches a predetermined level, the
“full tank” indicator light located on the control panel of the unit goes on.
If an error code appears on the display screen on the control panel “E2”
in COOL mode. The unit will have to be drained.
Intermittent Draining
• Unplug the unit from the power source. Carefully move the unit to a drain area
over your basement oor or drip pan (not included). Remove the bottom drain
cap.
•Let the water drain away and replace the drain
cap. Restart the machine until the error codes
E2 . If the error repeats, call for service.
NOTE: Be sure to reinstall the bottom drain plug
before using the unit.
Continuous Draining
• Unplug the unit from the power source. Remove the bottom drain cap. While
doing this operation some residual water may spill so have a drip pan (not
supplied) to collect the water.
• Connect the drain hose (supplied) as shown in the diagram. The water can be
continuously drained through the hose into a oor drain or drip tray.
•Turn on the unit.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
• After the unit has stopped, it cannot be restarted for 3 minutes. Operation will
automatically restart after 3 minutes.
SET UP & USE
Drain outlet
Drain hose
This manual suits for next models
1
Table of contents
Other Coby Air Conditioner manuals
