Coby TFTV791 - 7" Tft LCD Tv User manual

EN Portable Digital LCD TV
Instruction Manual ............................................Page 2
ES TV Digital Portátil con Pantalla LCD
Manual de Instrucciones................................Pagina 36
FR TV LCD Numérique Portable
Manuel D’instruction .......................................Page 68
Please read carefully before use • Léa el manual antes de usar • Veuillez lire ce livret avant utilisation
For Model No.
TFTV791

Page 2 Table Of Contents
English
Table of ContentsÂ
THANK YOU.....................................................................................................................................4
Package Contents..........................................................................................................................4
Features............................................................................................................................................4
UNIT AT A GLANCE.........................................................................................................................5
Front View ........................................................................................................................................5
Left View...........................................................................................................................................6
Rear View.........................................................................................................................................6
Using the View Stand...........................................................................................................7
Remote Control...............................................................................................................................8
Using the Remote Control ...................................................................................................9
CONNECTIONS AT A GLANCE ....................................................................................................10
Power..............................................................................................................................................10
Using the AC Adapter........................................................................................................10
DC Car/Boat Adapter........................................................................................................11
Using the Rechargeable Battery......................................................................................11
Connecting the Antenna.............................................................................................................12
Using the Built-In Antenna.................................................................................................13
Using the External Antenna ..............................................................................................14

Page 3 Table Of Contents
English
Audio/Video Connections (optional).........................................................................................15
Using Headphones or Earphones.....................................................................................15
Audio/Video (AV) Input.....................................................................................................16
GETTING STARTED.........................................................................................................................17
Using the TV for the First Time ......................................................................................................17
Step 1: Set the unit to TV mode.........................................................................................17
Step 2: Perform a channel scan.......................................................................................17
Basic TV Controls...........................................................................................................................18
Changing Channels ..........................................................................................................19
Adjusting the Volume ........................................................................................................19
SYSTEM MENU...............................................................................................................................20
System Menu Controls..................................................................................................................20
Picture Setup.......................................................................................................................21
Audio Setup ........................................................................................................................22
Time Setup...........................................................................................................................22
General Setup ....................................................................................................................23
Channel Setup....................................................................................................................23
SAFETY NOTICES...........................................................................................................................25
TROUBLESHOOTING & SUPPORT...................................................................................................31
SPECIFICATIONS...........................................................................................................................34

Page 4 Thank You
English
Thank YouÂ
Congratulations on your purchase of a Coby portable LCD television. This manual is designed to help you easily
set up and begin using your new TV right away. Please read this manual carefully and retain it for future reference.
Package Contents
Coby portable LCD TV (main unit)
AV connection cable
External antenna
AC power adapter
DC power adapter (for the car/boat)
Remote control
If any of the above items are missing, please contact
the dealer from whom you purchased this product.
This package may contain plastic bags or
other materials that pose a hazard to chil-
dren. Be sure to safely dispose of all pack-
ing materials after opening.
Features
to be added from Kat

Page 5 Unit At A Glance
English
Unit at a GlanceÂ
Front View

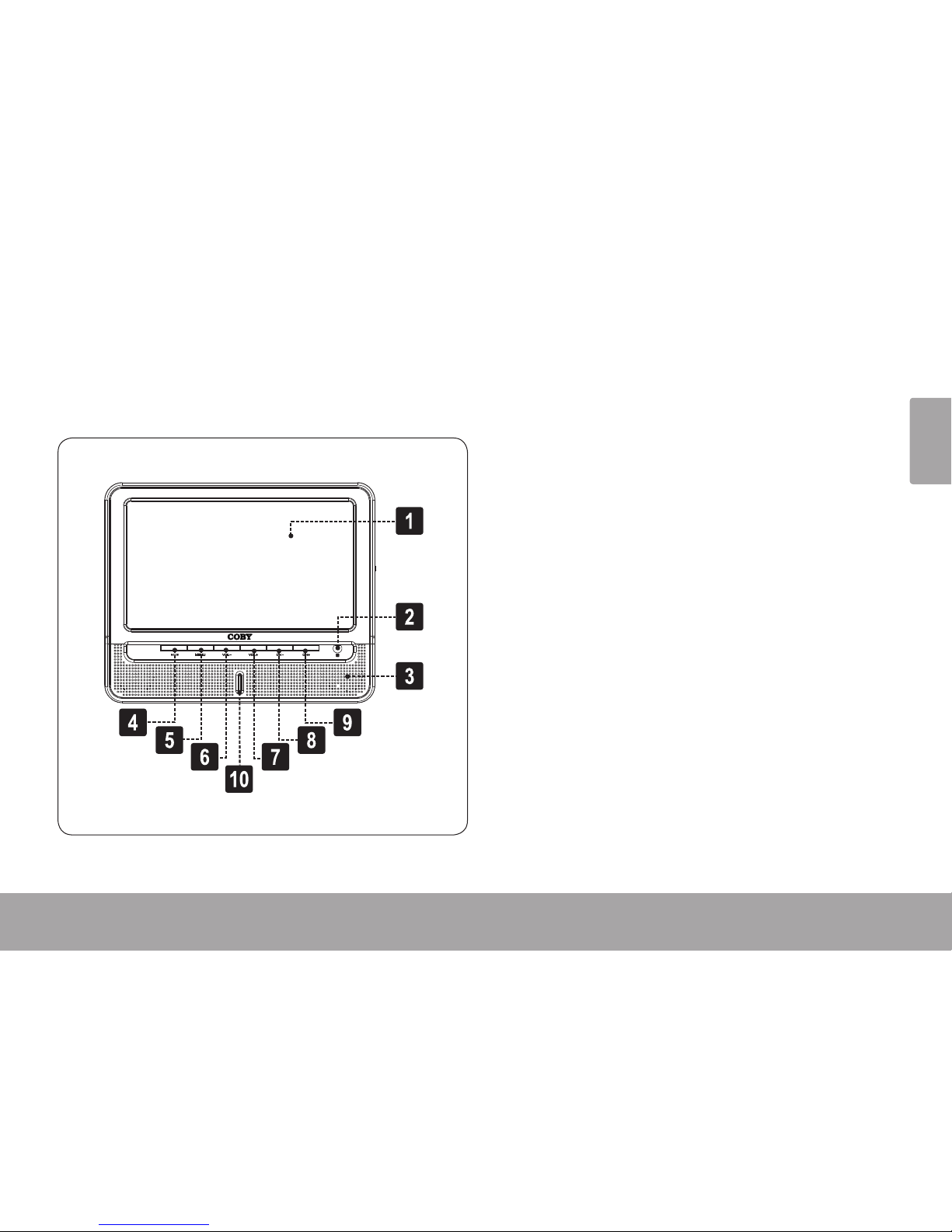

TV screen1.
Remote control sensor2.
Stereo speakers3.
Mode button4.
Menu button5.
Volume - button6.
Volume + button7.
CH - button8.
CH + button9.
Power indicator light10.

Page 6 Unit At A Glance
English
Left View
Power switch1.
Power input (DC 9V)2.
3.5mm composite video input3.
3.5mm stereo audio input4.
3.5mm headphone out5.
Rear View
Built-in antenna1.
Built-in antenna plug2.
Coaxial antenna input3.
View stand (closed)4.

Page 7 Unit At A Glance
English
Using the View Stand
1
View stand (open)1.
The view stand is located on the rear of the unit. Simply ip the stand out and place the unit on a level
surface to enjoy hands-free viewing.

Page 8 Unit At A Glance
English
Remote Control
1
2
Key Description
1 Nav Pad Navigation keypad. Browse and select
menu items (Up/Down, Left/Right, OK).
2 Num Pad Numeric keypad. Enter numeric data (e.g.,
channel numbers).
Key Description
Change between TV and AV IN mode.
Change between Normal (widescreen)
and 4:3 aspect ratio formats.
Toggle information display on screen.
Toggle the Electronic Program Guide
(EPG) display.
Access the system menu.
Disable audio output.
Change the audio equalizer mode.
Adjust the volume level (up or down).
Change the channel (up or down).
Return to a previously viewed channel.

Page 9 Unit At A Glance
English
Using the Remote Control
Before using the remote for the rst time, you must
remove the plastic tab from the battery compart-
ment. Simply pull the tab to remove it.
The remote control requires one “CR” battery.
The battery will last for about one year under typi-
cal usage. Replace the batteries if the remote is no
longer working.

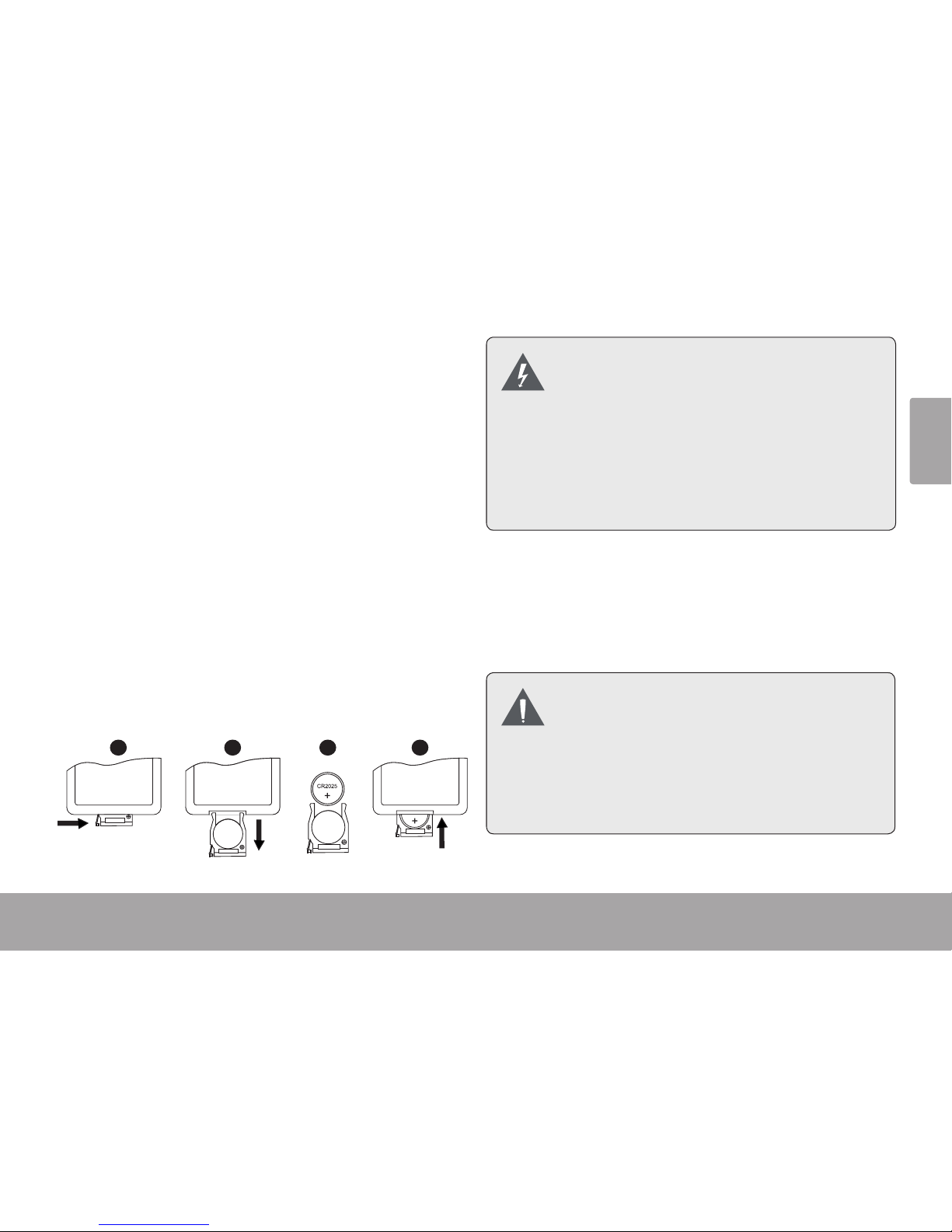

To replace the battery in the remote:
Press in the direction of the arrow1.
Slide the compartment out2.
Place the battery in the compartment with the3.
positive side ( + ) facing up
Push the compartment in to close4.
2
14
3
The battery used in this device may present
a re or chemical hazard if mistreated. Do
not recharge, disassemble, incinerate, or
heat the batteries.
Keep batteries out of the reach of children.
Remove the battery if the remote control will
not be in use for an extended period of time.
To use the remote:
Point the remote at the remote sensor of the TV
from a distance of no more than ’ and at an
angle no greater than  degrees.
Remote control performance may be ad-
versely aected by bright lights or the
placement of objects between the remote
and the sensor.
Do not use the remote control for other
equipment at the same time.

Page 10 Connections At A Glance
English
Connections at a GlanceÂ
Power
The TV can be powered by AC or DC power sources
(use the included AC or DC adapters, respectively), or
by the rechargeable battery pack for portable use.
If the TV will not be in use for a long period of time,
turn the TV o, unplug it, and remove any batteries,
as applicable.
Complete all system connections (optional)
before connecting the power.
When disconnecting the AC power cord
(mains lead), grasp the plug itself and not
the cord.
To prolong the operating life of the unit,
avoid power-cycling the TV rapidly. When
turning the TV o, wait 30 seconds before
turning the TV on again.
Using the AC Adapter
This unit should be used with AC -V /Hz
wall outlets, only.
Connect one end of the supplied AC adapter to
the Power Input jack of the TV. Connect the other
end of the adapter to an AC -V wall outlet.
The AC adapter operates on AC -V
~/Hz (DC Out: V; current: .A max).
