ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
USER’S MANUAL
v. 1.0

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
1
COMPATIBILITY
This receiver is compatible with all COCO transmitters (except TMT-502 + PIR-2050).
WIRELESS SIGNAL
• The 433.92 MHz radio signal penetrates walls, windows and doors.
• Indoor range: up to 30 m. Outdoor range: up to 70 m. (optimum conditions)
• The range depends on local conditions such as the presence of metals and other interference sources. For
example, the metal particles in double glazing (HR glazing) reduce the wireless range of COCO transmitters.
• Limitations may apply to the use of this device outside the EU. If this device is used outside the EU, you must
check whether the device complies with local guidelines.
DESCRIPTION
The wireless doorbell ACDB-6600AC can be conveniently transported to another room or even outside (if it is dry).
Therefore you can always be sure you hear the bell. The reach of the wireless doorbell is 70 meters and in open air
even up to 200 meters. You can activate the chime with the wireless, IP-44 splash proof, push button, which you
can easily attach without using electrical wiring. O course you can also use other COCO transmitters to activate
the wireless chime (max. 4 transmitters per chime). The bell has 5 dierent melodies and has a total of 4 dierent
levels of volume (high, middle, low and o).
TECHNICAL SPECIFICATIONS
• Power supply input
• RF frequency
• RF range
• Standby power consumption
• Melodies
• Volume levels
• Memory addresses
3x AA 1,5V alkaline (chime) 1x CR2032 3V lithium (push button)
433.92 MHz
Up to 70 m indoor/200 m outdoor (optimal conditions)
0.5 Watt
5
4
4

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
2
BATTERY
Remove the transmitter battery if the product will not
be used for an extended period. Extreme temperatures
reduce the capacity and lifetime of the battery.
Replace the 3x AA 1,5 Volt alkaline batteries when
the reach of the transmitter starts to decrease. If the
problem remains, replace the CR2032 3V lithium
battery of the push button.
Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as
household waste.
LIFE-SUPPORT
Never use COCO products for life-support systems or
other applications in which equipment malfunctions
can have life-threatening consequences.
INTERFERENCE
All wireless devices may be subject to interference,
which could aect performance. The minimum distance
between 2 receivers should be at least 50 cm.
REPAIRING
Do not attempt to repair this product. There are no
user-serviceable parts inside.
WATER-RESISTANCE
The doorbell chime receiver is not water-resistant.
Keep it dry. Moisture will corrode the inner electronics
and can result in a short circuit, defects and shock
hazard. The doorbell push button transmitter is IP44
waterproof.
CLEANING
Use a dry cloth to clean this product. Do not use harsh
chemicals, cleaning solvents, or strong detergents.
HANDLING
Do not drop, knock, or shake the device. Rough
handling can damage internal circuit boards and ne
mechanics.
ENVIRONMENT
Do not expose the product to excessive heat or cold,
as it can damage or shorten the life of electronic circuit
boards and batteries.
Read these simple guidelines. Not following them may be dangerous and faulty installation will invalidate any
warranty that may apply to this product.

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
3
A

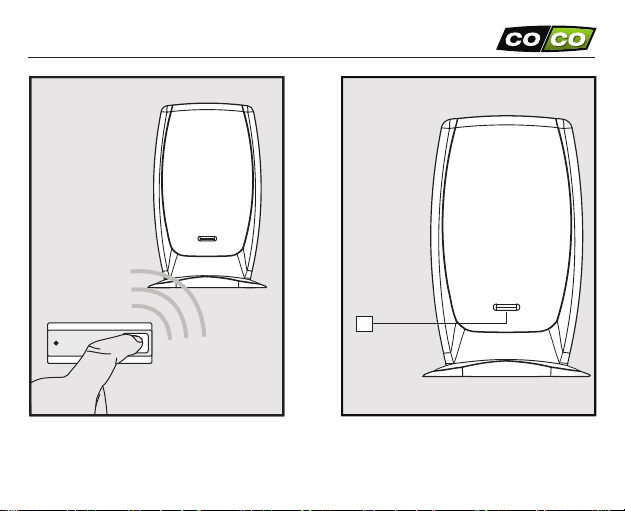

Chime + push button ACDB-6600AC A: LED indicator

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON

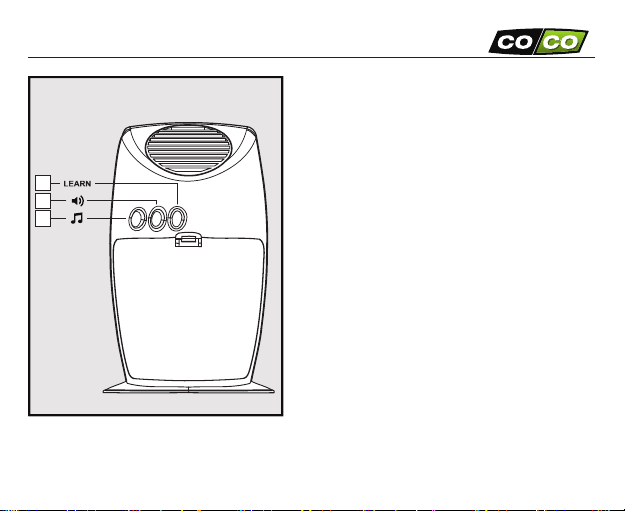

A
B
C
A: LEARN button
B: Volume button
C: Melody selection
4

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
5
[1] Install batteries
Place 3x 1,5V AA alkaline batteries in the
battery compartments.
The polarity should match the symbols on
the holder.
he wireless doorbell ACDB-6600AC can be
conveniently transported to another room or even
outside (if it is dry). Make sure you are able to hear
the chime and the LED indicator is visible.

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
[2] Select volume
Press the volume button several times to select
1 of the 4 volume levels. You can select a
different volume level for each transmitter.
6
[3] Select melody
Press the melody button several times to select
1 of the 5 melodies. You can select a different
melody for each transmitter.

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
7

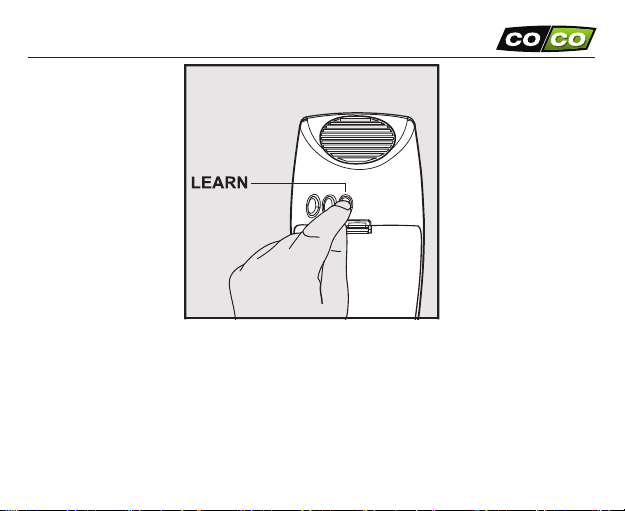

When you have selected the desired volume
level and melody, press the [LEARN] button
for 1 second to activate the learn-mode. The
learn-mode will be active for 15 seconds and
the LED-indicator will blink slowly.
[4] Activate learn-mode [5] Assign COCO transmitter code
While the learn-mode is active, send an ON-
signal with any COCO transmitter to assign the
code to the receiver’s memory.

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
[6] Code conrmation
The LED indicator will blink fast to conrm the
code has been received. The receiver can
store up to 4 different transmission codes in its
memory. The memory will be preserved when
the receiver is moved to another socket or in
case of power failure.
8

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
Single code delete
(1) Press the [LEARN] button for 1 seconds to
activate the learn-mode. The learn-mode will
be active for 15 seconds.
(2) While the learn-mode is active, send an
OFF-signal to delete the code of a specic
COCO transmitter.
(3) The LED indicator will blink fast shortly to
conrm code deletion.
Full memory delete
(1) Press and hold the [LEARN] button for 7
seconds until the LED indicator starts blinking
fast. The delete mode will be active for 15
seconds.
(2) While the delete mode is active, press the
[LEARN] button again for 1 second.
(3) The LED indicator will blink fast shortly to
conrm memory deletion.

ACDB-6600AC CHIME WITH WIRELESS PUSH BUTTON
If possible, dispose of this product at a recycling center. Do not dispose of this product with the
household waste.
This product is covered by the legal warranty that applies to your country and it begins on the day of
purchase. For additional information, visit: www.coco-technology.com/warranty/
The contents of the user’s manual are subject to copyright protection. Without prior written permission,
reproducing or copying is prohibited. Information in these documents is subject to change without
prior notice. Check www.coco-technology.com for updates.
COCO International BV declares that this product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC (R&TTE).

12
DECLARATION OF CONFORMITY
COCO International BV declares that the COCO product;
model: ACDB-6600AC CHIME AND WIRELESS PUSH BUTTON
item number: 71083
intended use: indoor (chime), outdoor (wireless push button)
is in compliance with the essential requirements and other relevant provisions of the following directives:
EMC Directive (2004/108/EC), Low Voltage Directive (2006/95/EC), R&TTE Directive (1999/5/EC)
The product is compatible with the following norms/standards:
Manufacturer/Authorised representative,
COCO International BV
M.A Hoekstra, managing director
Dordrecht, 19 April 2011
EN 60950-1 (2001+A11;2004)
EN 300 220-1 V2.1.1 (2006)
EN 300 220-2 V2.1.2 (2007)
EN 301 489-1 V1.6.1 (2005)
EN 301 489-3 V1.4.1 (2002)
EN 50371 (2002)
EN 60950-1 (2001)
EN 60950-1/A11 (2004)
EN 61000-4-2 (1998+A2;2001)
EN 61000-4-3 (2002)
ETSI 300220-1 V2.3.1 (2010-02)
EN300220-2 V2.1.2 (2007-06)
EN301489-1 V1.8.1 (2008-04)
EN301489-3 V1.4.1 (2002-08)
EN60950-1: 2006+A11:2009+A1:
2010+A12:2011
