CoCo AGDR-3500 User manual

USER’S MANUAL
version 1.1
English
AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
A
B
C
D
*

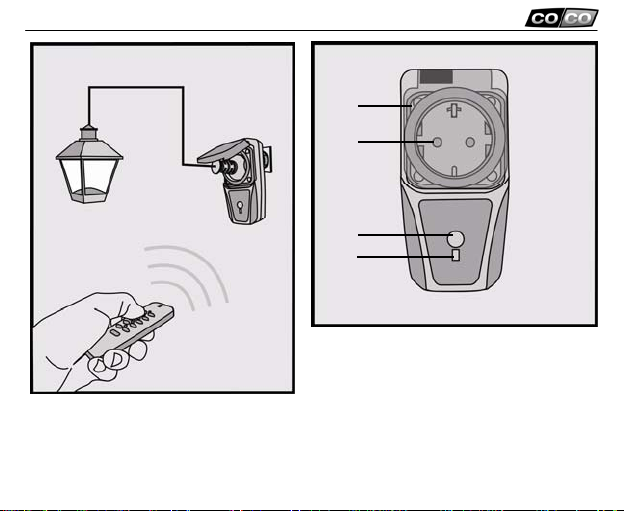

A: Indicator (power and connection status)
* Picture of the AYCT-102
(not always included, check the specifications on the
packaging)
B: Search mode button
C: Child protection
D: Hinged cover
1

2
AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’

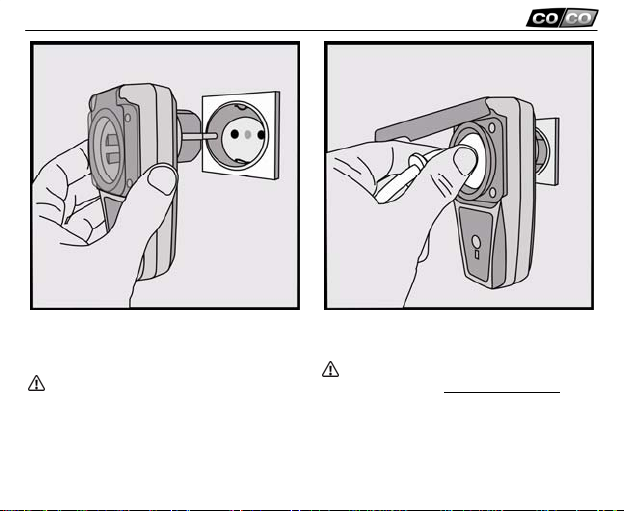

[1] Insert the plug portion in a mains socket. The
indicator remains lit as long as there is power at
the mains socket.

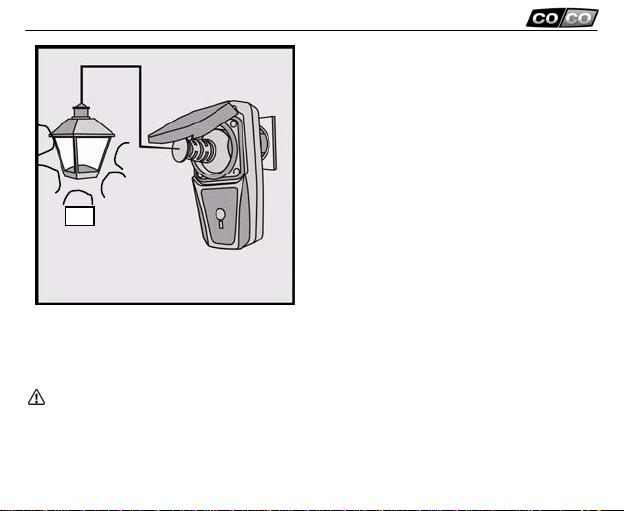

[2] Connect the lamp, pond pump (or other
suitable equipment) to the switched socket.
This product is suitable for devices with a
power consumption of maximum 3500 Watts!
The switched socket is normally off. The
switched socket can only be switched on once it
has been linked to a transmitter!

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
3

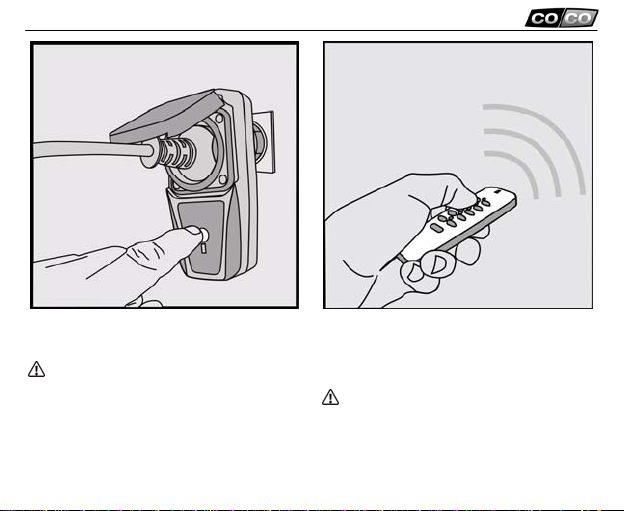

[3] Press the search mode button briefly. The
indicator begins to flash.
[4] Press the desired ‘on’ button on the remote
control (or send an ‘on’ signal from another type of
transmitter). The indicator on the switched socket
stops flashing as soon as the connection is made.
The search mode is activated for 15 seconds. If
necessary, repeat [3] to activate the search mode
again!
If necessary, see the manual for the
transmitter!

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
4
[5] To confirm, the built-in switch switches on and
off two times. The code of the transmitter is stored
in the memory of the mains socket switch and the
product is ready for use.
A maximum of 6 different transmitter codes can
be stored simultaneously!
2x

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
Remarks
Reminders
• This product must be used in combination with at least one COCO transmitter.
• The product is a switch/receiver: remotely controls lighting (or other suitable equipment), without
complex wiring.
• This product is equipped with child protection. This may make it slightly more difficult to insert plugs. If
so, push the plug firmly and directly into the switched socket.
• The hinged cover protects this product against splashed water. Make sure the rubber seal does not
become damaged and that the cover is closed when no devices are connected.
• To prevent interference between devices, avoid placing multiple products close to each other. The
minimum distance between units should be approx. 50 cm.
• The wireless system can be indefinitely expanded with other COCO remote controls and/or receivers.
• Your COCO transmitter may have a special ‘group’ button with which multiple receivers can be switched
on and off simultaneously. Repeat [3 - 4] and press the ‘group’ on button of the transmitter in step [4].
• During a power failure, or when the mains socket switch is removed from the socket, the codes remain
in the memory.
• To delete the set codes (clearing the memory): (1) Hold in the search mode button. (2) The indicator
begins flashing after approx. 7 seconds. (3) Release the search mode button. (4) Press the search
mode button again. (5) To confirm, the built-in switch switches on and off two times.
• If the product does not work:
- Reset the memory (see previous line) and set the code in the transmitter again (repeat [3 - 4]).
- Check whether the indicator is lit; if not, there may not be any power at the mains socket.
- Make sure the connected device is switched on.
Safety instructions
• This product is splashproof and meets the requirements of protection class IP44. This means that the
product provides protection against splashed water and may be used outdoors.
• Wa rning: Even if the product is switched off, voltage may still be present at the switched socket!
5

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
6
• Never use COCO products for life support systems or other applications in which equipment
malfunctions can have life-threatening consequences.
• Do not connect any lights or other devices that consume more than 3500 Watts. Connecting incorrect
equipment can cause defects, a short circuit and fire.
• Do not attempt to repair this product. If the product is damaged or if you are in doubt about the proper
operation, take the product back to the place of purchase.
• Clean the device with a dry cloth.
Wireless
• This product works using a radio signal that passes through walls, windows and doors. The range is
maximum 75 metres in the open air. The range indoors is strongly influenced by local conditions such
as concrete, glass and metals. On average, the indoor range is approximately 30 metres.
• New double glass often includes a thin metallic layer. This type of glazing (“HR glass”) allows most
visible light to pass through but has a negative impact on radio signals. If there is HR glass between the
transmitter and receiver, you should expect a significant reduction of the range of the wireless signal.
• This product operates at a frequency of 433.92 MHz. It complies with the essential requirements and
other conditions of R&TTE Directive 1999/5/EC and can be used in all EU countries.
• There may be restrictions on the use of this device outside the EU. If this device is used outside the EU,
check whether the device complies with the local directives.
This product complies with the essential requirements and other relevant provisions of the applicable
European directives. The Declaration of Conformity (DoC) is available at www.coco-technology.com.

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
If possible, submit this product for recycling after use. Do not dispose of the product with household trash.
Warranty and copyright
This device is covered by a 2-year warranty that begins on the day of purchase. Visit www.coco-
technology.com/warranty for additional information. Reprinting of (portions of) this manual without
permission from Pan-Trade International B.V. is expressly prohibited.
7

AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
8
PAN-TRADE INTERNATIONAL B.V.
P.O. BOX 126
4760 AC ZEVENBERGEN
THE NETHERLANDS
www.coco-technology.com
Declaration of Conformity
Pan-Trade International BV declares that the COCO product, model:
type designation AGDR-3500 GARDEN MAINS SOCKET SWITCH ‘HEAVY DUTY’
item number 74038
is in compliance with the essential requirements and other relevant provisions of directives R&TTE
1999/5/EC, EMC 2004/108/EC and LVD 2006/95/EC and is compatible with the standards EN 300 220-
1/3, EN 55015, EN 301 489-1/3 and EN 60950.
Manufacturer / Authorised representative,
M.A. Hoekstra, managing director
Zevenbergen, 2008-01-30
