Cocoon HE115002 User manual

INSTRUCTION MANUAL
Model Number: HE115002
AM/FM CAMPING LANTERN
& TORCH
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 1 20/01/2015 10:04 am

After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 monthsfrom the date of purchase. Defects that occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded at our discretion.
The benefits conferred by this warranty are in addition to all rights and remedies in respect
of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage.You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
AFTER SALES SUPPORT
YEAR WARRANTY
1
MODEL: HE115002 PRODUCT CODE: 49117 03/2015
[e-mail]
1300 663 907
AUS
AM/FM Camping Lantern & Torch
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 2 20/01/2015 10:04 am

3
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 monthsfrom the date of purchase. Defects that occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded at our discretion.
The benefits conferred by this warranty are in addition to all rights and remedies in respect
of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage.You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
AFTER SALES SUPPORT
YEAR WARRANTY
1
MODEL: HE115002 PRODUCT CODE: 49117 03/2015
[e-mail]
1300 663 907
AUS
AM/FM Camping Lantern & Torch
Safety Instructions
Read this manual thoroughly before rst use and keep it in a safe place for future reference, along
with warranty card, purchase receipt and packaging. The safety precautions enclosed herein
reduce the risk of re, electric shock and injury when correctly adhered to.
Follow all instructions and take notice of all warnings to reduce risk of re or electric shock.
• Do not expose this product to water, rain, moisture or dust. Electronic products of this kind
should never be subjected to moisture or extreme temperatures.
• There are no user-serviceable parts inside this product.
• Do not repair the unit yourself. If your device is not functioning correctly, disconnect the
product from power, and contact after sales support.
• Supervise young children to ensure they do not play with the product.
• Do not expose to water, dust, moisture, chemicals, oils or other liquids.
• Do not expose to naked ames or other heat sources.
• Do not drop or subject the device to undue shock.
• Keep device away from magnets at all times.
• Keep away from direct sunlight.
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 3 20/01/2015 10:04 am

4
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Contents
Warranty Details 2
Safety Instructions 3
Parts List 5
Technical Specications 5
Product Overview 6
1.1 Product Features 6
1.2 Item Overview 6
Instructions 8
2.1 Unpack 8
2.2 Charging - Micro USB 8
2.3 Charging - Dynamo Handle 8
2.4 Charging an External Device 8
2.5 Using the Torch 9
2.6 Using the Radio 9
2.7 Using the Alarm 9
2.8 USB Cable Storage 9
Troubleshooting 10
Repair and Refurbished Goods or Parts Notice 11
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 4 20/01/2015 10:04 am

5
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Parts List
Technical Specications
1 x AM/FM Camping Lantern & Torch
1 x Micro USB Cable
1 x Instruction Manual
1 x Getting Started Guide
1 x Warranty Card
Weight: 360g
Dimensions: Ø10cm x 18.5cm
Battery: Rechargeable 800mAh, 3.7V
Output Voltage: 5V/500mA
Input Voltage: 5V via Micro USB Cable
FM Range: 76 – 108 MHz
AM Range: 520-1620 KHz
Approximate Running Time
1 Minute Cranking:
3-LED Spotlight: ≥ 15 Min.
10-LED Lantern: ≥ 6 Min.
5-LED Red Flashing: ≥ 120 Min.
Radio Play: ≥ 6 Min.
Fully Charged:
3-LED Spotlight: ≥ 10 Hr.
10-LED Lantern: ≥ 4 Hr. 15 Min.
5-LED Red Flashing: ≥ 60 Hr.
Radio Play: ≥ 10 Hr.
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 5 20/01/2015 10:04 am

6
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
1.1 Product Features
The Cocoon AM/FM Camping Lantern is feature packed reducing the amount of gear you need
to take camping. Charge the built in battery via Micro USB or dynamo hand crank to power super
bright LED lights and an AM/FM radio. The lights can be used as a lantern or torch with a handle,
or in an emergency the LEDs will strobe a red beacon light. Not only a light, the lantern will charge
your mobile phone or other portable devices with a USB port and transmit radio for up to 10 hrs.
The Cocoon AM /FM Camping Lantern is ideal for campsites, power outages or for peace of mind
in emergencies.
NOTE: The lantern may not charge tablets, iPads or devices with higher voltage requirements
1
2
3
4
5
6

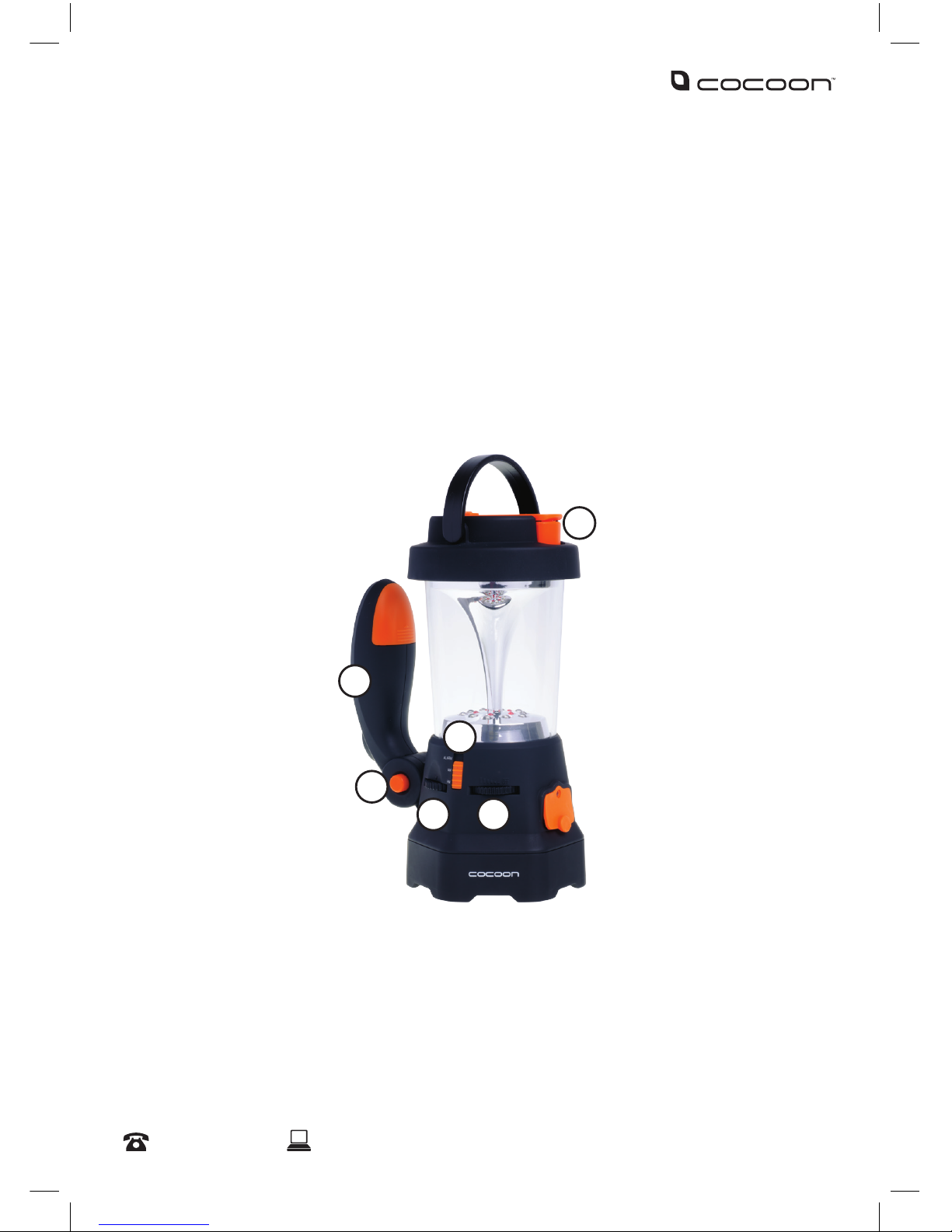

Product Overview
1.2 Item Overview
1. Handle
2. Handle Rotating Button
3. Tuning Dial
4. Radio/Alarm Mode Slider
5. Volume Dial
6. Crank Handle
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 6 20/01/2015 10:05 am

7
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
5
4
2
1
3
Product Overview
1.2 Item Overview cont.
1. USB Port On/O Switch
2. USB Port
3. Micro USB Charging Port
4. Lantern LEDs
5. USB Cable Storage Slot
1. Light Switch
2. Hanging Handle
3. Torch LED Lights
2
1
3
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 7 20/01/2015 10:05 am

8
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Instructions
2.1 Unpack
Unpack the Cocoon AM/FM Camping Lantern & Torch and check you have all the components:
• 1 X AM/FM Camping Lantern & Torch
• 1 X Micro USB Cable
2.2 Charging - Micro USB
1. Using the included cable, insert the micro USB end into the
AM/FM Camping Lantern & Torch slot located under the
orange cover.
2. Insert the standard USB end into a USB power adaptor or
computer.
3. The charging light will illuminate RED during charging.
4. Once the AM/FM Camping Lantern & Torch is fully charged,
the charging light will change to green
Note: It may take between 2.5 to 4 hours to fully charge the camping lantern.
2.3 Charging - Dynamo Handle
1. Flip up the orange dynamo handle into a position ready for
cranking, as per the image.
2. Crank the dynamo handle steadily. The charging light will
illuminate RED as the handle is cranked.
3. When nished, ip the dynamo handle back to its original
position.
Note: Do not crank the dynamo handle for longer than 5 minutes.
2.4 Charging an External Device
1. Ensure the camping lantern is suciently charged.
2. Insert the external device’s USB charging cable into the USB.
3. Slide switch to ON to begin charging.
4. When nished charging, slide switch to OFF to ensure the
camping lantern battery isn’t drained.
Note: The lantern may not charge tablets, iPads or devices with
higher voltage requirements.
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 8 20/01/2015 10:05 am

9
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Instructions

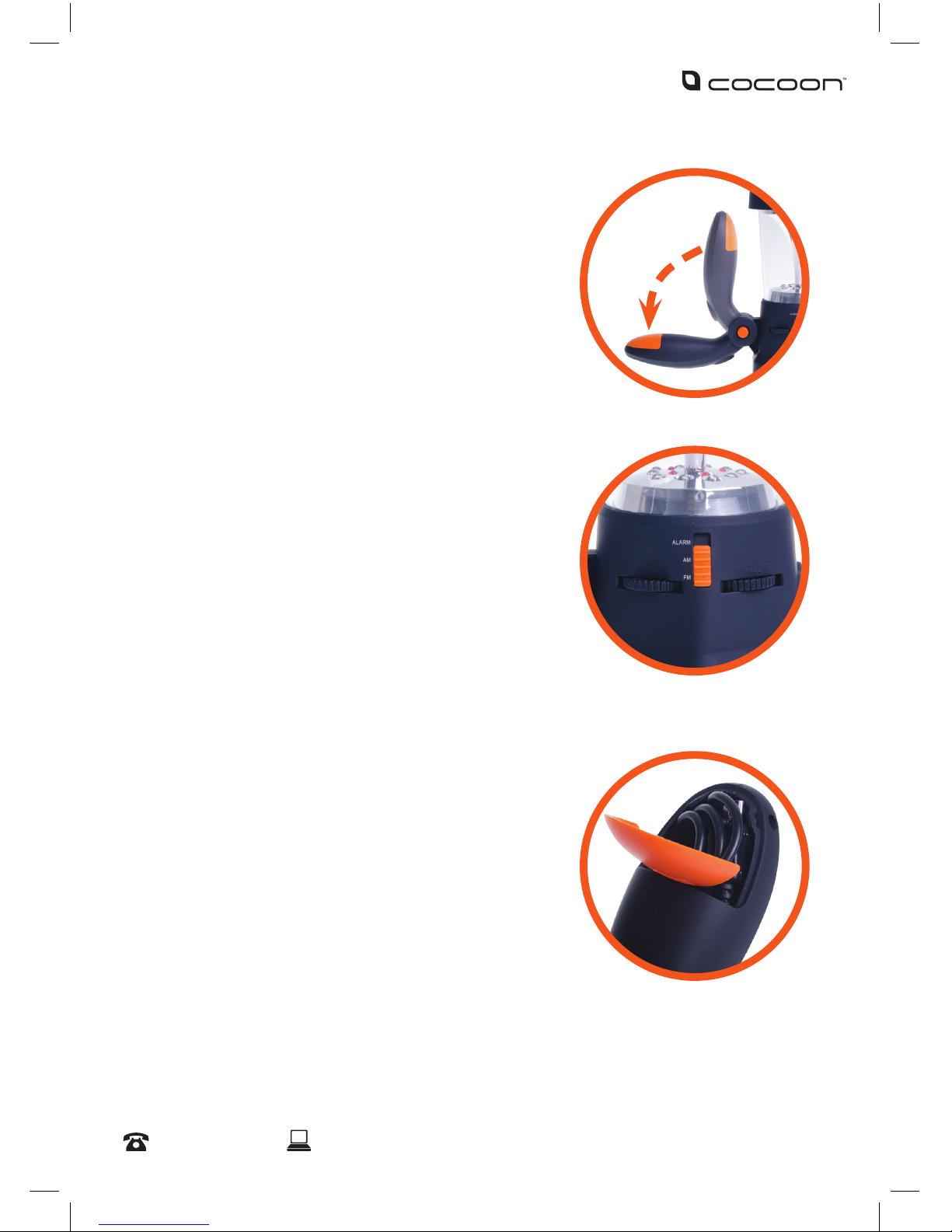

2.5 Using the Torch
1. Rotate the handle to the desired position by pressing the
orange button at the base of the handle. The handle has a
90° range, as shown to the right.
2. Press the orange light switch on the handle to change
between torch low/high and lantern mode.
3. Use the black hanging handle on the top of the camping
lantern to hang from a desired location when in lantern
mode.
2.6 Using the Radio
1. Select between AM or FM by using the orange slider.
2. Rotate the volume dial until it clicks on, then set to the
desired volume.
3. Rotate the tuning dial to the desired station.
2.7 Using the Alarm
1. To sound the alarm and turn on the red strobing LED’s, select
ALARM using the orange slider.
NOTE: The alarm will continue to sound until you select AM or FM with the slider.
2.8 USB Cable Storage
The main handle has a convenient slot to store the micro USB
cable when not in use. Slide the orange cap upwards to reveal
the cavity and store cable. Clip the cap back on when the cable
is stored.
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 9 20/01/2015 10:05 am

10
After Sales Support
1300 663 907
Model Number HE115002
customercar[email protected]
Troubleshooting
Problem Solution
My lantern is heating up • The lantern may heat up if cranking for a
long time or if exposed to high temperature
or humid environments. Turn o the torch
and radio and remove the lantern from any
warm or humid environments to allow it to
cool down.
I can’t hear my radio • First check the volume dial. Check if the
lantern LEDs are also working. If not then
recharge the lantern and try the radio
again.
• Ensure your lantern is tuned to a frequency
with radio reception.
My radio doesn’t sound clear. • If you are receiving too much static through
the radio, rst try slowly rotating the tuning
dial. If the signal is still static, it may be that
your location has a weak signal for that
station.
My USB device isn’t charging • Ensure that the USB Port On/O Switch is
set to ON.
• It may be that the lantern’s internal
battery is low. Recharge the lantern before
reconnecting the USB device.
• The lantern may not charge some tablets or
devices with high capacity batteries. Please
check the voltage requirements of the
device you are trying to charge.
Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned
to the Supplier for repair.
Please be aware that if your product iscapable of retaining user-generated data (such as files
stored on a computer hard drive, telephone numbers stored onamobile telephone, songs
stored on a portable media player, games saved onagames console or files stored ona USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending theproduct for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they
meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 1300 663 907 or write to us at:
Winplus Australasia
PO BOX 537
Bayswater Business Centre
Bayswater, VIC 3153
Winplus Help Desk 1300 663 907
(Operating Hours: Mon-Fri 08:30AM to 6:00PM)
[email protected]
www.winplus.com.au
AM/FM Camping Lantern & Torch
AFTER SALES SUPPORT
YEAR WARRANTY
1
MODEL: HE115002 PRODUCT CODE: 49117 03/2015
[e-mail]
1300 663 907
AUS
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 10 20/01/2015 10:05 am

Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned
to the Supplier for repair.
Please be aware that if your product iscapable of retaining user-generated data (such as files
stored on a computer hard drive, telephone numbers stored onamobile telephone, songs
stored on a portable media player, games saved onagames console or files stored ona USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending theproduct for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they
meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 1300 663 907 or write to us at:
Winplus Australasia
PO BOX 537
Bayswater Business Centre
Bayswater, VIC 3153
Winplus Help Desk 1300 663 907
(Operating Hours: Mon-Fri 08:30AM to 6:00PM)
[email protected]
www.winplus.com.au
AM/FM Camping Lantern & Torch
AFTER SALES SUPPORT
YEAR WARRANTY
1
MODEL: HE115002 PRODUCT CODE: 49117 03/2015
[e-mail]
1300 663 907
AUS
HE115002 - AM-FM Camping Lantern & Torch Manual.indd 11 20/01/2015 10:05 am

HE115002 - AM-FM Camping Lantern & Torch Manual.indd 12 20/01/2015 10:05 am
