Code Alarm ca 5152 User manual

1ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.
PROFESSIONAL
SERIES
IMPORTANT NOTE: Theoperation ofthe Securityand ConvenienceSystem as described in this manual is
applicableto most vehicles.However, dueto theconfiguration of somevehicles, somefunctions AND/OR
SAFETYPRECAUTIONS maynot apply. Please see yourinstallingdealerfor more information.
Automatic / Manual Transmission
Remote Start and Keyless Entry System
ca 5152
Owner’s Guide

2 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.
Table of Contents
Using Your Remote Control ...............................................................3
Using the Keyless Entry ...................................................................3
Two Stage Door Unlock (optional) ...................................................3
Activating Trunk Release (optional) ................................................3
Activating AUX 1 (optional)..............................................................3
Using the Progressive Car Finder Feature......................................3
Using the Personal Protection Alarm ...............................................3
Programmed Transmitter Notification ..............................................4
Valet Mode ........................................................................................4
Eliminating Lock / Unlock Notification Chirps ...................................4
Using Your Remote Starter ................................................................5
Remote Start Ready Mode................................................................5
Cancelling Remote Start Ready Mode .............................................5
Remote Starting Your Vehicle ..........................................................6
Remote Start Shutdown ...................................................................6
Entering Your Vehicle while it is Running via Remote Start ...........6
Preheating or Precooling the Vehicle’s Interior ...............................6
User Programmable Run Time / Run Time Extension ......................6
Using the Quick Stop Feature ..........................................................7
Operating the 2 / 3 Hour Start Up Timer Mode ................................7
Operating the Daily Start Timer ........................................................8
Remote Start Safety Features .........................................................8
Transmitter Button Functions ...........................................................8
Replacing Remote Control Batteries...............................................9
Warranty Information.........................................................................10

3ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.
Using Your Remote Control
Using the Keyless Entry
The button is used to lock the vehicle's doors, the button is used to unlock the
vehicle's doors. To lock or unlock the doors simply press and release the desired
function button one time. For your convenience, the parking lights will flash once
when the doors are unlocked and twice when the door are locked.
NOTE: The system is equipped with a feature called Silent Choice. If enabled, the
system requires a second press of the or button to activate an audible locking/
unlocking response from the vehicle. If your system is set up for 2 step unlock, a
third press of unlock will activate the audible response.
Using the Progressive Car Finder Feature
Press the button to locate your vehicle. The system will sound 5 times at low
volume, increasing in volume each time the button is pressed.
Using the Personal Protection Alarm (Panic)
Press and hold the button for 3 seconds to activate the personal protection
alarm. During panic mode, the normal function of the transmitter buttons will be
suspended. The transmitter’s and buttons can be used to lock and unlock the
door (if the option is installed). To stop the alarm, press and hold the button on
the transmitter again for 3 seconds. The system will automatically stop after 30
seconds.
Activating the Trunk Release Feature (Optional)
The button is used to open the trunk of the vehicle. To open the vehicle's trunk
press and hold the button for 3 seconds.
Two Stage Door Unlock (Optional)
If this feature is enabled on your system, pressing the button one time will
unlock only the driver’s door. Press again within three seconds to unlock the
remaining doors.
Activating AUX 1 (Optional)
If this feature is enabled on your system, pressing the and buttons
simultaneously will activate an optional feature. This feature can be programmed
for a wide range of functions like power window or sunroof automation, please
consult your installing dealer to determine the functionality of your system.

4 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.
Valet Mode
Valet Mode is used to disable the system from remote starting. To enter or exit
valet mode simply follow the 4 steps outlined below:
1. Turn the vehicle’s ignition ON.
2. Push and hold the programming/valet button.
3. The LED will turn on solid when valet mode is active
4. Release the programming/valet button.
Eliminating Lock / Unlock Notification Chirps
System lock and unlock notification chirps can be toggled ON or OFF without
entering the programming feature banks.
1. Turn the ignition ON then OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
Programmed Transmitter Notification
As a security precaution each time the vehicle’s ignition is turn on the status LED
light with flash the number of transmitters programmed into the system. This helps
to identify unauthorized transmitters from accessing your vehicle. If you believe an
unauthorized transmitter has been programmed to your system, contact your
installing dealer for assistance.

5ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.
Using Your Remote Starter
Remote Start Ready Mode - Manual Transmission Vehicles Only
To activate the remote start function, the system must first be in Remote Start
Ready Mode. Follow the steps below to enter remote start ready mode.
1. While the engine is running by the ignition key;
a. Set the parking brake
b. Place the transmission in neutral.
2. With your foot off the brake pedal, press and release the button 2
times within 2 seconds. The LED will flash 3 times and the parking
lights will turn on to confirm the system has entered quick stop mode.
3. Remove the keys from the ignition, the vehicle will remain running in
quick stop mode.
4. Exit the vehicle and close all vehicle doors.
5. Within 1 minute of step 1, press the button to lock the vehicle’s
doors. The vehicle will shutdown and sound 1 short chirp then 1 long
chirp to confirm ready mode is set.
Remote Start Ready Mode must be enabled if your vehicle is equipped
with a manual transmission.
Cancelling Remote Start Ready Mode
The system will exit remote start ready mode if any of the following occur:
Open any door
Open the hood or trunk (if connected)
Press the brake
Release the parking brake
Turn the ignition ON

6 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.
User Programmable Run Time / Run Time Extension
The system has the ability to allow the user to extend the time the vehicle will be
running under control of the remote start. This will only extend the run time back to
the current run time setting during the current remote start cycle. If your system is
set to run 15 minutes and the time remaining is 4 minutes, extending the run time
will reset the countdown timer to 15 minutes and your vehicle will continue to run
for another 15 minutes. Follow the steps below to extend the vehicle’s run time.
1. The remote start must already be active.
2. Press and release the button 4 times.
3. The system will chirp to confirm that the run time has been reset.
Remote Starting Your Vehicle
To activate the remote start function, press and release the button 2 times within
2 seconds. The system will sound, the parking lights will flash 1 time and the
system will check the vehicle to ensure it is safe to start. If all safety parameters
are correct, the vehicle will start within 5 seconds. The vehicle’s parking lights
will turn on (or flash depending on system settings) as a visual indication that the
vehicle has started and is running.
If your vehicle stalls or does not start, the system will pause 5 seconds, then try 2
more times to start the vehicle (a total of 3 attempts). The system will pause 5
seconds between each start attempt. If the vehicle does not start after the 3rd
attempt, the system will abort the remote vehicle start process.
Note: Do not leave children or animals unattended in the vehicle when using the
remote start feature.
Note: Manual transmission vehicles - Remote Start Ready Mode must be set.
Preheating or Precooling the Vehicle’s interior
Before exiting the vehicle, set the temperature controls to the desired setting and
operation. After the system starts the vehicle, the heater or air conditioner will
activate and heat or cool the vehicle’s interior to your setting.
Remote Start Shutdown
Press and hold the button for 3 seconds to turn the vehicle off.
Entering the Vehicle while it is Running via Remote Vehicle Start
1. Unlock the vehicle’s doors.
2. Enter the vehicle. DONOT PRESSTHE BRAKE PEDAL!
3. Insert the key into the ignition switch and turn to the ON or RUN
position.
4. Press the brake pedal. The remote vehicle starter will disengage and
the vehicle will operate normally.

7ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.
Using the “Quick-stop” Feature - Automatic Transmission Vehicles
If you want to make a short stop and keep your vehicle running (to keep the
interior warm or cool), the quick-stop feature allows you to do this while keeping
your vehicle secure and your keys with you.
To engage quick stop:
1. Stop the vehicle and place the transmission in PARK.
2. With your foot off the brake pedal, press and release the button 2
times within 2 seconds. The LED will flash 3 times to confirm quick
stop is entered.
3. Remove the keys from the ignition and exit the vehicle. Press the
button to lock the vehicle’s doors if desired.
Note: Do not leave children or animals unattended in the vehicle when using the
quick-stop feature.
Operating the 2 / 3 Hour Start Up Timer Mode
The system has the ability to start the vehicle every 2 or 3 hours for a 48 hour
period. This feature is especially useful in cold climates where the only means to
keep the engine and engine fluids warm is to periodically start the engine. The
default setting is 3 hour, selection between 2 or 3 hour is made in option
programming.
WARNING!
Be certain that the vehicle is outdoors before using this or any remote starting
device. A running engine produces dangerous carbon monoxide fumes which can
be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle
if it is garaged.
To begin the 2 / 3 hour start up timer mode:
1. Turn the vehicle’s ignition ON then OFF.
2. Press and hold the valet button.
3. Press the button 4 times, the system will;
a. When set for 3 Hour (default) - chirp 2 times and flash the
parking lights 4 times.
b. When set for 2 Hour - chirp 1 time and flash the parking
lights 2 times.
4. Release the valet button.
To exit the 2 / 3 hour start up timer mode:
1. Turn the vehicle’s Ignition ON.
OR
1. Activate the remote vehicle start feature using the remote
control.

8 ca5152.2011AudiovoxElectronicsCorporation.Allrightsreserved.
Transmitter Button Functions
Remote Start Safety Features
For safety and security reasons, the system will shutdown or prevent the remote
vehicle starter from activating if any of the following occur:
1. The vehicle hood is open.
2. The brake pedal is pressed prior to turning the ignition key to the ON
position.
3. The engine is over-revved (tach checking only).
4. Valet mode is active.
1 Way
Transmitter
Lock Unlock
Car Find /
Panic
Start Operation Method
Lock X Press and Release
Unlock X Press and Release
Trunk X Push and Hold (3 Sec)
Car Finder X Press and Release
Panic X Push and Hold (3 Sec)
Remote Start X
Press and Release (1 or 2 times
depending on selectable option)
Remote Start
Shut Down
XPush and Hold (3 Sec)
Run Time
Extention
XPress and Release 4 times.
AUX 1 X X Push and Hold (3 Sec)
Operating the Daily Start Timer
The system has the ability to start your vehicle based on a 24-hour countdown
timer. This feature requires a two-part activation sequence. From the remote,
pressing both the & buttons together will activate the 24 hour countdown
timer (the vehicle will start 24 hours from this time). Next, When you are finished
operating the vehicle for the day, perform the following steps to complete the
process.
1. Turn the ignition ON/OFF (vehicle must be disarmed).
2. Within 10 seconds, while pressing the brake, press and release the
button twice.
3. The vehicle will emit 2 chirps.

9ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.

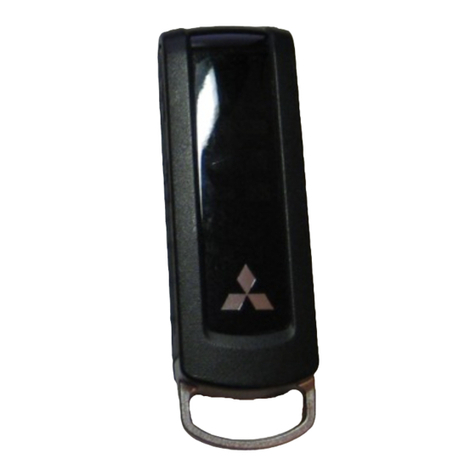

Replacing Remote Control Batteries
1-Way Remote Control:
The batteries (model CR2016) inside each remote control should last approximately
1 year under normal use. When the batteries become weak you will notice the
remote control range (the distance from the vehicle the remote control will work)
deteriorate and the small LED on the remote control will dim. To replace the remote
control batteries:
1. Remove 3 screws and disassemble the halves of the remote control.
2. Remove the old batteries, observing the +/- symbols on the batteries
and replace with new CR2016 batteries.
3. Reassemble the halves of the remote control and install the 3 screws.
4. Test operation of the remote control.

10 ca5152.2011AudiovoxElectronicsCorporation.All rightsreserved.
Code Systems, Inc. Limited Lifetime Warranty
Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE vehicle
security product (the “Product”), purchased from an authorized CODE dealer, that (except as
provided below) should this Product under normal use and conditions, be proven defective in
material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGI-
NALLYINSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge
for parts directly related to repairs of the defect(s).
Switches, indicator lights, and transmitter cases are similarly warranted to the original purchaser
for a period of one (1) year from the date of purchase of the Product.
CODE accessories, sold separately, are covered by the applicable warranty accompanying the
accessory.
This warranty is non-transferable, non-assignable and is voided when: (1) the Product is removed
from the vehicle in which it was originally installed; or (2) the vehicle in which the Product was
originally installed is transferred to another party.
This warranty does not apply to any product damaged by accident, physical or electrical abuse,
improper installation, alteration, or use contrary to its intended function, fire, flood, or other
natural acts.
In order for the Product to be repaired or replaced under the terms of this warranty, the defective
Product must be returned to an authorized CODE dealer and accompanied by a copy of the retail
sales receipt. The date of purchase and year, make and model of the vehicle in which the Product
was originally installed must be clearly indicated on the sales receipt.
This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED OR
IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER.
CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT
OF CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACE-
MENT PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PUR-
CHASE PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTAL-
LATION LABOR.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state

11ca5152.2011 AudiovoxElectronicsCorporation.Allrightsreserved.
Audiovox Electronics Corporation.
Customer Service 1-800-421-3209
WWW.CODE-ALARM.COM
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference
that may cause undesired operation.
Warning!
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
