COE M7 User manual

OWNERS MANUAL
COE M7 MONO BOOM SHAKER

Welcome……………………………… 1
Warranty………………………………. 2
Safety Guidelines……………………. 3
Safety Precautions………………….. 4
Cab Area……………………………... 5
Cab Area Descriptions……………... 6
Joystick Functions…………………… 7
Shaker Operation…………………… 8-9
Daily Operation……………………... 10
Vital Information…………………….. 11
Operation Do Not's ………………… 12
Service Points………………………... 13
Service Point Descriptions…………. 14
Shaker Head Service Points……….. 15-18
Weights………………………………... 19-20
Valve Service Points………………… 21-22
Water System & Steering……….….. 23
Auburn Gears………………………... 24
Maintenance Schedule……………. 25
Trouble Shooting…………………….. 26-30
Main Hydraulic Circuit……………… 31
Pilot Circuits…………………………... 32
Sweeper Circuit……………………… 33
Steering & Water System Circuits... 34
Ground Drive Circuit………………... 35
Air Conditioning Circuit…………….. 36
Wiring & Electrical Circuits…………. 37-42
Parts……………………………………. 43-52
Hose list………………………………... 53-54
Contents

Welcome
1
Equipment Information
Model and Year COE M7 Mono Boom shaker
Serial #
Engine Serial #
Coe Orchard Equipment would like to welcome you as a new owner of a COE M7
mono boom shaker. All COE product designs benefit from over 35 years of in-field ex-
perience in a large variety of crops and working conditions. Our vast on hands experi-
ence has allowed us to develop some of the top performing equipment in the industry.
All of our products are also backed by a large parts inventory and knowledgeable ser-
vice department.
We would like to encourage you to carefully read the Operations and Service manual.
This will better equip you and your operators to the proper operation, characteristics,
service and maintenance of your new shaker. The proper operation and service of your
machine is important in maintaining consistent performance. It also will help maintain
your re-sale value. Always remember to operate the equipment and perform
service in a safe manner.
COE recommends to only use genuine COE re-placement parts. The proper perfor-
mance of your equipment requires the use of components that were selected for cer-
tain performance criteria. Using NON GENUINE COE PARTS may cause unsatisfacto-
ry performance and shorter service life.
If you should have any questions that are not covered in this manual please call the
factory, parts department, service department or your local COE dealer. And thank you
for the purchase of a COE M7 shaker.

Warranty
2
Warranty Information
Model and Year COE M7 Mono Boom shaker
Customer Name
COE Representative
COE ORCHARD EQUIPMENT INC. WILL REPLACE OR REPAIR, AT COE OPTION, ANY COE
MANUFACTURED ITEM THAT IS, IN THE OPINION OF COE 1.) DEFECTIVE IN MATERIAL 2.)
DEFECTIVE IN WORKMANSHIP OR 3.) FAILED DUE TO IMPORPER INSTALLATION FOR A
PERIOD OF ONE YEAR OR 500 HOURS WHICHEVER COMES FIRST FROM THE DATE OF
FIRST USE. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED. THIS WARRANTY DOES NOT IMPLY THAT EQUIPMENT MANUFACTURED BY
COE IS INDESTRUCTABLE, OR THAT COE OR ITS DEALERS WILL ACOMPLISH ALL SERVICE
THAT THE MACHINE MAY NEED. THE OWNER IS RESPONSIBLE FOR THE PROPER OPERA-
TION & SERVICE OF THE MACHINE. THIS WARRANTY DOES NOT APPLY TO ANY PIECE OF
EQUIPMENT THAT HAS BEEN SUBJECT TO MISUSE, ACCIDENT, OR MODIFICATION.
CERTAIN COMPONENTS SUCH AS ENIGINES, HOSES, WHEELS, PUMPS, MOTORS, ETC
ARE COMPONENTS THAT ARE PURCHASED & INSTALLED BY COE. THE COE WARRANTY
ONLY APPLIES TO THE PROPER INSTALLATION BUT NOT THE PRODUCTS. PURCHASED &
INSTALLED COMPONENTS ARE COVERED BY THE SPECIFIC MANUFACTURERS WARRAN-
TY TERMS & CONDITIONS. THE WARRANTY COVERS LABOR, PARTS & MATERIAL FOR COE
PRODUCTS. IT DOES NOT COVER FREIGHT OR TRAVEL EXPENSES. ALL LABOR, TRAVEL
EXPENSE, FREIGHT & MATERIAL WILL BE BILLED TO THE CUSTOMER IN SUCH CASE.
WHEN WARRANTY DETERMINATION IS MADE BY A SPECIFIC MANUFACTURER THE CUS-
TOMERS ACCOUNT WILL BE CREDITED BACK THE AMOUNT ALLOWED BY A SPECIFIC
MANUFACTURER. ITEMS EXCLUDED BY THIS WARRANTY ARE SHAKER PADS, SLING &
FLAPS,BELTS, BELTING, TREE SEALS, TIRES, WEAR PLATES, HOSES ON OR CONNECTED
TO SHAKER HEAD & OTHER NORMAL WEAR ITEMS.

Safety
3
Guidelines
A.) Only trained and qualified personnel should be allowed to operate, repair, and service equipment.
B.) Operator should be a minimum of 18 years of age and in good physical and mental condition.
C.) Never operate equipment during times of illness, or while using medication that could impair
good judgment, vision, or hearing.
D.) Never operate equipment while under the influence of drugs or alcohol.
E.) Be alert to all circumstances, equipment, and individuals in immediate work area.
F.) Drive equipment at safe speeds for conditions and area.
G.) Reduce speed when making sharp corners or when driving on rough or hilly terrain.
H.) Never drive near the edge of a ditch, gully or irrigation canals.
I.) Do not start or operate equipment unless sitting on equipment in a normal operating position
with hands on steering wheel.
J.) Never operate equipment with arms or legs hanging outside of operators area.
K.) Never allow riders or passengers on equipment while in operation.
L.) Prior to starting equipment conduct a visual inspection to ensure the equipment is in good,
safe operating condition.
M.) Never work beneath equipment unless engine is shut off, on level ground with the wheels
and shaker head blocked with the ignition key removed.
N.) Listen for and be alert to all unusual noises and vibrations not associated with normal
operation of the equipment. Report all abnormalities immediately to service personnel.
O.) Never operate equipment while using walkman type radios or other audio equipment used in the
ear. These can be an unsafe distraction and may impair the operators ability to hear unsafe
changes in the equipments operation or the voices of co-workers.
P.) Wear hearing and eye protection and other required safety equipment at all times.
Q.) Take your time and Practice safe work habits at all times.

Safety
4
Hydraulic Fluid
 DO NOT check for leaks with hand. Fluid un-
der pressure can pierce skin causing
disease.
 DO NOT work on hydraulics when machine is
running. ALWAYS turn off machine first.
 DANGER hydraulic fluid at operating tempera-
ture is HOT use caution.
Precautions
Shaker Head and Boom Dangers
 DO NOT work beneath, place any body part or stand be-
low shaker head or boom.
 DO NOT place any body part near clamp arm openings
clamp jaws or boom openings. (DANGER PINCH POINT)
 DO NOT work on shaker head while it is operating.
 DO NOT allow people or objects between boom opening.
(DANGER PINCH POINT)
 ALWAYS replace guards after service or repair.
Service Dangers
 DO NOT check coolant when HOT.
 ONLY perform service or repair when ma-
chine is turned OFF.
 ONLY use proper tools and replacement
parts.
Back Up Danger
 DO NOT back up without looking back.
 BE ALERT to people or objects in work area.
Tires and Rims
 NEVER over inflate tires explosion may occur
causing serious injury or death.
 NEVER weld on rims explosion may occur
causing serious injury or death.
 ALWAYS check lug nuts daily to make sure
they are not loose.

Operation
5
Cab Area
Instruments and control console

Cab Area Descriptions
Suspension Seat
The suspension seat has multiple adjustments to set seat to a comfortable operating
position. Fore-aft, backrest tilt, height and suspension weight. DO NOT adjust seat
while in motion.
Joy Stick Control
The Joy stick controls the shaker head boom up and down and the shaker head tilt up
and down. The joy stick grip contains the push buttons to operate the clamping, shake
and roll function. (diagram following page)
Propulsion Pedal
The propulsion pedal controls the direction of travel for the shaker. Rocking the pedal
to the left activates forward to the right reverse. Releasing the pedal will bring the shak-
er to a stop.
Throttle pedal
The throttle pedal controls the engine RPM. The speed of the hydraulic functions can
be controlled by using the throttle pedal.
Steering column
The steering column is tilt adjustable. The control lever is located on the lower center
part of the steering boot. Push in on the center of the boot marked by the arrow.
Cooled storage
The cooled storage operates when the AC is on. DO NOT store perishable items in the
storage box.
Instruments and control panel
The instrument panel contains all vital information for the shaker. The GEM (Generic
Engine Monitor) is a multi function interface that displays vital engine information as
well as any engine fault codes. The GEM can be programmed to display only the infor-
mation that the operators prefers. The instrument panel also has pressure gauges for
the hydraulic functions of CLAMP, SYSTEM and CHARGE. The AM/FM CD stereo is
located in the same area as the AC temp and blower controls. Toggle switches in the
control panel are for SWEEPERS, CAB PRESSURIZER, LIGHTS and HIGH-LOW
GEARS. The ignition switch is also located in the control panel.
Operation
6

Operation
7

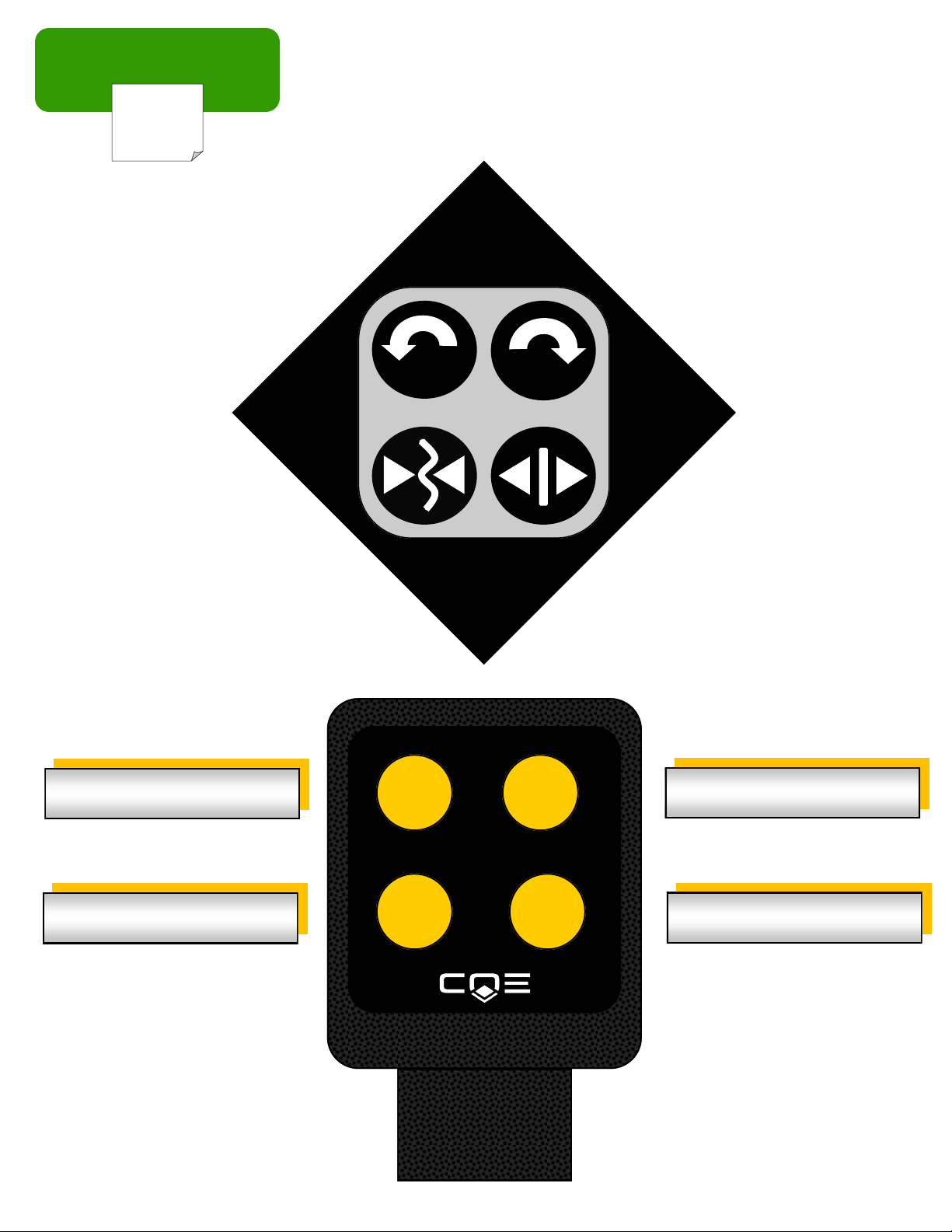

Joystick Functions
DOWN
UP
DOWN
UP
ROLL LEFT 12
34
ROLL RIGHT
UN-CLAMP
CLAMP / SHAKE
TILT TILT

Operation
8
Shaker Operation
If you have never operated a shaker before or a
new COE M7 model shaker follow these easy
steps to help familiarize yourself with the machine
its operation and characteristic. It is important to
make sure you know and have experience with the
controls and operation of them. If you have not re-
viewed the “Operators Control Area” on the previ-
ous page, take the time to do that now. With the
machine off, sit in the seat in a comfortable posi-
tion. Look over the various controls and there label-
ing. Also take time to view all safety warning decals
and there placements. Now that you have done the
above its time to try the controls with the machine
running.
BEFORE STARTING make sure all controls are in
neutral or off. To start the machine simply turn the
key as you would in a car. After starting raise the
Shaker head from its resting position on the
ground. Now you can begin to activate each func-
tion individually. Make sure to do this at an Idle with
the machine clear of people and objects. When
operating the functions notice the speed and
changes of what is going on. Take special notice of
the moving parts. NEVER allow people or objects
in these area’s, pinching or dismemberment can
occur causing serious injury or in severe cases
death. Continue to repeat these functions until you
become familiar with the use and feel of them.
Now you are ready to try on real trees. When enter-
ing the row make sure the SHAKER HEAD is low
to clear all branches and limbs when entering tree
row. Try to enter the tree row in the center of the
row you are going to shake. Pull up to the tree you
are going to shake and placing the clamp jaws as
close to the center of the trunk as possible. It is
very important to make sure clamp is centered on
trunk or clamp may “PINCH OFF” bark. Now begin
the clamping. When the set clamp pressure is
reached the shaking will automatically begin.
You can use the throttle to increase or decrease
the speed of the shake or other hydraulic functions.
It is recommended to clamp at an idle or below
1,500 RPM. When Shake begins REV engine to
between 1,500 to 1,800 RPM’s. When shake is
complete release throttle to lower RPM’s. Allow
shake action to fully stop.
When you have finished shaking simply release the
button to stop the shaking action. When the shaking
has fully stopped now you can un clamp from the
tree trunk. “ALWAYS WAIT FOR SHAKING TO
FULLY STOP OR DAMAGE TO TREE AND SHAK-
ER HEAD WILL OCCUR.” When unclamping open
the shaker head clamp fully, this is necessary to re-
set the shake sequence.
Now back away from the tree by depressing the
pedal to reverse (always look behind machine be-
fore backing up). . Continue to repeat each se-
quence of event. Take it slow at first. As you be-
come more used to the shaker your speed and ac-
curacy will increase.
The COE mono boom Shaker is very rugged but not
indestructible. It is important to follow these few
guidelines to prevent unnecessary damage.
NEVER UNCLAMP UNTIL SHAKE HAS FULLY
STOPPED.
FULLY UNCLAMP BEFORE BACKING UP.
ALWAYS LOOK BEHIND MACHINE BEFORE
BACKING UP.
ALWAYS CENTER PADS ON TRUNK OR
SCAFFOLD BEFORE CLAMPING.
DO NOT RUN INTO OBJECTS WITH SHAKER
HEAD OR CARRIAGE.
SET THE PROPER CLAMP PRESSURE FOR
THE SIZE TREES BEING SHAKEN.
WARM SHAKER UP FOR 10-15 MINUTES
BEFORE STARTING SHAKING.
PERFORM ROUTINE MAINTENANCE AND
REPAIRS AS REQUIRED.
MAKE SURE ALL FLUID LEVELS ARE AT
REQUIRED LEVELS.
ALWAYS USE SILICONE SOLUTION IN WATER
SYSTEM OR BARK DAMAGE WILL OCCUR.

Operation
9
Shaker Operation
BRAKES
The braking system has two settings. PARKING and ACTIVE. SET the brake to AC-
TIVE in hilly conditions to AUTOMATICALLY DECELERATE and HOLD the shaker on
hills. USE the PARKING setting when you want to set brake when loading shaker on a
trailer. This brake is a DUAL style with a SPRING applied PRESSURE released FAIL-
SAFE and a PRESSURE applied SERVICE brake. The ACTIVE brake has an adjusta-
ble valve to control the braking speed. It is not recommended to use the ACTIVE brake
on flat ground as the ground drive provides sufficient braking.
If shaker requires to be towed or pulled out of a stuck position always make sure to
turn ACTIVE brake off or damage to ground drive components may occur.
STEERING
The steering system is the same as in an automotive application. Turning the wheel in
desired direction of travel creates travel in that direction. Turning the wheel more or
less generates the desired amount of steering angle.
SHAKE
It is recommended to use the secondary throttle to set a fixed RPM for operation at
1,700 to 1,800 RPMs. All shake patterns have multiple frequencies and work best with
a fixed RPM in the 1,700 to 1,800 range. ALL patterns CAN be varied by using MORE
or LESS weight. The foot throttle can be used if extra variation is wanted. It is not rec-
ommended to exceed 2,000 RPMs while shaking as this reduces shake effectiveness.
ENGINE MONITOR or EXCELERATE DISPLAY
The in dash monitor is a multi function interface that displays vital engine information
as well as any engine fault codes. The monitor can be programmed to display only the
information that the operators prefers. The monitor is connected with the engines ECU
and communicates the information of the ECU. If there is a problem with the engine or
ECU the monitor will then display the ERROR CODE so the repair can be made.
HIGH and LOW GEAR
High or Low gear can be selected by the rocker switch located on the control console.
ONLY use HIGH gear when moving long distances NEVER use HIGH gear in tree to
tree shaking. USE LOW gear for tree to tree shaking. This machine is NOT equipped
for road use. It is recommended to ONLY move shaker on a trailer. DO NOT drive
shaker on PUBLIC roads. Moving shaker on rough roads at high speeds may cause
damage to chassis and head mounting systems.

Operation
10
Daily Operation
FLUID LEVELS
PRIOR to starting CHECK all vital fluid levels. And FILL as necessary.
 ENIGNE OIL Pull dip stick and check to make sure oil is in proper operating range.
Add High Quality Motor Oil (15-40W ) as needed.
 HYDRAULIC FLUID Check site glass for fluid level ( Fluid level will be indicated by
a dark brown/black color ). If there is no fluid showing in site glass fill with a Quality
15-40W motor oil TO CENTER OF SITE GLASS.
 RADIATOR COOLANT Remove radiator cap (Remove Slowly if HOT ) the coolant
level should be within 1/2” to 1” from radiator fill neck.
 DIESEL FUEL Fill fuel reservoir daily with a FILTERED high quality OFF ROAD
diesel. ( DO NOT SMOKE WHILE REFUELING )
 SLING INJECTION SYSTEM Fill reservoir daily or more often if necessary with
filtered water and 8 ounces COE SLING LUBE. Use 16 ounces of COE SLING
LUBE for 2 days after installing new slings or flaps. ( DO NOT USE ANY TYPE OF
SOAP IN LIEU OF COE SLING LUBE, BARKING WILL OCCUR )
SHAKER BODY
PRIOR to starting PERFORM these simple procedures .
 LUBRICATION Grease ALL points as per schedule and chart in the SERVICE
section of this manual USING only a high quality lubricating grease.
 INSPECTION Visually inspect the shaker frame, components, tires, hoses and
connectors and all other items for cracks, wear, loose items, leaks and
malfunctions. Make necessary repair(s) before operating equipment.
 CLEAN Keep machine body and interior compartments clean of debris, trash and
leaking fluids. ( BUILD UP OF ITEMS CAN CAUSE FIRES )
 AIR CLEANERS Service air cleaners DAILY or MORE OFTEN in severe dust
conditions. Consult SERVICE section for proper air cleaner cleaning method.
 COOLING SYSTEMS Clean engine radiator, oil cooler, AC condenser and intake
screen DAILY or MORE OFTEN in SEVERE debris environments.
( FAUILURE TO CLEAN COOLING SYSTEM CAN CAUSE SEVERE DAMAGE)
 SHAKER HEAD Check belt for proper tension and for wear. Inspect suspension for
worn mounts or loose bolts. Check all pins and bolts. Inspect pads and slings and
flaps. ( REPLACE ITEMS AS NECCESARY TO PREVENT BARKING DAMAGE )

Operation
11
Vitals
ENGINE POWER 139HP OR 185HP
ENGINE RPM RANGE 800-2400 RPM MAX
ENGINE COOLANT TEMPERATURE RANGE 0-210 DEGREES MAX
ENGINE OIL PRESSURE RANGE 40-80 PSI
HYDRAULIC FLUID TEMPERATURE RANGE 0-180 DEGREES MAX
HYDRAULIC PRESSURE SHAKE/MAIN 0-3,000 PSI MAX
HYDRAULIC PRESSURE STEERING 0-2,000 PSI MAX
HYDRAULIC PRESSURE HYDROSTAT 0-4,800 PSI MAX
HYDRAULIC PRESSURE CHARGE 350-400PSI MAX
CLAMP PRESSURE ( VARIABLE ) 1,000PSI—2,000PSI MAX
HYDRAULIC FLUID CAPACITY 52 GALLONS
DIESEL FUEL CAPACITY 45 GALLONS
WATER INJECTION TANK CAPACITY 26 GALLONS
GROUND SPEED 0-5 MPH LOW GEAR 0-25 MPH HIGH GEAR
ELECTRICAL SYSTEM 12V
TIRE PRESSURE 60-65 PSI MAX
MACHINE WEIGHT 13,400 LBS (Depending on options & equipment)

Operation
12
Do Not’s
DO NOT MOVE MACHINE ON PUBLIC ROADS
DO NOT USE HIGH GEAR WHILE SHAKING
DO NOT PUT GREASE ON ANY WEAR PLATES
DO NOT MOVE MACHINE WHILE CLAMPED TO TREE
DO NOT EXCEED RECOMMENDED PRESSURES
DO NOT OPERATE MACHINE WITH GUARDS OFF
DO NOT OPERATE WITH LOW FLUID LEVELS
DO NOT SKIP DAILY OR SCHEDULED MAINTENACE
DO NOT TRY TO TOW OR PUSH MACHINE
DO NOT ENGAGE PARKING BRAKE WHILE IN MOTION
DO NOT ALLOW RIDERS
DO NOT RUN INTO OBJECTS WITH SHAKER HEAD
DO NOT UNCLAMP HEAD WHILE SHAKING
DO NOT SHAKE IF WATER SYSTEM IS NOT WORKING
DO NOT OVER FILL FLUID LEVELS
DO NOT STORE PERISHABLE ITEMS IN
COOLED STORAGE COMPARTMENT

Service
13

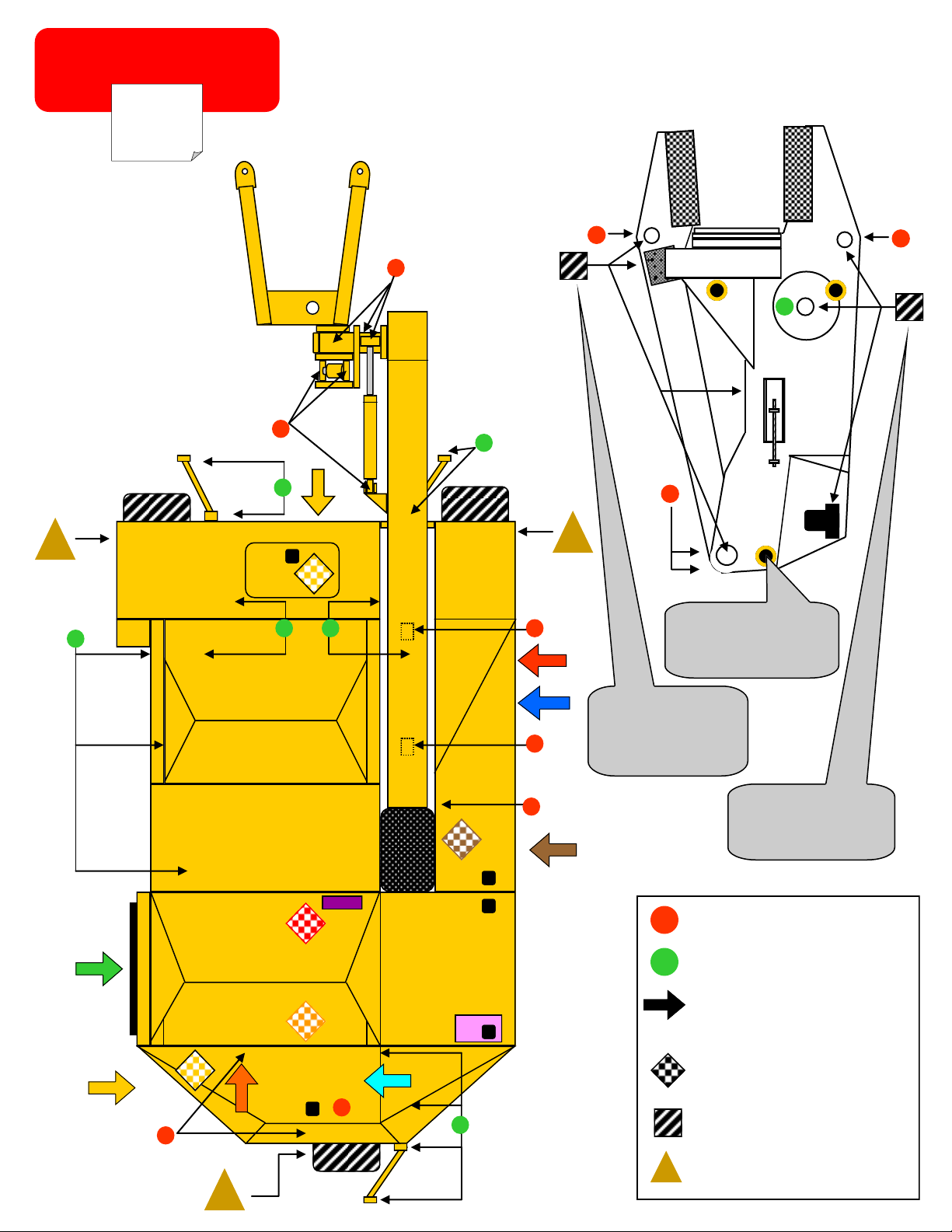

Service Points
DAILY LUBE POINT
YEARLY 90W OIL
DAILY SERVICE ITEMS
(REFER TO COLOR CHART)
WEEKLY LUBE POINT
FILTERS (250 HOURS)
(REFER TO COLOR CHART)
INSPECTION POINT
INSPECTION POINTS
-CLAMP CYL PIN
-WEAR PADS
-HOSES AND CLAMPS
-REAR ARM PIN
INSPECTION POINTS
-CLAMP CYL PIN
-E-PIN BOLT / NUT
-MOTOR BOLTS / NUTS
INSPECTION POINTS
-HANGER BOLTS & NUTS
-BRIDGE WASHERS
AND HANGER MOUNTS

Service
14
WATER TANK Fill water tank DAILY or more often depending upon work-
ing conditions. Use 8 ounces of COE SLING LUBE per tank refill. Take
care not to allow debris in water tank when filling
HYDRAULIC OIL RESERVOIR/FILTER ALWAYS keep reservoir filled to
proper level with clean oil. Fill to center of site glass on riser. DO NOT over
fill or overflow will occur at operating temperature.
RADIATOR COOLANT NEVER check radiator coolant when hot. Fill to
1/2” to 1” from bottom of fill neck. Use a mixture of 50% water 50% high
quality coolant. Overflow bottle is mounted on side of engine keep 1/2 full.
DIESEL RESERVOIR Fill diesel reservoir daily to prevent running out of
fuel while operating. DO NOT smoke while refueling and stay away from
flame and sparks. USE filtered high quality diesel fuel.
ENGINE OIL ALWAYS check engine oil level daily. Remove dip stick wipe
clean, reinstall and remove for proper oil level. If below mark fill with
high quality 15-40w motor oil.
AIR CLEANER Clean air cleaner DAILY or MORE OFTEN in severe dust
conditions. When cleaning check SAFETY element for any signs of dust
that may indicate faults in the PRIMARY air cleaner. INSPECT air cleaner
ducting regularly to for loose clamp, holes, or cracks. This can help pre-
vent a dusted motor.
BATTERY It is recommended to remove battery during off season storage.
Check for any damage, check water level and store on trickle charger. If
battery is BAD dispose of it properly and replace it.
DUAL COOL SYSTEM Clean after cooler inlet screen and radiator daily or
more often in dirty conditions. Check after cooler pump fluid level annually
fill as needed.
ECU The ECU “Engine Control Unit” is a computer that monitors and ad-
justs the engines functions. It communicates its information to the GEM
DISPLAY . NEVER weld on machine without disconnecting ECU first.
Service Point Descriptions
DANGER! DO NOT WELD ON MACHINE WITHOUT
DISCONNECTING ECU FIRST. DAMAGE WILL OCCUR!

Service
15
ENERGY WHEEL COMPONENTS
 BEARINGS Inspect bearings regularly for excessive play. This
may be a indication of failing bearings. Replace as necessary.
Some models energy wheels can be greased.
 WEIGHTS Periodically check weight bolt torque. Loose bolts
can shear causing damage.
 MAIN BOLT Periodically check energy pin bolt torque. If bolt
becomes loose damage may occur.
CAGE MOUNTS
 CAGE Regularly check cage
frame for wear or cracks.
 RUBBER MOUNTS Replace
hanger mounts if cracked or
deformed.
 BOLT & NUT Make sure nuts
are not loose or that bolts are
not bent.
 WASHER Top and lower wash-
ers may wear check regularly.
 TIGHTEN Nuts and bolts after
initial use. Loose mounts will
cause excessive swinging of
the head.
SHAKER HEAD HOSES
 HOSES check hoses regularly for
wear or leaks. Tree limbs can also
fall and damage or break hoses.
 Replace or adjust as necessary.
BELT AND TENSIONER
 BELT Check belt regularly for tension and
wear. Make adjustments as necessary.
 TENSIONER Check belt tension hourly
when new and daily during inspection.

Service
16
TREE PROTECTION SYSTEMS
 SHAKER PADS Keep in good repair and replace
if cracked , worn or deformed.
 SLING Replace worn or damaged slings.
 WATER MANIFOLD Periodically check flow from
4 ports to make sure flow is equal.
 FLAP Replace flap when worn or damaged.
CLAMP SYSTEMS
 CYLINDER Inspect clamp cylinder, pins, and bushings
regularly. Grease Daily.
 WEAR PLATES Periodically check wear plate thickness.
Replace if worn to prevent damage to clamp arm pin.
 CLAMP HOSES Regularly check clamp hoses and
brackets on inside of case for wear or loose hardware
that can come loose from shaking.
SLING STUDS
 STUDS Replace studs if broken.
Check torque regularly.
 NUTS Keep nuts tight.
 RETAINER BAR Replace sling bar if
bent to prevent tree damage.
BOLTS, NUTS and HARDWARE
CHECK torque on all bolts, nuts and hard-
ware like shake motor. The shaking action
of the head causes vibration and can loos-
en these items. Failure to INSPECT can
result in damage.
TH-7 Shaker Head
Service Points

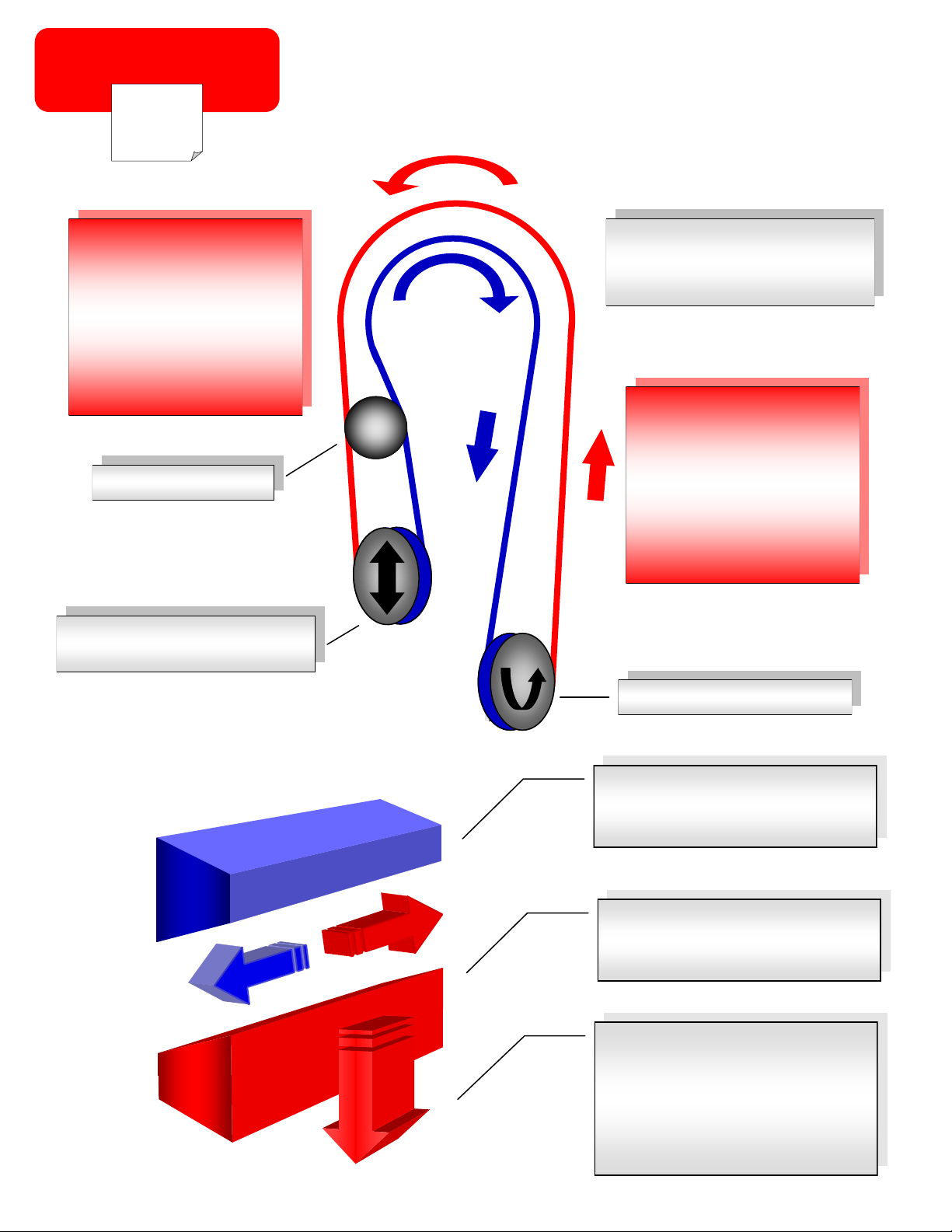

Shaker belt drive
Service
17
REVERSING IDLER PULLEY
AND BELT ADJUSTER.
DRIVE MOTOR PULLEY
ALIGNING PULLEY
UPPER SECTION OF BELT
HAS “V” TO OUTSIDE AND
FLAT TO INSIDE.
LOWER SECTION OF BELT
HAS “V” TO INSIDE AND FLAT
TO OUTSIDE.
TO CHECK BELT TENSION
PUSH FIRMLY DOWN ON
LOWER SECTION OF BELT.
PROPERLY ADJUSTED BELT
SHOULD HAVE LESS THEN
1/4” MOVEMENT.
BELT ROUTING
(as viewed from top of head)
TWISTED BELTS ARE A
SIGN THAT THE BELT IS
TOO LOOSE.
LOOSE BELTS CAN BE
THROWN OFF WHEELS
BECOMING ENTANGLED
IN HEAD PARTS.
A THROWN BELT CAN
DAMAGE IDLER STAND.
A DAMAGED IDLER
STAND CAN CAUSE
BELT TO NOT ALIGN
PROPPERLY AND BE
THROWN.
