COE S7 User manual

OWNERS MANUAL
COE S7 SIDE MOUNT SHAKER

Contents
Welcome……………………………… 1
Warranty………………………………. 2
Safety Guidelines……………………. 3
Safety Precautions………………….. 4
Cab Area……………………………... 5
Cab Area Descriptions……………... 6
Joystick Functions…………………… 7
Shaker Operation…………………… 8-9
Daily Operation……………………... 10
Vital Information…………………….. 11
Operation Do Not's ………………… 12
Service Points………………………... 13
Service Point Descriptions…………. 14
Shaker Head Service Points……….. 15-18
Weights………………………………... 19-20
Valve Service Points………………… 21-22
Water System & Steering……….….. 23
Auburn Gears………………………... 24
Maintenance Schedule……………. 25
Trouble Shooting…………………….. 26-30
Main Hydraulic Circuit……………… 31
Pilot Circuits…………………………... 32
Sweeper Circuit……………………… 33
Steering & Water System Circuits... 34
Ground Drive Circuit………………... 35
Air Conditioning Circuit…………….. 36
Wiring & Electrical Circuits…………. 37-42
Parts……………………………………. 43-52
Hose list………………………………... 53-54

Welcome
1
Equipment Information
Model and Year COE S7 side mount shaker
Serial #
Engine Serial #
Coe Orchard Equipment would like to welcome you as a new owner of a COE S7
shaker. All COE product designs benefit from over 40 years of in-field experience in a
large variety of crops and working conditions. Our vast hands on experience has al-
lowed us to develop some of the top performing equipment in the industry. All of our
products are also backed by a large parts inventory and knowledgeable service
department.
We would like to encourage you to carefully read the Operations and Service manual.
This will better equip you and your operator(s) on the proper operation, characteristics,
service and maintenance of your new shaker. The proper operation and service of your
machine is important in maintaining consistent performance. It also will help maintain
your re-sale value. Always remember to operate the equipment and perform service
in a safe manner.
COE recommends to only use genuine COE re-placement parts. The proper perfor-
mance of your equipment requires the use of components that were selected for cer-
tain performance criteria. Using NON GENUINE COE PARTS may cause unsatisfacto-
ry performance, tree damage and shorter service life.
If you should have any questions that are not covered in this manual please call the
factory, parts department, service department or your local COE dealer. And thank you
for the purchase of a COE S7 shaker.

Warranty
2
COE ORCHARD EQUIPMENT INC. WILL REPLACE OR REPAIR, AT COE OPTION, ANY COE
MANUFACTURED ITEM THAT IS, IN THE OPINION OF COE 1.) DEFECTIVE IN MATERIAL 2.)
DEFECTIVE IN WORKMANSHIP OR 3.) FAILED DUE TO IMPORPER INSTALLATION FOR A
PERIOD OF ONE YEAR OR 500 HOURS WHICHEVER COMES FIRST FROM THE DATE OF
FIRST USE. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED. THIS WARRANTY DOES NOT IMPLY THAT EQUIPMENT MANUFACTURED BY
COE IS INDESTRUCTABLE, OR THAT COE OR ITS DEALERS WILL ACOMPLISH ALL SERVICE
THAT THE MACHINE MAY NEED. THE OWNER IS RESPONSIBLE FOR THE PROPER OPERA-
TION & SERVICE OF THE MACHINE. THIS WARRANTY DOES NOT APPLY TO ANY PIECE OF
EQUIPMENT THAT HAS BEEN SUBJECT TO MISUSE, ACCIDENT, OR MODIFICATION.
CERTAIN COMPONENTS SUCH AS ENIGINES, HOSES, WHEELS, PUMPS, MOTORS, ETC
ARE COMPONENTS THAT ARE PURCHASED & INSTALLED BY COE. THE COE WARRANTY
ONLY APPLIES TO THE PROPER INSTALLATION BUT NOT THE PRODUCTS. PURCHASED &
INSTALLED COMPONENTS ARE COVERED BY THE SPECIFIC MANUFACTURERS WARRAN-
TY TERMS & CONDITIONS. THE WARRANTY COVERS LABOR, PARTS & MATERIAL FOR COE
PRODUCTS. IT DOES NOT COVER FREIGHT OR TRAVEL EXPENSES. ALL LABOR, TRAVEL
EXPENSE, FREIGHT & MATERIAL WILL BE BILLED TO THE CUSTOMER IN SUCH CASE.
WHEN WARRANTY DETERMINATION IS MADE BY A SPECIFIC MANUFACTURER THE CUS-
TOMERS ACCOUNT WILL BE CREDITED BACK THE AMOUNT ALLOWED BY A SPECIFIC
MANUFACTURER. ITEMS EXCLUDED BY THIS WARRANTY ARE SHAKER PADS, SLING &
FLAPS,BELTS, BELTING, TREE SEALS, TIRES, WEAR PLATES, HOSES ON OR CONNECTED
TO SHAKER HEAD & OTHER NORMAL WEAR ITEMS.
Warranty Information
Model and Year COE S7 side mount shaker
Customer Name
COE Representative

Safety
3
A.) Only trained and qualified personnel should be allowed to operate, repair, and service equipment
B.) Operator should be a minimum of 18 years of age and in good physical and mental condition.
C.) Never operate equipment during times of illness, or while using medication that could impair
good judgment, vision, or hearing.
D.) Never operate equipment while under the influence of drugs or alcohol.
E.) Be alert to all circumstances, equipment, and individuals in immediate work area.
F.) Drive equipment at safe speeds for conditions and area.
G.) Reduce speed when making sharp corners or when driving on rough or hilly terrain.
H.) Never drive near the edge of a ditch, gully or irrigation canals.
I.) Do not start or operate equipment unless seated in the normal operating position
with hands on steering wheel.
J.) Never operate equipment with arms or legs hanging outside of operators area.
K.) Never allow riders or passengers on equipment while in operation.
L.) Prior to starting equipment conduct a visual inspection to ensure the equipment is in good,
safe operating condition.
M.) Never work beneath equipment unless engine is shut off, on level ground with the wheels
and shaker head blocked with the ignition key removed.
N.) Listen for and be alert to all unusual noises and vibrations not associated with normal
operation of the equipment. Report all abnormalities immediately to service personnel.
O.) Never operate equipment while using Walkman type radios or other audio equipment used in the
ear. These can be an unsafe distraction and may impair the operators ability to hear unsafe
changes in the equipment's operation or the voices of co-workers.
P.) Wear hearing and eye protection and other required safety equipment at all times.
Q.) Take your time and Practice safe work habits at all times.
Guidelines

Service Dangers
 DO NOT check coolant when HOT.
 ONLY perform service or repair when machine
is turned OFF.
 ONLY use proper tools and replacement parts.
Safety
4
Hydraulic Fluid
 DO NOT check for leaks with hand. Fluid un-
der pressure can pierce skin causing injury
and disease.
 DO NOT work on hydraulics when machine is
running. ALWAYS turn off machine first.
 DANGER hydraulic fluid at operating
temperature is HOT use caution.
Precautions
Shaker Head Dangers
 DO NOT work beneath, place any body part or stand
below shaker head.
 DO NOT place any body part near clamp arm openings or
clamp jaws (DANGER PINCH POINT)
 DO NOT work on shaker head while it is operating.
 DO NOT allow people or objects between shaker head
and cab (DANGER PINCH POINT)
 ALWAYS re-install guards after service or repair.
Back Up Danger
 DO NOT back up without looking back.
 BE ALERT to people or objects in work area.
Tires and Rims
 NEVER over inflate tires explosion may occur
causing serious injury or death.
 NEVER weld on rims explosion may occur
causing serious injury or death.
 ALWAYS check lug nuts daily to make sure
they are not loose.

Operation
5
Cab
OPERATORS CAB AREA
INSTRUMENT PANEL
CONSOLE & JOYSTICK
Disclaimer: Optional equipment shown. Specific features
may vary depending on options purchased.

Cab Descriptions
Suspension Seat
The suspension seat has multiple adjustments to set the seat to a comfortable operat-
ing position. Fore-aft, backrest tilt, height and suspension weight. DO NOT adjust seat
while in motion.
Joy Stick Control
The Joy stick controls the shaker head extension and retraction and up and down. The
joy stick grip contains the push buttons to operate the clamping, shake and roll func-
tion. (diagram following page)
Propulsion Pedal
The propulsion pedal controls the direction of travel for the shaker. Depressing the
pedal to the left activates forward to the right reverse. Releasing the pedal will bring the
shaker to a stop.
Throttle pedal & Secondary adjustable fixed throttle
The throttle pedal & secondary throttle controls the engine RPM. Use the secondary
throttle to set a fixed engine rpm for operation and use the foot throttle to increase
rpms when needed.
Steering column
The steering column is tilt adjustable. To Tilt wheel push on the lower portion of the
rubber boot as indicated. Move wheel to desired position and release.
Cooled storage
The cooled storage operates when the AC is on. DO NOT store perishable items in the
storage box.
Instruments and control panel
The instrument panel contains all vital information for the shaker. The GEM monitor is
a multi function interface that displays vital engine information as well as any engine
fault codes. The GEM can be programmed to display only the information that the op-
erators prefers. Refer to the booklet in this manual on the GEM monitor. The instru-
ment panel also has pressure gauges for the hydraulic functions of CLAMP, MAIN and
CHARGE. The AM/FM CD stereo is located in the same area as the AC temp and
blower controls. Rocker switches in the control panel are for SWEEPERS, CAB PRES-
SURIZER, LIGHTS and HIGH-LOW GEARS. The ignition switch is also located in the
console panel. Low oil light on dash indicates flow level of hydraulic reservoir.
NOTE:
On models with the COE Excelerate system the hydraulic pressure gauge func-
tions are integrated in the color monitor. Please refer to the Excelerate manual
for additional features and use.
Operation
6

Operation
7
Joystick functions
DOWN
UP
OUT IN
ROLL LEFT 12
34
ROLL RIGHT
UN-CLAMP
CLAMP / SHAKE

Operation
8
Shaker operation
If you have never operated a shaker before or a
new COE S7 model shaker follow these easy
steps to help familiarize yourself with the machine,
its operation and characteristics. It is important to
make sure you know and have experience with the
controls and operation of them. If you have not re-
viewed the “Operators Control Area” on the previ-
ous page, take the time to do that now. With the
machine off, sit in the seat in a comfortable posi-
tion. Look over the various controls and there label-
ing. Also take time to view all safety warning decals
and there placements. Now that you have done the
above its time to try the controls with the machine
running.
BEFORE STARTING make sure all controls are in
neutral or off. To start the machine simply turn the
key as you would in a car. After starting raise the
Shaker head from its resting position on the
ground. Now you can begin to activate each func-
tion individually. Make sure to do this at an Idle with
the machine clear of people and objects. When
operating the functions notice the speed and
changes of what is going on. Take special notice of
the moving parts. NEVER allow people or objects
in these crush hazard areas serious injury or death
could occur. Continue to repeat these functions
until you become familiar with the use and feel of
them.
Now you are ready to try on real trees. Set engine
RPMs to 1,700 to 1,800. ALL functions of shaker
were designed to operate optimal at this RPM set-
ting. When entering the row make sure the SHAK-
ER HEAD is fully retracted and the HEAD is low to
clear all branches and limbs when entering tree
row. Try to enter the tree row as square with the
row you are going to shake as possible keeping
about 12” to 18” between the HEAD and tree trunk.
Pull up to the tree you are going to shake and plac-
ing the clamp jaws as close to the center of the
trunk as possible. Now extend the shaker head out
(always make sure the clamp is fully opened)
toward the tree until the trunk is in the center of the
shaker pads. It is very important to make sure
clamp is centered on trunk or clamp may “PINCH
OFF” bark. Now begin the clamping. When the set
clamp pressure is reached the shaking will auto-
matically begin.
You can use the throttle to increase or decrease
the speed of the shake or other hydraulic functions.
When you have finished shaking simply release the
button to stop the shaking action. ONLY when shak-
ing has fully stopped may you un clamp from the
tree trunk. “ALWAYS WAIT FOR SHAKING TO
FULLY STOP OR DAMAGE TO TREE AND SHAK-
ER HEAD WILL OCCUR.” When unclamping open
the shaker head clamp fully, this is necessary to re-
set the shake sequence.
Now retract the shaker head. After fully retracting
depress the propulsion pedal to the forward position
to move to the next tree. Continue to repeat each
sequence of event. Take it slow at first. As you be-
come more used to the shaker your speed and ac-
curacy will increase.
The COE side mount shaker is very rugged but not
indestructible. It is important to follow these guide-
lines to prevent unnecessary damage and costly
repairs.
LINE UP TREE TRUNK TO STATIONARY SIDE
OF SHAKER HEAD (NOT CLAMP ARM)
NEVER UNCLAMP UNTIL SHAKE HAS FULLY
STOPPED. CLAMP CYLINDER FAILURES WILL
OCCUR IF OPENED WHILE STILL SHAKING.
FULLY UNCLAMP BEFORE RETRACTING
SHAKER HEAD OR MOVING TO NEXT TREE.
FULLY RETRACT SHAKER HEAD BEFORE
MOVING TO NEXT TREE.
KEEP 12” TO 18” BETWEEN SHAKER HEAD
AND TREE TRUNK.
DO NOT RUN INTO OBJECTS WITH SHAKER
HEAD OR CARRIAGE DAMGE WILL OCCUR.
SET THE PROPER CLAMP PRESSURE FOR
THE SIZE TREES BEING SHAKEN.
WARM SHAKER UP FOR 10-15 MINUTES
PRIOR TO SHAKING.
PERFORM ROUTINE MAINTENANCE AND
REPAIRS AS REQUIRED.
MAKE SURE ALL FLUID LEVELS ARE AT
REQUIRED LEVELS PRIOR TO OPERATION.
ALWAYS USE SILICONE SOLUTION IN WATER
SYSTEM OR BARK DAMAGE WILL OCCUR.

Operation
9
BRAKES
The braking system has two settings. PARKING and ACTIVE. SET the brake to AC-
TIVE in hilly conditions to AUTOMATICALLY DECELERATE and HOLD the shaker on
hills. USE the PARKING setting when you want to set brake when loading shaker on a
trailer. This brake is a DUAL style with a SPRING applied PRESSURE released FAIL-
SAFE and a PRESSURE applied SERVICE brake. The ACTIVE brake has an adjusta-
ble valve to control the braking speed. It is not recommended to use the ACTIVE brake
on flat ground as the ground drive provides sufficient braking.
If shaker requires to be towed out of a stuck position (such as mud or sand) always
make sure to turn ACTIVE brake to off position prior to tow vehicle towing or damage
to ground drive components will occur.
STEERING
The steering system is the same as in an automotive application. Turning the wheel in
desired direction of travel creates travel in that direction. Turning the wheel more or
less generates the desired amount of steering angle.
SHAKE
It is recommended to use the secondary throttle to set a fixed RPM for operation at
1,700 to 1,800 RPMs. All shake patterns have multiple frequencies and work best with
a fixed RPM in the 1,700 to 1,800 range. ALL patterns CAN be varied by using MORE
or LESS weight. The foot throttle can be used if extra variation is wanted. It is not rec-
ommended to exceed 2,000 RPMs while shaking as this reduces shake effectiveness.
ENGINE MONITOR or EXCELERATE DISPLAY
The in dash monitor is a multi function interface that displays vital engine information
as well as any engine fault codes. The monitor can be programmed to display only the
information that the operators prefers. The monitor is connected with the engines ECU
and communicates the information of the ECU. If there is a problem with the engine or
ECU the monitor will then display the ERROR CODE so the repair can be made.
HIGH and LOW GEAR
High or Low gear can be selected by the rocker switch located on the control console.
ONLY use HIGH gear when moving long distances NEVER use HIGH gear in tree to
tree shaking. USE LOW gear for tree to tree shaking. This machine is NOT equipped
for road use. It is recommended to ONLY move shaker on a trailer. DO NOT drive
shaker on PUBLIC roads. Moving shaker on rough roads at high speeds may cause
damage to chassis and head mounting systems.
Shaker operation

Operation
10
Daily operation
FLUID LEVELS
PRIOR to starting CHECK all vital fluid levels. And FILL as necessary.
 ENIGNE OIL Pull dip stick and check to make sure oil is in proper operating
range.
Add High Quality Low Sulfur Motor Oil (15-40W ) as needed.
 HYDRAULIC FLUID Check site glass for fluid level ( Fluid level will be indicat-
ed by a dark brown/black color ). If there is no fluid showing in site glass fill with a
Quality
15-40W motor oil TO CENTER OF SITE GAUGE.
 RADIATOR COOLANT Check coolant level recovery tank daily. Fill with 50/50
mixture of water and coolant as needed. Tank has Cold & Hot indicators.
 LTR RADIATOR CIRCUIT Keep LTR tank filled with 50/50 mixture of water and
coolant to within 1” of tank top.
 DIESEL FUEL Fill fuel reservoir at the end of each work day with a FILTERED
high quality OFF ROAD diesel fuel. ( DO NOT SMOKE WHILE REFUELING )
 SLING INJECTION SYSTEM Fill reservoir daily or more often if necessary with
filtered water and 8 to 16 ounces COE SLING LUBE. Use 16 ounces of COE
SLING LUBE for 2 days after installing new slings or flaps. ( DO NOT USE ANY
TYPE OF SOAP IN LIEU OF COE SLING LUBE, EXCESSIVE BARKING WILL
SHAKER BODY
PRIOR to starting PERFORM these simple procedures .
 LUBRICATION Grease ALL points as per schedule and chart in the SERVICE
section of this manual USING only a high quality lubricating grease.
 INSPECTION Visually inspect the shaker frame, components, tires, hoses and
connectors and all other items for cracks, wear, loose items, leaks and
malfunctions. Make necessary repair(s) before operating equipment.
 CLEAN Keep machine body and interior compartments clean of debris, trash
and leaking fluids. ( BUILD UP OF ITEMS CAN CAUSE FIRES )
 AIR CLEANER Service air cleaner DAILY or MORE OFTEN in severe dust
conditions. Consult SERVICE section for proper air cleaner cleaning method.
 COOLING SYSTEMS Clean engine radiator, oil cooler, AC condenser, LTR ra-
diator and intake screen DAILY or MORE OFTEN in SEVERE debris environments.
( FAUILURE TO CLEAN COOLING SYSTEM CAN CAUSE SEVERE DAMAGE)
 SHAKER HEAD Check belt for proper tension and for wear. Inspect suspen-
sion for worn mounts or loose bolts. Check all pins and bolts. Inspect pads and
slings and flaps. ( REPLACE ITEMS AS NECCESARY TO PREVENT BARKING
DAMAGE )

Operation
11
ENGINE POWER 139HP or 185HP
ENGINE RPM RANGE 800-2400 RPM MAX
ENGINE COOLANT TEMPERATURE RANGE 0-210 DEGREES MAX
ENGINE OIL PRESSURE RANGE 40-80 PSI
HYDRAULIC FLUID TEMPERATURE RANGE 0-180 DEGREES MAX
HYDRAULIC PRESSURE SHAKE/MAIN 0-3,000 PSI MAX
HYDRAULIC PRESSURE STEERING 0-2,000 PSI MAX
HYDRAULIC PRESSURE HYDROSTAT 0-4,800 PSI MAX
HYDRAULIC PRESSURE CHARGE 350-400PSI MAX
CLAMP PRESSURE ( VARIABLE ) 1,000PSI—2,000PSI MAX
HYDRAULIC FLUID CAPACITY 52 GALLONS
DIESEL FUEL CAPACITY 45 GALLONS
WATER INJECTION TANK CAPACITY 26 GALLONS
GROUND SPEED 0-5 MPH LOW GEAR 0-25 MPH HIGH GEAR
ELECTRICAL SYSTEM 12V
TIRE PRESSURE 60-65 PSI MAX
MACHINE WEIGHT 13,400 LBS (Depending on options & equipment)
Vitals

Operation
12
DO NOT MOVE MACHINE ON PUBLIC ROADS
DO NOT USE HIGH GEAR WHILE SHAKING
DO NOT PUT GREASE ON ANY WEAR PLATES
DO NOT MOVE MACHINE WHILE CLAMPED TO TREE
DO NOT EXCEED RECOMMENDED PRESSURES
DO NOT OPERATE MACHINE WITH GUARDS OFF
DO NOT OPERATE WITH LOW FLUID LEVELS
DO NOT SKIP DAILY OR SCHEDULED MAINTENACE
DO NOT TRY TO TOW OR PUSH MACHINE
DO NOT ENGAGE PARKING BRAKE WHILE IN MOTION
DO NOT ALLOW RIDERS
DO NOT RUN INTO OBJECTS WITH SHAKER HEAD
DO NOT UNCLAMP HEAD WHILE SHAKING
DO NOT SHAKE IF WATER SYSTEM IS NOT WORKING
DO NOT OVER FILL FLUID LEVELS
DO NOT STORE PERISHABLE ITEMS IN
COOLED STORAGE COMPARTMENT
Do Not’s

Service
13
Service points
DAILY LUBE POINT
YEARLY 90W OIL
DAILY SERVICE ITEMS
(REFER TO COLOR CHART)
WEEKLY LUBE POINT
FILTERS (250 HOURS)
(REFER TO COLOR CHART)
INSPECTION POINT
INSPECTION POINTS
-CLAMP CYL PIN
-WEAR PADS
-HOSES AND CLAMPS
-REAR ARM PIN
INSPECTION POINT
-AIR CLEANER INTAKE
PRE-CLEANER.
INSPECTION POINTS
-CLAMP CYL PINS
-E-PIN BOLT / NUT
-MOTOR BOLTS / NUTS
Place tree to stationary
side of head. Tree
placed to clamp arm
side will cause failure
to mounting systems
& mast pin.
YES
NO

Service
14
WATER TANK Fill water tank DAILY or more often depending upon
working conditions. Use 8 ounces of COE SLING LUBE per tank refill.
Take care not to allow debris in water tank when filling
HYDRAULIC OIL RESERVOIR/FILTER ALWAYS keep reservoir filled to
proper level with clean oil. Fill to center of site glass on riser. DO NOT over
fill or overflow will occur at operating temperature.
RADIATOR COOLANT NEVER check radiator coolant when hot. Fill to
1/2” to 1” from bottom of fill neck. Use a mixture of 50% water 50% high
quality coolant. Overflow bottle is mounted on side of engine keep 1/2 full.
DIESEL RESERVOIR Fill diesel reservoir daily to prevent running out
of fuel while operating. DO NOT smoke while refueling and stay away from
flame and sparks. USE filtered high quality diesel fuel.
ENGINE OIL ALWAYS check engine oil level daily. Remove dip stick
wipe clean, reinstall and remove for proper oil level. If below mark
fill with high quality low sulfur 15-40w motor oil.
AIR CLEANER Clean air cleaner DAILY or MORE OFTEN in severe
dust conditions. When cleaning check SAFETY element for any signs of
dust that may indicate faults in the PRIMARY air cleaner. INSPECT air
cleaner ducting regularly to for loose clamp, holes, or cracks. This can
help prevent a dusted motor.
BATTERY It is recommended to remove battery during off season
storage. Check for any damage, check water level and store on trickle
charger. If battery is BAD dispose of it properly and replace it.
DUAL COOL SYSTEM Clean after cooler inlet screen and radiator dai-
ly or more often in dirty conditions. Check after cooler pump fluid level an-
nually fill as needed.
ECU The ECU “Engine Control Unit” is a computer that monitors and ad-
justs the engines functions. It communicates its information to the GEM
DISPLAY . NEVER weld on machine without disconnecting ECU first.
Service point descriptions
DANGER! DO NOT WELD ON MACHINE WITHOUT
DISCONNECTING ECU FIRST. DAMAGE WILL OCCUR!

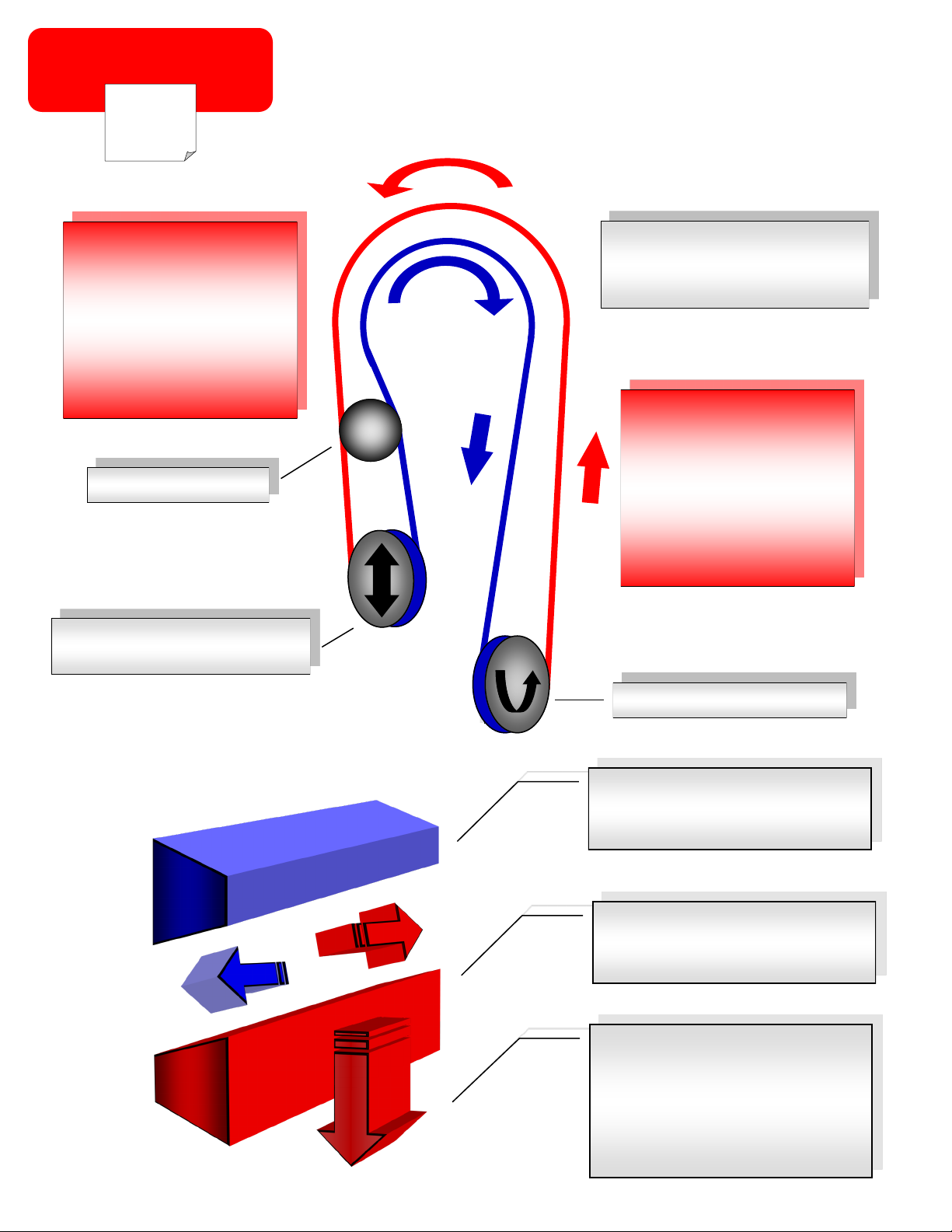

BELT AND TENSIONER
 BELT Check belt regularly for tension
and wear. Make adjustments as necessary.
 TENSIONER Check belt tension hourly
when new and daily during inspection.
Service
15
CAGE MOUNTS
 CAGE Regularly check cage
frame for wear or cracks.
 RUBBER MOUNTS Replace
hanger mounts if cracked or
deformed.
 BOLT & NUT Make sure nuts
are not loose or that bolts are
not bent.
 WASHER Top and lower
washers may wear check regu-
larly.
 TIGHTEN Nuts and bolts after
initial use. Loose mounts will
cause excessive swinging of
the head.
BELT AND TENSIONER
 BELT Check belt regularly for tension
and wear. Make adjustments as necessary.
 TENSIONER Check belt tension hourly
when new and daily during inspection.
ENERGY WHEEL COMPONENTS
 BEARINGS Inspect bearings regularly for excessive play.
This may be a indication of failing bearings. Replace as neces-
sary. Grease energy wheel bearing every 50 hours of use or
more often if needed. Only use COE grease or warranty is void.
 WEIGHTS Periodically check weight bolt torque. Loose
bolts can shear causing damage.
 MAIN BOLT Periodically check energy pin bolt torque. If
bolt becomes loose damage will occur.

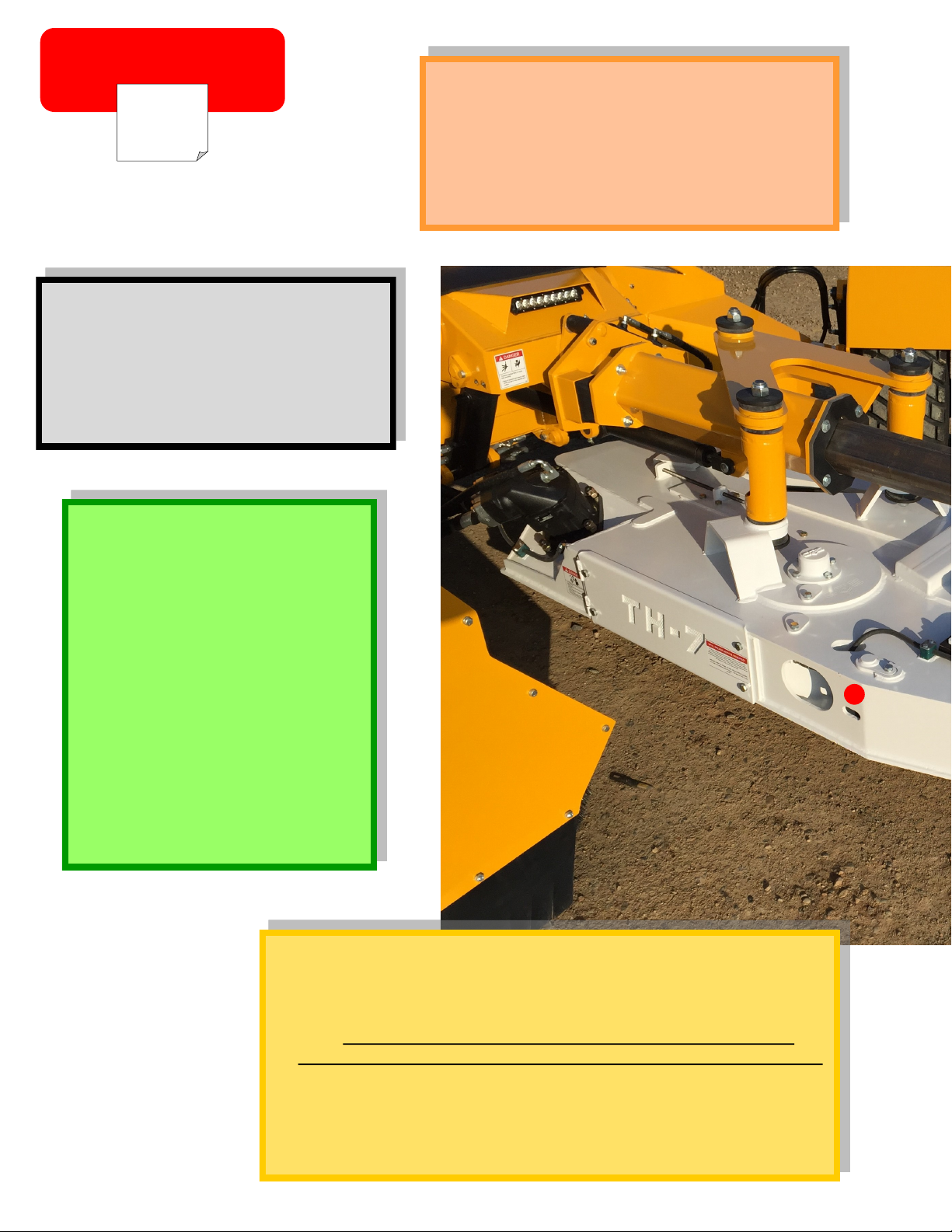

SHAKER HEAD HOSES
 HOSES check hoses regularly for
wear or leaks. Tree limbs can also
fall and damage or break hoses. Re-
place or adjust as necessary.

BOLTS, NUTS and HARDWARE
CHECK torque on all bolts, nuts and
hardware like shake motor. The shaking
action of the head causes vibration and
can loosen these items. Failure to IN-
SPECT can result in damage.
CLAMP SYSTEMS
 CYLINDER Inspect clamp cylinder,
pins, and bushings regularly. Grease Dai-
ly.
 WEAR PLATES Periodically check
wear plate thickness. Replace if worn to
prevent damage to clamp arm pin.
Service
16
TREE PROTECTION SYSTEMS
 SHAKER PADS Keep in good repair and re-
place if cracked , worn or deformed.
 SLING Replace worn or damaged slings.
 WATER MANIFOLD Periodically check flow
from 4 ports to make sure flow is equal.
 FLAP Replace flap when worn or damaged.
CLAMP SYSTEMS
 CYLINDER Inspect clamp cylinder, pins, and bush-
ings regularly. Grease Daily.
 WEAR PLATES Periodically check wear plate thick-
ness. Replace if worn to prevent damage to clamp arm
pin.
 CLAMP HOSES Regularly check clamp hoses and
brackets on inside of case for wear or loose hardware
that can come loose from shaking.
 CLAMP ARM PIN Regularly check clamp pin torque.
Adjust clamp arm toque as needed to prevent wear.
SLING STUDS
 STUDS Replace studs if broken.
Check torque regularly.
 NUTS Keep nuts tight.
 RETAINER BAR Replace sling bar if
bent to prevent tree damage.
TH-7 Shaker Head
Service Points

Shaker belt drive
Service
17
REVERSING IDLER PULLEY
AND BELT ADJUSTER.
DRIVE MOTOR PULLEY
ALIGNING PULLEY
UPPER SECTION OF BELT
HAS “V” TO OUTSIDE AND
FLAT TO INSIDE.
LOWER SECTION OF BELT
HAS “V” TO INSIDE AND FLAT
TO OUTSIDE.
TO CHECK BELT TENSION
PUSH FIRMLY DOWN ON
LOWER SECTION OF BELT.
PROPERLY ADJUSTED BELT
SHOULD HAVE LESS THEN
1/4” MOVEMENT.
BELT ROUTING
(as viewed from top of head)
TWISTED BELTS ARE A
SIGN THAT THE BELT IS
TOO LOOSE.
LOOSE BELTS CAN BE
THROWN OFF WHEELS
BECOMING ENTANGLED
IN HEAD PARTS.
A THROWN BELT CAN
DAMAGE IDLER STAND.
A DAMAGED IDLER
STAND CAN CAUSE
BELT TO NOT ALIGN
PROPPERLY AND BE
THROWN.
