Coemar Infinity spot m User manual

Infinity Spot M

instruction manual

manuale di istruzioni

Version 2.1

DIS126

∞Infinity Spot M

Serial number/numero di serie

Date of purchase/data di acquisto

Retailer/fornitore

Address/indirizzo

Suburb/cap/città

Capital city/provincial

State/stato

Tel./fax

Please note in the space provided above the relative service information of the model and the

retailer from whom you purchased your

Infinity Spot M

: this information will assist us in providing

spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.

Prendete nota, nello spazio apposite, dei dati relative al modello e al rivenditore del vostro

Infinity

Spot M:

questi dati ci permetteranno di assistervi con la massima rapidità e precisione.

WARNING:

the security of the fixture is granted only if these instructions are strictly followed;

therefore it is absolutely necessary to keep this manual.

ATTENZIONE:

la sicurezza dell’apparecchio è garantita solo con l’uso appropriato delle presenti

istruzioni, pertanto è necessario conservarle.

User Manual Version 2.1

edition March 2012

English

Index

1.Packaging and transportation..............................................................................................................................................................................6

1.1 Packaging.......................................................................................................................................................................................................6

1.2 Trasportation ..................................................................................................................................................................................................6

2. General information .............................................................................................................................................................................................6

2.1 Important safety information.............................................................................................................................................................................6

2.2 Warranty conditions.........................................................................................................................................................................................7

2.3 EC Norms........................................................................................................................................................................................................7

3. Product specifications.........................................................................................................................................................................................7

3.1 Technical characteristics..................................................................................................................................................................................7

3.2 Dimensions......................................................................................................................................................................................................7

3.3 Projector Components....................................................................................................................................................................................8

4. Installation ............................................................................................................................................................................................................8

4.1 Mechanical installation.....................................................................................................................................................................................8

4.2 Safety connection............................................................................................................................................................................................9

5. Powering up..........................................................................................................................................................................................................9

5.1 Connecting to mains power..............................................................................................................................................................................9

6. Control signal connections................................................................................................................................................................................10

6.1 Connection through ArtNet.protocol................................................................................................................................................................10

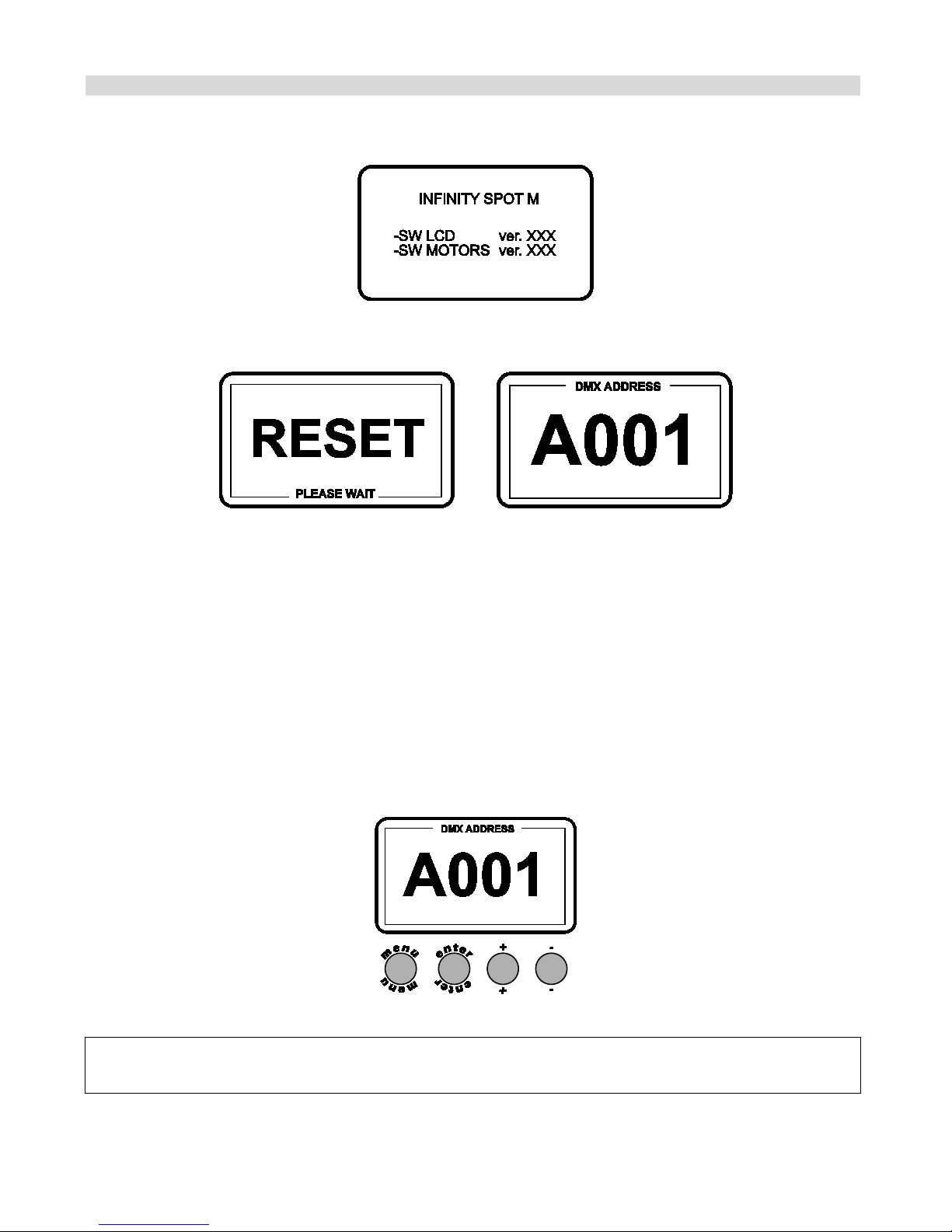

7. Turning on the projector....................................................................................................................................................................................11

7.2 DMX functions...............................................................................................................................................................................................12

8. Display panel functions .....................................................................................................................................................................................14

8.1 Quick guide to menù......................................................................................................................................................................................14

8.2 Rapid count ...................................................................................................................................................................................................14

8.3 Main functions ...............................................................................................................................................................................................15

8.4 Measures.......................................................................................................................................................................................................17

8.5 Display setup.................................................................................................................................................................................................17

8.6 Demo mode...................................................................................................................................................................................................18

8.7 Special mode and electronic motor alignment................................................................................................................................................18

9. Lamp installation and alignment.......................................................................................................................................................................20

9.1 Lamp installation............................................................................................................................................................................................20

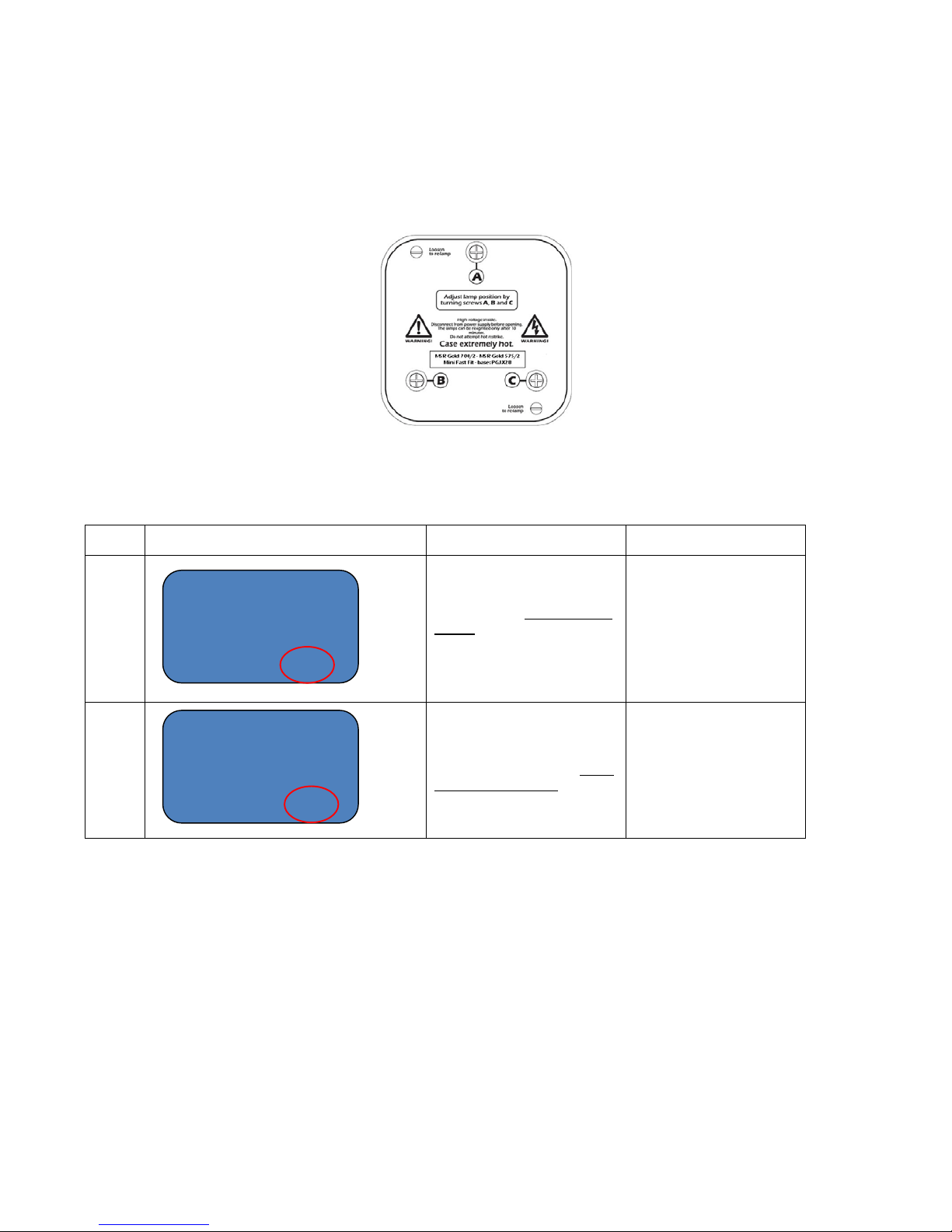

9.2 Aligning the lamp in the optical path...............................................................................................................................................................21

9.3 Halogen lamp operations...............................................................................................................................................................................21

9.4 Turning back to discharge lamp (700W or 575W) ..........................................................................................................................................22

10. Operating on inside groups.............................................................................................................................................................................23

10.1 How to open the projector............................................................................................................................................................................23

10.2 How to extract the gobos and colour changer assembly. .............................................................................................................................23

10.3 Standard gobos wheel configuration (gobos wheel 1)..................................................................................................................................24

10.4 How to replace gobos..................................................................................................................................................................................24

10.5 Standard fixed gobos wheel configuration (gobos wheel 2)..........................................................................................................................26

10.6 How to replace gobos on gobos 2 wheel......................................................................................................................................................26

10.7 Standard color wheel configuration..............................................................................................................................................................27

10.8 How to replace filters ...................................................................................................................................................................................27

10.9 Standard effect wheel configuration.............................................................................................................................................................28

10.10 How to replace effects ...............................................................................................................................................................................28

10.11 Reassembly the groups on the projector....................................................................................................................................................28

11. Maintenance......................................................................................................................................................................................................29

11.1 Periodic cleaning .........................................................................................................................................................................................29

11.2 Periodic maintenance ..................................................................................................................................................................................29

11.3 Fuse replacement........................................................................................................................................................................................29

12. Spare parts........................................................................................................................................................................................................29

12.1 Spare parts..................................................................................................................................................................................................29

13. Error messages ................................................................................................................................................................................................30

14. Frequently asked questions ............................................................................................................................................................................31

English

Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in the componentry and

in the technology used. We renew our invitation to you to complete the service information form on the previous page. This will assist in providing

prompt and accurate advice from your Coemar service centre, which you can thoroughly trust and to which you can submit any requests for service

or information. Following the instructions and procedures outlined in this manual will ensure the maximum efficiency of this product for years to

come.

1.Packaging and transportation

1.1 Packaging

Open the packaging and make sure that no part of the equipment has suffered any damage during the transportation. In case of damage to the

fixture, contact your currier and your supplier immediately by telephone, fax or email, and inform them you will formally notify them in writing

through registered letter.

Packing List

Make sure the packaging contains:

1 the Infinity Spot M projector.

2 the instruction manual.

3 the Cam-Lock support brackets.

1.2 Trasportation

Infinity Spot M must be transported exclusively in its original packaging or in an appropriate flight case.

2. General information

2.1 Important safety information.

Fire prevention:

1.Infinity Spot M utilizes a Philips MSR 700 Gold Mini Fast Fit or a Philips MSR Gold 575 MiniFast Fit lamp, the use of any alternative lamp might

be risky and will make the warranty of the fixture null and void.

2. Never locate the fixture on any flammable surface.

3. Minimum distance from flammable materials: 0.5m.

4. Minimum distance from the closest illuminable surface: 0.5m.

5. Replace any blown or damaged fuses only with identical ones, both in size and value. Refer to the connection diagram if there is any doubt.

6. Connect the projector to mains power protected by a thermal magnetic circuit breaker.

Preventing electric shock:

1. Presence of high voltage inside of the fixture. Insulate the projector from mains supply before opening or performing any function which involves

touching the inside of the fixture, including lamp replacement.

2. For the connection to the mains, adhere strictly to the guidelines outlined in this manual..

3. The level of technology of Infinity Spot M requires the use of specialised personnel for all service applications; refer all work to your authorised

Coemar service centre.

4. A good earth connection is essential for the proper functioning of the projector. Never connect the fixture if there is no earth connection.

5. Mains cables must not come into contact with other cables.

6. Do not operate the projector with wet hands or in an area where water is present.

7. The fixture must never be located in an exposed position, or in areas of extreme humidity.

Protection against ultraviolet radiation(UV):

1. Never turn on the lamp if any of the lenses, filters, or the plastic housing are damaged; their shielding functions will only operate efficiently if they

are in perfect working order.

2. Never look directly in the direction of the lamp when it is operating.

Safety:

1. The projector must always be installed with bolts, clamps, or other fixing devices which are suitably rated to support the weight of the projector.

2. Always use a secondary safety fixing device with chain or steel wire of a suitable rating to sustain the weight of the unit in case of failure of the

principal fixing point.

3. The external surfaces of the unit, at various points, may reach 150°C. Never handle the unit until at least 10 minutes have elapsed since the lamp

was turned off

4. Always replace the lamp if any physical damage is evident.

5. Never install the fixture in an enclosed area lacking sufficient air flow; the room temperature must not exceed 35°C.

6. Wait at least 10 minutes after the unit has been turned off before attempting to replace or remove the lamp. Always use protection gloves while

replacing the lamp.

7. The projector contains electronic and electrical components which must under no circumstances be in contact with water, oil or any other liquid.

Failure to do so will compromise the proper functioning of the projector.

Projector movement.

The projector has a pan range of 540° in its base and a tilt range 262° in its yoke; do not obstruct the projector whilst it is moving.

Forced ventilationOn the body of the projector you will note several air vents housing several cooling fans, both in the basis and in the body. To

avoid any problems associated with overheating, never obstruct any of these vents, as this would seriously compromise the proper operation of the

unit.

Protection rating against penetration by external agents:

The fixture is classified as an ordinary apparatus ; its protection grade against penetration by external agents, solid or liquid, is IP20.

English

2.2 Warranty conditions

1. The fixture is guaranteed for a period of 12 months from the date of purchase against manufacturing or materials defects.

2. The warranty does not extend to damage caused by inappropriate usage, use by inexperienced operators or inadequate maintenance.

3. The warranty is immediately void if the projector has been tampered or opened by unauthorised personnel.

4. The warranty does not extend to fixture replacement.

5. Both the serial number and the model of the projector are required for any advice or service from your authorised service centre.

2.3 EC Norms

The projector meets all fundamental applicable EC requirements.

3. Product specifications

3.1 Technical characteristics

700 W

575 W

Power

90-260 Vac 50/60Hz Autosensing

Maximum current

4,5 A

4A.

Power factor

Cos ϕ= 0,9

Lamp Wattage

700 W 575 W

Maximum room temperature

35°C/95°F

Weight

27 Kg./59.2 lbs

IP rating

IP20

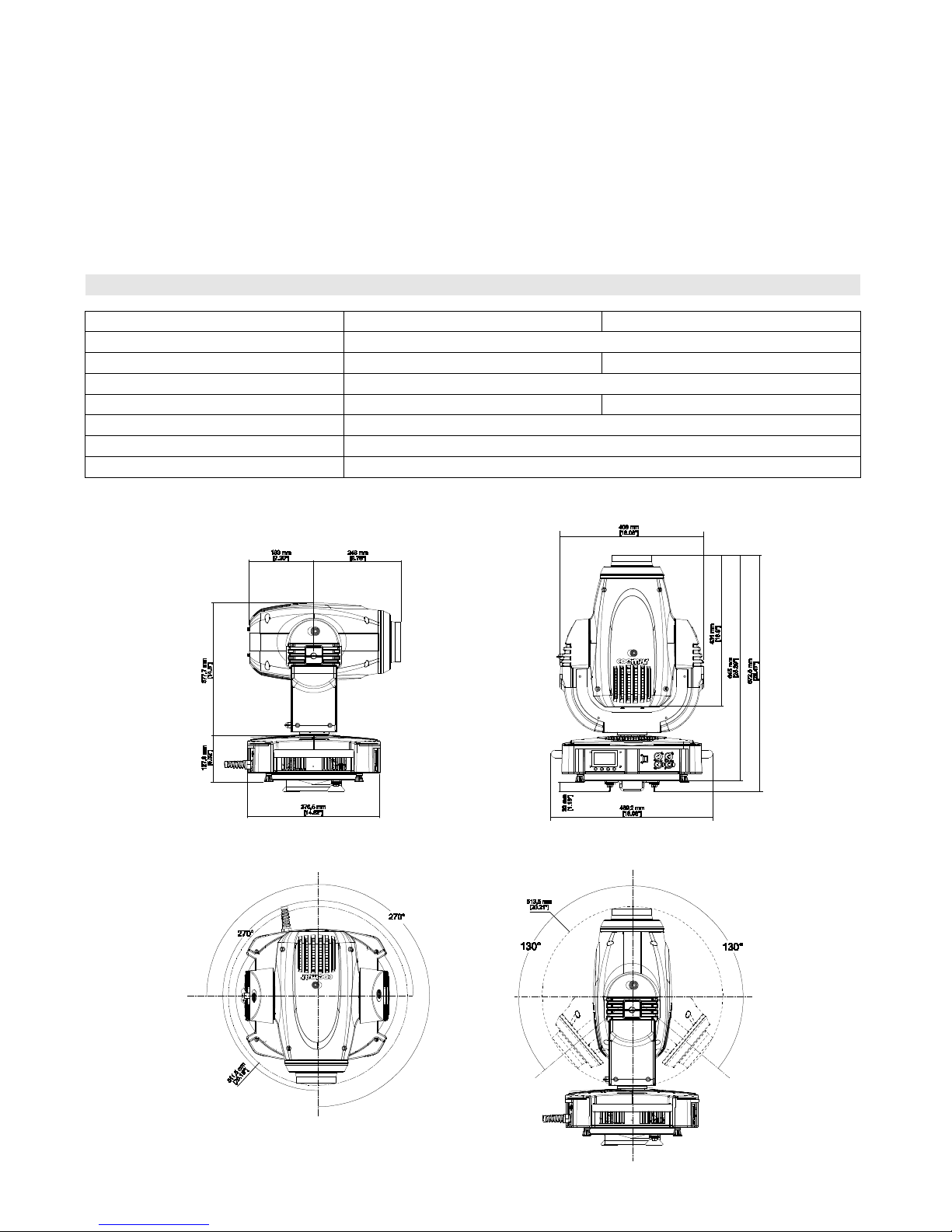

3.2 Dimensions

English

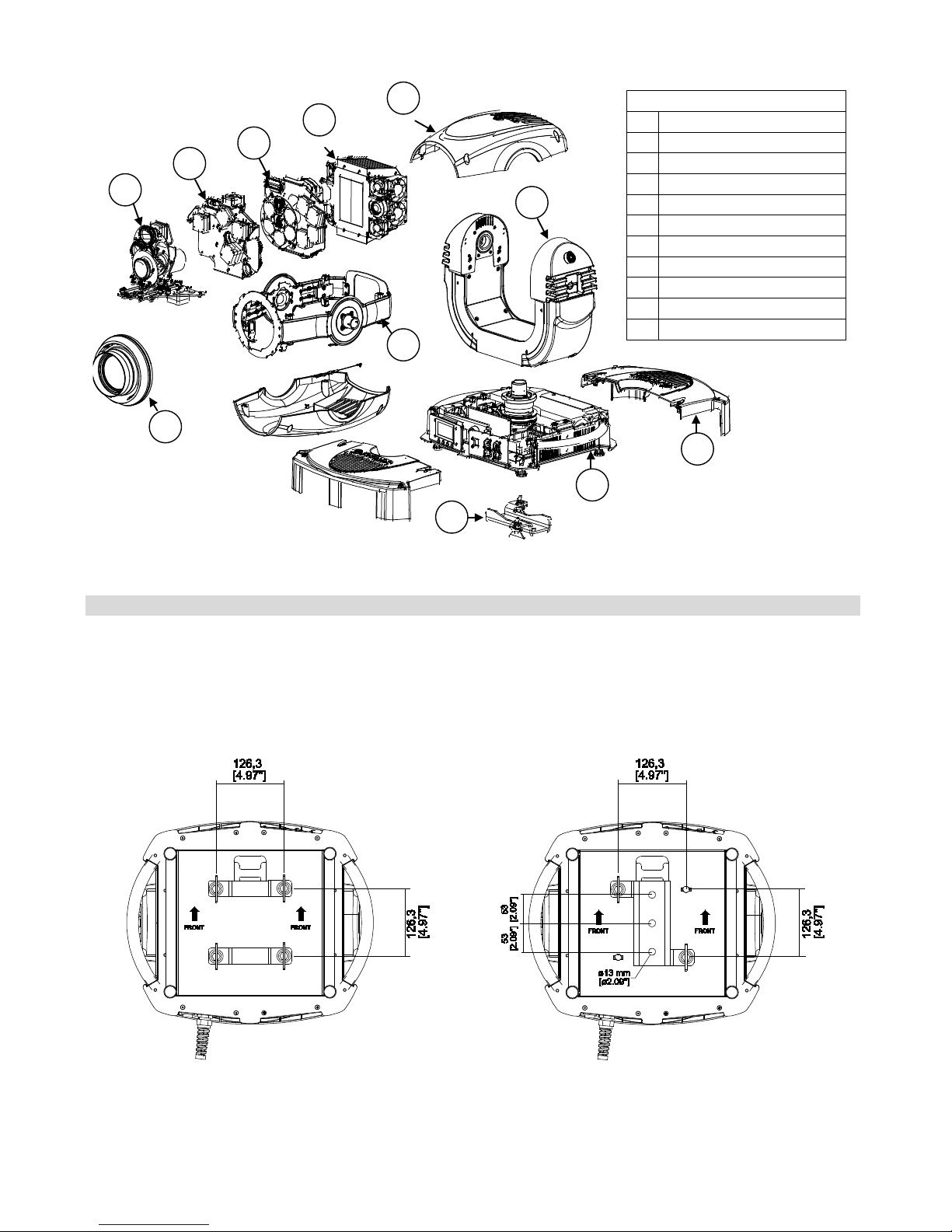

3.3 Projector Components

4. Installation

4.1 Mechanical installation

Infinity Spot M may be either floor or ceiling mounted. It may also be installed on a structure. The unit is provided with four rubber feet mounted on

its base, allowing it to be placed on a flat surface. For installations on a reticular structure, Coemar provides a set of Cam-lock support brackets,

which are included in the packaging. The Cam-lock bracket is one-fourth-turn supports. Before using it for supporting the projector, make sure that it

is correctly seated and firmly tightened into position).

Components description

Front lens assembly

Zoom assembly

C Gobos assembly

Colour changer assembly

Lamp assembly

Body casing

Yoke

H Base casing

Base

Camlock plate

Body

English

For installations on a reticular structure, we recommend using specific “C” hooks, suitable for supporting the weight. Normally, the “C” hooks are

tightened in the central hole of the cam-lock brackets, as shown in the picture below.

WARNING !

Always make sure that both the structure and the fixing devices (screws, clamps etc.)

are suitable for holding the weight of the unit.

The structure must also be sufficiently rigid so as not to move or shake whilst the Infinity Spot M projector moves during its operation. Make sure

that the supporting structure is not subject to torsion.

Do not install the projector in locations readily accessible by unauthorised or untrained personnel who is not aware of these safety instructions.

4.2 Safety connection

If the Infinity Spot M is fixed to a structure, the use of a safety chain is recommended in order to meet the current relevant safety standards. The

safety chain must pass through the holes “A” and then fixed to the structure itself.

If using steel wires or chains which have not been manufactured by Coemar, make sure that they are suitable for holding the weight of the unit.

5. Powering up

5.1 Connecting to mains power

Mains cable characteristics

The mains cable provided is complying with the most recent standards.

NB: In case of cable replacement, similar cable with comparable thermal resistant qualities must be used exclusively (cable 3X 1,5 ø external 10

mm, rated voltage 300/500V, test voltage 2 KV, operation temperature -40°C +180°C, Coemar cod. CV5311).

Connection to mains power

For connection to mains, use a connector of a suitable rating to sustain the maximum current: 200/208/230/240 Vac 8 amps constant current in

normal operation.

English

Identify the mains cable which exits the base of the unit and connect as shown below.

WARNING !

• The use of a thermal magnetic circuit breaker is recommended for each projector. Strictly adhere to all regulatory norms.

• Infinity Spot XL cannot be powered through Dimmer power units.

• A good earth connection is necessary for the correct operation of the Infinity Spot XL. Never connect the projector to main power if

the green/yellow earth cable provided is not correctly connected.

• All cable and plug connections must be carried out by qualified personnel only.

6. Control signal connections

The digital control signal is transmitted to the projector via a two pole cable screened as per international standards for the transmission of DMX512

data. The connection must be serial, utilising connectors XLR3 and XLR5, male and female, located on the base of Infinity Spot M labelled DMX

512 IN and OUT (see diagram)

Control signal connection by XLR3 e XLR5 plugs

Pin 1= GROUND

Pin 2= DATA-

Pin 3= DATA+

Pin 4= NC

Pin 5= NC

When signal arrives from a DMX 512 console with Cannon XLR5 ( 5 poles) pins 4 and 5 must not be connected.

WARNING !

Make sure that screening and conductors are not in contact one another or with the metal housing of the connector.

Pin n# 1 and housing must never be connected to the unit power supply.

6.1 Connection through ArtNet.protocol

The ArtNet protocol allows enabled projectors to operate and to be seen as a normal network device, such as a standard P.C. connected to a

company network.

Infinity Spot Mleaves the factory ready to be connected to an ArtNet network without any further settings. Just connect the projector by means of

the specific RJ45 connector located on the side of the DMX connectors and the relative patch to a common HUB Ethernet which will be connected

to an ArtNet controller. Each Coemar projector has its own IP address, therefore it is not necessary to set it when connecting it to the network.

Should it be necessary to modify the IP address for reasons related to the net, each Coemar projector allows customization. In order to modify the

net setting, access the MAIN FUNCTION/PROJECTOR CONTROL MODE/ARTNET ONLY menu ( alternatively, Artnet to DMX) /CUSTOM IP

ADDRESS (see complete menu, art. 8.3).

English

7. Turning on the projector

After having followed the preceding steps, proceed with the power supply and turn on the projector via the main power switch.

The display will show a short welcome message and the software version installed on the internal microprocessors:

The projector will perform the reset function on all motors. This operation will last a few seconds, thus allowing the digital control motors to correctly

position themselves. Then the display will turn on in a fixed mode, indicating the correct DMX 512 signal reception.

During the reset function the display will blink for a few seconds…. …then the DMX address of the projector will appear

If the address continues to blink and the “NO DMX SIGNAL” message appears, it means that the DMX signal has not been received. Check the

connection cable and the mixer functioning.

7.1 DMX address of the projector

NB: The following section is valid only in the case where Infinity Spot XL is controlled by the signal DMX 512.

Each projector utilises 31 address channels (16 bit) for its complete operation and is controlled by a DMX 512 signal (for further information, see

section 7.2, DMX functions).

When powered up initially, each projector will show A001, which indicates DMX address 001; a projector thus addressed will respond to commands

of channel 1 to 31 from your DMX 512 controller. A second unit must be addressed as A032, a third as A063 and so on. The operation must be

carried out every Infinity Spot M which has an address different from A001.

Altering DMX address

1. Press the + or – button until the display shows the required DMX address. The digits on the display will blink to indicate that the variation has not

been registered.

2. Press the enter key to confirm your selection. The digits on the display panel will cease to blink and the projector will now respond to the new

address.

NB: by holding the + or – button down the scrolling will be faster; thus allowing a faster selection

WARNING!

If you alter the DMX address with no DMX signal connected, the digits on the display panel will continue to flash

even after you have pressed ENTER button to confirm the address.

English

7.2 DMX functions

Note: the default setting is 16 bit/24 channels

bit

8 bit

1 1 X axis, base movement

(pan) coarse proportional proportional coarse control of the base motor movement 0 - 255 0% -100%

2 2 X axis, base movement

(pan) fine proportional proportional fine control of the base motor movement 0 - 255 0% -100%

3 3 Y axis, yoke movement

(tilt) coarse proportional proportional coarse control of the yoke motor movement 0 - 255 0% -100%

4 4 Y axis, yoke movement

(tilt) fine proportional proportional fine control of the yoke motor movement 0 - 255 0% -100%

step standard (fast)

0 - 10 0% -4%

step

ultra fast movement (best for programming positions) 11 -25 4% -10%

proportional vector mode (from fast to slow)

26 -127 10% -50%

proportional tracking mode (from fast to slow)

128 -247 50% -97%

step smooth mode

248 -255 97% -100%

6 6 dimme r proportional

gradual adjustment of luminous intensity from 0 to 100% (see channel

21/ 22)

0 - 255 0% -100%

step shutter closed (zap off) 0 - 9 0% -4%

proportional strobe effect with variable speed from slow to fast 10 -66 4% -26%

step shutter open (zap off) 67 -68 26% -27%

proportional

sequenced pulse effect, slow closing, fast opening

(with variable speed from slow to fast)

69 -125 27% -49%

step shutter open (zap off) 126 -127 49% -50%

proportional

sequenced pulse effect, fast closing, slow opening

(with variable speed from fast to slow)

128 -184 50% -72%

step shutter open (zap off) 185 -187 73% -73%

proportional

random strobe effect, non-synchronised, variable speed from slow to

fast

188 -244 74% -96%

step shutter open (zap off) 245 -255 96% -100%

step open 0 - 9 0% -4%

proportional from maximum to minimum aperture 10 -255 4% -100%

step open 0 - 9 0% -4%

proportional from maximum to minimum aperture 10 -124 4% -49%

step minimum diameter 125 -129 49% -51%

proportional pulsing with proportional increase in speed 130 -189 51% -74%

step open 190 -192 75% -75%

proportional pulse and flash effect with proportional increase in speed 193 -255 76% -100%

9 9 zoom proportional proportional control of zoom effect wheel from narrow to wide beam 0 - 255 0% -100%

10 10 focus proportional proportional control of focus 0 - 255 0% -100%

no gobo 0 - 10 0% -4%

gobo 1 11 -36 4% -14%

gobo 2 37 -62 15% -24%

gobo 3 63 -88 25% -35%

gobo 4 89 -114 35% -45%

gobo 5 115 -140 45% -55%

gobo 6 141 -166 55% -65%

gobo 7 167 -192 65% -75%

proportional continuous rotation of the gobo wheel from slow to fast 193 -255 76% -100%

step no gobo 0 - 10 0% -4%

from gobo 1 to gobo 7 through 360°

gobo 1 (central value 33)

gobo 2 (central value 55)

gobo 3 (central value 78)

gobo 4 (central value 101)

gobo 5 (central value 124)

gobo 6 (central value 147)

gobo 7 (central value 169)

11 -192 4% -75%

continuous rotation of the gobo wheel from slow to fast 193 -255 76% -100%

type of

control

effect

decimal

channel

movement speed

function

percentag

Note 1: the iris diaphragm operation will vary according to the selection made for IRIS on the display panel (linear LIN or with internal PULS effect)

iris diaphragm

(LIN-Linear)

iris diaphragm

(with internal PULS effect)

strobe, shutter

and zap effect

aerial gobo selection

(standard)
