OpenEye OE-C3011D4-S User manual

4MP Indoor IP Dome
OE-C3011D4-S
37820AB
QUICK START GUIDE
This quick start guide provides
only basic information on the
camera’s settings and operation for
initial installation. Please read the
user manual for optimal camera
congurations.
Scan the QR code or go to
openeye.net/downloads
Find the latest product
documentation and software.
Copyright ©2022 OpenEye.
All Rights Reserved. Information contained in this
document is subject to change without prior notice.
OpenEye does its best to provide accurate information but
cannot be held responsible for typos or mistakes.
Liberty Lake, WA, USA
509.232.5261
openeye.net
CONNECTIONS
1
2
11RJ-45RJ-45 --For network and PoE connectionsFor network and PoE connections
22Power (12vDC)Power (12vDC) 1112vDC +12vDC + Power ConnectionPower Connection
22GND -GND -
33Reset ButtonReset Button --
To restore the camera to factory defaults:To restore the camera to factory defaults:
1. Disconnect power for 30 seconds.1. Disconnect power for 30 seconds.
2. Reconnect power and wait 30 seconds.2. Reconnect power and wait 30 seconds.
3. Press and hold the reset button for 20 seconds.3. Press and hold the reset button for 20 seconds.
44Alarm & Audio I / OAlarm & Audio I / O
11Alarm Out -Alarm Out - Alarm connectionAlarm connection
22Alarm Out +Alarm Out +
33GNDGND Ground connectionGround connection
44Alarm InAlarm In Alarm connectionAlarm connection
55GNDGND Ground connectionGround connection
66Audio InAudio In Two-way audio transmissionTwo-way audio transmission
77GNDGND Ground ConnectionGround Connection
88Audio OutAudio Out Two-way audio transmissionTwo-way audio transmission
55microSD Card SlotmicroSD Card Slot --Supports up to 512GB microSD card for Edge storage.Supports up to 512GB microSD card for Edge storage.
Do not add or remove the microSD card when the camera is powered on.Do not add or remove the microSD card when the camera is powered on.
66Built-in microphoneBuilt-in microphone
5
4
3
6

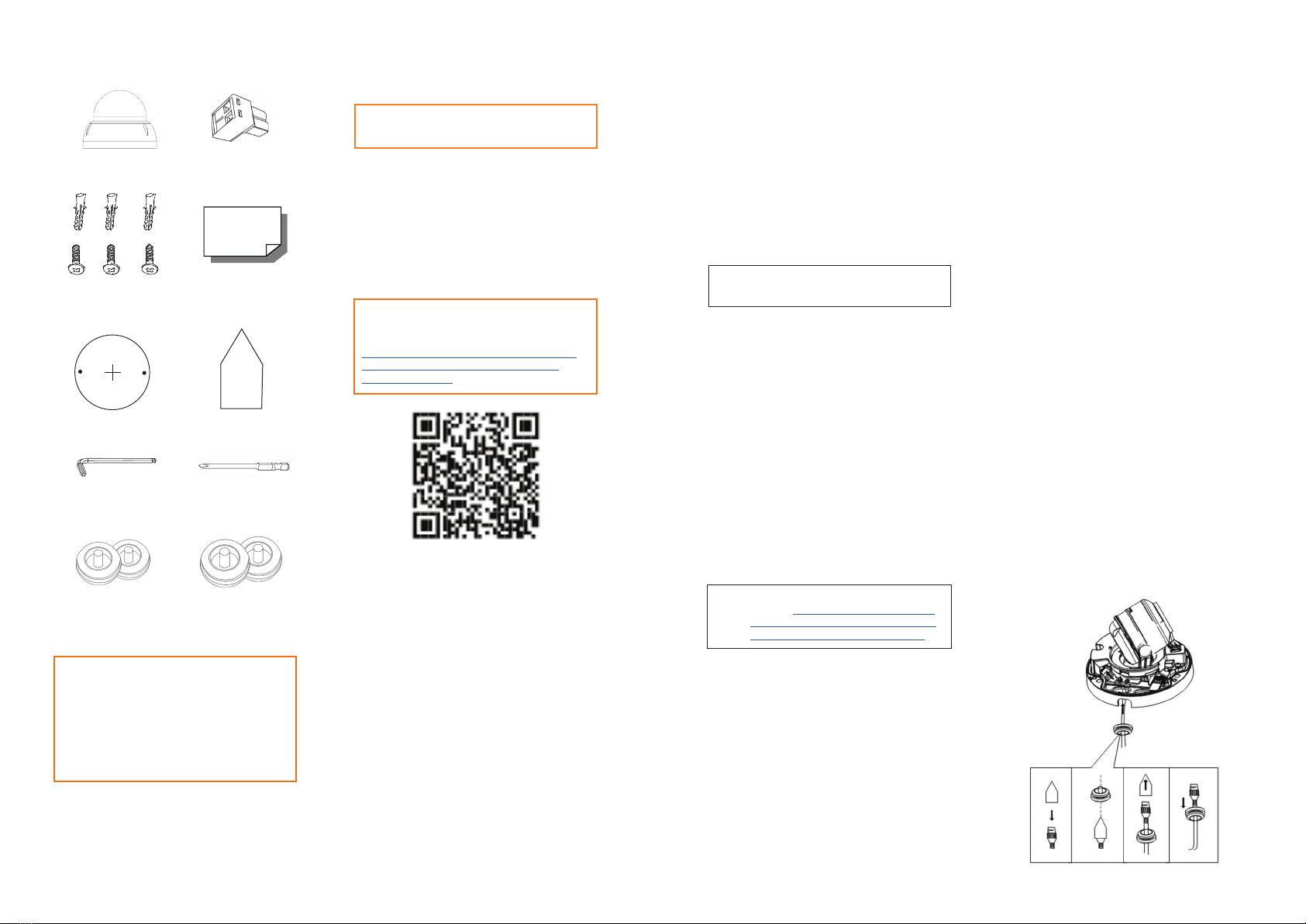

CONTENTS
Selecting multiple cameras and enter-
ing IP address 192.168.51.2 will set
an IP address on all selected cameras,
starting at 192.168.51.2 and increase
per camera.
1. Open the Network Camera
Manager application.
2. Select applicable camera(s).
3. Input starting IP address, Subnet
Mask, Gateway, DNS.
4. Apply changes.
5. Wait 60 seconds before refreshing
NCM.
OE-C3011D4-S
Mini Dome Camera
CABLING INSTRUCTIONS
Self-Tapping
Screws &
Plastic Anchors
2-Pin Terminal
Power Block
Quick Start
Guide
Mounting Template
ASSIGNING AN
IP ADDRESS
OpenEye IP cameras are set to DHCP
by default. If a DHCP server is not
detected after 4 minutes, the camera
will default to IP address 192.168.51.2.
If you are not using a DHCP server,
NCM will allow you to batch congure
a static IP address.
The IP address for the camera network
on your Apex recorder is 192.168.51.1.
NOTE: To change this IP address please refer
to your Apex recorder manual.
CONNECTING TO THE
IP CAMERA
To access the camera setup menu,
you need to open Network Camera
Manager (NCM) utility. NCM is pre-
installed on all OpenEye Recorders,
and is also available for download on
the OpenEye website for installation on
your personal computer or laptop.
1. Open Network Camera Manager.
2. Locate your camera on the
Network Camera Manager list.
3. To open the web browser, select
the camera and click LOAD.
NOTE: OpenEye IP cameras ship
without a default password.
DEFAULT USERNAME
AND PASSWORD
Tapered RJ45 Sleeve
Security Torx Tool #2 Phillips Bit
2x - 21mm Cable
Grommet
2x - 28mm Cable
Grommet
Optional Free Paintable Dome Cover
This camera has an available paintable dome
cover allowing it to be quickly converted to a
black housing or the allow custom painting to
match its installation environment. To reduce
waste it is not included in every package but
may be requested free of charge at time of
purchase.
1. Push the RJ45 connector into the
tapered sleeve.
2. Cut the end off the center of
the cable grommet and feed
the network cable through the
opening.
3. Remove the tapered sleeve.
4. Insert the RJ45 connector into
the network port. Pull the cable
downward to make sure the
cable grommet protrudes to the
direction opposite to the RJ45
connector.
The admin user password can be set
using the following methods:
1. OpenEye recorders running Apex
2.6 or newer will automatically
set a new unique password when
added in setup, if a new password
has not already been set.
2. Connect to the camera directly
through a Web Browser and follow
the onscreen prompts.
3. Use the Network Camera Manager
(NCM) Utility.
Username: admin
Set the Default Camera Password
Use the QR code or link for instructions on
dening a unique camera password:
https://answers.openeye.net/Install/Adding_
Cameras_and_Camera_Settings/Default_
Camera_Password
NOTE: The NCM software manual can be
found at https://answers.openeye.net/
Install/Adding_Cameras_and_Camera_
Settings/Network_Camera_Manager
