Cointra TNC 10 Quick start guide

ELECTRICAL WATER HEATER
Installation, Use and conservation
TNC 10
TNC 15
TNC 30
TNC 50
TNC 80
TNC 80 H
TNC 100
TNC 100 H
TNC 150
TNC 150 H

We would like to congratulate and thank you for acquiring our product. The electrical
thermoses COINTRA you have chosen has been designed and manufactured with great
care by our specialists and carefully tested to meet your requirements.
To achieve the best performance from your new COINTRA electrical water heater
and prolong its durability, we would advise you to read the instructions contained in this
manual carefully.
This product conforms to EU Directive 2002796/EC
The crossed out bin symbol reproduced in the appliance indicates that the
product, at the end of its working life, should be treated separately from
household waste, meaning that it has to be deposited in a selective waste
centre for electrical and electronic appliances or it has to be returned to the
istributor when purchasing a new equivalent applianced
The user is responsible for submitting the appliance, at the end of its
working life, to the established collection centres.
.
The correct ollection of the appliance, allowing the recycling of the
appliance at the end of its working life in line with the environment,
contributes to avoiding any possible negative impacts on the environment
and health, nd fosters the recycling of the materials whereof the product is
made up
c
.
a
.
For more detailed information about the collection systems available,
please go to the collection facilities of the local bodies or the distributors
where the purchase was made
TABLE OF CONTENTS PAGE
1. INSTALLATION, USE AND CONSERVATION INSTRUCTIONS ……… 3
1.1 General characteristics ……………………………………………… 3
1.2. Installation instructions ……………………………………………… 3
1.3. Product localisation ……………………………………………………3
1.4. Placement and securing ………………………………………………4
1.5. Installation of water system ....................................................….....4
1.6. Description of safety valve ……………………………………………4
1.7. Electrical installation ………………………………………………….. 5
1.8. Coming on line …………………………………………………………..5
1.9. Conservation …………………………………………………………….5
1.10. Thermostat adjustable from the exterior ………………………….5
2. PROHIBITION VOLUME AND PROTECTION VOLUME
3. GENERAL DIMENSIONS OF THE ELECTRICAL WATER HEATER
4. ELECTRICAL INSTALLATION DIAGRAM
5. OPERATING DIAGRAM
5.1. Vertical installation
6. TECHNICAL ASSISTANCE SERVICE
7. WARRANTY CERTIFICATE
2

I. INSTALLATION, USE AND CONSERVATION INSTRUCTIONS
The smooth operation of your thermos depends not only on the quality of the product but
also on its correct installation by a qualified professional.
1.1. General characteristics
MODELS: TNC-10, TNC-15, TNC-30, TNC-50, TNC-80, TNC-80 H, TNC-100, TNC-100 H
TNC-150, TNC-50 H
NOMINAL CAPACITY LITRES: 10, 15, 30, 50, 80, 100, 150
WEIGH WHEN FULL OF WATER* KG: 16, 23, 43, 69, 104, 104, 128, 128, 187, 187
ADJUSTABLE WATER TEMPERATURE °C: UP TO 75° C
MAXIMUM WORK PRESSUR bar: 8 bar
ELÉCTRICAL VOLTAGE: V-Hz 230 V / 50 Hz
ELÉCTRICAL POWER: W 1.200 W 1.500 W
* To be borne in mind when carrying out anchorage to the wall
1.2. Installation instructions
Installation shall comply with official regulations such as the “Low Voltage Electrotechnical
Regulations”, the Technical Building Code and the local Regulations applicable. In
particular for installation in a bathroom or toilet, the volumes established by the “Low
voltage electrotechnical Regulations” shall be respected.
• No switches, current outlets nor lighting appliances shall be installed in prohibition
volume (fig 1) page 12.
• No switches shall be installed in the protection volume (fig.2), page 19, but safety current
outlets may be installed.
1.3. Product localisation
The thermo should be located as close as possible to the hot water outlets to avoid heat
losses in the piping.
The TNC electrical water heater shall always be installed vertically, with the water
connections below (see fig. 7), page 19, except the models TNC 80 H, TNC 100 H and
TNC 150 H, that will always settle in horizontal, also with the water connections down (to
see fig 8), page 16
3

To make things easier, the revision and internal cleaning there should be a free space at
least 25 cm between the protection cover (pos.13, figs. 7, page 22) of the electrical water
heater and any fixed obstacle.
1.4. Placement and securing
To anchor the thermo to the wall (see elevations on page 13), use 2 tacks and screws
which are sufficient to bear the weight of the thermo when filled with water (see
“characteristics” table page 3).
1.5. Installation of water system
When installing the water piping, follow the basic rules for preventing corrosion: “Do not
use copper or brass before iron or steel in the water circulation direction”. To avoid
galvanic pairs and their destructive effect, screw two tubes of the thermo (as seen in the
drawings in figure 7, page 22) and deploying Teflon tape, the insulating sleeves (pos.12)
supplied along with the thermo.
Screw the insulating sleeve of the cold water entry direction (blue) of the thermo, the
hydraulic security unit with an emptying device (pos. 8. figs. 7, page 22) supplied with the
thermo. Install a cutting key alongside the water pumping tube as seen in the drawings
(figs. 7 pos. 10, page 22).
Connect the hot water distribution pipe to the insulating sleeve of the hot water conduit of
the site.
The unit or hydraulic safety valve, supplied with the thermo, contains a retention and
overpressure valve. The latter opens as a maximum at 8 bars. If the pressure in the water
installation exceeds 5 bars, install a pressure reducer as indicated in the standard.
The widespread use of anti-return valves in the stipulations of the sanitary water system,
bringing about a strong increase in pressure by dint of the heating process; in these cases
it is vital to conduct the drain of the safety valve to an excavation pipe provided with a
siphon (figs. 7, pos.9, page 22); this tube shall be put in the open air and shall be installed
on a continuous slope until below.
The emptying of the lever can be carried out using the corresponding thermo (1).
Check the watertightness of all connections
1.6. Description of safety valve
1. - Appliance for emptying water from the thermo Entered direction
cold water
2. - Outlet of mouth or emptying.
1
2
4

1.7. Electrical installation
Ensure that the electrical voltage available is 230 / 50 Hz
The connection cable of the thermo has a Schuko type pin with earth outlet side contacts.
Make sure that the current outlet is a suitable connection base for the pin and that the
three conductors (one being earth) up to the connection base have enough section for the
power to be consumed

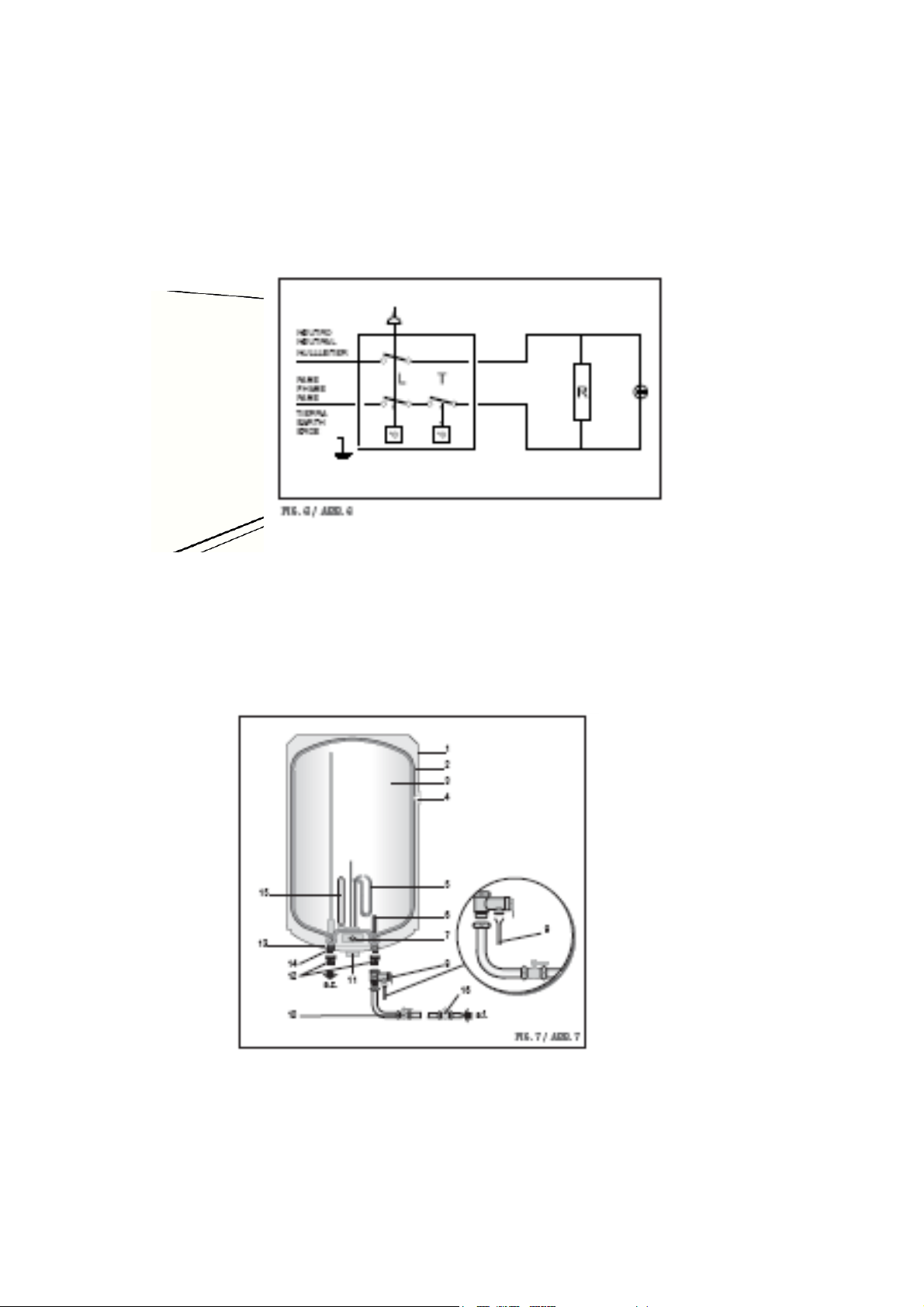

Make sure that the electrical installation has the regulatory differential switch (fig.6, page
14).
The power cable is of the type H05 V V F 3 x 1 mm white
1.8. Coming on line
Fill the thermo with water, opening the cold water stopcock and the hot water taps. When
water comes out of the latter, close them, starting with the lowest (bidet) and finishing with
the highest (shower). In this way the air shall be eliminated from the thermo and the piping.
Connect the thermo connecting the pin. The pilot lamp (pos.7, figs. 7, page 22) on means
that the water is being heated up; if off, this means that all the hot water is at the
temperature selected in the regulation thermostat (pos.11, figs 7, pages 22).
1.9. Conservation
It is vital that the Technical Assistance Service (SAT) annually revises its thermo to
eliminate the lime deposited in the heating element (pos.5, figs. 7, page 22) and check the
status of the magnesium anode (pos.5, figs. 7, page 22). If the water in your area is very
hard and corrosive you should ask for more frequent revisions.
If the magnesium anode of your thermo is very worn, the SAT shall replace it with a new
one.
Don’t forget to regularly operate the pressure valve so as to prevent it from blocking using
lever no. 1, a safety valve device for emptying water from the thermo (page 4).
To clean the exterior of the thermo you should use a damp cloth with soapy water. Do not
use abrasive products or those which contain dissolvents (for example, alcohol).
For safety reasons, COINTRA GODESIA, S.A is not responsible for using any other
elements which are not of origin and installed by your Technical Assistance Service.
1.10. Thermostat adjustable from the exterior
The exterior temperature regulating thermostat is situated inside the thermo
To increase the temperature of the accumulated water, turn the control clockwise and
anticlockwise to reduce it.
5
